The LED music controllers are enclosed in an aluminum housing for better heat dissipation. It works on DC12V or DC24V and adopts the advanced micro control unit, used for controlling a variety of LED lights. It has three output channels designed, with a max output of each channel up to 4A, and a max loading power of up to 288W when working in DC24V. It adopts the conventional power transposon as a DC power input interface, a microphone, and standard 3.5 mm headphone ports for signal input. With the 18-key RF remote control included, you can adjust the brightness, static color choices, and various dynamic changes in lighting effects through wireless remote control. All static modes are adjustable. Press the color button once, and the brightness changes one level in a circle, 5 levels in total. S+/S- means speed adjust key for the dynamic functions and sensitivity adjust key for the music functions. There are three music modes available: sound control I(FT): fast track; sound control II(MT): my track; sound control III(CT): cool track. The different buttons are for various music and other modes.
Specifications:
- Model: HX-RFL18A-AUDIO
- Working temperature: -20-60℃

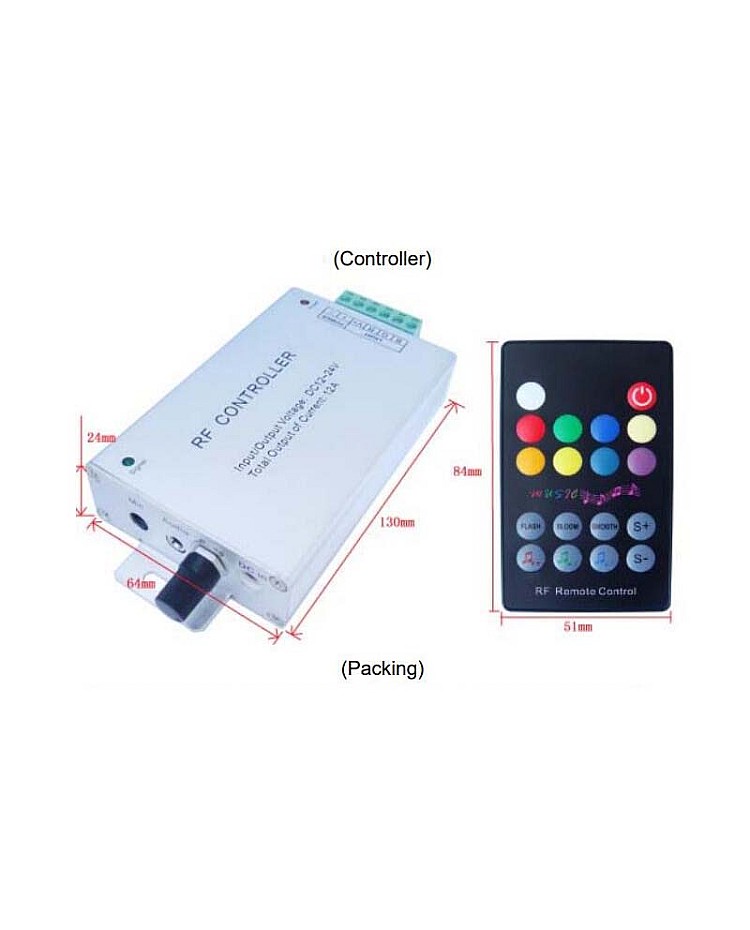

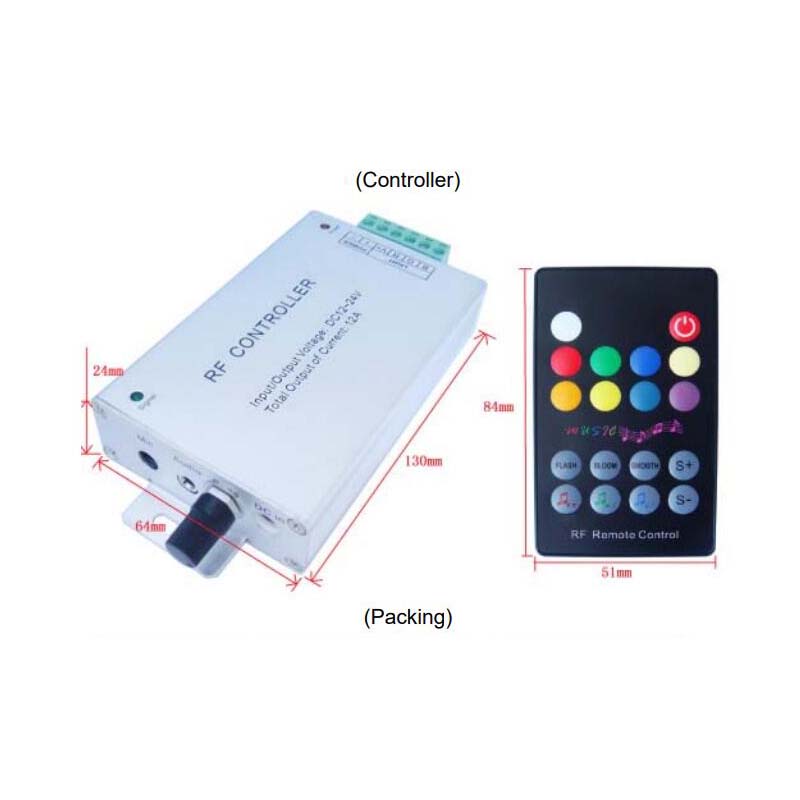

- Size: 130mm*64mm*24mm(L*W*H)
- Connecting Mode: Common Anode
- Working voltage: DC12V-DC24V
- Output Channels: 3
- Max Output Current: <4A(Each Channel)
- Power: DC12V:≤144W 24V:≤288W
- Static power consumption: <1W
- 18 Keys RF Remote Control Included

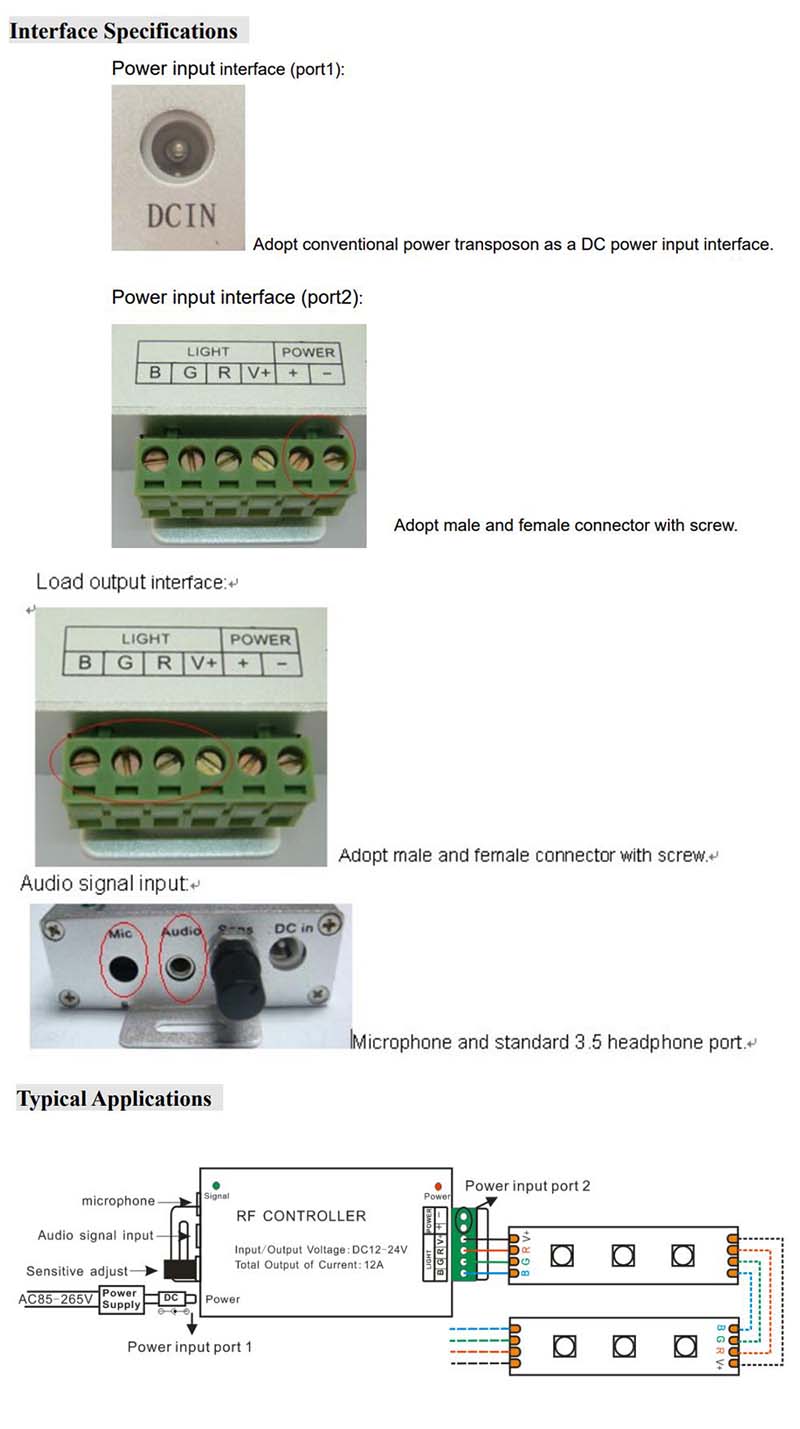

- Adopts Conventional Power Transposon As A DC Power Input Interface
- Adopts Male And Female Connectors With Screws
- Adopts Microphone And Standard 3.5 mm Headphone Port
- 9 Static Colors, 3 Dynamic Modes, And 3 Music Modes Available
- Weight: 215g
Package:
1 * LED Music Controller
