In Stock
$11.60 $9.99 Sale -14% OFF
Reward Points: 10
-
+
  • Brand: Ledbe
  • Product Code: TY-5050-M005

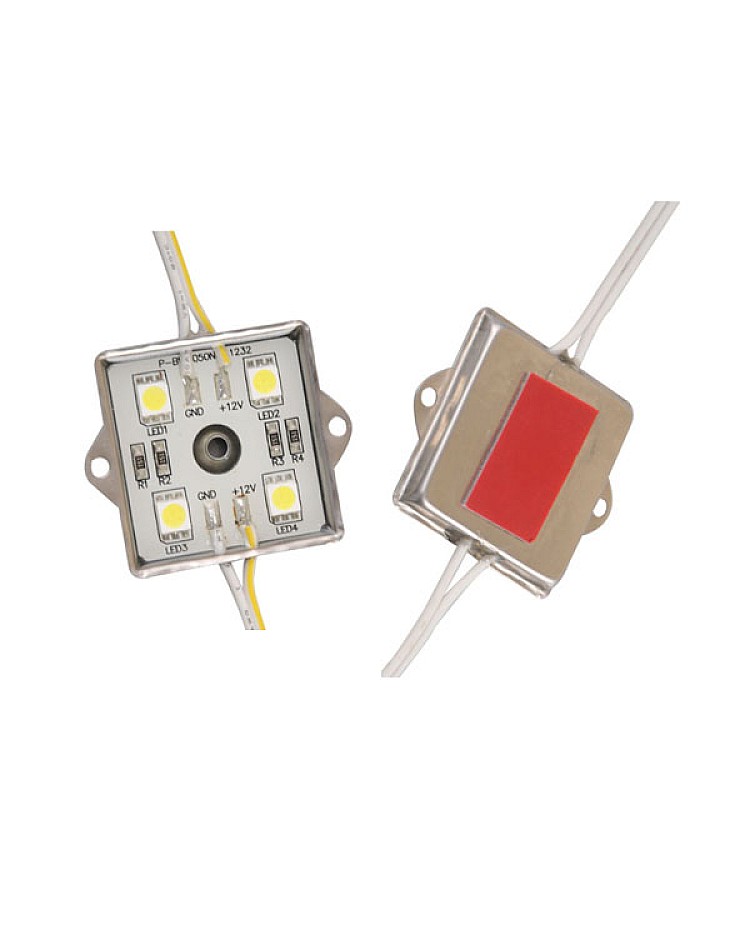

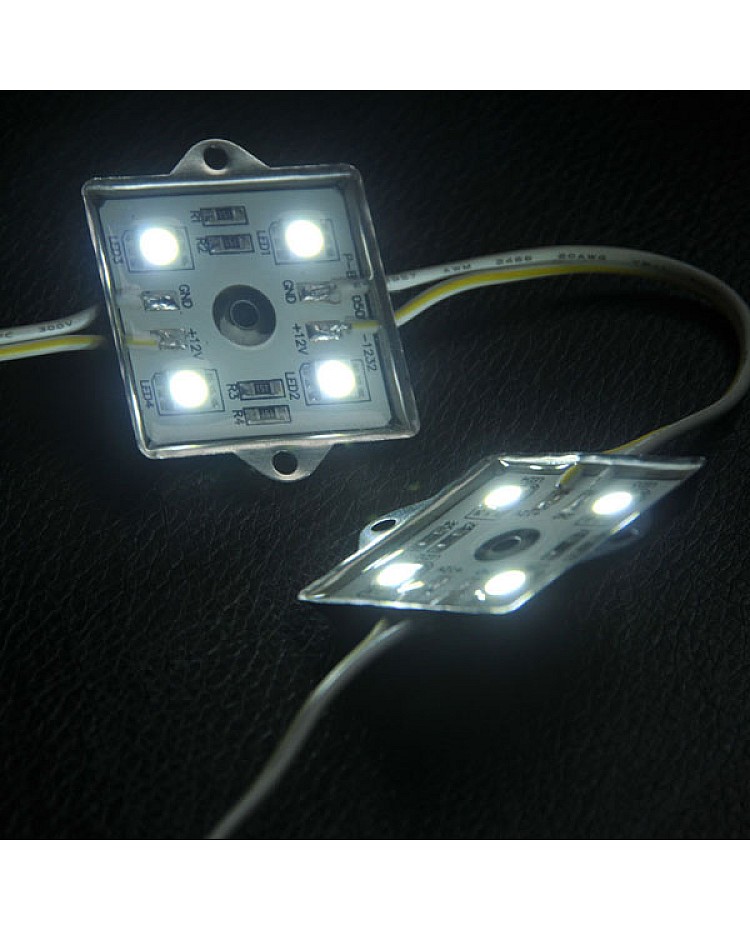

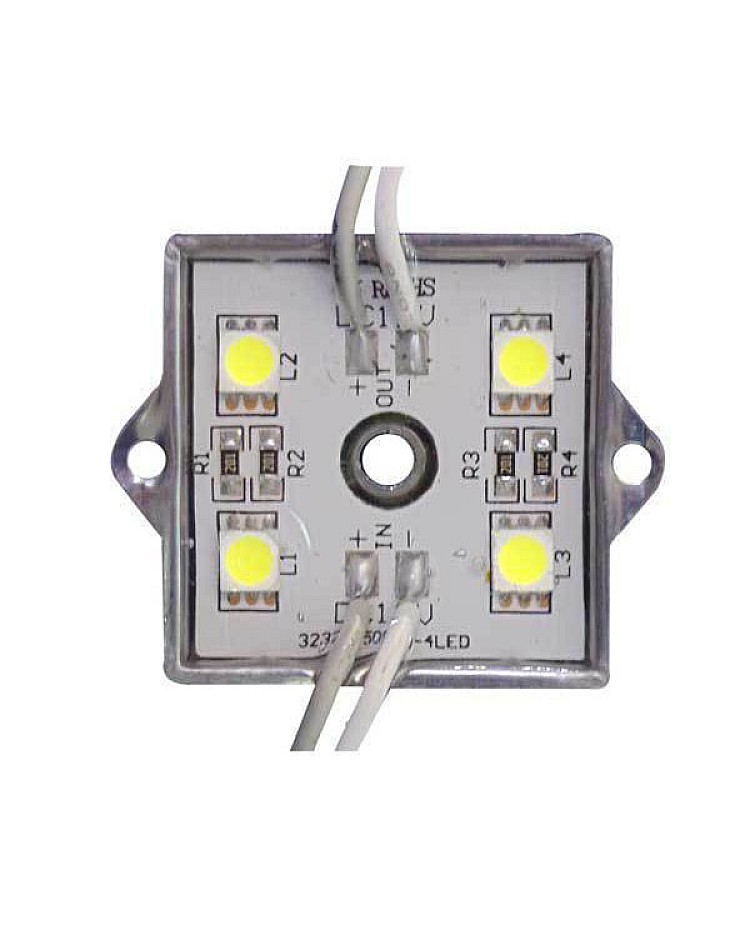

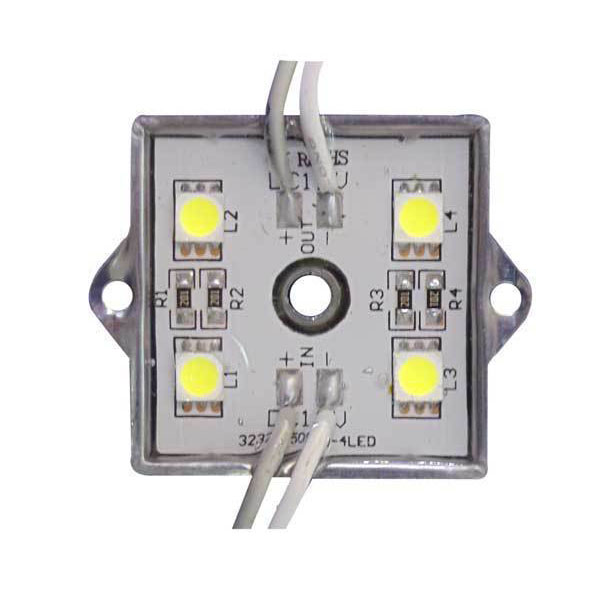

Check the Waterproof SMD 5050 LED Modules, with the super-slim square shape and metal base, uses 4PCS high-quality and super bright SMD LEDs as the light source, the LEDs mounted on the aluminum board and on the metal shell for the better heat dissipation, the surface with epoxy sealed, the IP rating is IP65, can be used for indoor and outdoor applications. the Waterproof 5050 LED Modules are 20PCS per string, the back with double side adhesive tape and the center of the metal shell with screw hole, easy to stick on the place you want to install and fix with the screws. you can cut any quantity and reconnect them for your lighting projects. working in DC12V, easy to connect to the 12VDC LED Transformer to light up or connect to the LED Module Dimmers to adjust the brightness. the SMD LED Modules can be widely used for holiday decorations, backlight for signs, channel letters, billboards, etc.


Features:

  • Item NO: TY-5050-M005
  • Manufacturer: TYoung
  • Size: 35*35mm(L*W)
  • Color: Red/Yellow/Blue/Green/ Cool White/Warm White
  • Color Temperature: Warm White(2700K-3200K), Cool White(9000-12000K), Red(620-625nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
  • Luminous Flux/PC: White(80-88lm), Red(26lm), Green(50lm), Blue(16lm), Yellow(20lm)
  • LED: 5050 SMD LEDs
  • LED Quantity: 4pcs
  • Voltage: DC12V
  • Power: 0.96W/PC
  • IP Rating: IP65
  • Luminous Flux: 55-65lm/PC
  • MCD/LED: 1300-1500
  • Beam Angle: 120°
  • Cuttable And Reconnectable
  • 20PCS Per String
  • Dimmable: YES
  • Back With Double Side Adhesive Tape
  • The Center Of Metal Shell With Screw Hole
  • Weight: 0.3kg
  • 2 Years Warranty
  • Lifespan: >50,000 Hours


Applications:

Outdoor/Indoor Use,Cove Lighting

Path and contour lighting

Backlight for signage/ letters

Architectural lights for Canopy, Corridor, Window, Archway

DIY Lights for home use

Marine light, Task lighting

Replacement of Fluorescent light

Decorative lights for holiday, event, show, exhibition



Package:

1*SMD 5050 LED Module(20PCS/String)

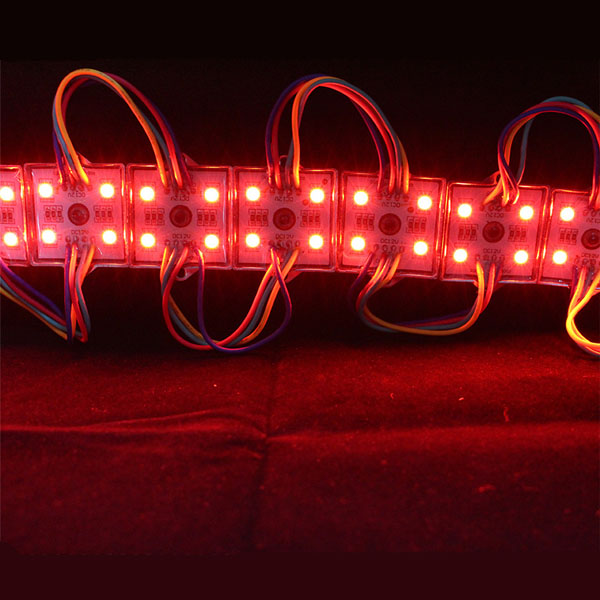

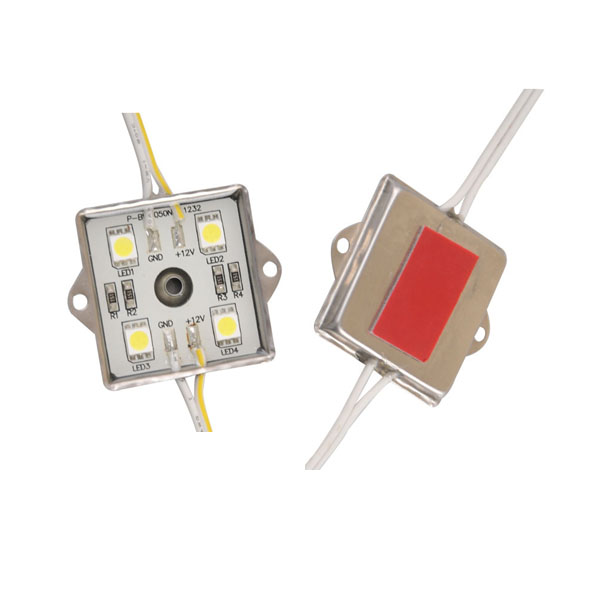

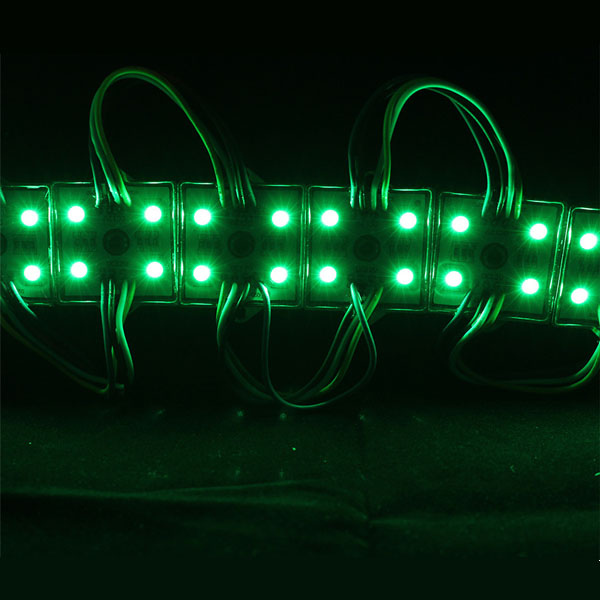

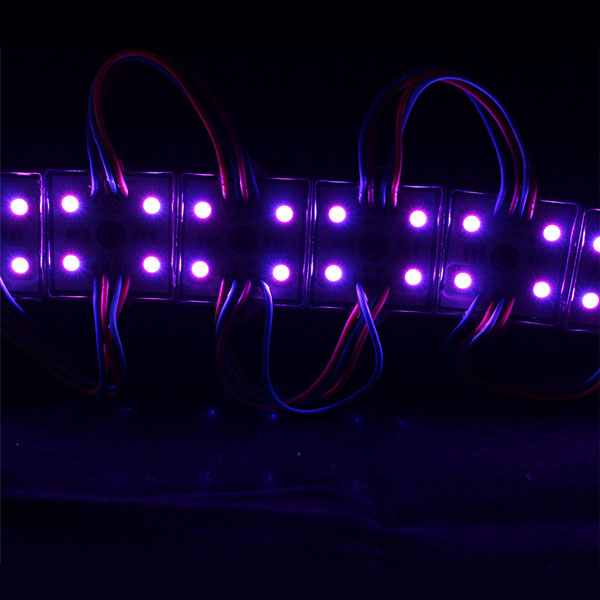

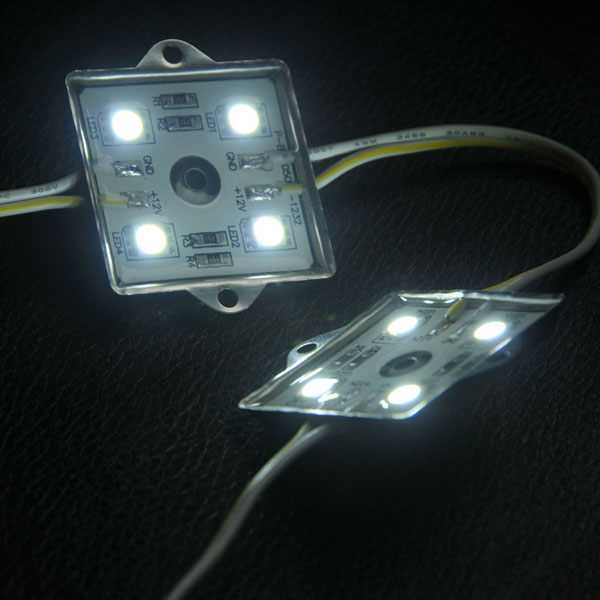

SMD 5050 Module Light SMD 5050 LED Module String SMD RGB 5050 LED Module Waterproof RGB 5050 LED Module RGB 5050 LED Module String
