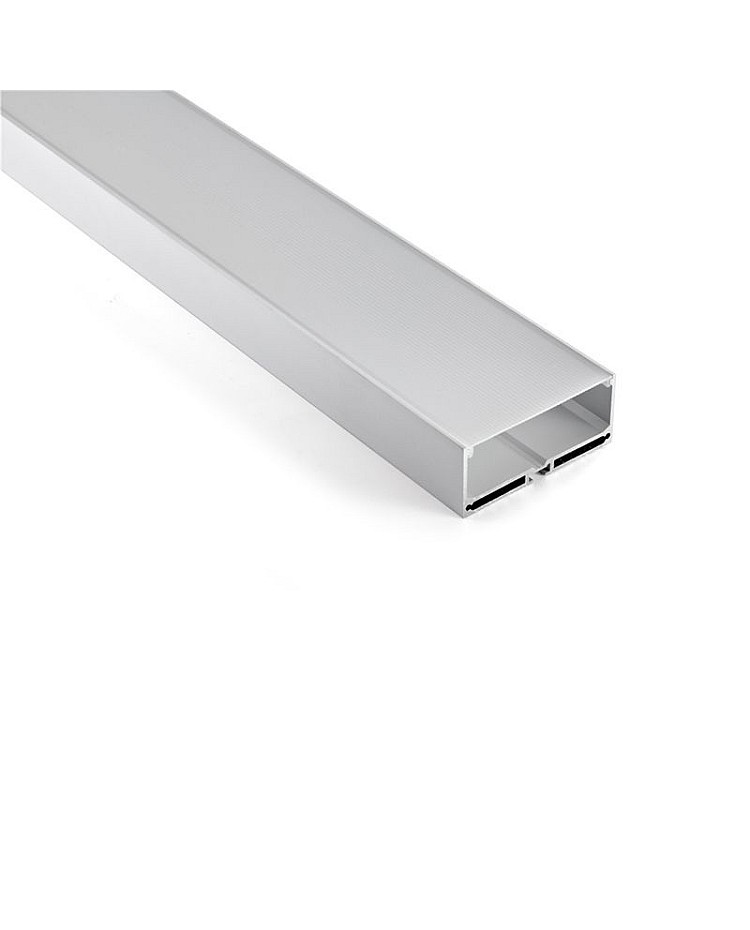

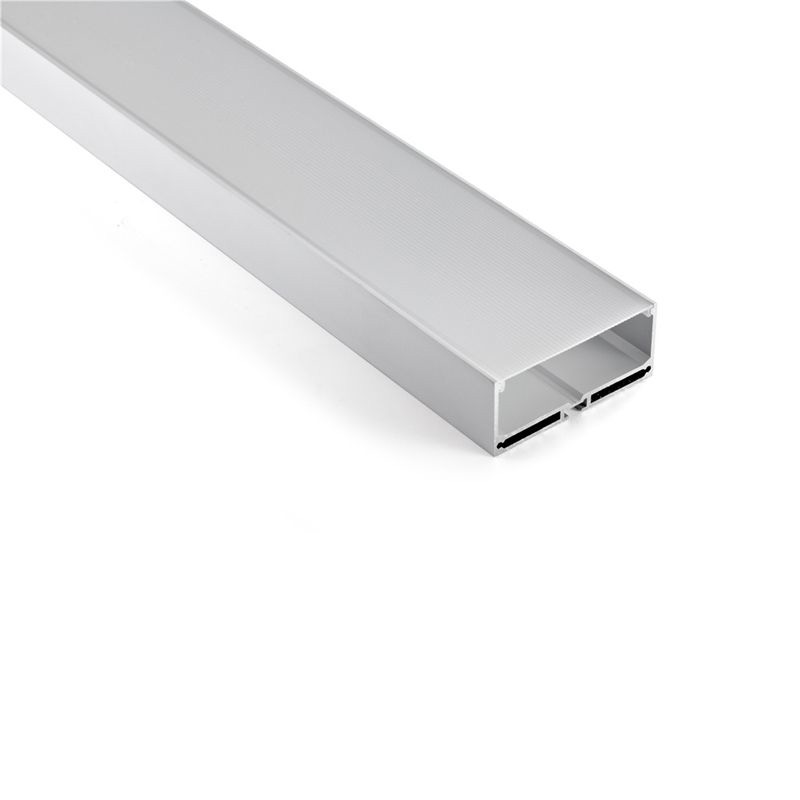

The 75*32mm LED strip light channel diffuser for the Large DIY pendant LED light project's inner width is 64mm, and is compatible with 5630 and 5730 LED strip lights in multiple rows as the light source. You can easily install the LED strips on the aluminum light channels, remove the protector on the back of the LED strips, and stick them on. Easy to install and use, aluminium LED diffuser profiles can serve as heat sinks for improved heat dissipation. The end caps have wire holes to enable connection to the LED light dimmer or LED strip controller to adjust brightness or color-changing style. Made of 6063-T5 aluminum alloy with silver anodized surface treatment, offering a longer lifespan than similar products. The default length is 1 meter per piece; you can also choose 1.5 meters or 2 meters. The maximum length is 3 meters, and it can be cut to any size you want. There are three light strip diffusers available: opal matte, PC semi-clear, or PC clear. The diffusers are made of high-quality materials with stable colorfastness and perfect light distribution. The LED strip channel and diffuser are ideal for modern office design, schools, stores, shopping centers, hospitals, etc.
Specifications:
- Material: Aluminium Alloy 6063-T5
- Surface Treatment: Silver Anodized
- Model: ALP048
- Color: Silver, White, Black

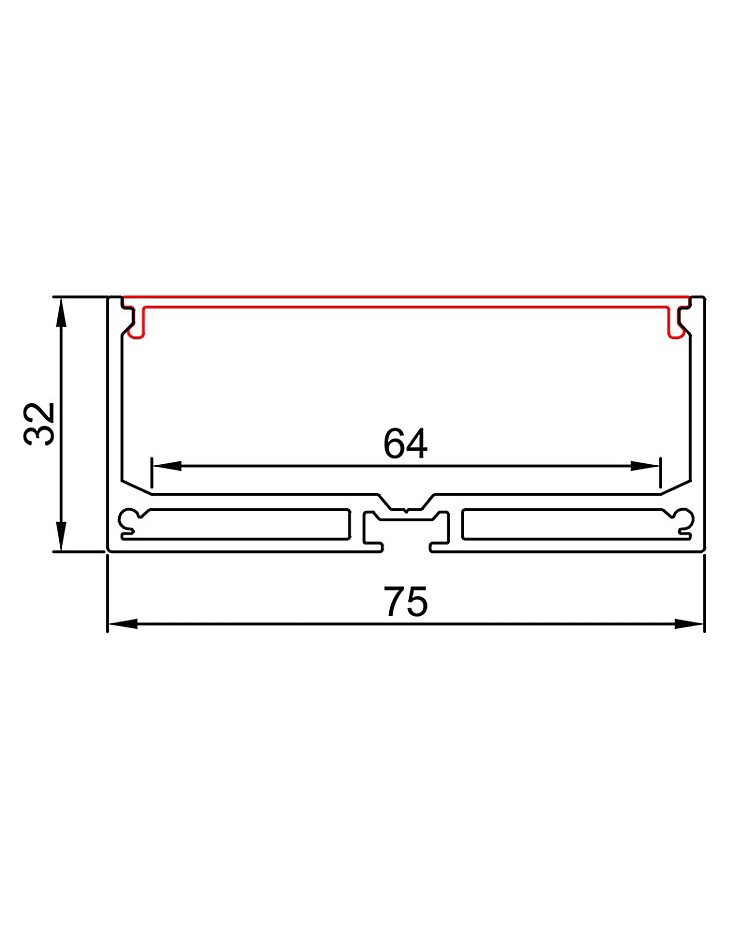

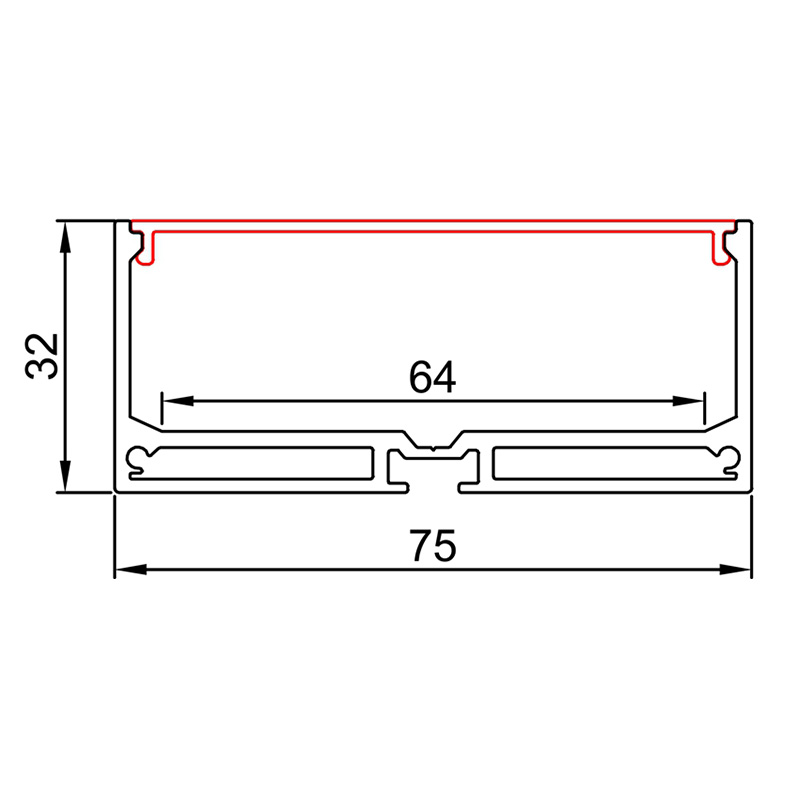

- Size: 75*32mm
- Diffusers: PC Opal Matte Diffuser, PC Semi-clear Diffuser, PC Clear Diffuser
- Default Length: 1Meter
- Other Length Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter
- Custom Length Available: YES
- Inner Width: 64mm
- Recommended LED Strips: 5630, 5730 LED Strip Light In Multi Rows
- Max Power: <45W/Meter

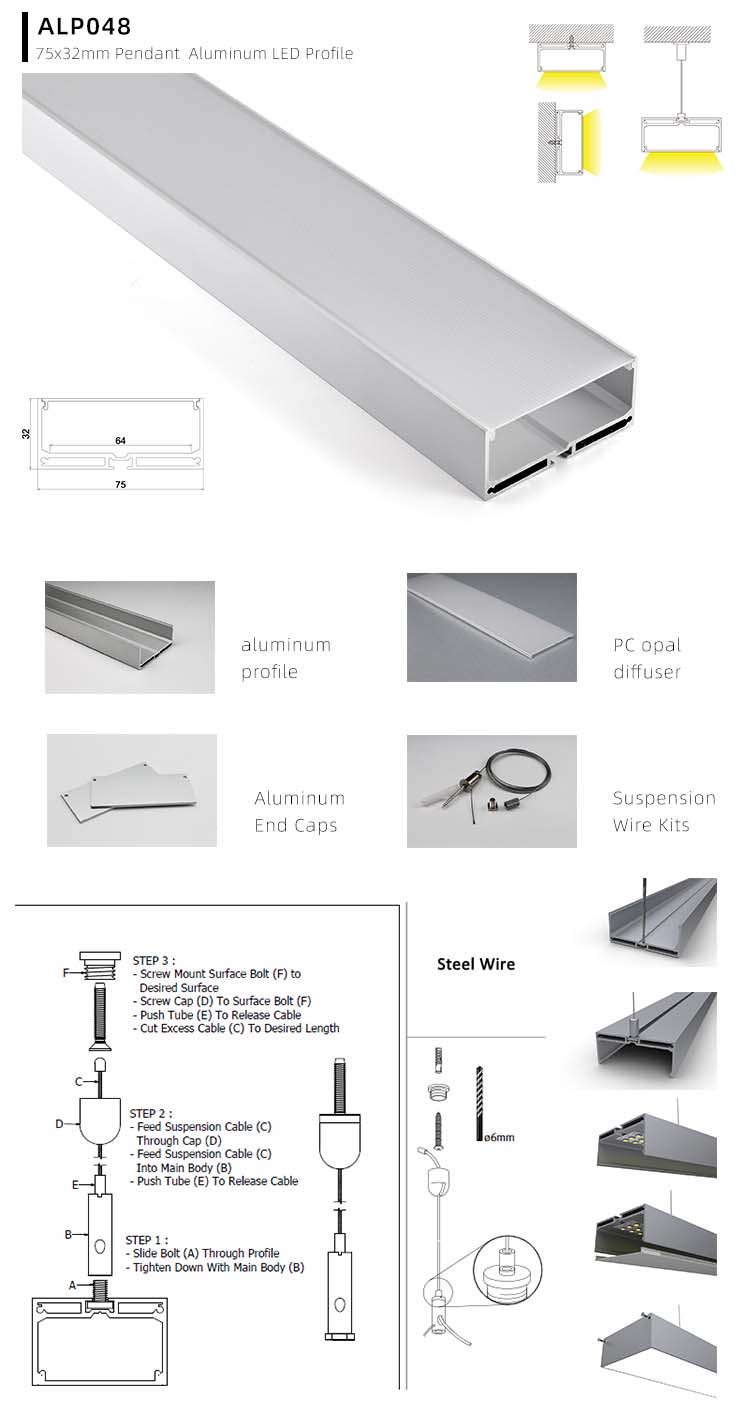

- End Caps And Suspension Wire Kits Included

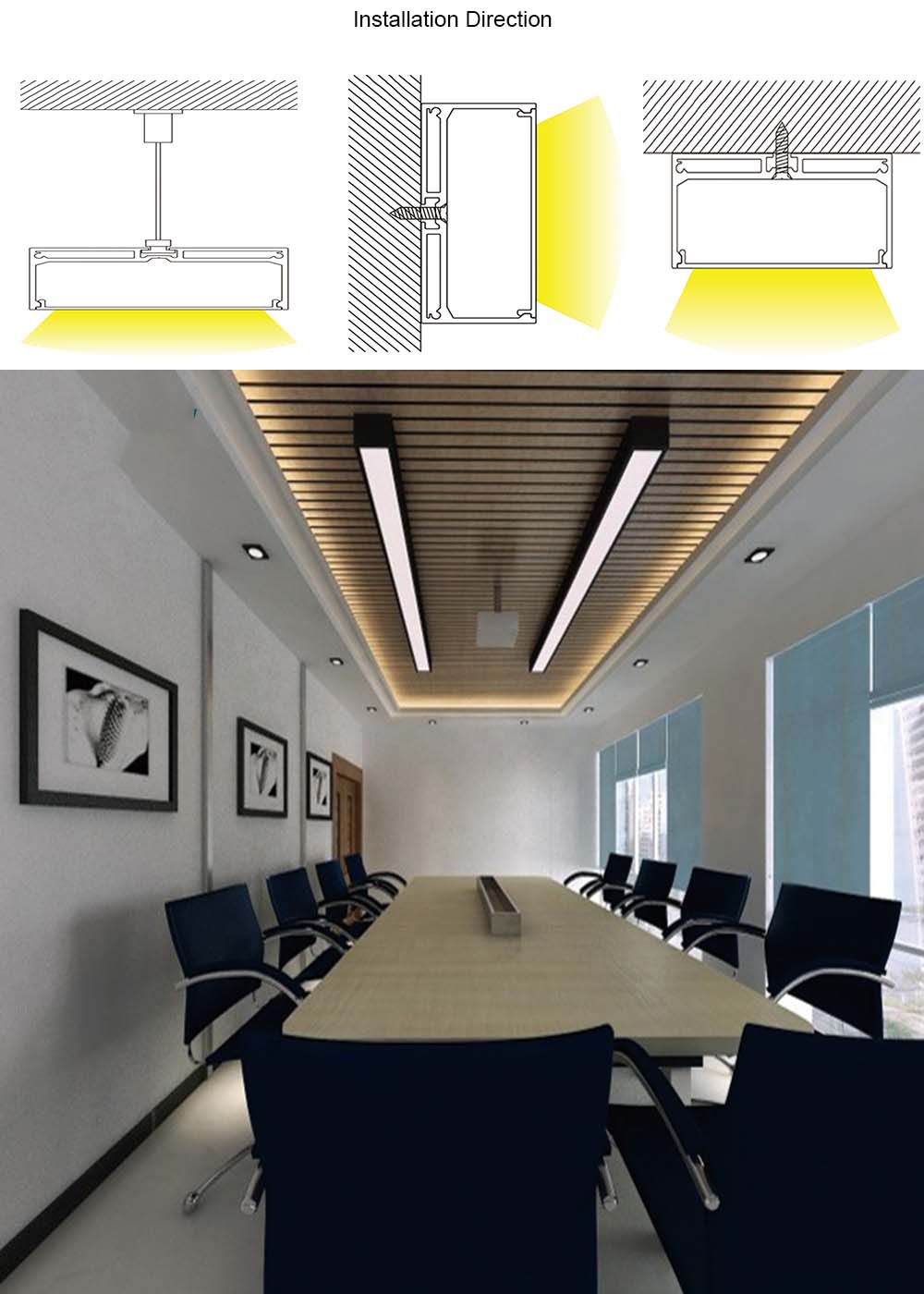

- Installation: Pendant Mounted / Surface Mounted

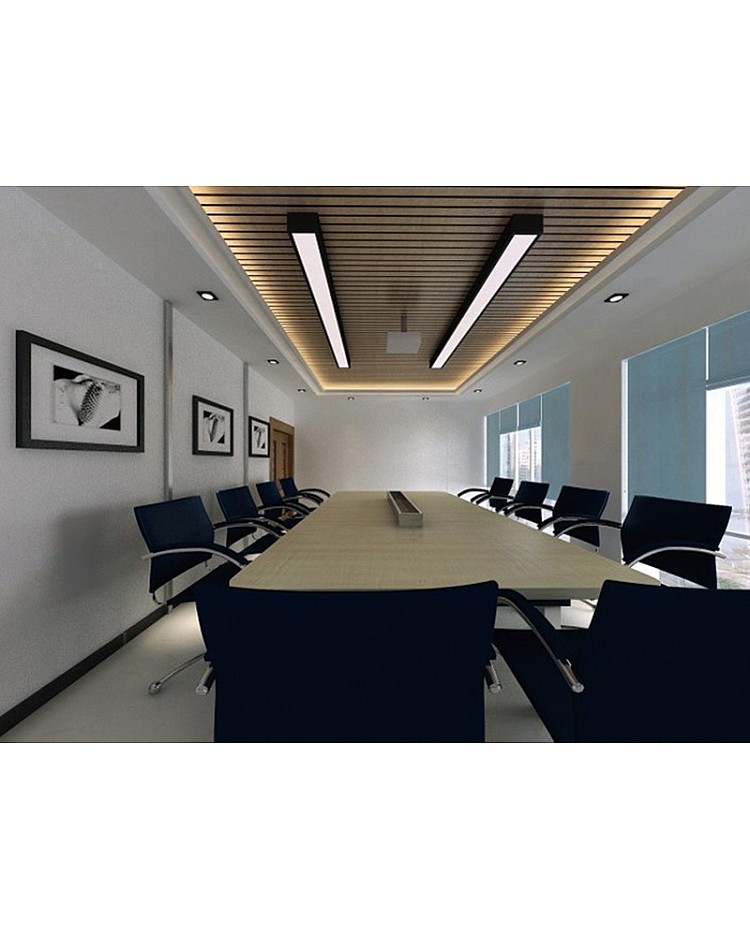

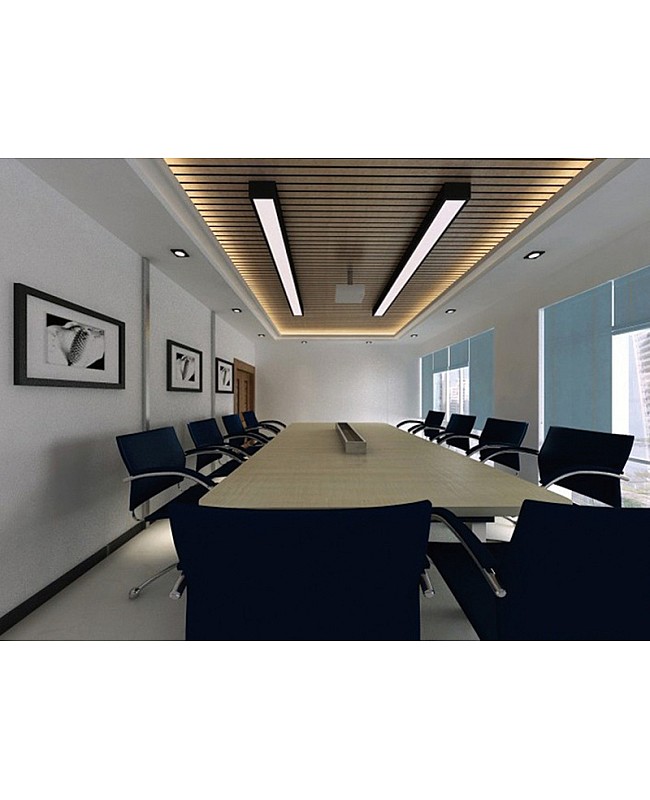

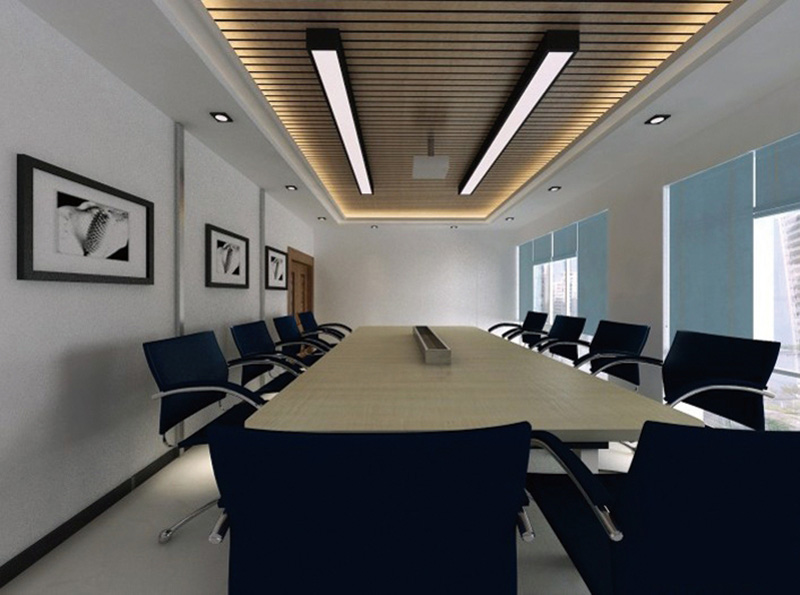

- Applications: Office Lighting, Shop, Retail, Hotel, etc
- 5 Years Warranty
Includes:
1 * LED Strip Light Channel Diffuser

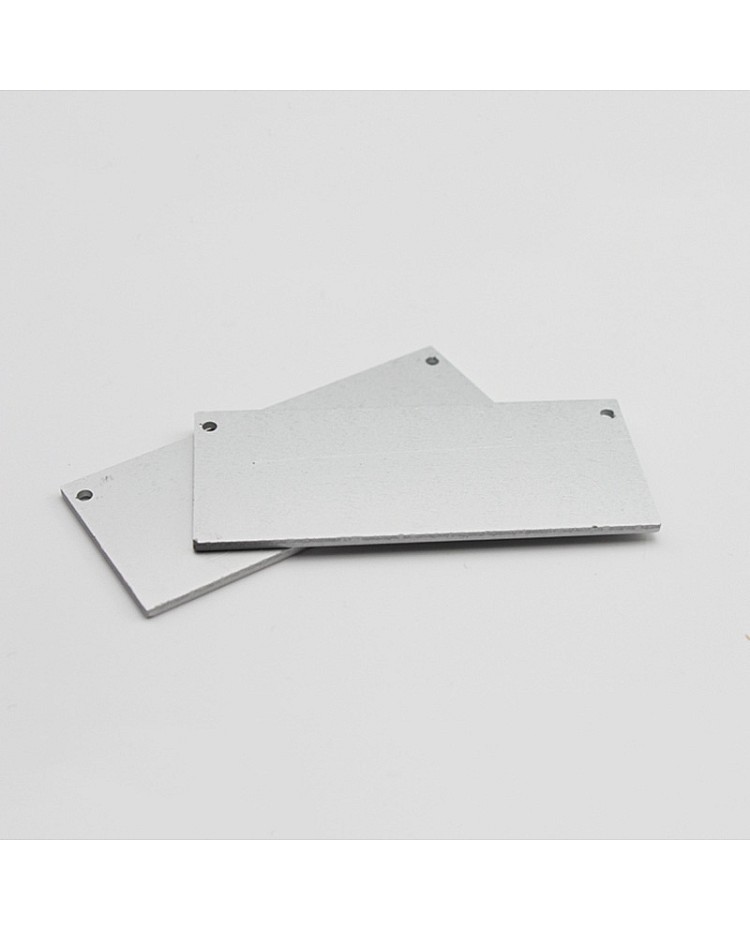

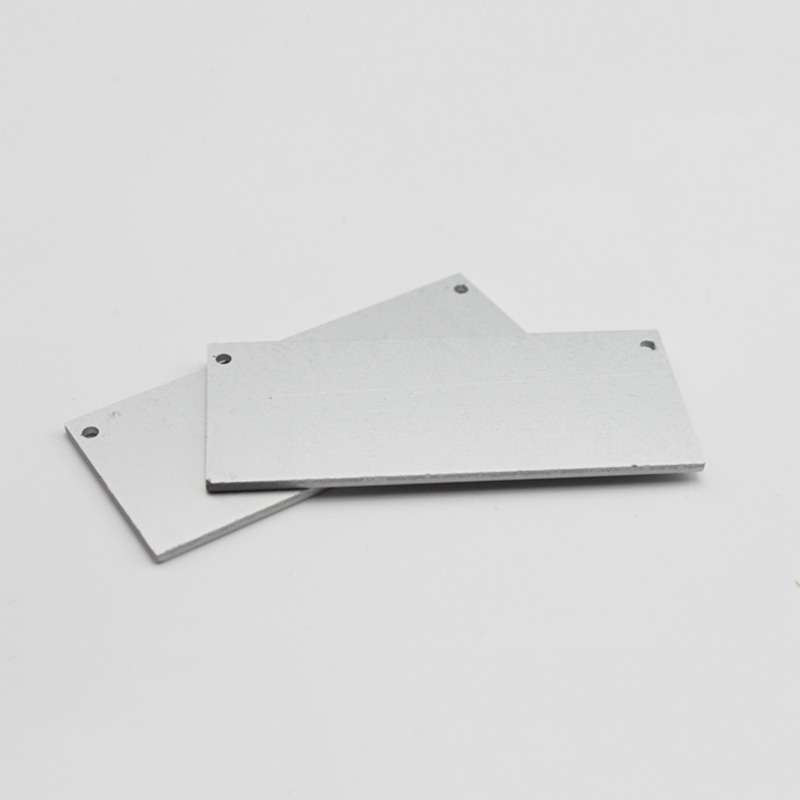

End Caps(With / Without Wire Hole)

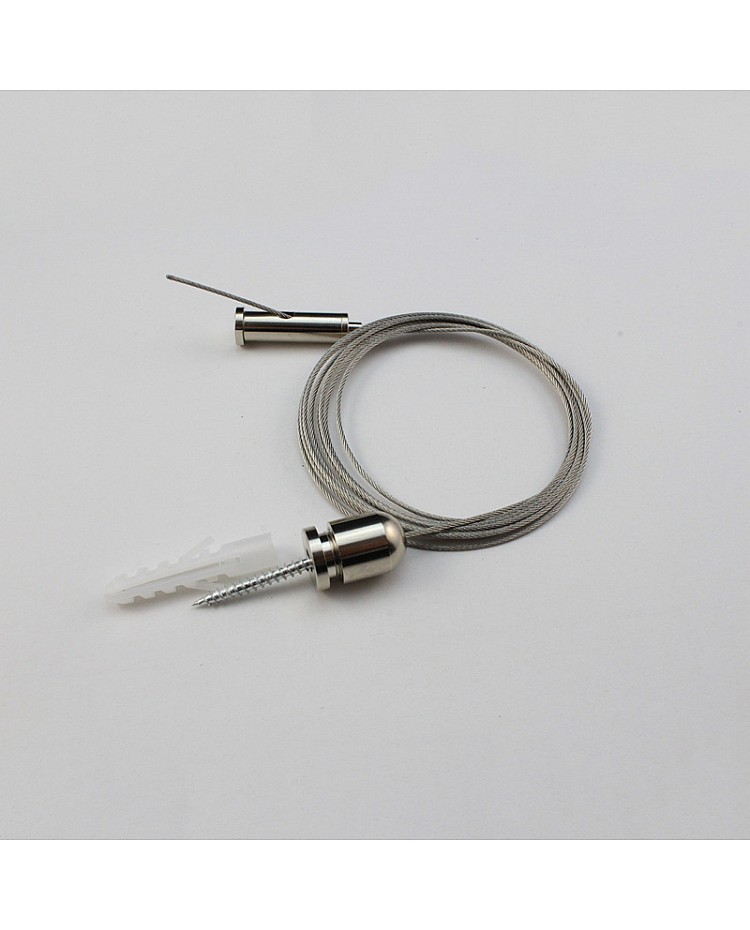

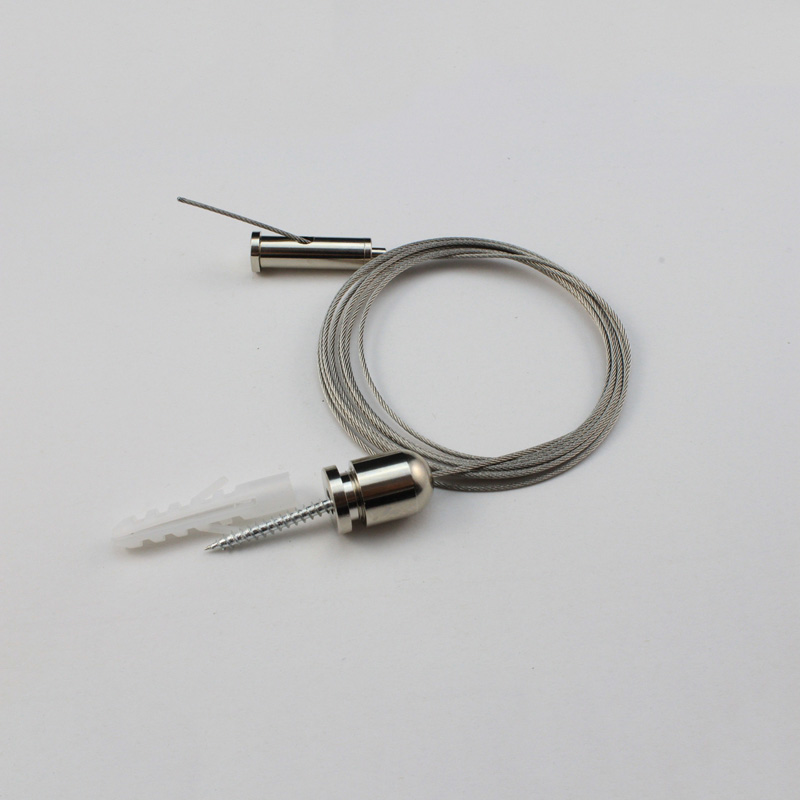

Suspension Wire Kits
