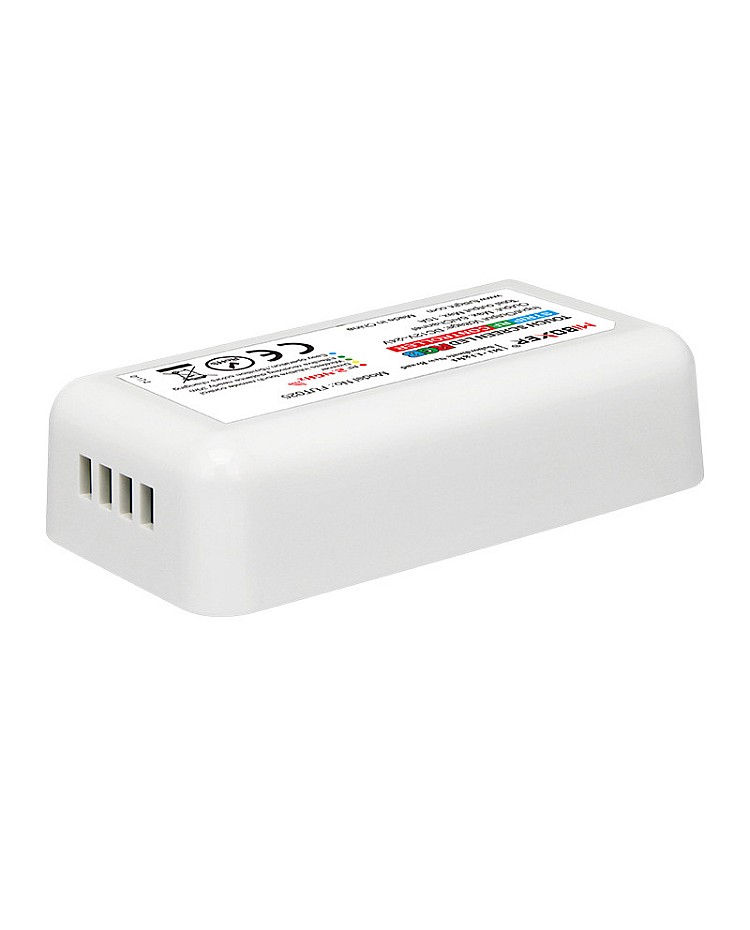

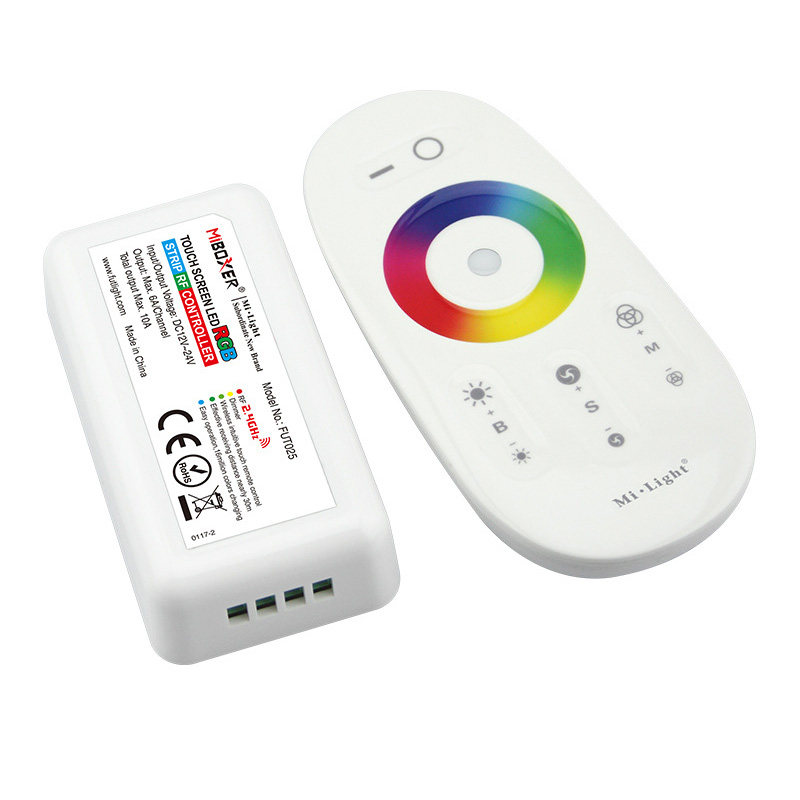

The MiBoxer FUT025 RGB controller adopts the most advanced PWM control technology. You can use them to control the RGB LED strips and modules, working on DC12V or DC24V, the input side with screw ports and DC port, easy to connect to the LED adapter, the output side with four screw ports and three output channels, easy to connect to the RGB lighting strips. You can use the remote to set 630 thousand colors and 20 dynamic working modes, and the brightness of static colors and speed of dynamic modes are adjustable. With the memory function, the previous settings will be resumed when power is on again. The MiBoxer RGB controller and remote have 2.4G signal wireless transmission technology, a control distance of up to 30 meters. The RF remote has simple and practical functions such as changing color and dimming brightness. The capacitive touch screen design makes the remote easy to use.
Quick Links:
MiBoxer FUT025 RGB Controller Manual

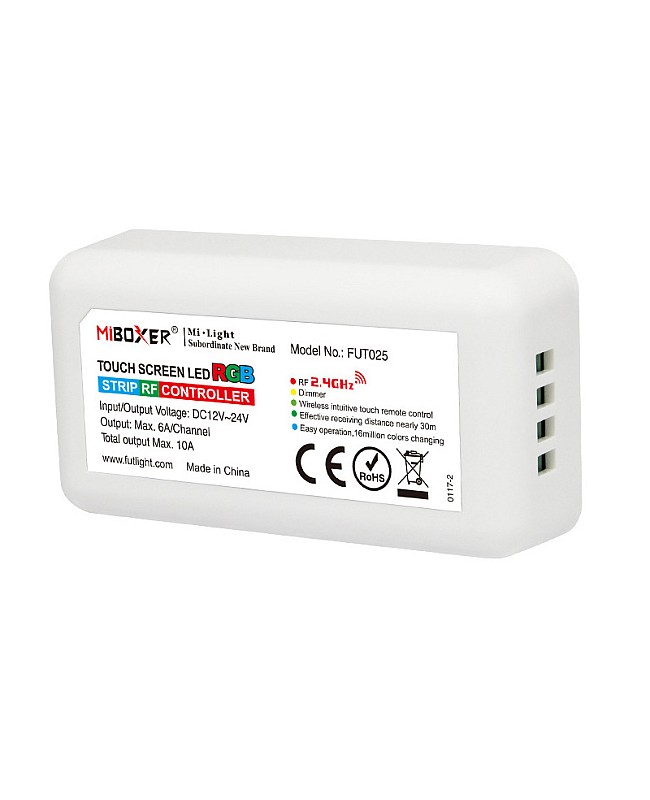

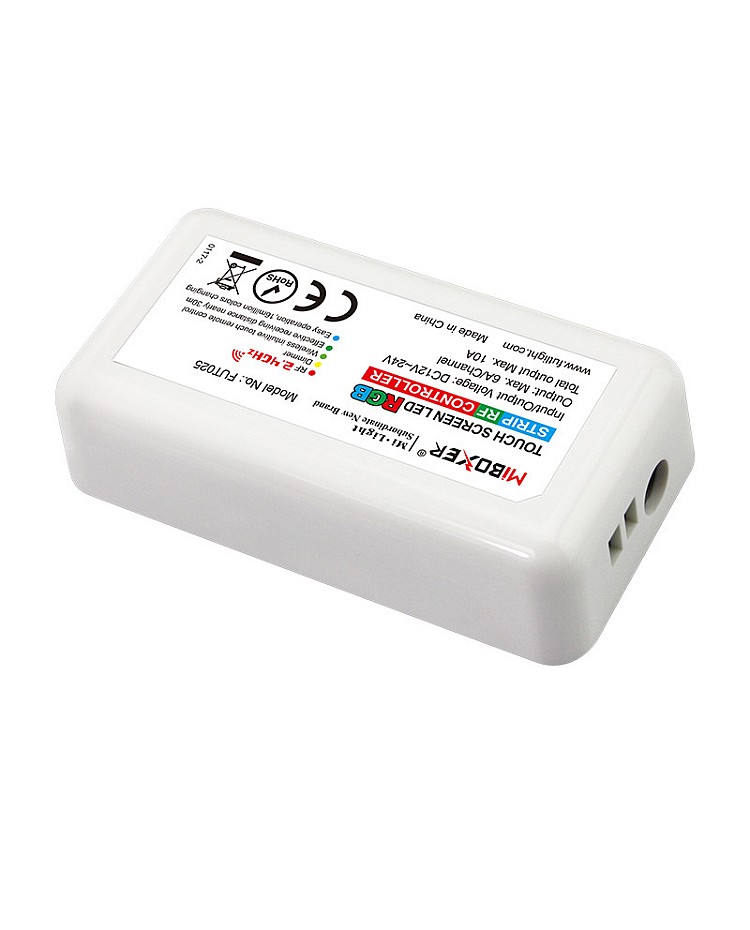

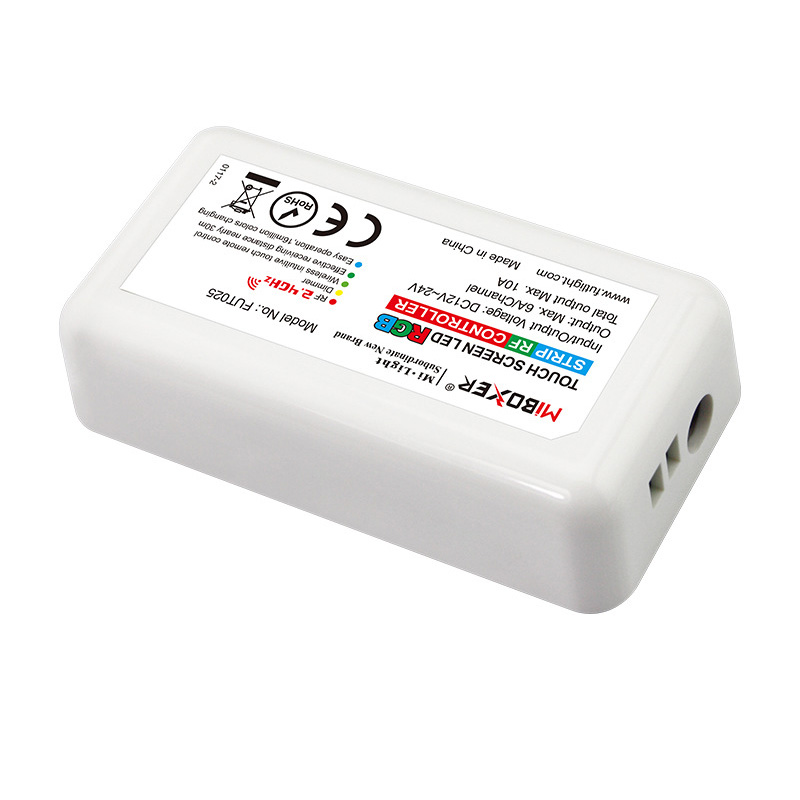

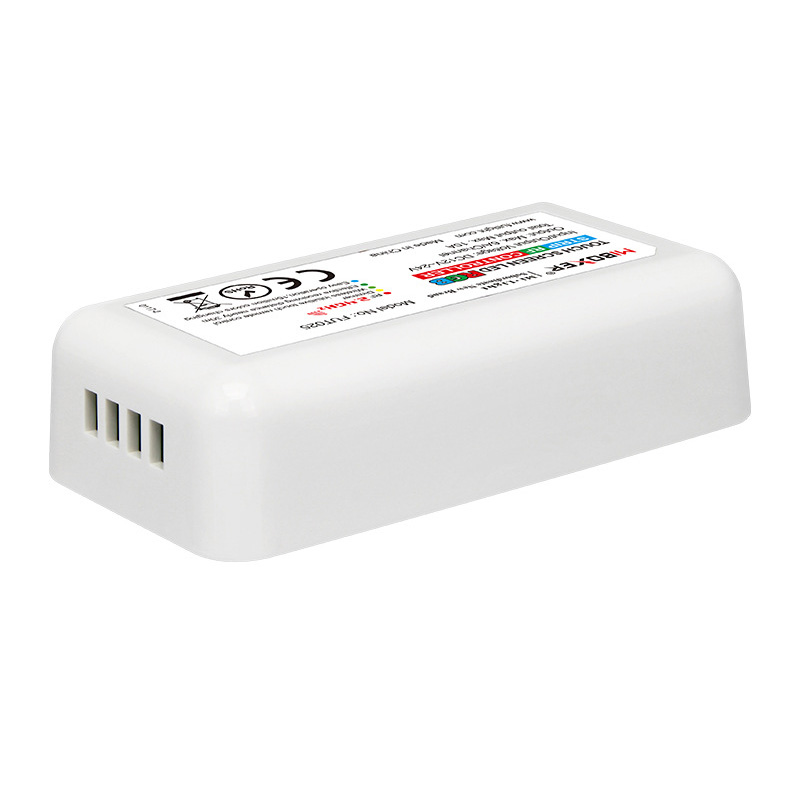

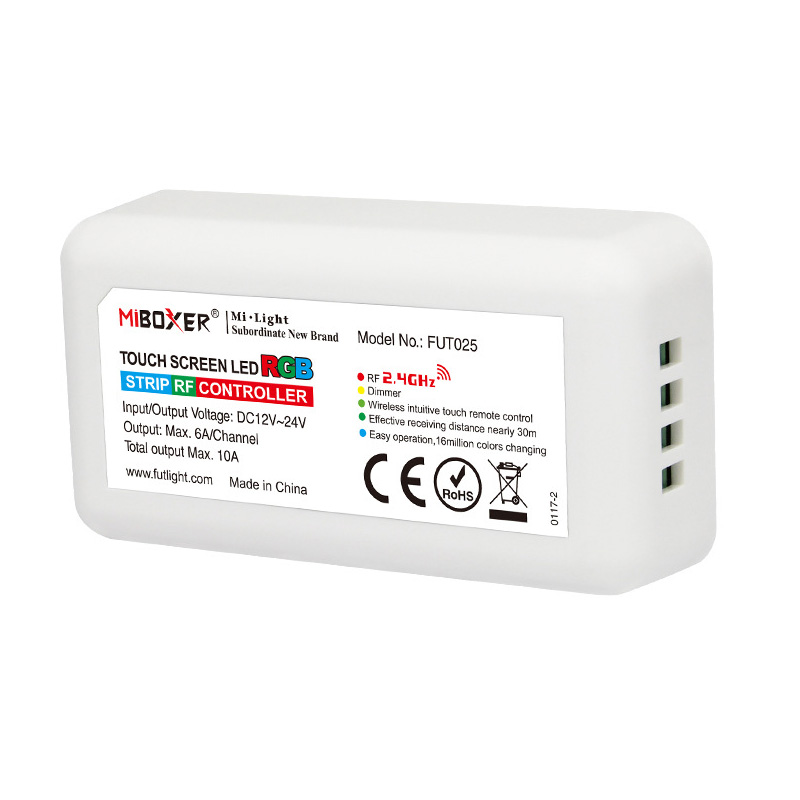

FUT025 RGB Controller Specifications:
- Size: 85*45*23mm(L*W*H)
- Working Voltage: DC12-24V
- Output Channels: R/G/B 3 Output Channels
- Max Load Per Channel: 6A
- Total Output Max: 10A
- Output Connection: Common Anode
- Control Distance: ≤30m
- 16 Million Colors And 20 Dynamic Working Modes Available
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- Memory Function: YES
- 2.4G Signal Wireless Transmission
- 2 Years Warranty

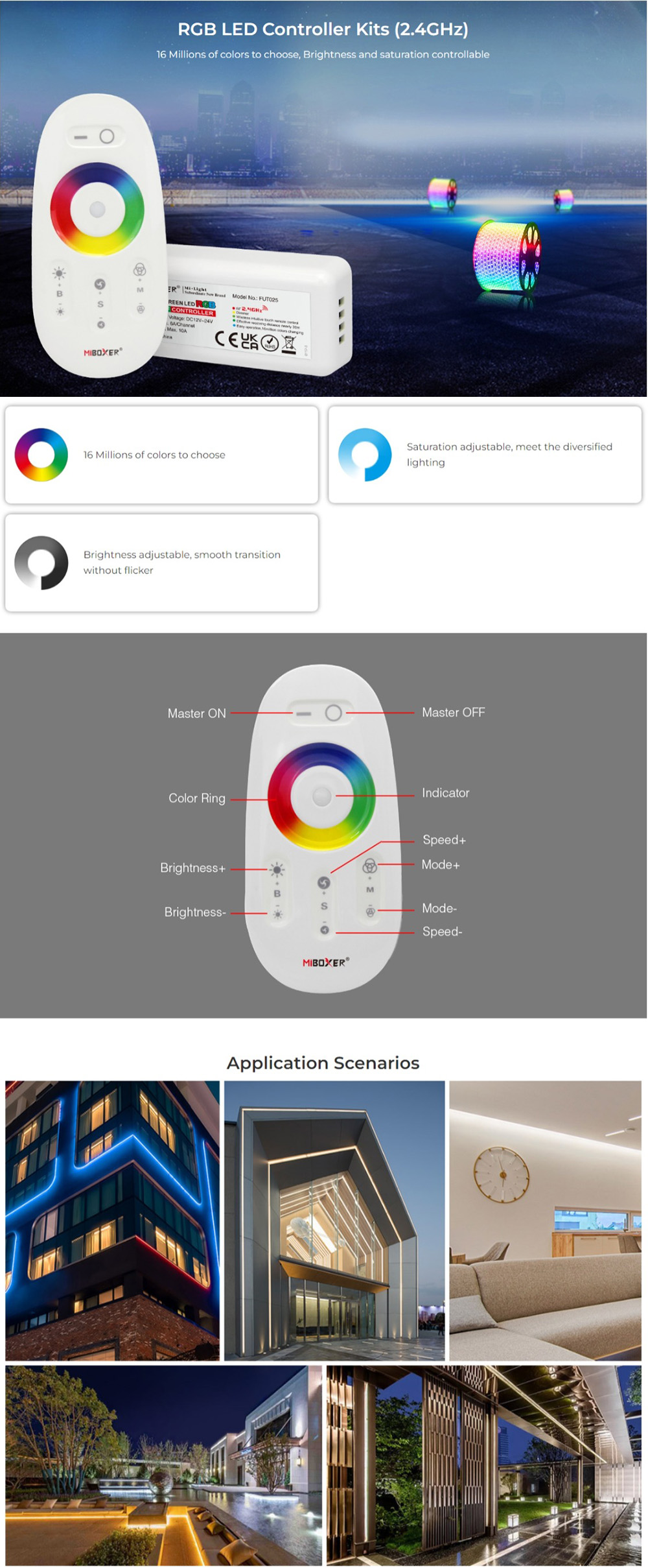

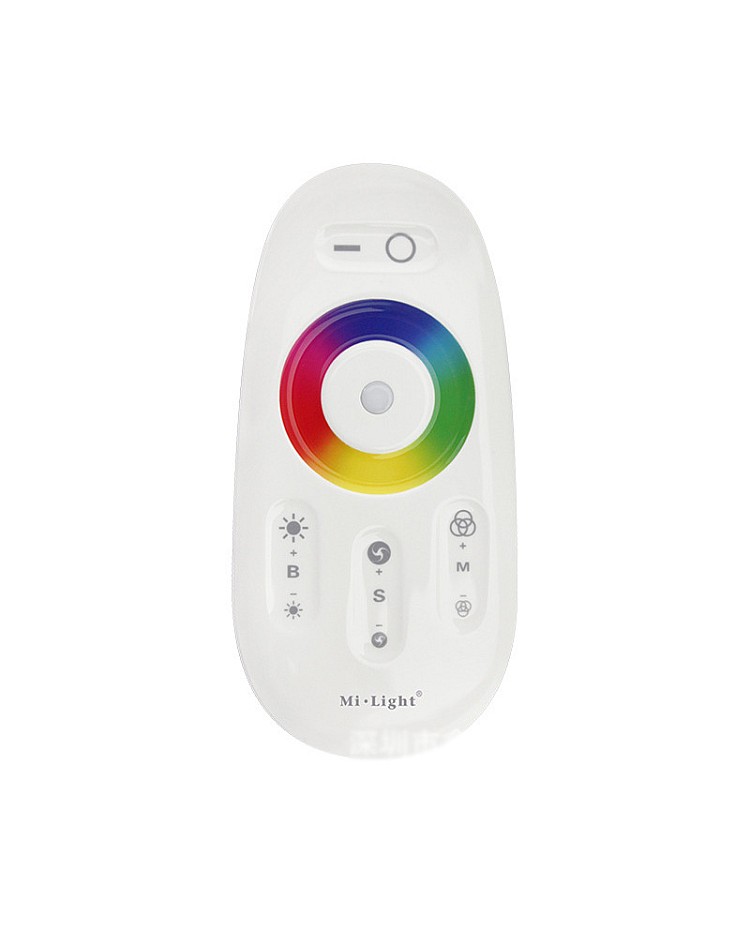

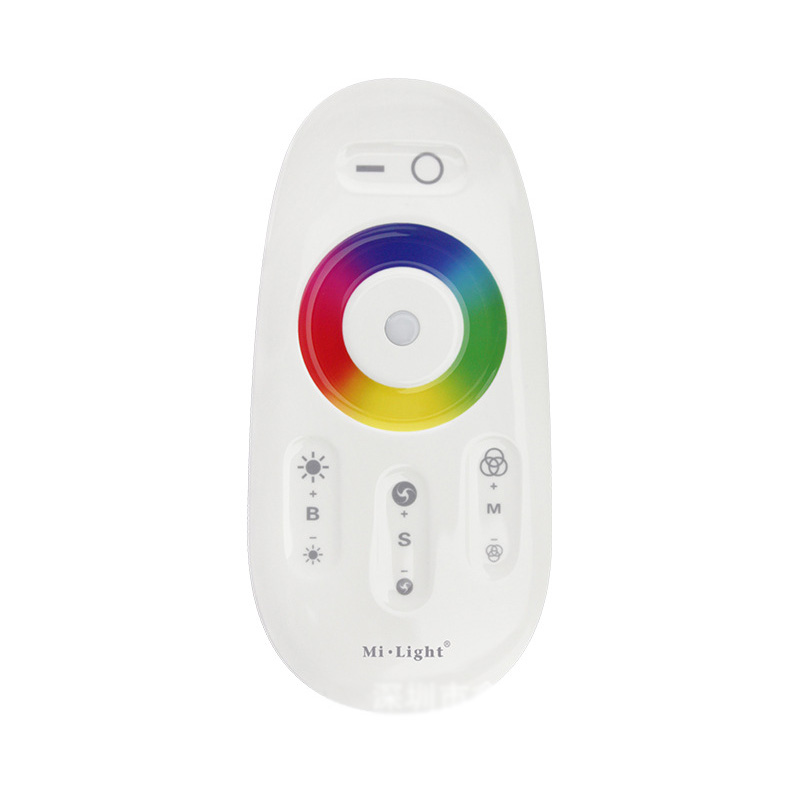

Touch Remote Specifications:
- Material: ABS
- Fabrication Processing: Multicolor Printing & UV Varnish
- Size: 110*52*20mm(L*W*H)
- Working Voltage: DC3V
- Powered By 2PCS AAA Batteries(Sold Separately)

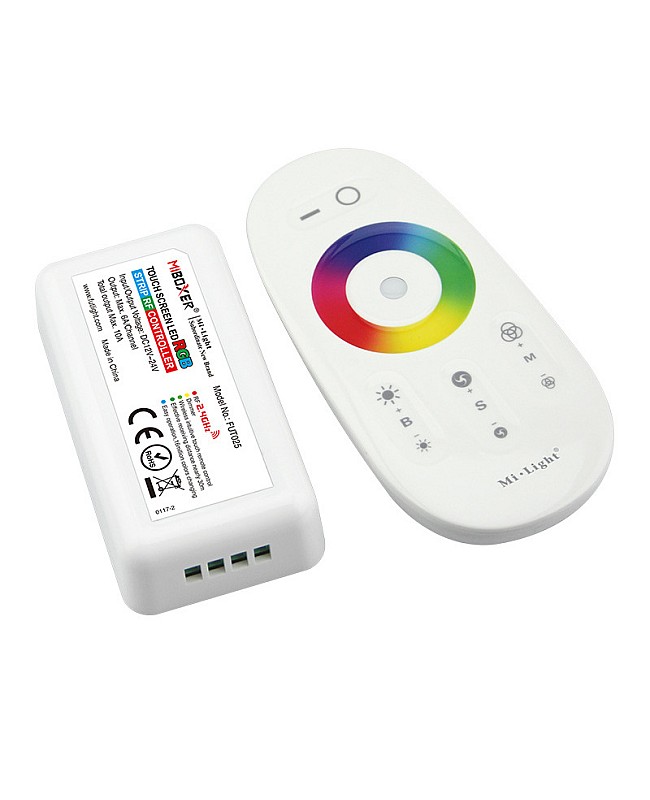

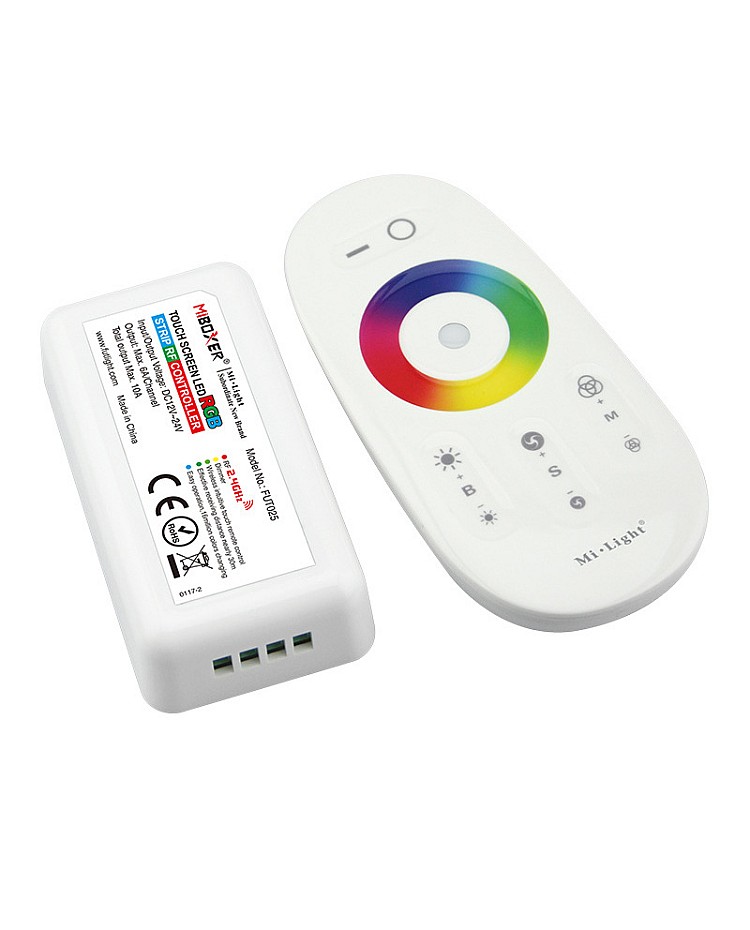

Includes:
1 * MiBoxer RGB Controller
1 * Touch Remote
1 * User Manual
