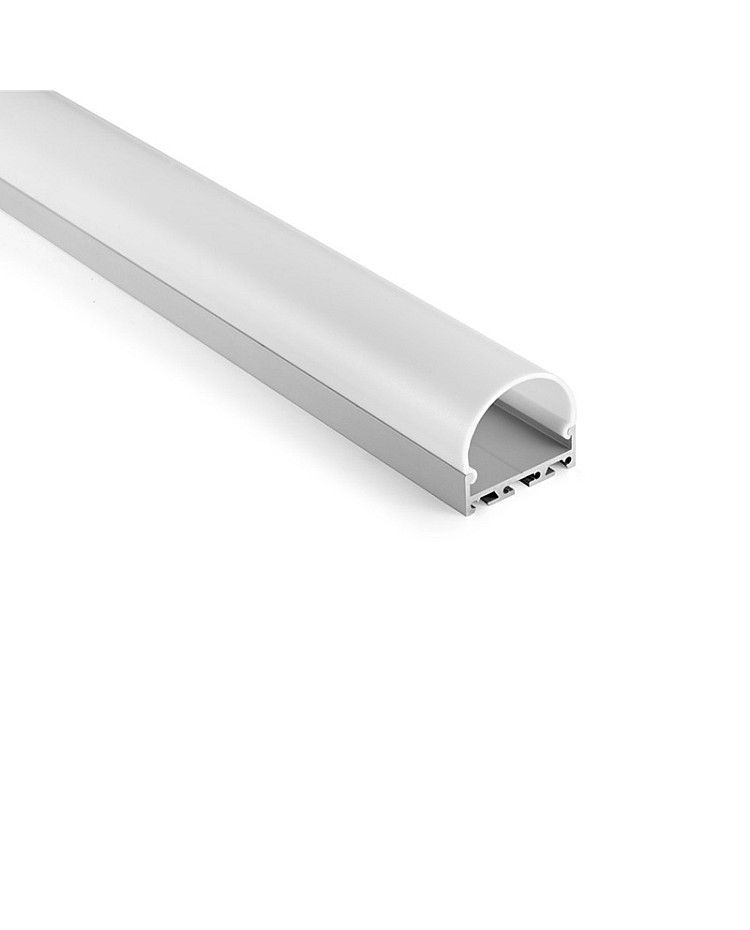

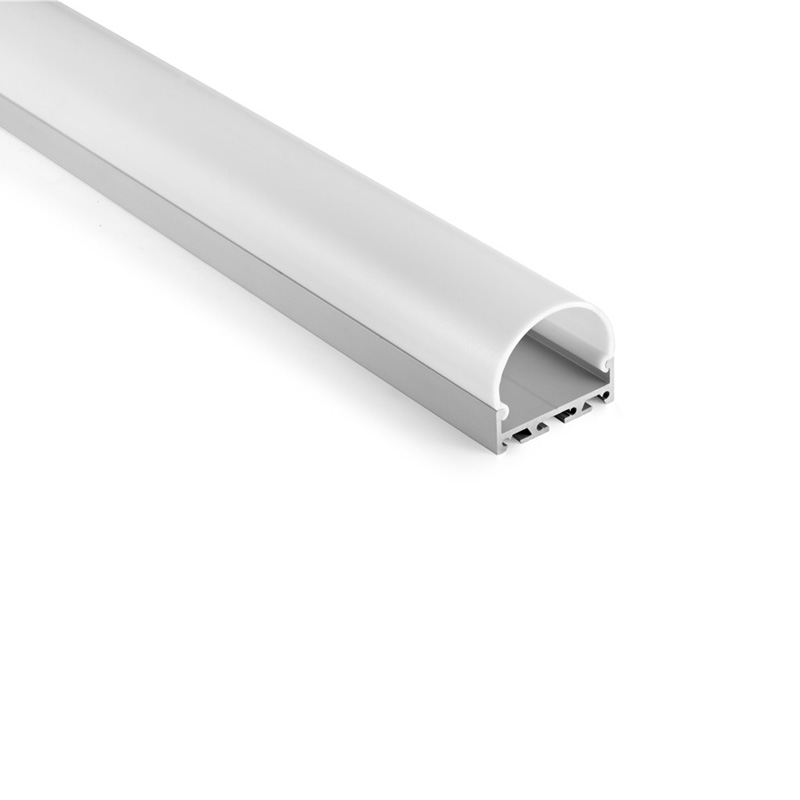

The LED strip mounting channel with dropped diffuser is a stylish and modern lighting solution. It provides the perfect ambiance for both residential and commercial settings. The 27mm dropped diffuser adds a unique touch to the overall aesthetic and helps diffuse the light evenly. This ensures no harsh glares or shadows, creating a comfortable and inviting atmosphere. The aluminum channels are made from 6063-T5 aluminum alloy material and feature an anodized silver surface treatment, providing enhanced oxidation resistance and a longer lifespan compared to similar products. The default length is 1 meter, and the maximum length is 3 meters per piece. You can cut it to any size you want. Only one type of diffuser is available: the PMMA opal matte diffuser, which provides a smooth lighting effect. The LED mounting channel comes with end caps that have wire holes, as well as those without wire holes, making it easy to connect to the LED power supply or the LED dimmer to light up the LEDs or adjust their brightness. The inner width is 41.4mm, allowing for a maximum width of 41 mm for the LED tape lights. Recommend adding multiple lines of strip lights as the light source. The metal clips are included, and suspension wire kits are sold separately, allowing for versatile installation options: pendant, ceiling-mounted, and wall-mounted.
Specifications:
- Material: Aluminium Alloy(6063-T5)
- Surface Treatment: Silver Anodized

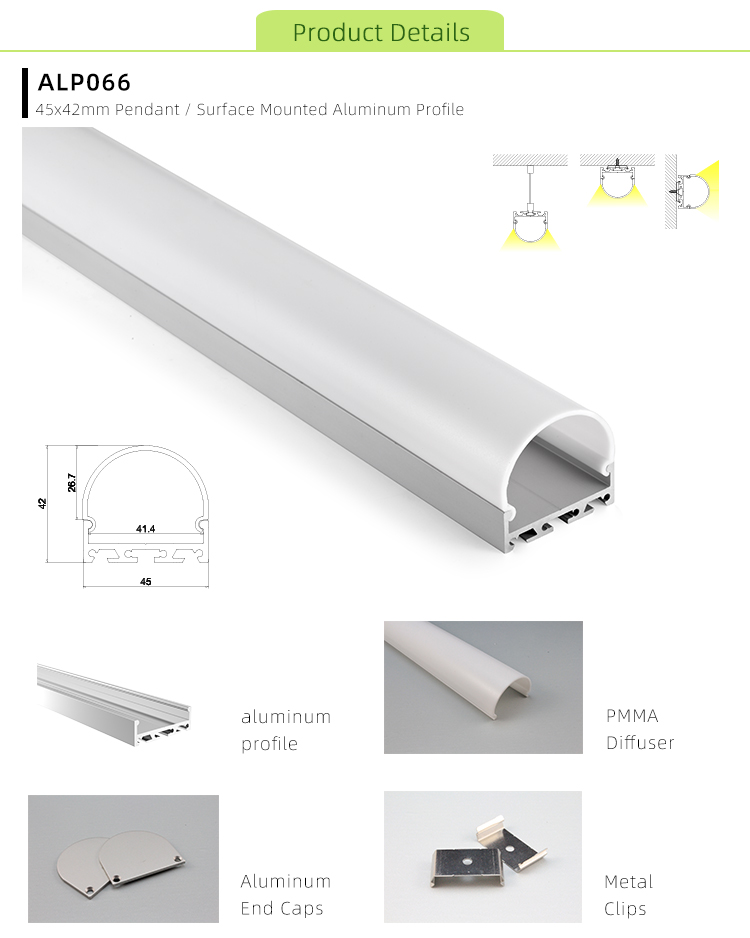

- Model: ALP066

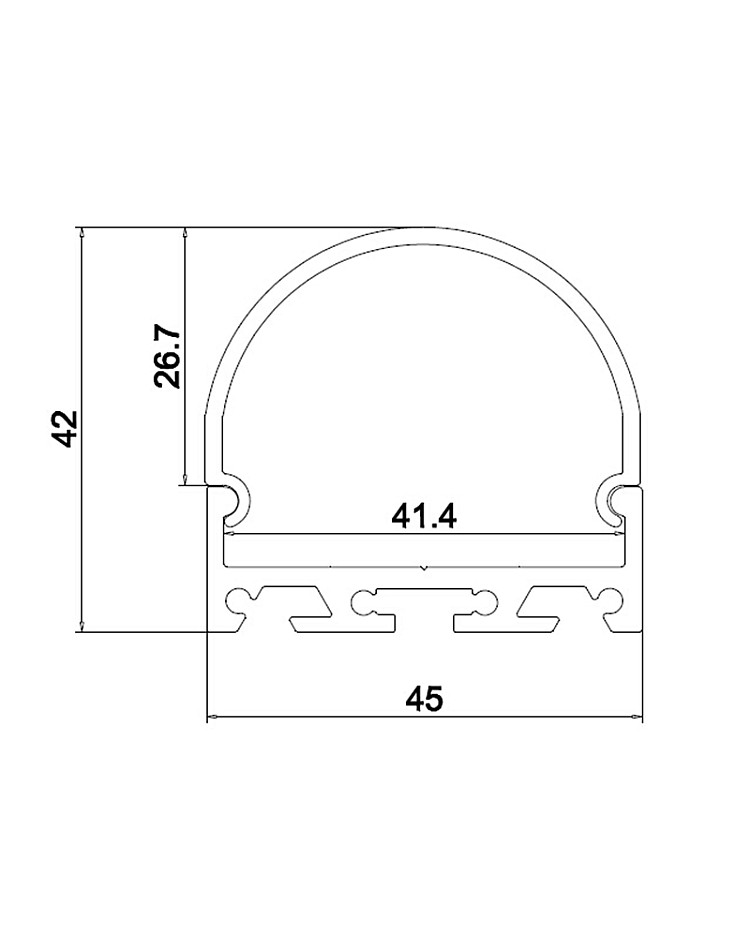

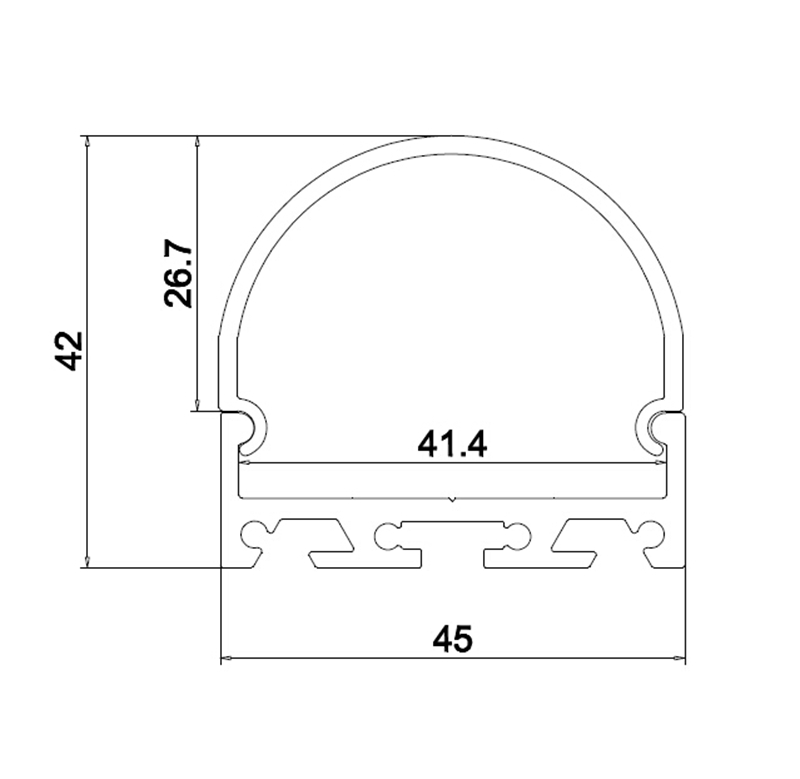

- Size: 45*42mm
- Color: Silver, White, Black
- Diffusers: PMMA Opal Matte Diffuser
- Default Length: 1 Meter
- Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
- Custom Length Available: YES
- Inner Width: 41.4mm
- Recommended LED Light: Rigid LED Modules, 5050, 5630, 5730, 3528, 2835 LED Strips In Multi-Rows
- Max Power: <35W/Meter
- Alu End Caps And Metal Clips Included

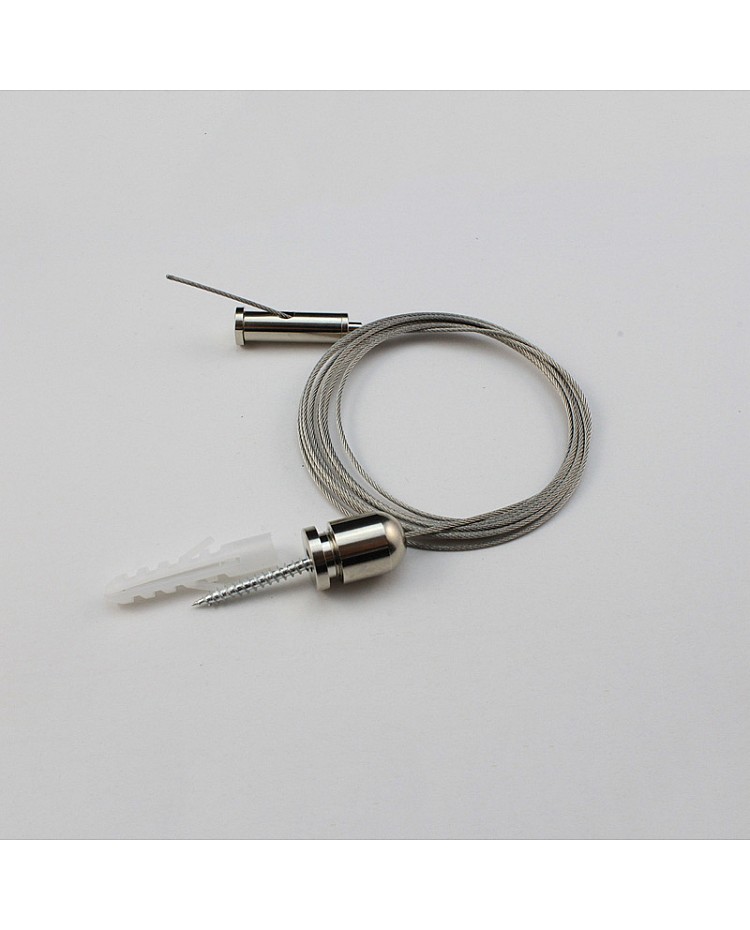

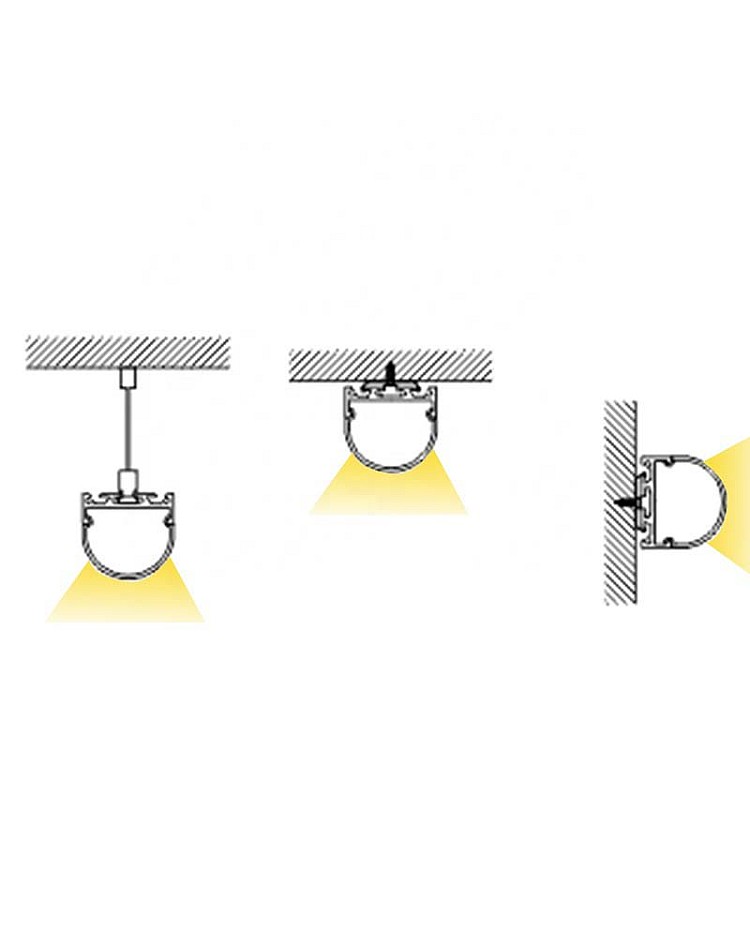

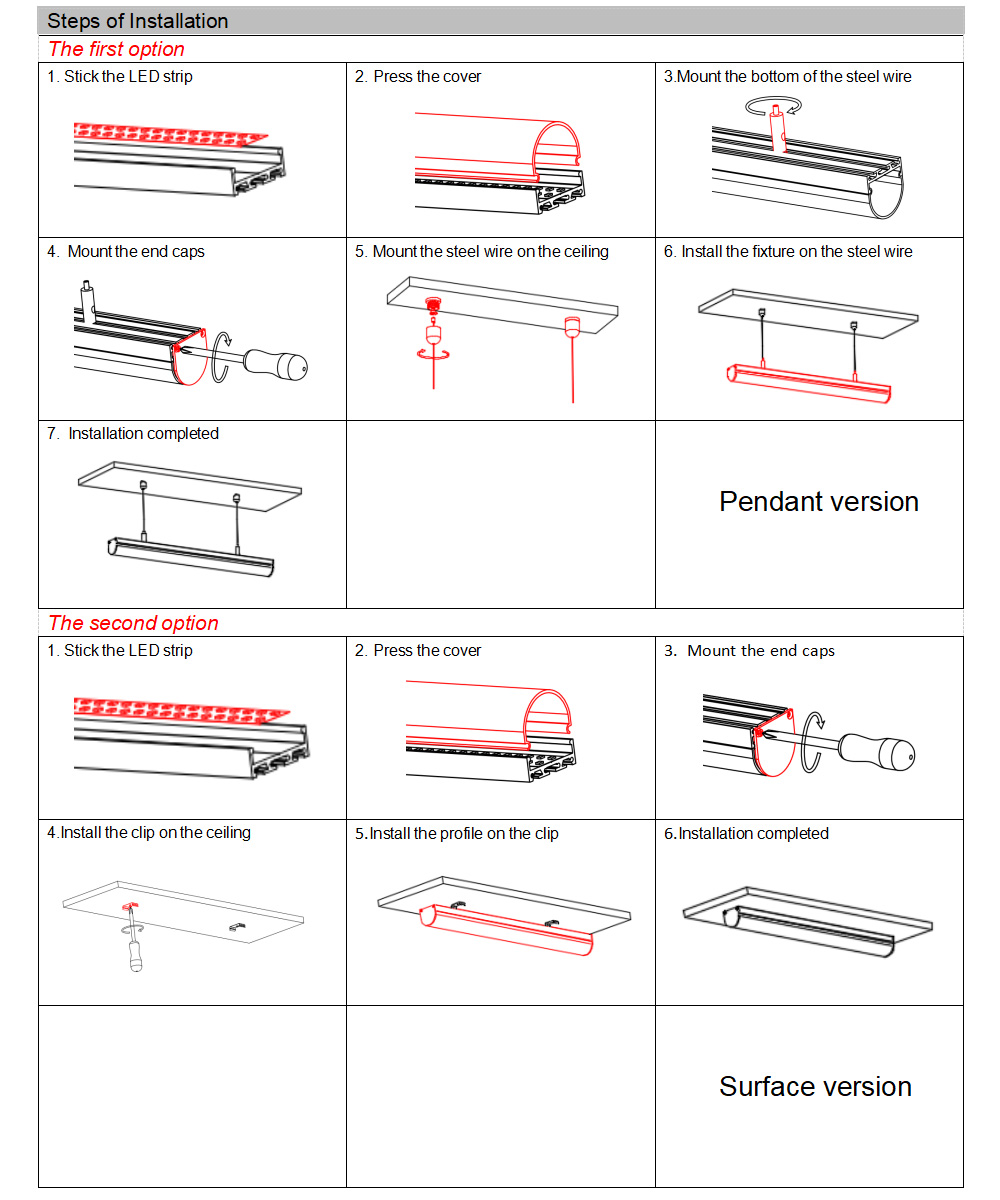

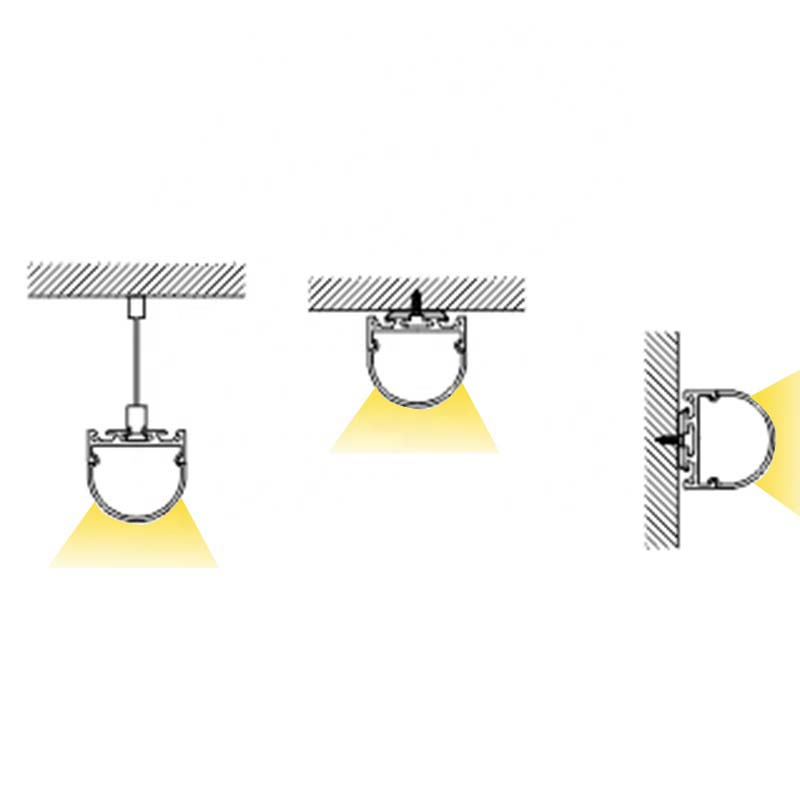

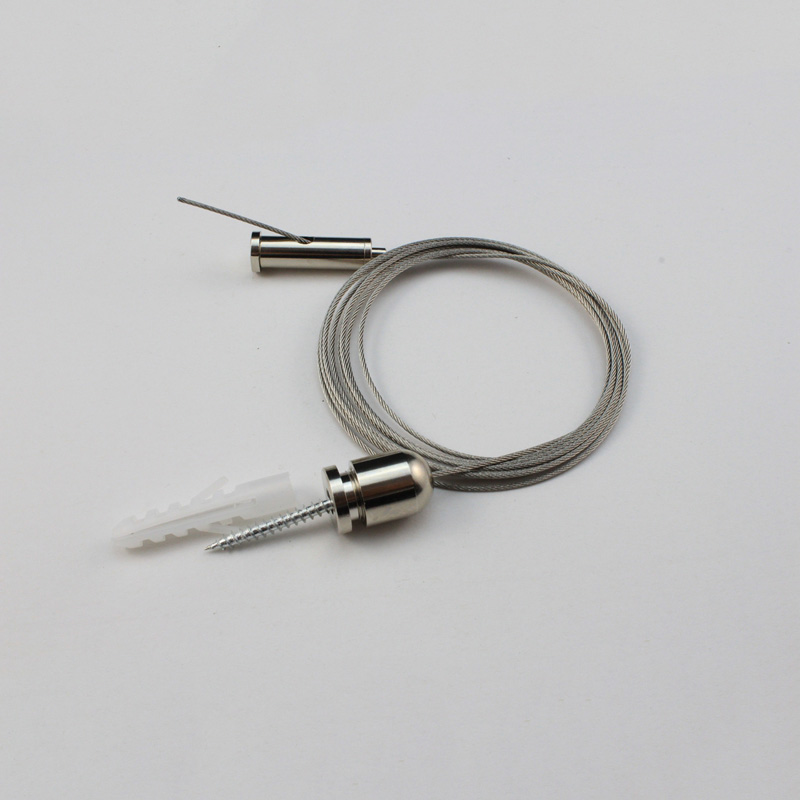

- Installation: Surface / Pendant Mounted

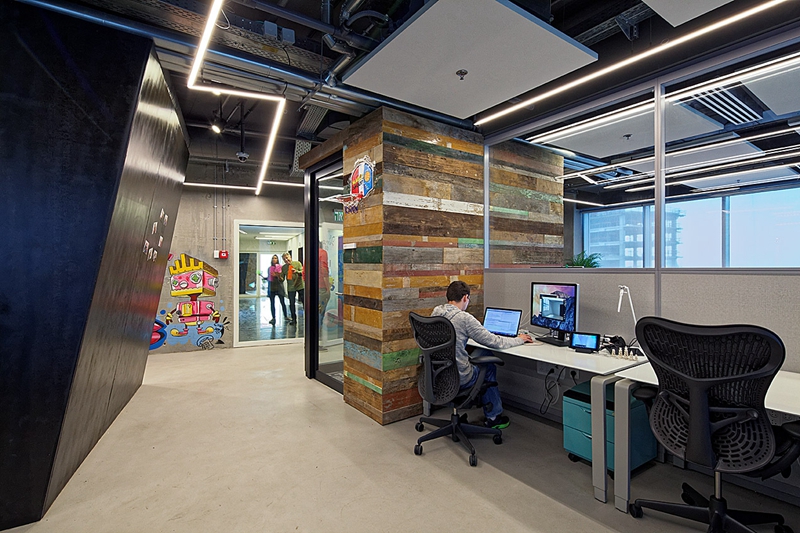

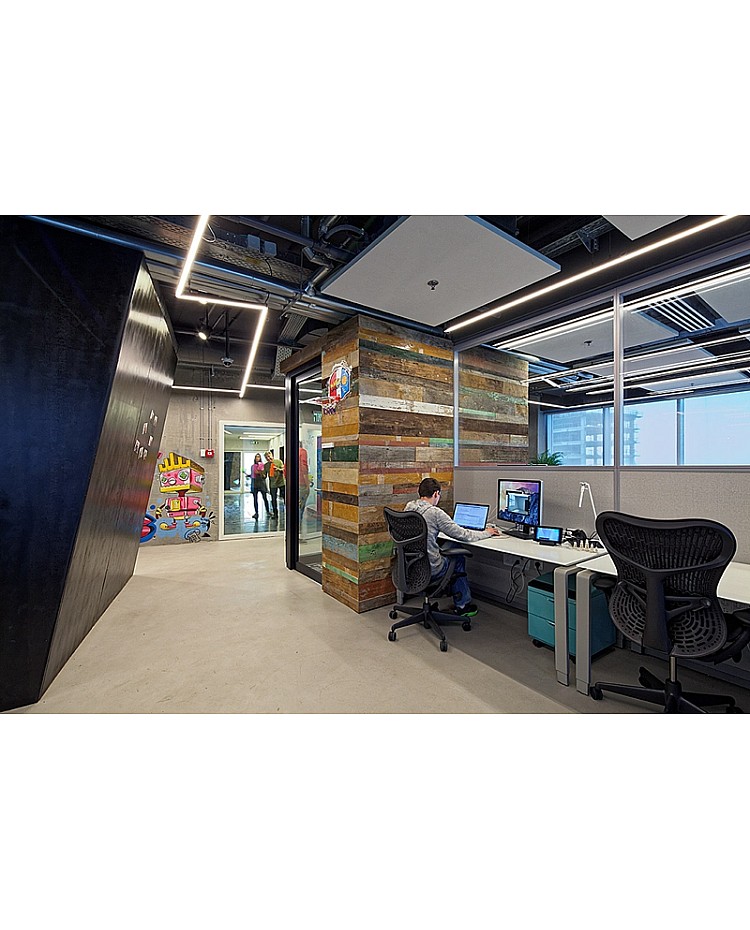

- Applications: Modern Office Design, School, Stores, Shopping Centre, Hospital, etc
- 5 Years Warranty
Includes:
1 * LED Strip Mounting Channel

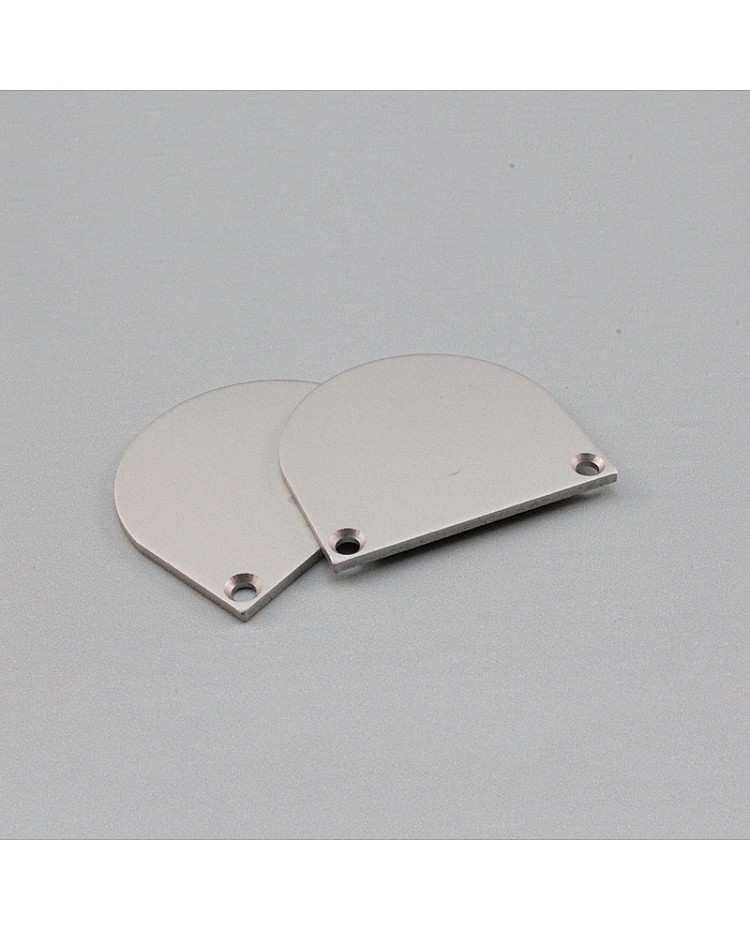

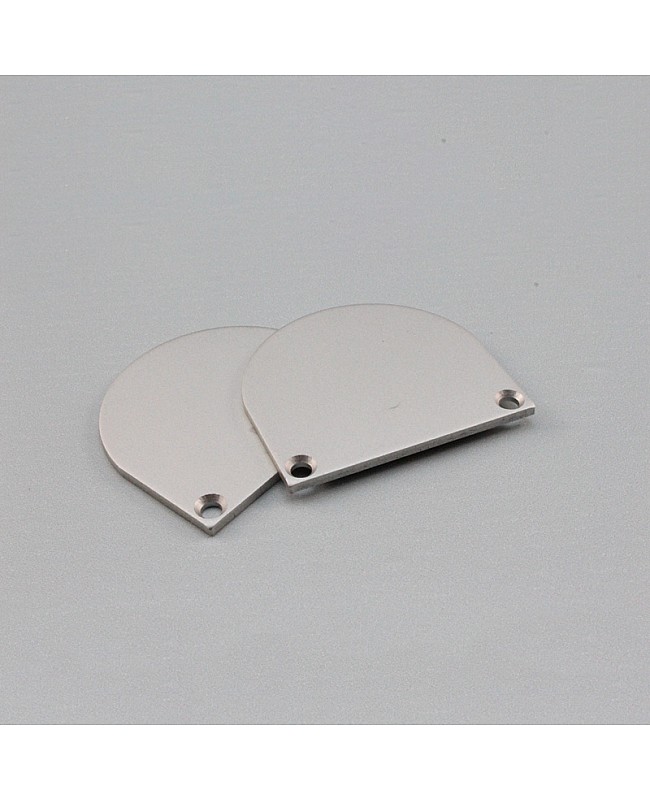

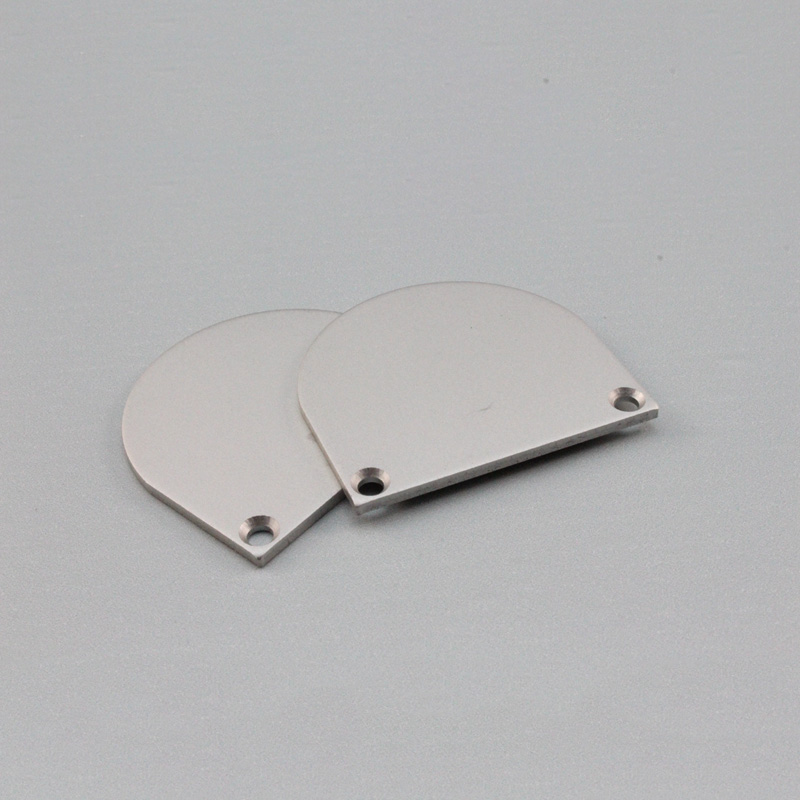

End Caps(With Wire Hole/Without Wire Hole)

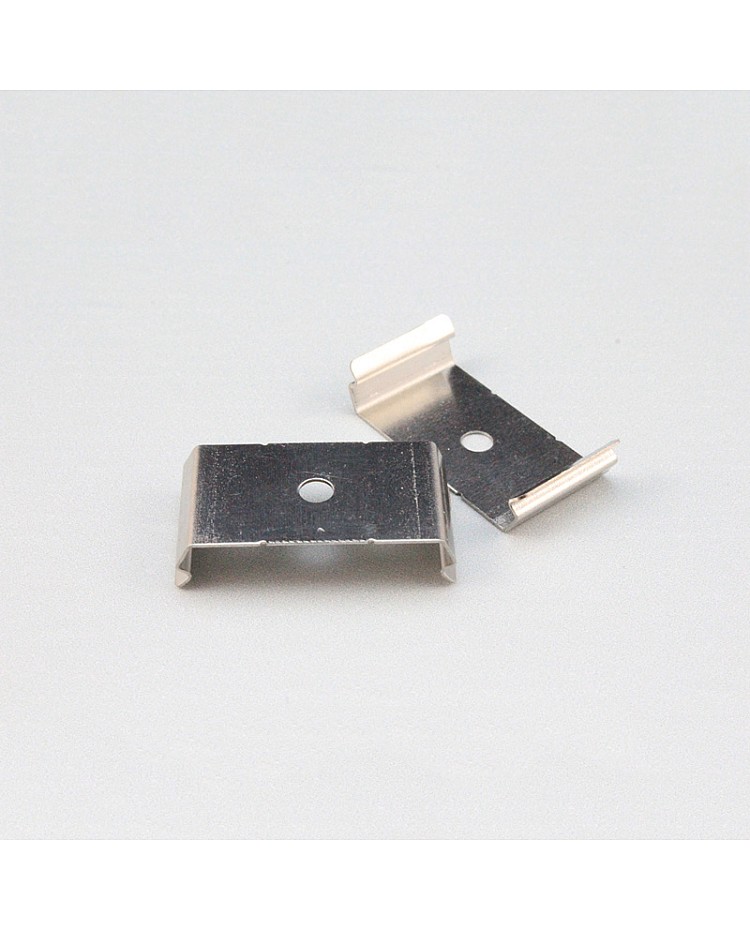

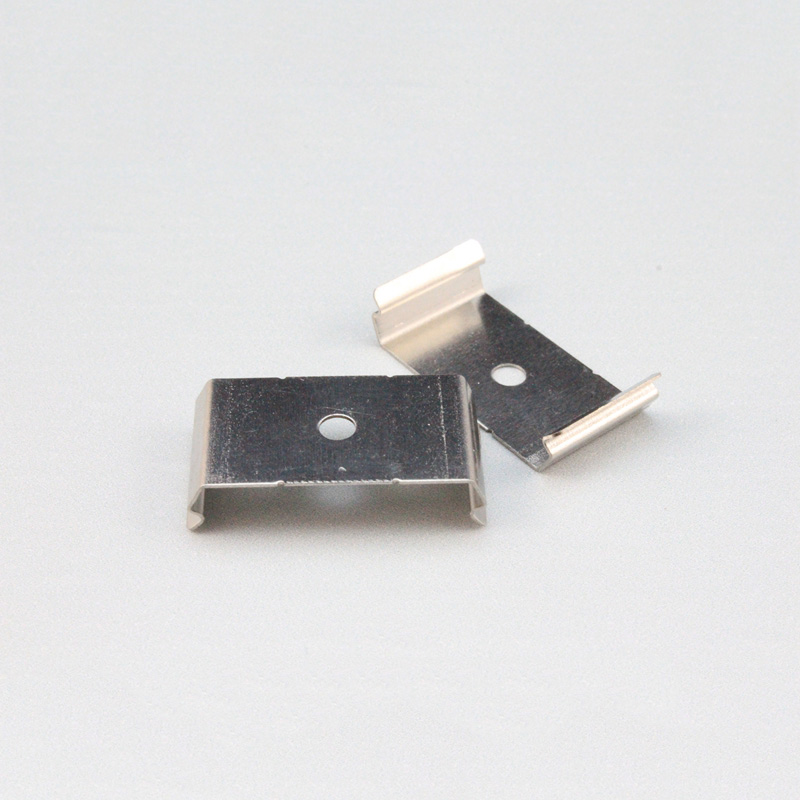

Metal Clips
