In Stock
$9.99 $5.78 Sale -42% OFF
Reward Points: 6
-
+
  • Brand: Ledbe
  • Product Code: TY-L-004

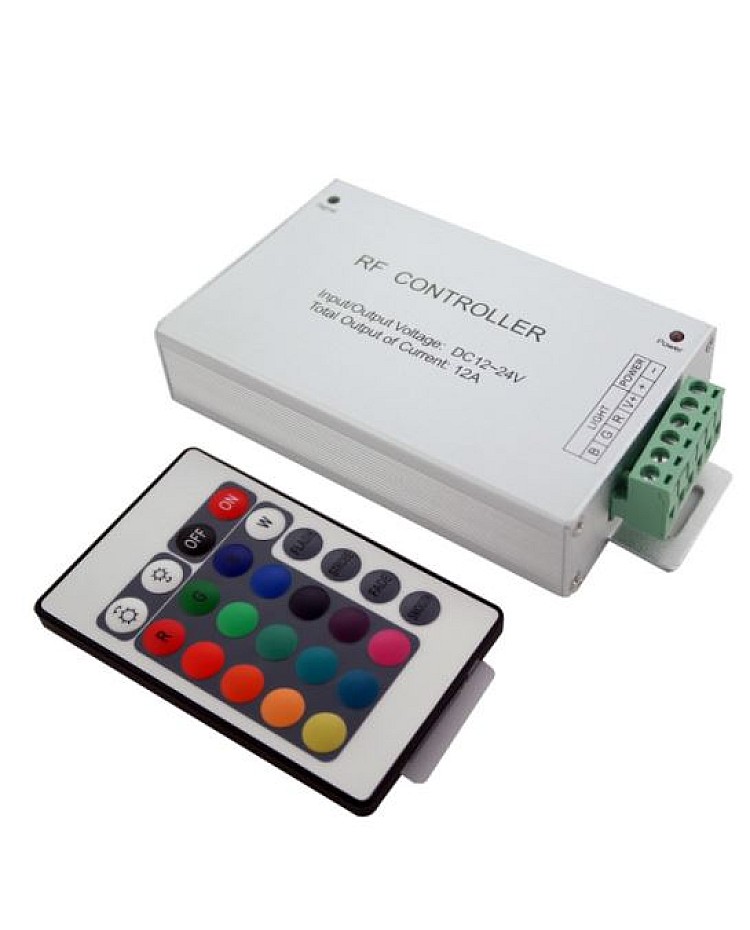

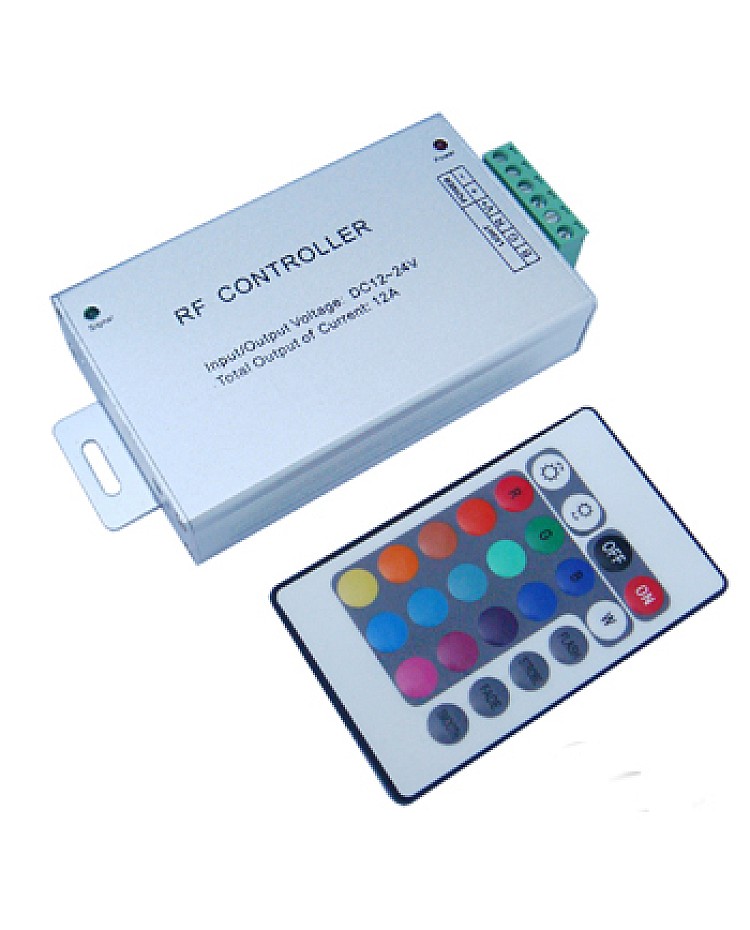

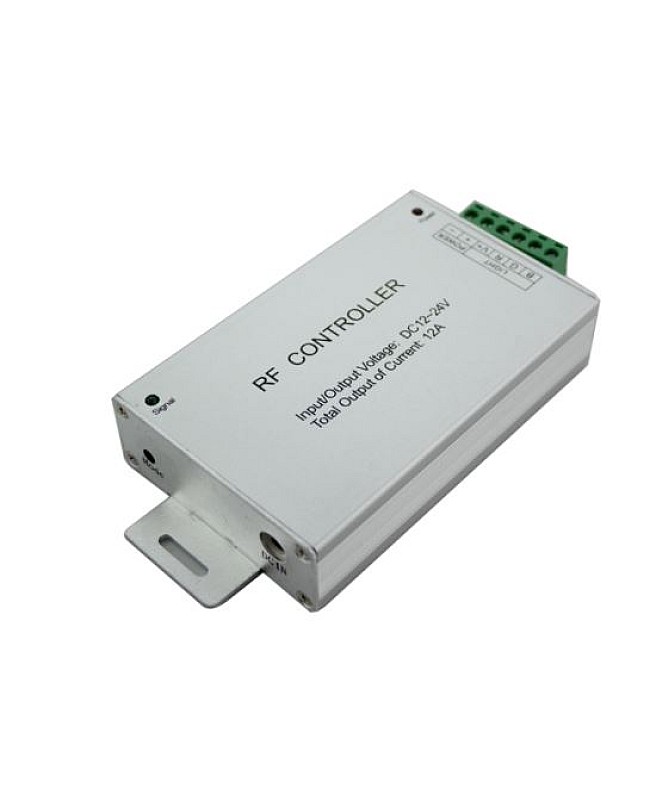

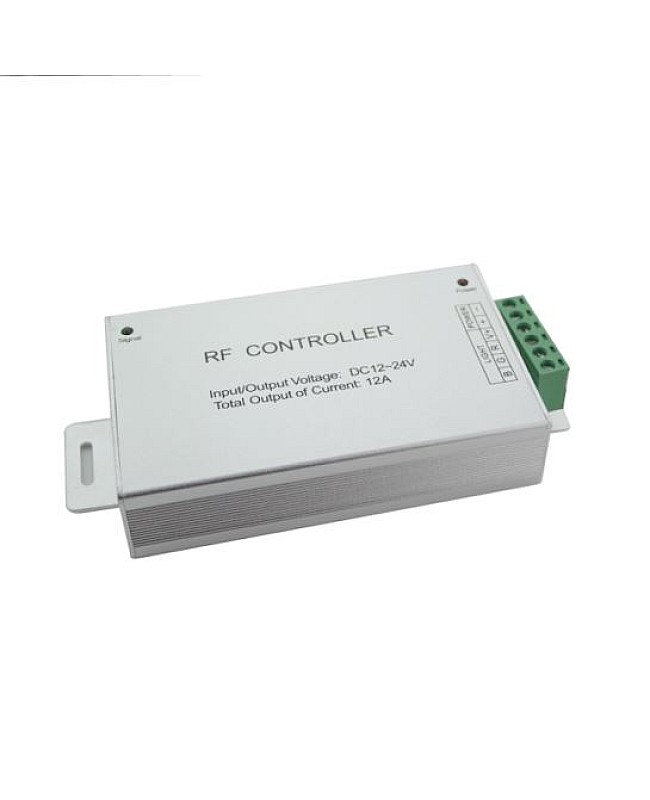

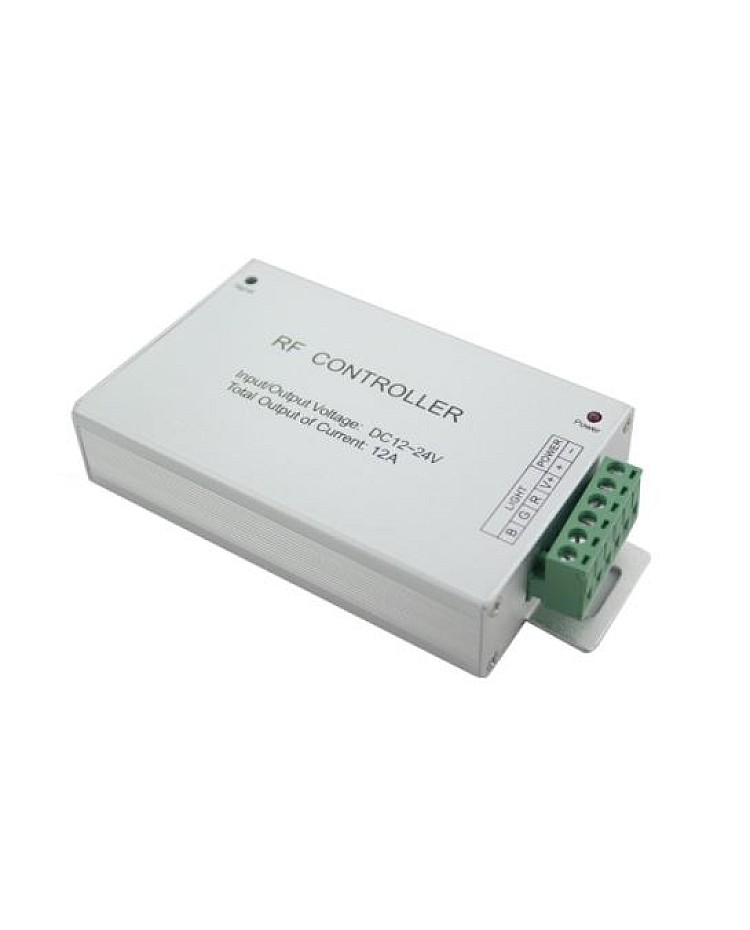

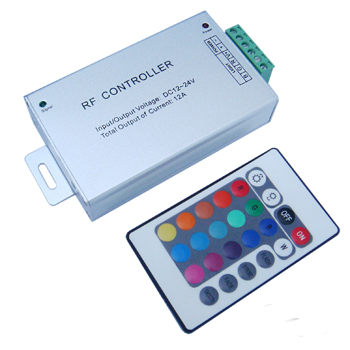

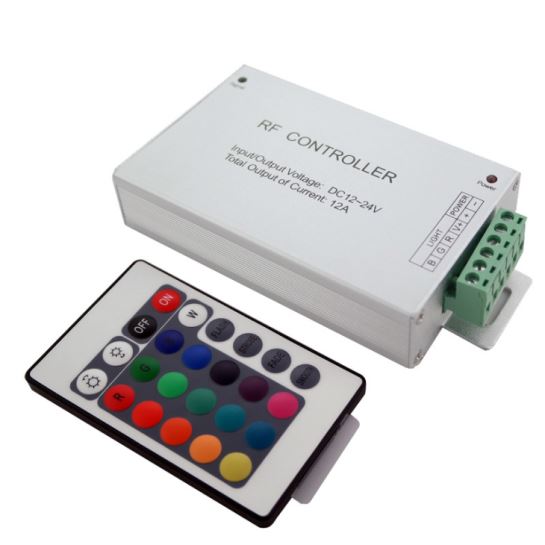

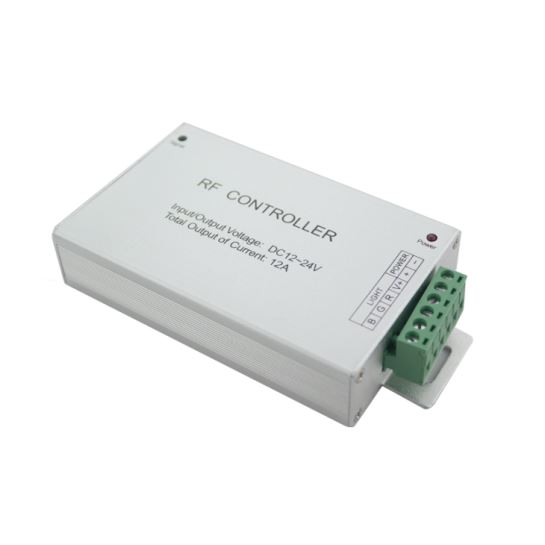

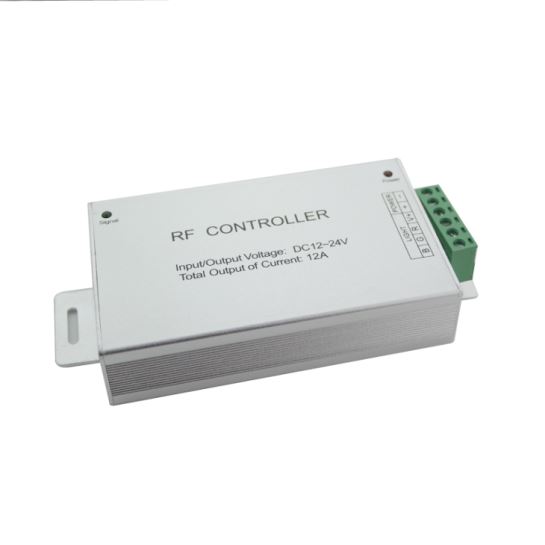

Check the IR RGB LED Light Controller with 24 Keys IR Remote, which with the aluminum shell for the better heat dissipation, adopts the advanced micro control unit, with 3 output channels design, the max output current of each channel up to 4A, working in DC12V or DC24V, the LED Light Controller comes with 24 Keys IR Remote allows 20 modes in total, 16 static colors and 4 dynamic changes, you can adjust the brightness of static color or change the speed of dynamic mode. with Female DC Connector and male and female connector with screws, easy to connect to the LED Power Supply and RGB LED Light Strips.


Features:

  • Item NO: TY-L-C-004
  • Manufacturer: TYoung
  • Size: 130mm*64mm*24mm
  • Working temperature: -20-60℃
  • Static power consumption: <1W
  • Working Voltage: DC12V-DC24V
  • Output Channels: 3
  • Max Current Of Each Channel: ≤4A
  • Power: DC12V: ≤144W; 24V: ≤288W
  • Connecting Mode: Common Anode
  • Weight: 215g
  • Certificate: CE, ROHS
  • 2 Years Warranty



Package:

1*IR RGB LED Light Controller

1*24Keys Remote

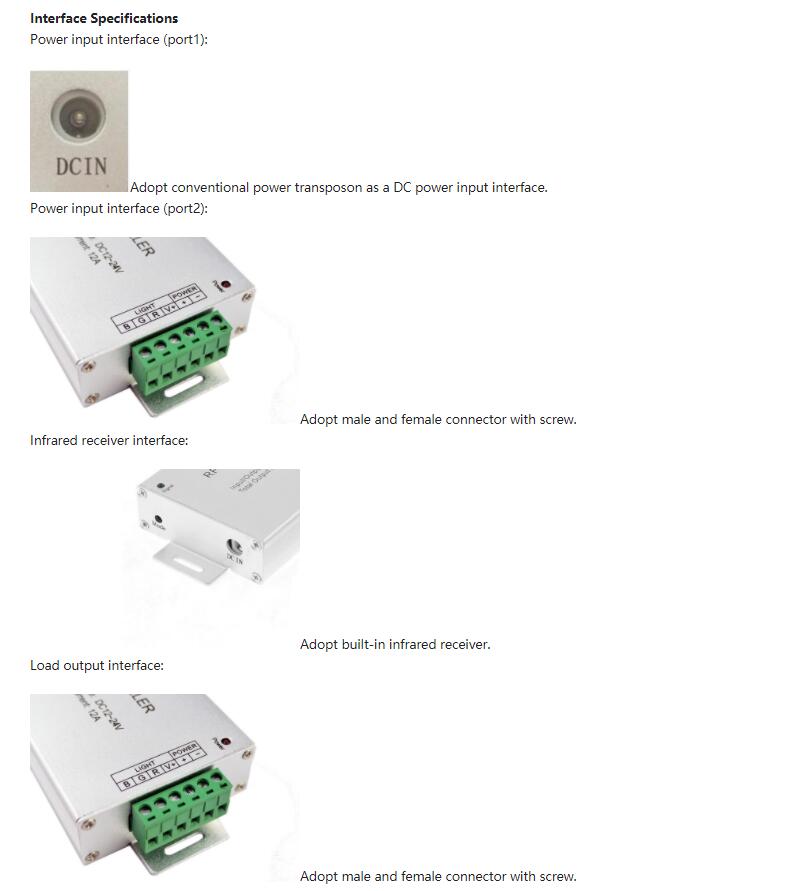

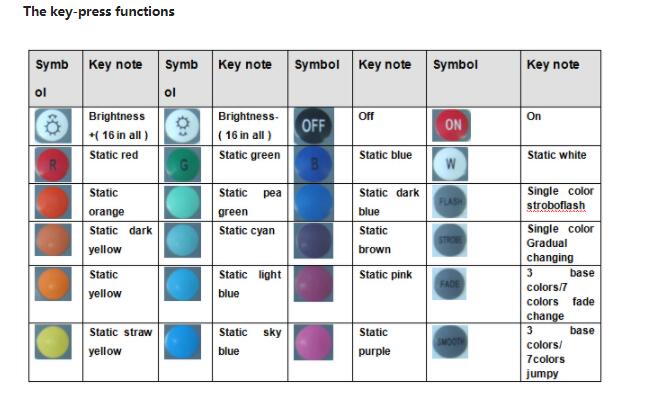

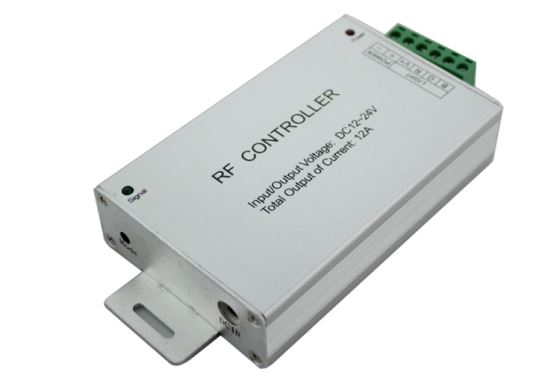

IR LED Light Controller Interface LED Light Controller Remote Function

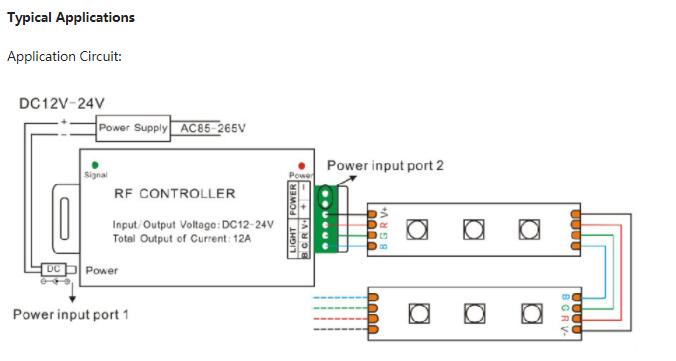

LED Light Controller Application
