In Stock
$4.67
-
+
  • Brand: Ledbe
  • Product Code: TY-L-A-004

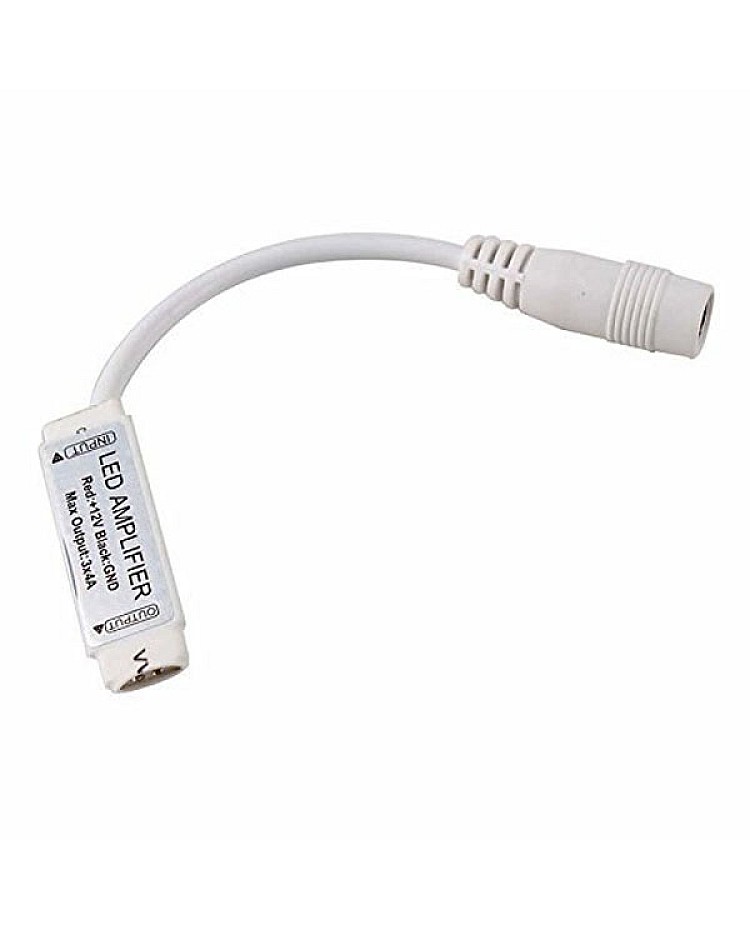

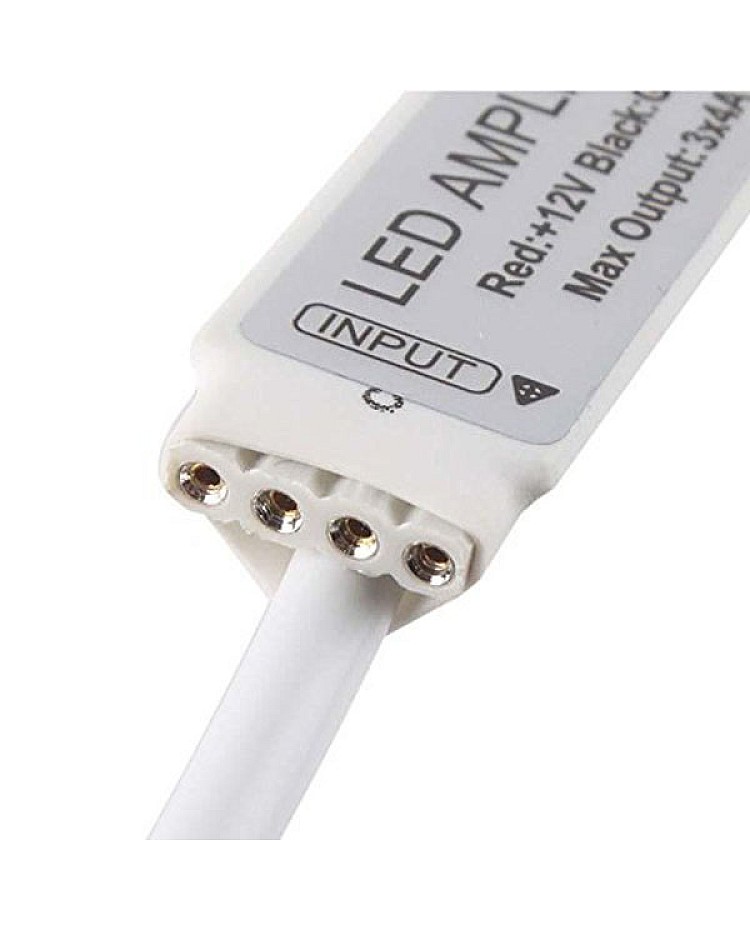

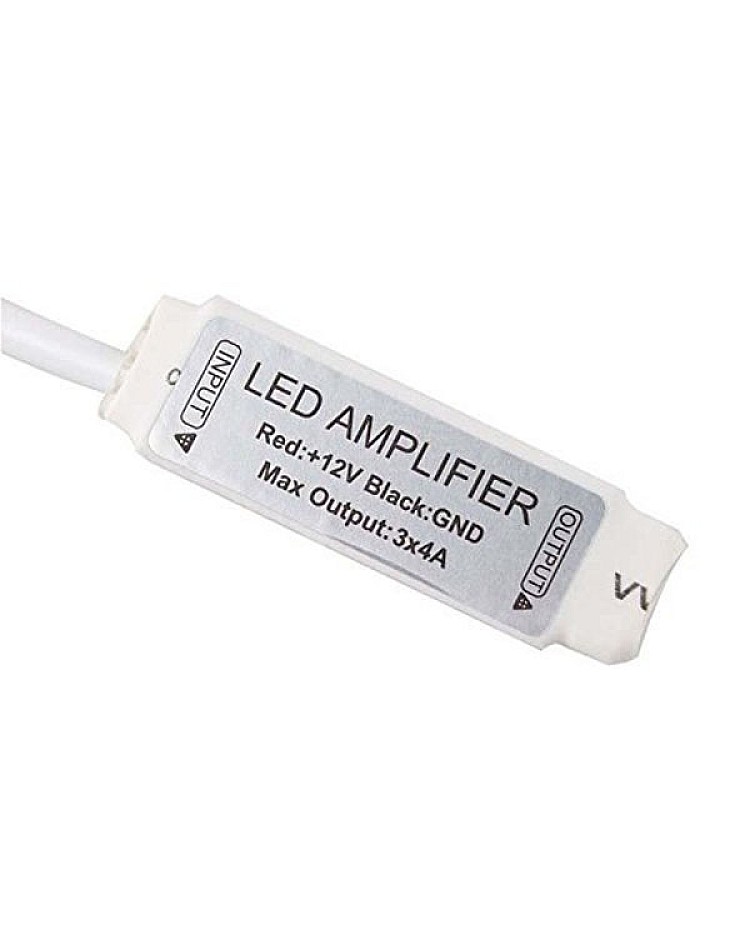

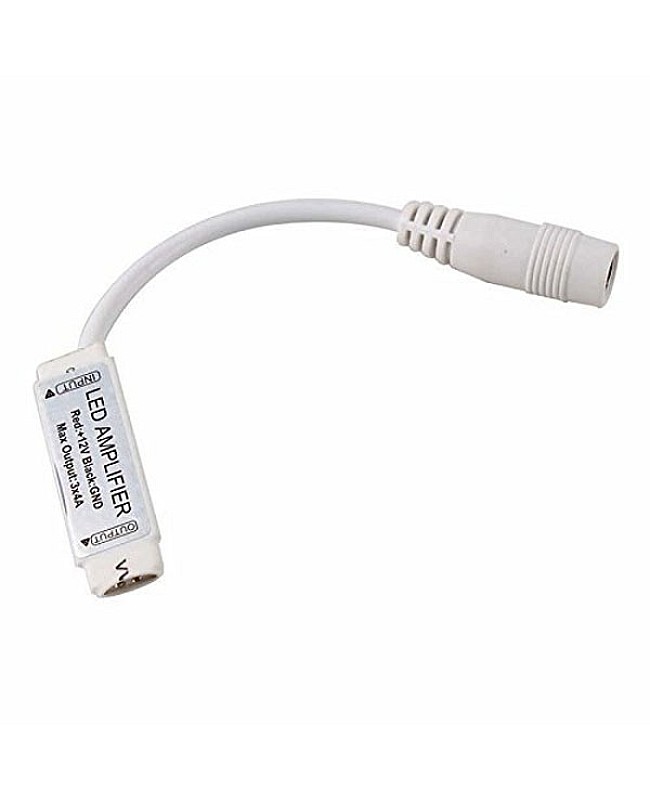

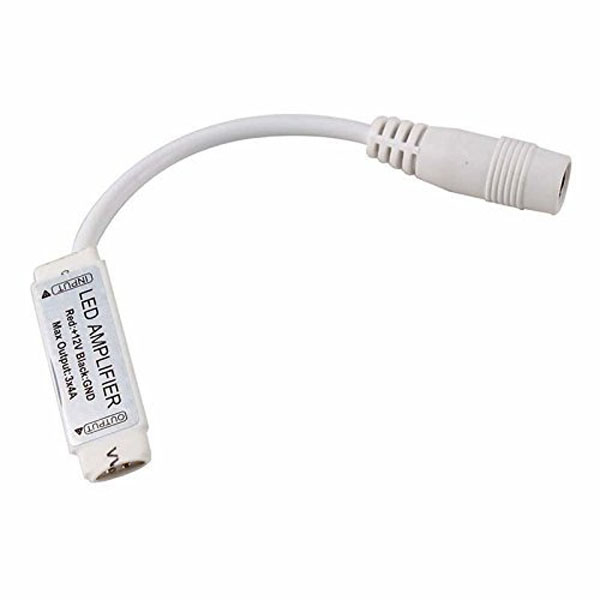

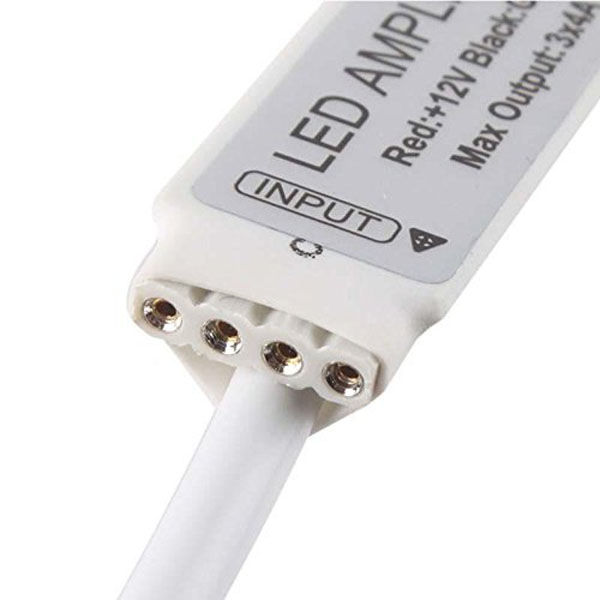

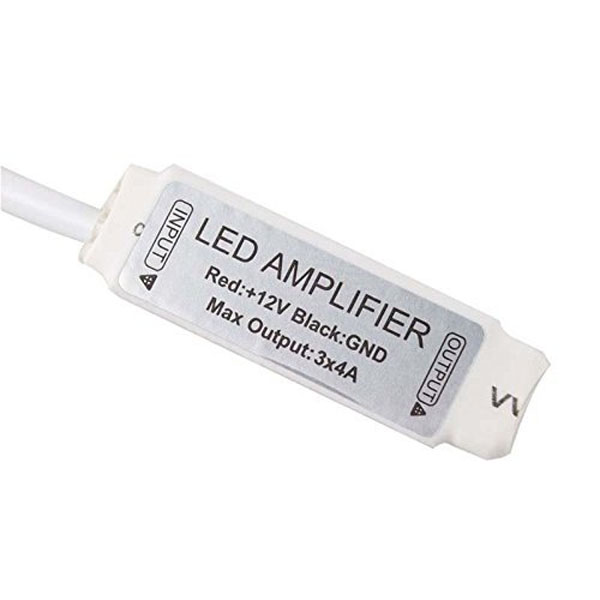

Mini LED amplifier, can work with 3528 RGB LED strips and 5050 color changing flexible LED strips, can working in  DC12V, DC5V and DC24V, default is DC12V, output 3channels, current of each channel is 2amps.when working in DC12V, can support 5meters 5050 RGB LED strips or 15meters 3528 RGB LED strips. the side with female DC connector connect with LED power supply and LED controller, another side connects LED strips, easy install and use.



Features:

  • Item NO: TY-L-A-004
  • Manufacturer: Ledbe
  • Item Type: Mini LED Amplifier
  • Working temperature: -20 ℃-60 ℃
  • Voltage: DC5V, DC12V, DC24V
  • Output: 2A*3 Channels
  • Connecting mode: common anode
  • Demension: L35mm*W14mm*H4mm
  • Weight: 50g
  • Static power consumption: <1w
  • Power: 30w(DC5V), 72w(DC12V), 144w(DC24V)
  • Current: 2A per channel
  • Certificate: CE, ROSH
  • Warranty: 1 year


Package:

1*mini LED amplifier
