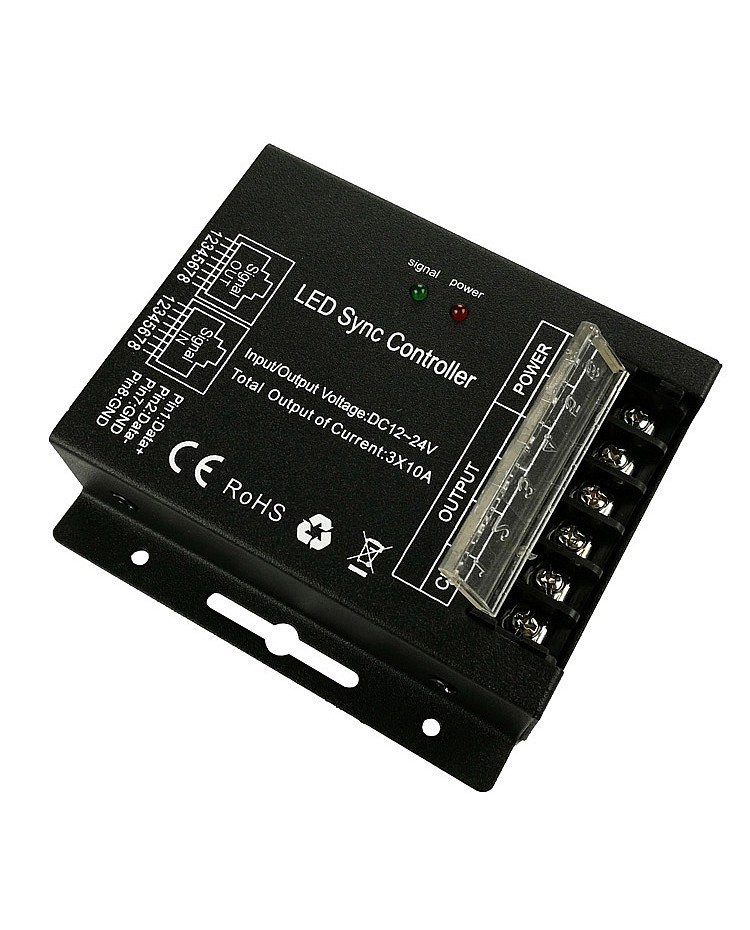

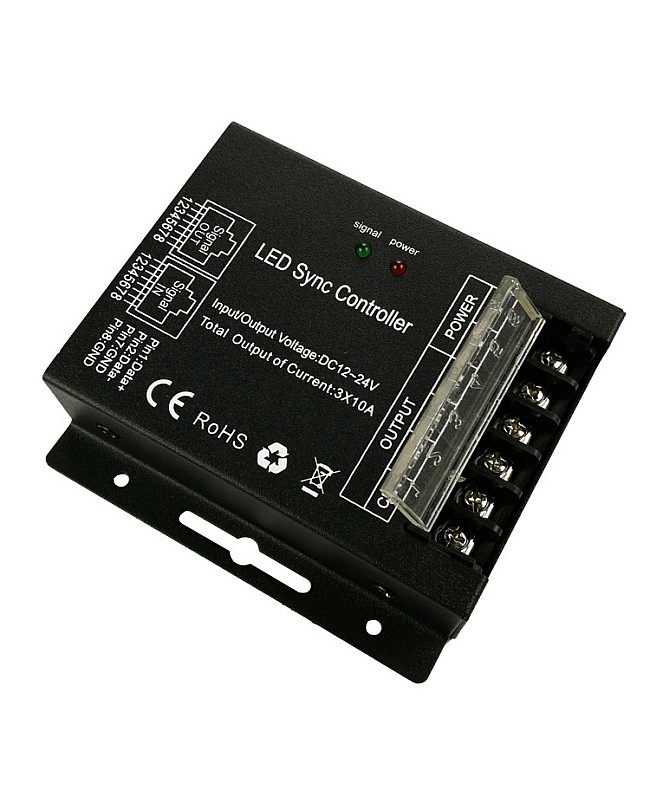

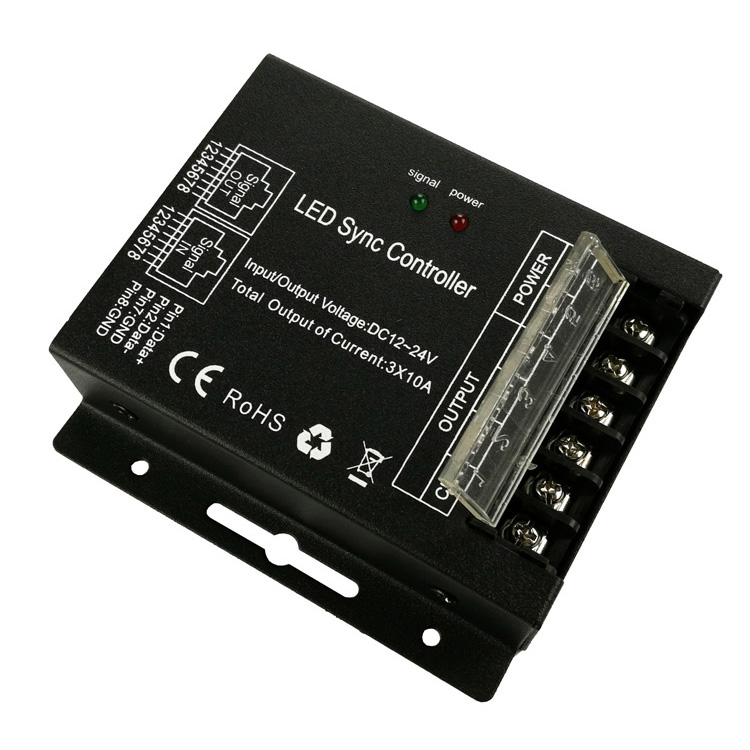

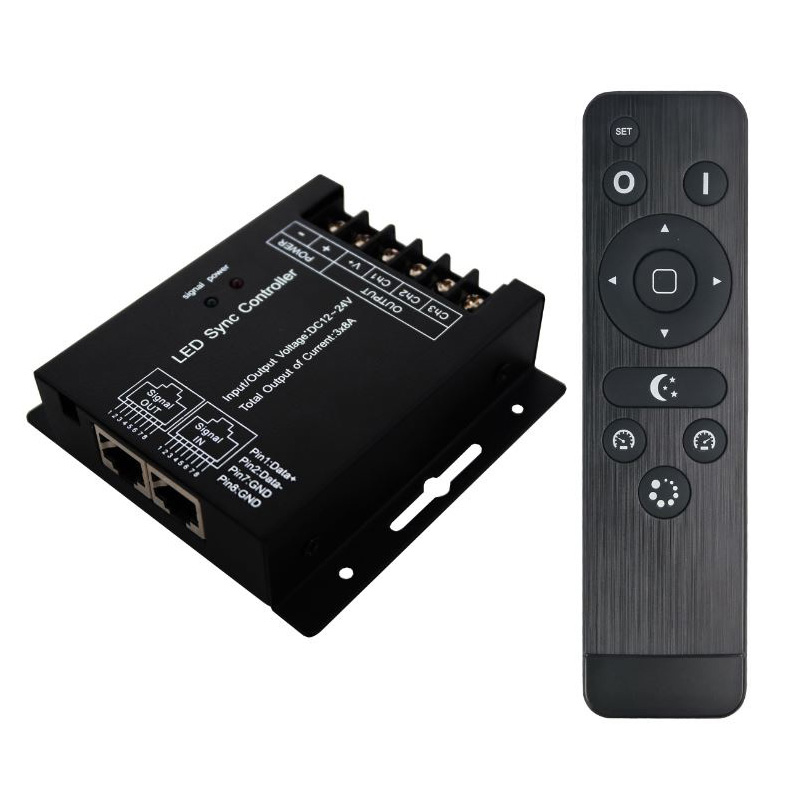

3CHs*10A Synchronous RGB LED Strip Controller 360W

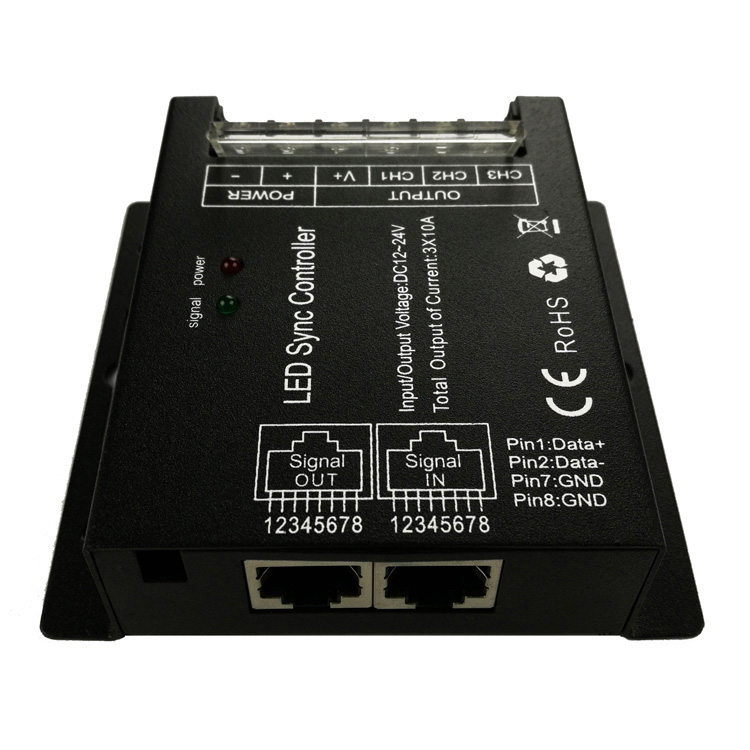

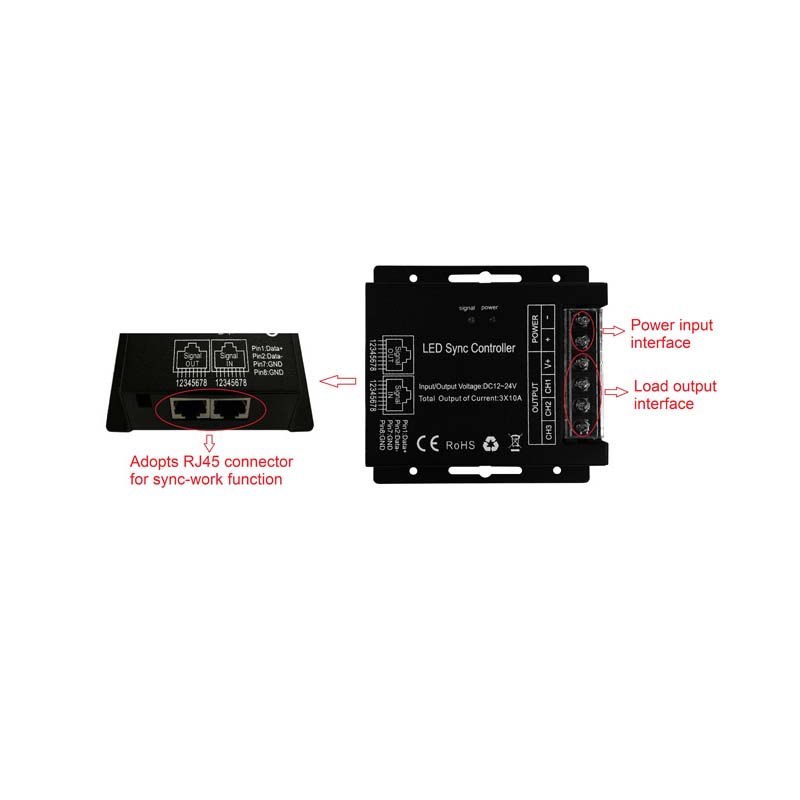

The RGB LED strip controller with synchronous function adopts advanced PWM digital control technology, designed for the RGB constant voltage LED light. It has a black metal shell for better heat dissipation. The LED controller works on DC12V or DC24V. With a three-output-channel design, the max output current of a single channel is 10A, and the max loading power is up to 720W when working in 24V. It comes with the 14keys RF remote control, with a control distance of up to 20 meters. The RF remote has 18 modes, 8 static colors, and 10 dynamic color-changing styles. The brightness of the static color is adjustable, 256 levels in total, and the speed of dynamic modes is adjustable, 100 grades in total. Each time the power is turned on, the RGB LED controller with memory function retains the mode stopped during the last power-down. Multiple controllers can work synchronically when connected by a network cable through the RJ45 port, and the network cable between 2 ports is up to 80 meters.

Specifications:

• Size: 91*88*24mm(L*W*H)
• Working Voltage: DC12-24V
• Output: 3 Channels
• Max Output Current: 10A( Each Channel)
• Max Output Power: 360W ( 12V ) / 720W ( 24V )
• Connecting Mode: Common Anode
• Grayscale: 256 Levels
• Speed Stage: 100 Grade
• Mode: 18
• RF Distance: <20M
• PWM Frequency: 433.92MHz
• Memory Function: Support
• Designed For RGB Constant Voltage LED Lights
• 14 Keys RF Remote Control included
• 18 Modes In Total, 8 Static Colors And 10 Dynamic Modes

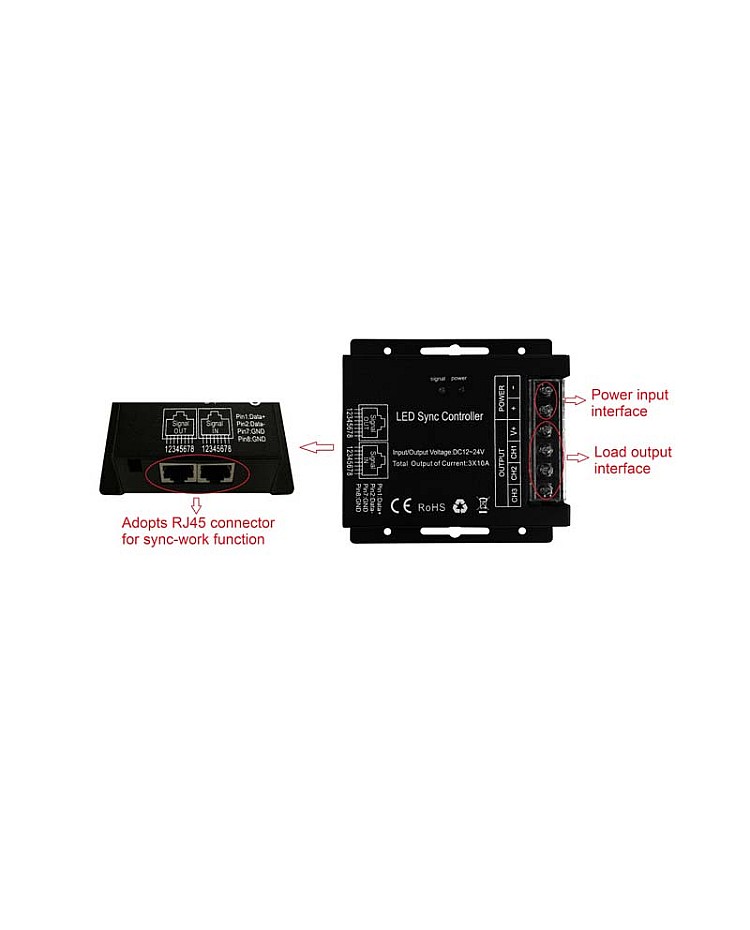

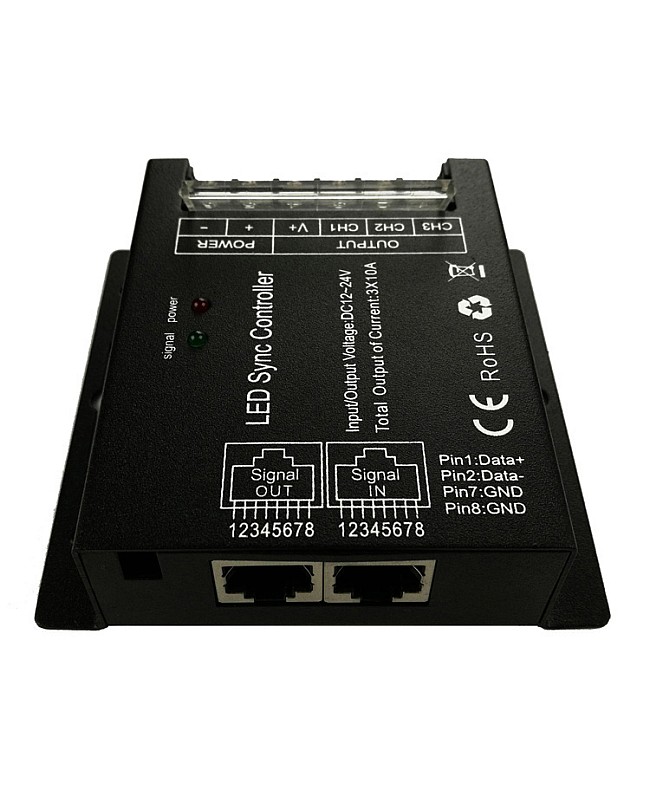

• Multiple Controllers Can Work Synchronically
• Working temperature: -20-60℃
• 3 Years Warranty

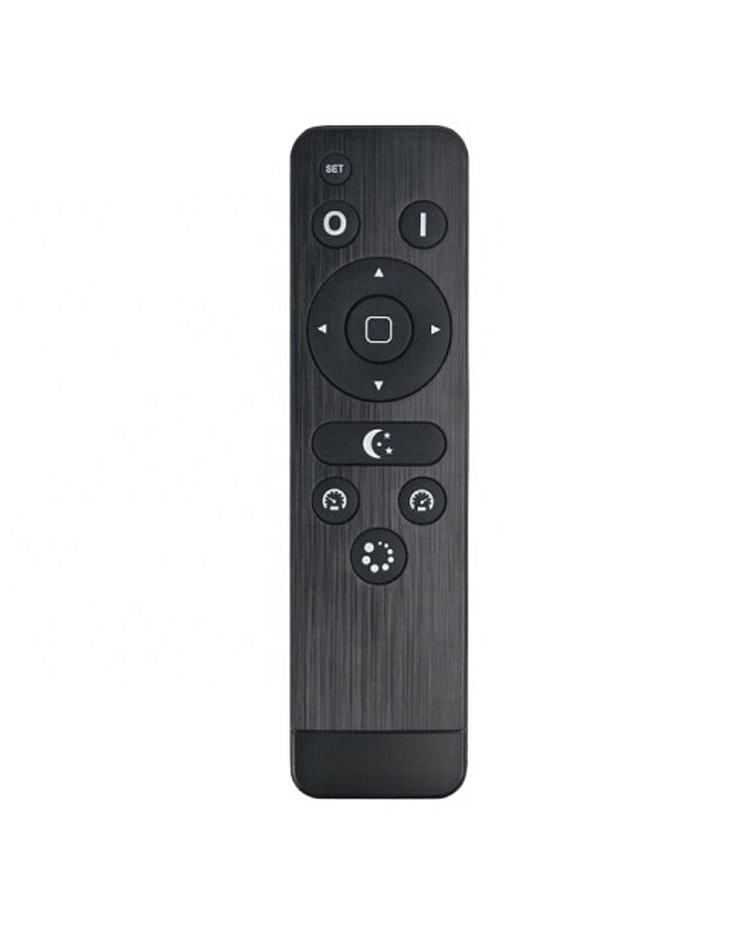

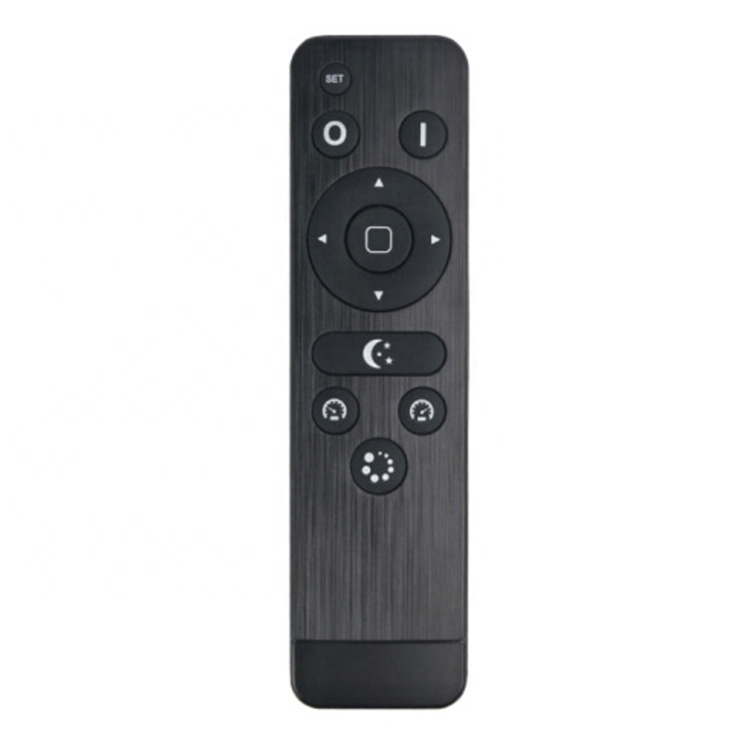

RF Remote Control Specifications:

• Size: 150*40*20mm(L*W*H)
• Working Temperature: -20℃-60℃
• Supply Voltage: DC3V(AAA*2)
• Standby Current: <18uA
• Working Current: <25mA
• Standby Power: 54uW
• Working Power: 75mW
• RF Frequency: 433.92MHz
• RF Distance: ≤20m

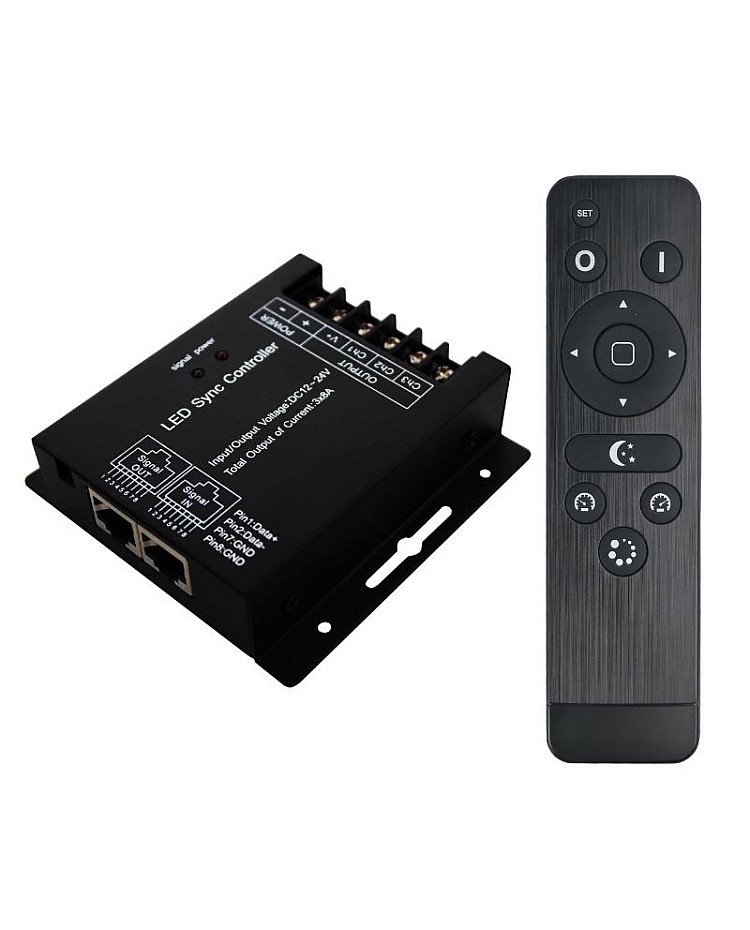

Includes:

1 * RGB LED Strip Controller

1 * 14 Keys RF Remote Control
