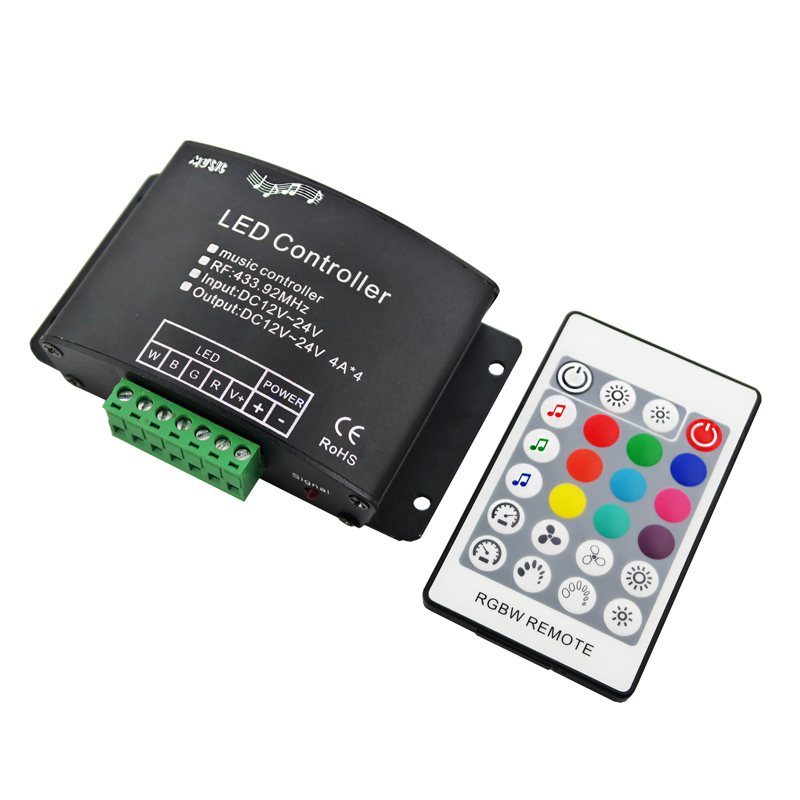

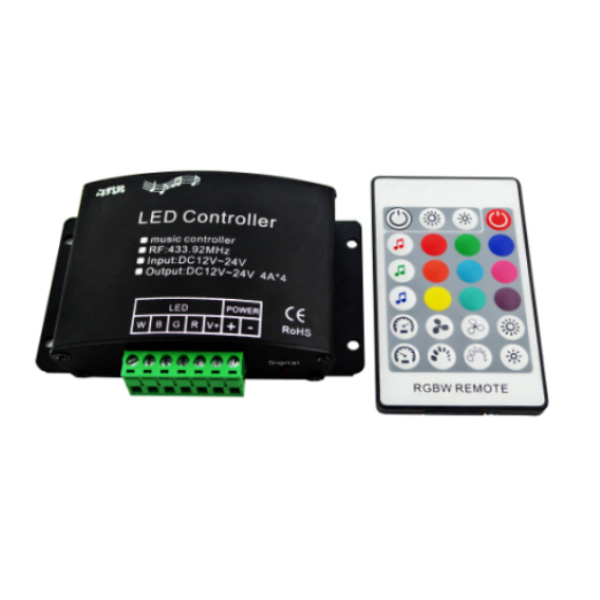

Check the RGBW Strip Light Music Controller, which adopts the advanced PWM Pulse Width Modulation digital technology, with 4 output channels design. the max output current of each channel is 4A, working in DC12V or DC24V, the max loading power up to 384W when working in 24VDC. can work with the RGBW LED Lights and Horse Racing Lighting. the RGBW LED Music Controller comes with 24 Keys RF Remote, provides 16 kinds of RGB Modes, 9 static colors, 4 dynamic Modes and 3 Music Modes available. the brightness of static colors and the speed of dynamic modes adjustable. in the audio mode, the sensitivity can be adjusted via black gear knob, the higher of the sensitivity adjustment is to knob clockwise. to achieve music control via two methods: microphone or audio line.

Quick Links:

RGB & RGBW 2 In 1 Music LED Controllers

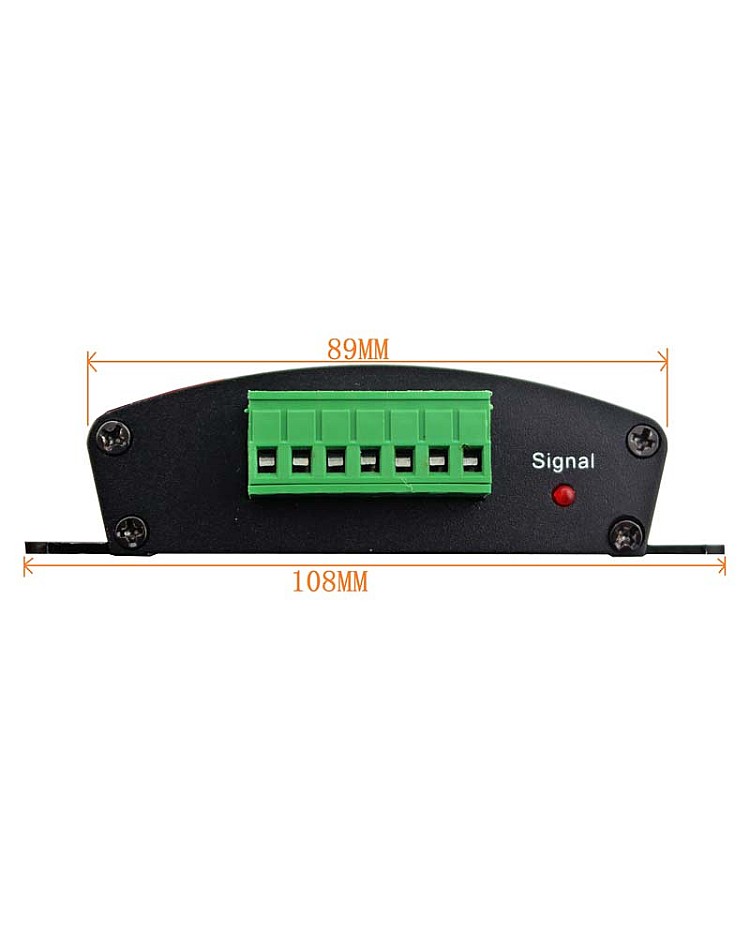

  • Size: 108*63*28mm(L*W*H)
  • Working Temperature: -20-60℃
  • Working Voltage: DC12V-DC24V
  • Output Channels: 4
  • Output Current: <4A Each Channel
  • Output Power: 192W ( 12V ) / 384W ( 24V )
  • Output Gray: 256 Levels

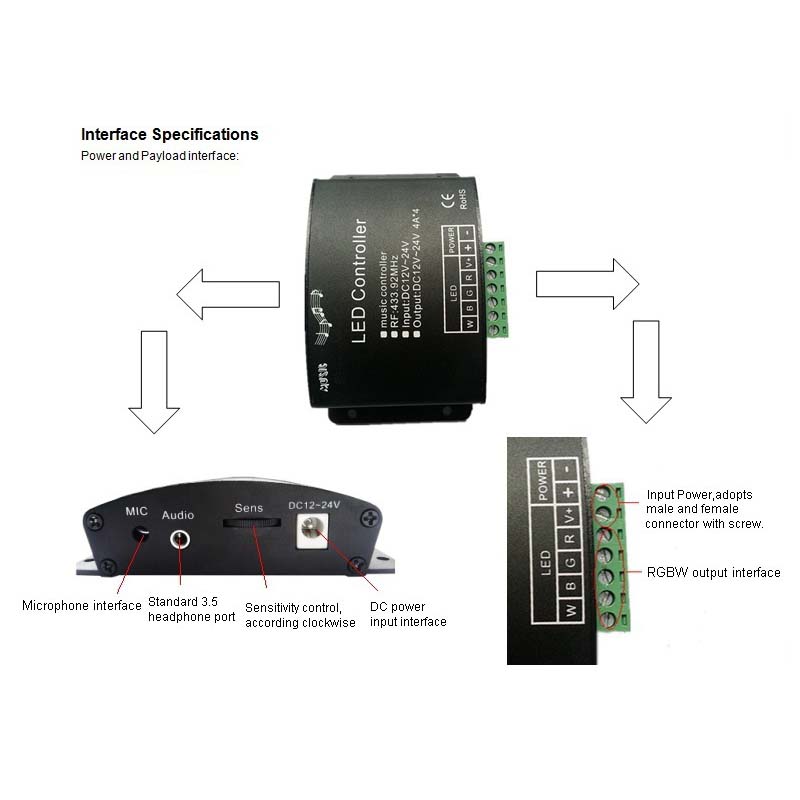

  • Connecting Mode: Common Anode
  • RF Frequency: 433.9MHz

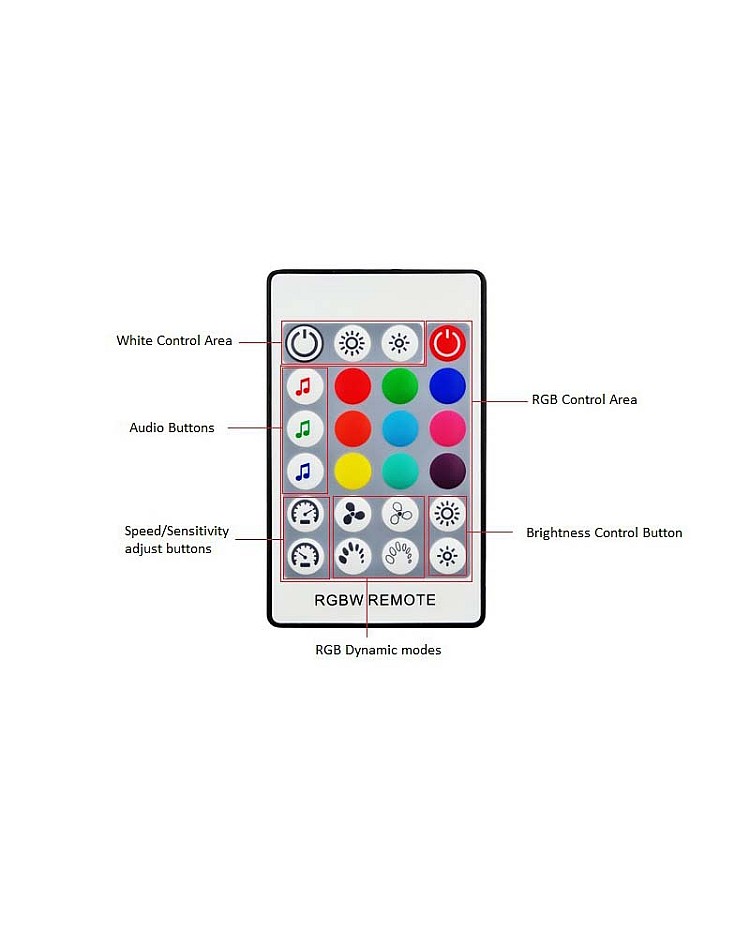

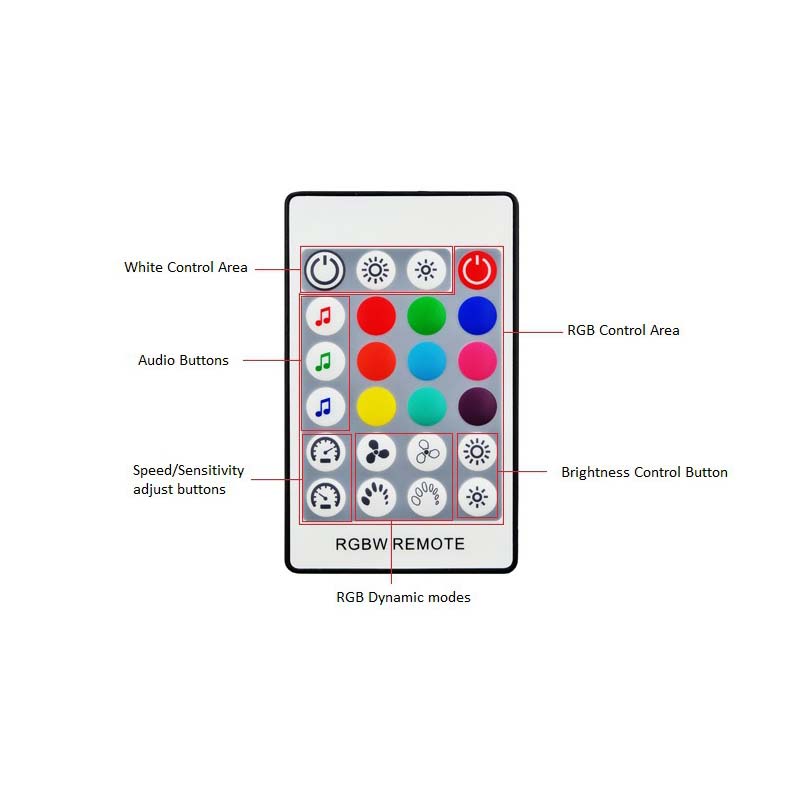

  • 24 Keys RF Remote Control Included
  • 16 Modes In Total, 9 Static Colors, 4 Dynamic Modes, 3 Audio Modes
  • Brightness Of Static Colors Adjustable
  • Speed Of Dynamic Modes Adjustable

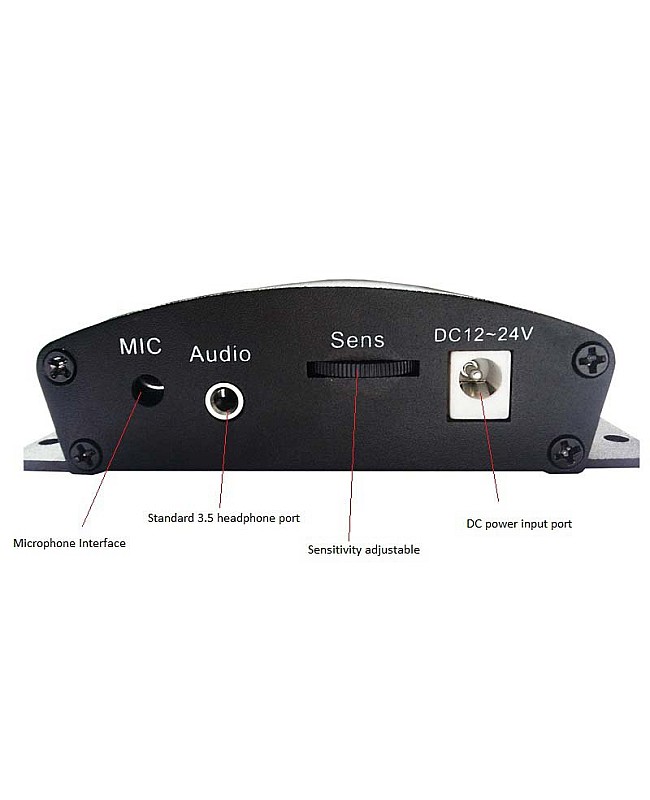

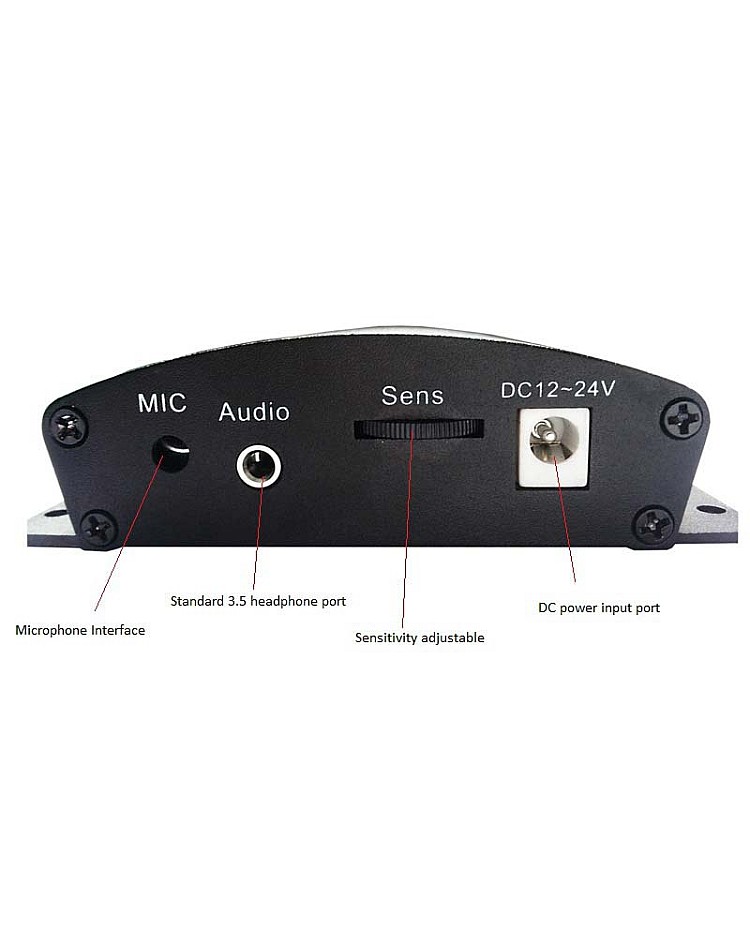

  • Sensitivity Can Be Adjusted Via Black Gear Knob
  • Signal Frequency: 400Hz

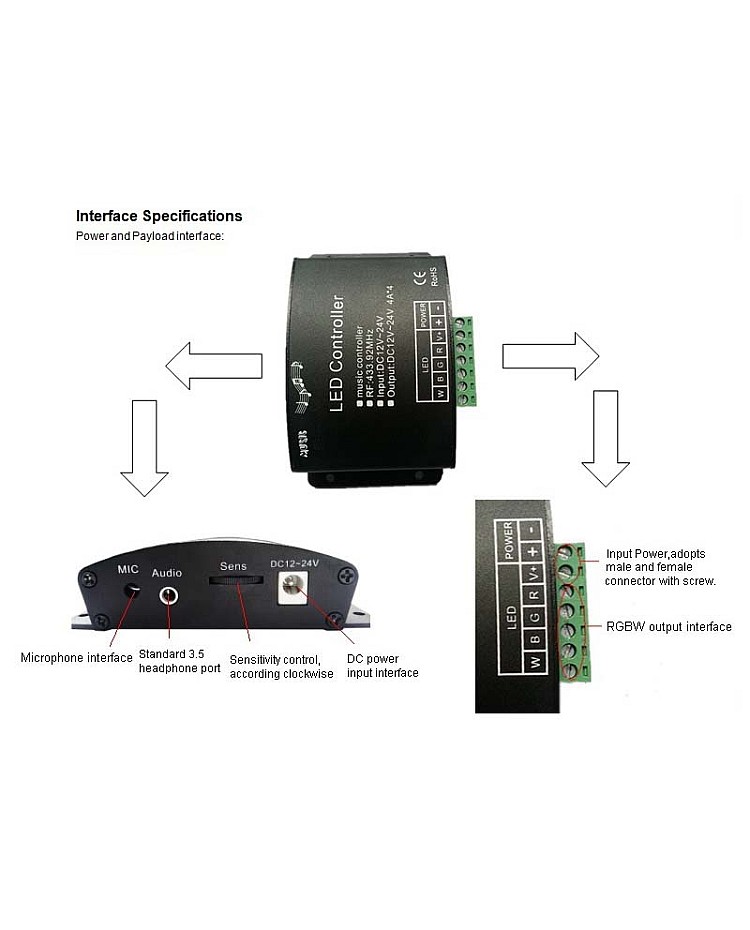

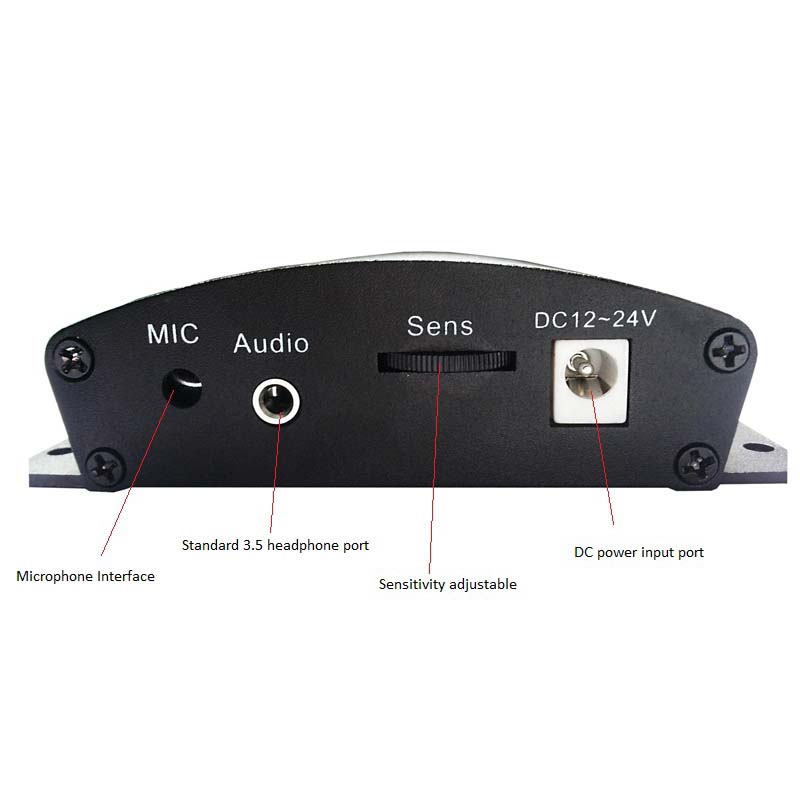

  • Microphone And Audio Line To Achieve Music Mode
  • 1 Year Warranty

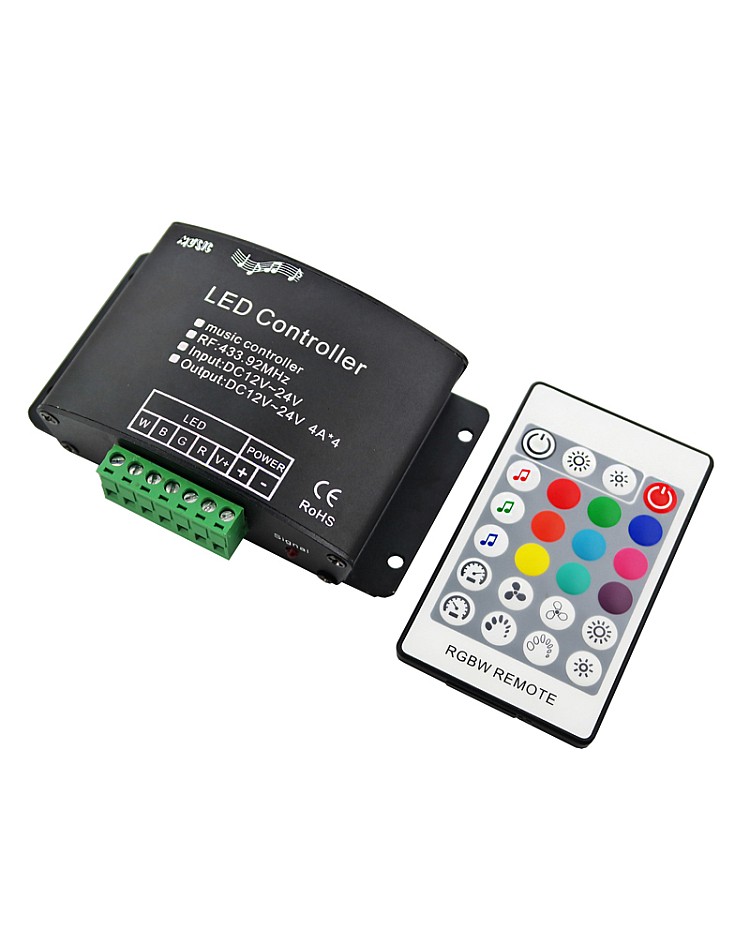

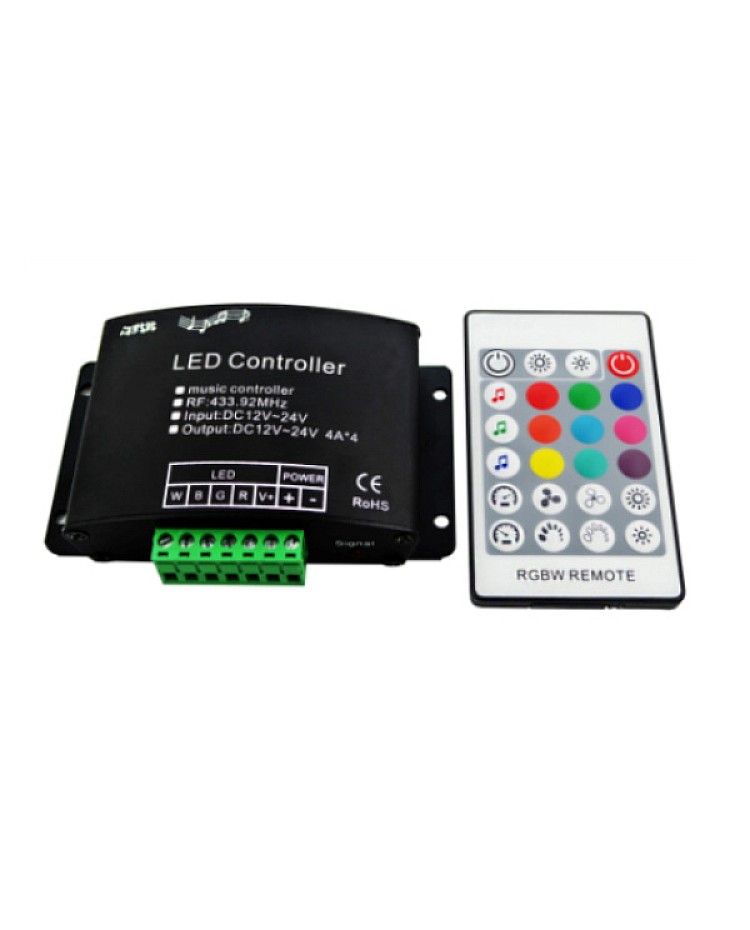

1*RGBW Light Music Controller

1*24 Keys RF Remote

RGBW Strip Light Music Controller
