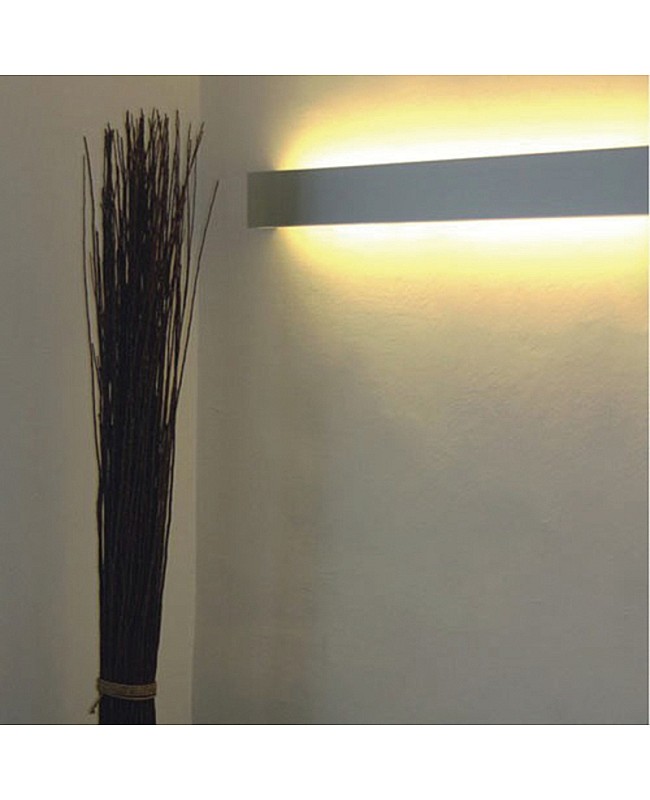

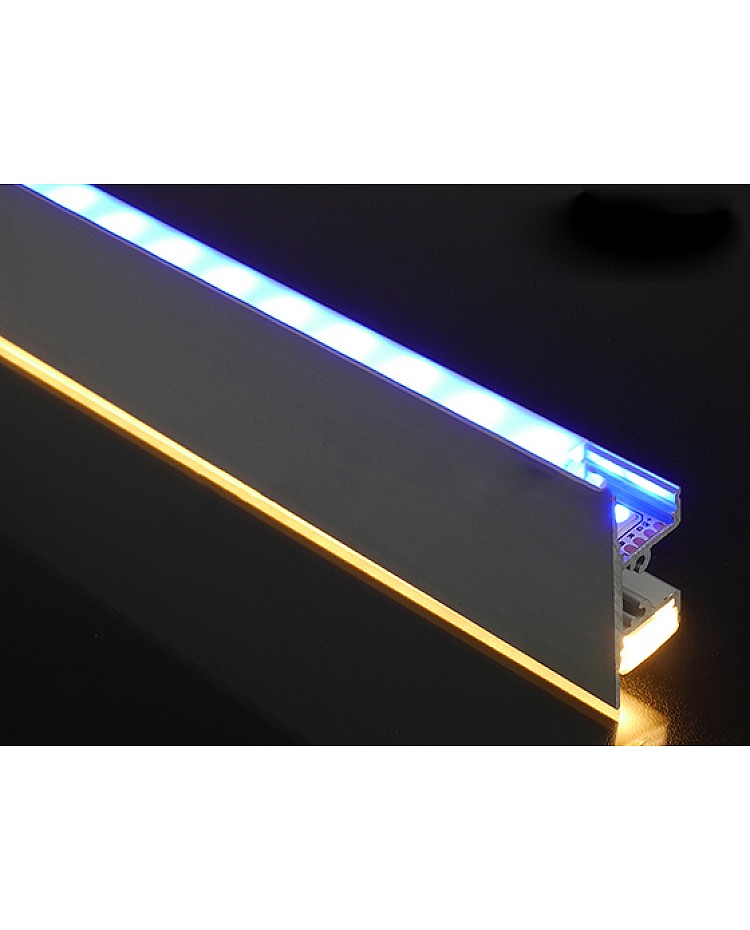

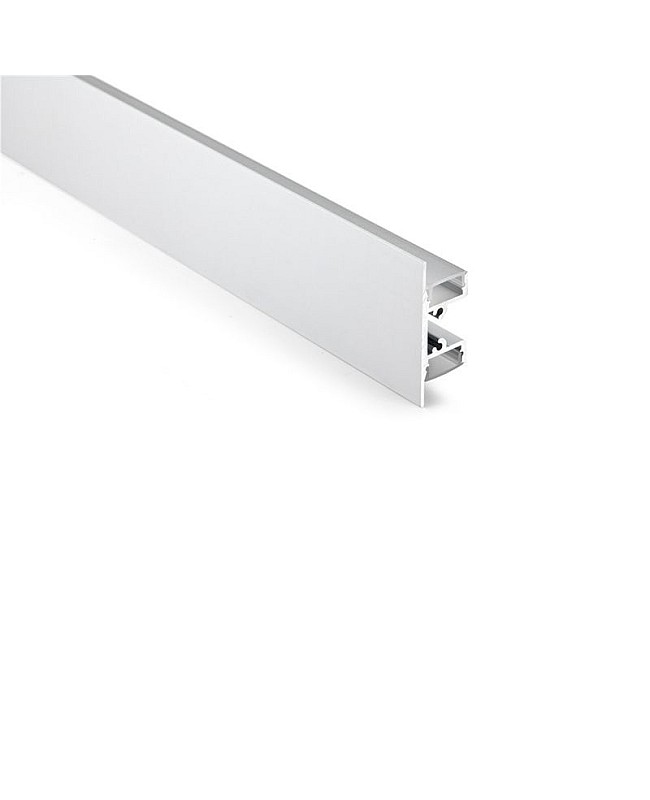

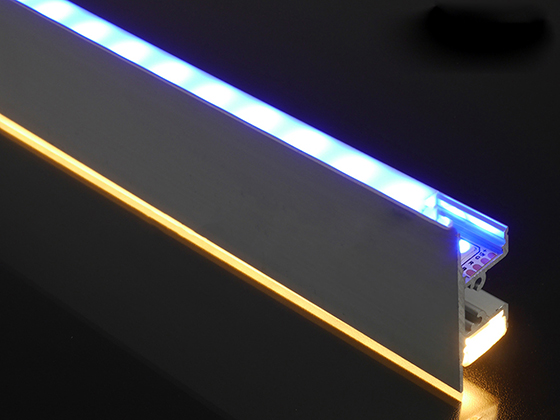

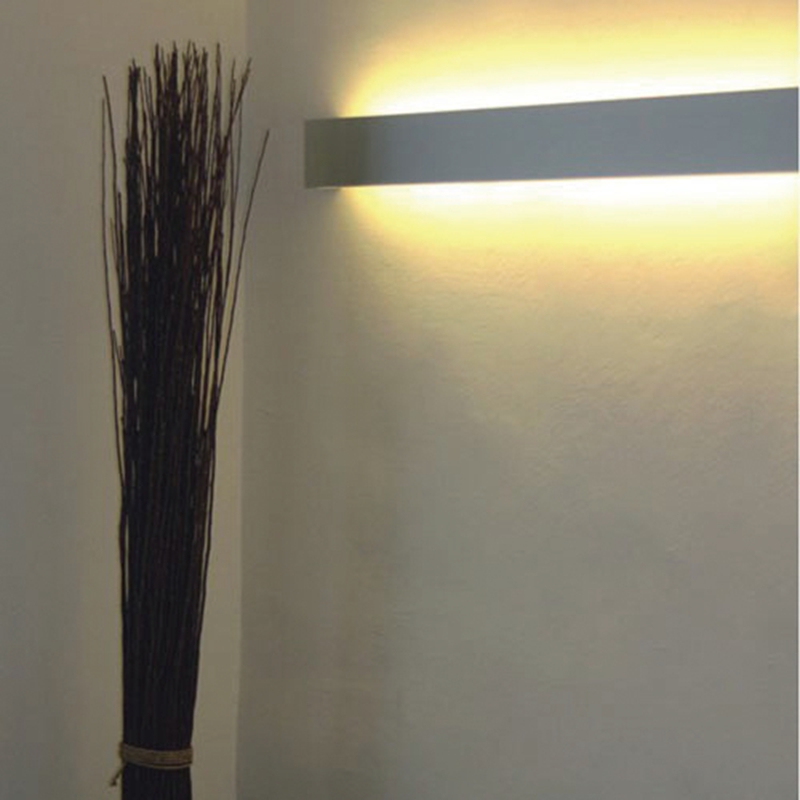

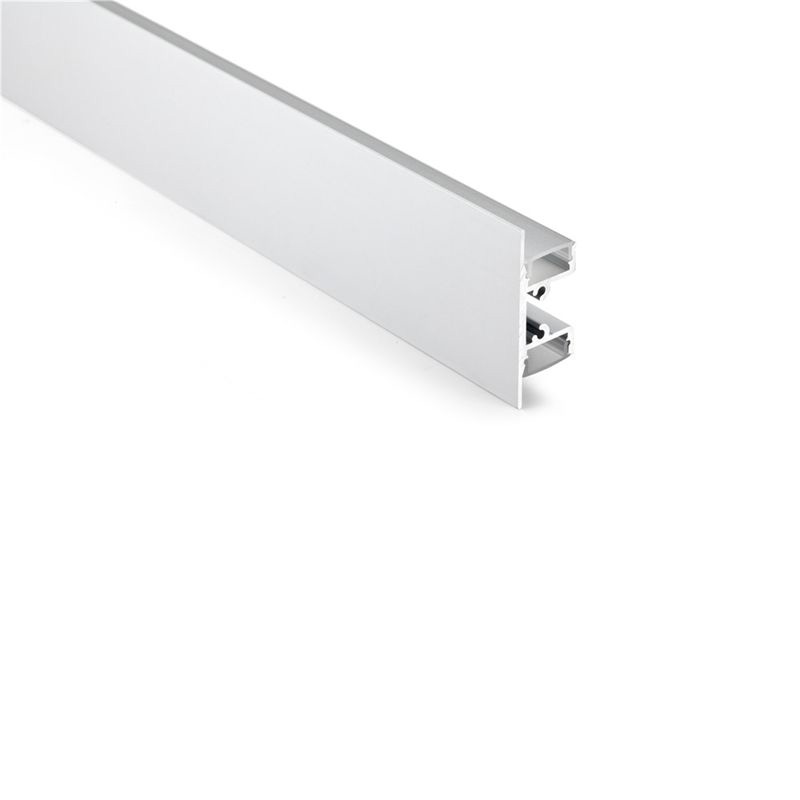

The Aluminium LED Strip Housing has 2 slots in Up and Down directions and can illuminate the up and down areas on the wall simultaneously, creating a warm and cozy atmosphere or a bright and vibrant ambiance. The width of the slot is 12.2mm and allows the max width of Strip Lights to be 12mm. Recommend adding high-density COB Strip Lights as the light source, with no dark area and light dots, to create a seamless light line.  The Aluminum Houses are made of 6063-T5 aluminum alloy material and with silver anodized surface treatment with a longer lifespan and a better anti-oxidation feature than other similar products. The default length is 2 meters; you can cut to any length you want. There are 3 different diffusers available: the PC Opal Matte Cover, PC Semi-clear Cover, and PC Clear Cover. You can choose them for the different lighting transmittance. The Light Diffusers are made of brand material from Japan with stable quality, anti-yellowing, and perfect light distribution. End caps with wire holes and without wire holes included, you can connect the LED Strip Lighting with the LED Power Supply to light them up or connect them with an LED Dimmer to adjust the brightness. The metal clips are included to mount the LED Housing on the walls easily.


  • Model: ALP050
  • Material: Aluminum Alloy(6063-T5)
  • Surface Treatment: Silver Anodized
  • Colors: Silver, White, Black

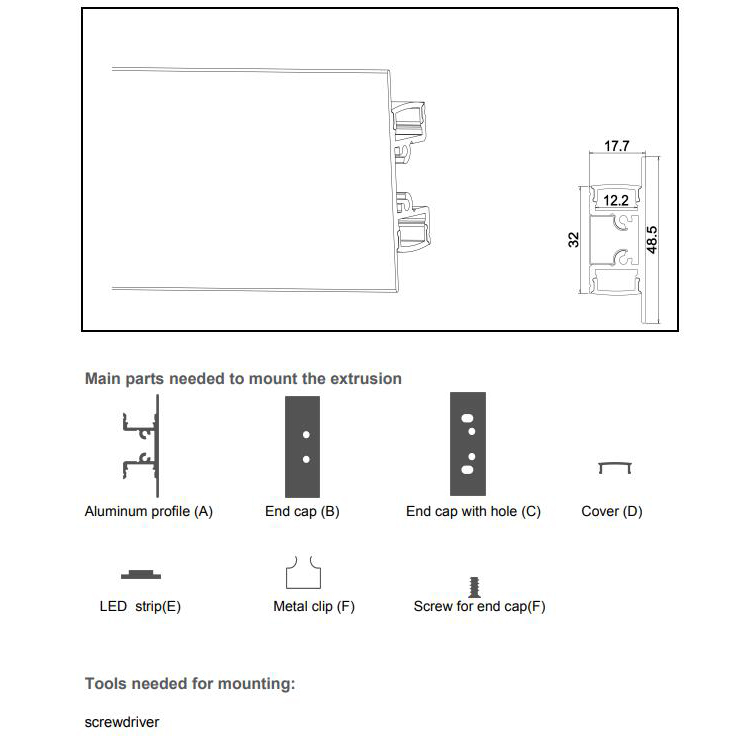

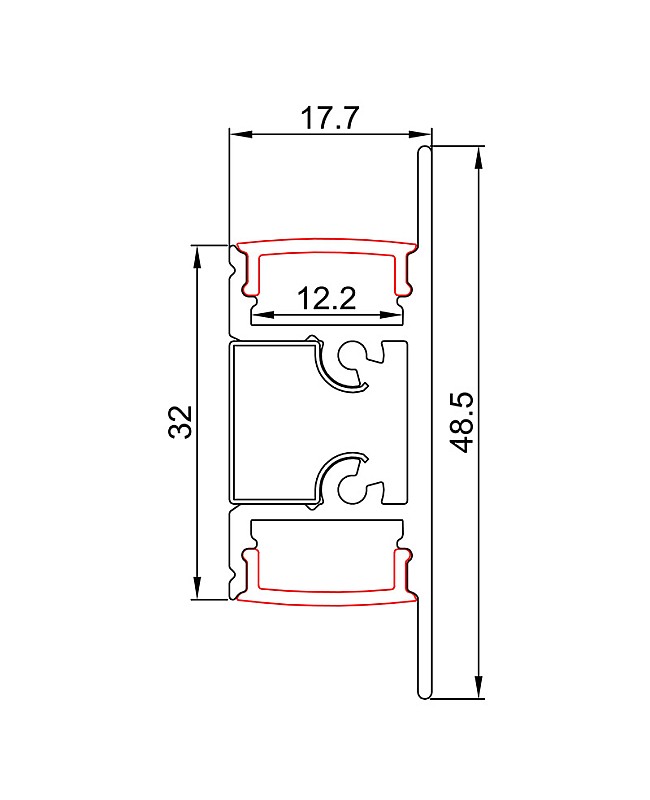

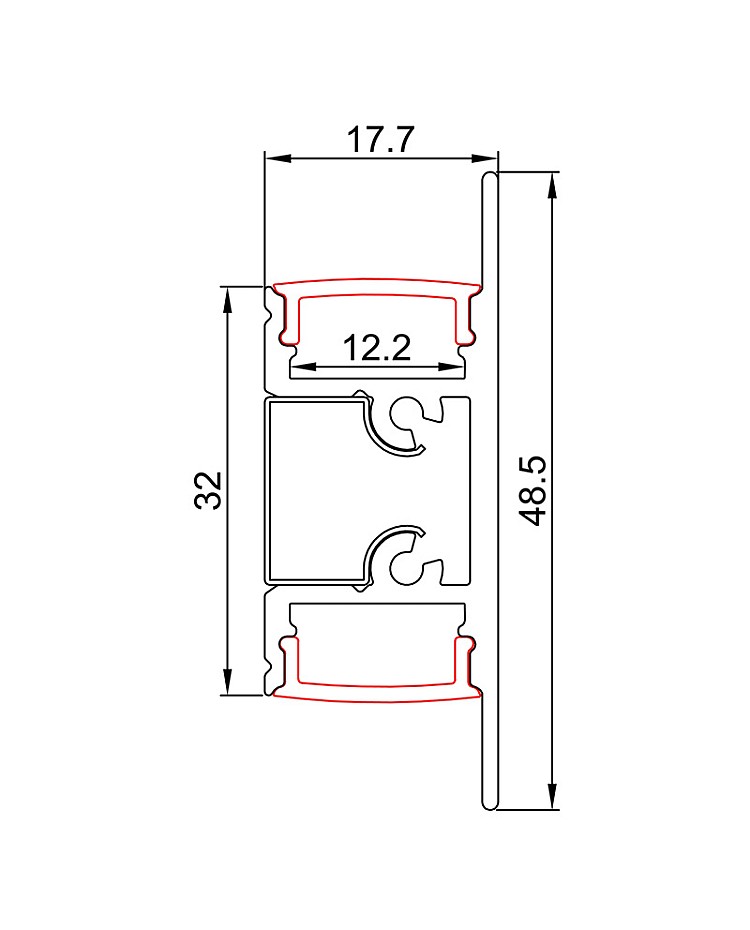

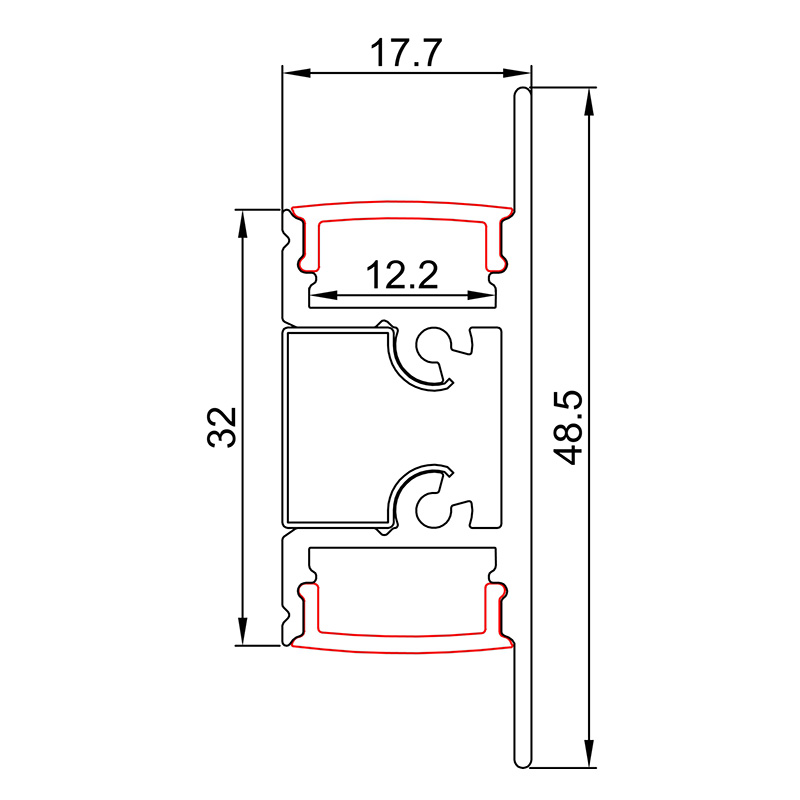

  • Size: 17.7*48.5mm(W*H)
  • Diffusers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover
  • Default Length: 1Meter
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Inner Width: 12.2mm
  • Compatible With COB, 3528, 5050, 2835 LED Strips
  • Max Power: <15W/Meter
  • Installation: Wall Mounted
  • Applications: For Wall Light, Light From Up And Down Direction
  • 5 Years Warranty


1*Aluminium LED Strip Housing

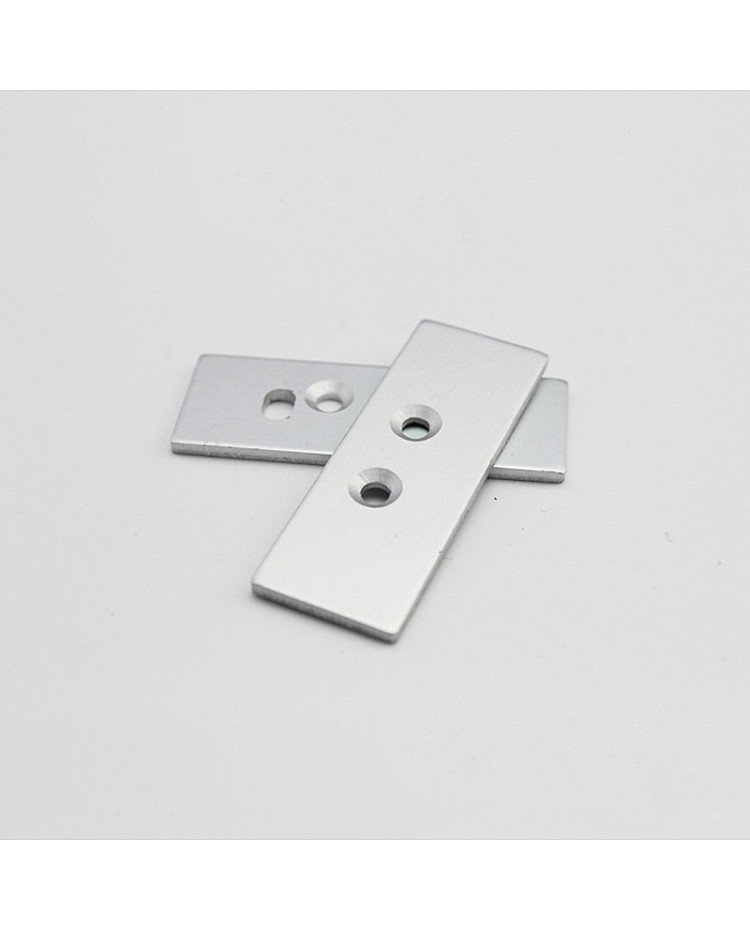

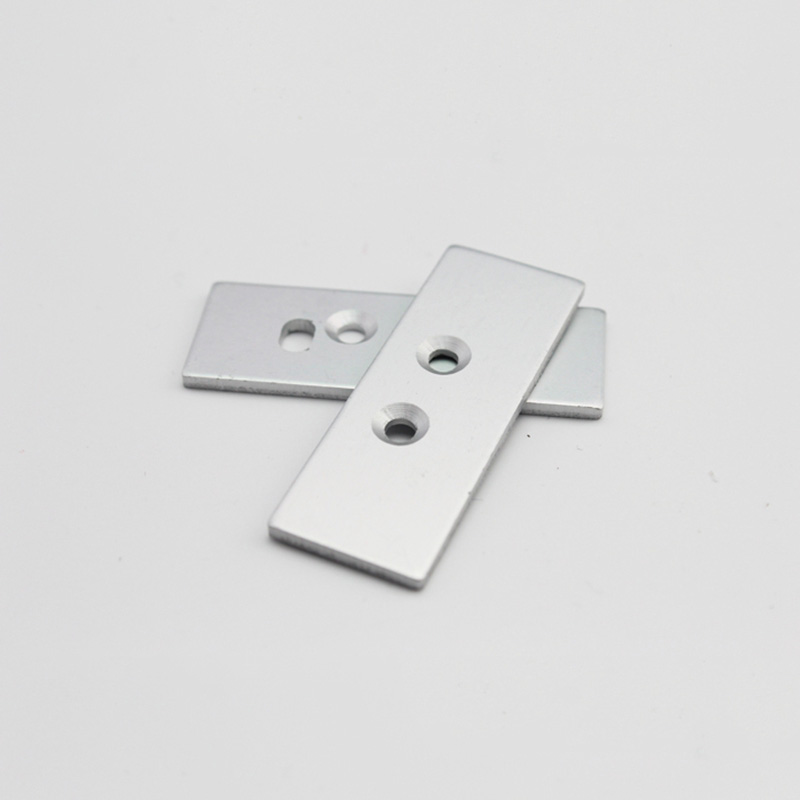

End Caps(With Wire Hole/WIthout WIre Hole)

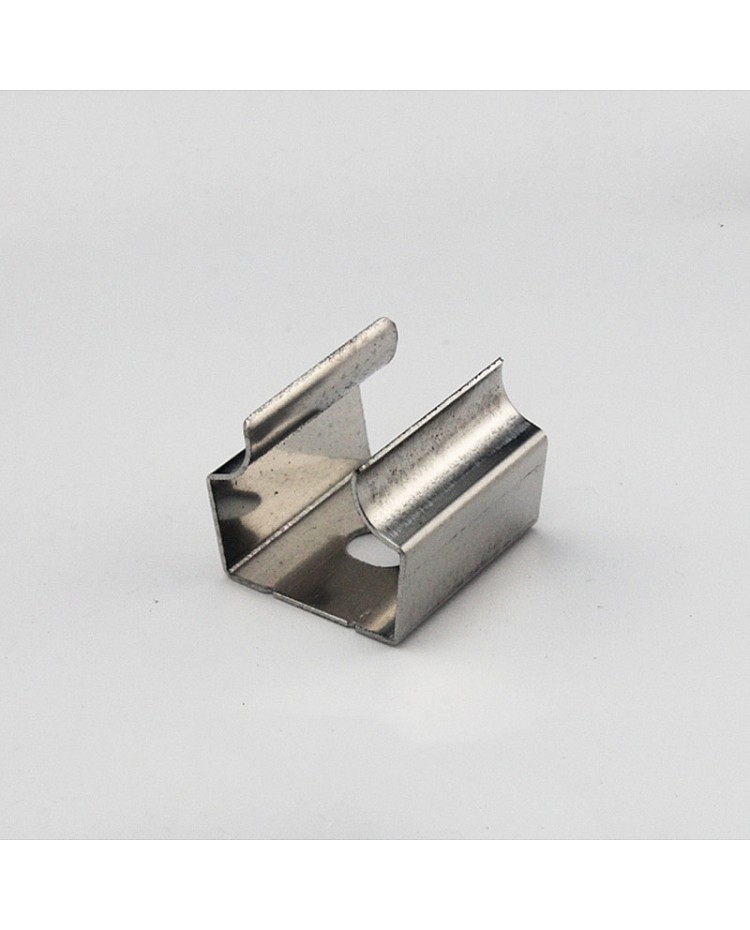

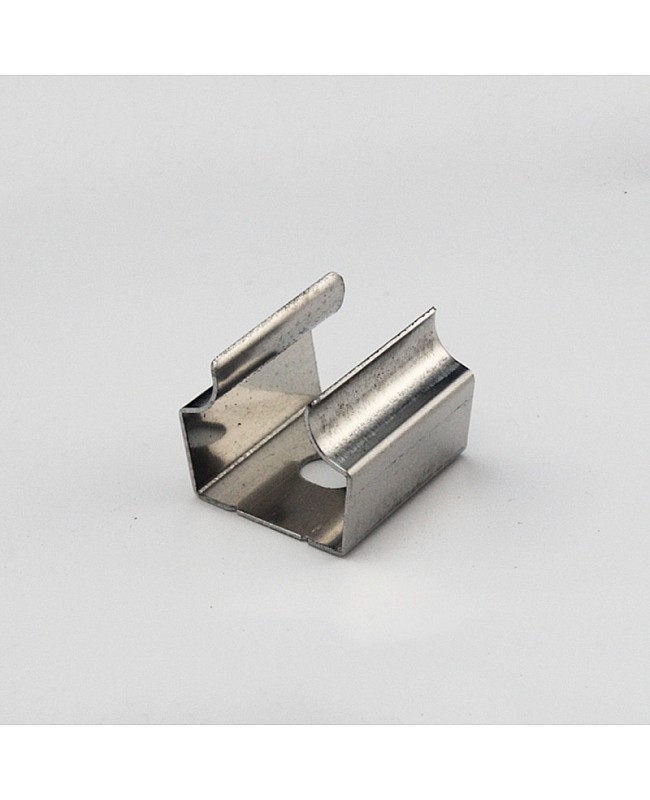

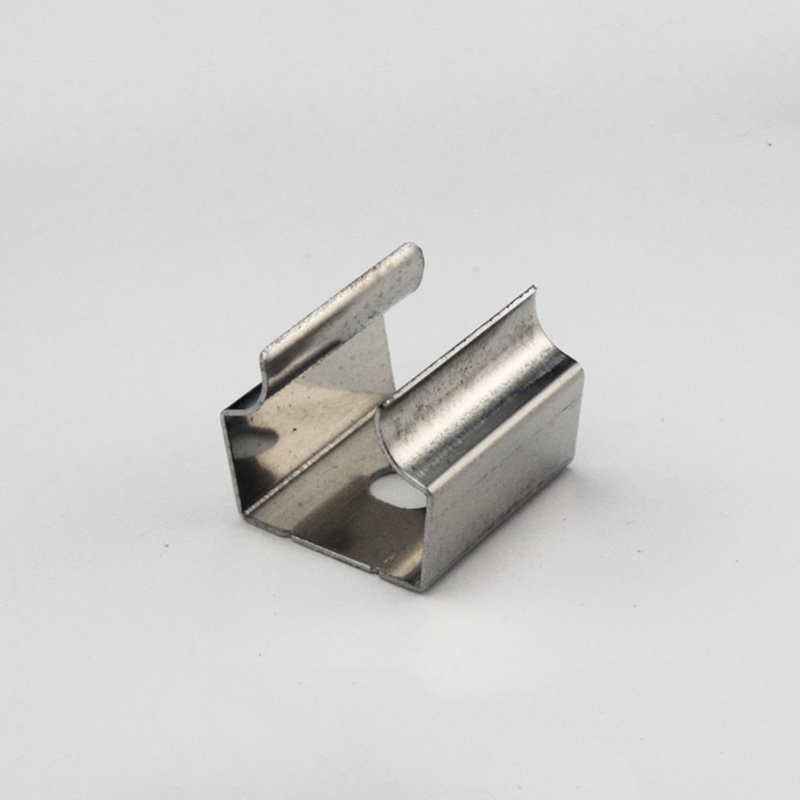

Metal Clips

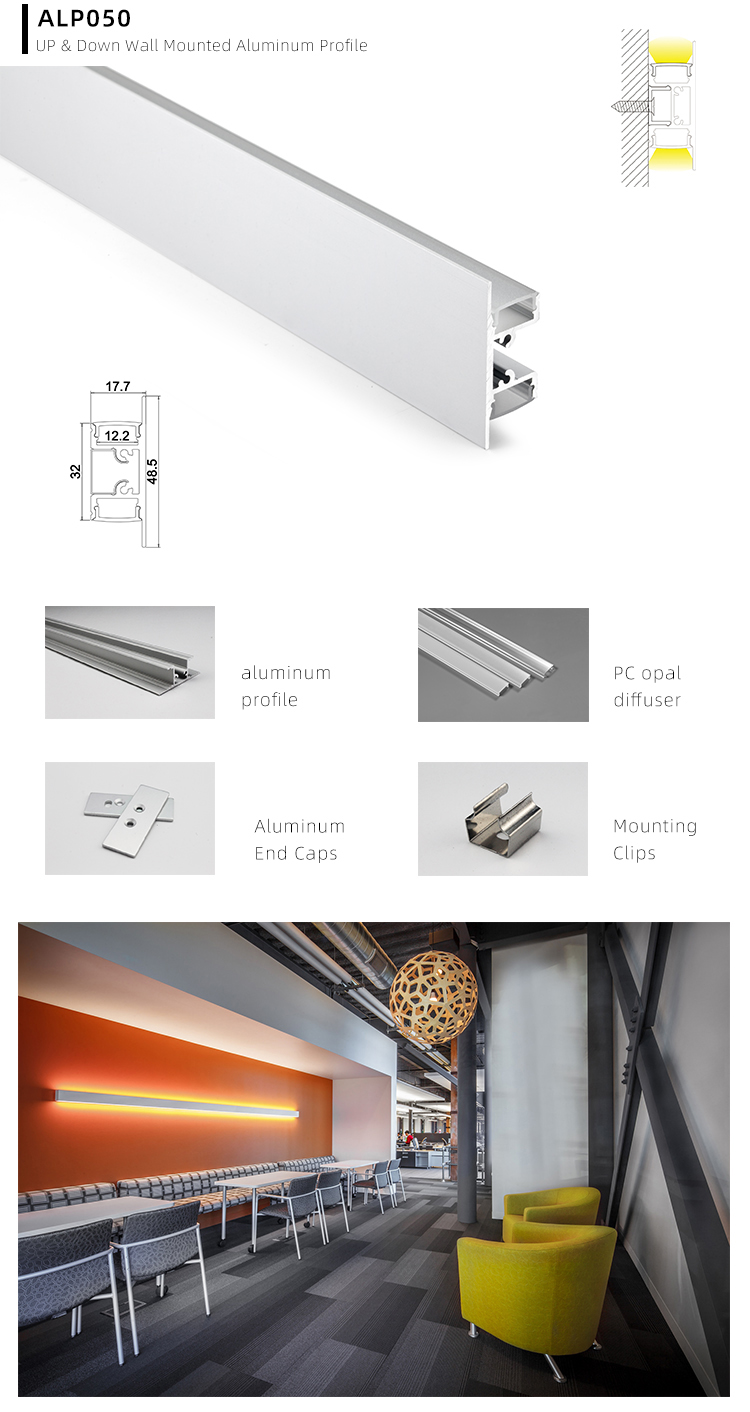

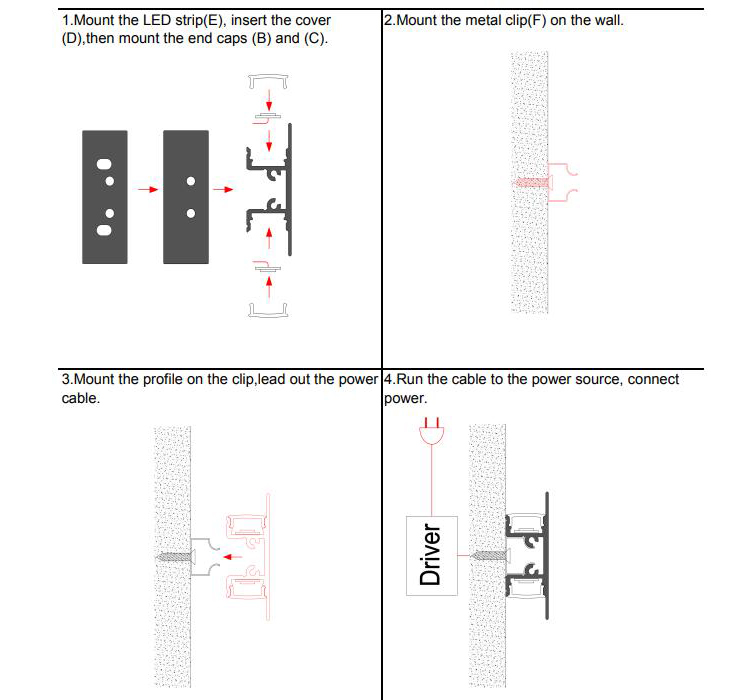

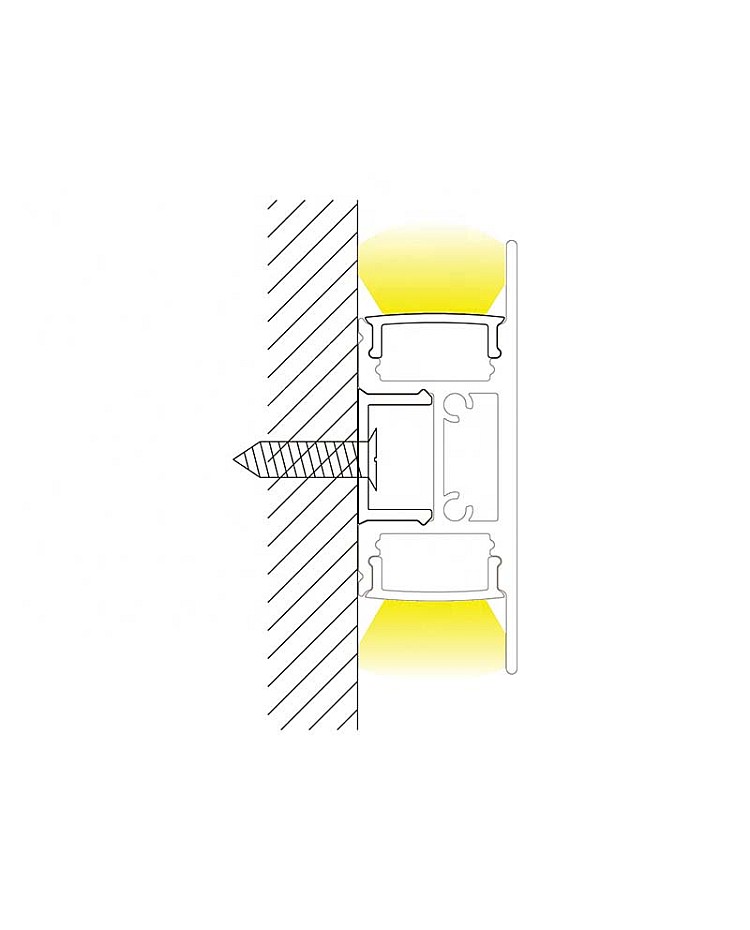

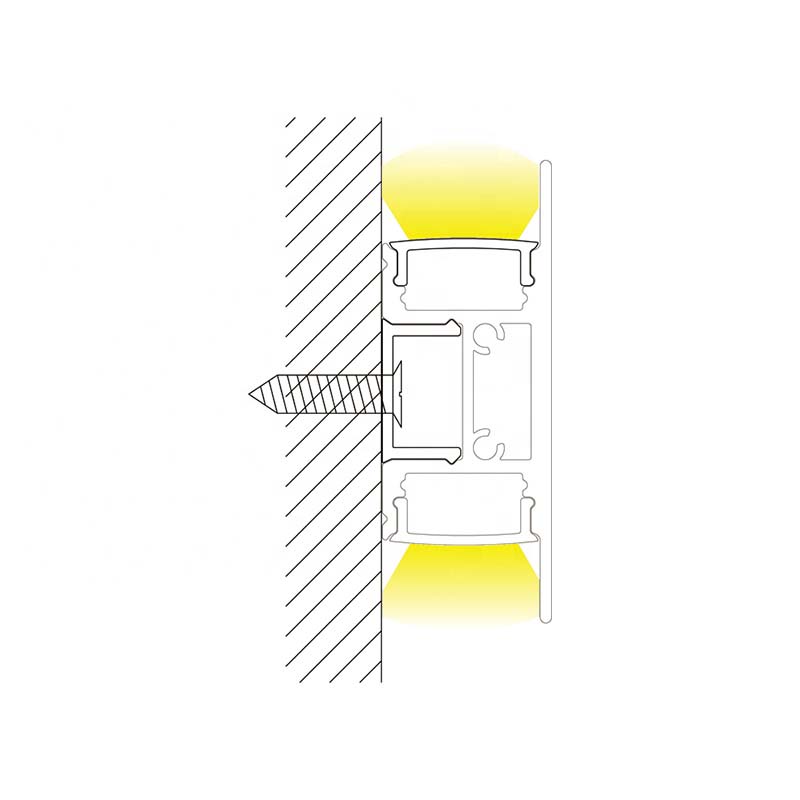

Aluminium LED Strip Housing Installation Up And Down Light LED Housing How To Install LED Housing

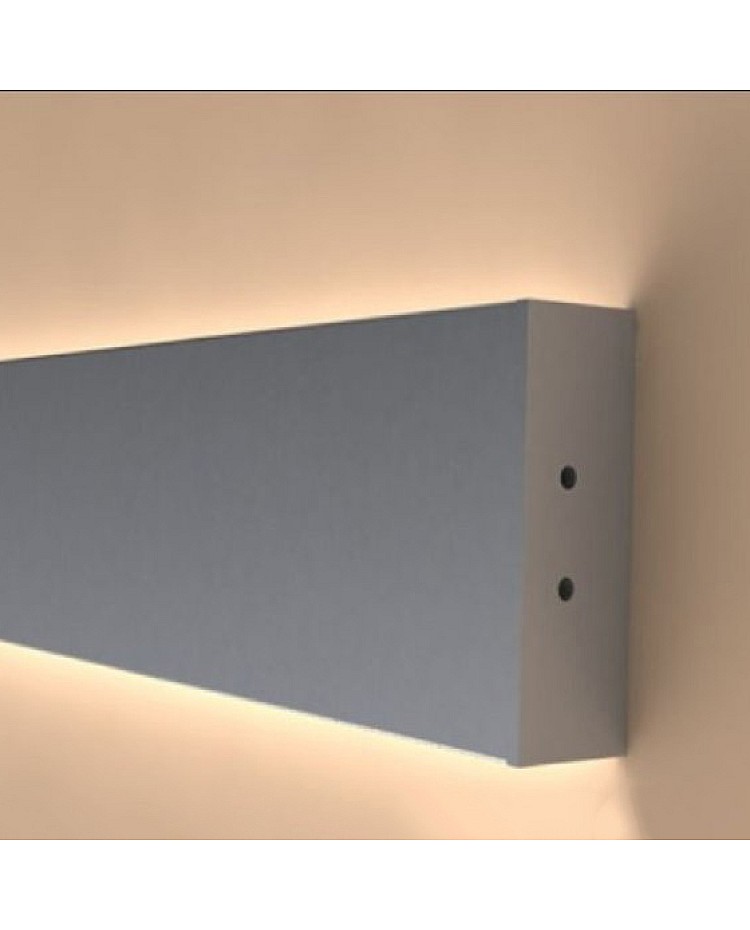

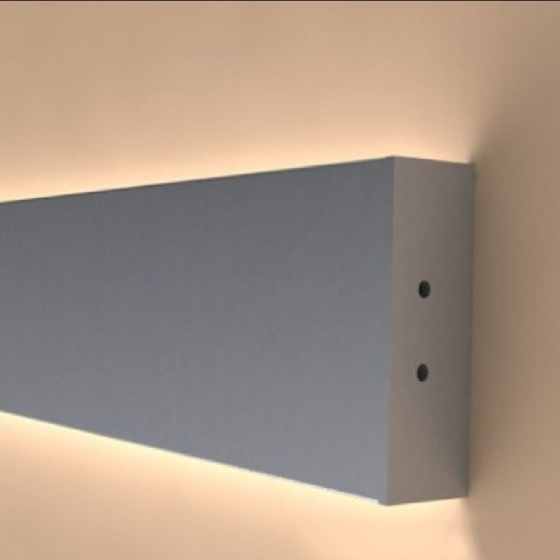

Side Wall LED Profiles
