In Stock
$12.99
Reward Points: 13
-
+
  • Brand: Hoion
  • Product Code: HX-DMXCM-3CH

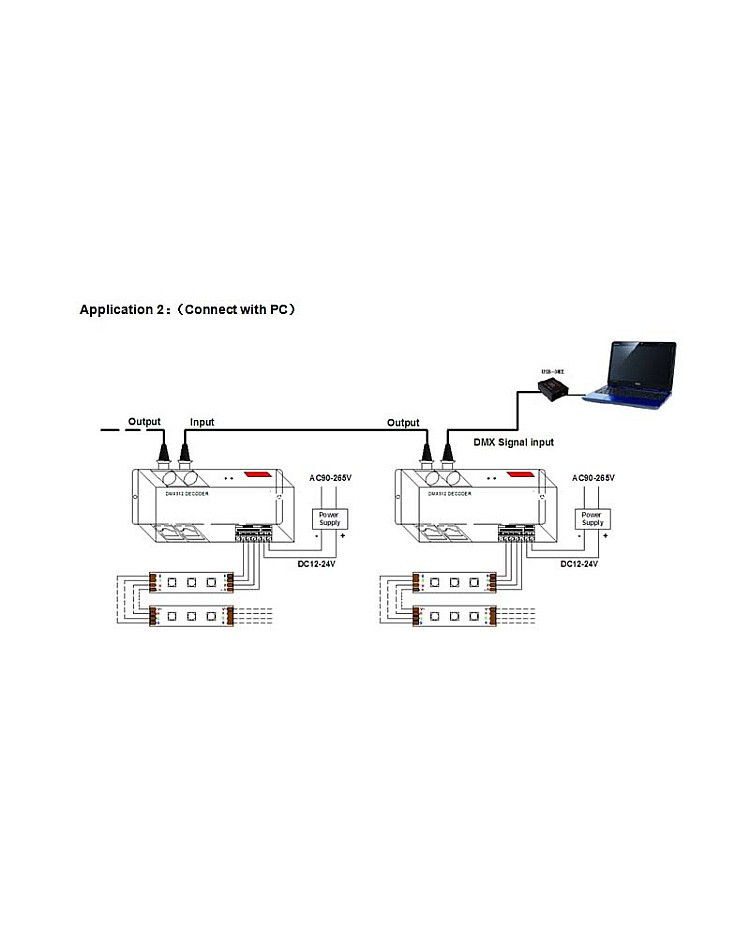

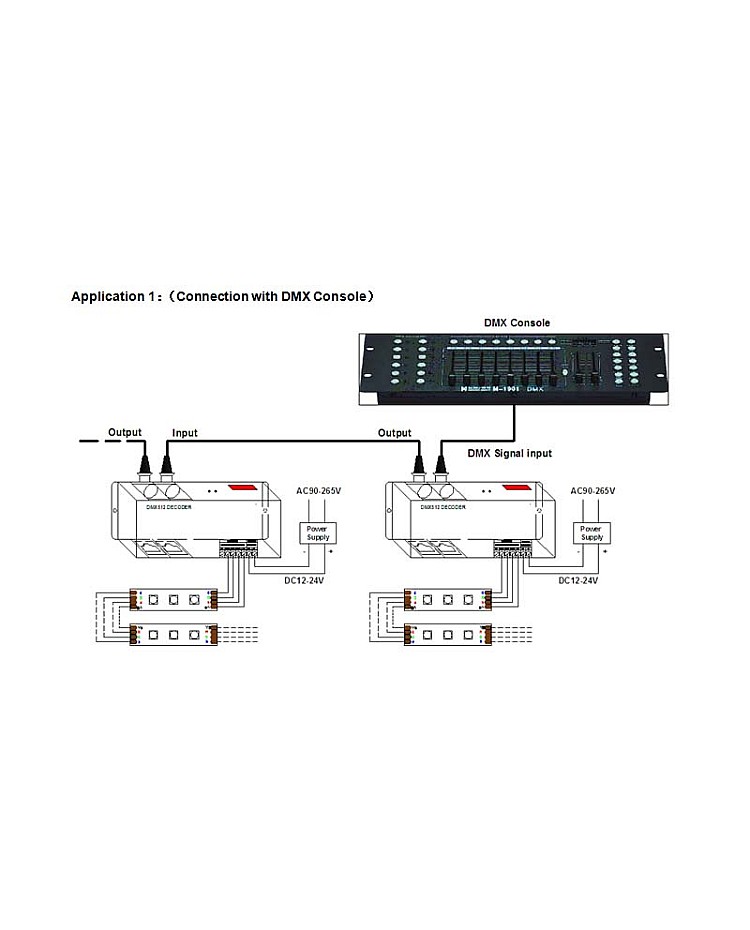

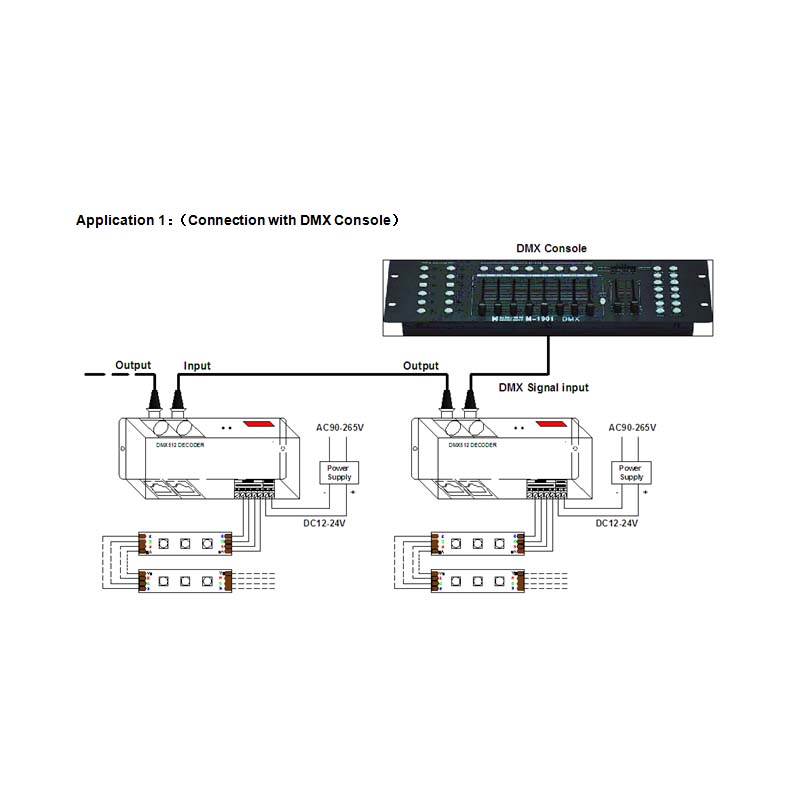

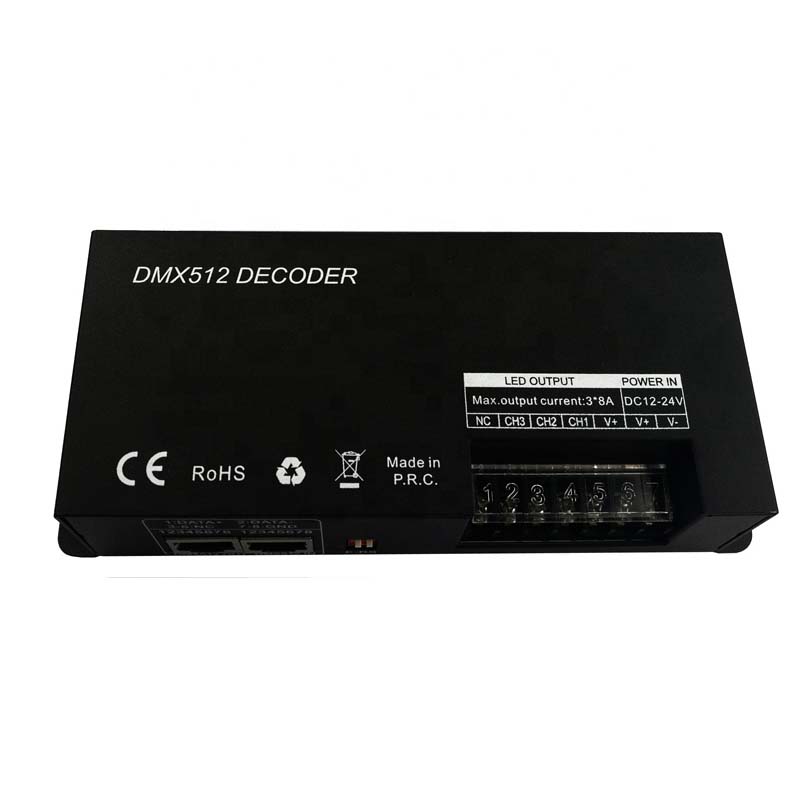

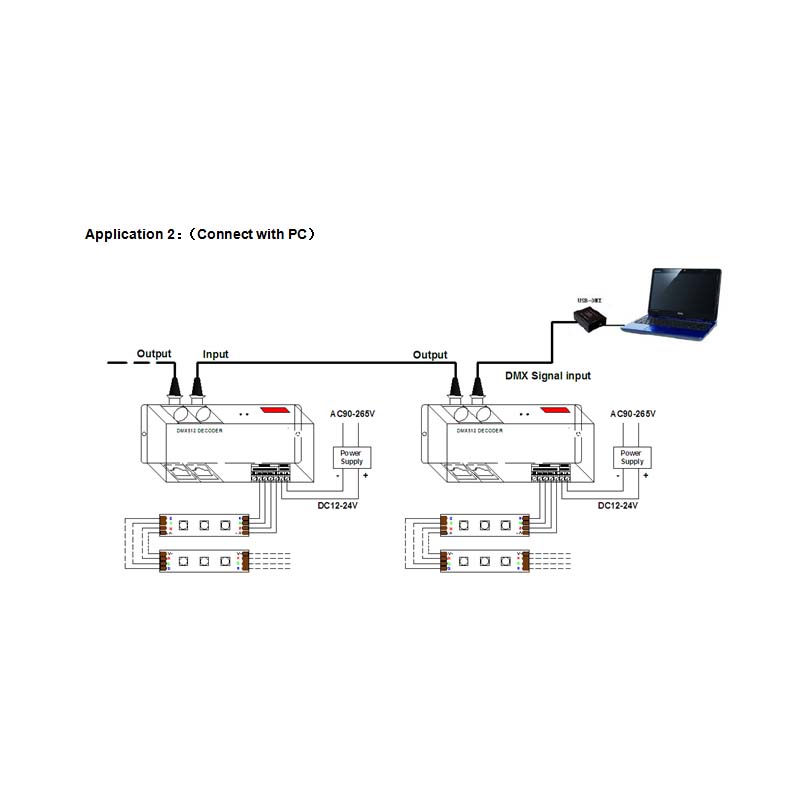

The 3 CH RGB DMX decoder can accept the internationally recognized DMX512 standard signal and convert it to the PWM signal to actuate RGB LED lights; you can use it for constant voltage RGB LED lamps, LED strips, LED modules, etc. The DMX 512 decoder has a 3-output-channel design, and the max output current of each channel is up to 8A, and the max loading power is up to 576W when working in DC24V. The RGB decoders can be connected with a signal line through the RJ45 ports or XLR plug to continue expanding the channel, accept the manual-setting address by DIP switch, and control many decoders' lighting effect synchronization by one DMX master controller. The RGB DMX 512 decoder can also be used as an RGB controller; There are 9 working modes, which a DIP switch can change. The speed can be adjusted through a DIP switch when in static mode.



Specifications:

  • Working Temperature: -20-60℃
  • Size: 164*66*39mm(L*W*H)
  • Working Voltage: DC12V-24V
  • Static Power Consumption: <1W
  • Connecting Mode: Common Anode
  • Transmit Signal: DMX Signal
  • Output Channels: 3
  • Output Current: ≤8A Each Channel
  • Output Power: 288W(DC12V), 576W(DC24V)
  • Modes: 9
  • PWM Frequency: 1.95 KHz
  • Output Gray: RGB Each 256 Levels

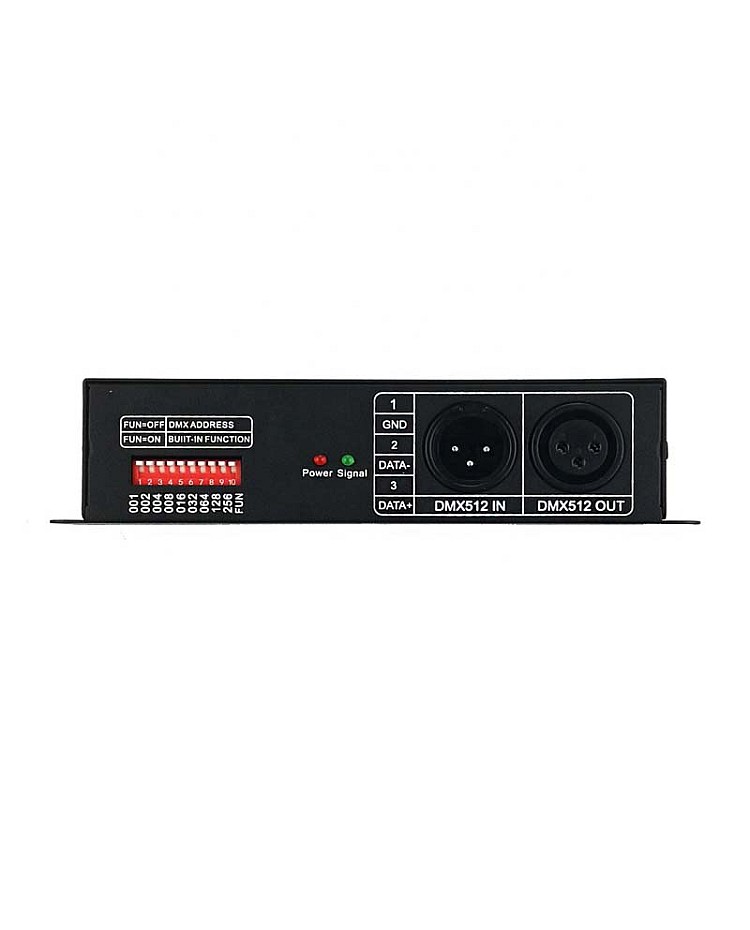

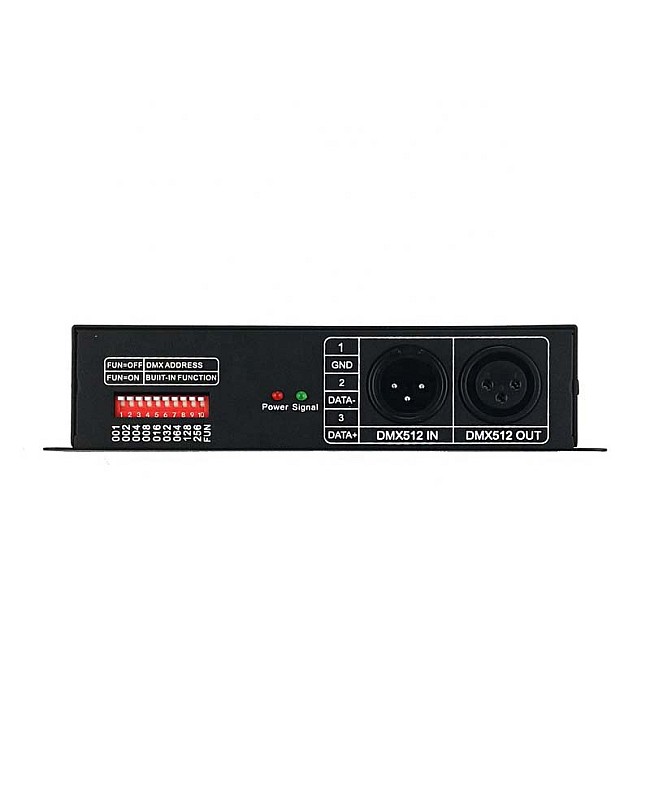

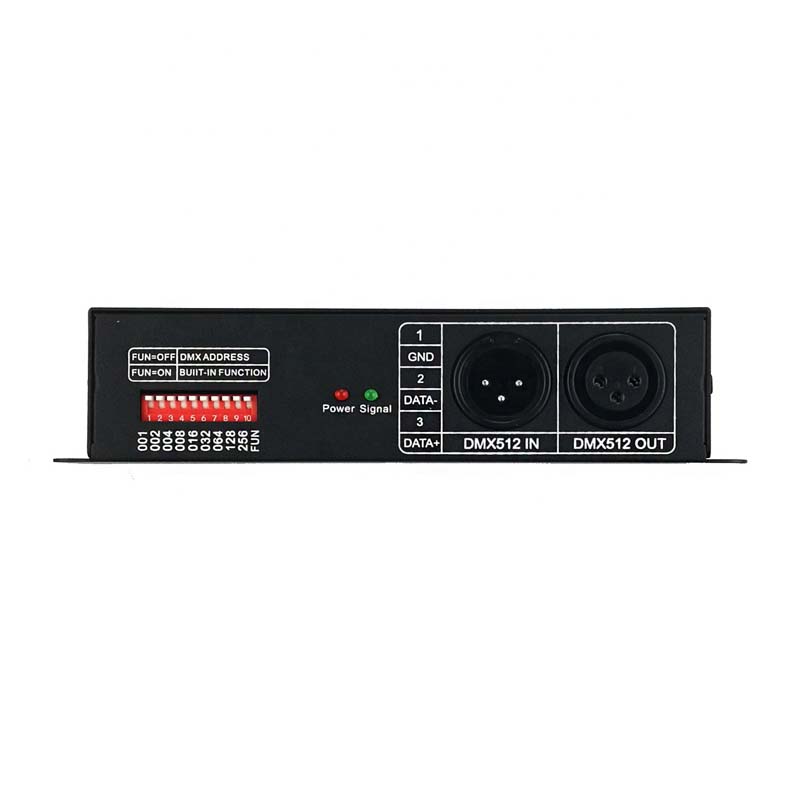

  • Could Set Channel Address Through The DIP Switch
  • Can Be Used As A Controller, 9 Working Modes, Can Be Changed By DIP Switch

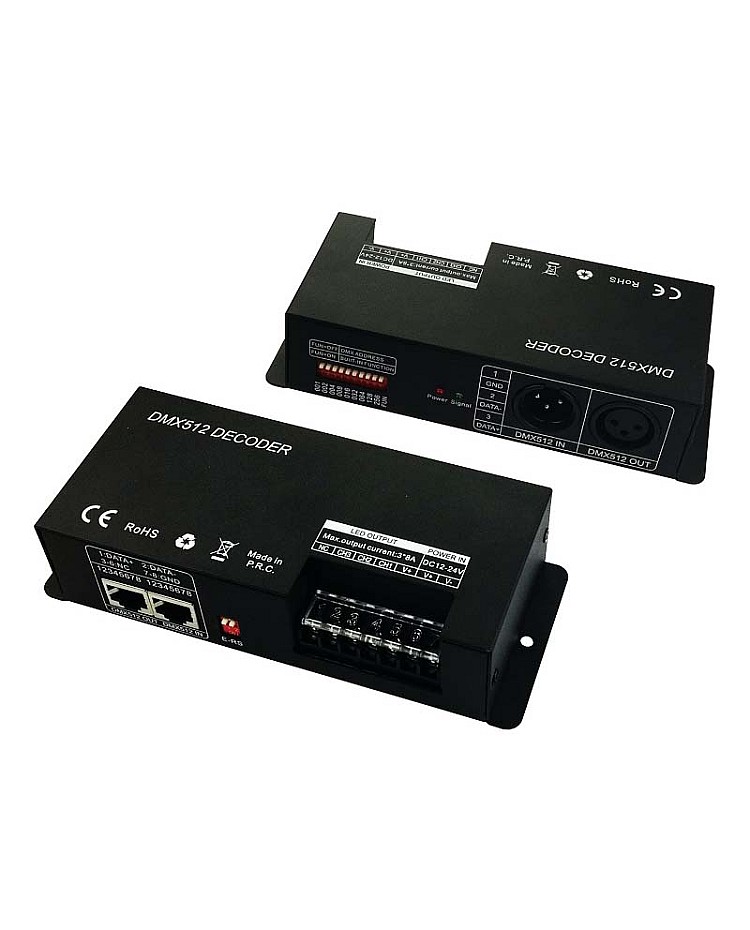

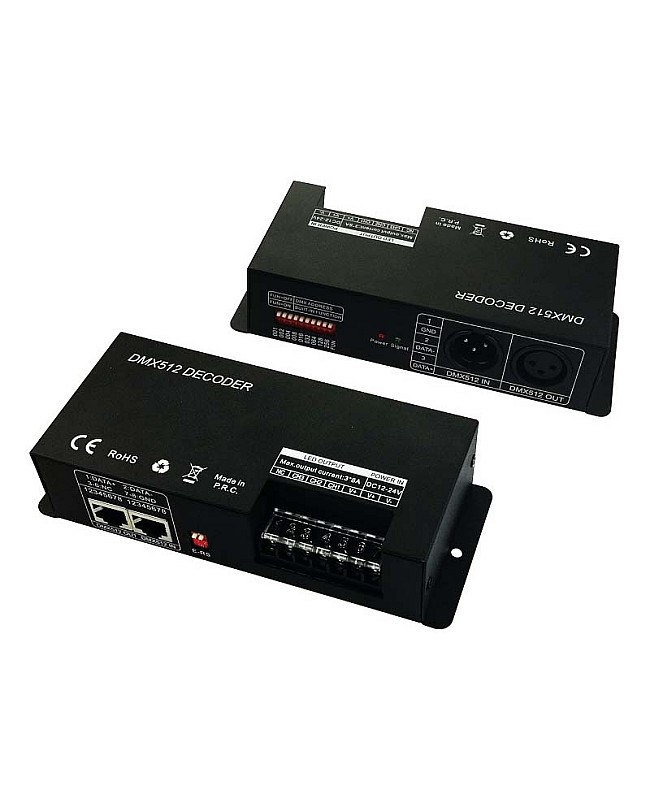

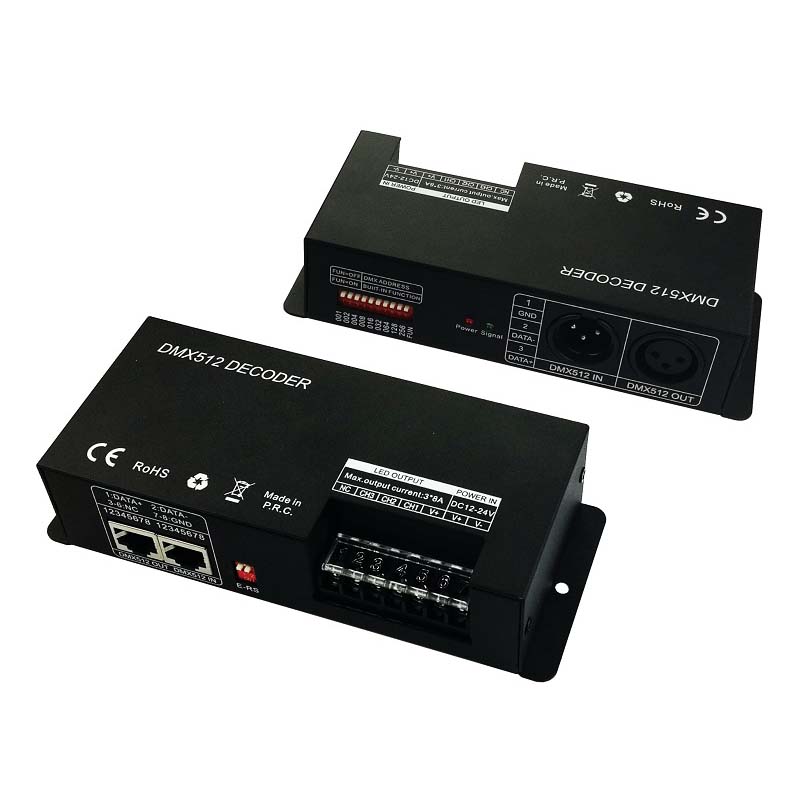

  • Standard XLR- Caron Socket And Standard RJ45 Cable Ports Included
  • Power Off Memory Function: YES
  • Short Circuit Protection: YES
  • Weight: 400g


Package:

1 * RGB DMX Decoder

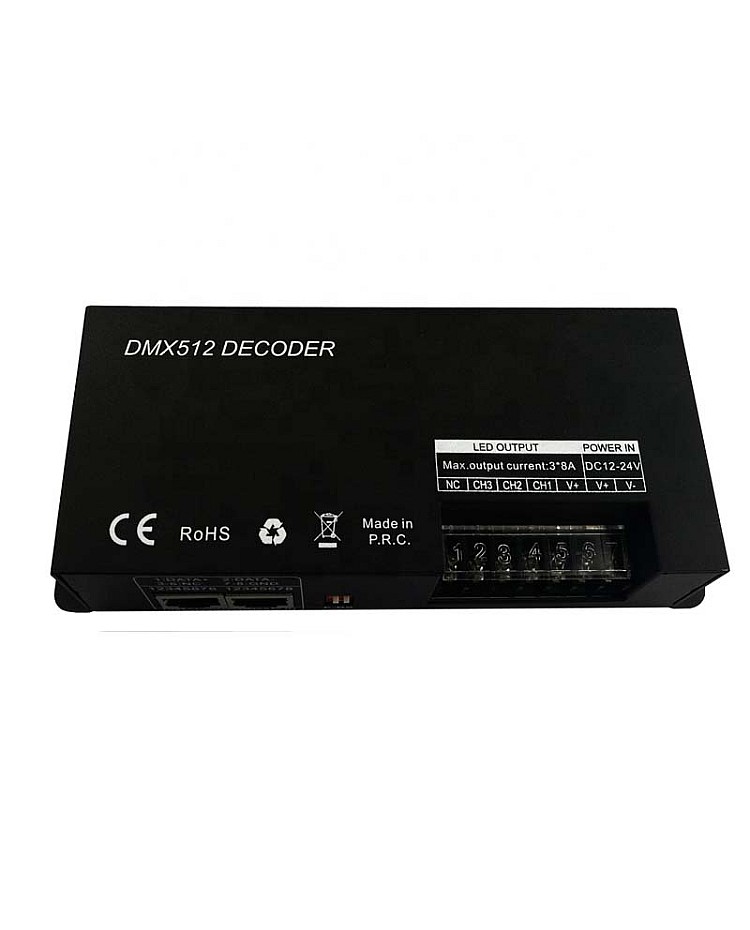

DMX Decoder For LED Strips
