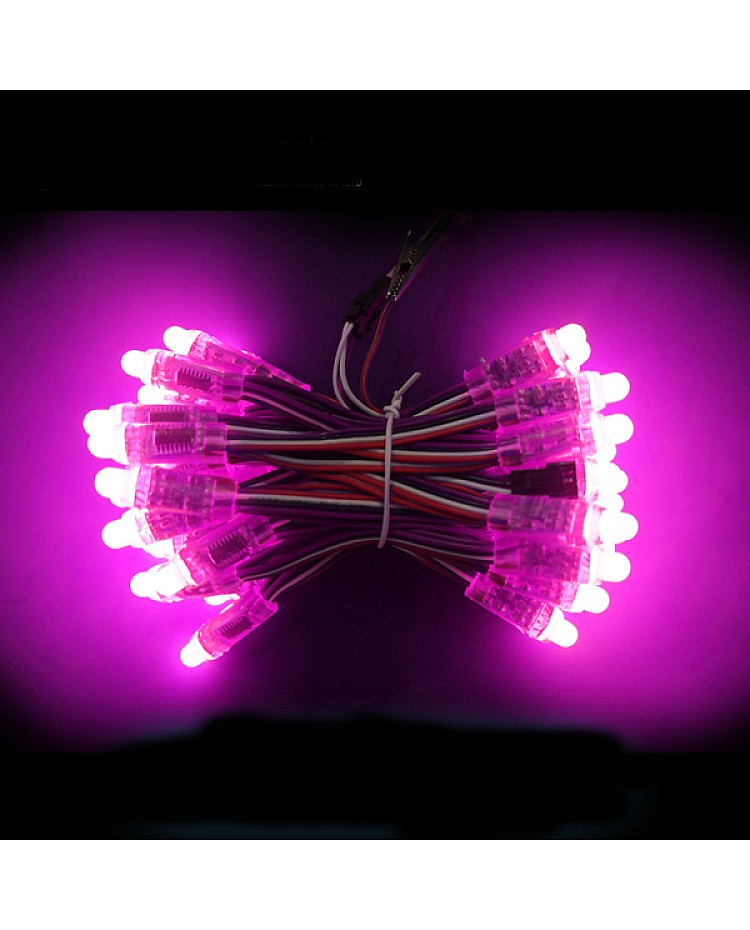

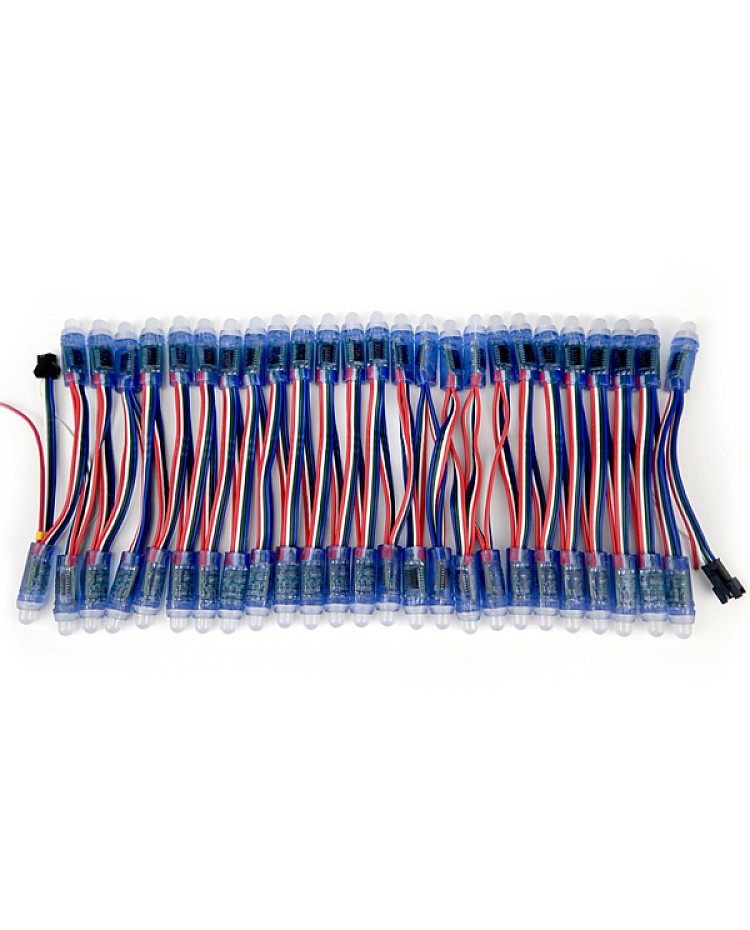

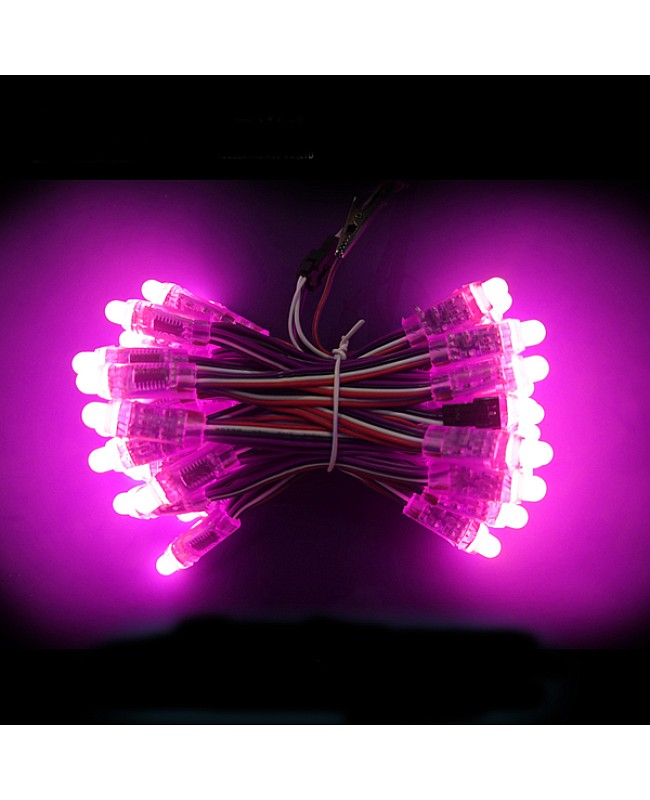

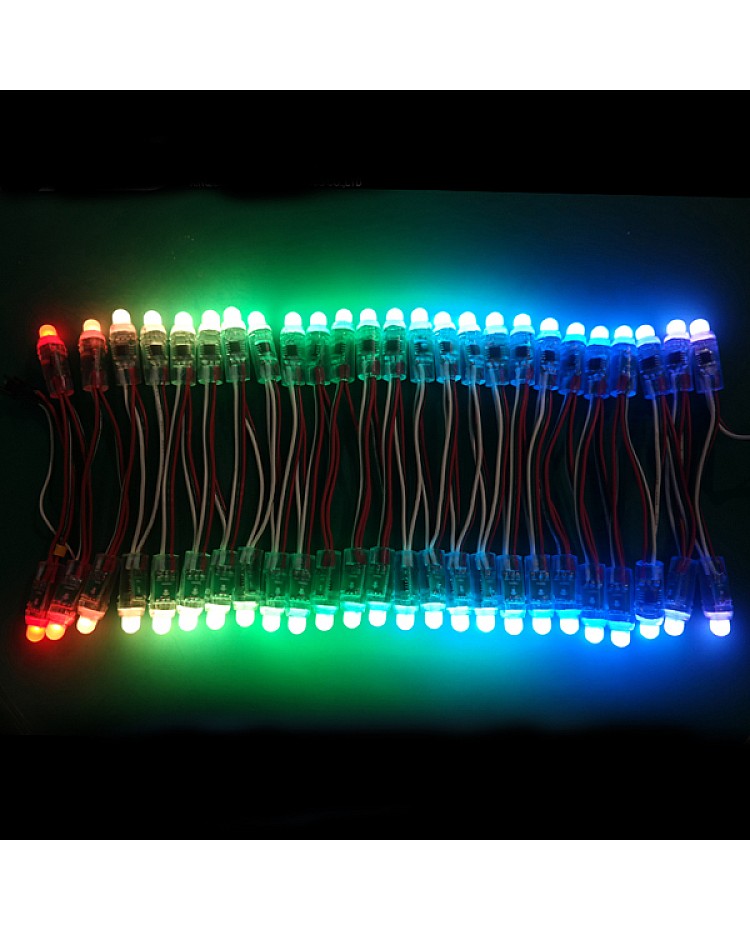

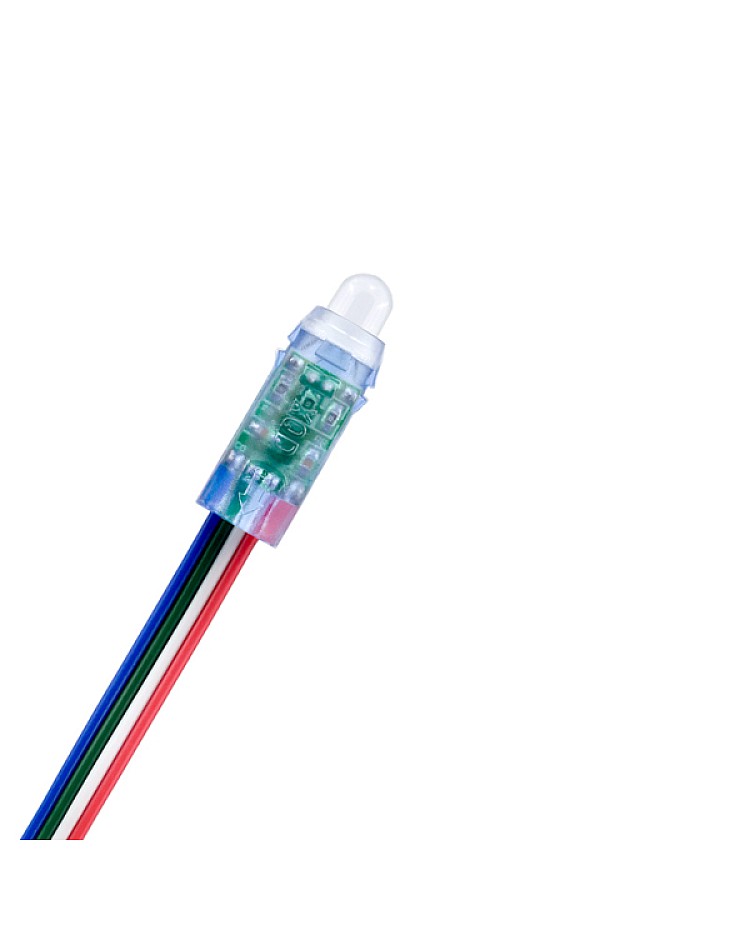

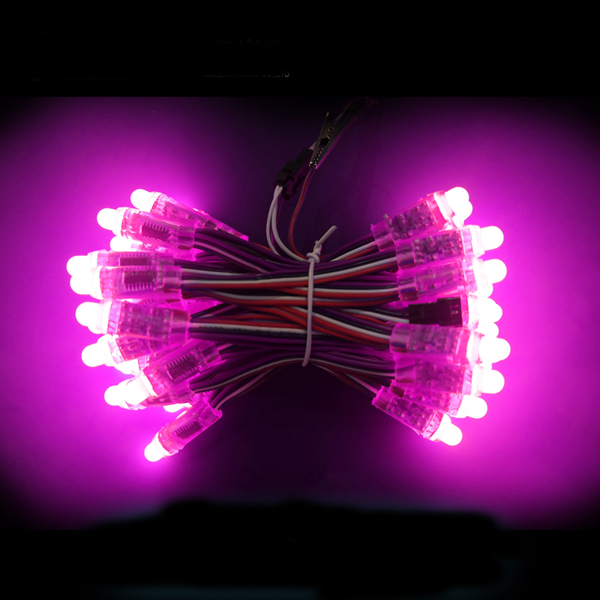

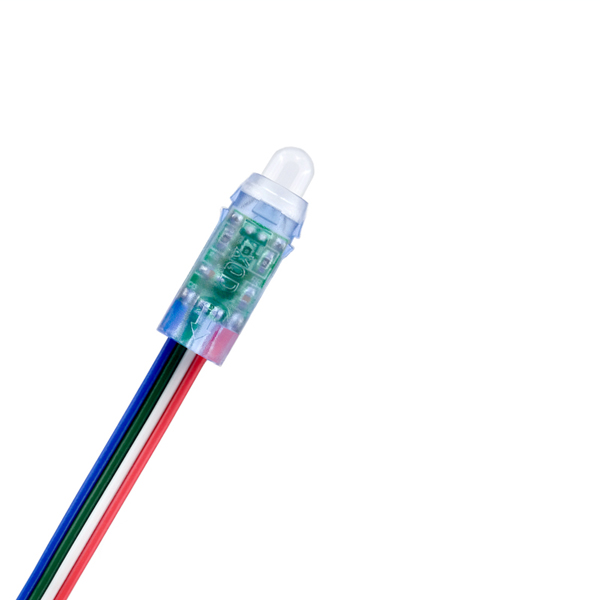

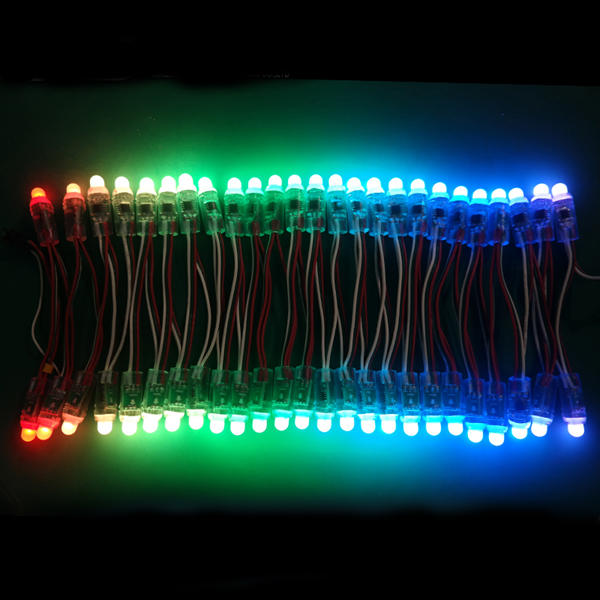

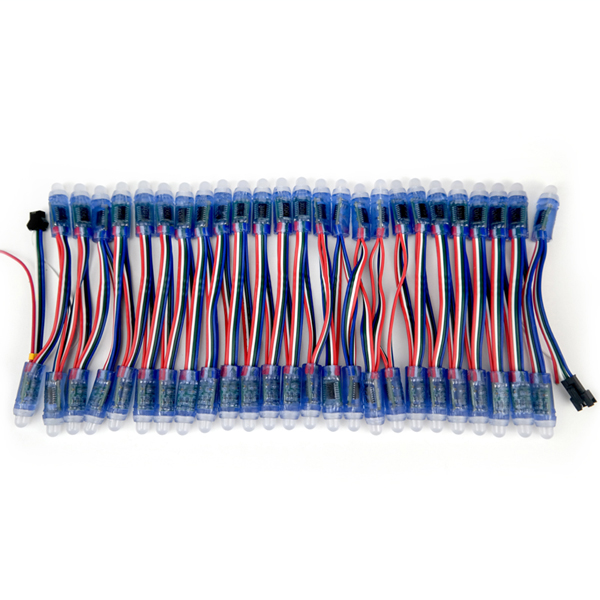

LED pixel light with 6803 IC, working in DC5V, waterproof level is IP65, wide view angle from 120 to 180degree. 50pcs per string, the price for one piece of pixel light. the pixel lighting uses super flux as light source, output 0.3w per piece, LED dimension is 8mm, hole diameter is must be 12mm, the length of wire is 10cm, according to the height of signs hanging, light center distance better be 2.5cm to 5cm, can use LED controller to control the LED pixel lighting, single light can be cut arbitrarily. CE, ROHS passed.


Features:

  • Item NO: TY-L-S-001
  • Manufacturer: TYoung
  • Color Available: Full Color
  • LED: Super Flux
  • Beam Angle: 120-180Degree
  • IP Rating: IP65, IP68
  • Voltage: DC 5V
  • Power: 0.3W/PC
  • Current: 20mA-30mA
  • Color: Full Color, RGB, Single Color
  • Wire Length: 10cm

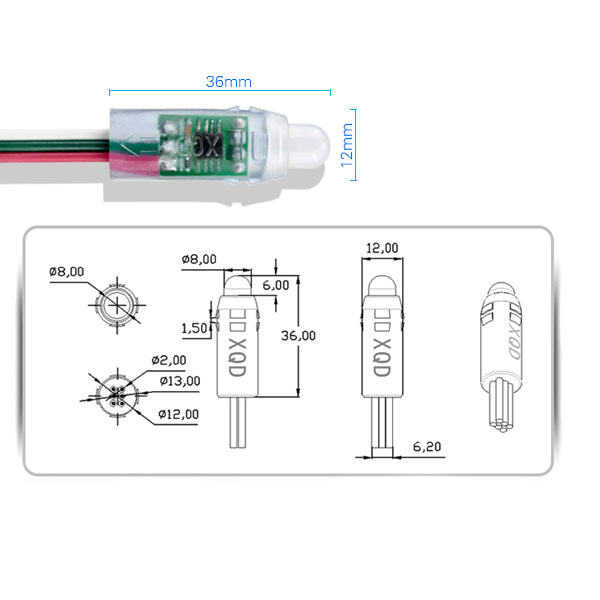

  • LED Diameter: 8mm
  • Hole Diameter: 12mm

led pixel lighting

pixel lights

 Package:

1*LED pixel light with 6803 IC
