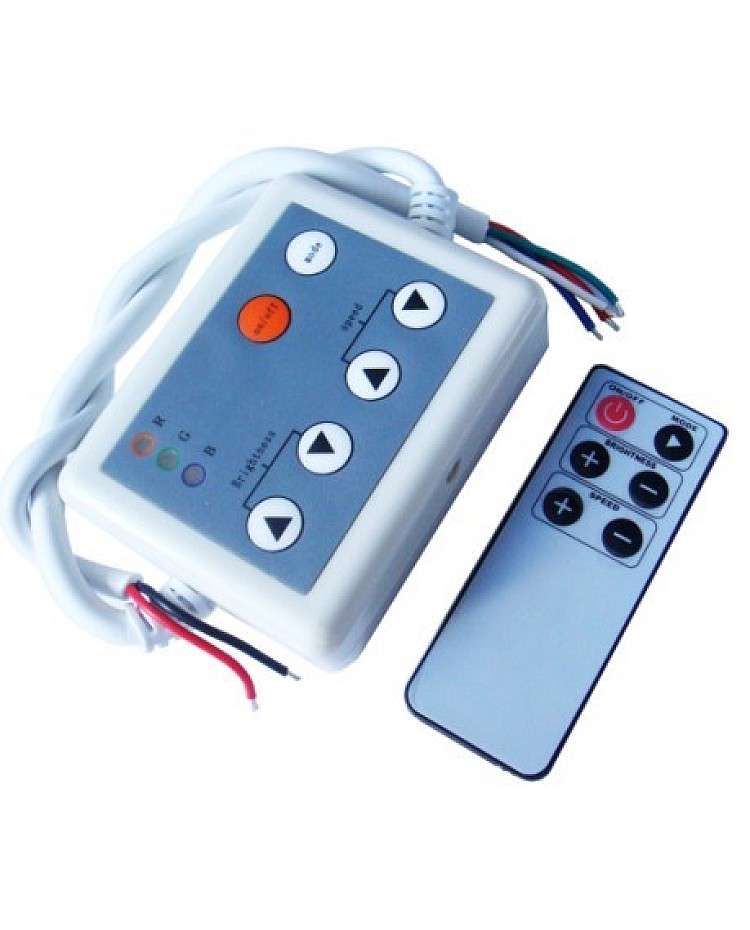

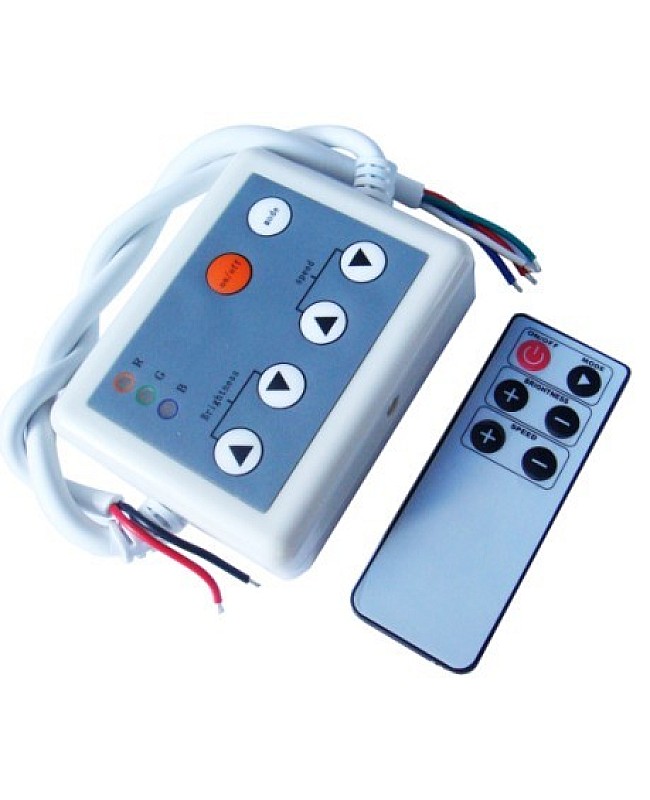

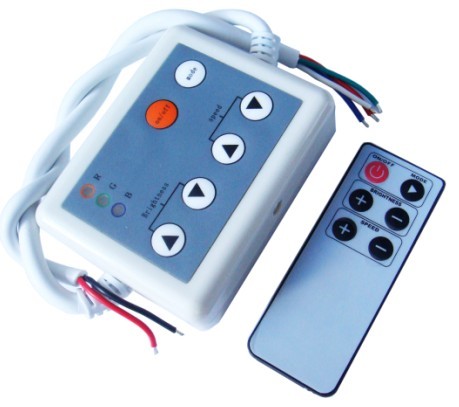

+The 6 keys IR waterproof LED controller adopts the advanced micro control unit, you can use it for controlling a variety of LED Lights whose light source is LED, point source of light, flexible light strips, wall washer lamp, glass curtain wall light, and so on. The IR LED controller with a 3-output-channel design has a max loading power of up to 288W when working in DC24V. The LED Controller has 6 buttons to select the working modes, adjust the brightness of static colors, or the speed of dynamic modes. You can also use the IR LED remote control to choose the working modes and adjust the brightness or speed of dynamic modes remotely.
Specifications:
- Item NO: TY-L-C-005
- Size: 90mm*70mm*28mm(L*W*H)
- Working temperature: -20-60℃
- Connecting Mode: Common Anode
- Static power consumption: <1W
- Output Channels: 3
- Working Voltage: DC12V-DC24V
- Output Current: <4A(Each Channel)
- Current: ≤3*4A
- Power: DC12V: ≤144W 24V: ≤288W
- 6 Keys Infrared Included
- The LED Controller With 6 Physical Buttons To Adjust The Brightness And Speed
- Weight: 215g
Package:
1 * Waterproof LED Controller
1 * LED Remote
