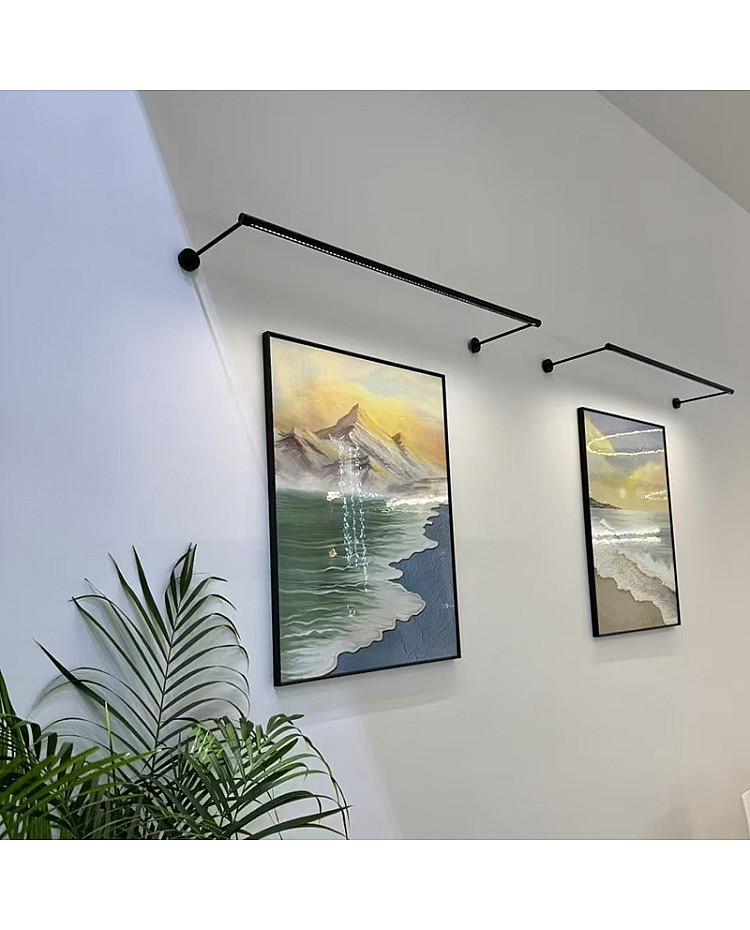

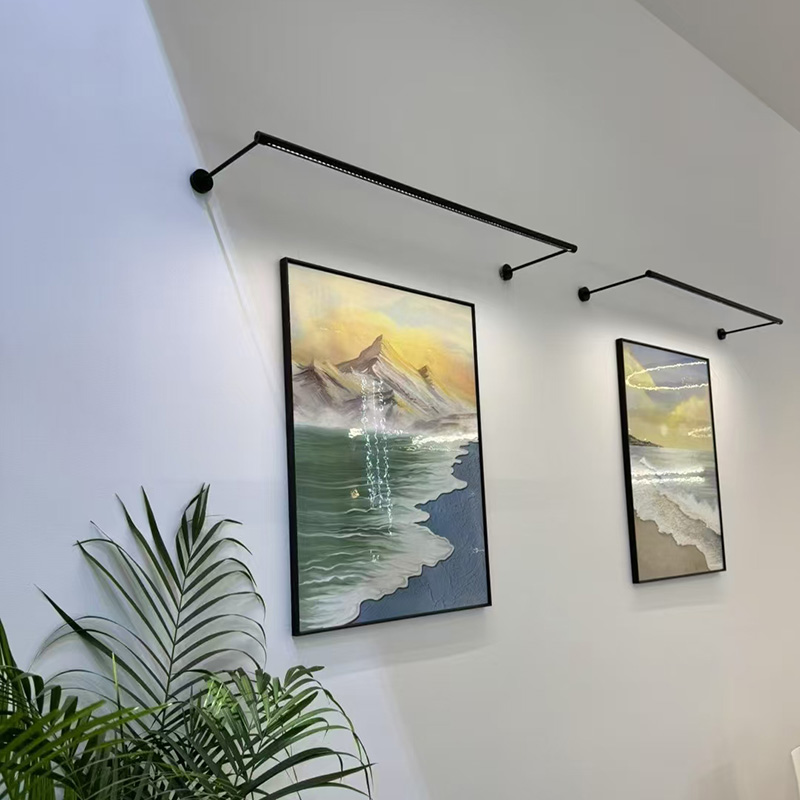

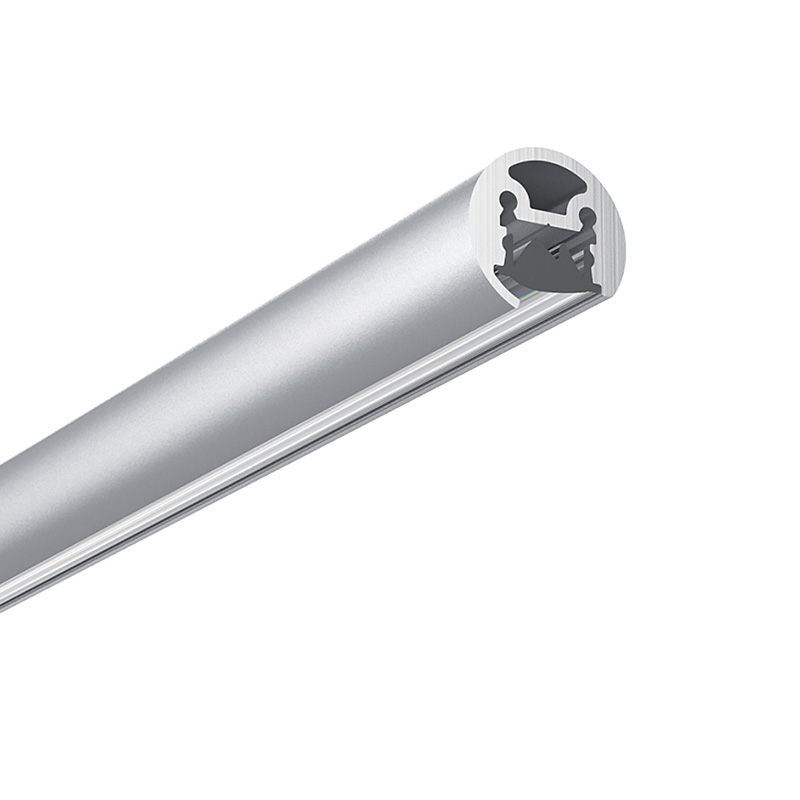

The aluminum LED extrusions are designed to illuminate artwork or photographs. By concealing the LED strips within the extrusions, the lights are seamlessly integrated into the design for a modern, sleek finish. The picture lighting channels come with an asymmetric lens that ensures even, glare-free illumination, directing light exactly where it's needed while minimizing reflections and hotspots.

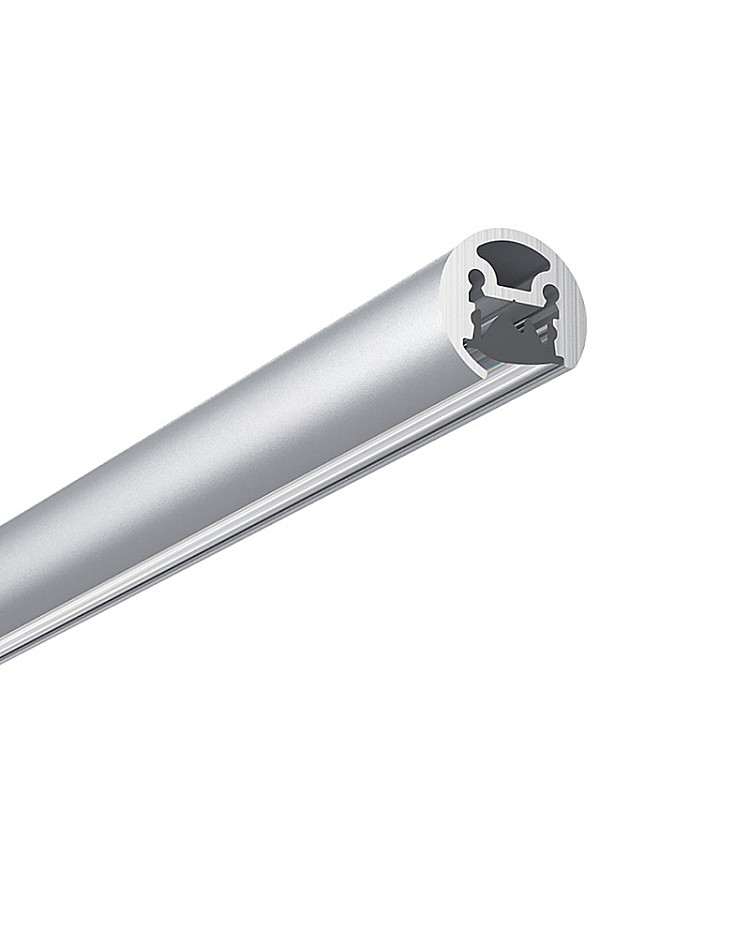

The LED picture light extrusions are made of 6063-T5 extruded aluminum alloy, have a silver anodized finish, and are oxidation-resistant, making them long-lasting. The standard length is 2m, and it can be cut to any size for your project. The inner width is 10mm, allowing a maximum LED tape width of 10mm. Recommend using 10mm COB LED tape lights as a light source to create consistent lighting without light dots.

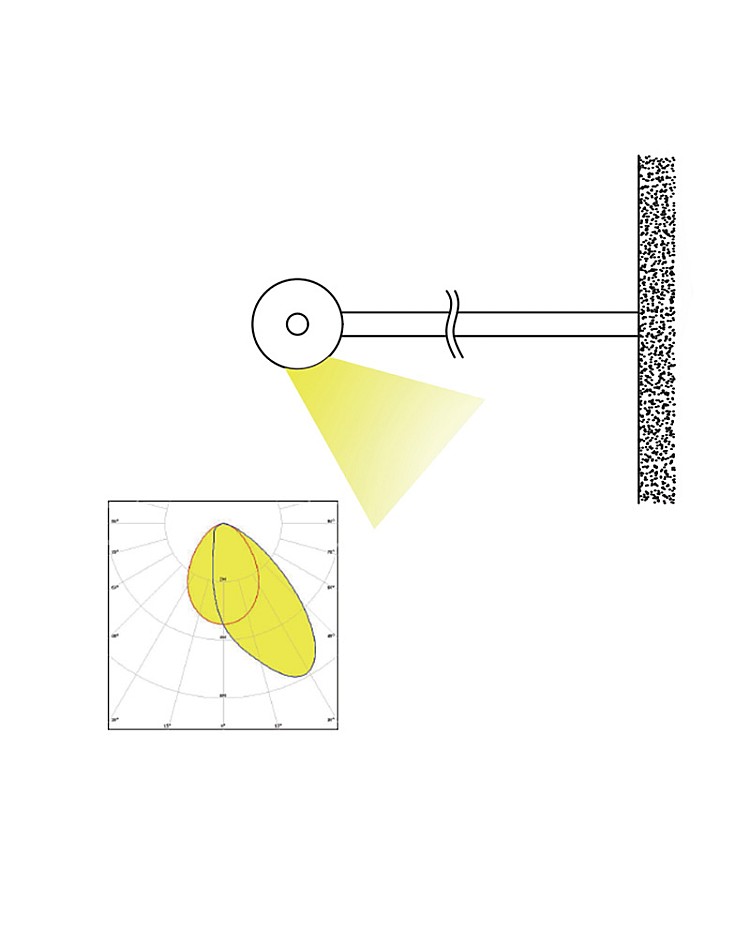

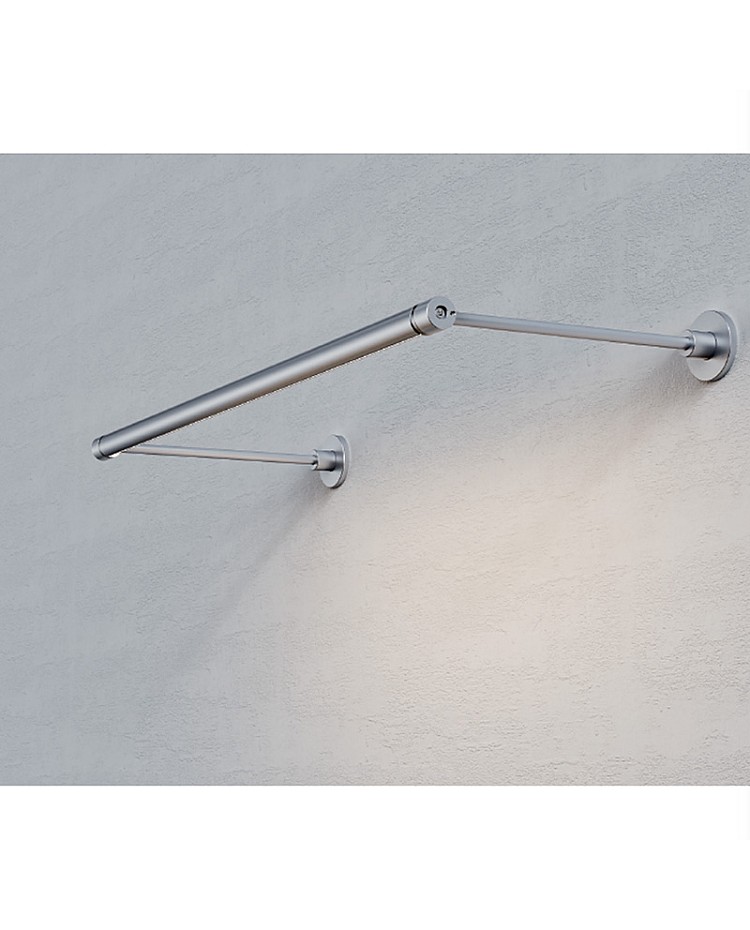

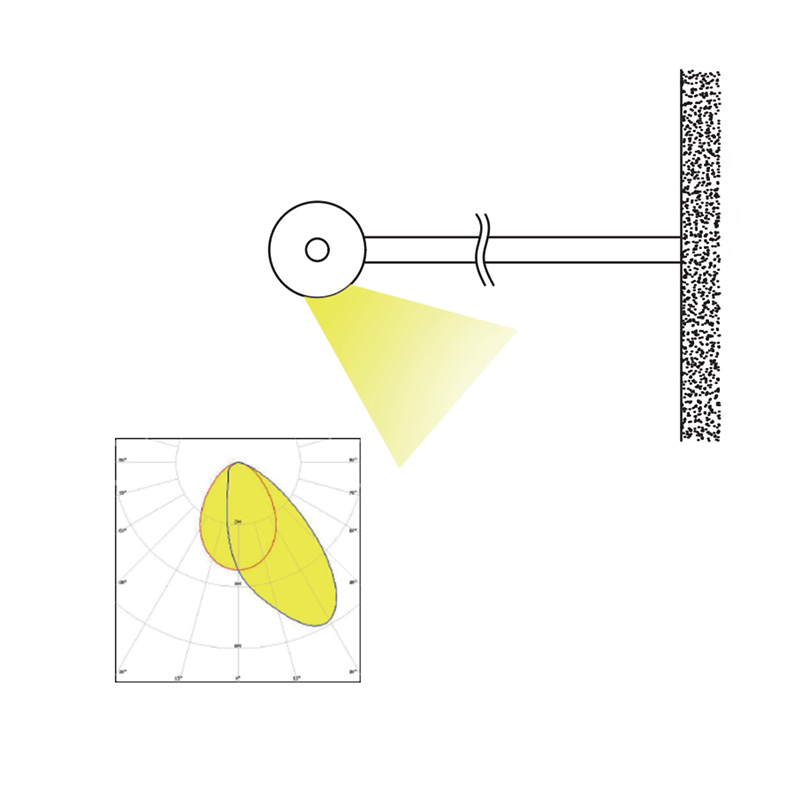

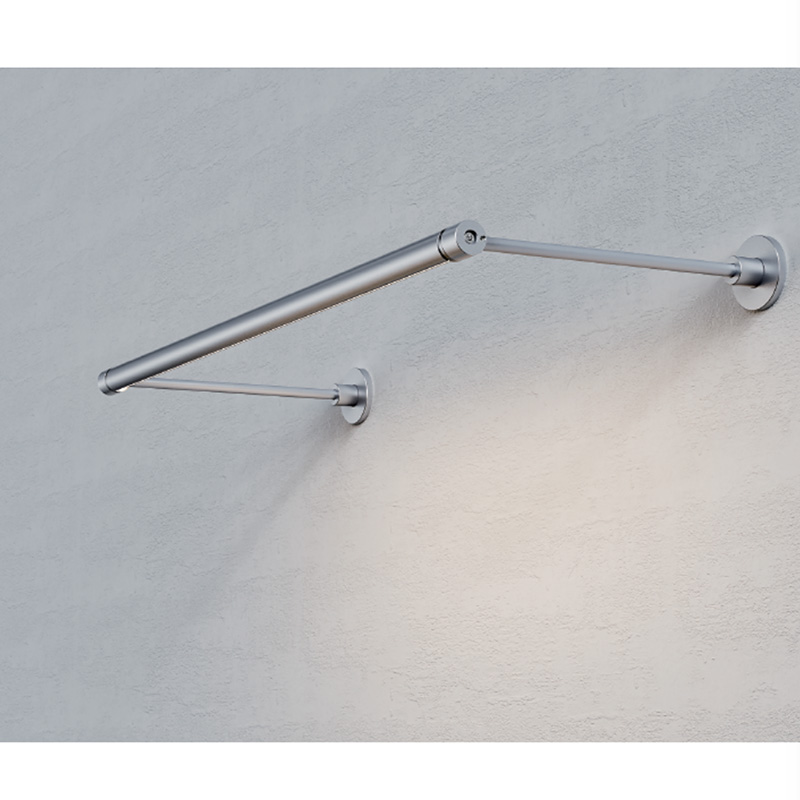

Only one type of LED optical lens is available: the Asymmetric Lens, which has a non-uniform shape and features varying curvatures on each side, allowing it to focus light more effectively. The wall rods are included, allowing for easy wall mounting above the pictures.

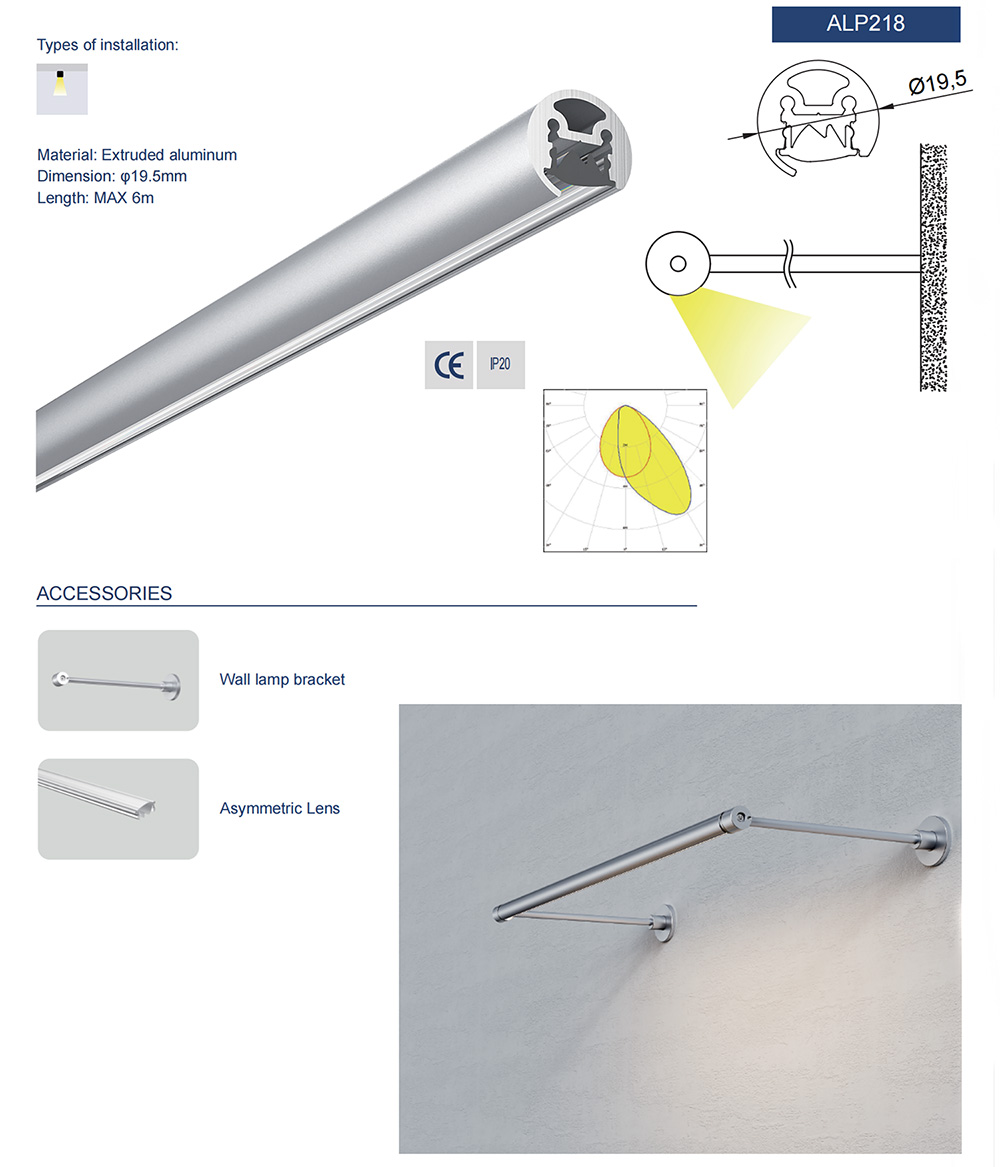

Specifications:
- Model: ALP218
- Material: 6063-T5 extruded aluminum alloy
- Surface treatment: Anodized

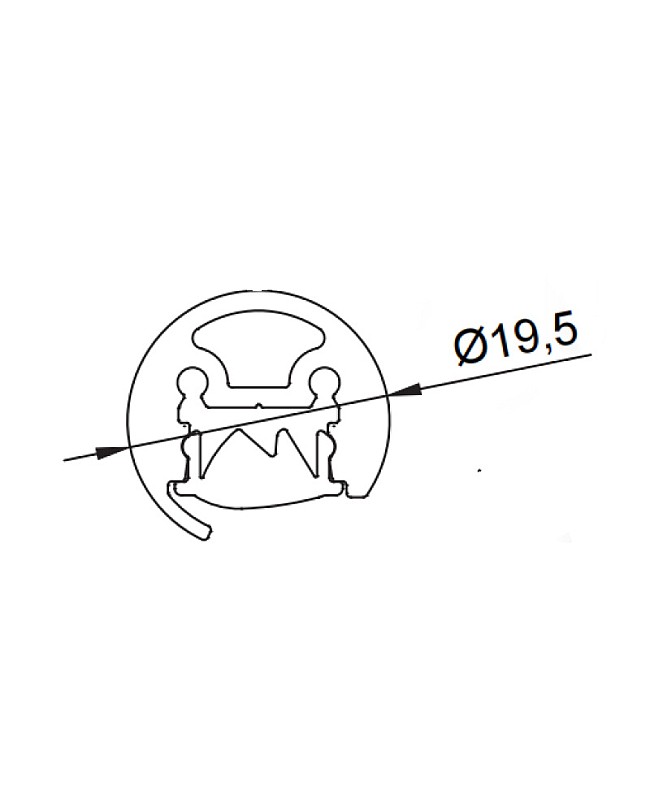

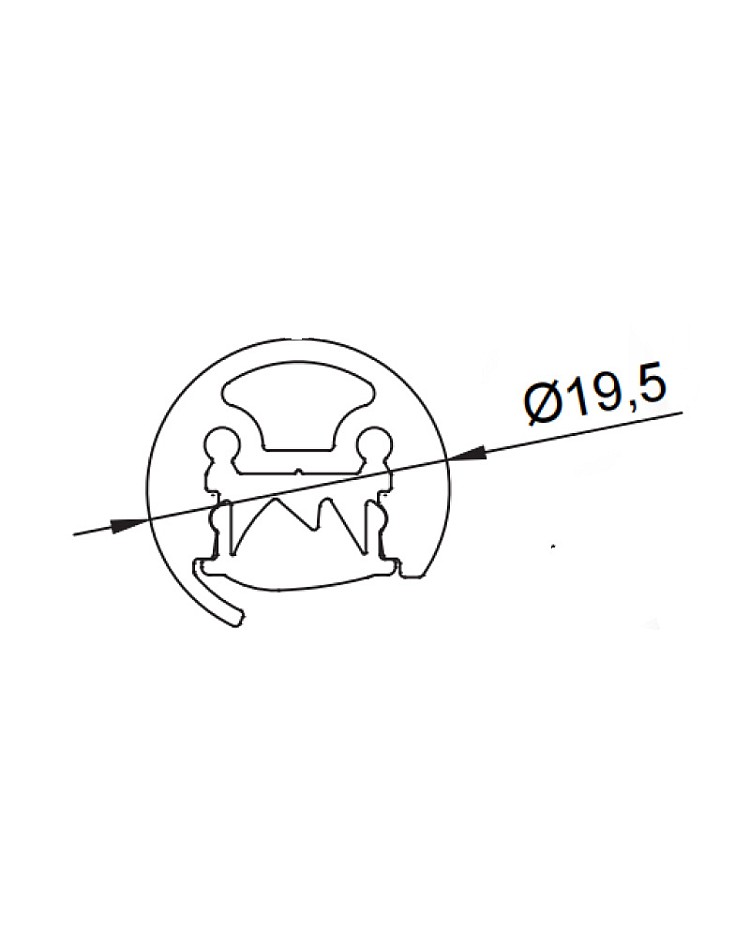

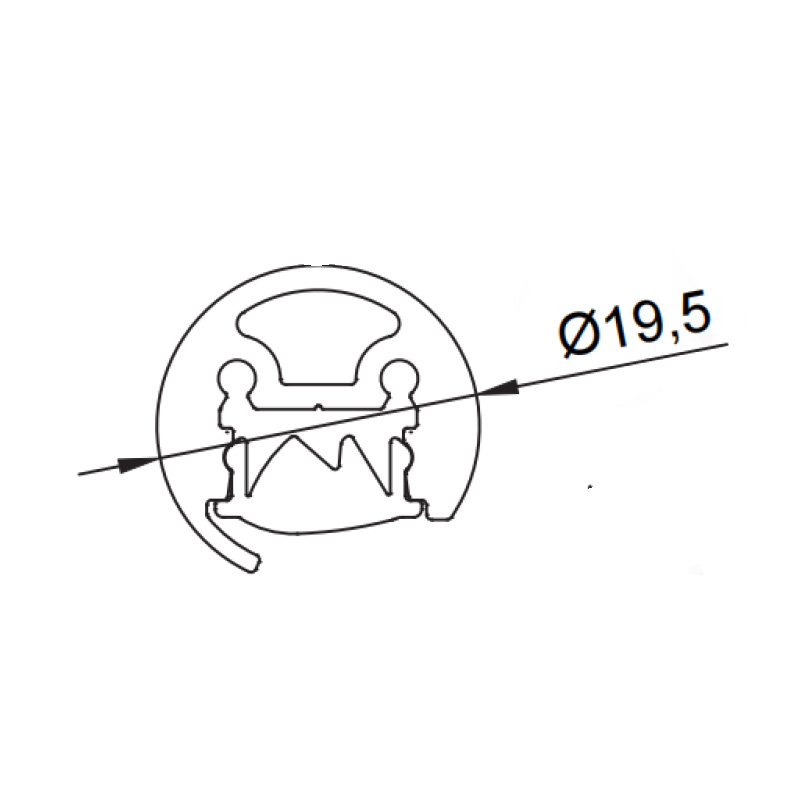

- Diameter: 19.5 mm ( 0.77" )
- Colors: Silver
- Lengths available: 2M ( 78.74" )
- Custom length: YES
- Diffusers available: Asymmetric lens
- Inner width: 10 mm ( 0.39" )
- Max width of strip lights: 10 mm ( 0.39" )
- Max power: 15W/m
- Tolerance: ±1%
- IP rate: IP20 non-waterproof
- End caps included
- Installation: Surface-mounted
- Applications: Picture lighting in art galleries, museums, retail displays, and residential settings
- Certifications: CE, ROHS
- Warranty: 5 years
Applications:
- Picture lights & art illumination
- Display cabinets & shelving
- Architectural accent lighting
Includes:
1 * Picture light LED extrusion
1 * Asymmetric lens
2 * Wall lamp brackets
