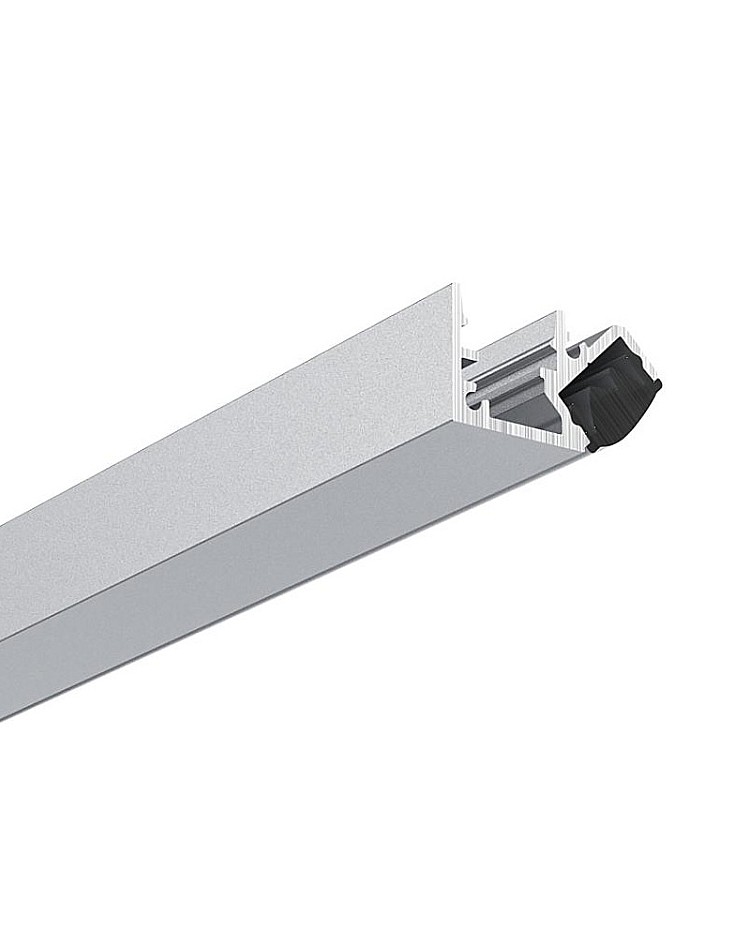

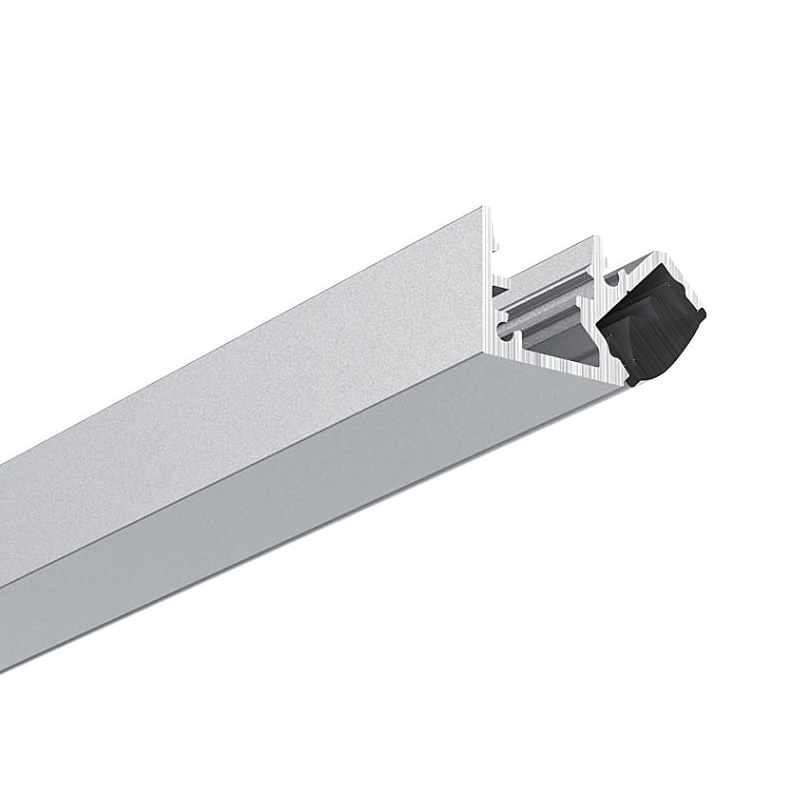

The small surface-mount LED channels, featuring a 45° inclined lighting design, offer a sleek and modern solution for illuminating your cabinets or shelves. The inclined design enhances the aesthetic appeal and optimizes the direction of light. There are three types of lenses available to create the perfect lighting effect for any space. You can use them as task lighting under cabinets or shelves, etc. The cabinet LED channels are made of 6063-T5 extruded aluminum and feature an anodized surface treatment for enhanced durability and a longer lifespan. It can protect the flexible LED tapes from physical damage, dust, and moisture, and also serve as a heat sink for improved heat dissipation. The inner width is 10.7 mm, and the maximum width of the strip light is 10 mm. Three types of lenses are available: asymmetric, PMMA 35°, and PMMA 55° lenses. You can use them for focused task lighting, balanced ambient illumination, or wide coverage. The metal mounting clips are included, allowing them to be easily mounted on the surface of your projects.

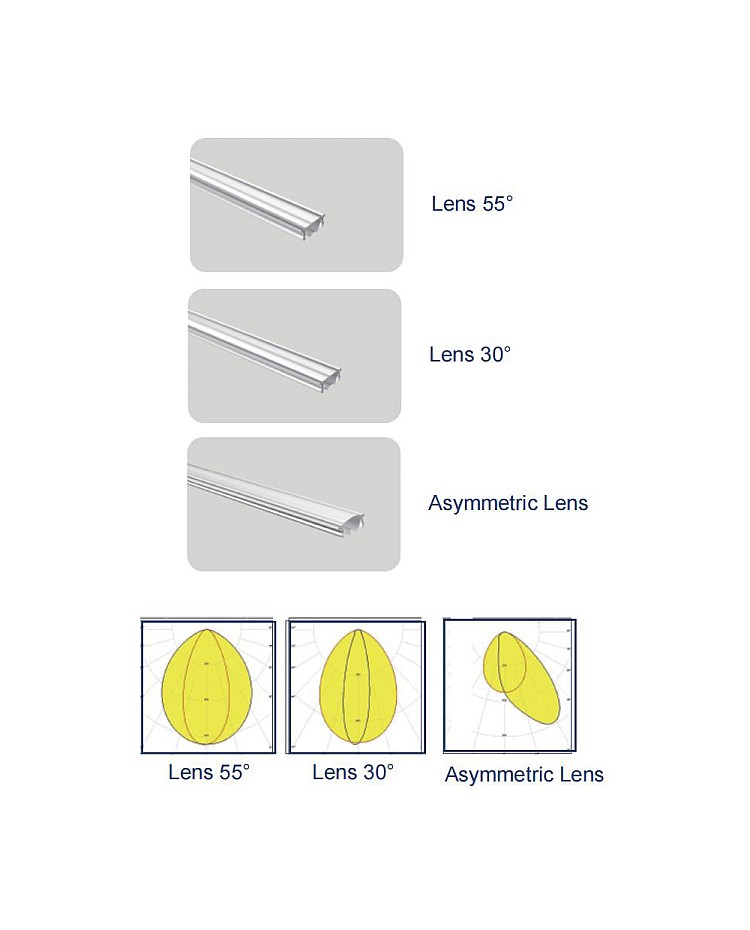

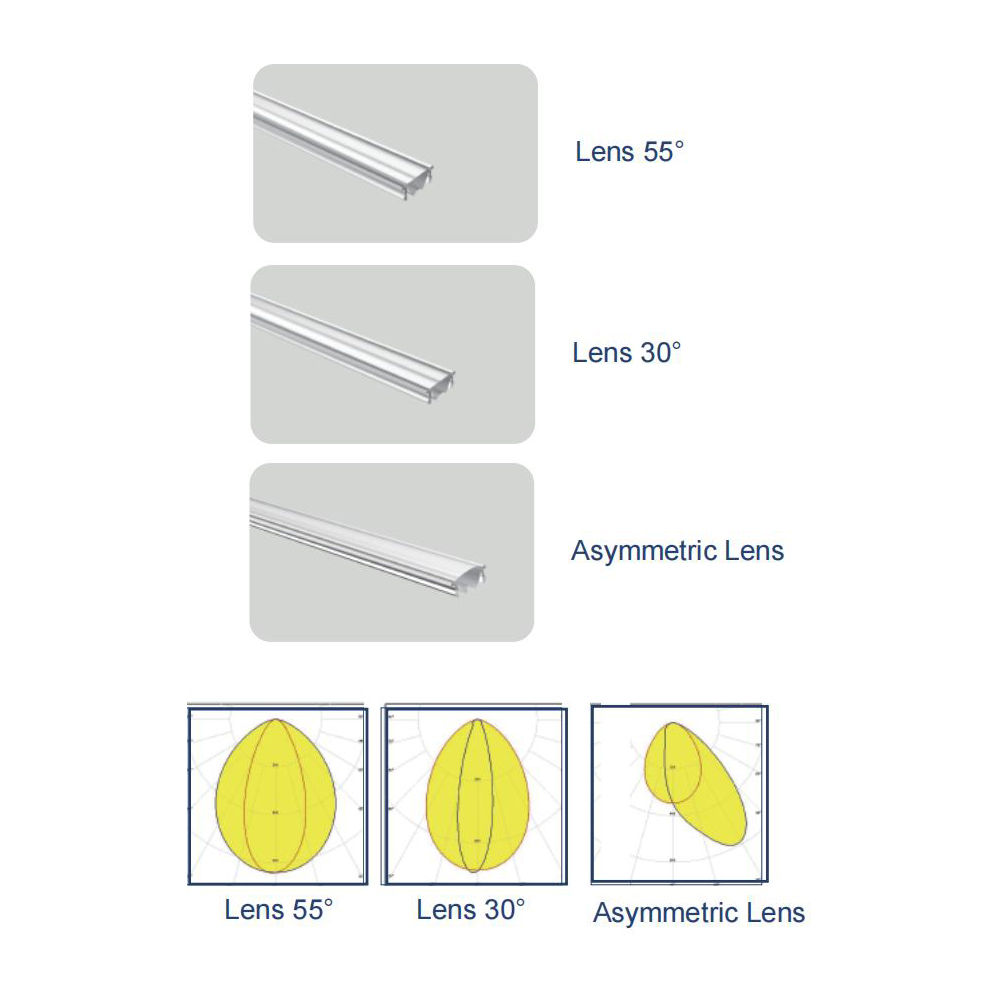

Which Lens Should You Choose?
1. Asymmetric Lens: Best for task lighting(kitchens, workbenches)
2. PMMA 30° Lens: Ideal for display & accent lighting(retail, shelves)
3. PMMA 55° Lens: Perfect for ambient & general lighting(coving, large surfaces)

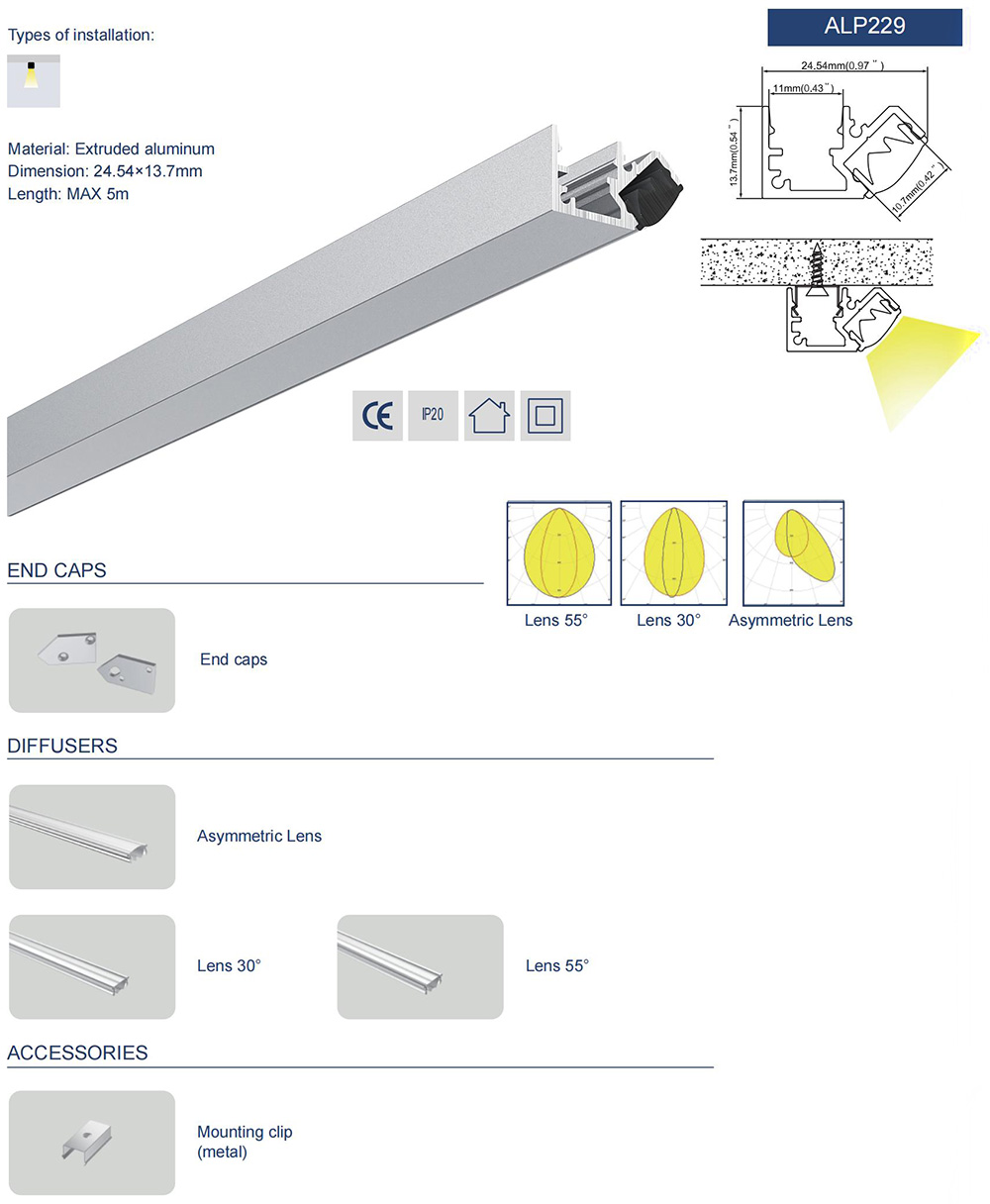

Specifications:
- Model: ALP229
- Material: Extruded aluminum
- Surface Treatment: Anodized
- Color: Silver

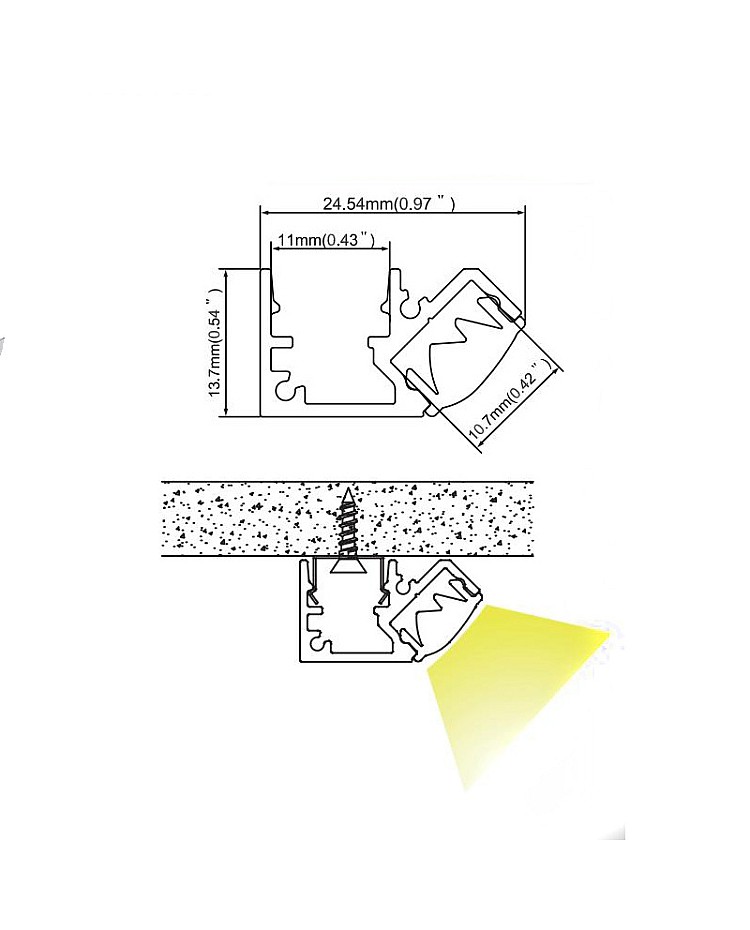

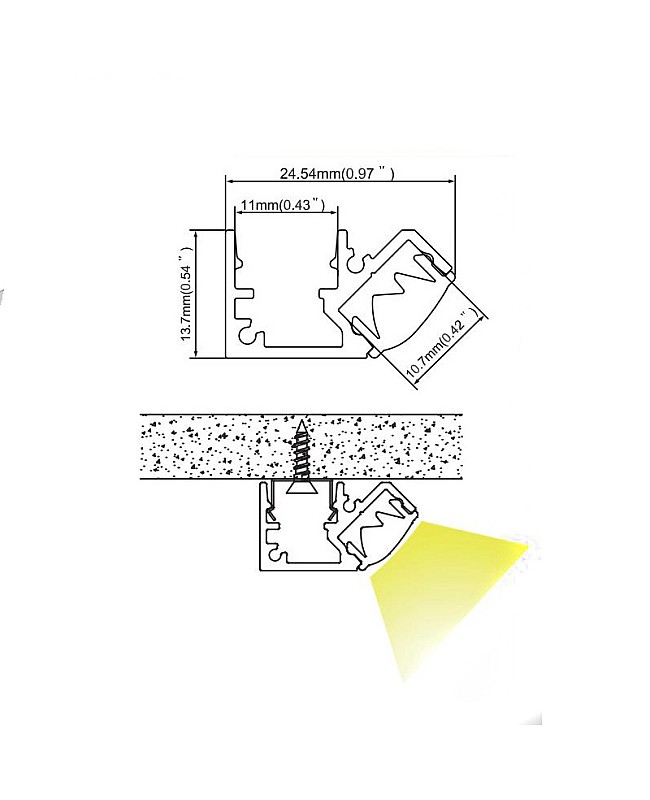

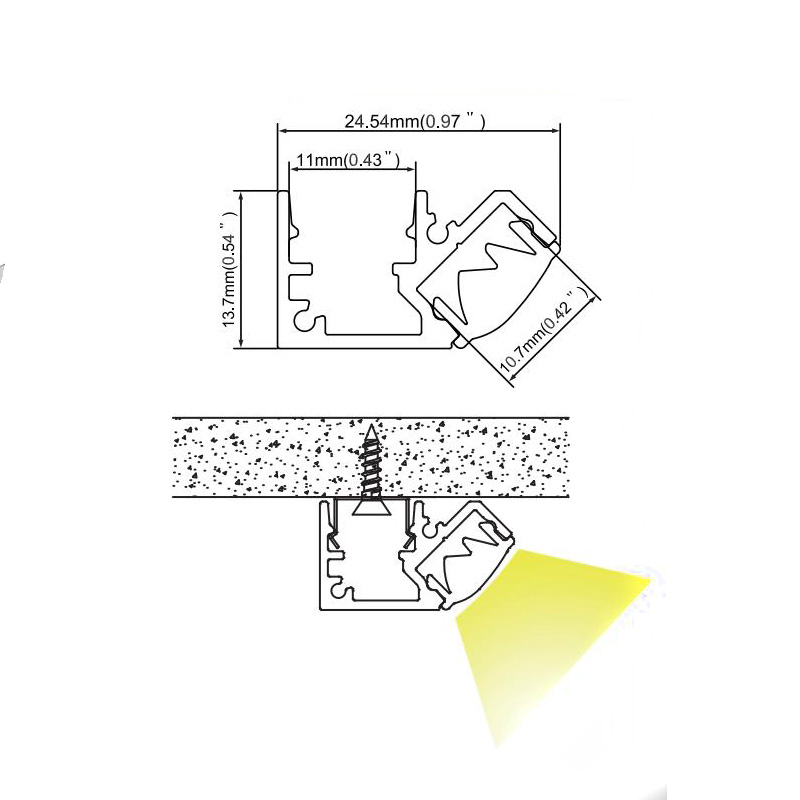

- Size(W*H): 24.54mm(0.97")*13.7mm(0.54")
- Length: 1M(39"), 2M(78"), 2.5M(98")
- Custom Length: YES
- Inner Width: 10.7mm/0.42"
- Max Width Of Strip Lights: 10mm/0.39"
- Max Power: 15W/M
- Lenses Available: Asymmetric lens, PMMA 30° lens, PMMA 55° lens
- Beam Angle: 100°
- Installation: Surface mounted
- Certifications: CE, ROHS
- 5-year warranty
Applications:
- Kitchens: Under-cabinet lighting without dark spots
- Retail Stores: Product displays with professional-grade illumination
- Workspaces: Eye-friendly task lighting
- Architectural Lighting: Shelves, coves, and accent lighting
Includes:
1 * Cabinet light channel with lens

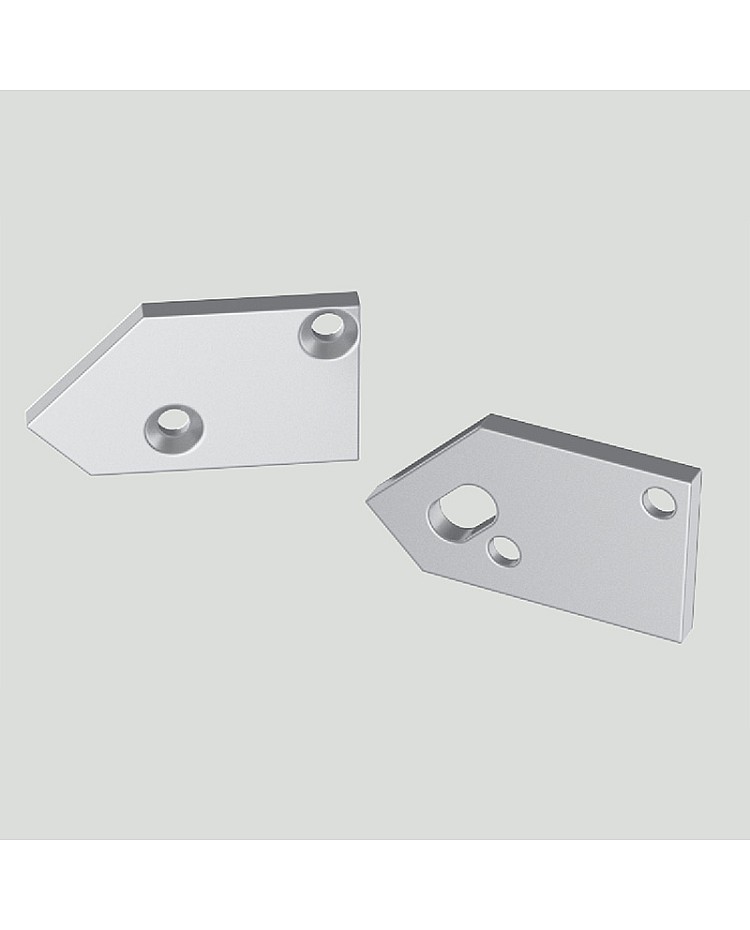

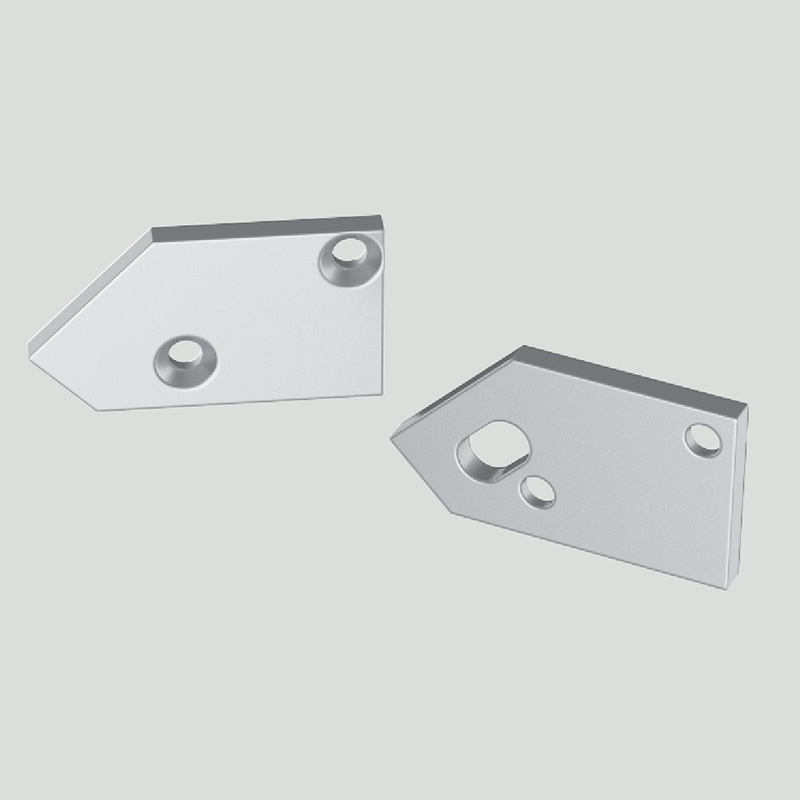

End caps(with/without wire holes)

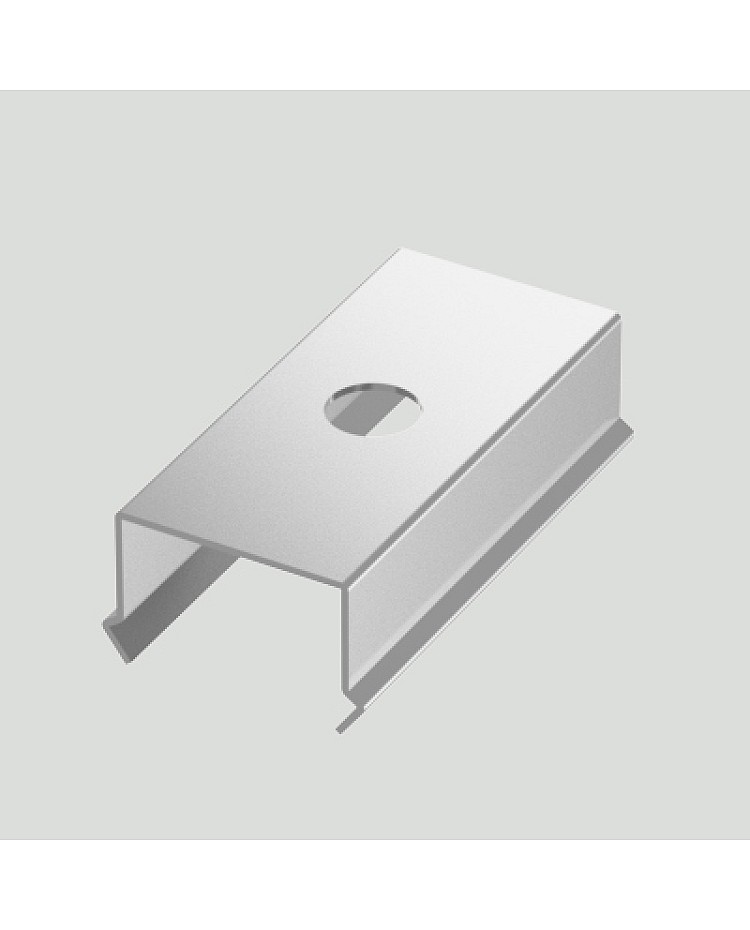

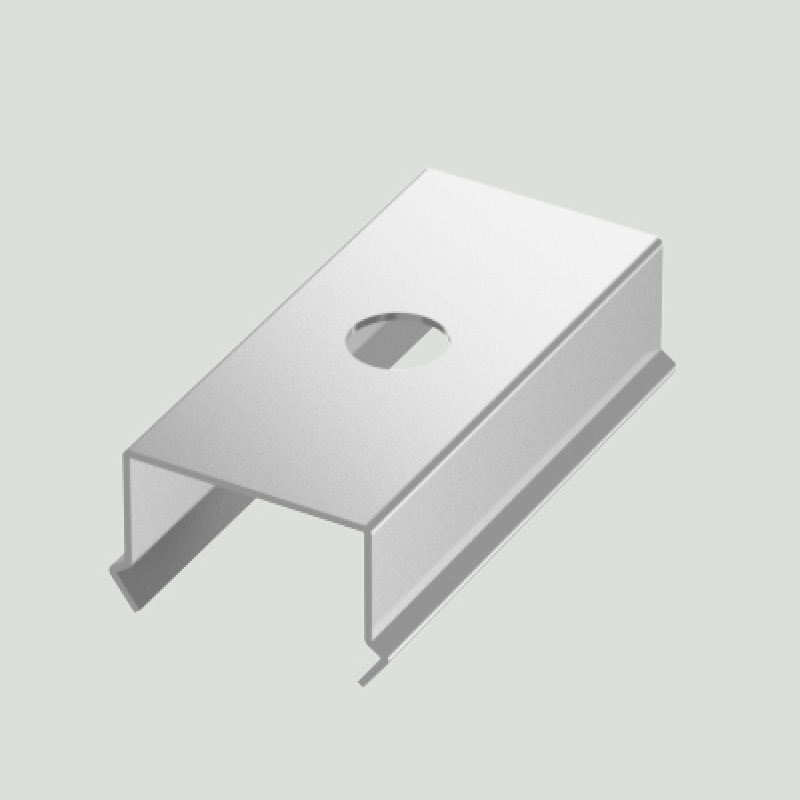

Mounting clips
