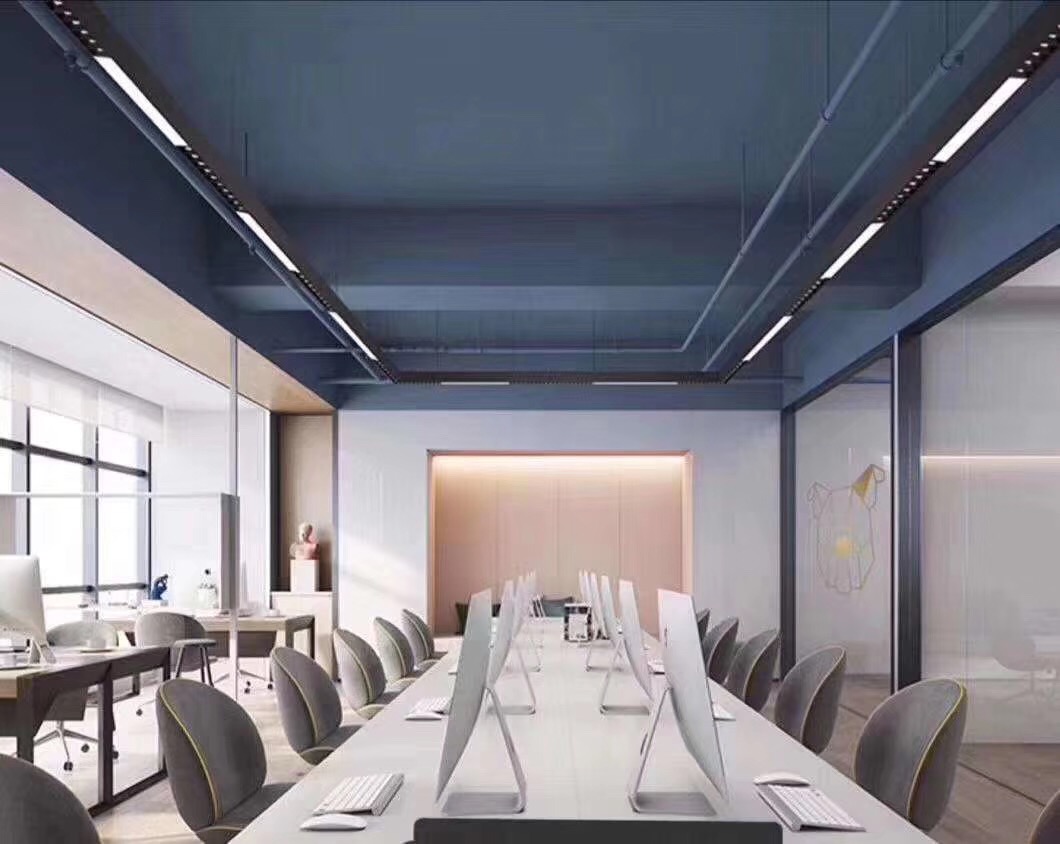

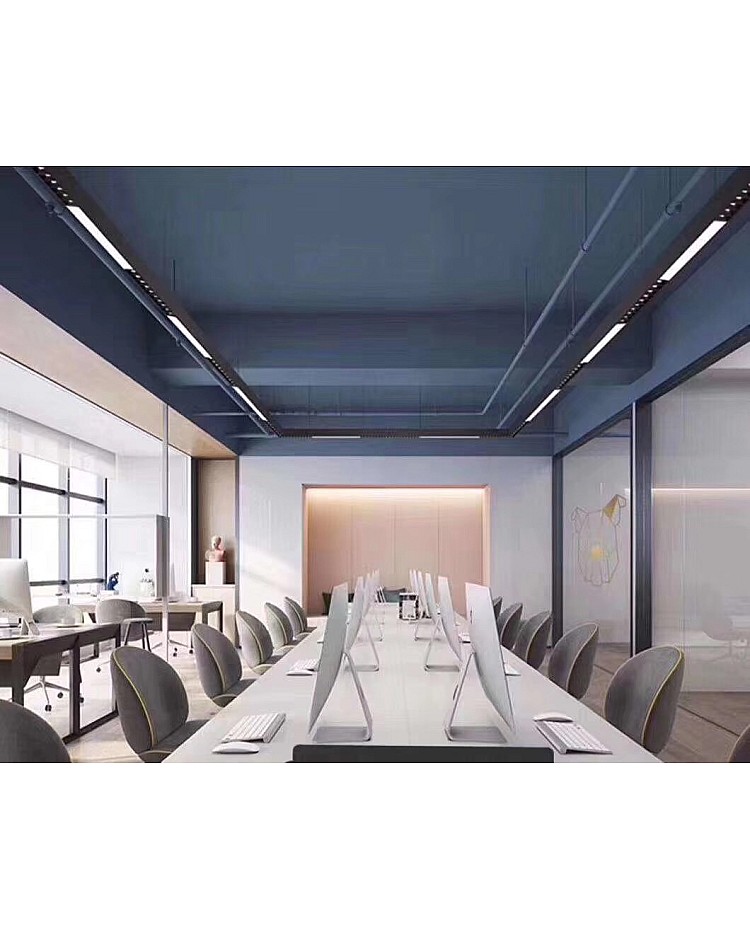

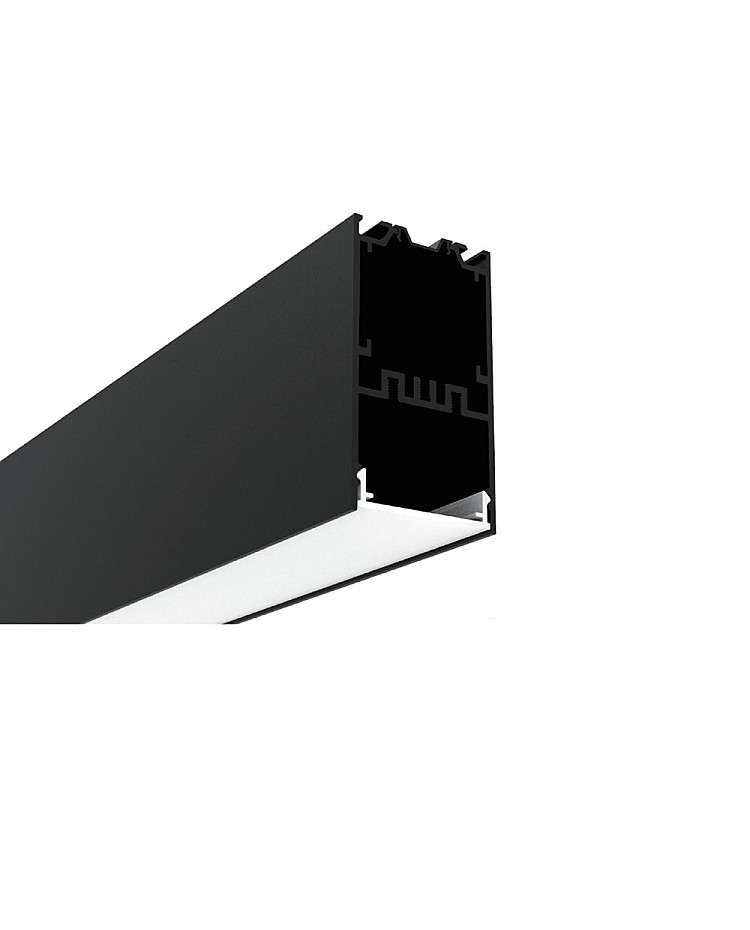

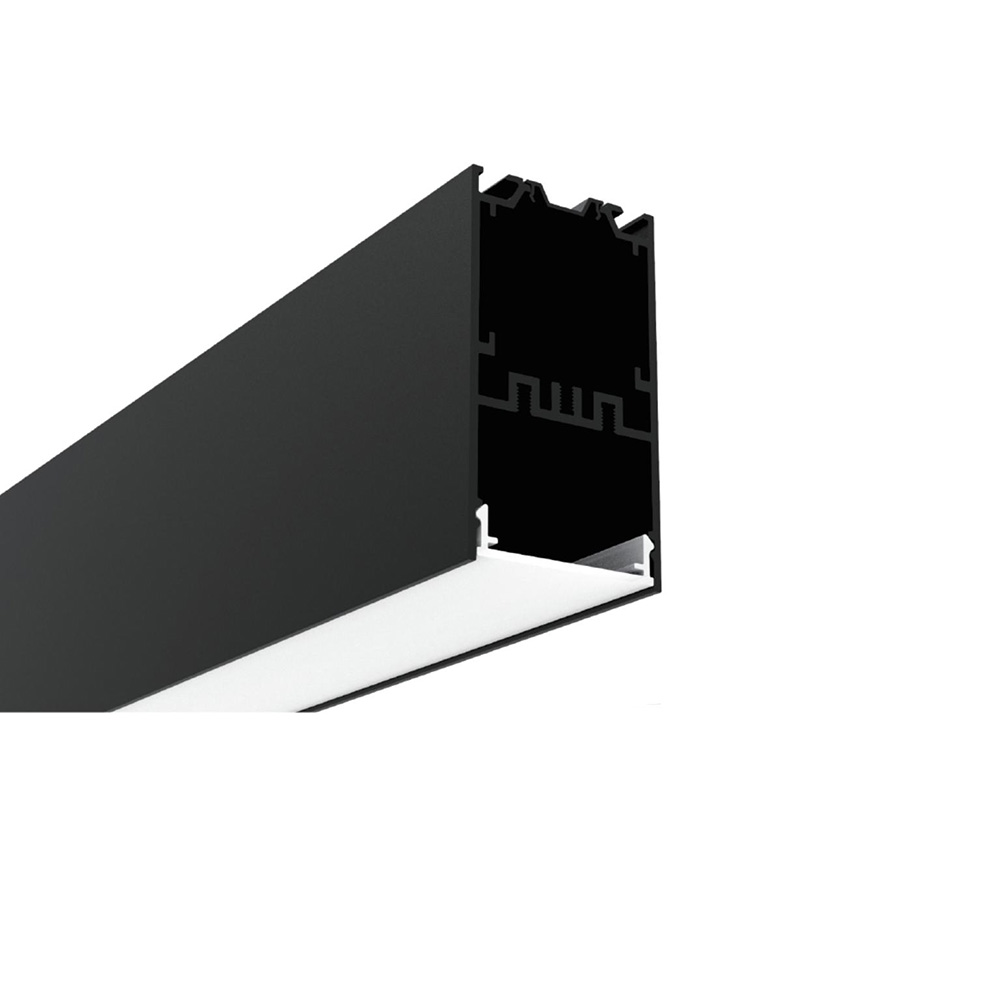

The LED Strip U Channel for an indoor linear lighting project is a great way to add a modern touch to any space, can combine the various beam angle reflectors, covers, and diffusers for lighting design. Made of 6063-T5 aluminum alloy material with black anodized surface treatment, anti-oxidation resistance, and better heat dissipation for the LED Lights, the LED Strip Channel has a longer lifespan than other similar products. The standard length is 1M and the max length can take 2.5M, and can be cut to any size, and support customs length. The inner width is 18.5mm and allows the max width of LED Strips to be 18mm. There are three beam angle reflectors available, 24°,38°, and 50°, the reflectors also can choose the various lens, 1 lens, 3 lenses, or 5 lenses. The suspension wires are included, you can mount them on the ceiling and use them as the main lighting in the office. the connectors are optional, you can purchase them separately for the lighting project.


If you want to purchase the reflectors, please contact us.

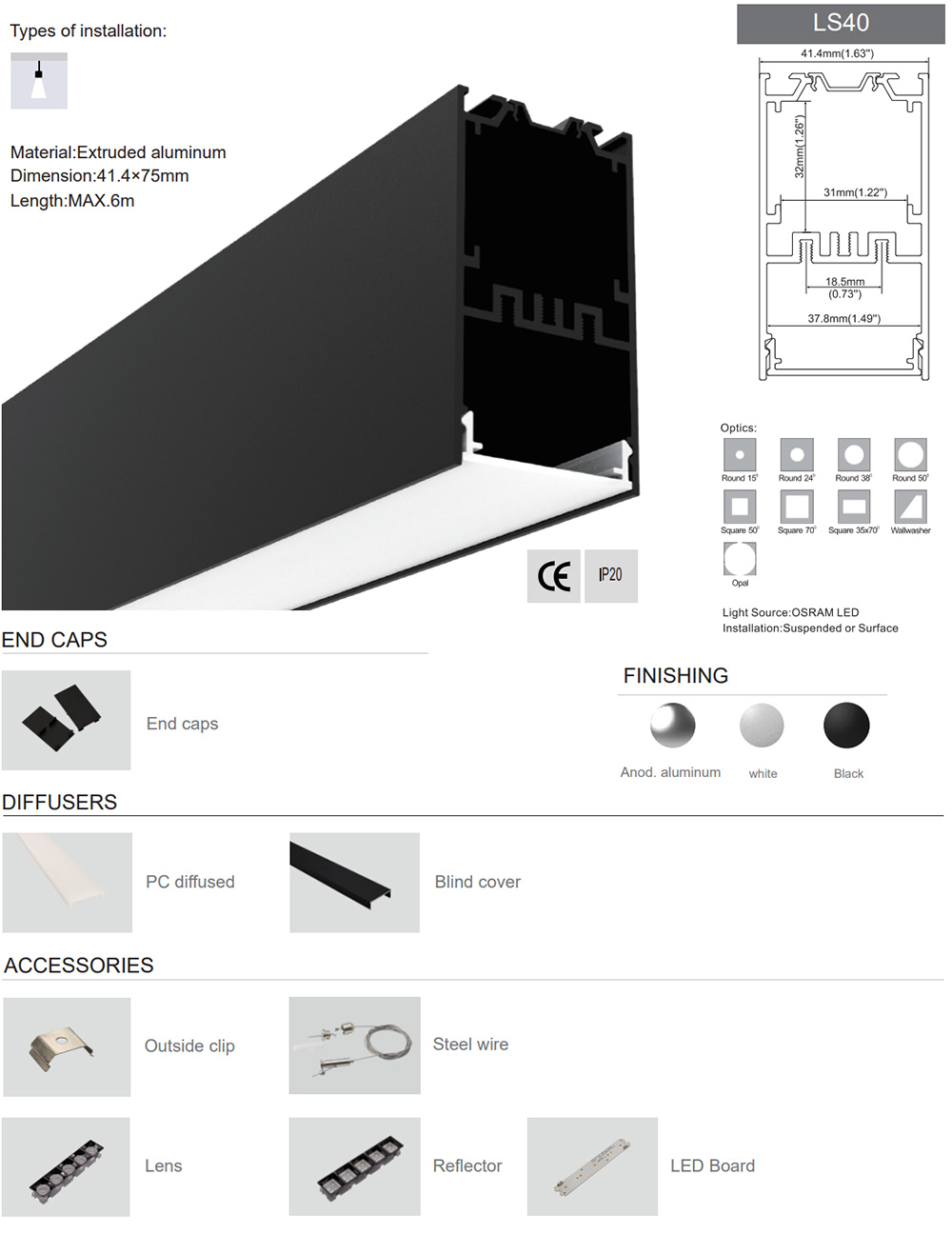

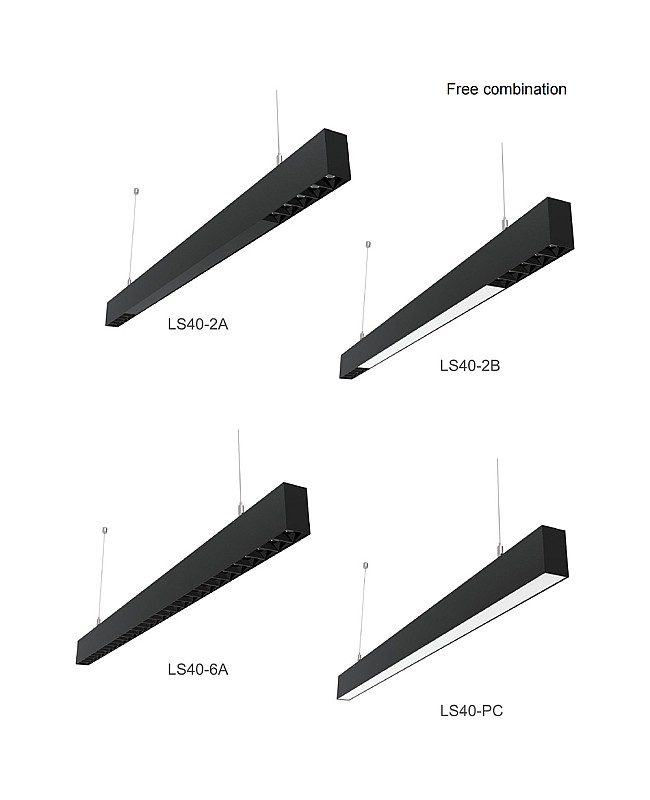

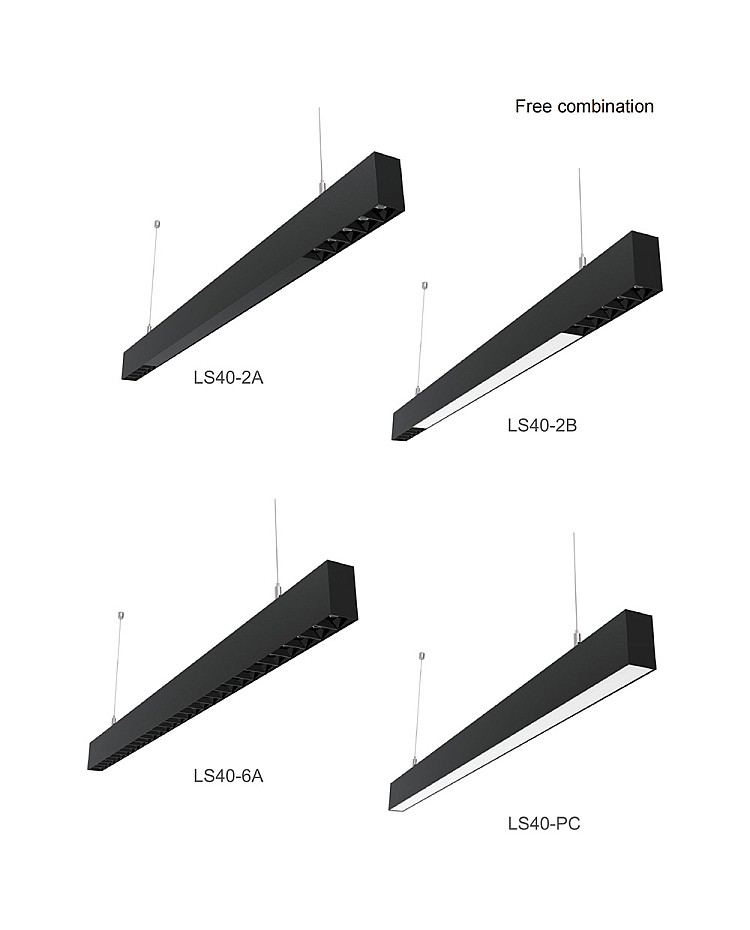

  • Model: LS40
  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Black Anodized
  • Grade: 6000 Series
  • Shape: Square

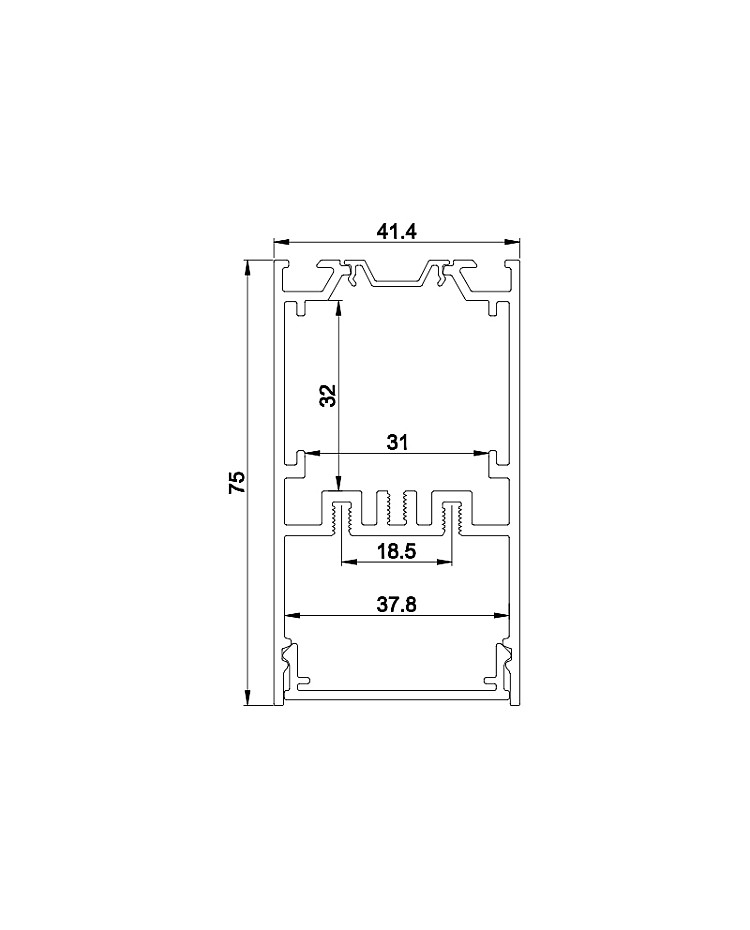

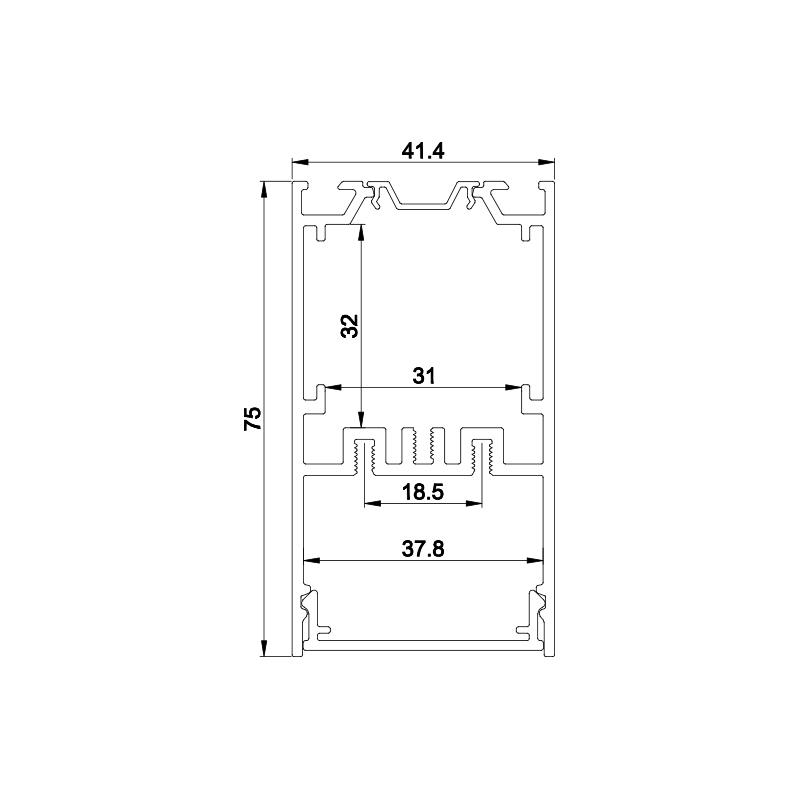

  • Size: 75*41mm(W*H)
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter
  • Custom Length: YES

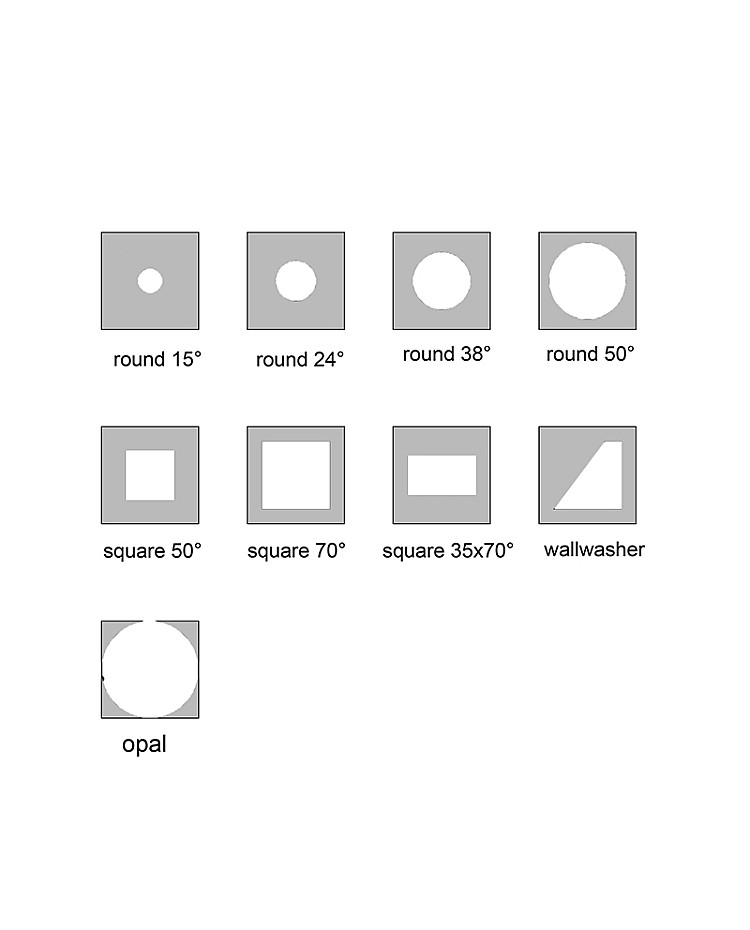

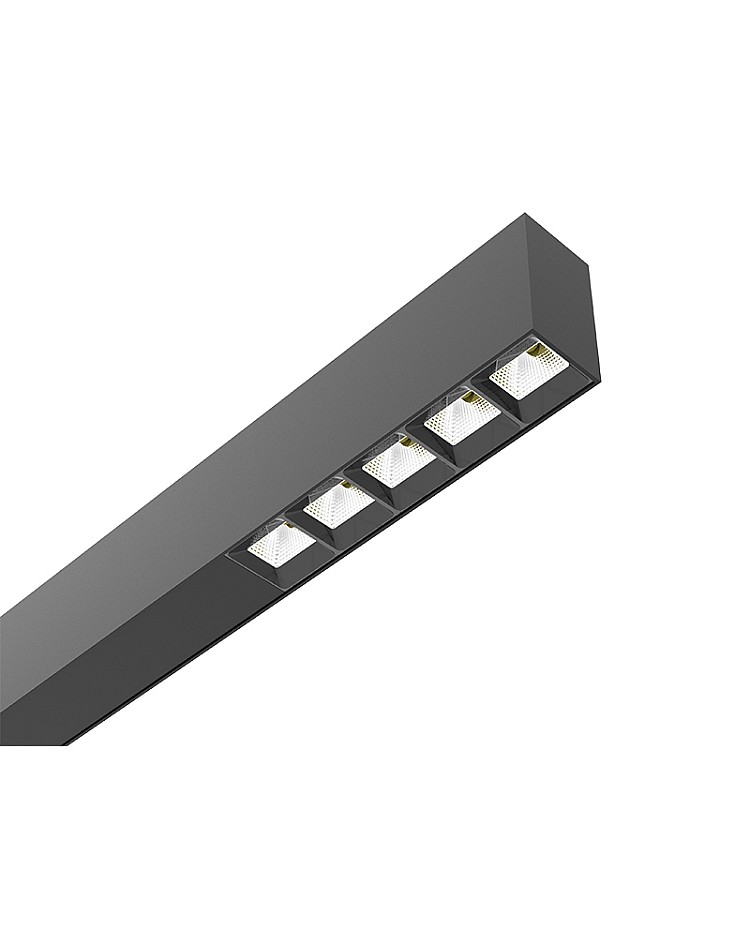

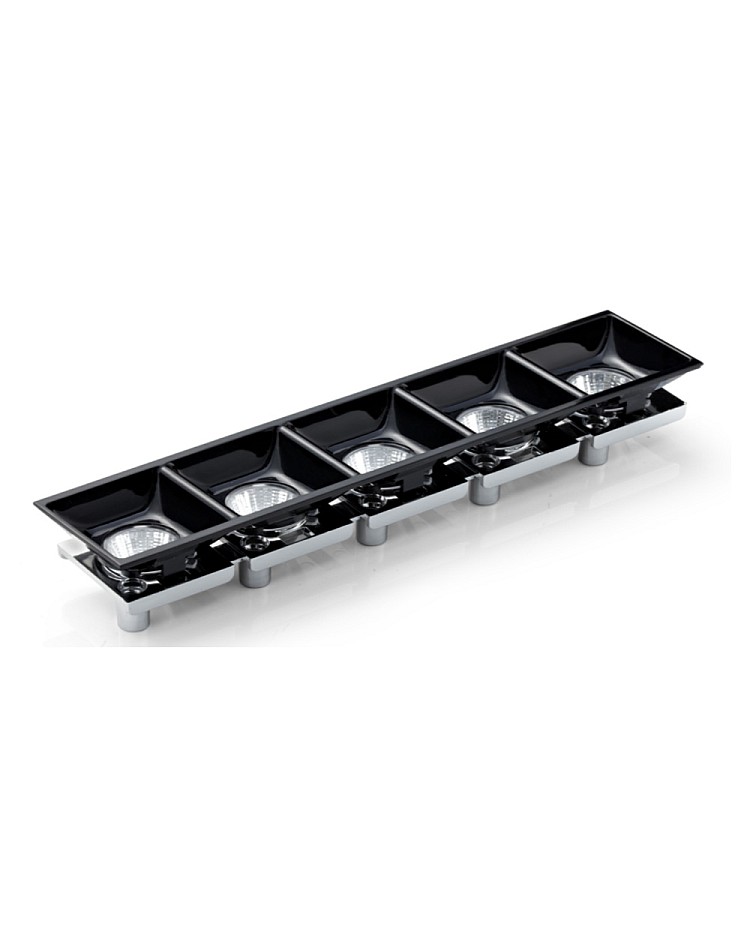

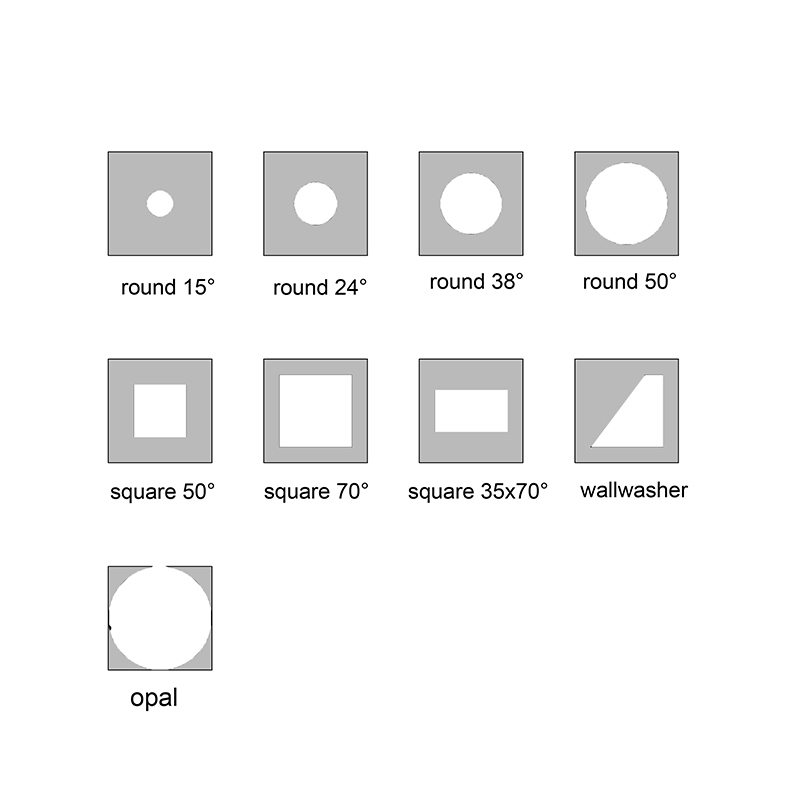

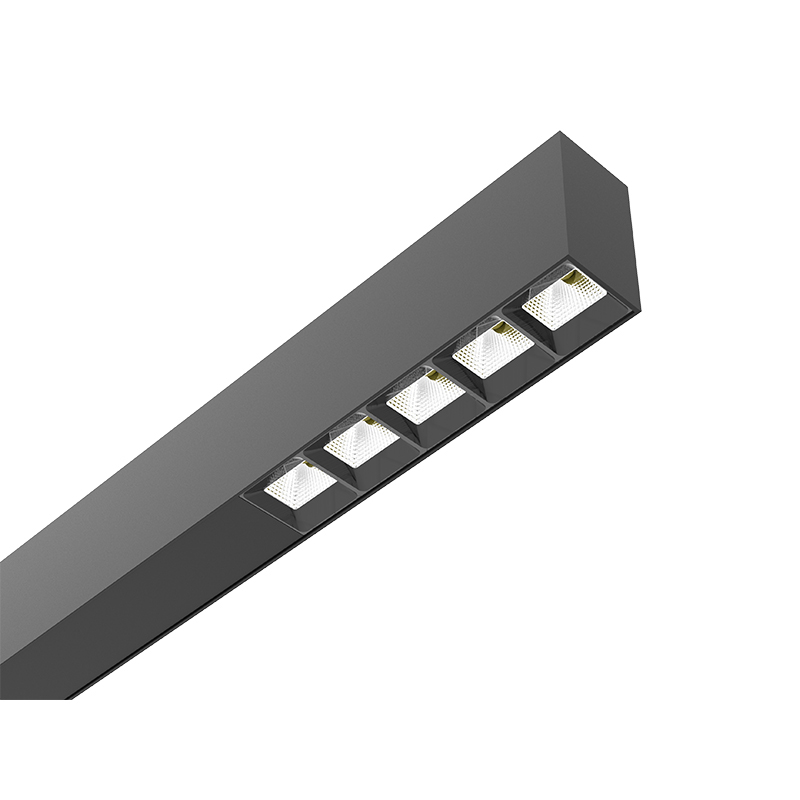

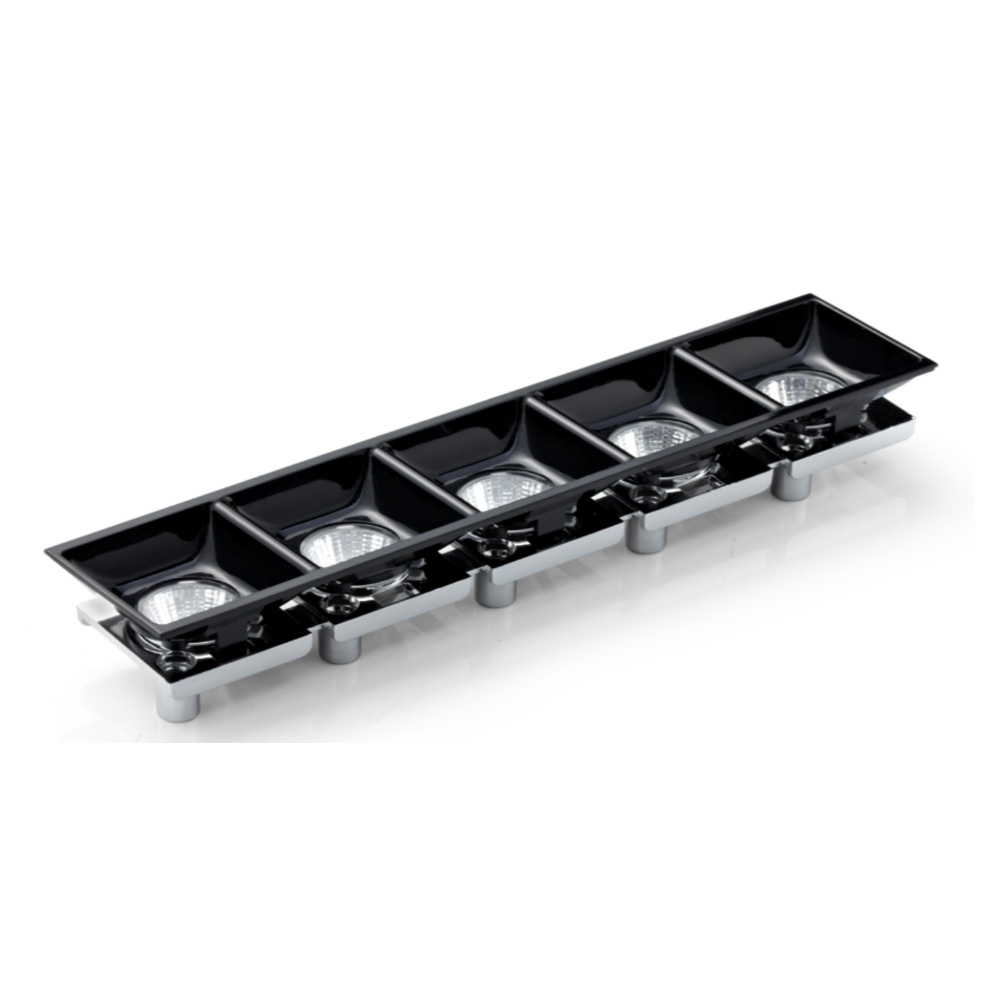

  • Reflectors Available: 1LED/3LED/5LED; 24°,38°,50°
  • Blind Cover/Prismatic Cover/PC Frosted Cover Optional
  • Inner Width: 18.5mm
  • Compatible With 2835, 5050 Flex LED Strips
  • Max Power: <25W/Meter

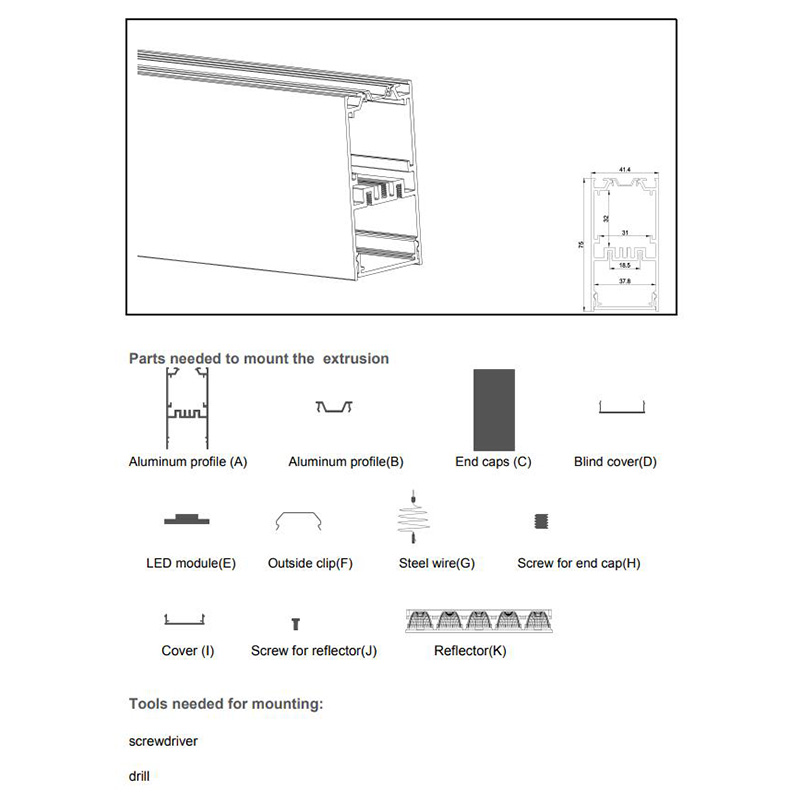

  • End Caps, Outside Clips, Safety Wires, And Suspension Wires Included
  • Tolerance: ±1%

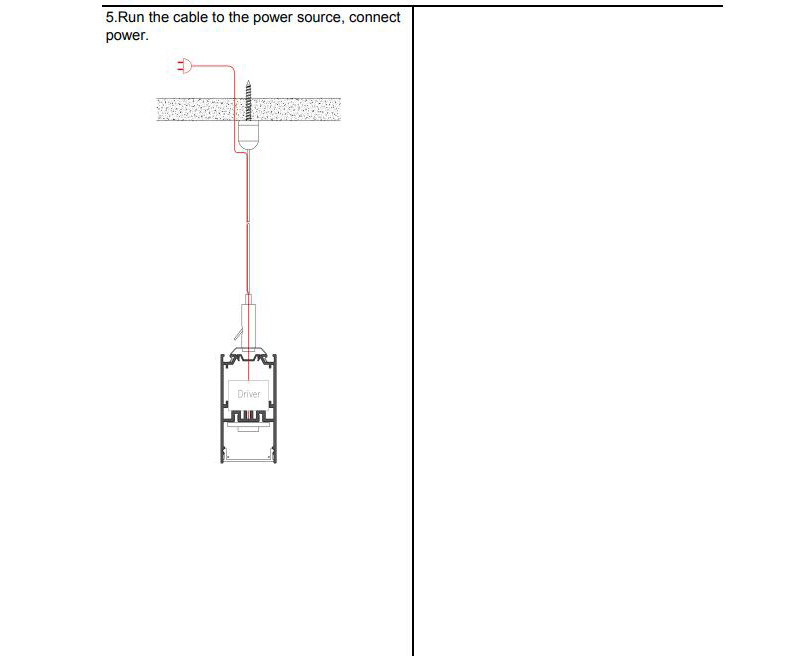

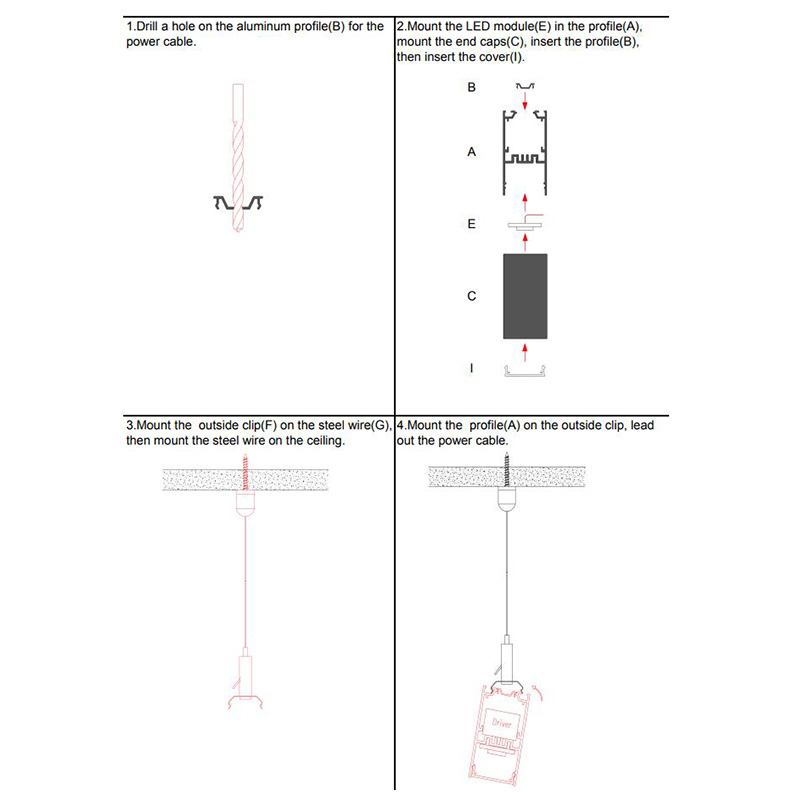

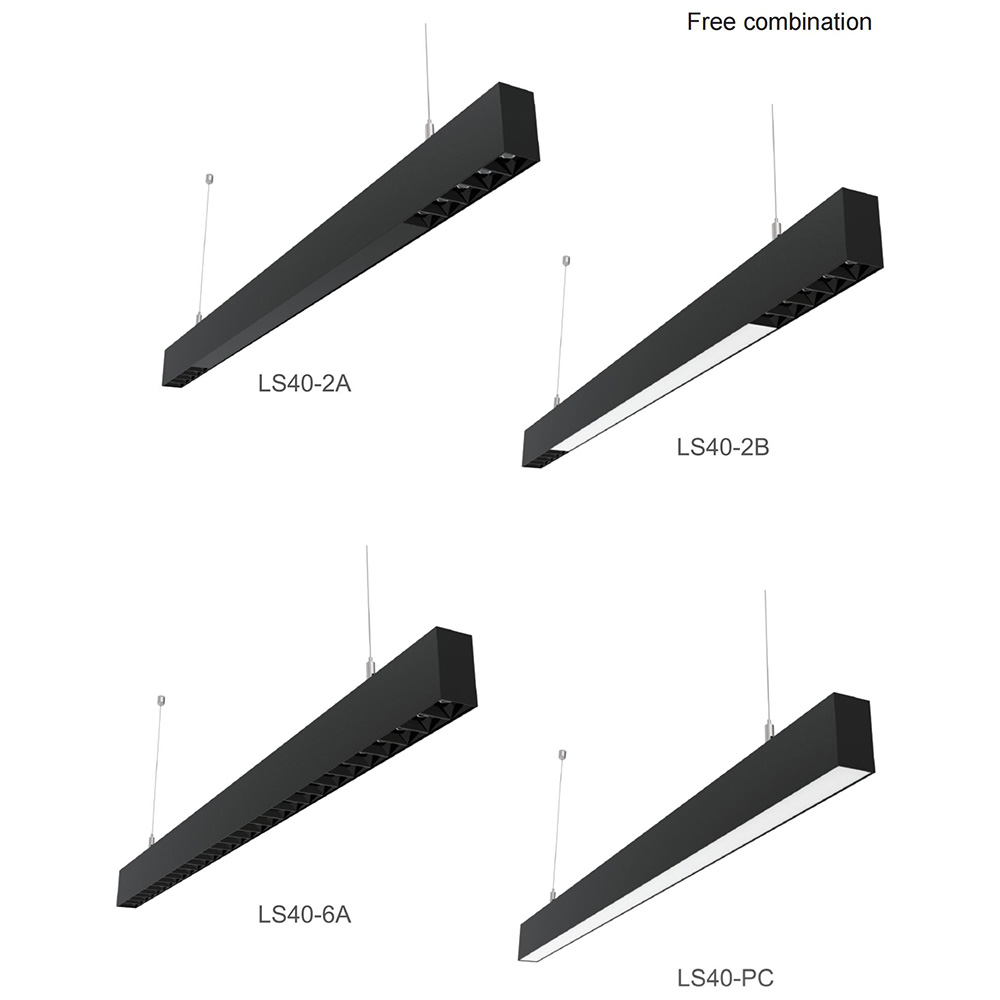

  • Installation: Pendant/Suspended Mounted
  • 3 Years Warranty


1*LED Strip U Channel

End Caps

Outside Clips

Safety Wires

Suspension Wires


PC Frosted Cover(Optional)

Prismatic Cover(Optional)

Blind Cover(Optional)
