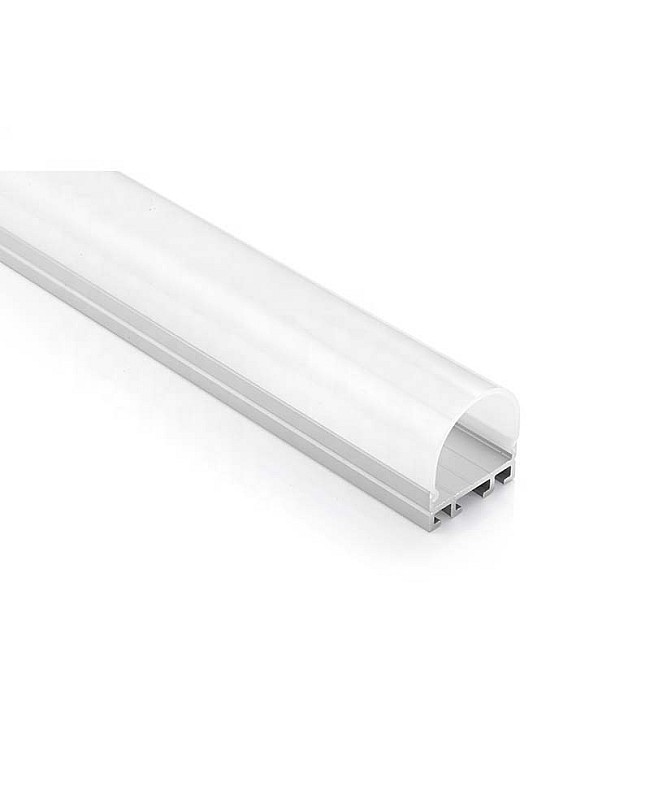

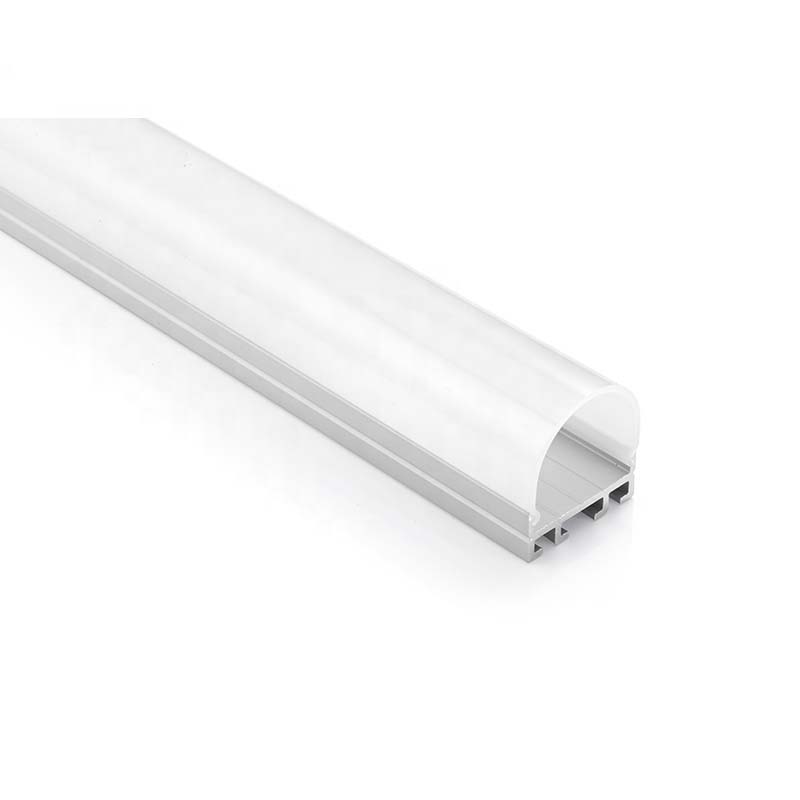

The aluminum LED light profile with a round cover is designed for clean illumination, excellent heat dissipation, and a professional finish. The rounded diffuser will keep the LED strip lights away from dust and moisture while evenly diffusing the light and allowing it to be viewed at a wide angle. Ideal for work surfaces, kitchen cabinetry, office desks, shelving, and display cases. The inner width is 22.8mm, allowing a maximum strip light width of 22mm. The LED light strip profiles are made of high-grade aluminum alloy with a silver anodized surface finish for anti-oxidation resistance, giving them a sleek look. The standard length is 1M, and the max length is 2M; it can be cut to any length suitable for your LED projects. The round diffuser cover for LED strip lights delivers smooth, soft, dot-free illumination, perfect for task lighting where clarity and comfort matter. It has a clip-in design that makes installation and removal easy. End caps with and without wire holes are included, making it easy to connect the strip lights to LED drivers, and the aluminum LED profiles work as heat sinks for better heat dissipation. The metal clips are included for surface-mounted installation, and stainless steel wires are sold separately for pendant installation. Two types of metal joiners are available: 90° and 180°. You can use them for angle and straight connections.
Specifications:

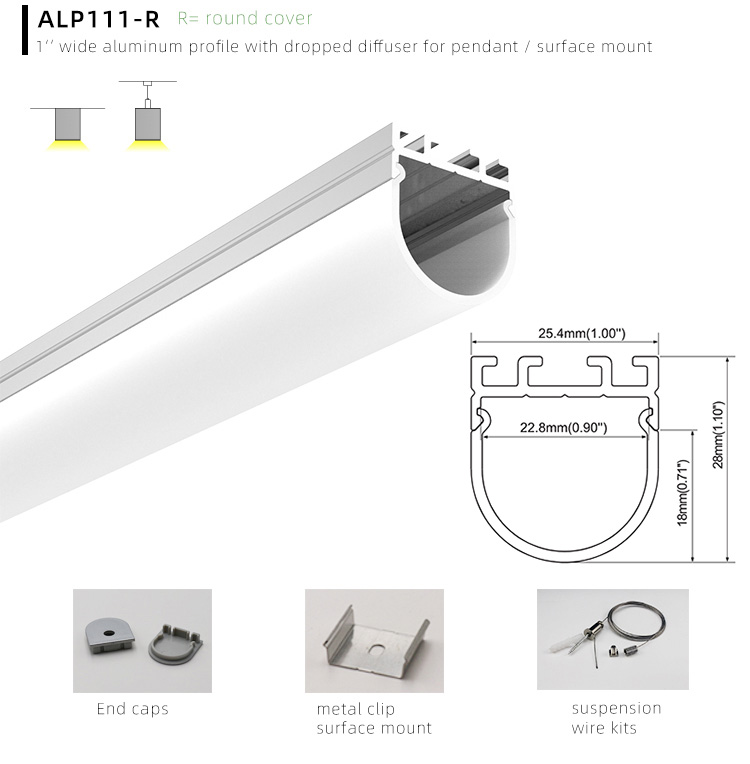

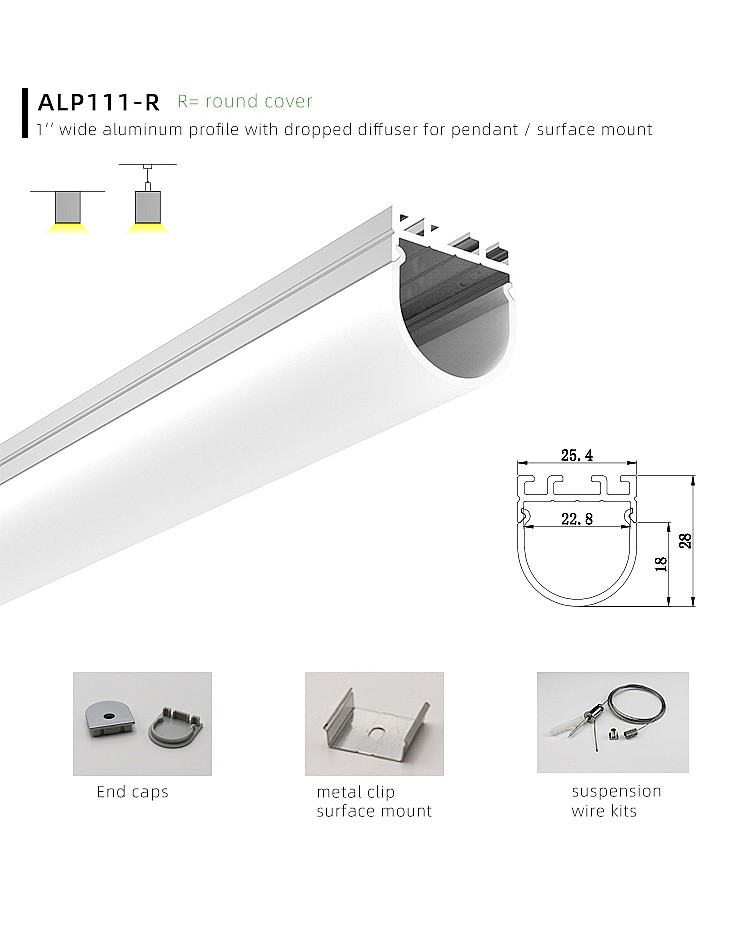

- Model: ALP111-R
- Material: 6063-T5 aluminum alloy
- Surface treatment: Anodized
- Colors: Silver

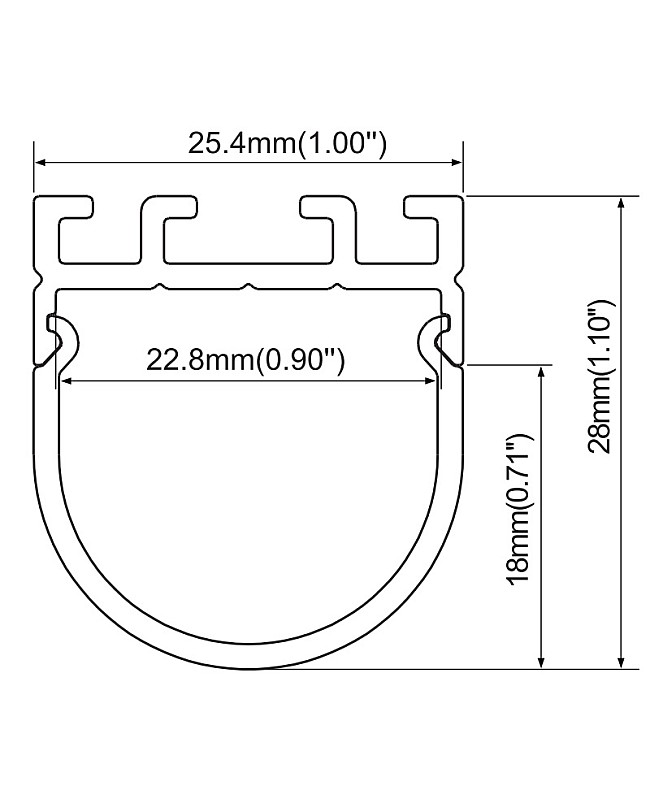

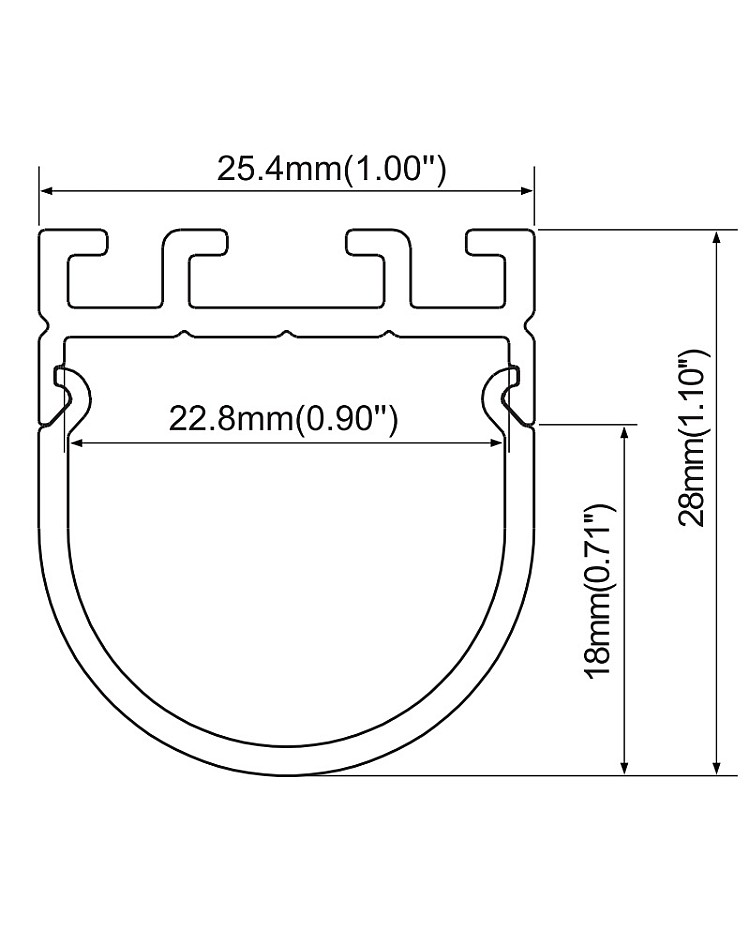

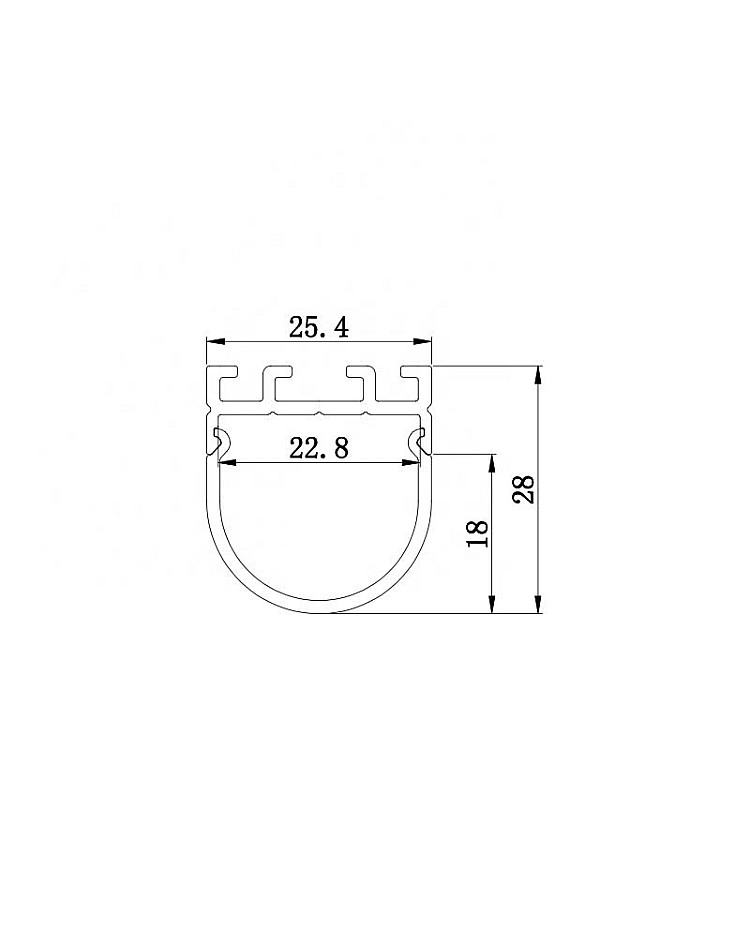

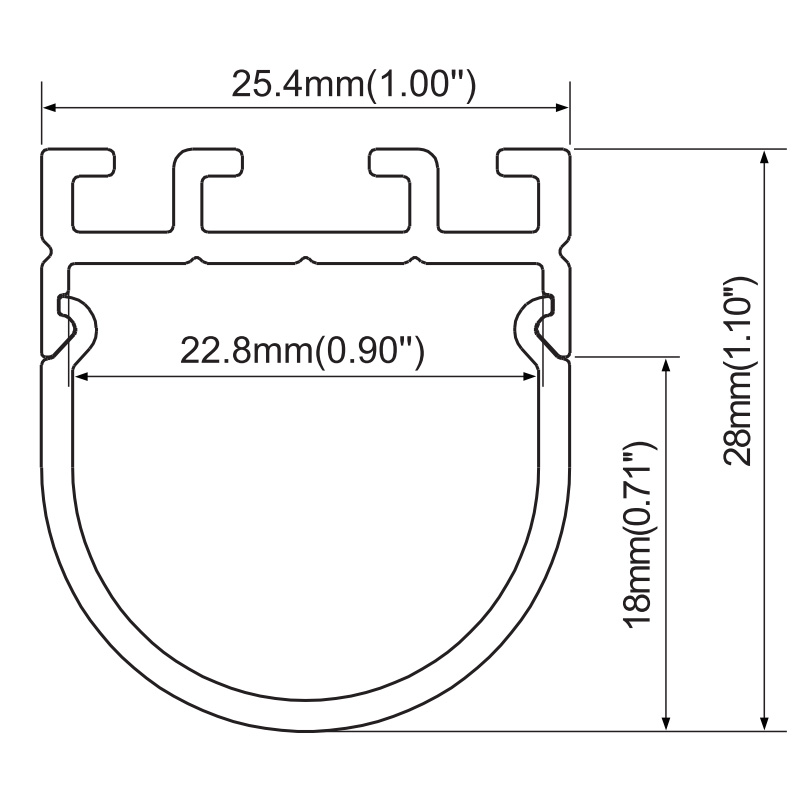

- Size ( W x H ): 25.4 mm x 28 mm / 1.0" x 1.1"
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Inner width: 22.8 mm / 0.9"
- Maximum width of strip lights: 22 mm / 0.87"
- Max power: 20W/m
- Diffuser: 1" half-round PC diffused cover

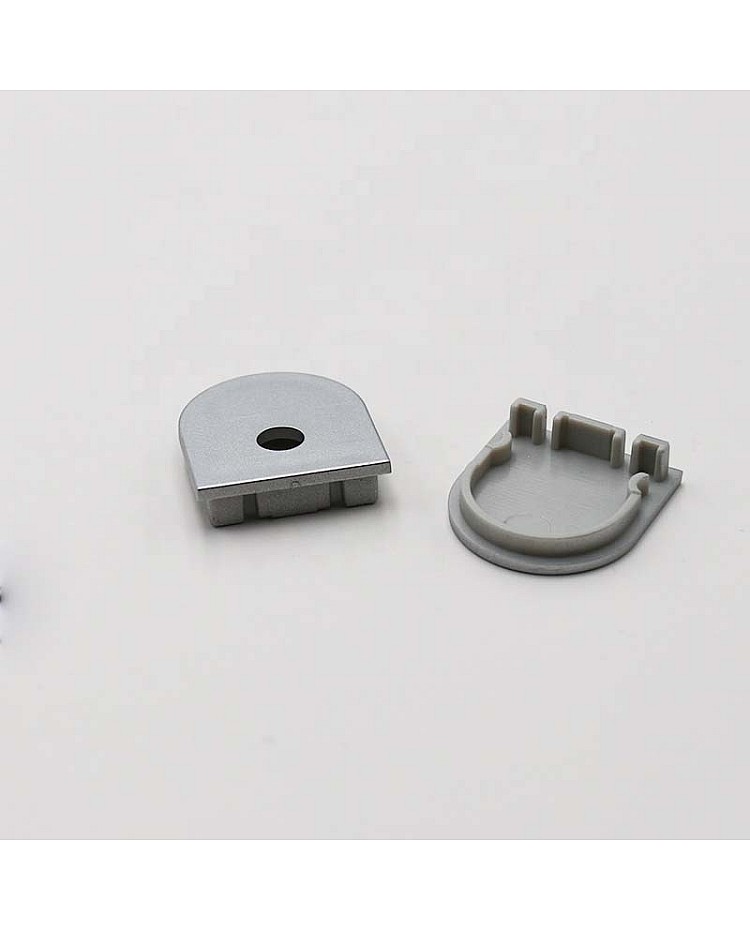

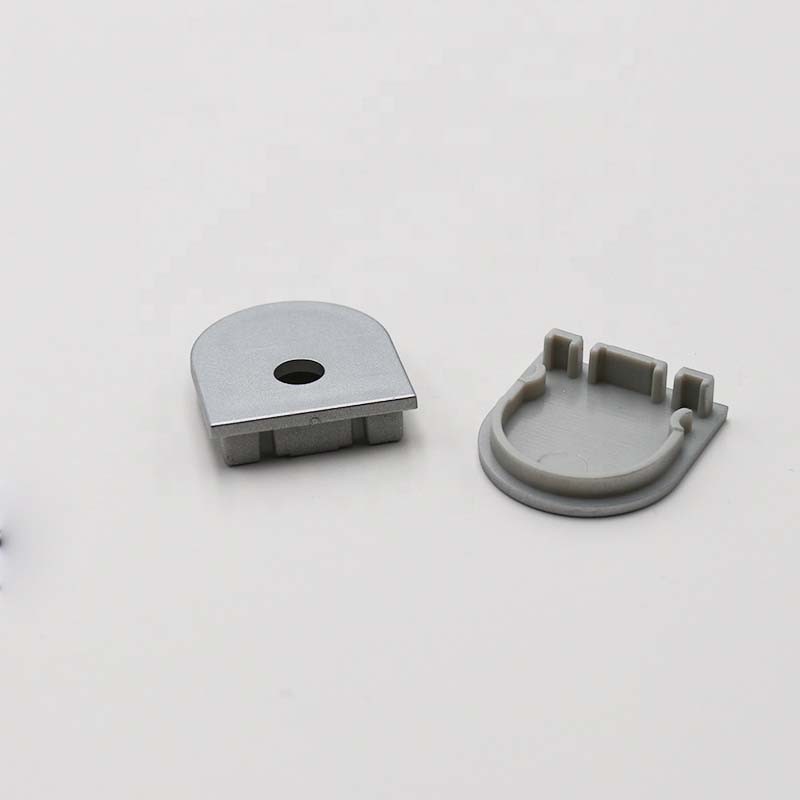

- End caps with and without wire holes are included

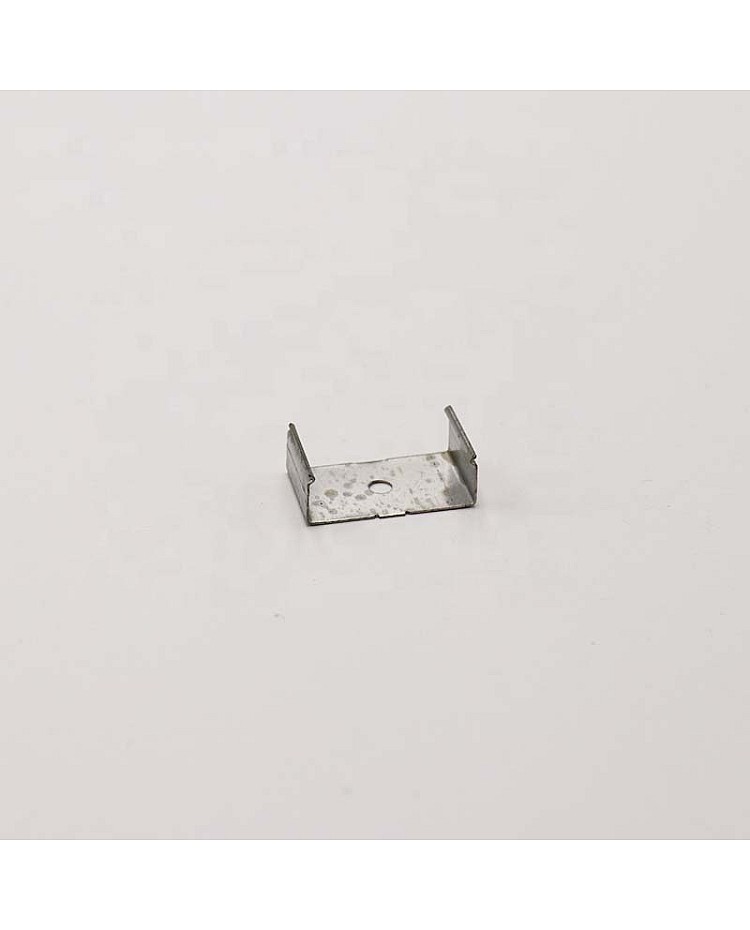

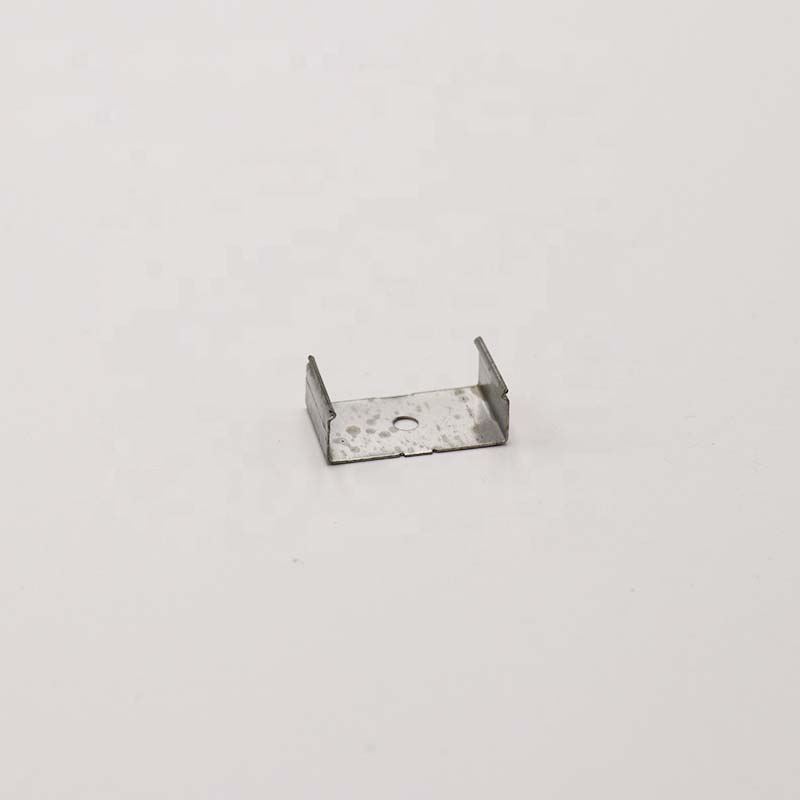

- Metal clips are included
- 180° and 90° joiners are sold separately

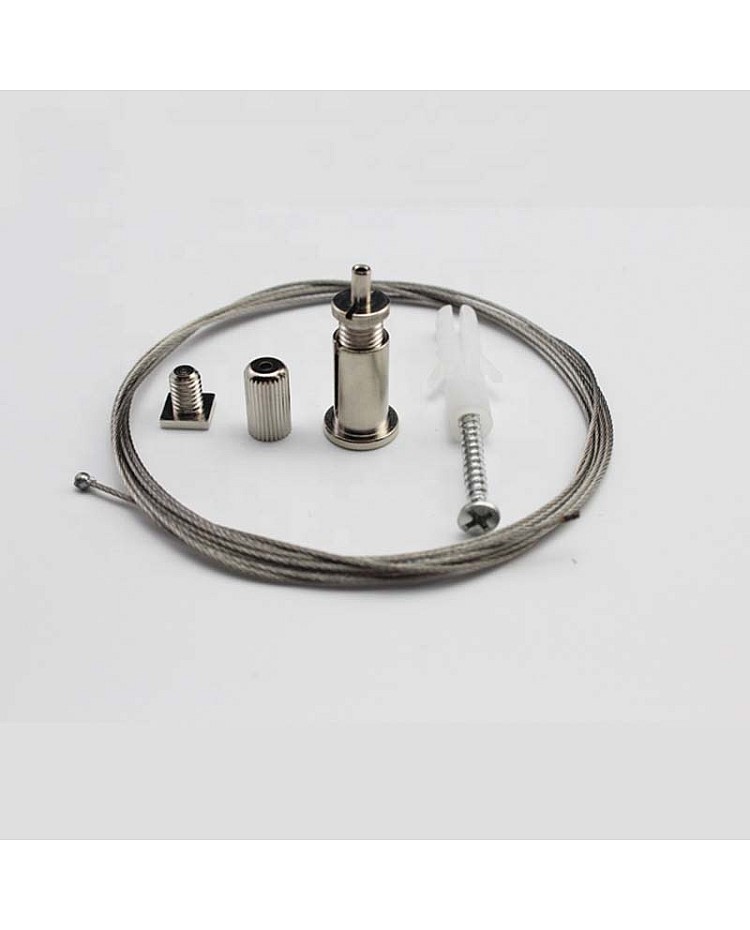

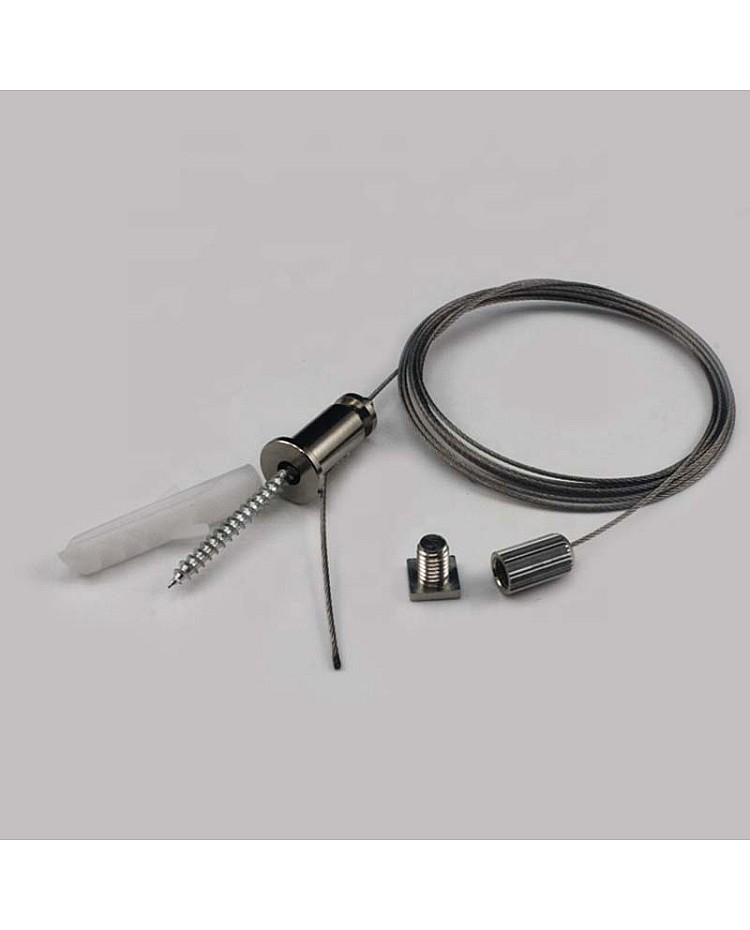

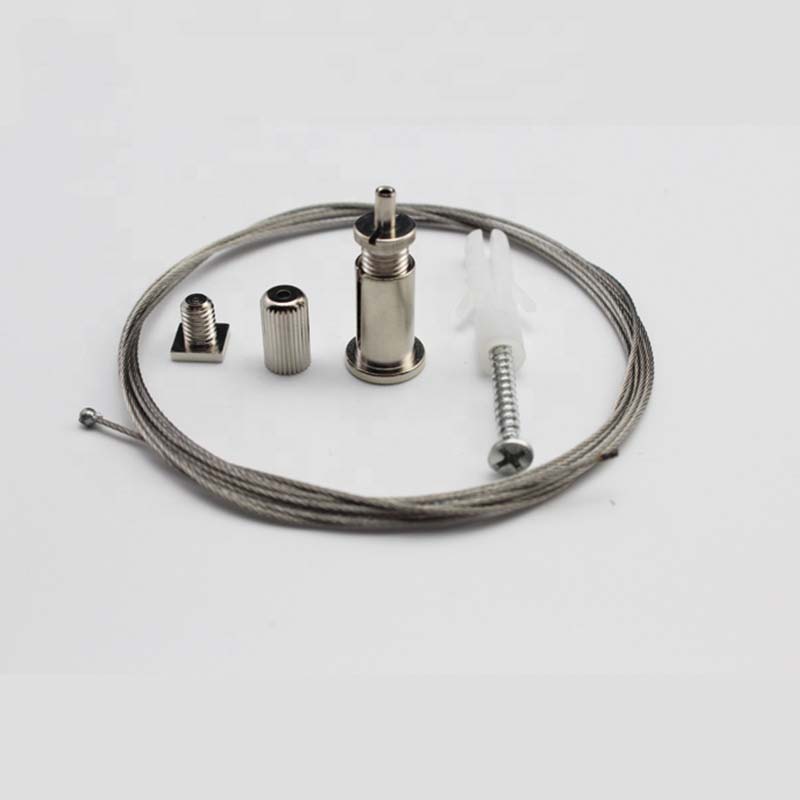

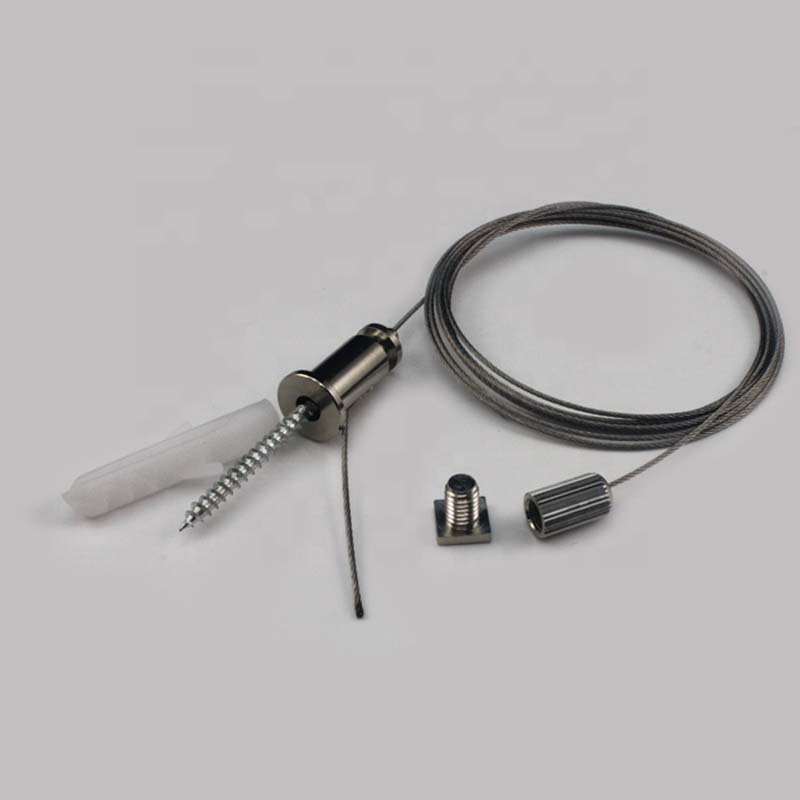

- Suspension wire kits are optional

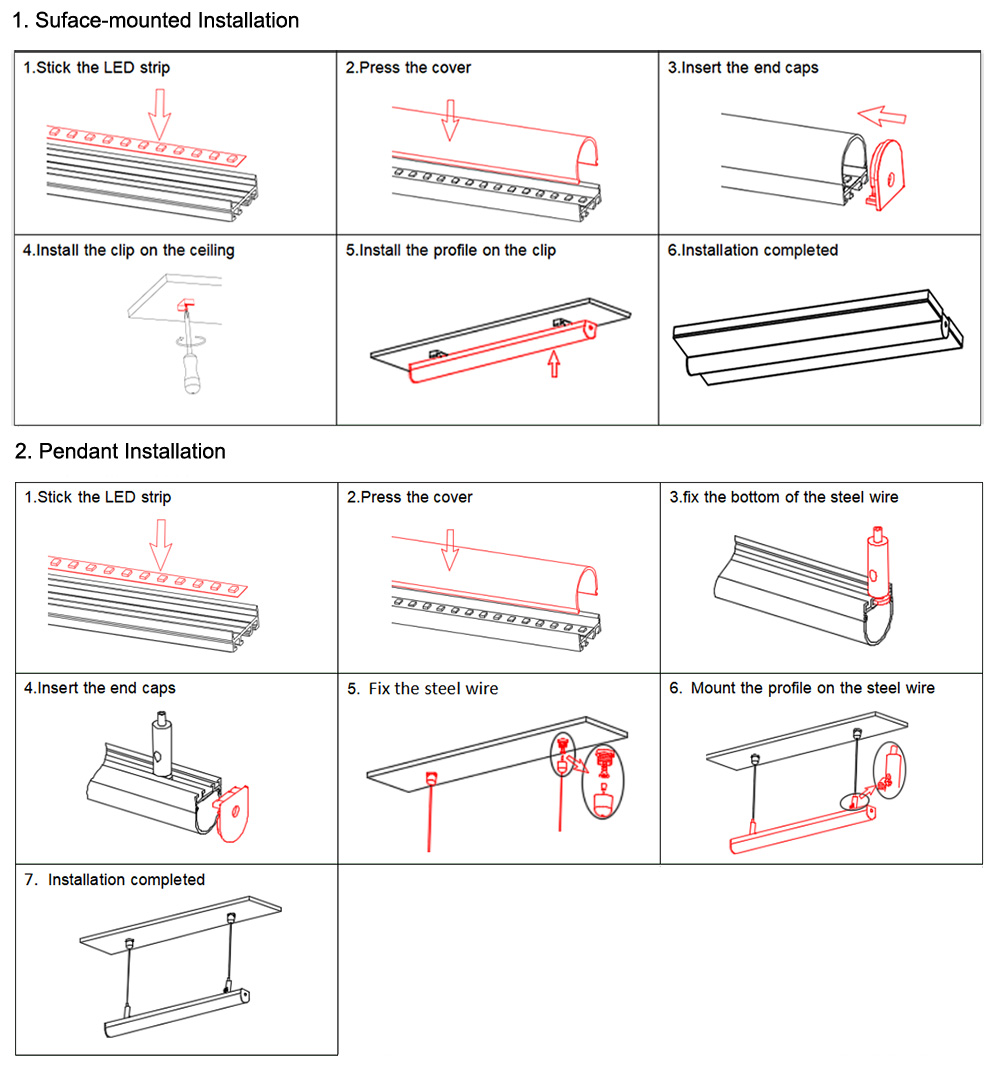

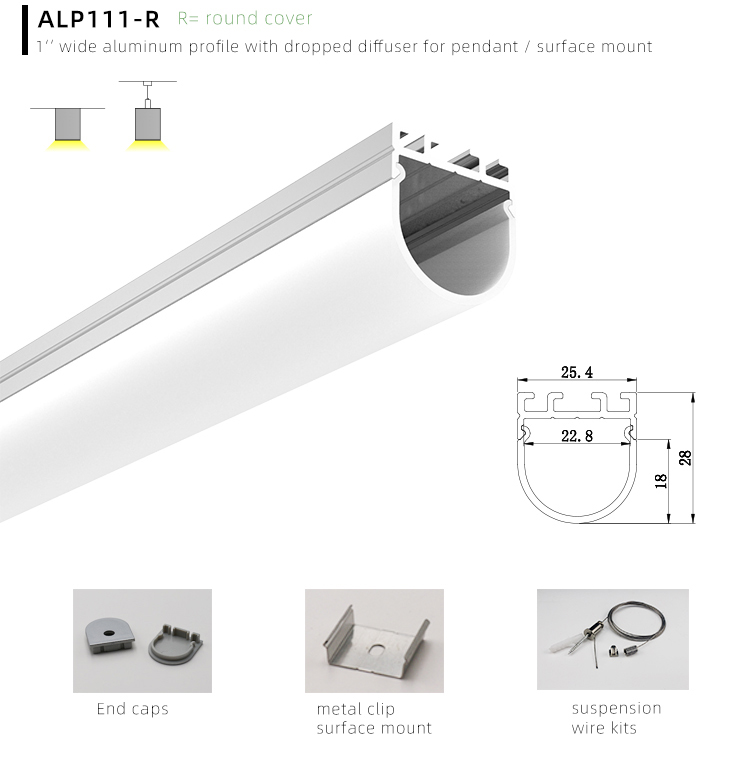

- Installation: Pendant/surface mounted
- Applications: Task lighting for under cabinets, workbenches, kitchen countertops, office desks, retail shelves, product display, etc
- Certifications: CE, ROHS
- Warranty: 5 years

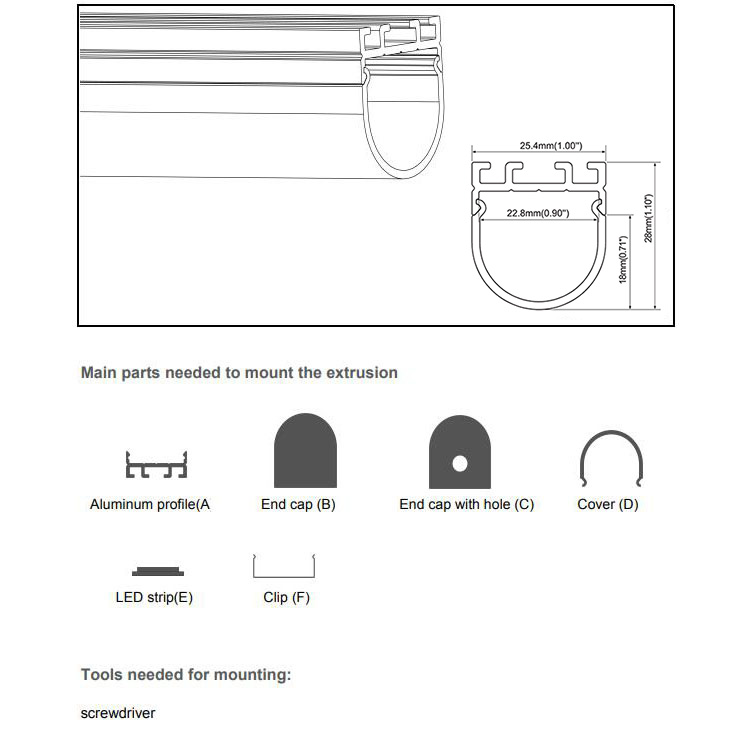

Includes:
1 * LED profile light with round diffuser
End caps ( With and without wire holes )
Metal clips
