These silicone diffuser covers are designed for flexible strip lights, delivering smooth, dotless illumination. Available in rolls up to 200 meters, these covers are easy to cut and shape for creative lighting designs. They conceal and protect LED strips for a clean finish, while softening and evenly diffusing the light to eliminate harsh glare and create uniform lighting.

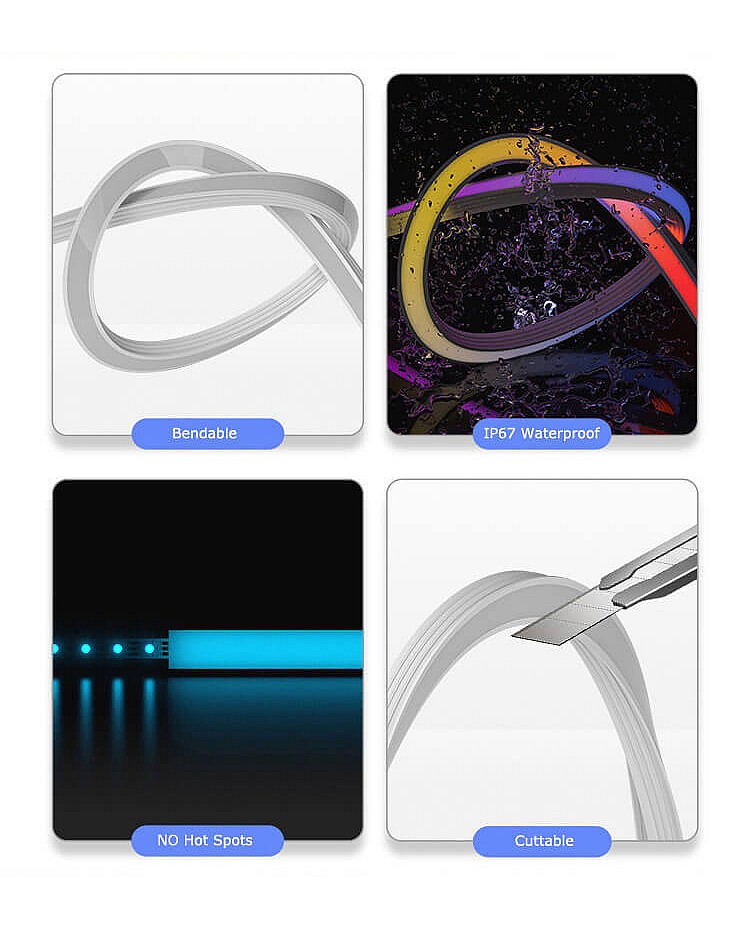

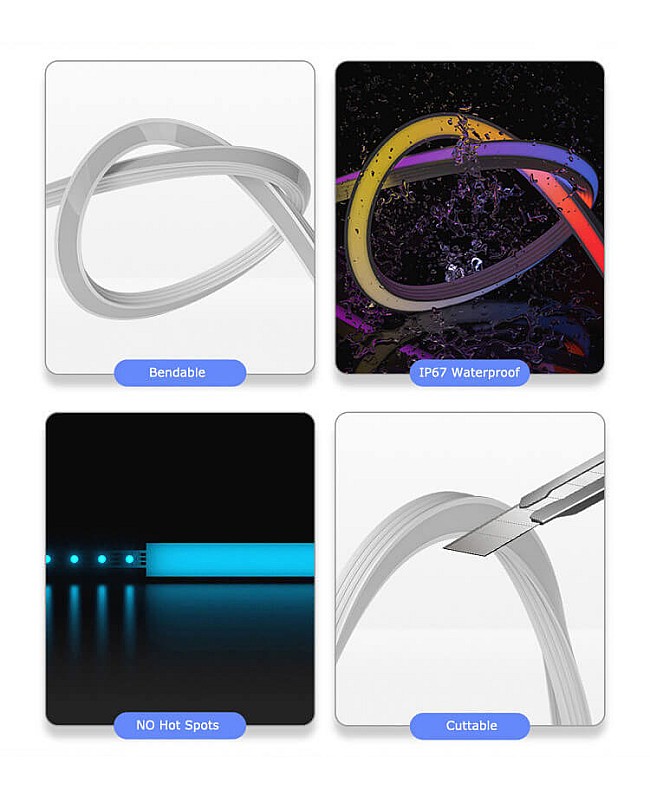

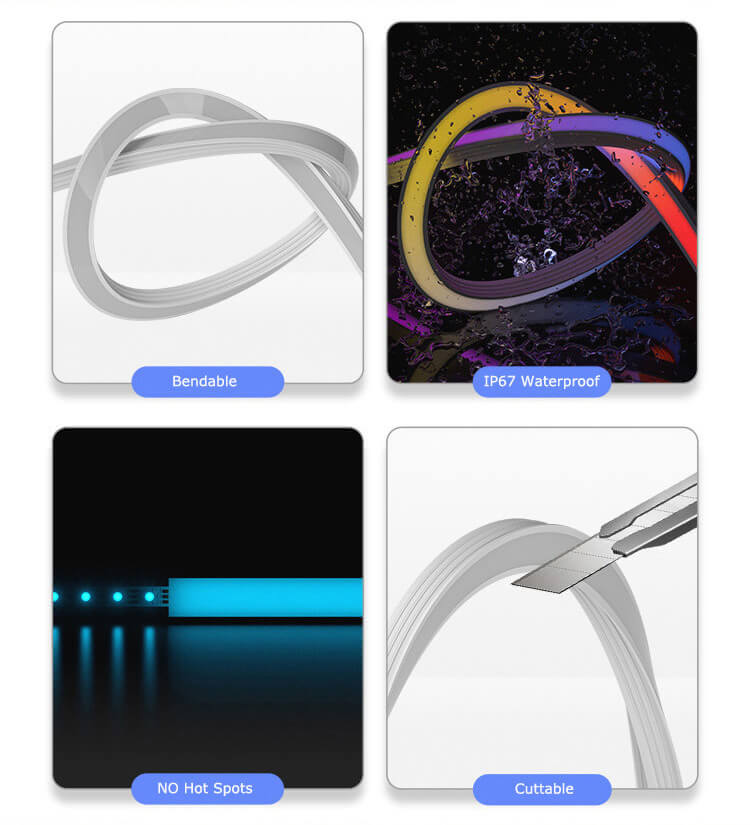

They are made from high-quality silicone, making them flexible, bendable, cuttable, and shapeable. You can use them to create curves, circles, waves, and custom shapes that aluminum channels cannot. They have a slim lip design that allows them to recess into walls, ceilings, furniture, machines, boats, models, and other surfaces, and will protect the LED strips from dust, dirt, and moisture, making them low-maintenance installations.
The standard length is 16.4 ft (5 m) per roll; the maximum lengths are 50, 100, or 200 m per roll (depending on the size), and you can easily cut to the length you need. They are available in multiple widths to accommodate LED tapes from 3 mm to 20 mm.
Pro Tip: Recommend adding high-density SMD (at least 60 LEDs/m) or COB LED strips to create smooth lighting without hotspots. For outdoor or moisture environments, please add IP67-rated LED strips.
Specifications:
- Material: Silicone

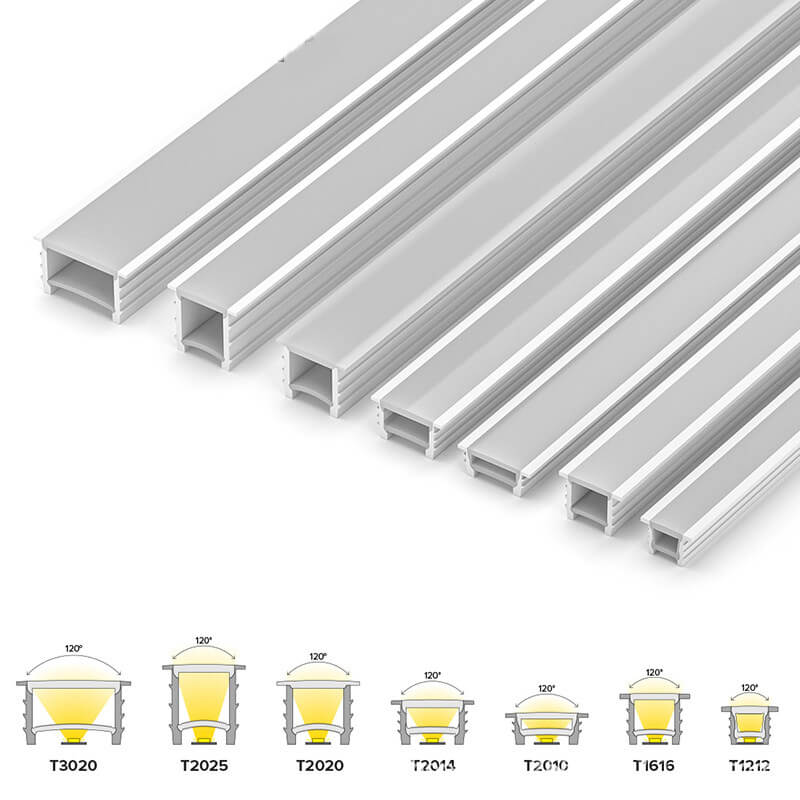

- Models: T1010, T1212, T1616, T2010, T2014, T2020, T2520, T3020, T4020, T5020
- Standard length: 16.4 ft (5 meters)/reel
- Max length: 50 meters, 100 meters, 200 meters/roll ( depends on size )
- Surface colors available: White, transparent, black

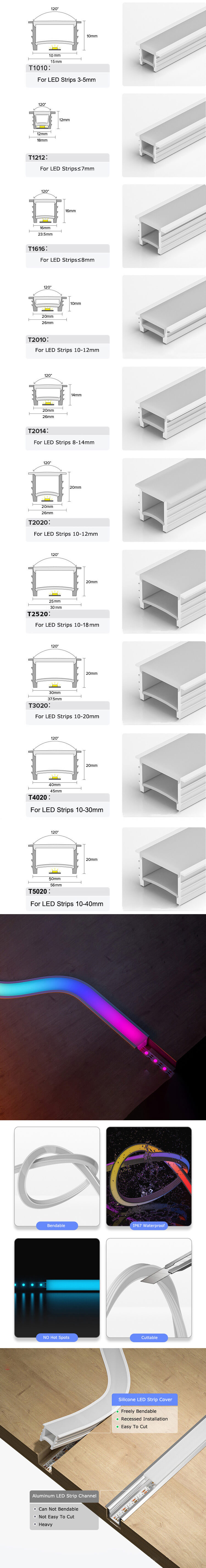

- Size ( Width x Height ): 15 mm x 10 mm ( T1010 ), 18 mm x 12 mm ( T1212 ), 23.5 mm x 16 mm ( T1616 ), 26 mm x 10 mm ( T2010 ), 26 mm x 14 mm ( T2014 ), 26 mm x 20 mm ( T2020 ), 30 mm x 20 mm ( T2520 ), 37.5 mm x 20 mm ( T3020 ),45 mm x 20 mm ( T4020 ), 56 mm x 20 mm ( T5020 )
- Allow maximum width of LED strips: 3-5 mm ( T1010 ), ≤7 mm ( T1212 ), ≤ 8 mm ( T1616 ), 10-12 mm ( T2010 ), 8-14 mm ( T2014 ), 10-12 mm ( T2020 ), 10-18 mm ( T2520 ), 10-20 mm ( T3020 ), 10-30 mm ( T4020 ), 10-30 mm ( T5020 )
- Flexible and bendable
- Cuttable: YES
- View angle: 120°
- Installation method: Recessed
- Working temperature: -40℃-100℃
- Lifespan: 50,000 Hours
- Certifications: CE, ROHS
- Warranty: 3 years
Package Includes:
1 x LED strip diffuser cover (5 meters per roll)
FAQs:
1. Can I cut them to any length?
Yes, they are cuttable. You can cut to the exact length you need.
2. How to choose the right-sized products?

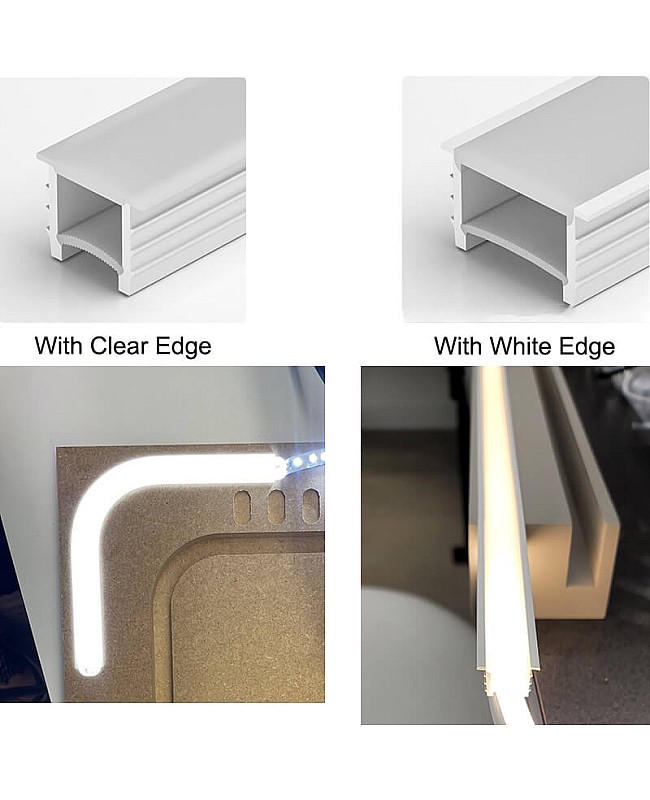

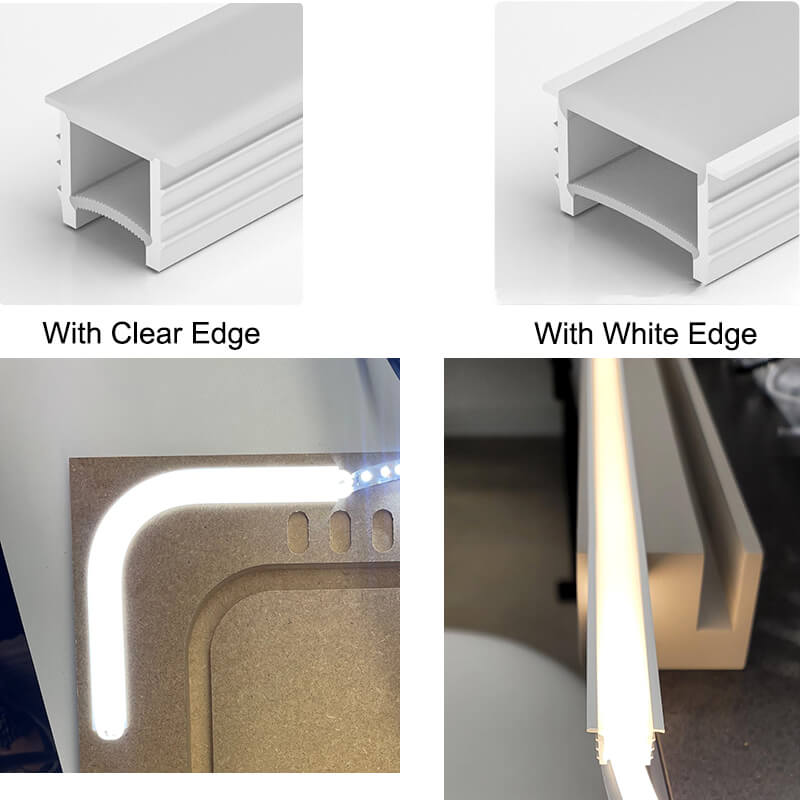

Please check the size and ensure the silicone covers accommodate your LED strips. We can provide transparent, white, and black surface products, with white and clear edge options for the white ones. If you are not sure, please contact us.
3. Can we use them outdoors?
Yes, you can. For fully wet or outdoor installs, please pair with IP67 or IP68-rated strip lights.
4. How to avoid showing hotspots?
To avoid hotspots, we recommend adding high-density SMD (> 60 LEDs/m) or COB LED strips for dotless lighting.
5. How to place a custom order?
It's super easy to order a custom-length product from us. Please mail us the length and model you need, and we will let you know the cost and shipping time.
