  • Brand: Ledbe
  • Product Code: ALP3875-D

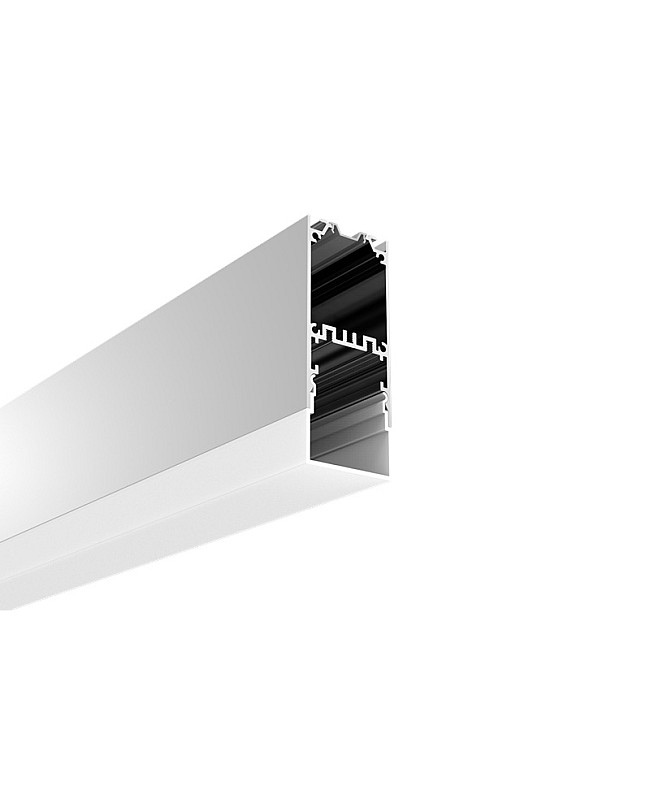

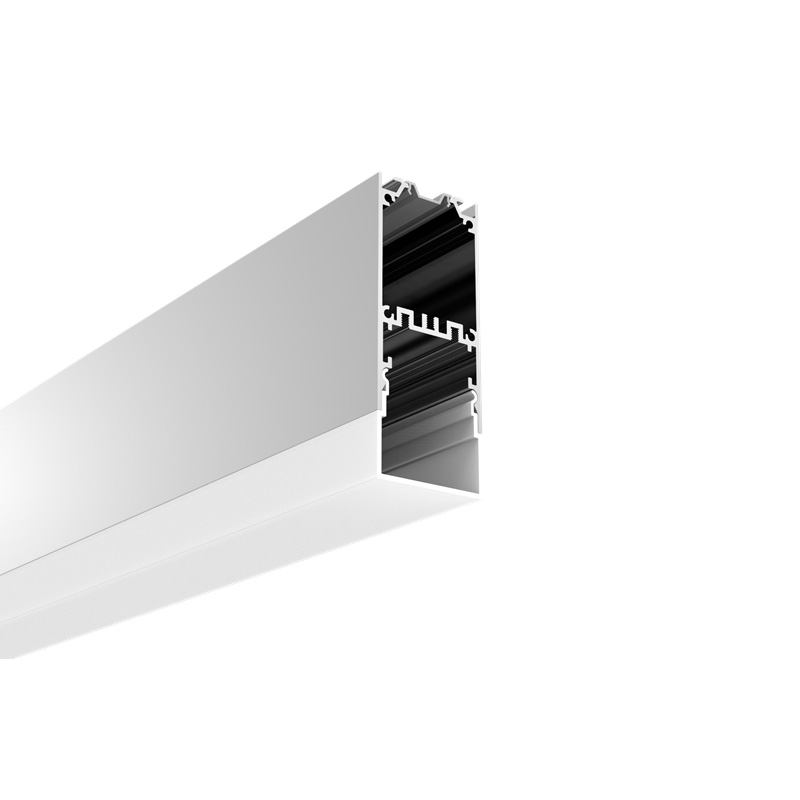

Check the Aluminum U Channel for LED Strips with a 20mm dropped diffuser for smooth light output and a wide view angle. It comes with suspension wire kits that allow hanging on the ceiling, They can be used as commercial linear lighting in your offices, restaurants, hotels, shopping malls, etc. The U Shape LED Light Channel Diffusers are made of 6063-T5 aluminum material, with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. There are three colors available: silver, white and black. The standard length is 1M and 2M, and custom lengths are available. Only one type of diffuser is available: the PC diffused cover, which is made of brand-imported material, anti-yellowing, and perfect light distribution. The inner width is 27.5mm and allows the max-width of LED Strips to be 18.5mm, You can use Flexible LED Strips and COB LED Tapes as the light source, and Aluminum Channels can be used as a heat sinker for better heat dissipation. Metal clips and suspension wires are included to allow the pendant installation. Three types of LED Connectors are available: 90°, 90° Vertical, and 180° Connectors sold separately, and you can use them to reconnect the LED Channels.


  • Model: ALP3875-D
  • Material: 6063-T5 Aluminum

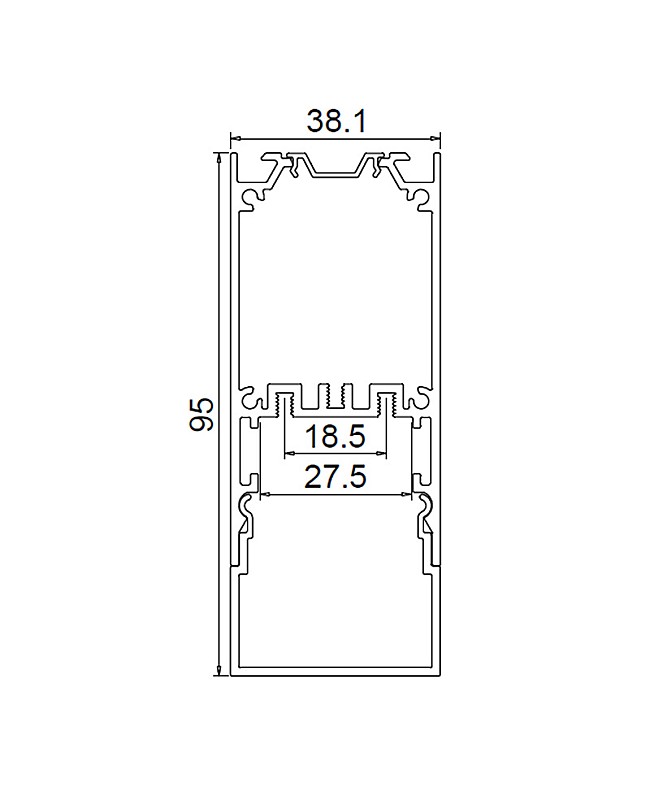

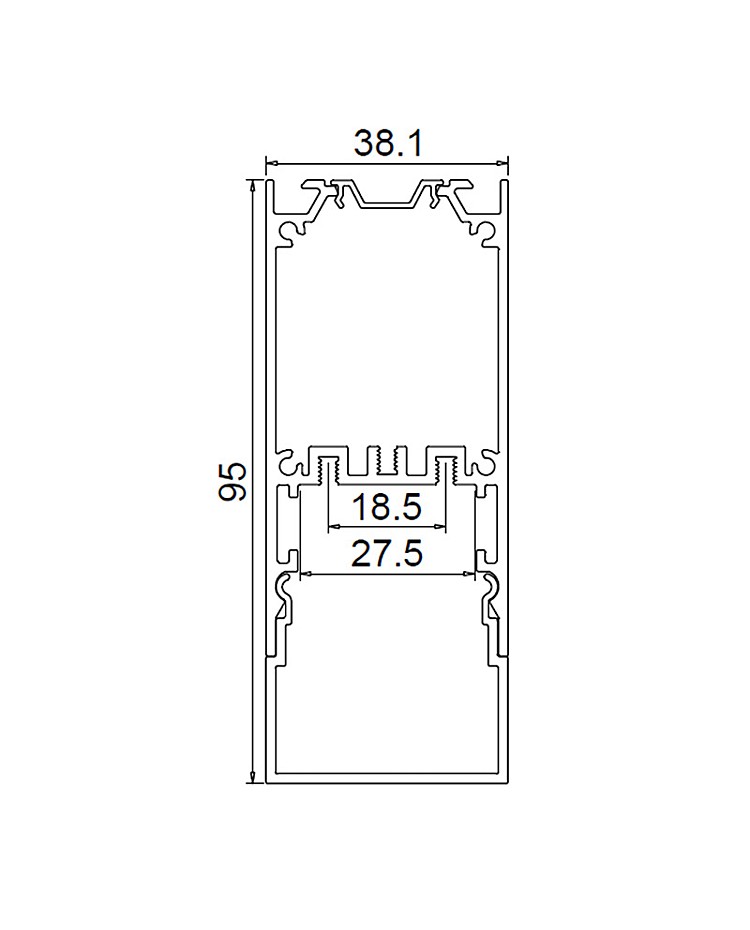

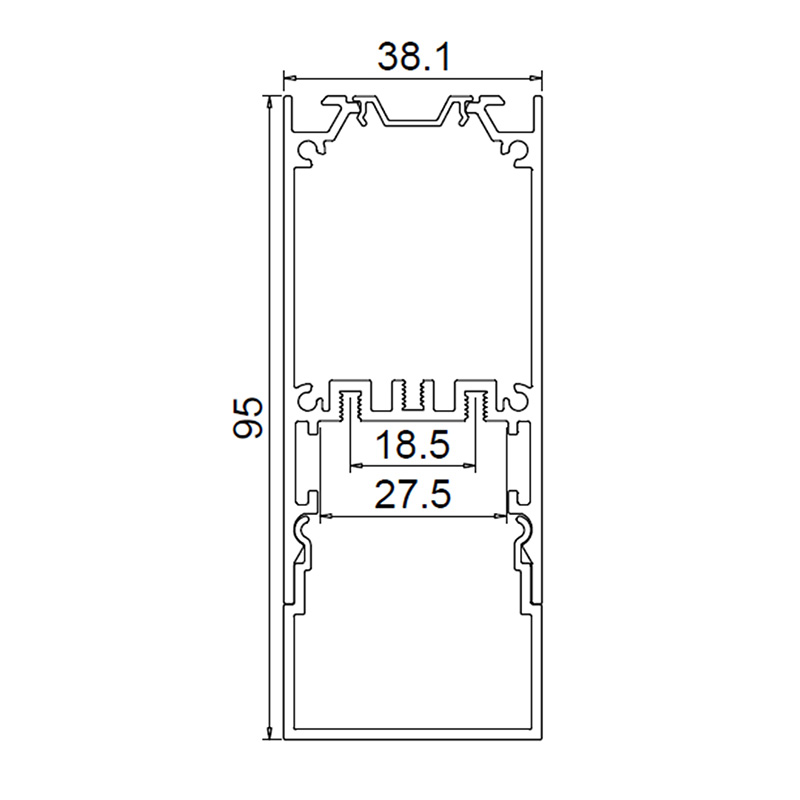

  • Size: 95*38.1mm(H*W)
  • Surface Treatment: Anodized
  • Colors: Silver
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M
  • Custom Length Available: YES
  • Diffuser: PC Diffused Cover
  • Max Width Of LED Strips: 18.5mm
  • Max Power: 30W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rate: IP20 Non-waterproof
  • End Caps, Metal Clips And Suspension Wires Included
  • 180°, 90° And 90° Vertical LED Connectors Sold Separately
  • Installation: Surface Mounted / Pendant
  • 5 Years Warranty


1*Aluminum U Channel With Dropped Diffuser

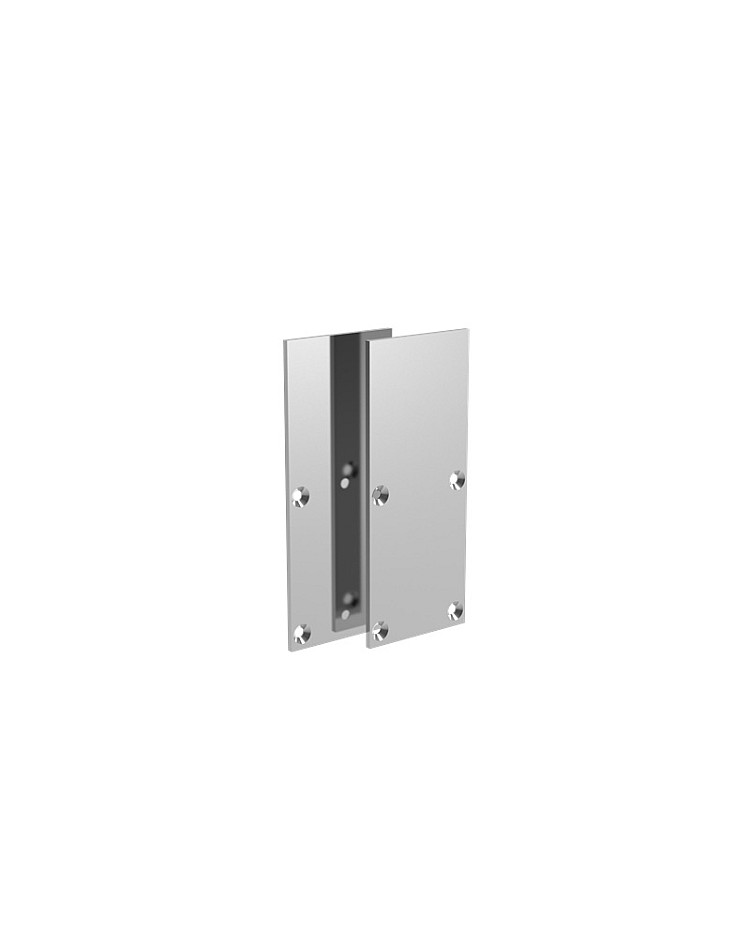

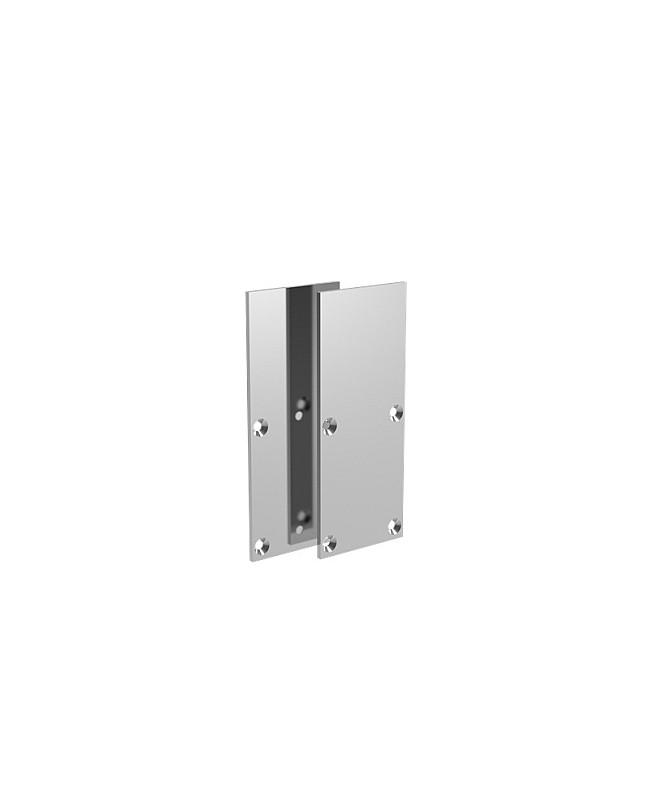

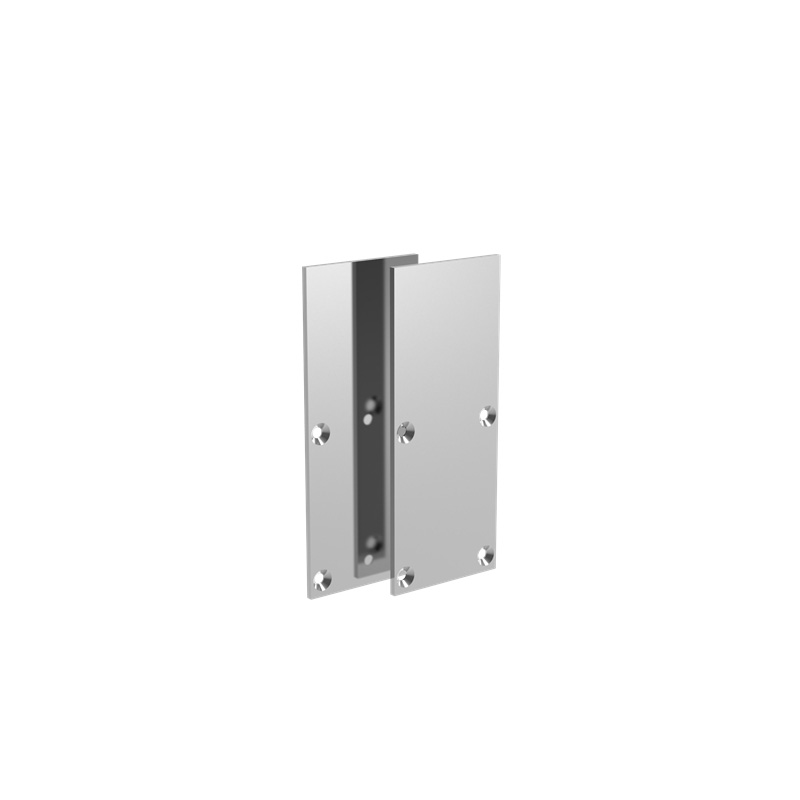

End Caps

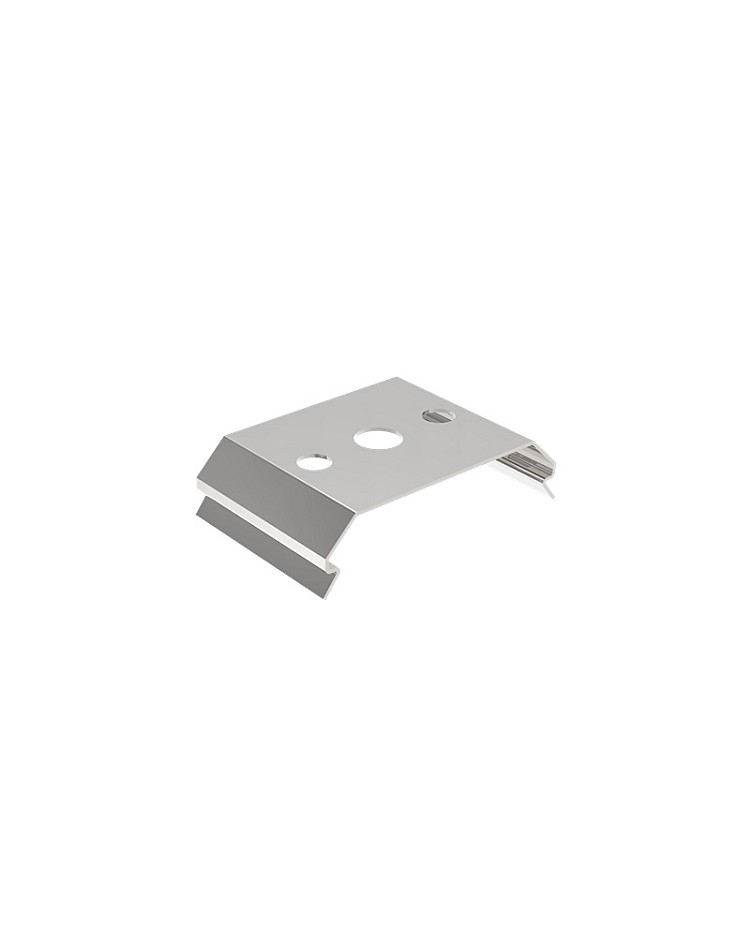

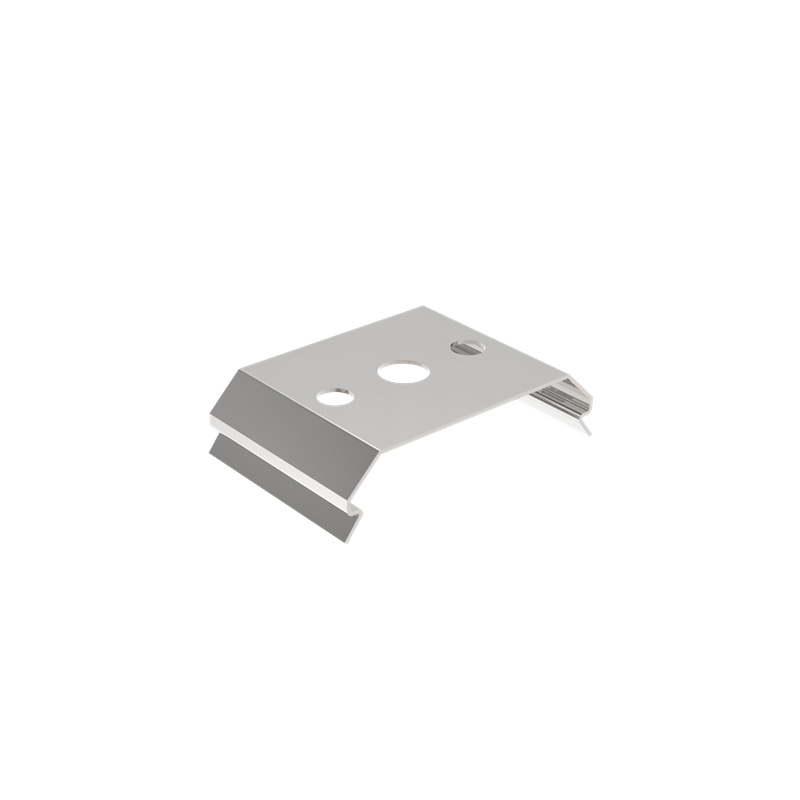

Metal Clips

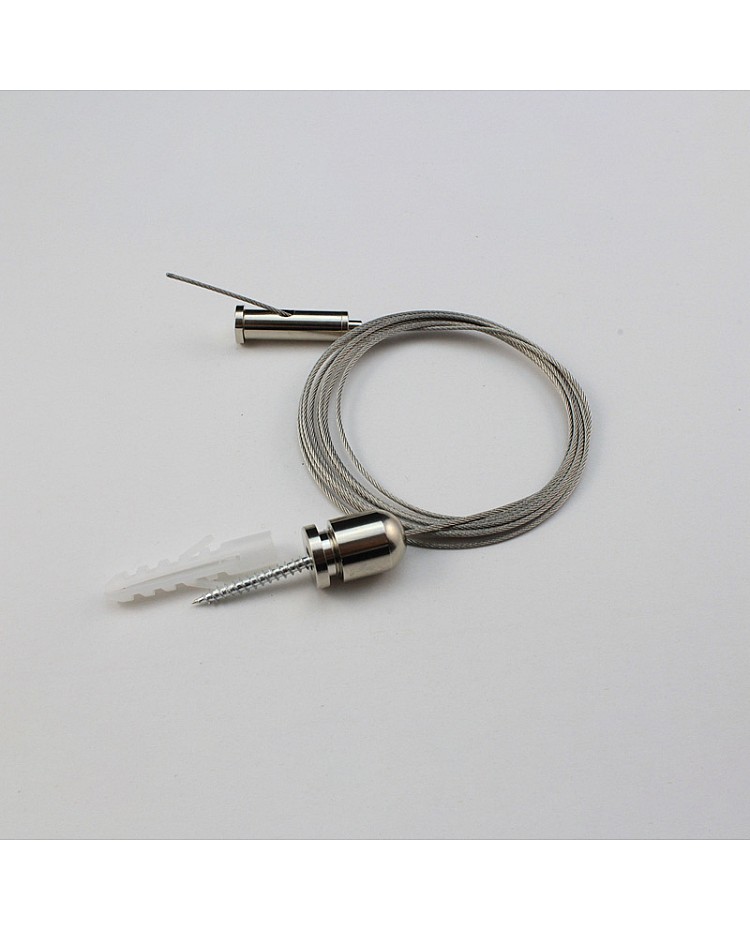

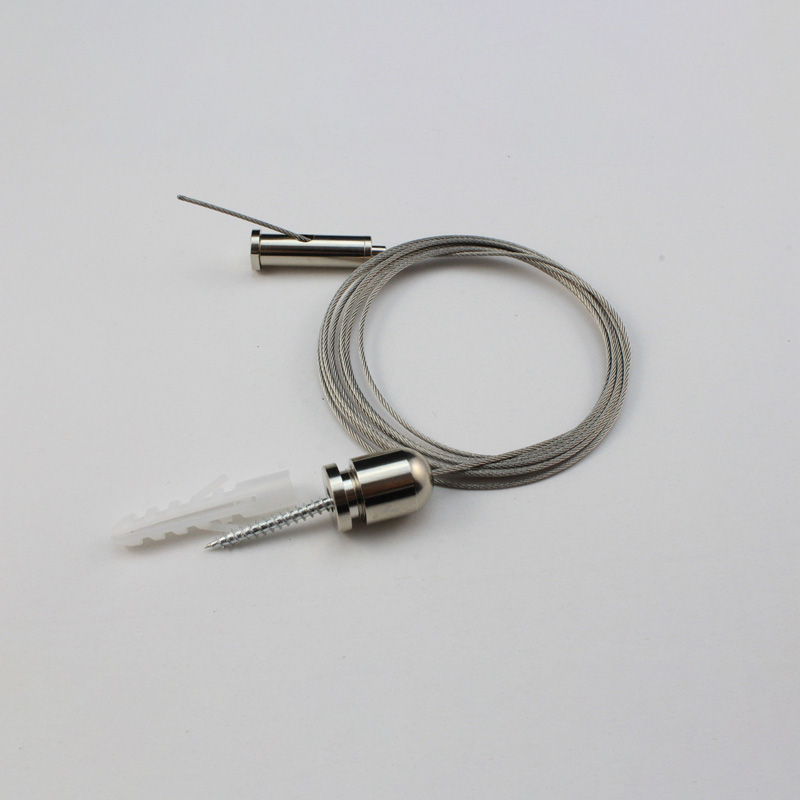

Suspension Wires

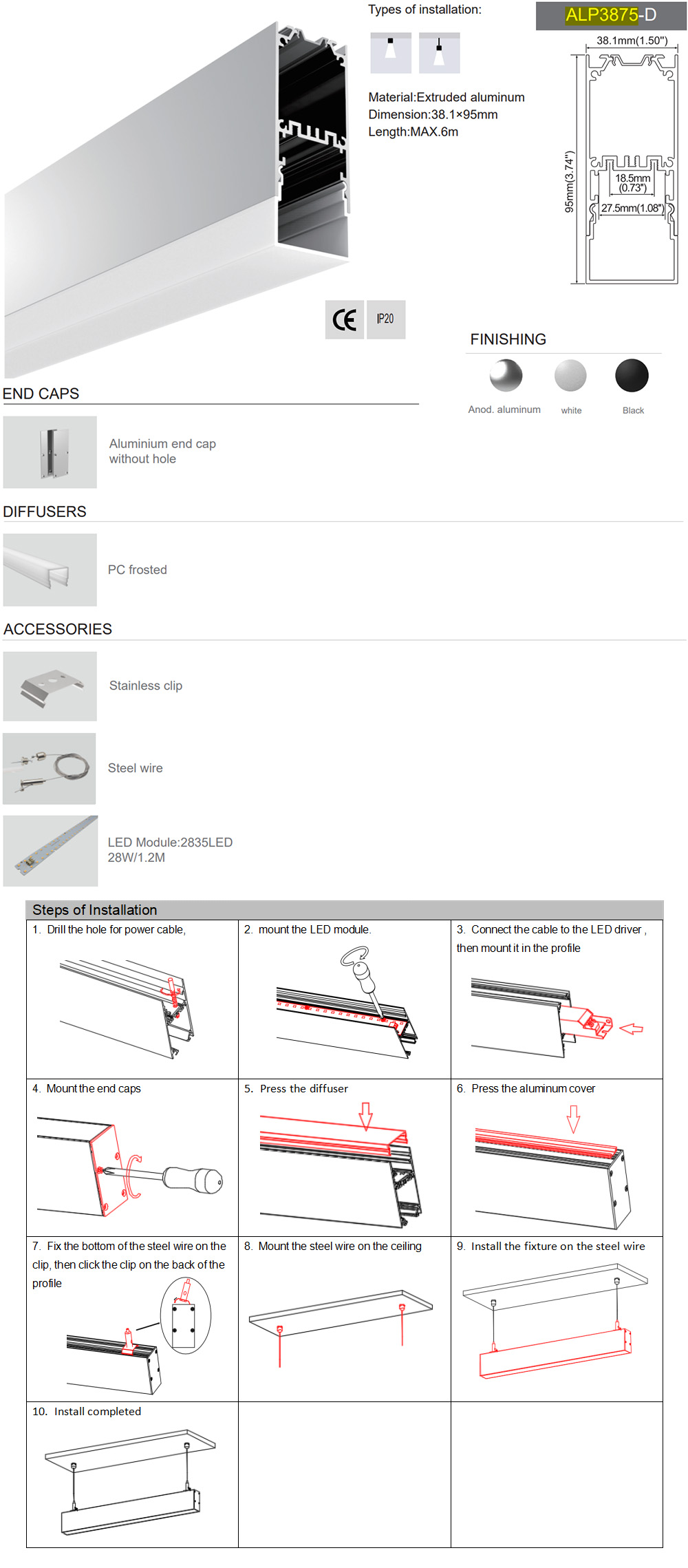

u channel for led strip DIY
