Ceiling Recessed Anti-glare LED Channel

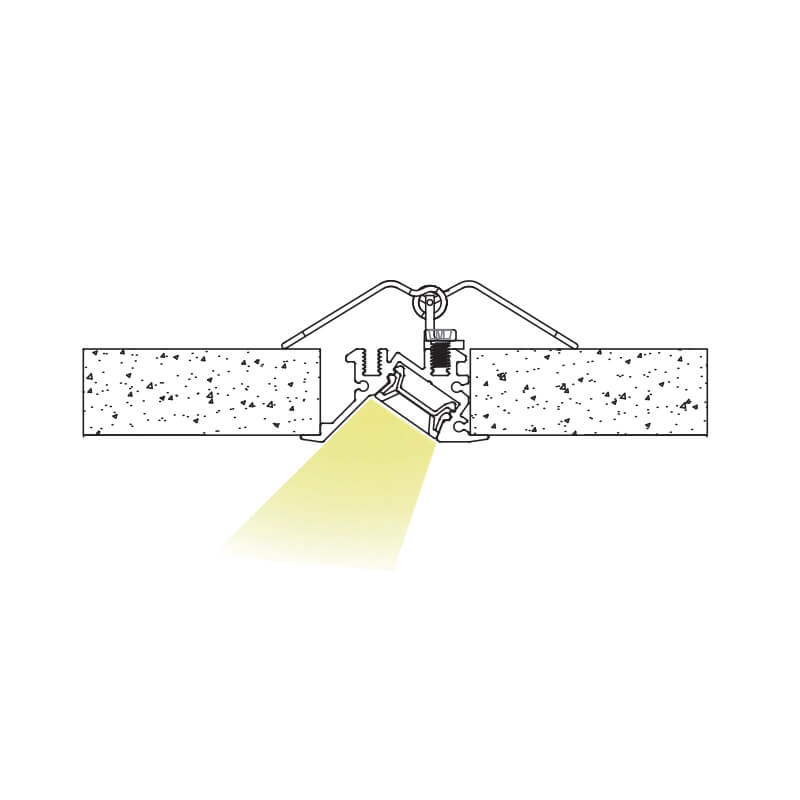

This slim LED channel measures just 33.3 mm wide and 15.3 mm high and can be easily recessed into the ceiling for a clean, professional finish. The 45-degree beam-angle lighting design directs light precisely where you need it while preventing direct glare. It delivers comfortable, professional-grade illumination for hallways, kitchens, retail spaces, and architectural accents.

The ceiling LED profile is crafted from quality extruded aluminum alloy and has a black powder-coated finish for corrosion resistance and a longer lifespan. It can also serve as a heat sink for effective heat dissipation and to prolong the lifespan of the lights. The stock lengths are 1m and 2m, and easy to cut to any length you need.

The inner width is 13.2mm, allowing the maximum width of LED strips to be 13mm. We recommend adding high-density COB or SMD LED tapes as the light source to deliver dotless, uniform lighting.

PC diffused covers are available, and two plastic louvers are also available as an option for anti-glare lighting.

• PC diffused cover: Smooth, even, glare-free light

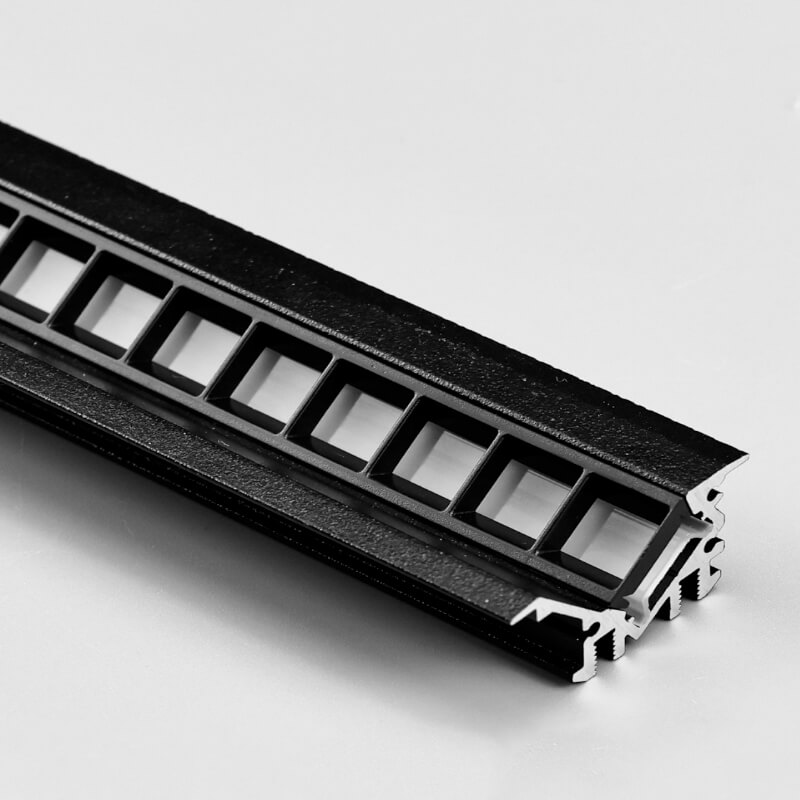

• PC diffused cover + honeycomb louver: Maximum glare control with a refined visual finish

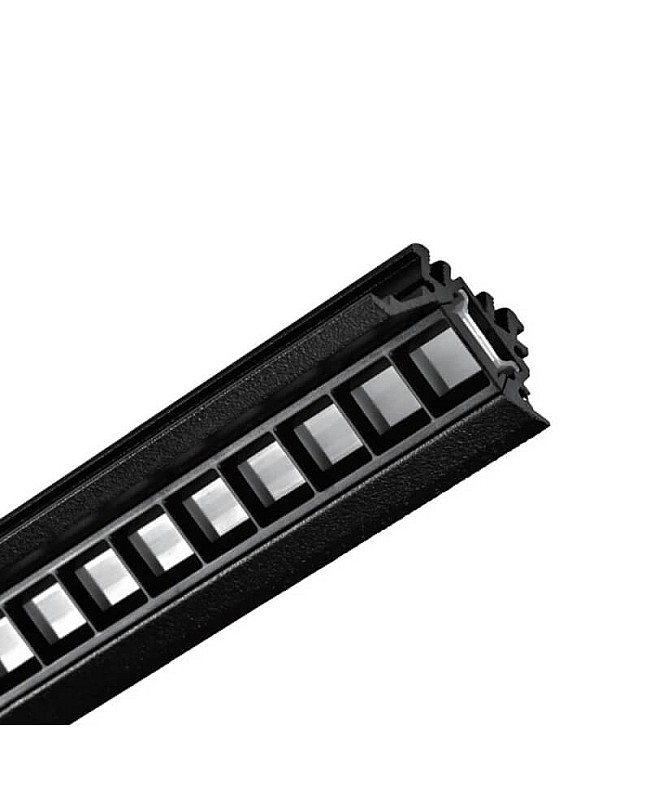

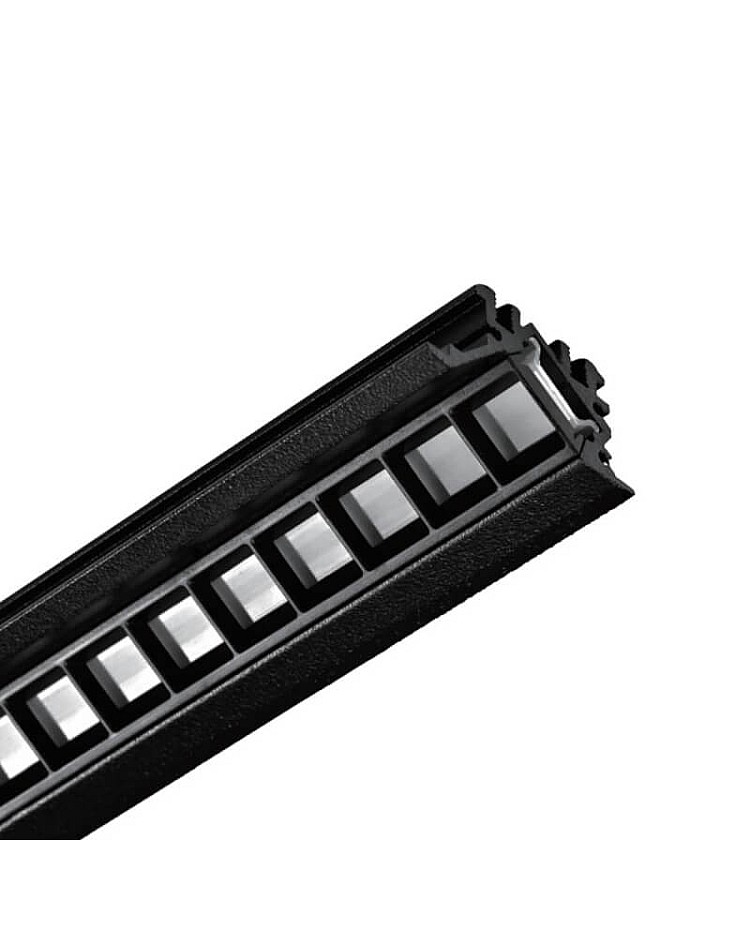

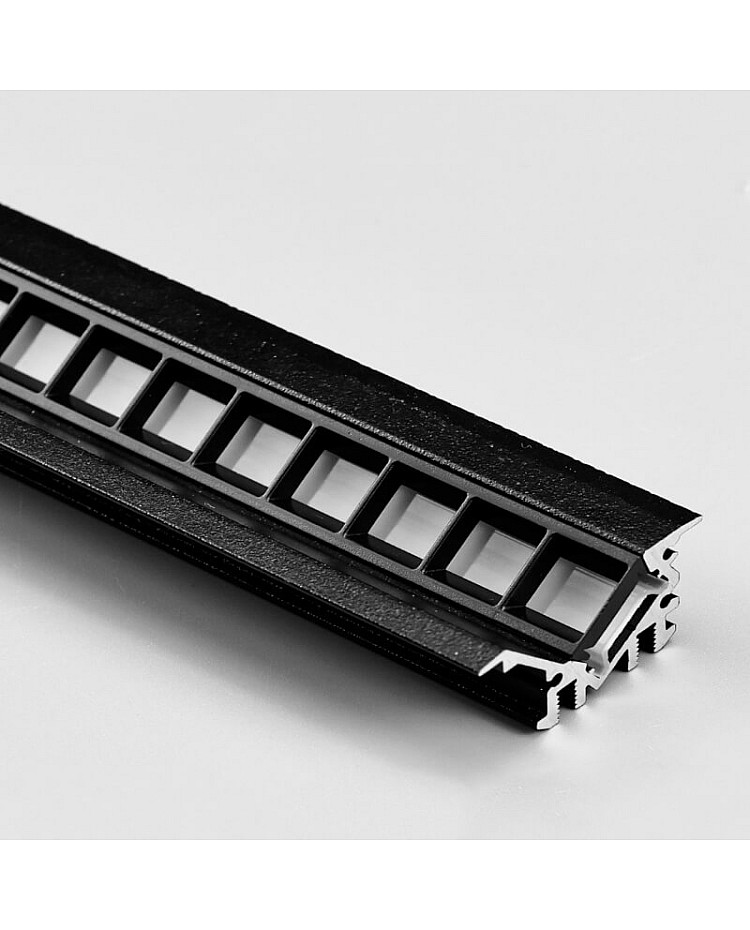

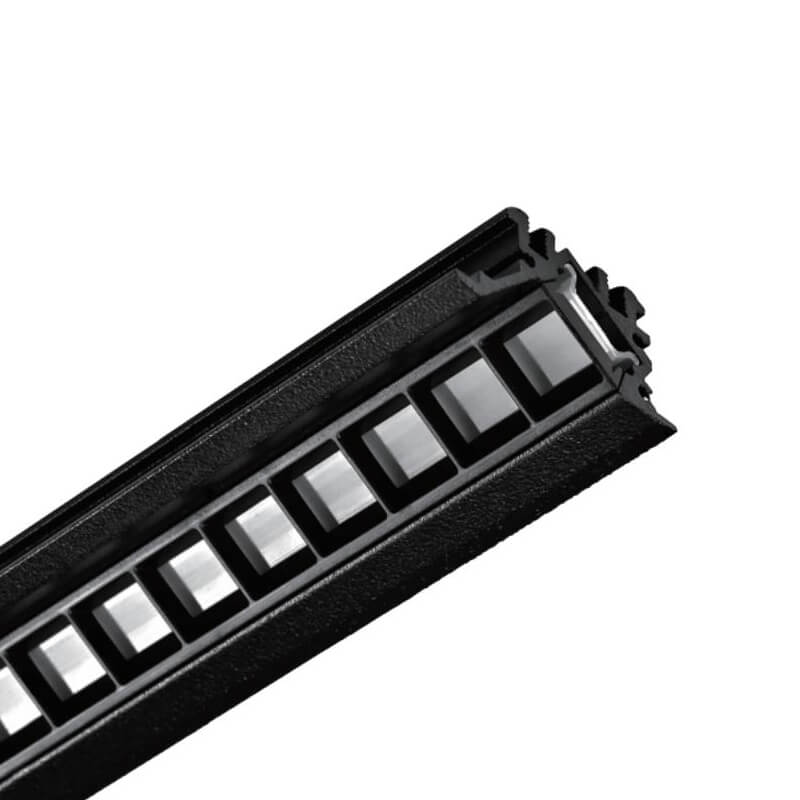

• PC diffused cover + grille louver: Crisp, directional beam separation

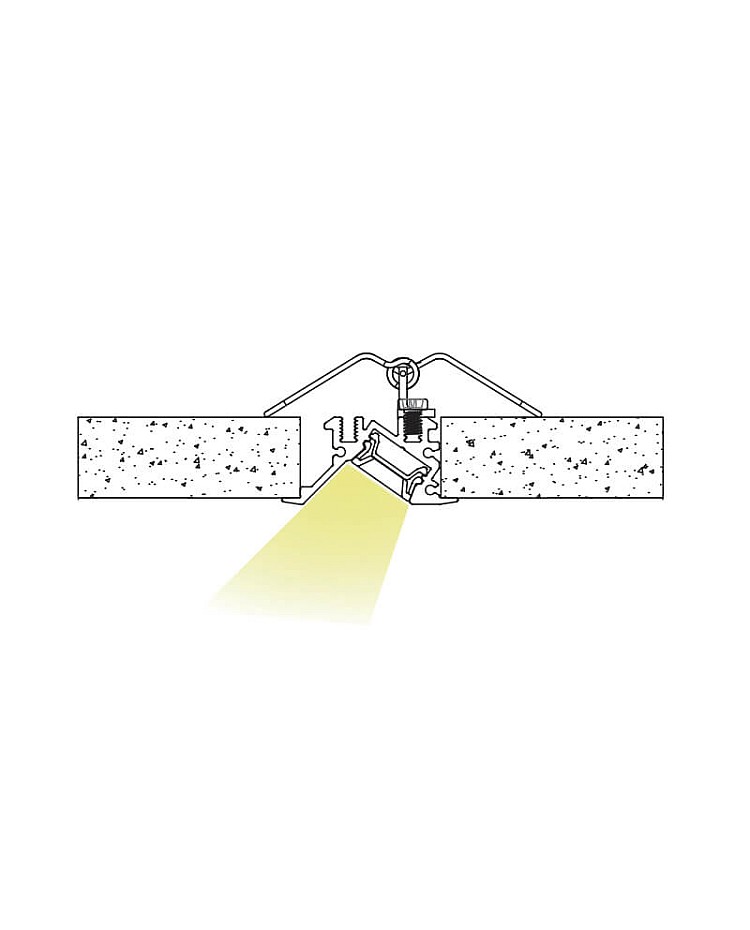

The spring clips and end caps are included for easy installation and a professional end seal. The spring mounting clips snap the channel securely into the ceiling cutout, holding it firmly in place while keeping installation fast and hassle-free.

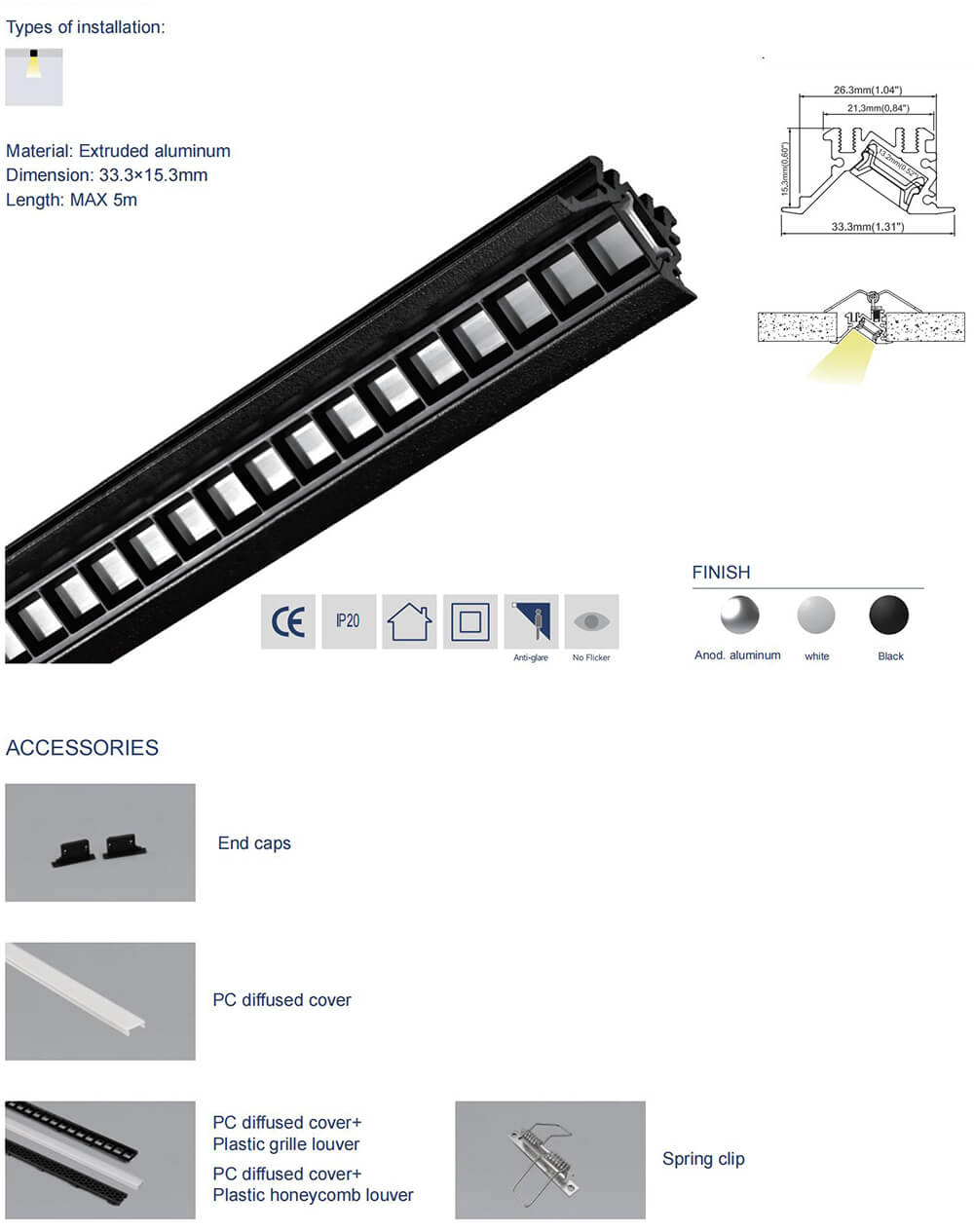

Specifications:

• Material: 6063-T5 extruded aluminum
• Surface treatment: Powder-coated
• Color: Black

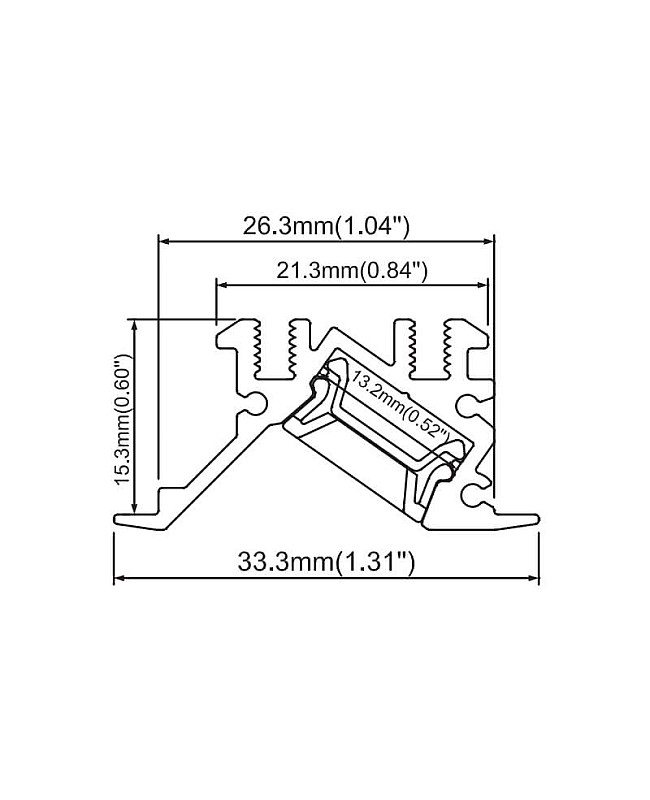

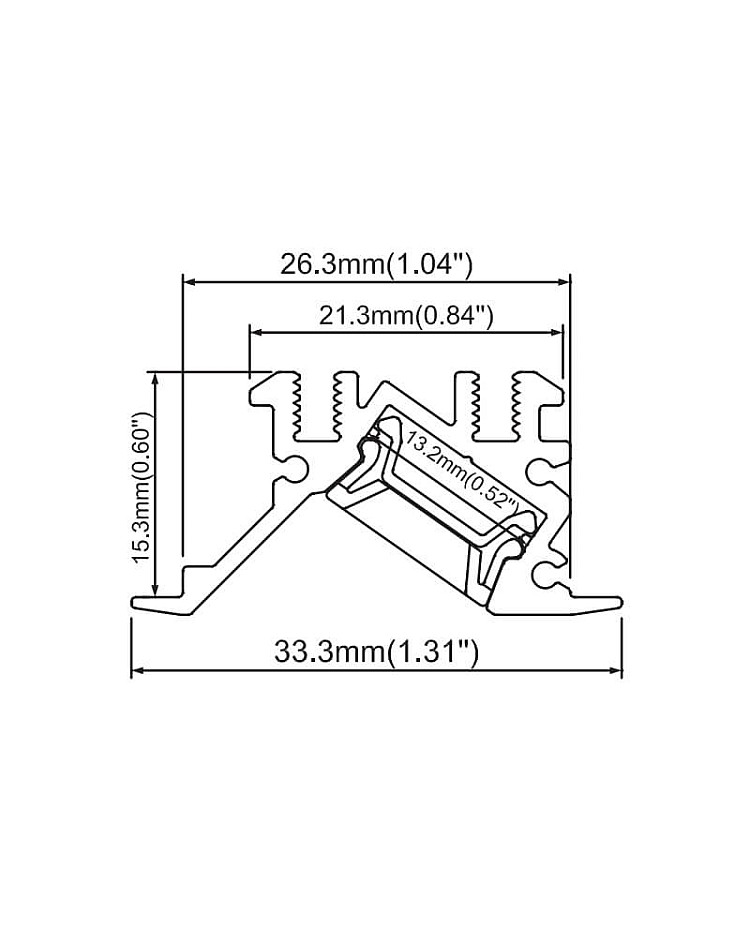

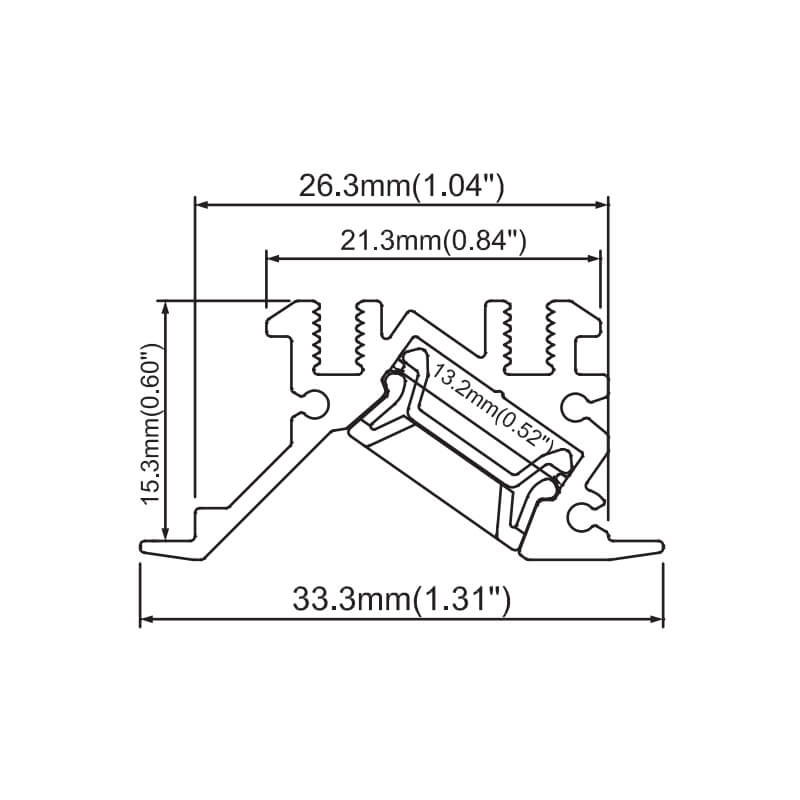

• Size ( Width x Height ): 33.3 mm x 15.3 mm ( 1.31" x 0.6" )
• Lengths available: 1 m ( 39.37" ), 2 m ( 78.74" )
• Custom length available: YES
• Diffusers available: PC diffused cover only
• Louvers available: Plastic grille louver, plastic honeycomb louver ( Length: 305mm / 12.01" per piece )
• Inner width: 13.2 mm ( 0.52" )
• Maximum width of LED strips: 13mm ( 0.51" )
• Maximum power: 15W/m
• End caps and spring mounting clips are included
• Installation: Recessed
• Warranty: 5 years

Includes:

1 x Ceiling recessed LED profile

1 x PC diffused cover

End caps

Plastic grille louver & honeycomb louver ( optional )

Spring mounting clips
