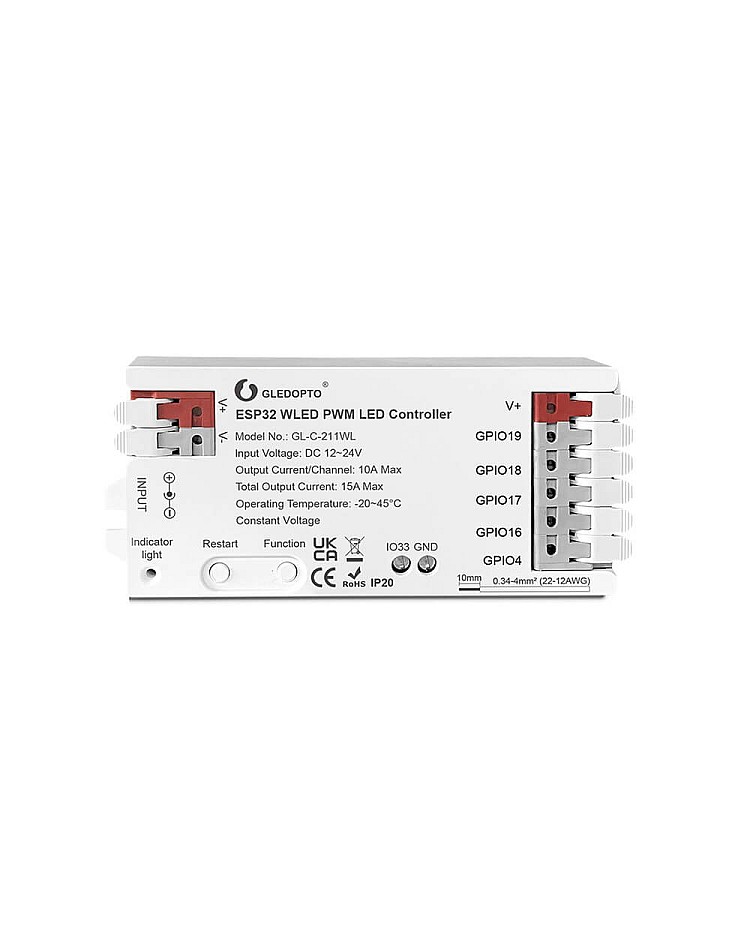

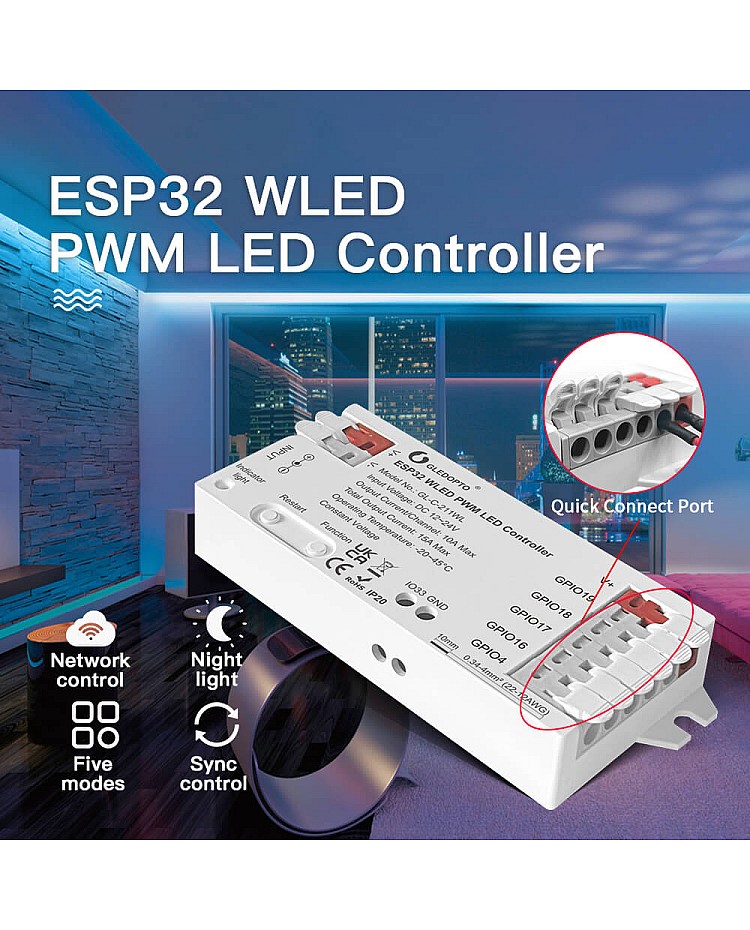

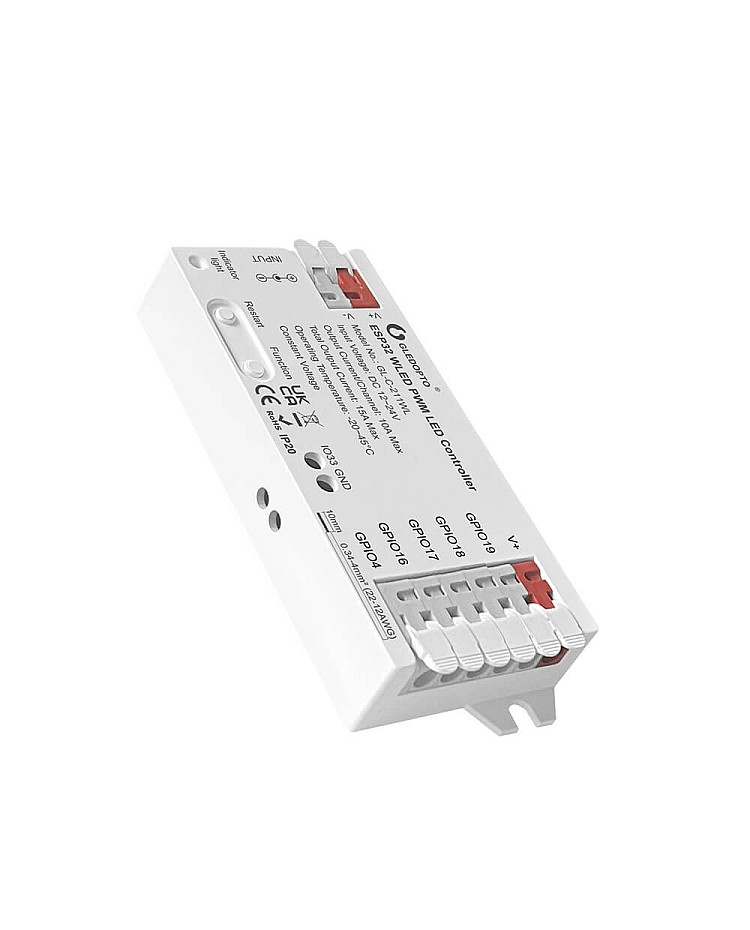

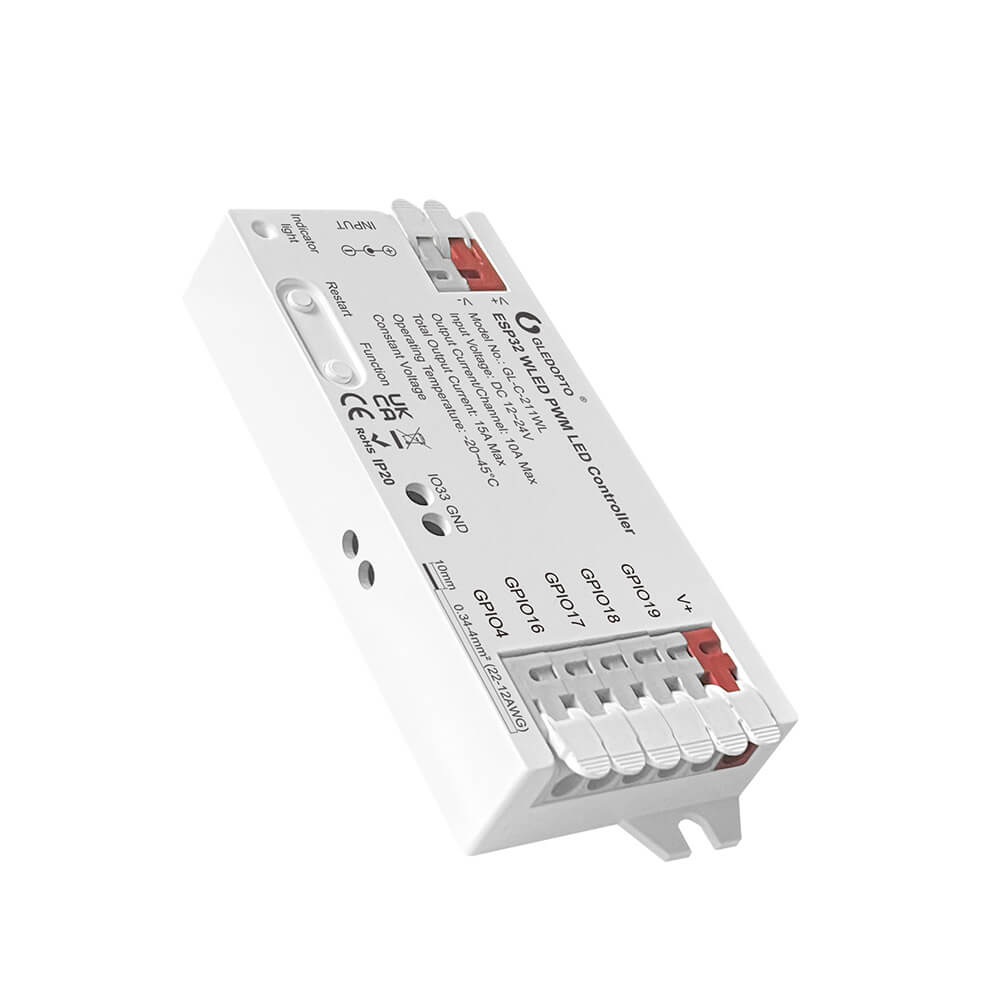

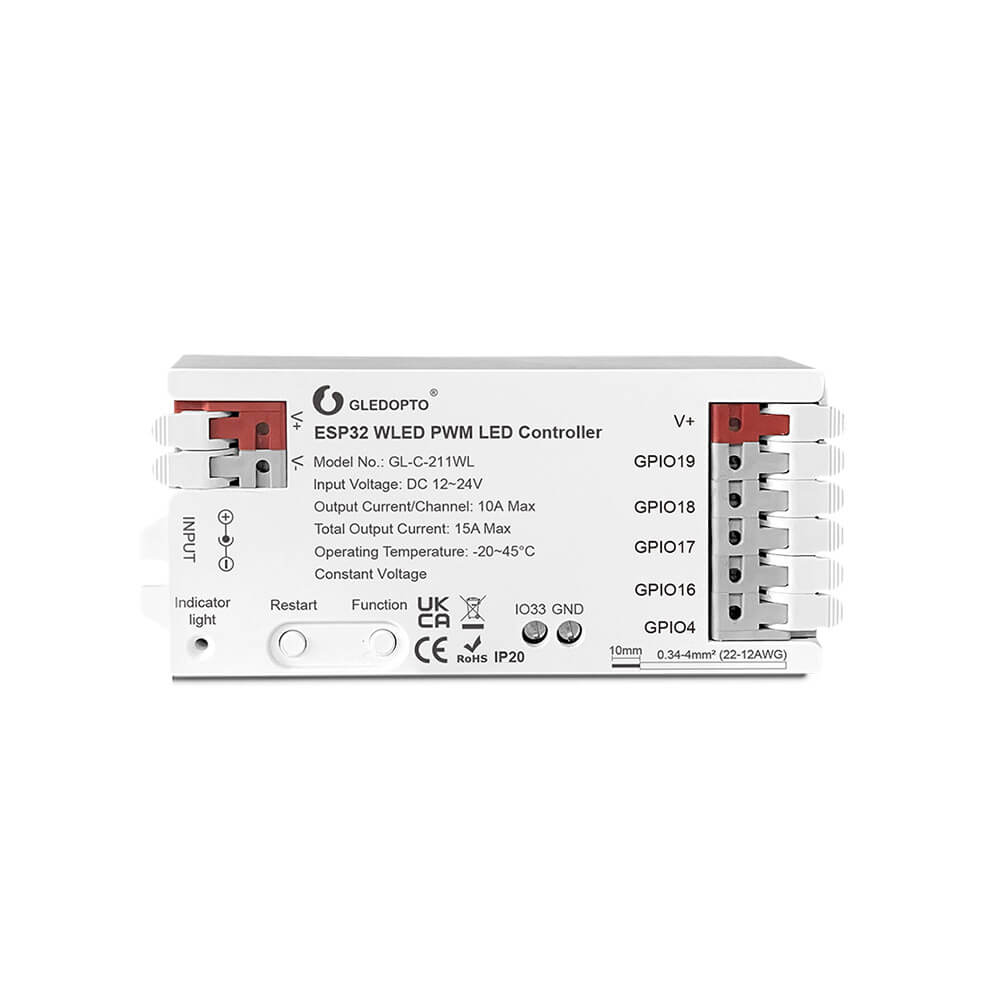

The Gledopto WLED PWM LED controllers are designed for standard constant-voltage SMD or COB light strips, including single-color, tunable white, RGB, RGBW, and RGB+CCT. They are powered by an ESP32 chipset and can be controlled via the WLED app over a Wi-Fi network without a gateway. It delivers reliable wireless control, smooth dimming, and advanced lighting color effects.

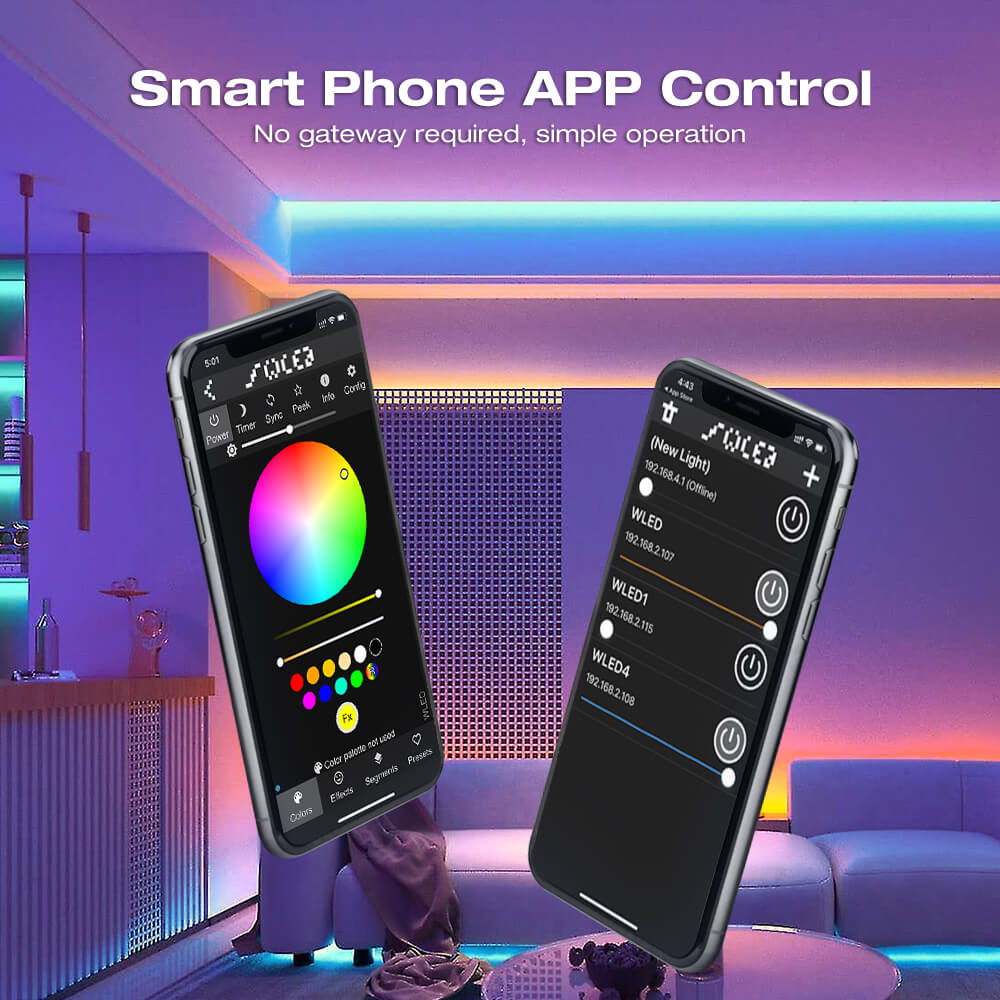

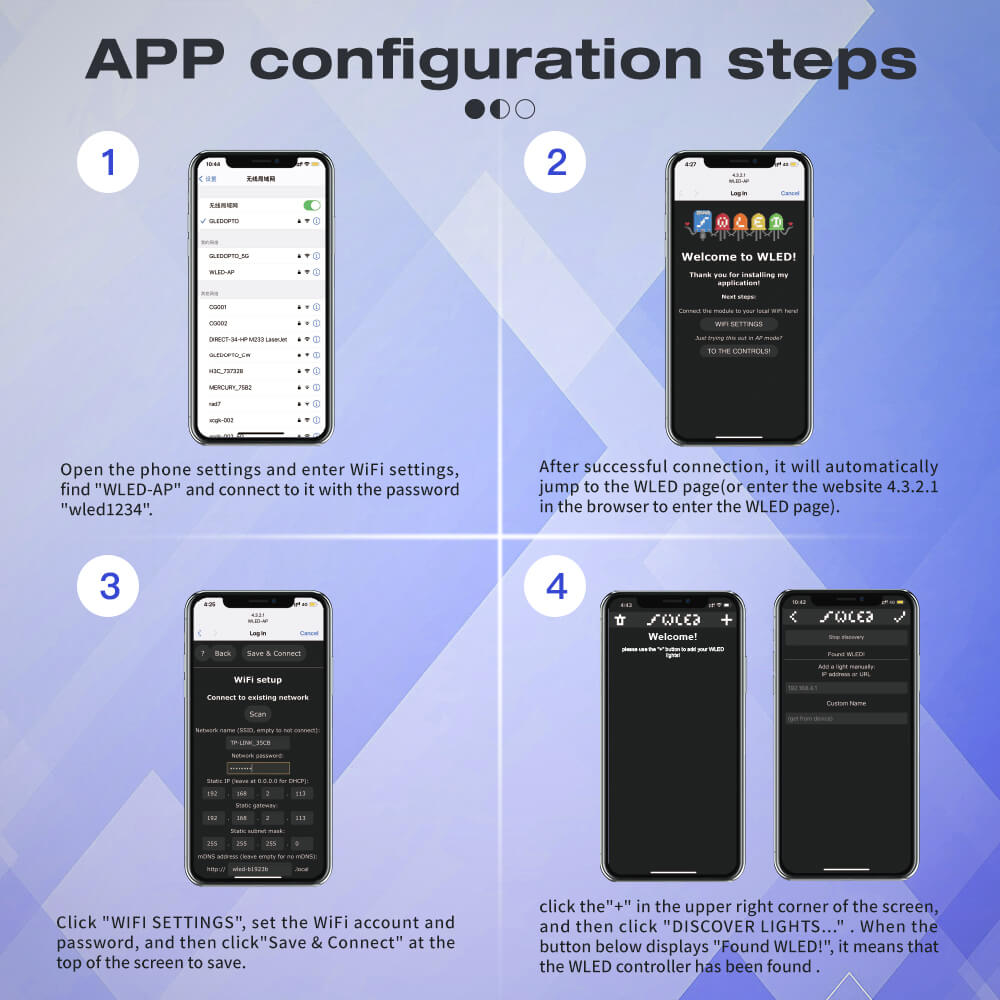

The ESP32 LED strip controllers feature PWM(pulse width modulation) output to provide precise brightness and color control with flicker-free performance. The built-in Wi-Fi communication module lets you manage the lighting via the WLED smartphone app or WLED remote control. You can easily control the LED strip lighting ON/OFF, adjust the brightness or color temperature, set the static colors, or change the dynamic lighting effects.

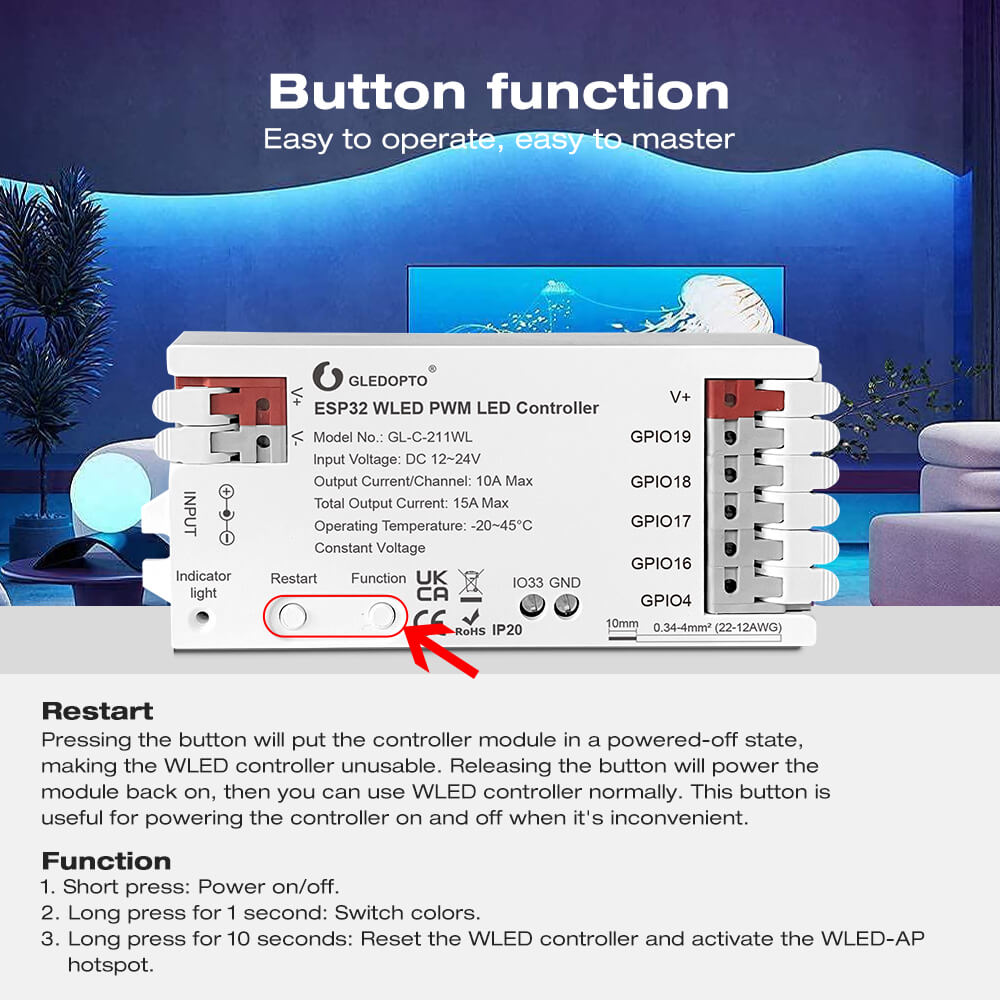

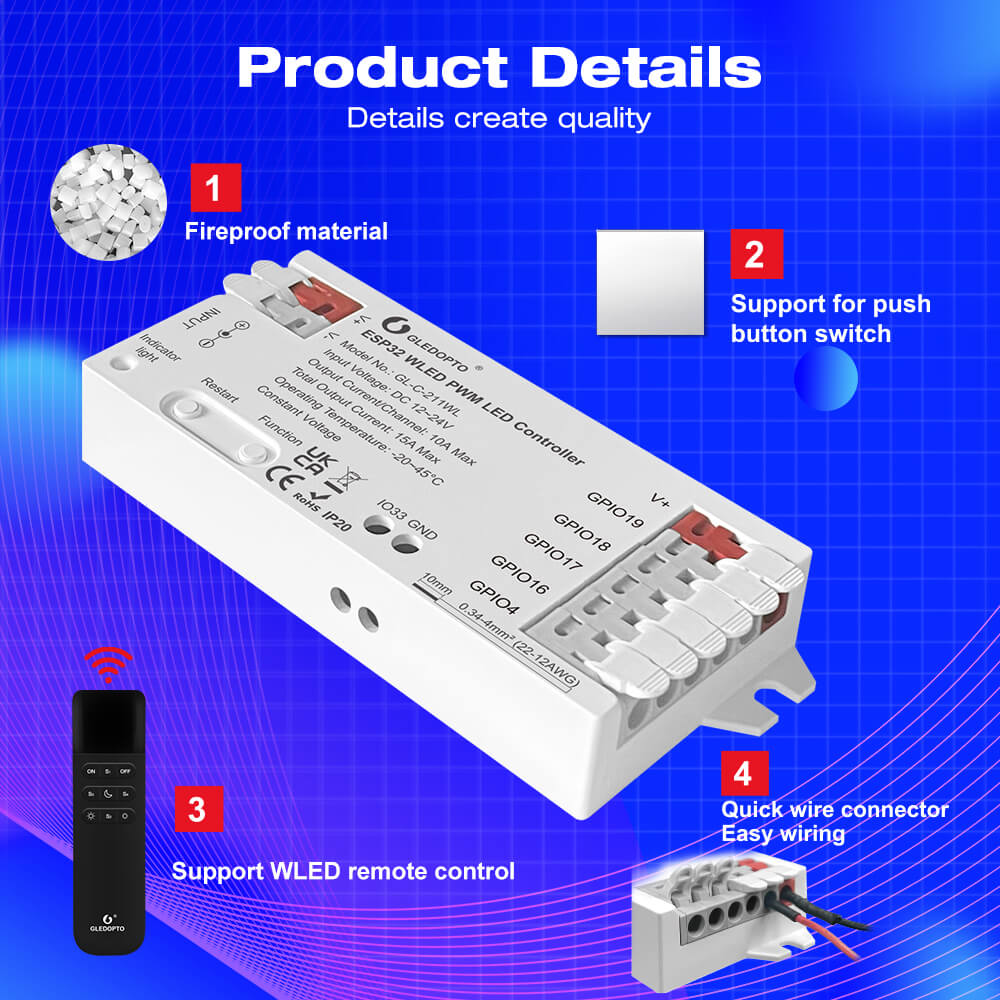

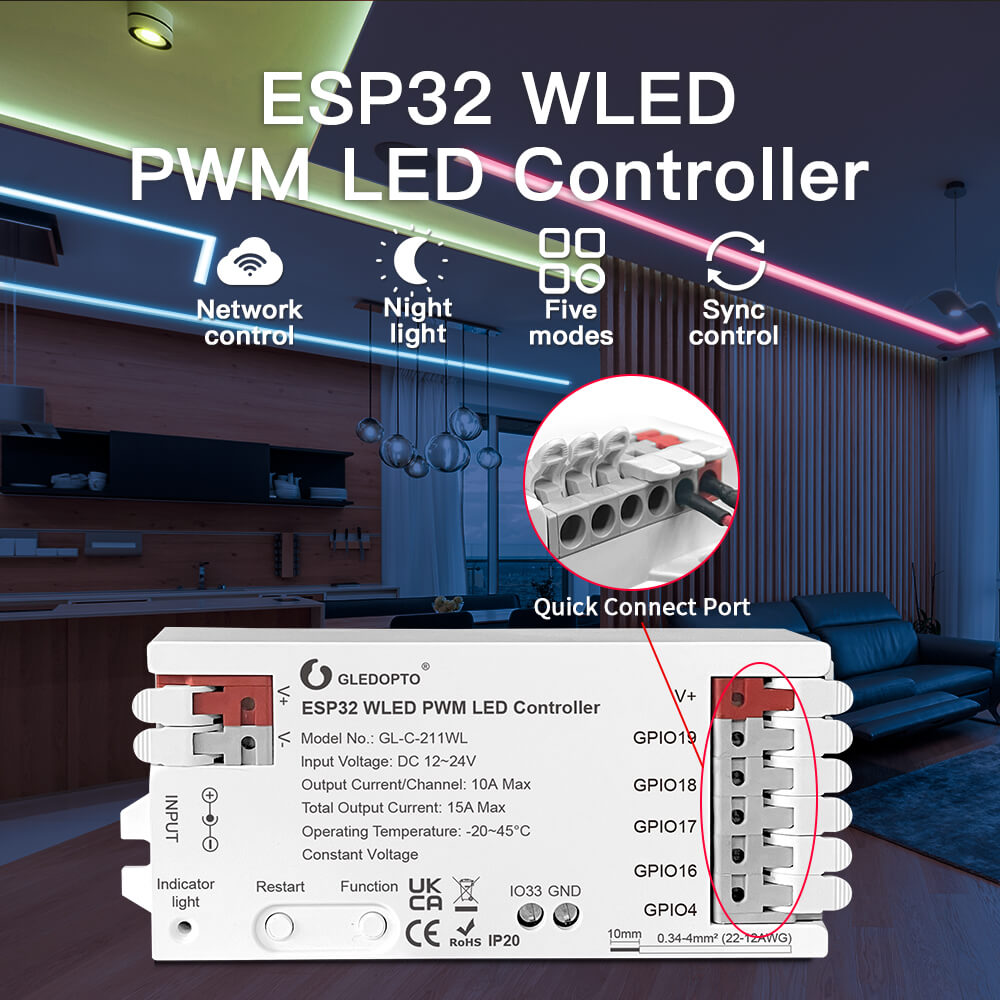

The WLED light controllers have dual power connectors and quick-pressable wire terminals for easy connection to power supplies and LED strips. The reverse connection protection circuit design will prevent damage to electronic components and chips. It has two physical buttons for easy power-on/off and setting changes. The " Restart " button is useful for powering the controller on and off when it's inconvenient. The "Function" button allows you to switch colors, reset the controller, and activate the WLED-AP hotspot. There is an IO33 interface for DIY use that can be connected to push switches, sensors, and more.
Link: Gledopto WLED PWM LED controller user manual
Specifications:
- Material: Flame-retardant PC
- Color: White
- Size ( L x W x H ): 108mm x 45mm x 18mm / 4.25" x 1.77" x 0.71"
- Input voltage: DC12-24V
- Output current: 10A max
- Total output current: 15A max

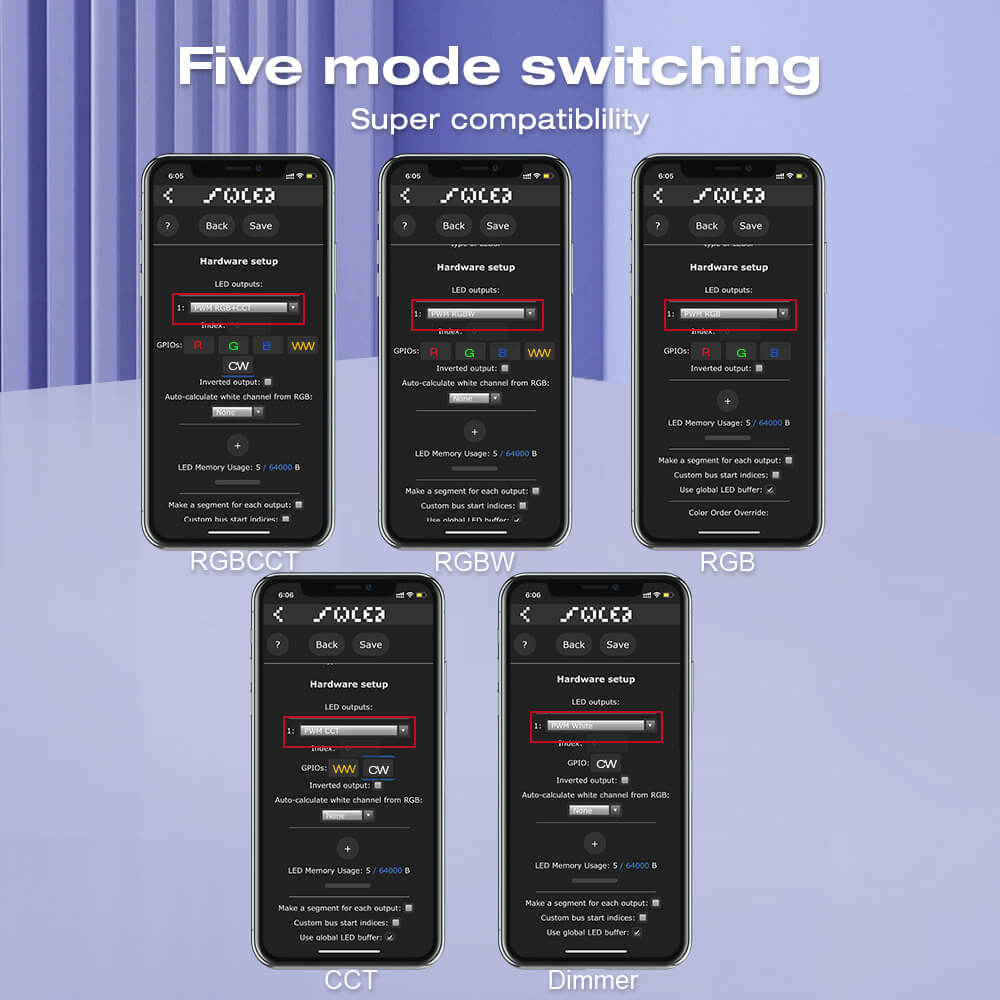

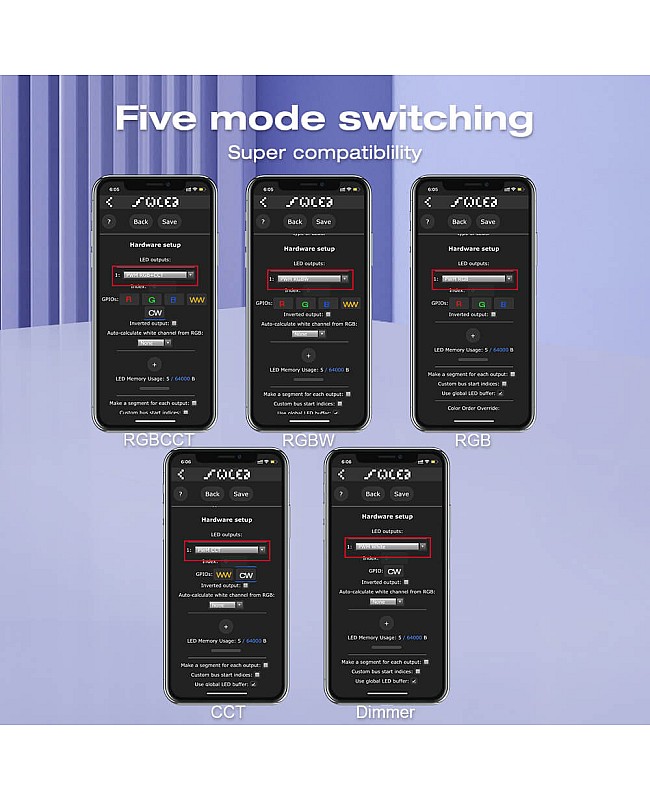

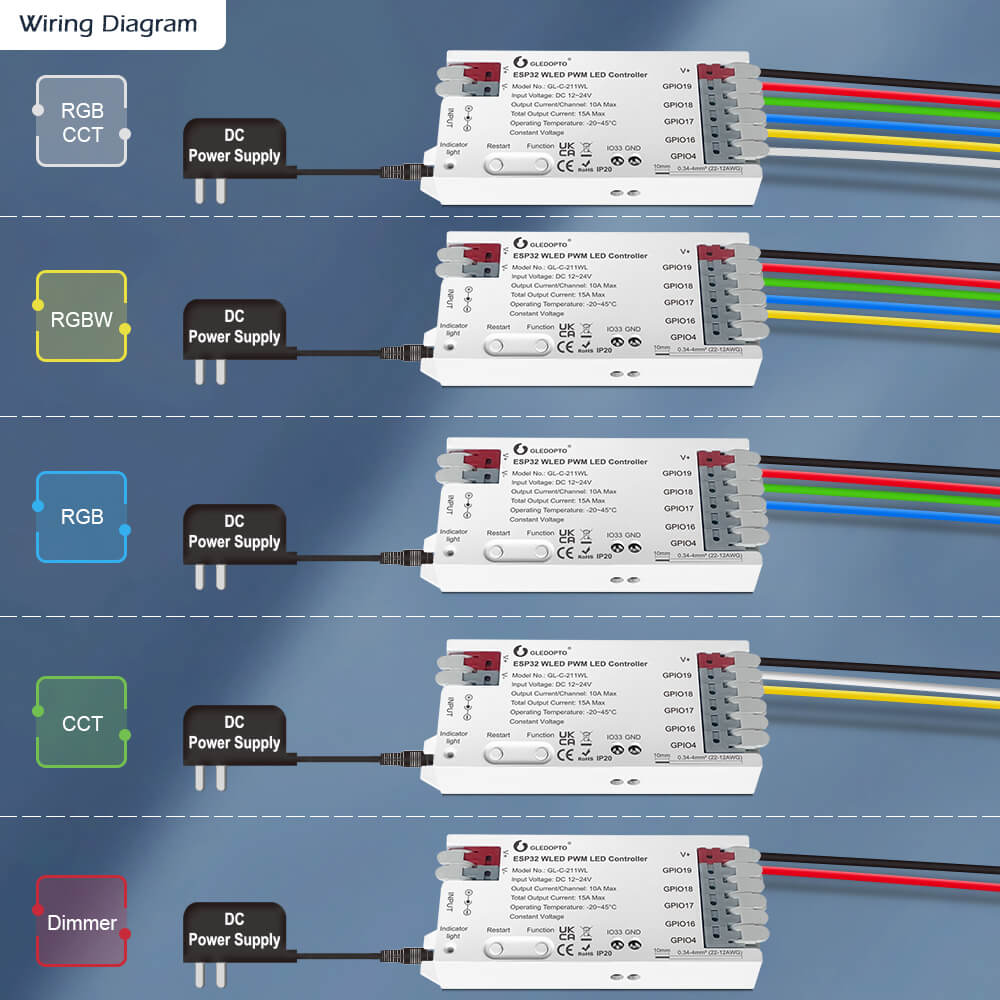

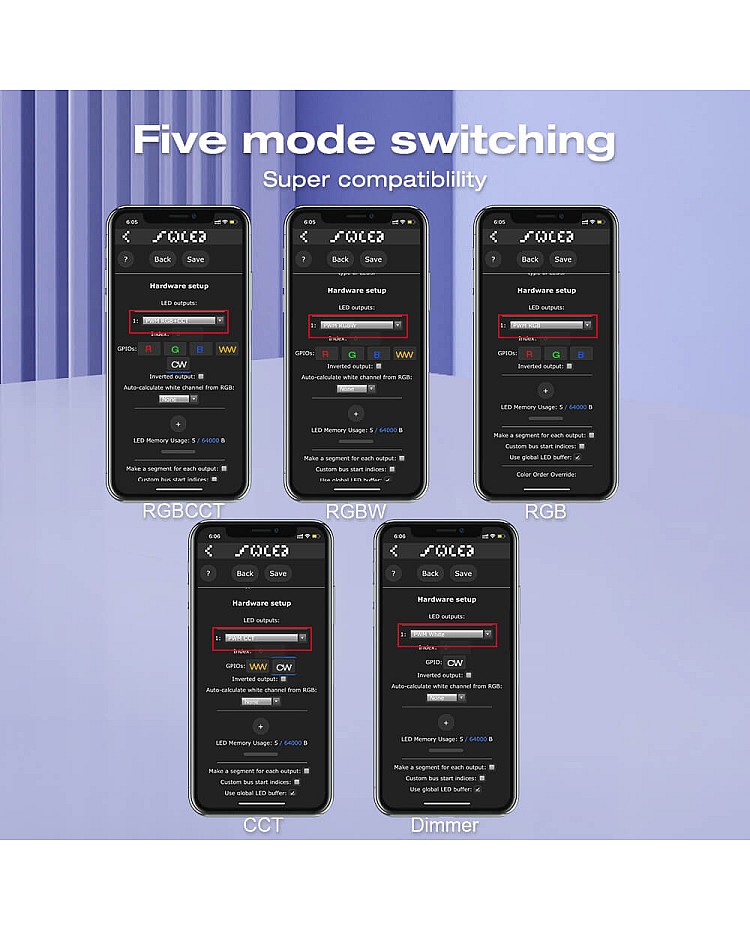

- Five output modes switchable: PWM White, PWM CCT, PWM RGB, PWM RGBW, PWM RGB+CCT ( Not for addressable LEDs )
- 5 output channels design

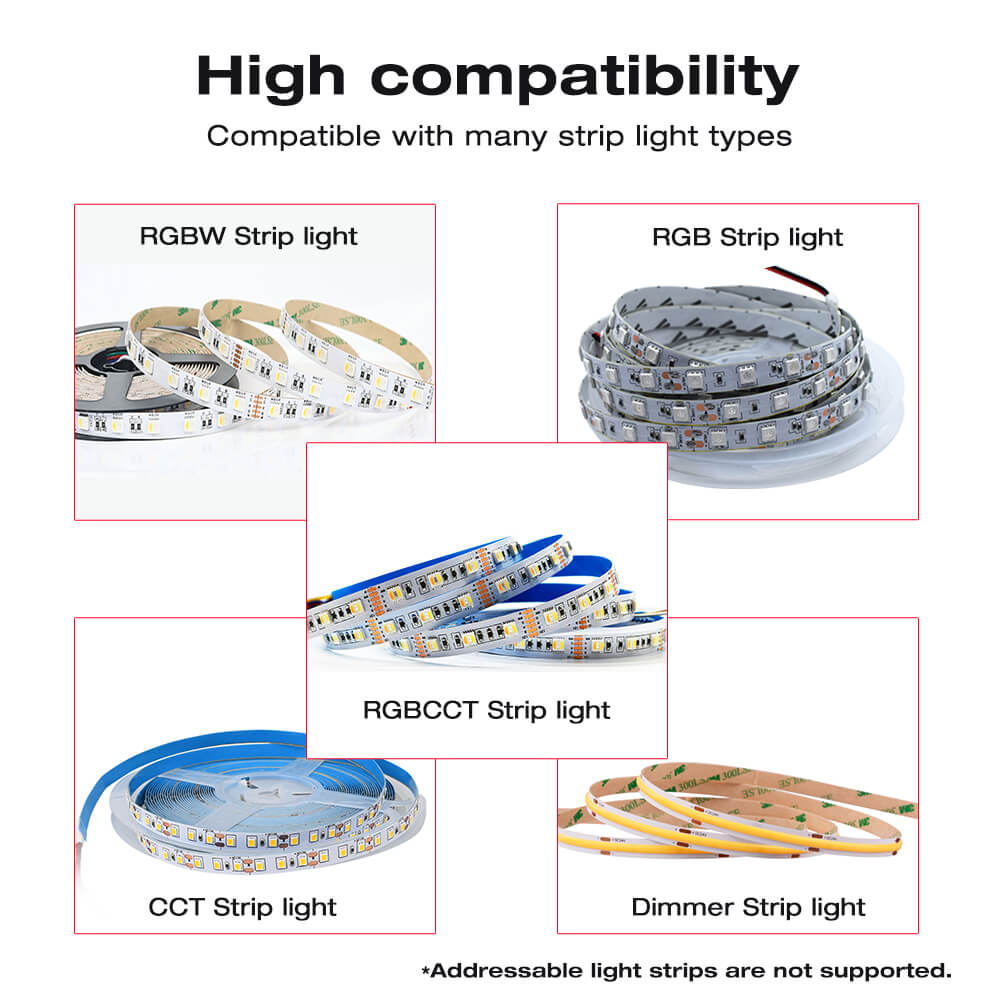

- Compatible with single color/tunable white/RGB/RGBW/RGBCCT SMD and COB LED strip lights
- Wireless communication: WiFi
- Support for push-button switch

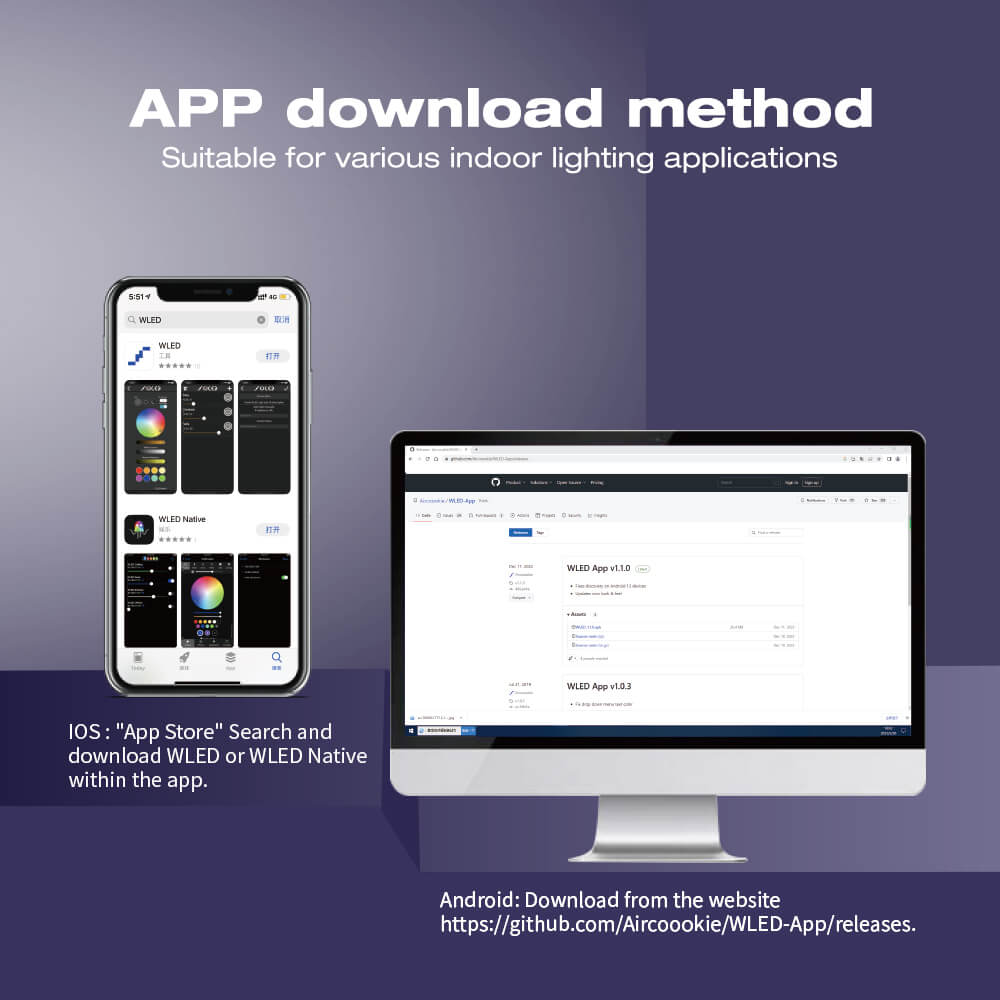

- App name: WLED
- Support WLED remote control

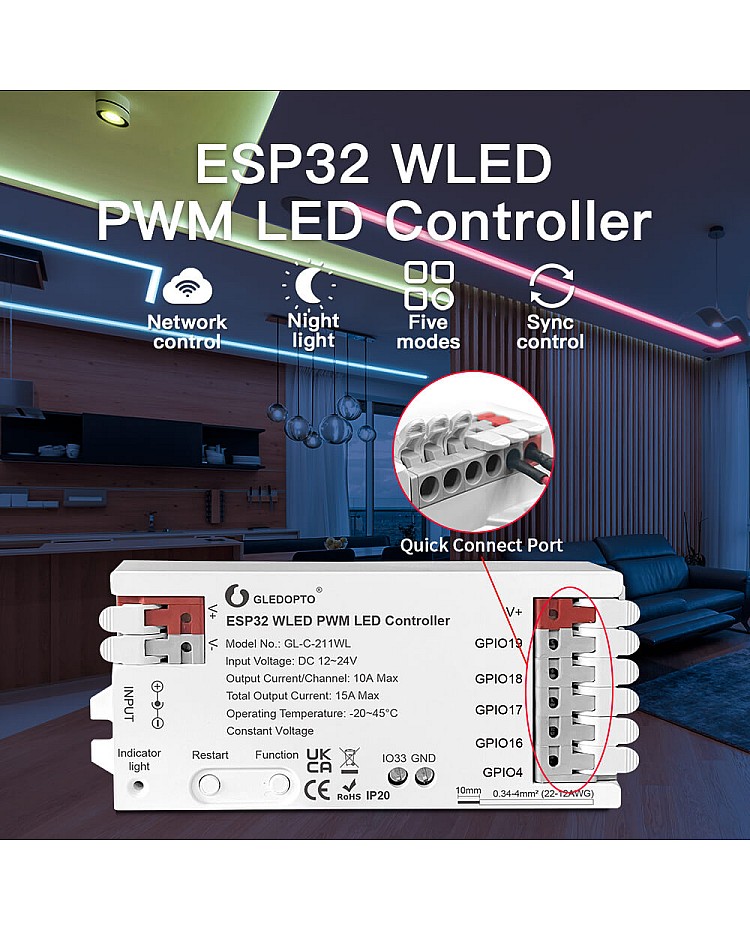

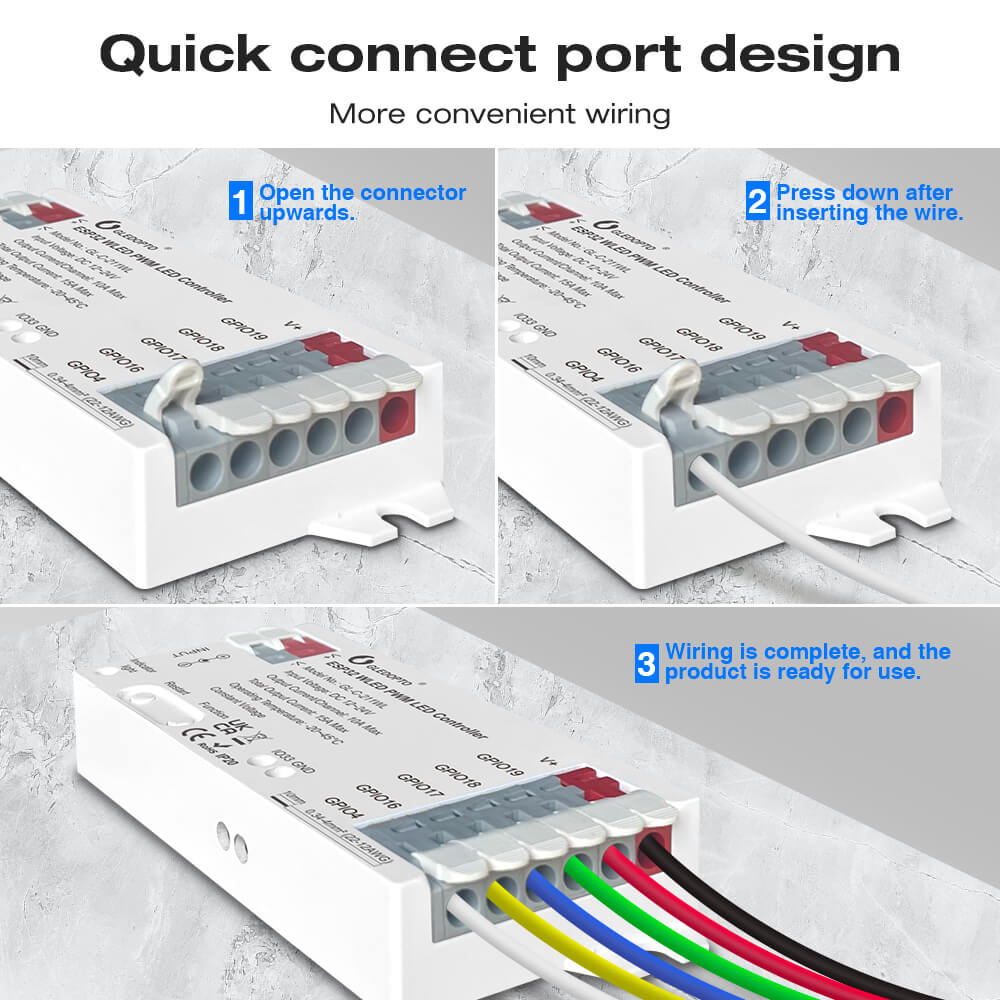

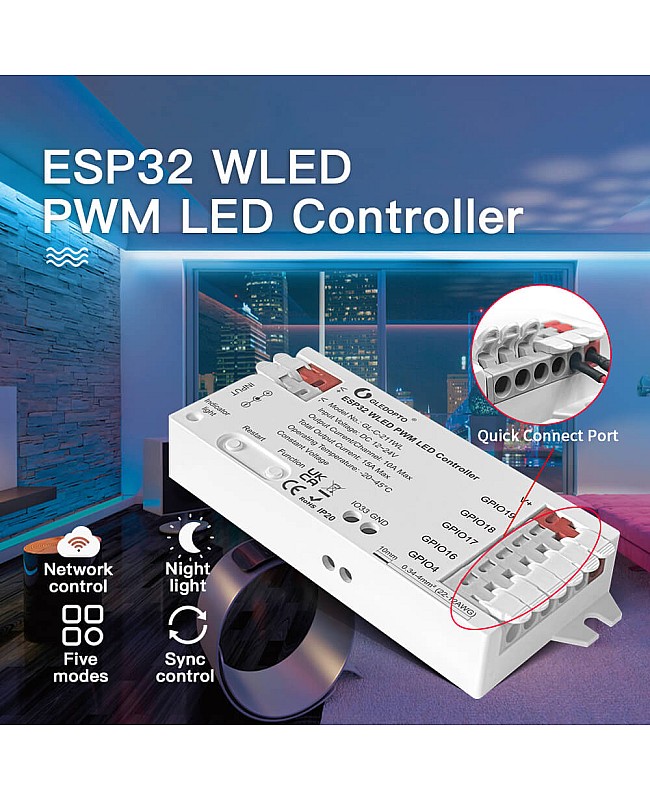

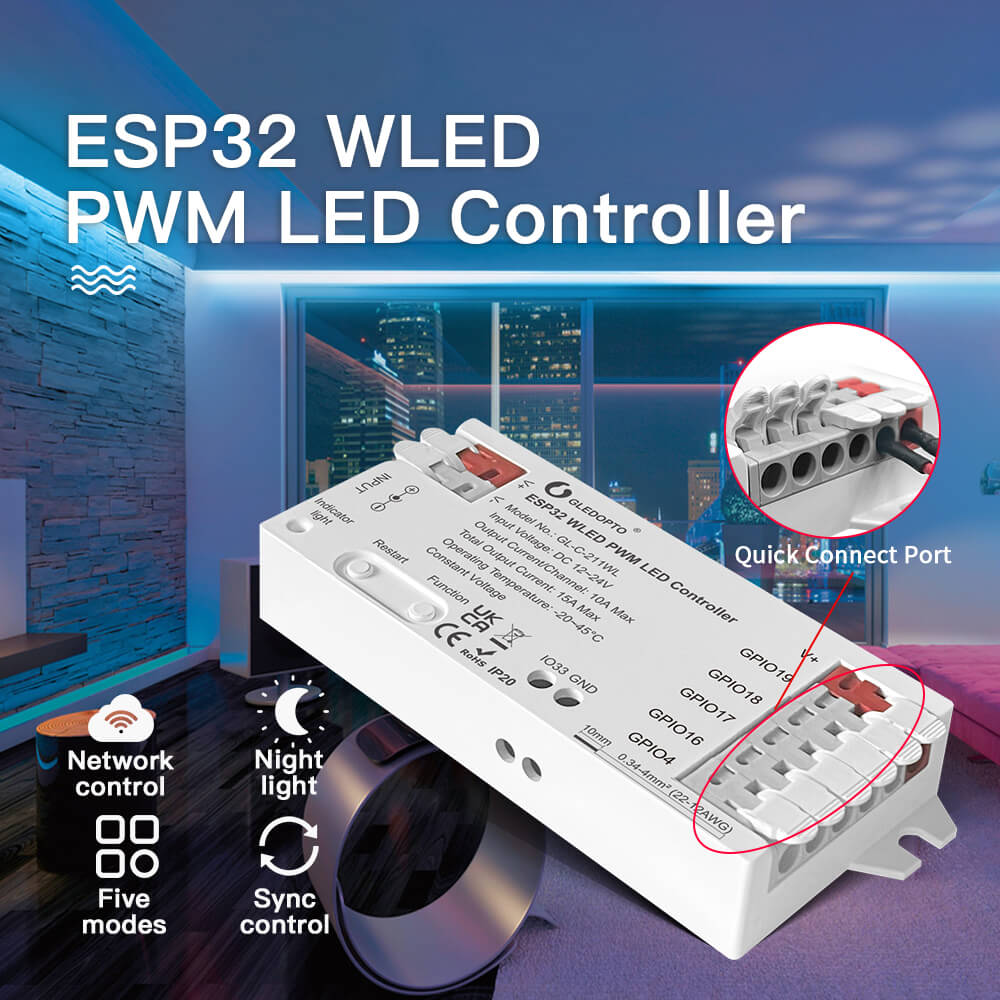

- Quick connect port design

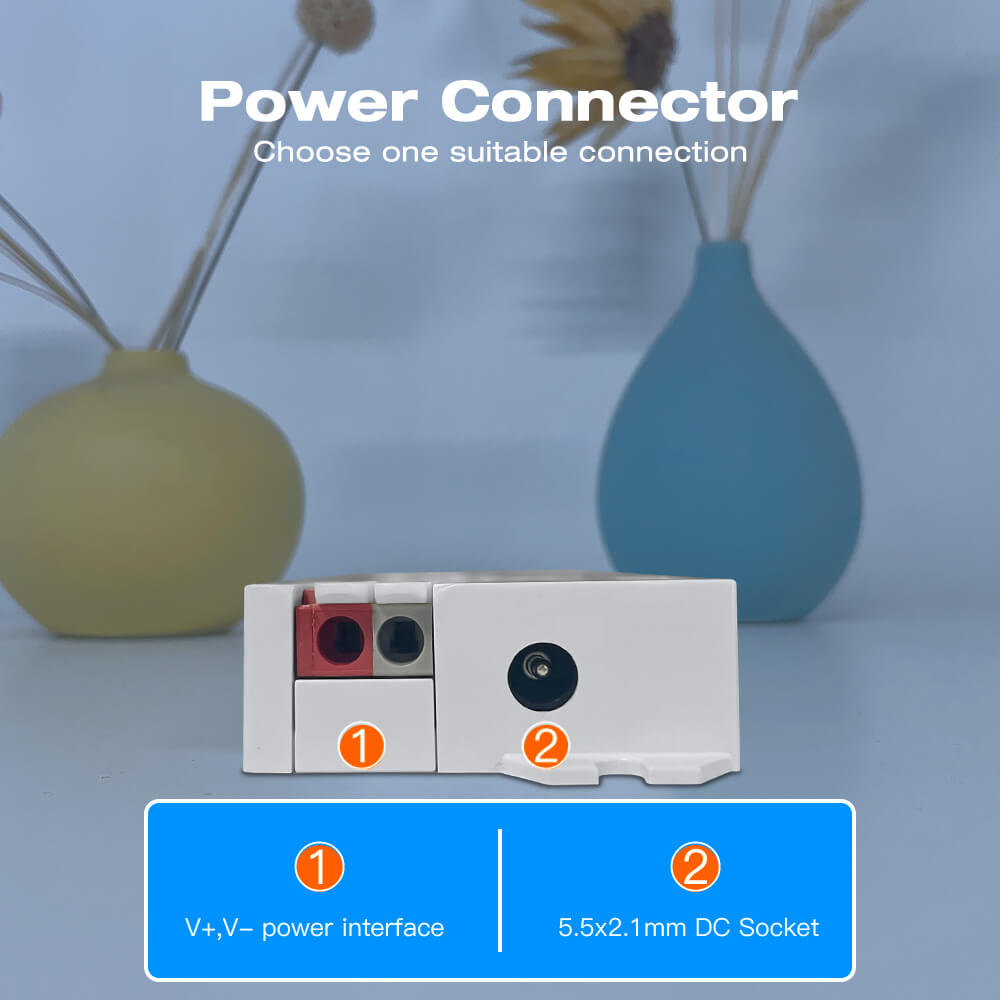

- Two power connectors design: 5.5 x 2.1mm DC socket and V+/V- pressable terminal

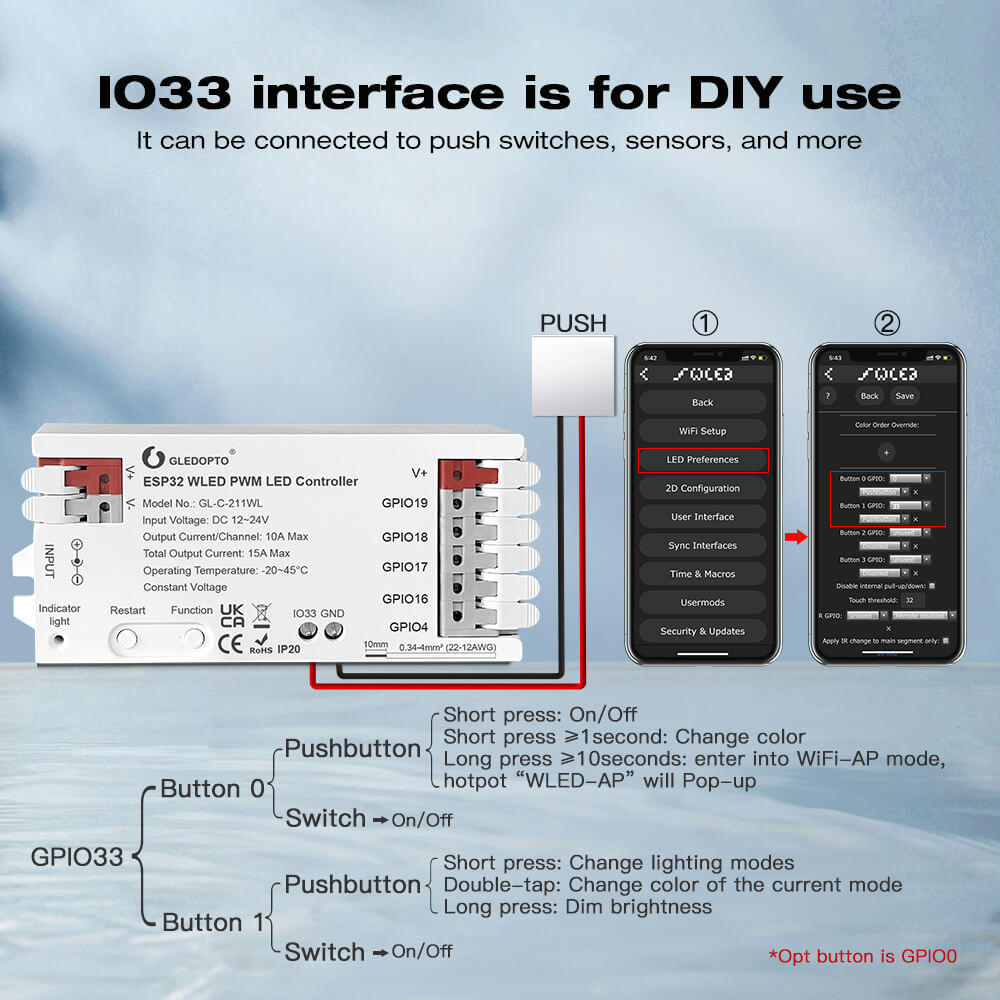

- IO33 interface can be connected to push switches, sensors, and more

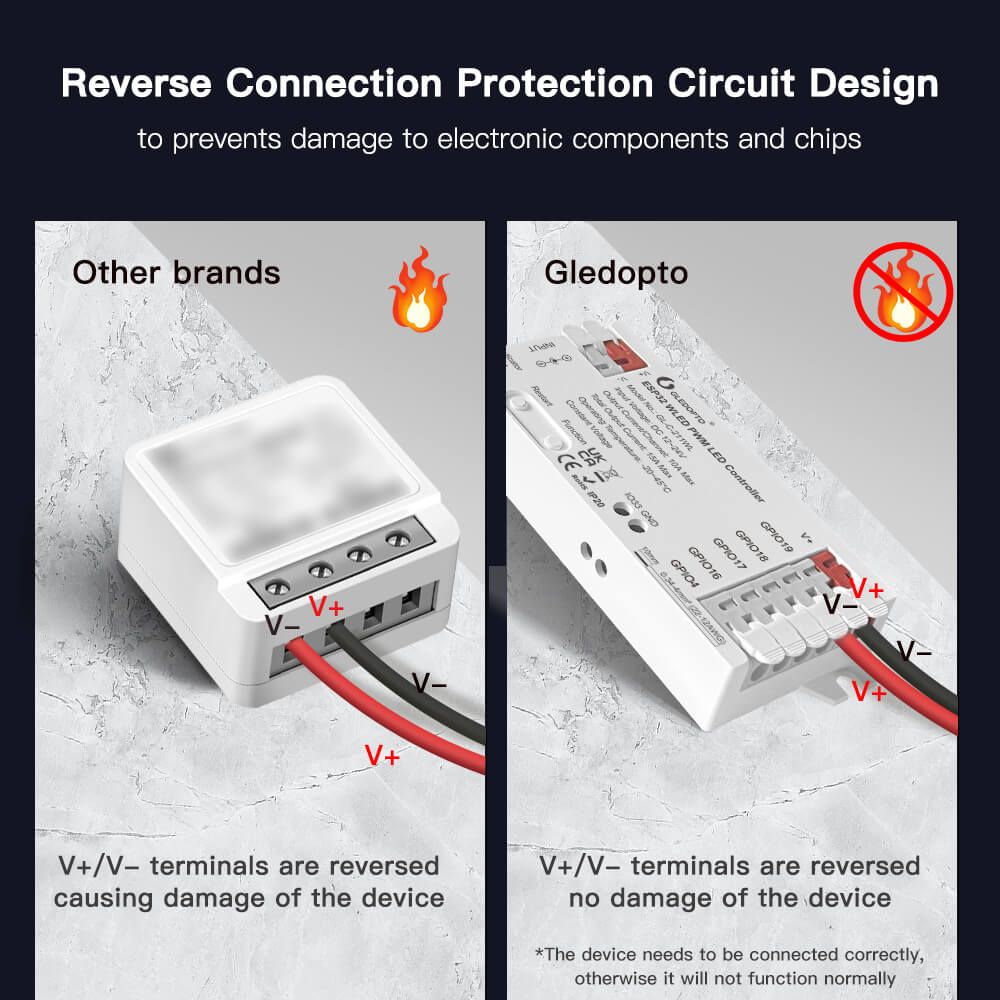

- Reverse connection protection circuit design
- IP rate: IP20 non-waterproof
- Working temperature: -20℃-+45℃
- Warranty: 2 years
Includes:
1 x WLED LED strip controller
