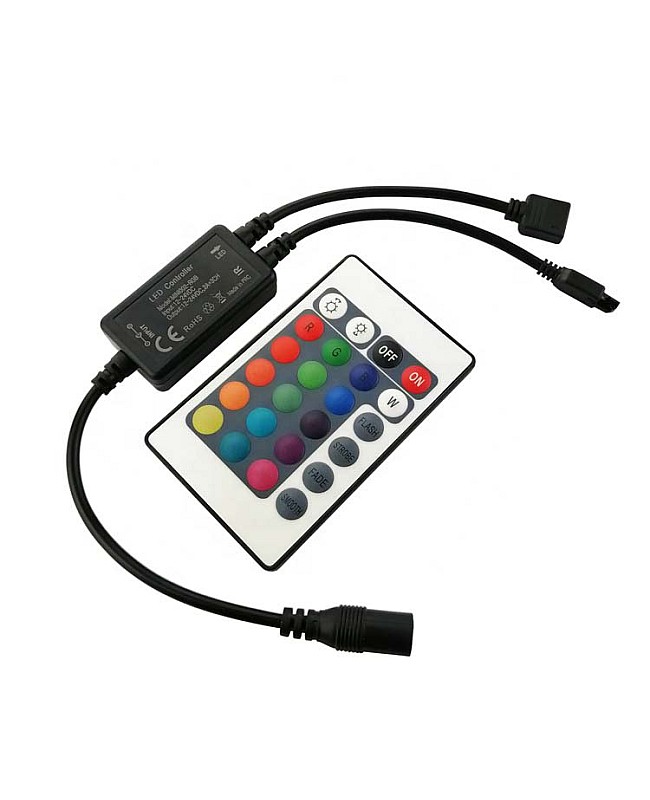

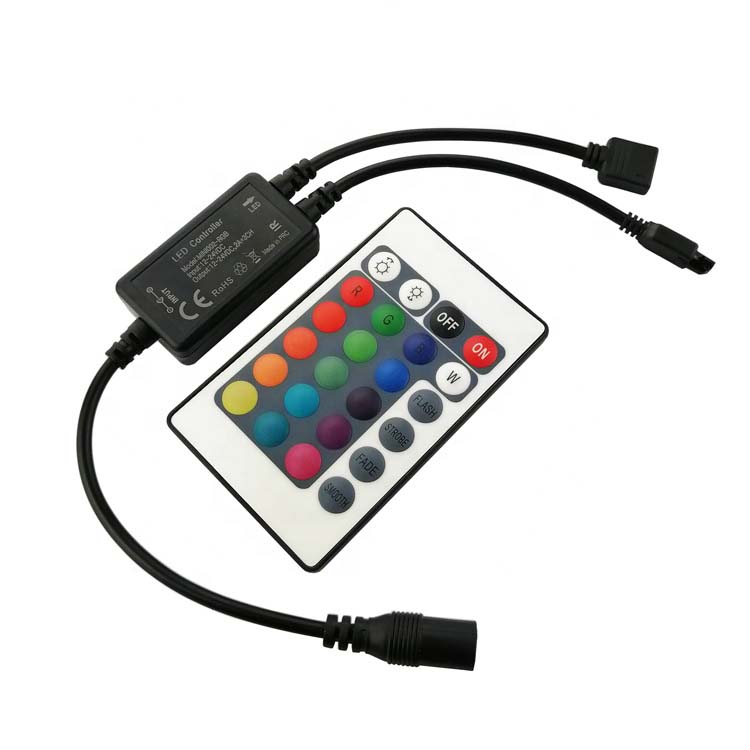

Check the Controller LED RGB, which with the mini size and compact structure, the RGB LED Controller adopts the most advanced PWM digital control technology, with 3 output channels design, the max output current of each channel is 2A, the max loading power up to 144W when working in DC24V. the Mini RGB LED Controller with Female DC Connector and 4 Pin RGB Connector, you can connect to the LED Driver and RGB LED Strips easily, the 24 Keys IR Remote Control includes, you can use it to turn on/off the LED Light, adjust the brightness of static colors and the speed of dynamic modes, there are 20 modes in total, 16 static colors and 4 dynamic modes.


  • Size: L48*W26*H13mm
  • Working Temperature: -20℃-60℃
  • Working Voltage: DC12V-DC24V
  • Output: 3 Channels
  • Max Output Current: 2A
  • Max Output Power: 72W(12V); 144W(24V)
  • Output Gray: 64 Levels (With Continuous Reception)

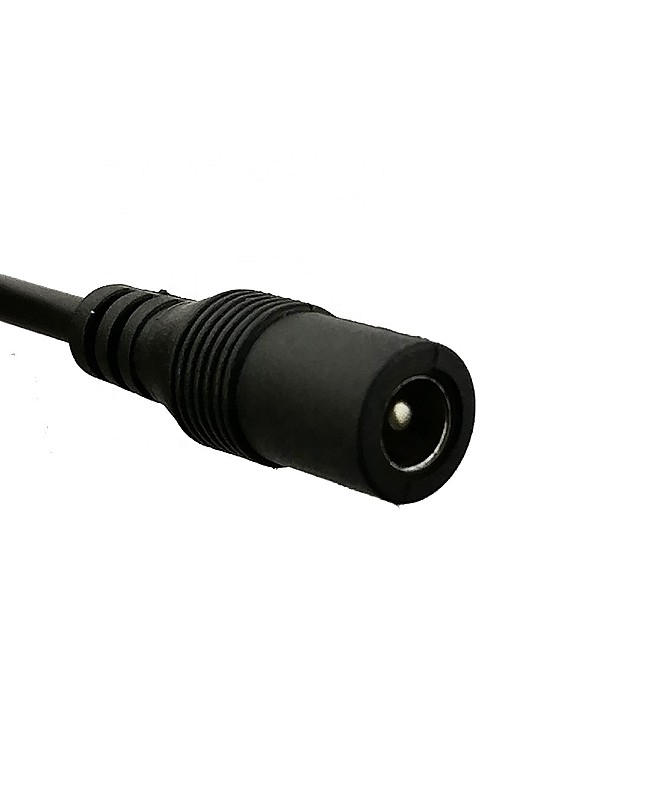

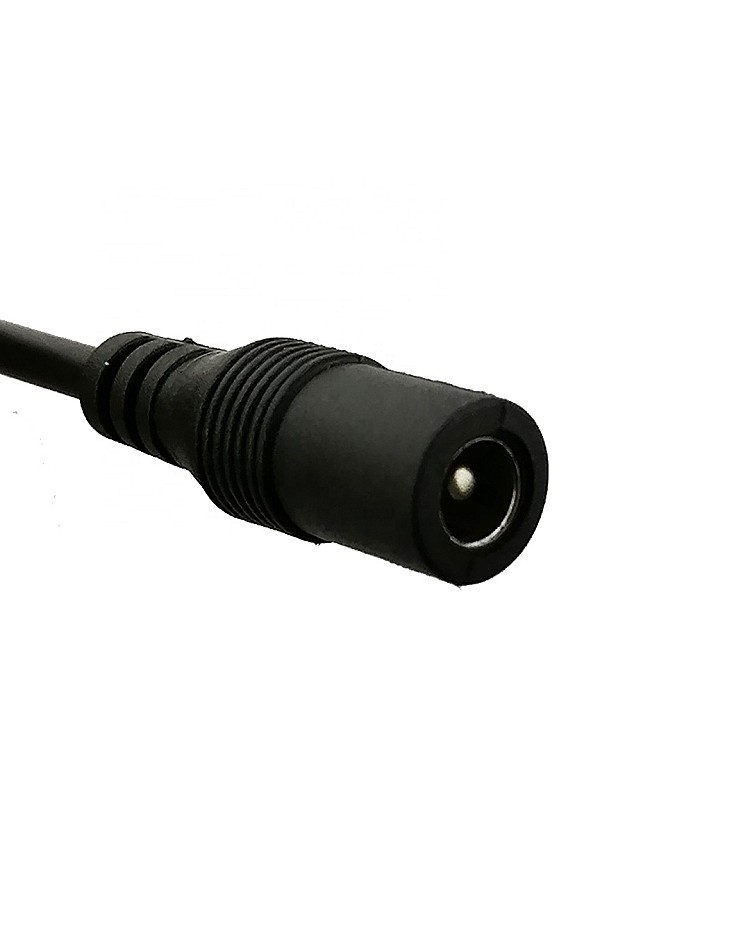

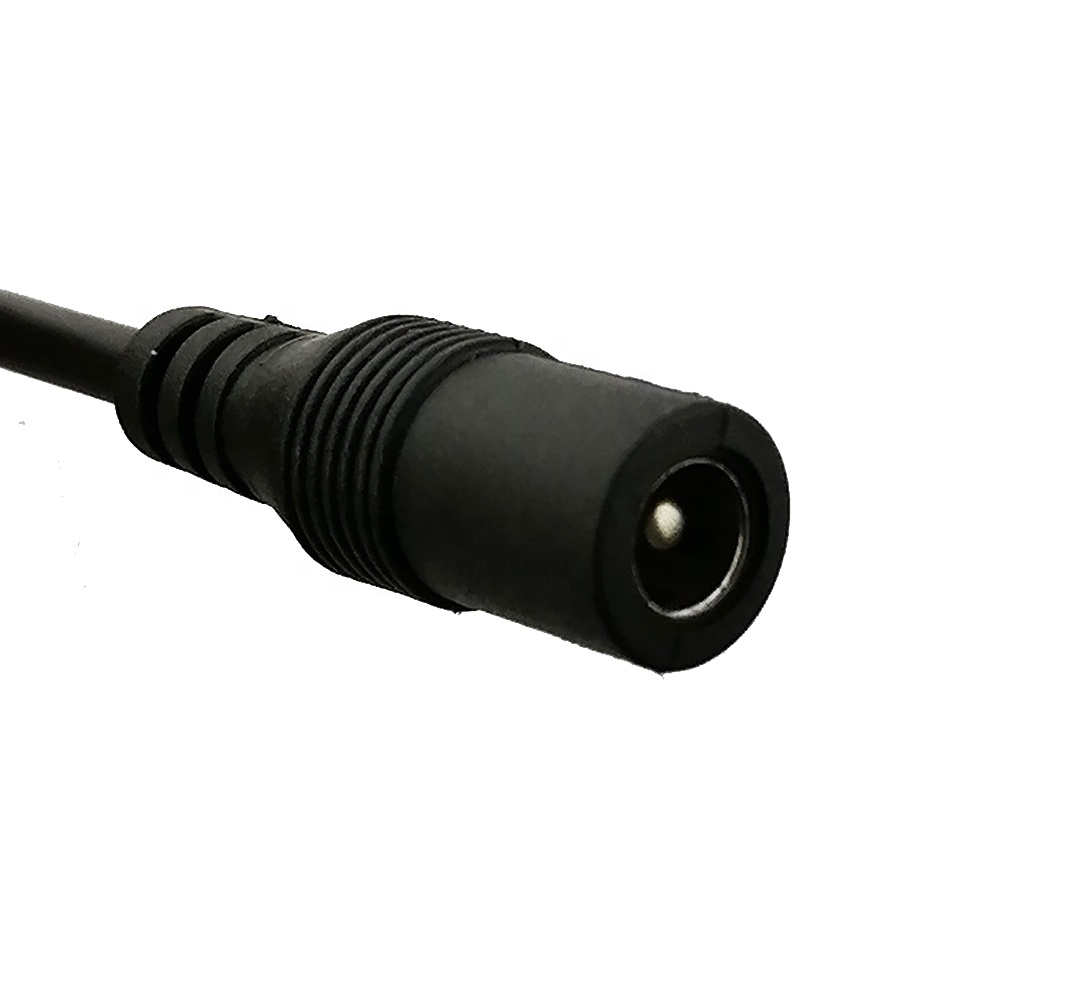

  • DC Female Connector Included

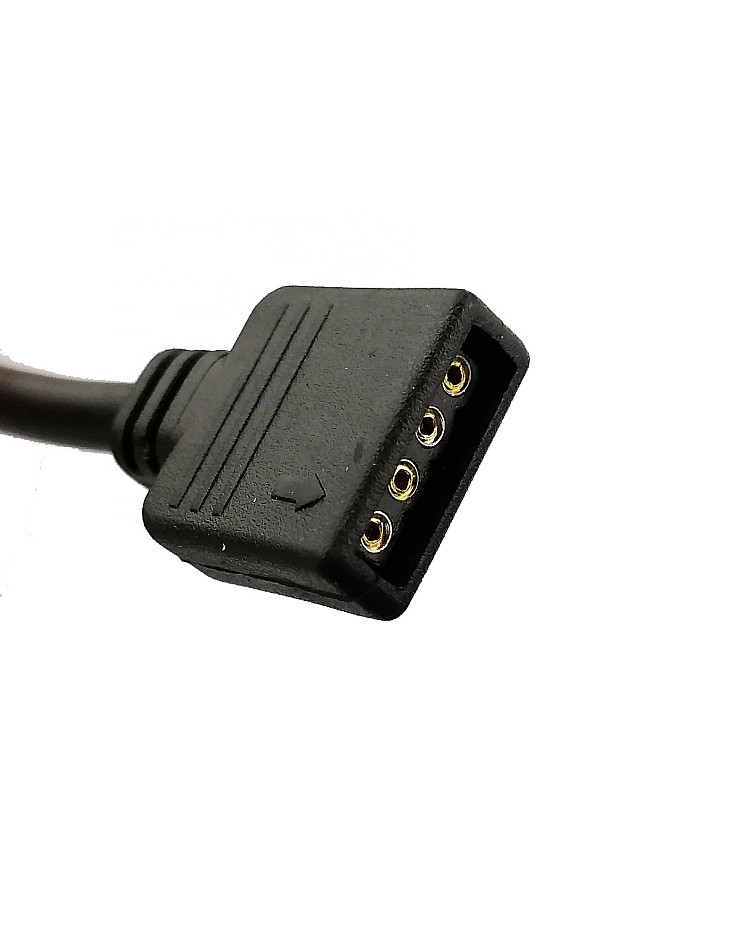

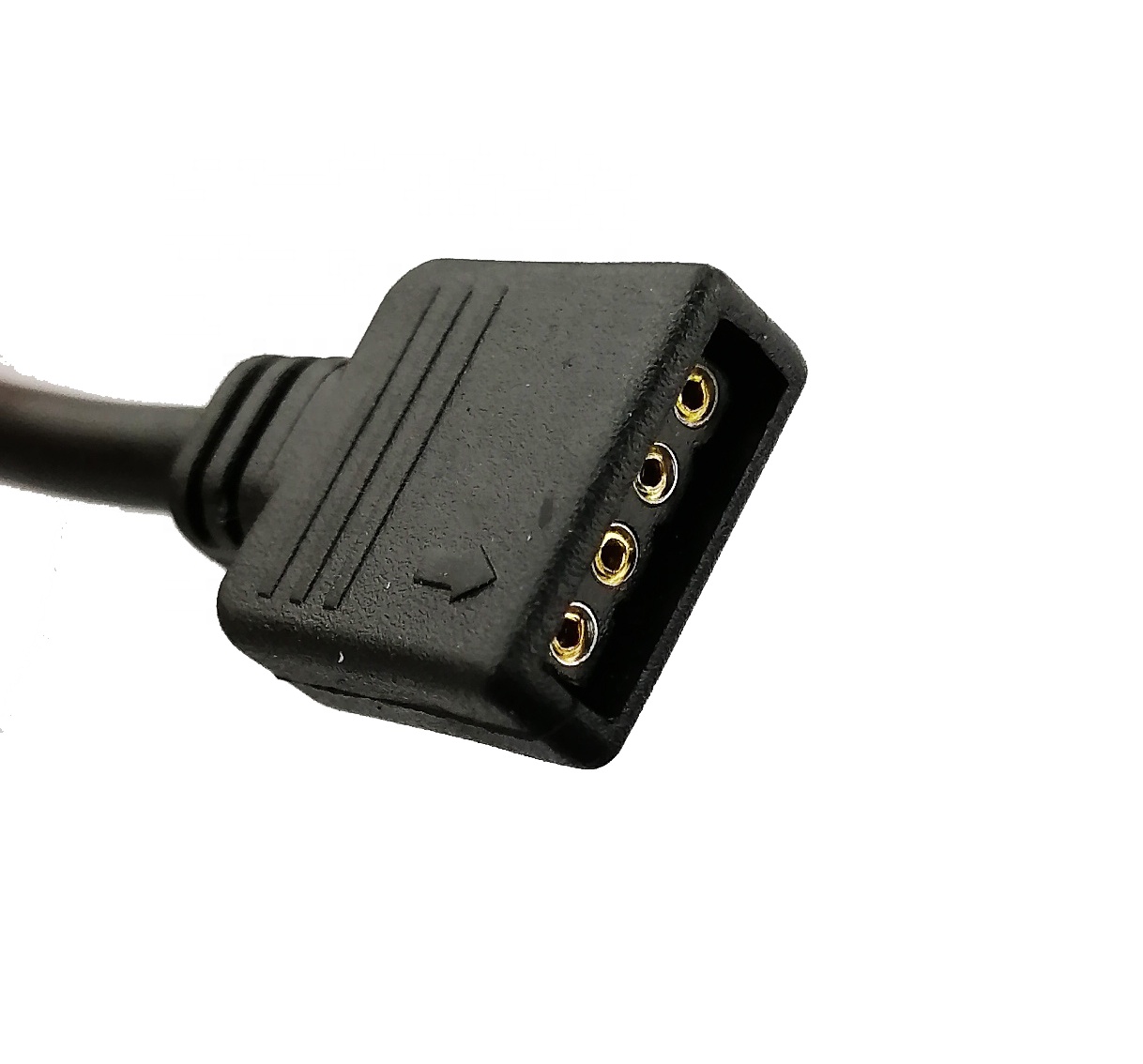

  • 4PIN RGB Connector Included
  • Connecting Mode: Common Anode

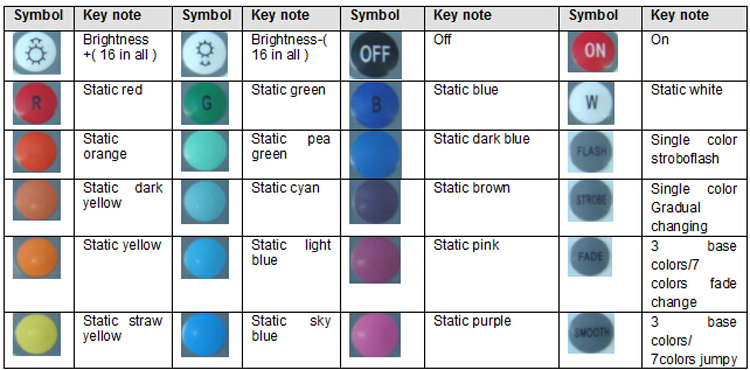

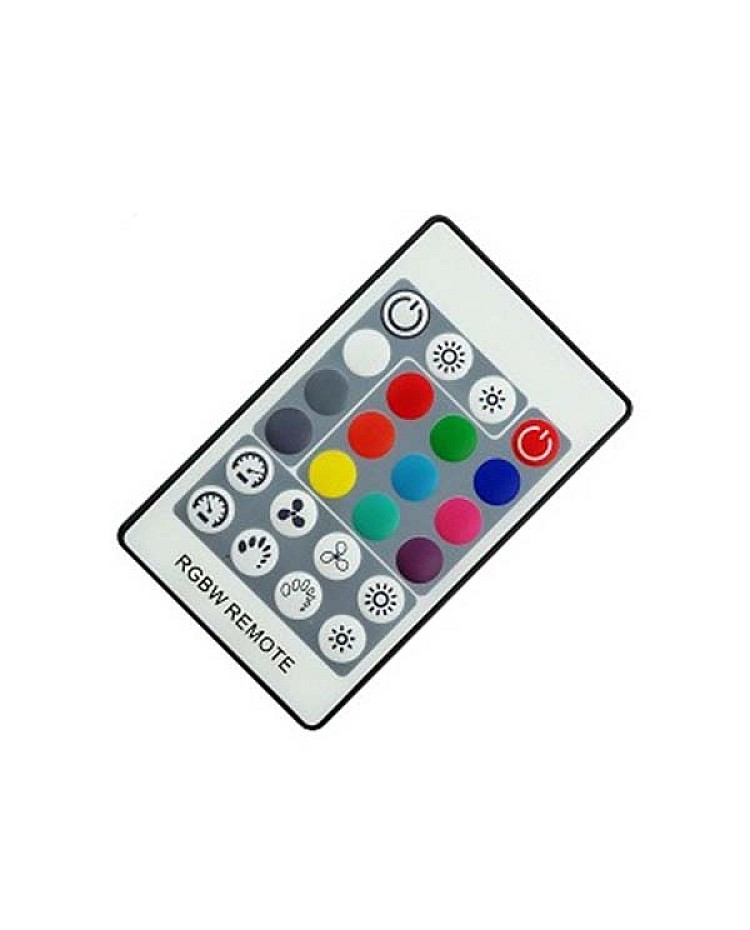

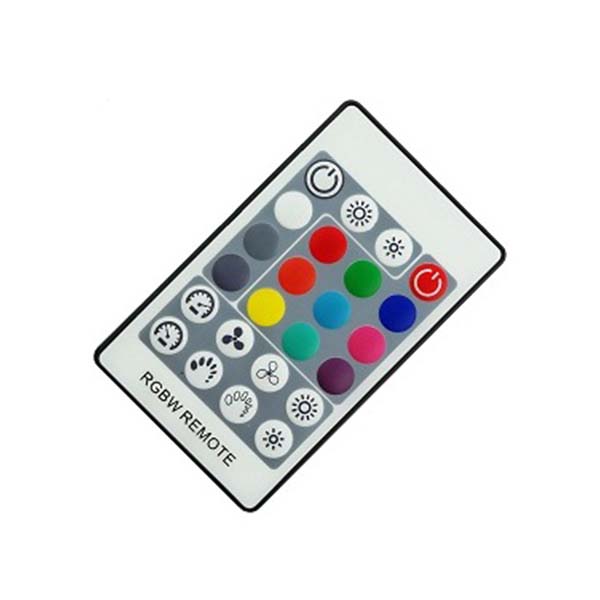

  • 24Keys IR Remote Control Included
  • 20 Modes In Total, 16 Static Colors And 4 Dynamic Modes Available
  • Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
  • Remote Control Battery: CR2025
  • Weight: 100g
  • 3 Years Warranty


1*Controller LED RGB

1*24 Keys IR Remote Control

Mini LED Controller

LED Controller RGB
