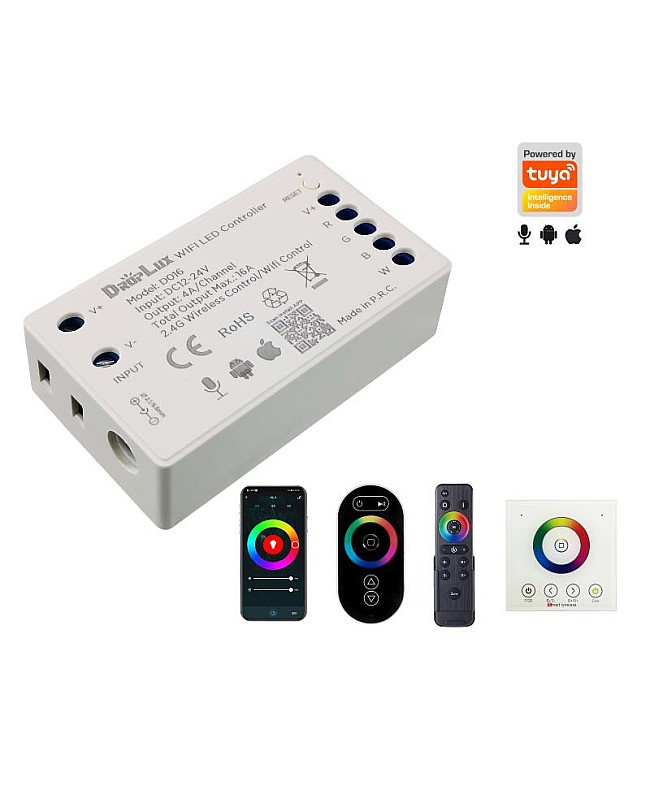

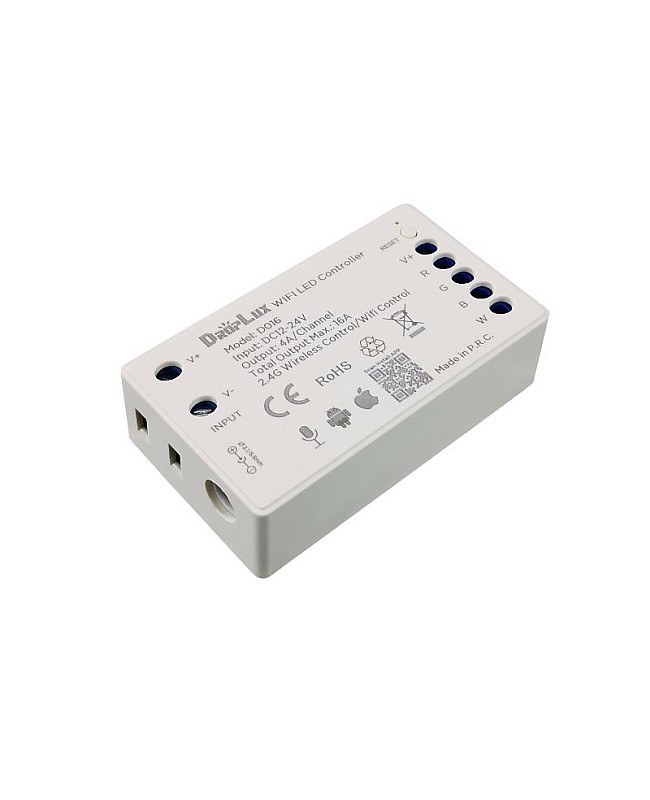

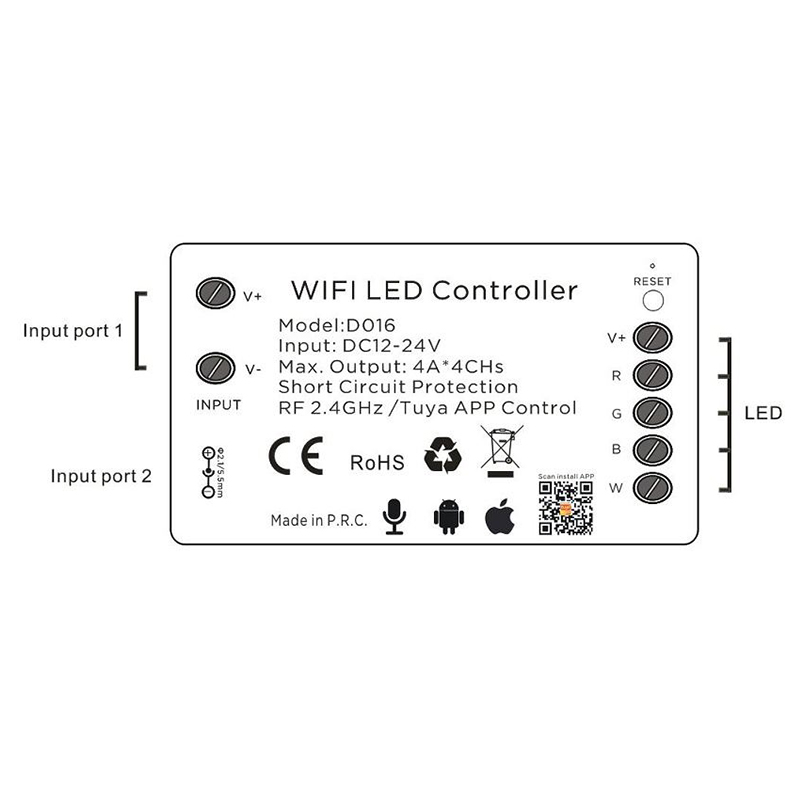

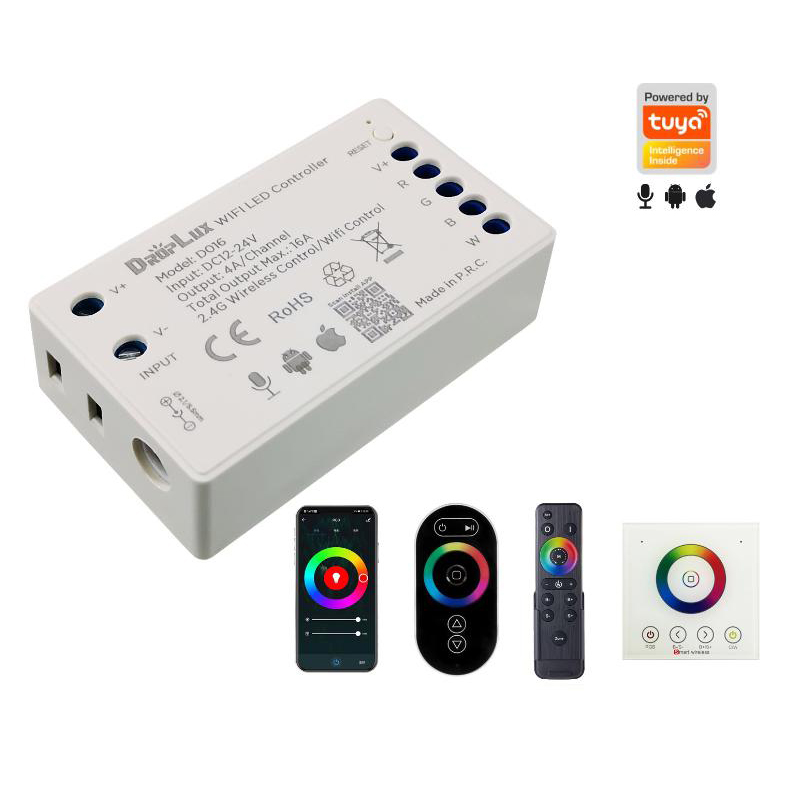

Check the RGBW LED Strip WiFi Controller, which with the WiFi function by Tuya, allows the LED Controller to be compatible with voice control via Amazon Alexa, Google Assistant, Yandex Alice, etc. Can download the APP on Apple Store or Google Play. The RGBW Controller works in DC12-24V, with 4 output channels design, and the max loading power is up to 384W when working in DC24V. With memory function design, each time power-on reserve the mode which stops in the last power-off. You can scan the QR code on the surface of the Controller to download the Tuya App. After downloading the APP, long-pressing the "Rese" button on the RGBW WIFI LED Controller and hold for 5 seconds until the loading LEDs flash to start the connection with Tuya APP. After the connection is finished, you can control the LED Light via the APP to achieve smart control like group control, scene control, timer control, music control, and so on. The RF 2.4G Remote Control included can set 4 groups and control the groups separately or all control. Remote Control with one color ring and buttons allows controlling the static colors or dynamic modes. The brightness of static colors and the speed of dynamic modes are adjustable. The WIFI LED Controller will transmit the signals from the remote control and self-inspection the work status for each other. Multiple receivers can wireless-sync work completely when paired to the same remote control, not only in static mode but also the dynamic modes.

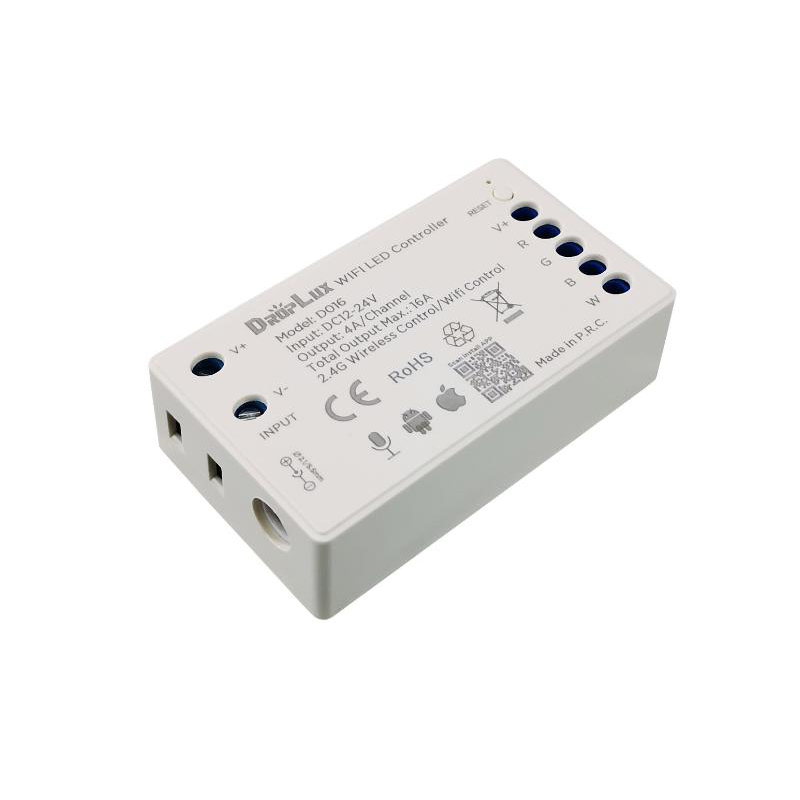

RGBW LED Strip WIFI Controller Features:

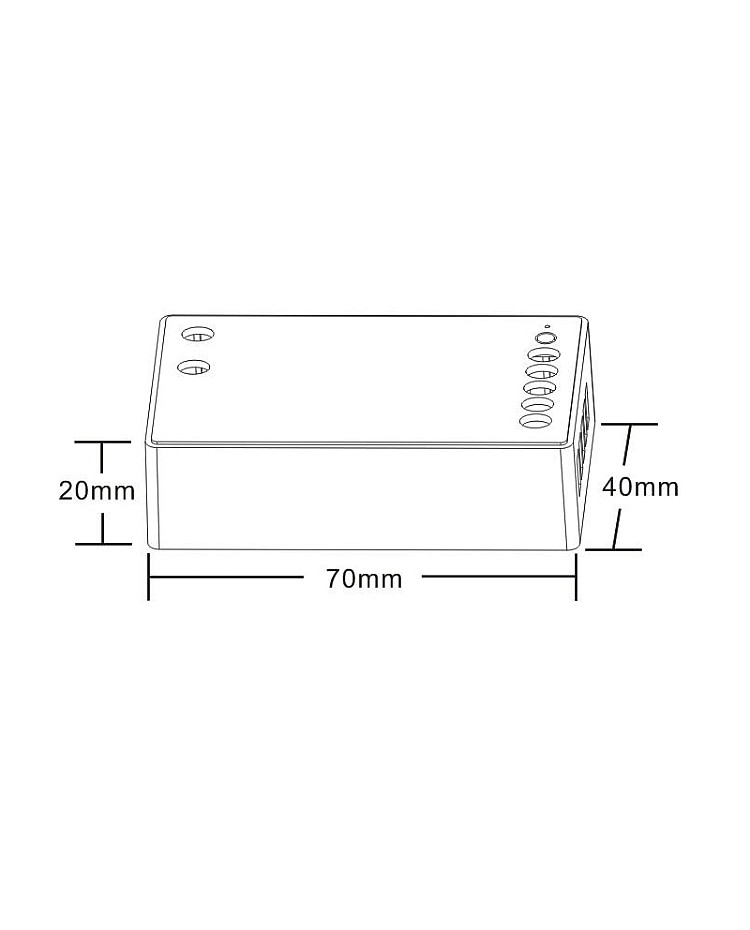

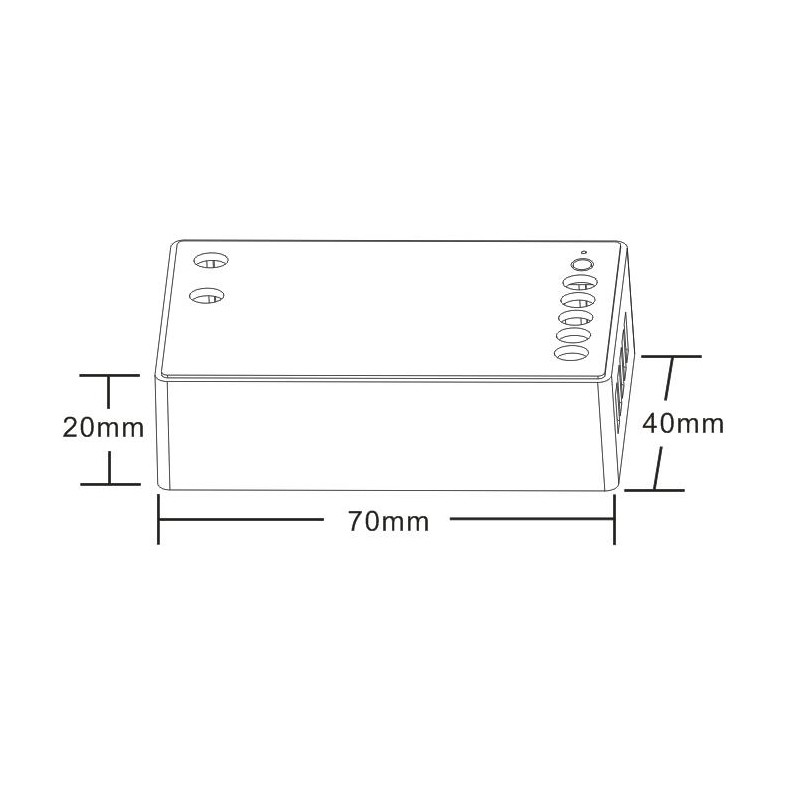

- Size: 70*40*20mm(L*W*H)
- Model: HX-D016
- Working Temperature: -20-60℃
- Working Voltage: DC12-24V
- Output Channels: 4
- Output Current: ≤4A(Each Channel)
- Static Power Consumption: <1W
- PWM Frequency: 1.95KHz
- Max Power Output: 192W(12V)/384W(24V)

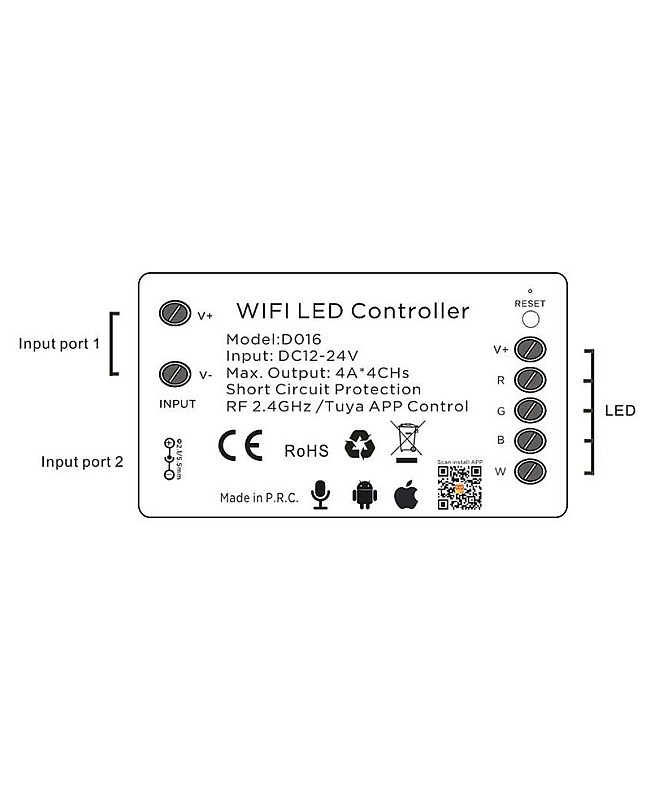

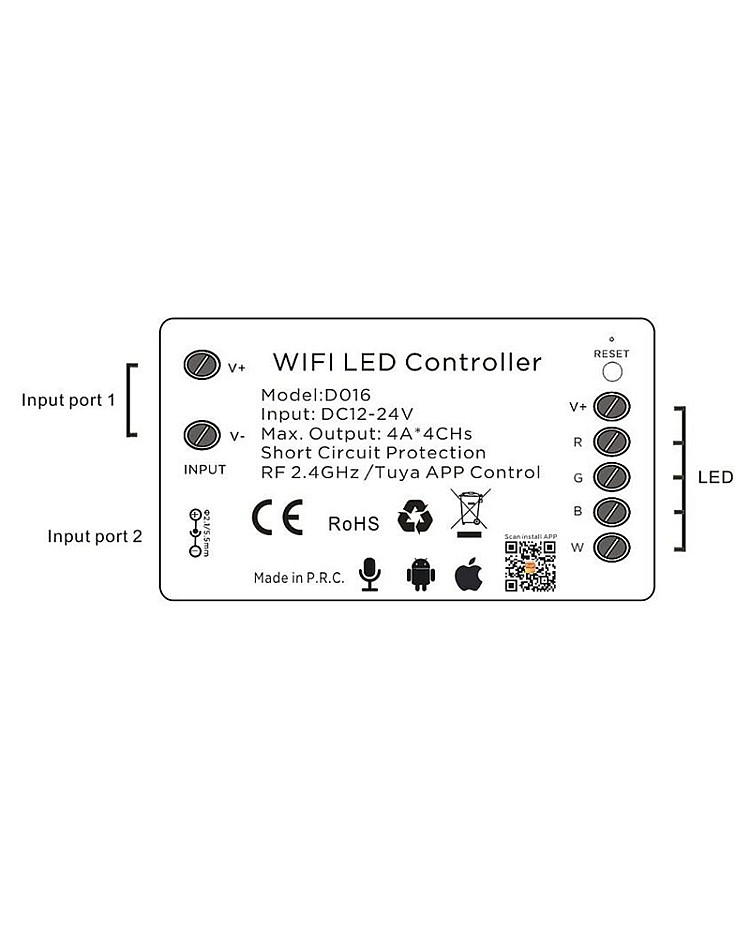

- Connecting Mode: Common Anode
- Grayscale: 1024 Levels
- Speed Stage: 100 Levels
- RF Frequency: 2.4GHz
- RF Distance: ≤20m
- 3 Compatible RF Remote Controls Optional
- WIFI Technology By TUYA
- Compatible With Voice Control Via Amazon Alexa, Google Assistant, Yandex Alice, etc
- Wireless-SynchronizatioN Function
- Short Circuit Protection: YES
- Memory Function: YES
- Weight: 80g
- 3 Years Warranty

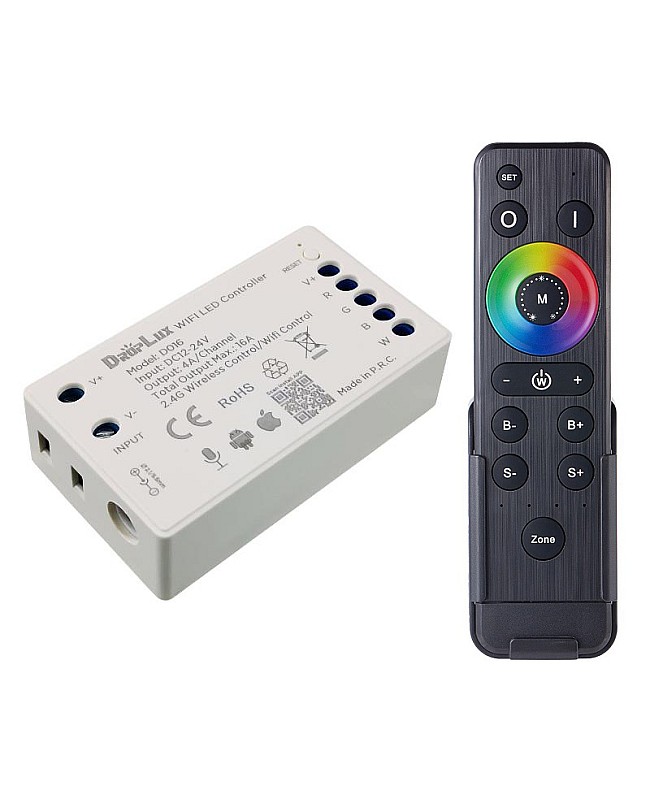

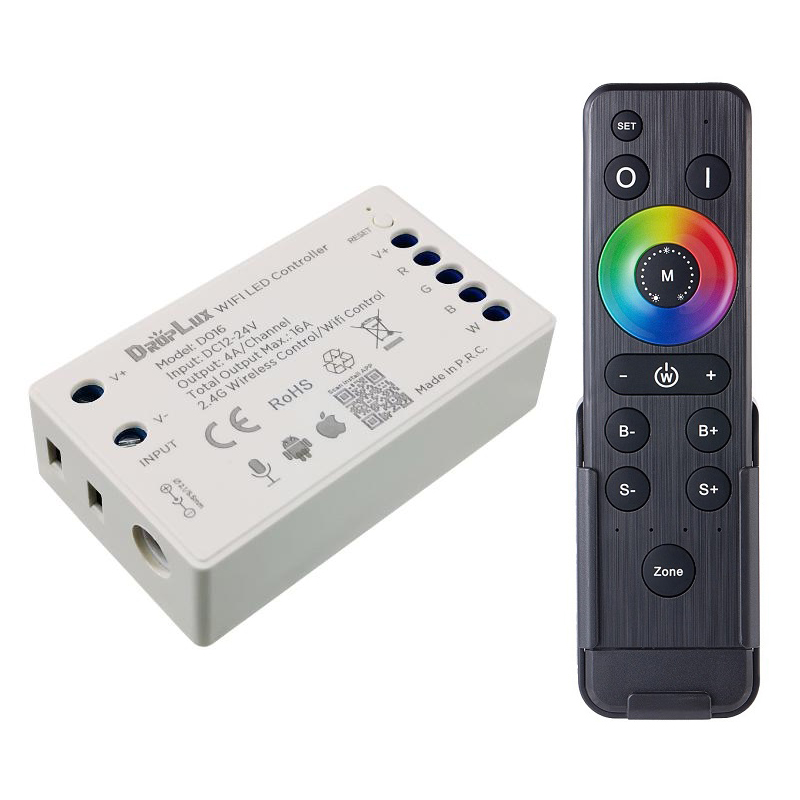

2.4G RF Remote Control Features:
- Working Temperature: -20-60℃
- Size: 150*40*20mm
- Color: Black
- Working Voltage: DC3V
- Powered By 2PCS AAA Batteries
- Standby Current: <18uA
- Working Current: <25uA
- Standby Power: 54uW
- Working Power: 75mW
- RF Frequency: 2.4GHz
- RF Distance: <20m
- Weight: 95g
Includes:
1*RGBW LED Strip WIFI Controller
1*RFBK-RGB-2.4G(RGBW Function)
