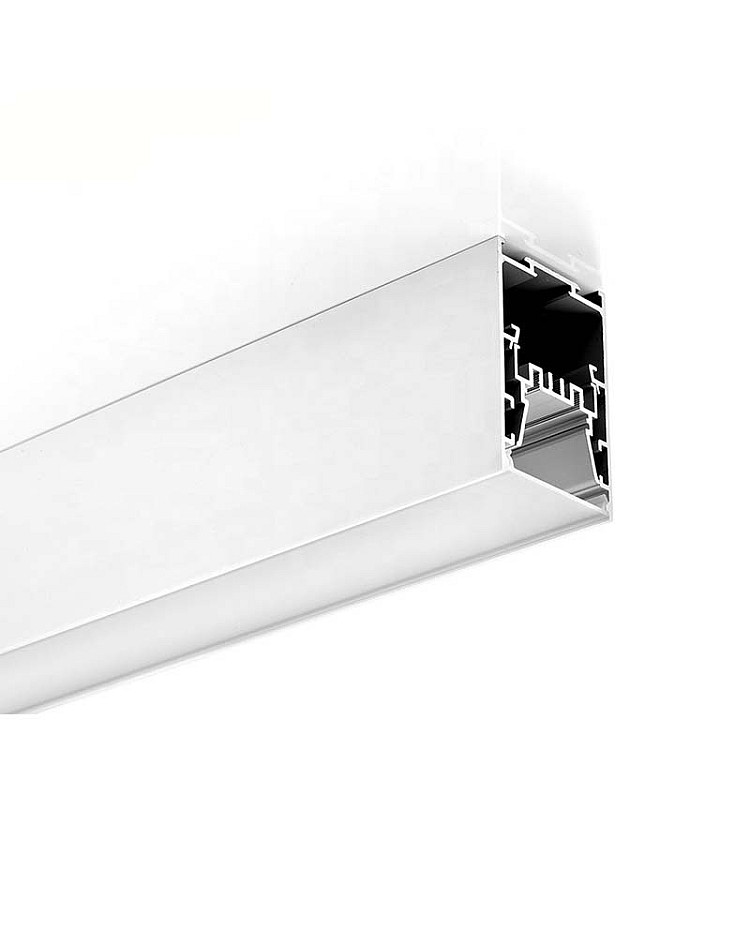

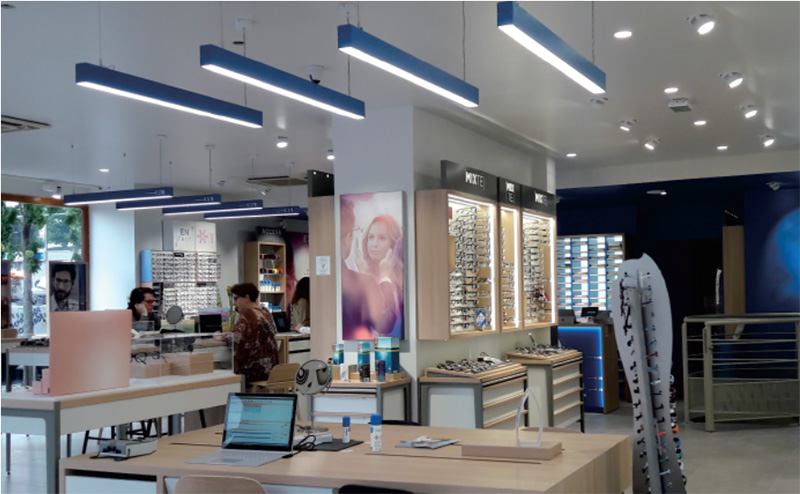

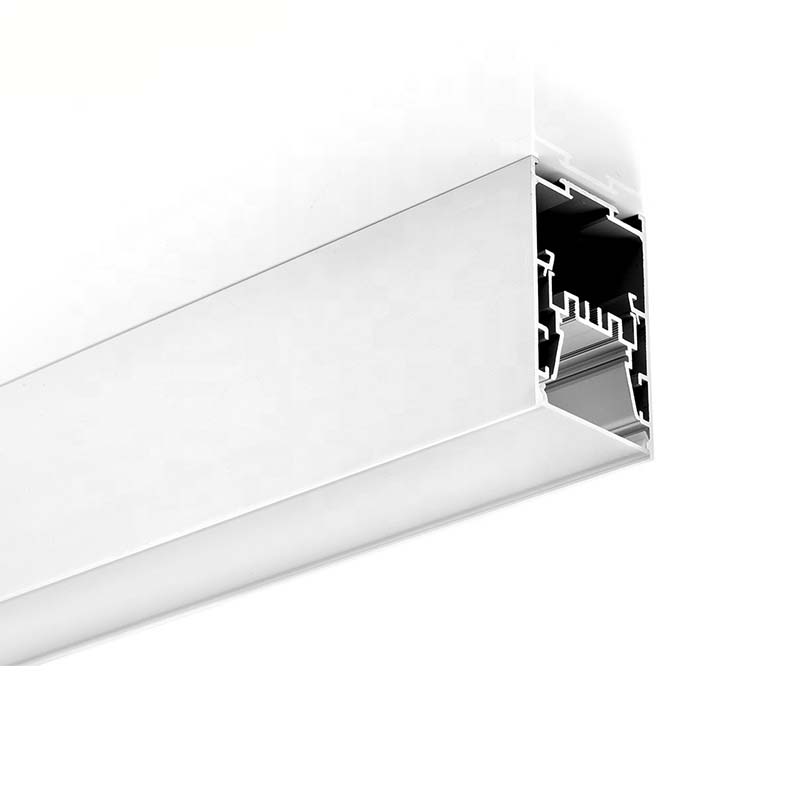

The 75mm deep pendant LED channel is ideal for task lighting in various commercial, industrial, and residential spaces. Made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length is 1 m, and the max length is 2.5 m; custom lengths are available and can be cut to any length you want.
The inner width is 18.5mm, allowing the maximum LED strip width to be 18mm. We recommend adding high-density COB strip lights as the light source, with no visible light spots. The aluminum profile can be used as a heat sink for better heat dissipation and extends the LED lights' lifespan.

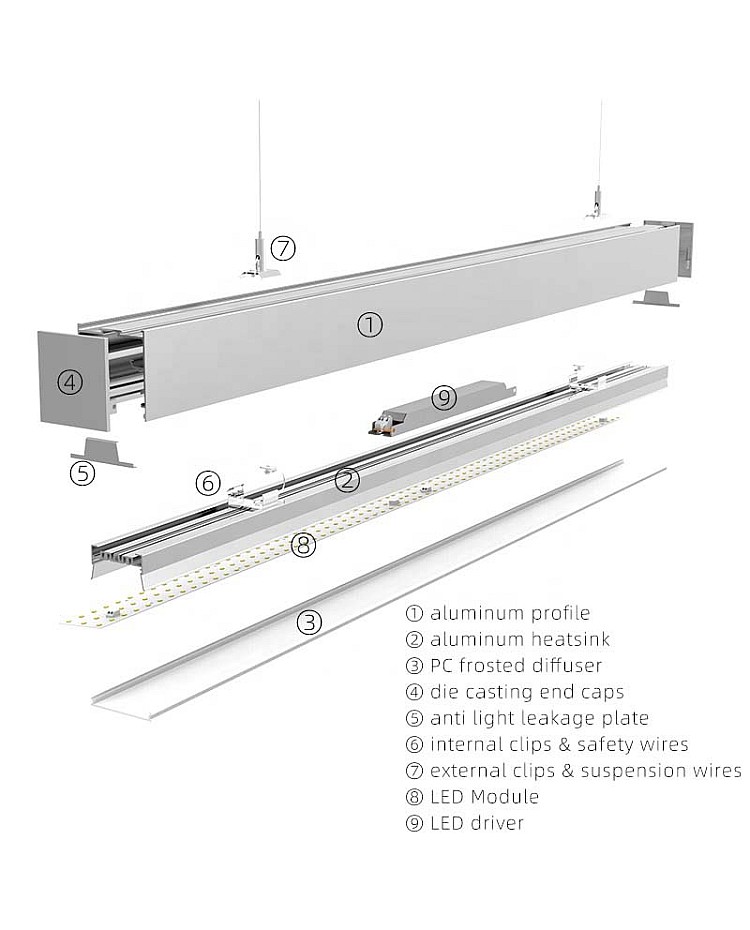

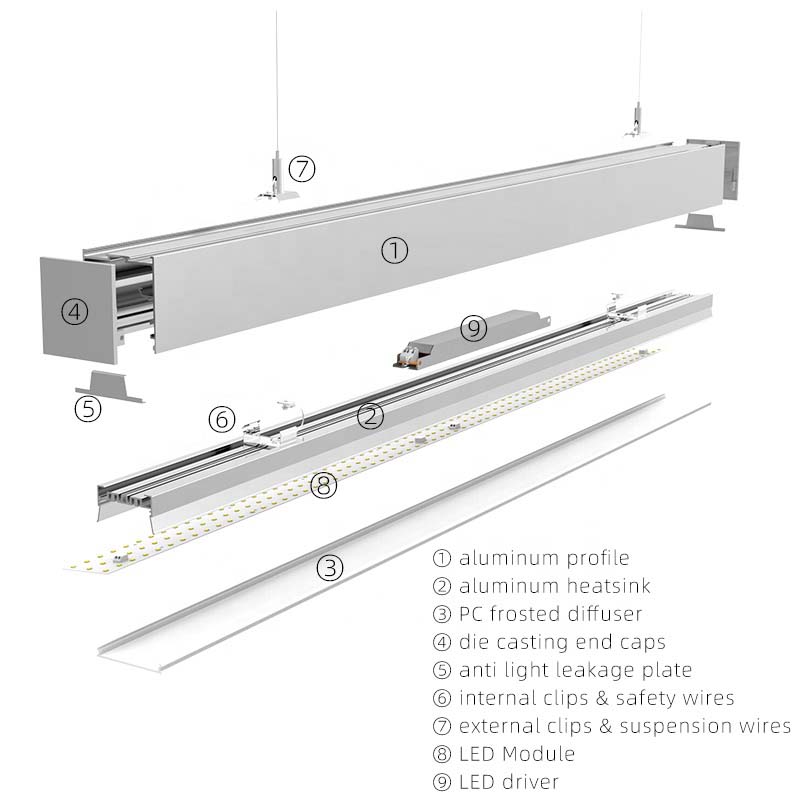

Only one type of channel LED diffuser is available: the PC frosted opal diffuser, made from high-quality material with stable quality and anti-yellowing properties. The frosted opal diffuser helps distribute the light output evenly and create a seamless line of light. End caps, metal clips, and suspension wire kits are included, allowing pendant installation.
Specifications:

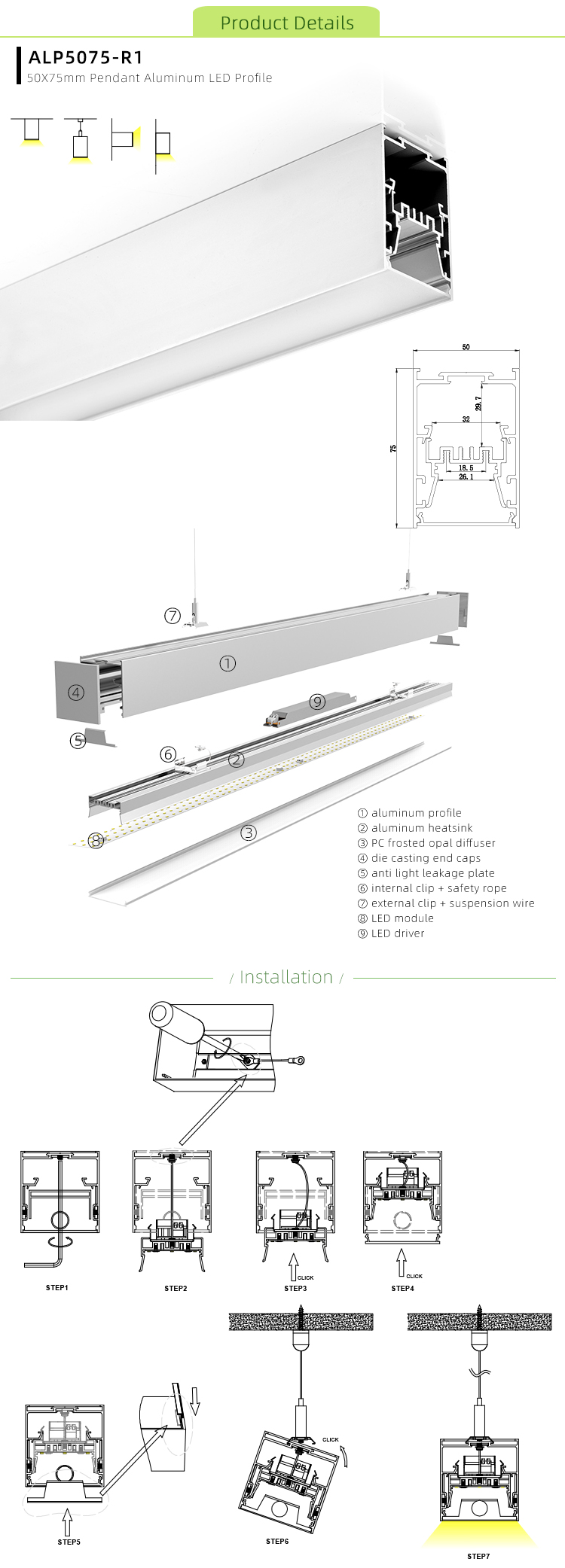

- Model: ALP5075-R1
- Material: Aluminum Alloy 6063-T5
- Surface Treatment: Silver Anodized
- Colors: Silver, White, Black
- Standard Length: 1 Meter
- Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
- Custom Length Available: YES

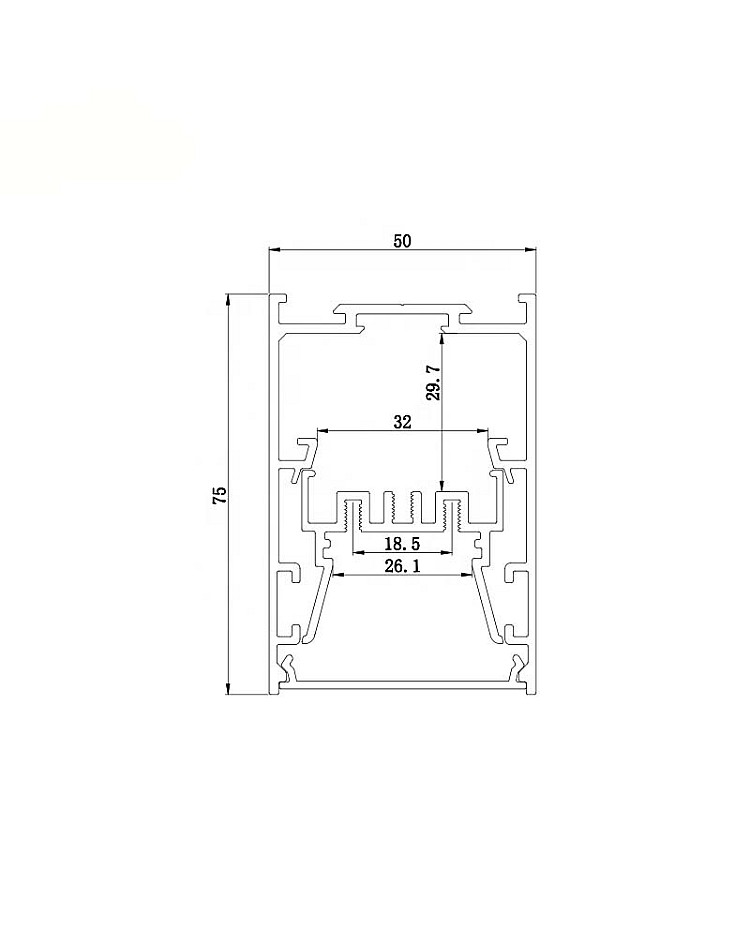

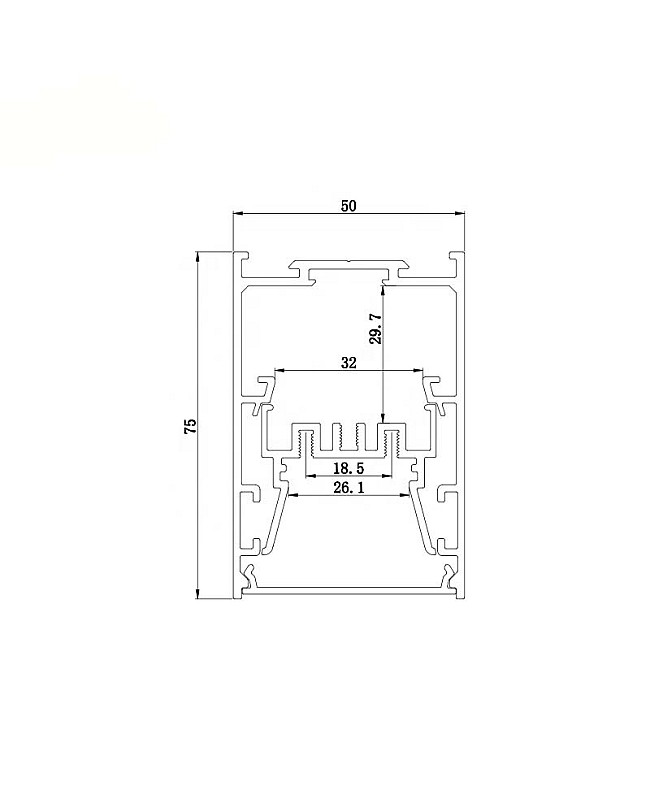

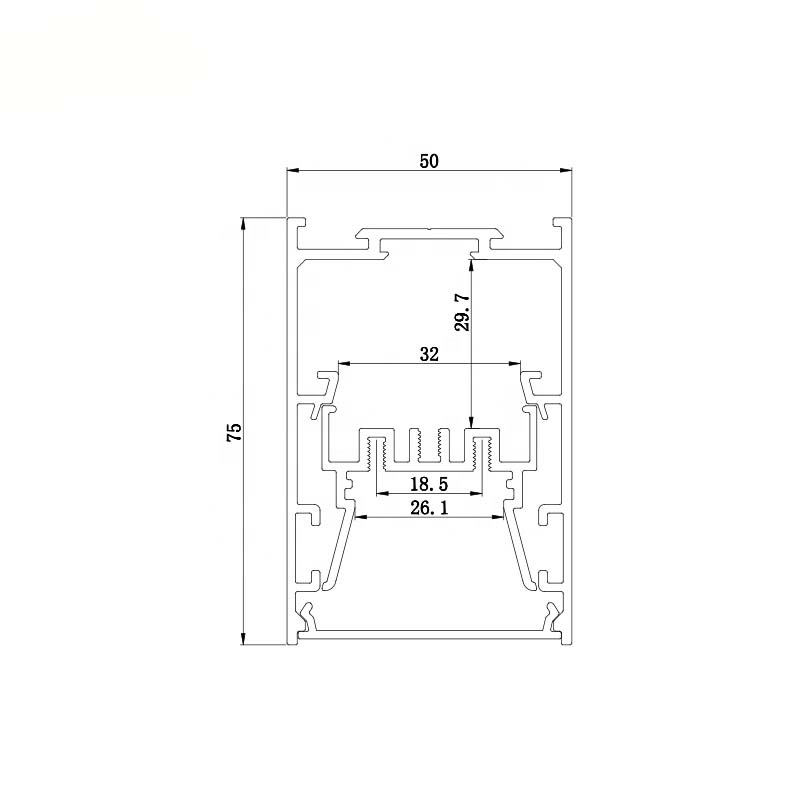

- Inner Width: 18.5mm
- Compatible with 140mm/280mm/560mm Constant Current LED Modules
- Max Power: 35W/Meter
- Diffuser: PC Frosted Opal Diffuser

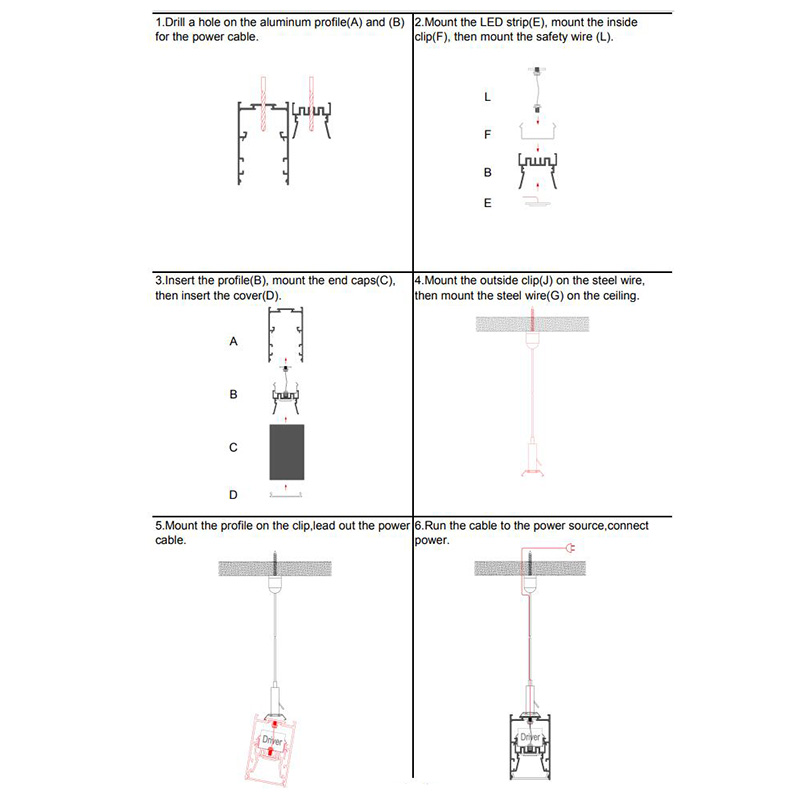

- Installation: Pendant, Surface Mounted, Trimless Recessed

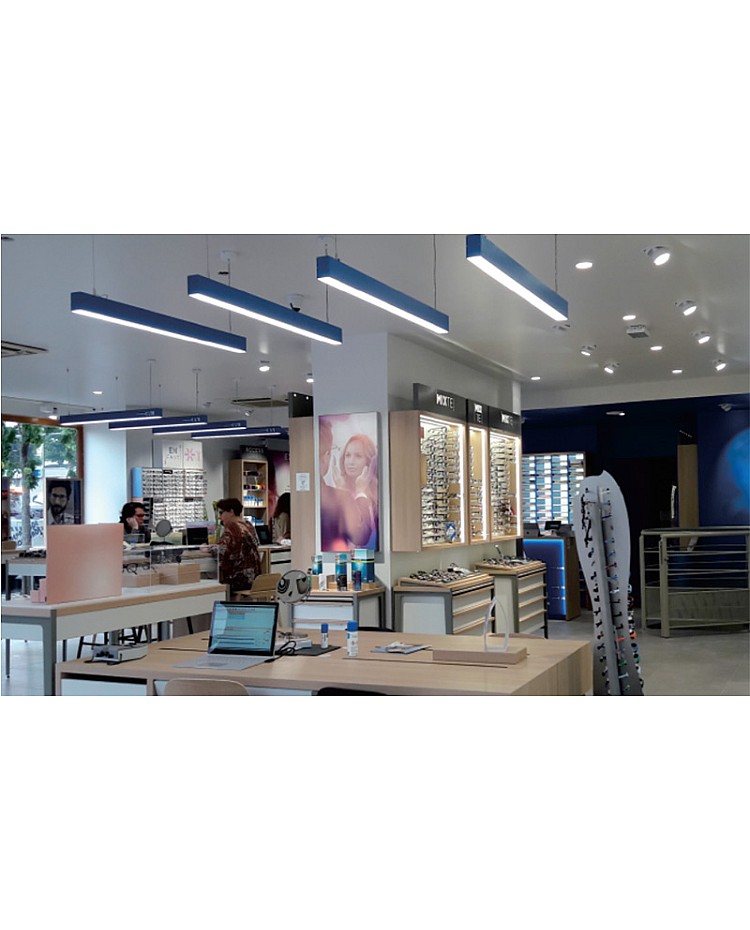

- Applications: Office, Kitchen, Hotel, Gym, Airport, Stores
- Warranty: 5 Years

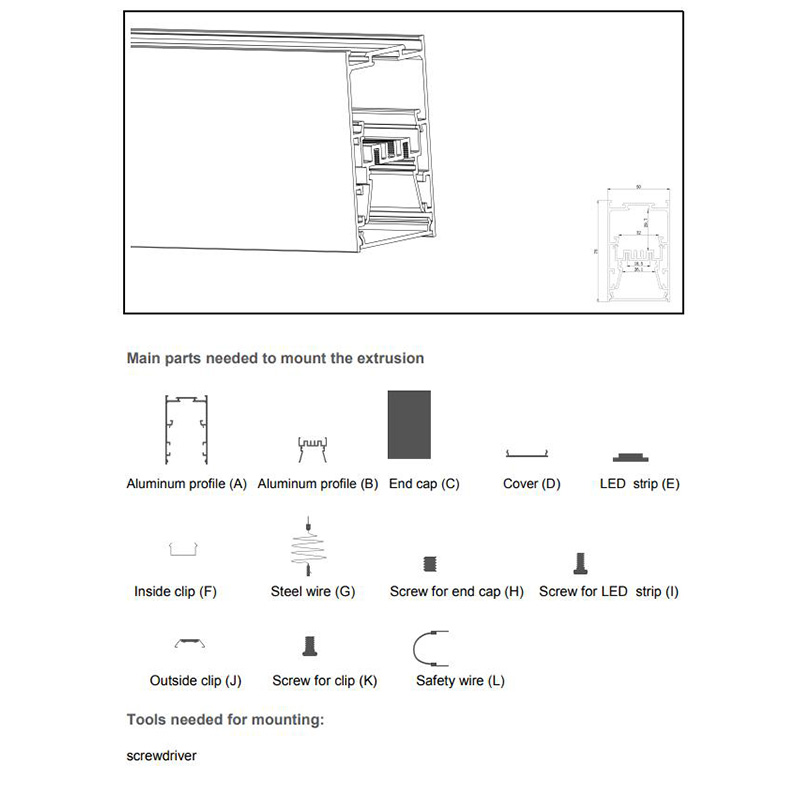

Includes:
1 * 75mm Deep Pendant LED Channel With Diffuser

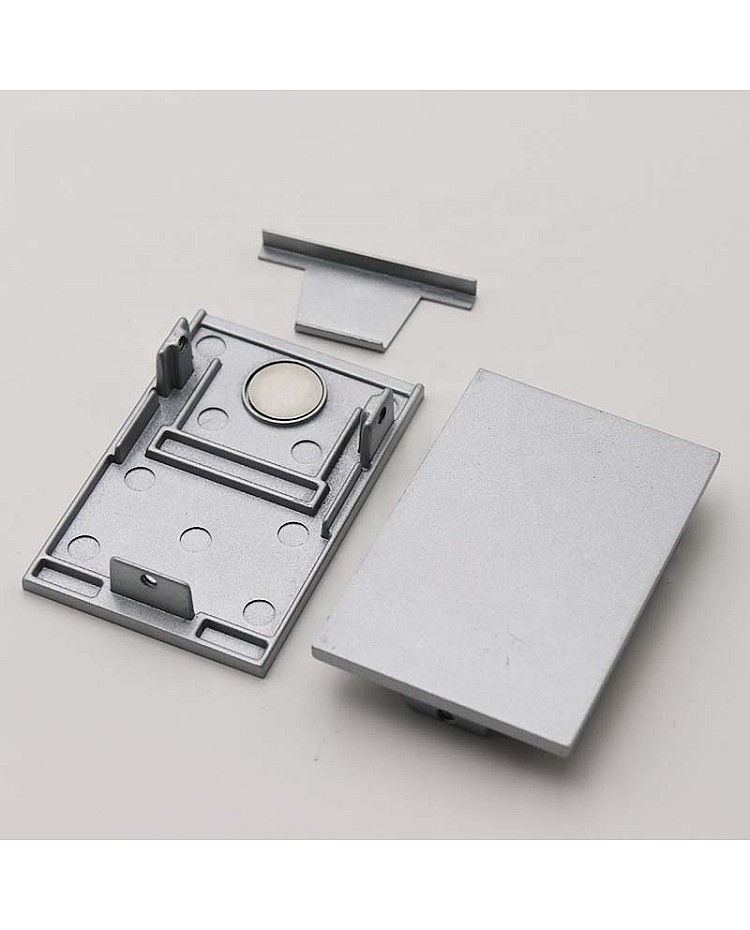

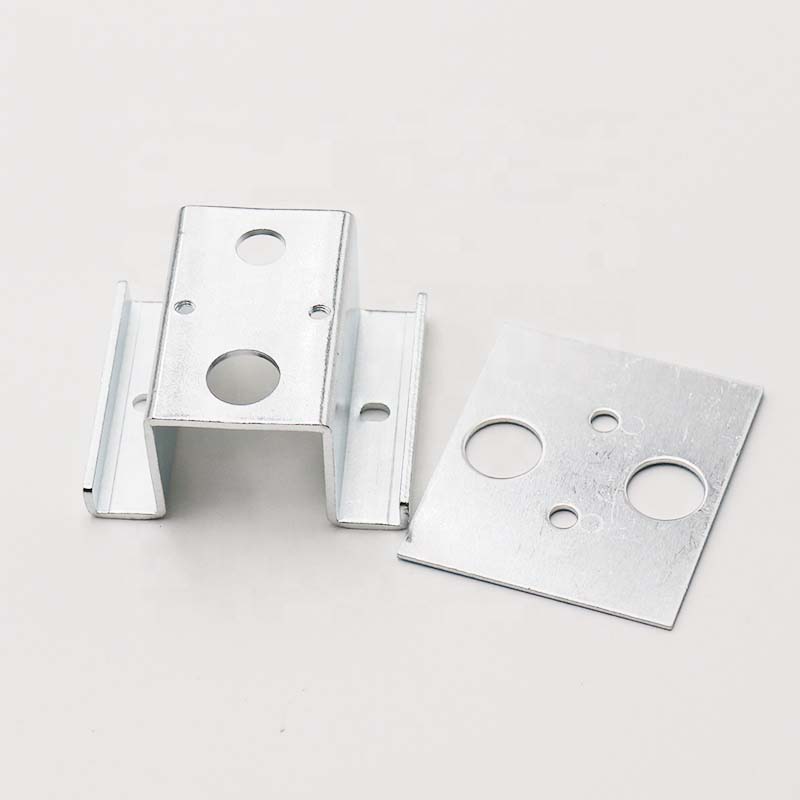

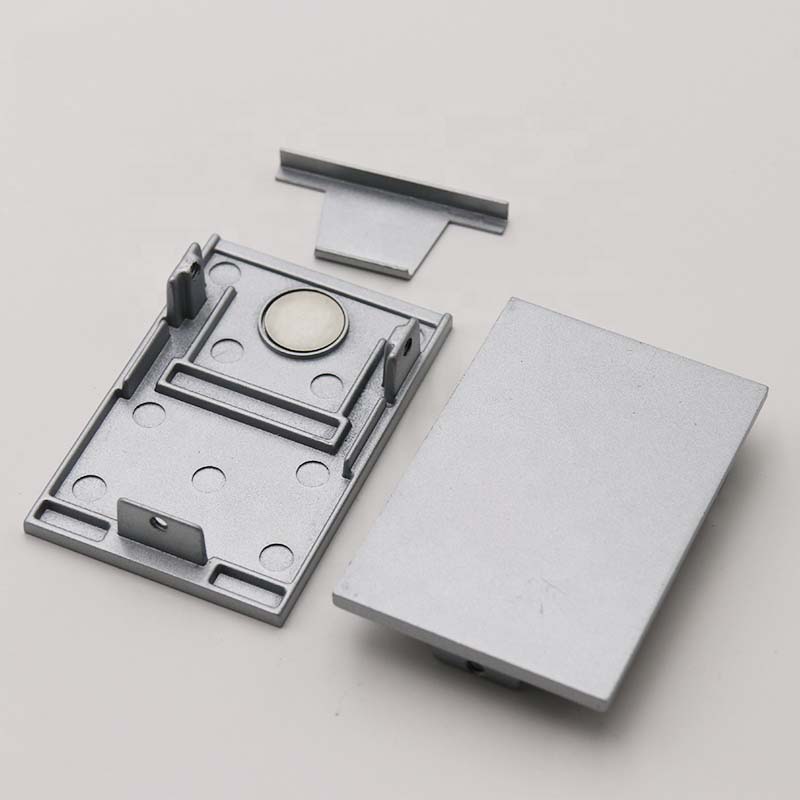

End Caps

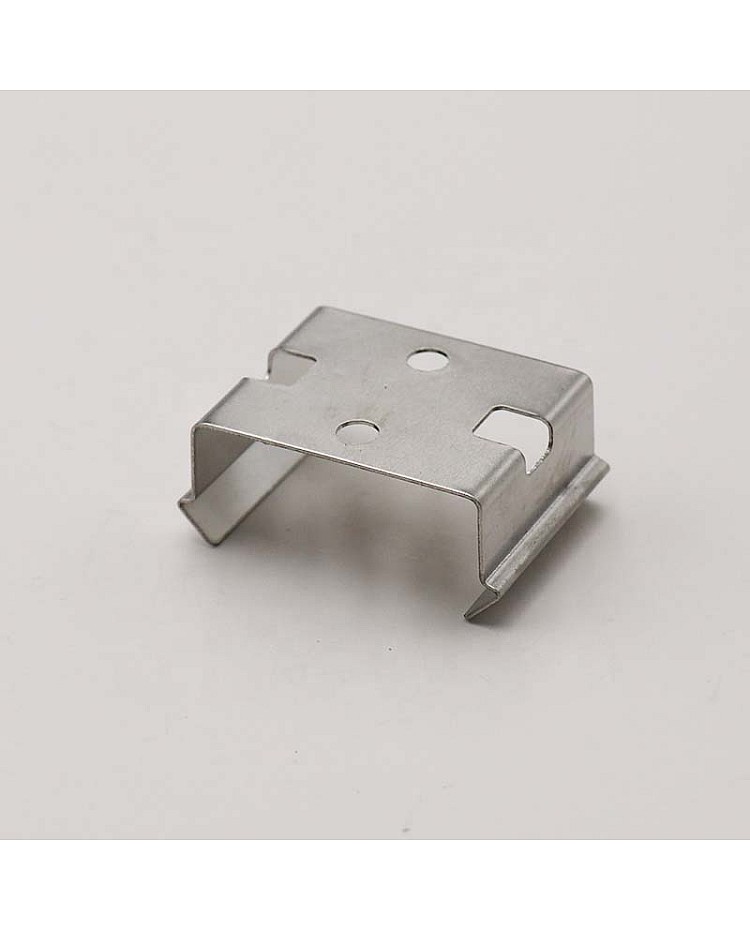

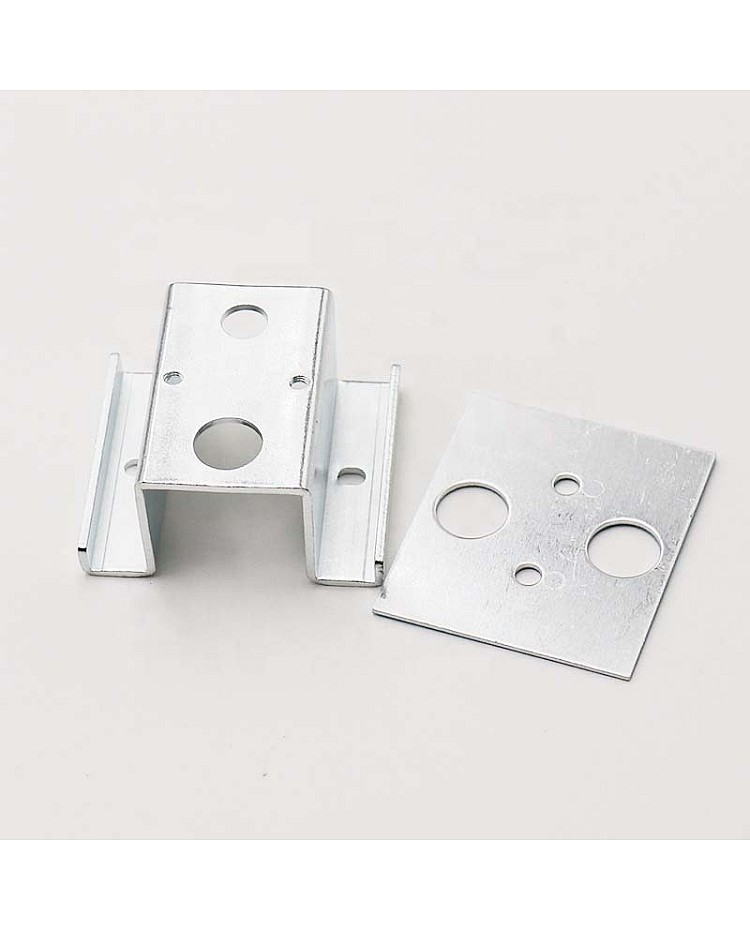

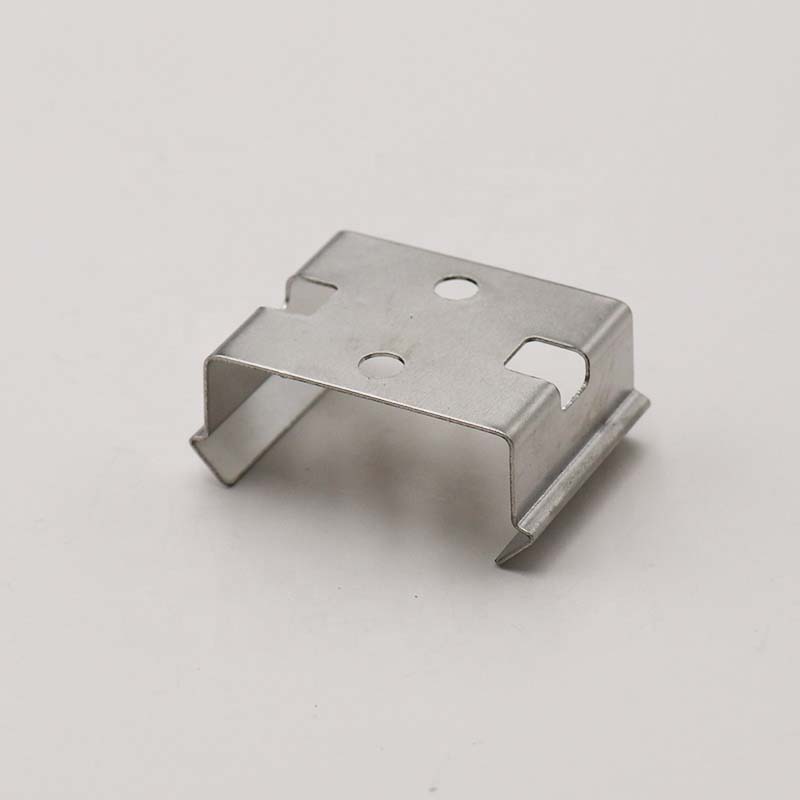

Metal Clips
Suspension Wires
