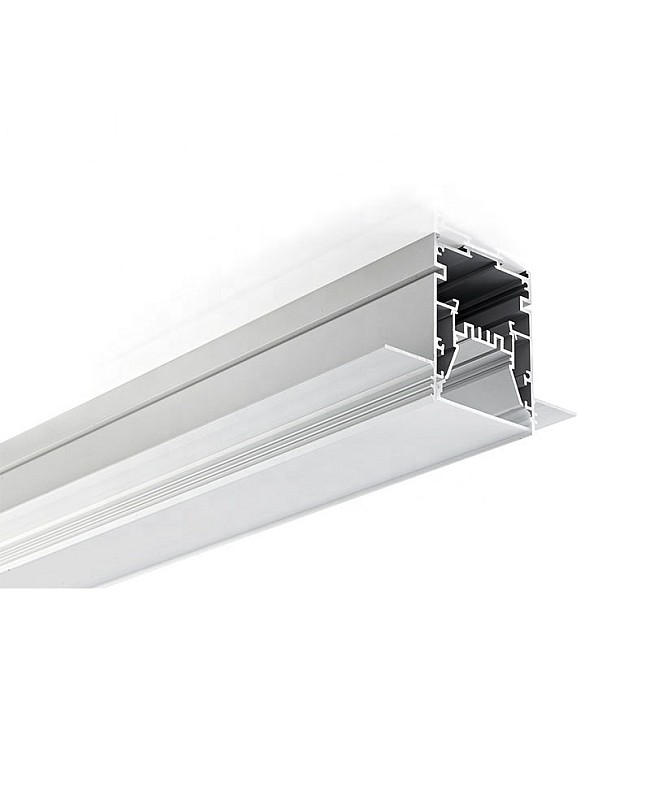

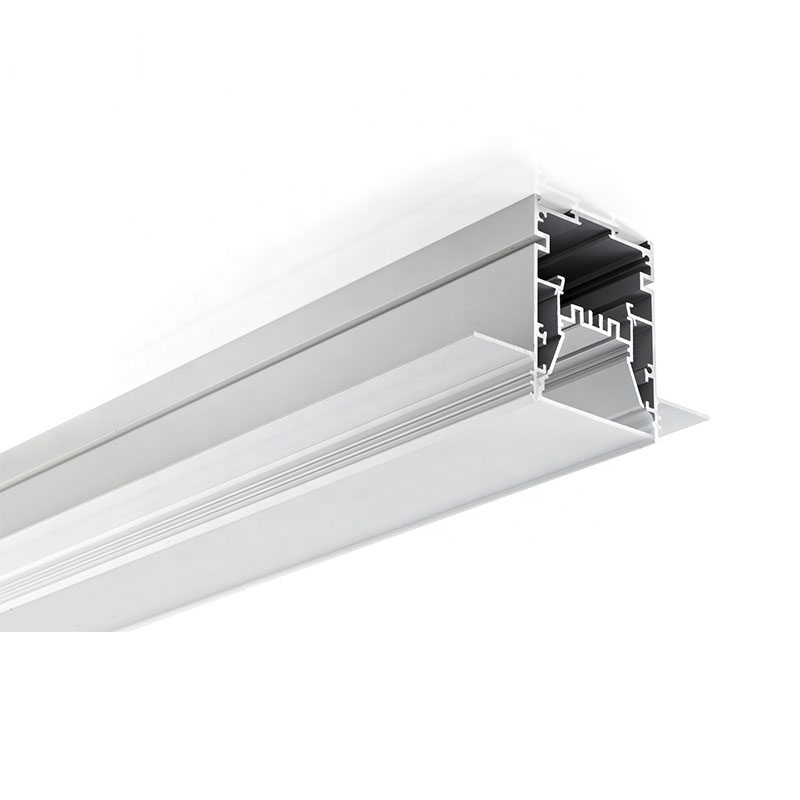

The Drywall LED Channel with PC Frosted Diffuser is an ideal solution for architectural lighting. This channel offers a low-profile and aesthetically-pleasing design, allowing it to be integrated into any interior space for interior linear lighting. The inner width is 18.6mm and allows the max width of LED Lights to be 18mm, compatible with 140mm, 280mm, or 560mm Rigid Constant Current LED Modules or dotless COB LED Strips, the aluminum channels can be worked as heat sinkers for better heat dissipation, which will extend the lifespan of LED Lights. The standard length is 1M and 2M, the max length is 2.5M, and cuttable, and you can cut to any length for your project. Drywall Channels are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. There is only one type of diffuser available: the PC frosted opal diffuser, which is made of brand-stable material, anti-yellowing, evenly distributes light, and eliminates the LED hot spots.The diffuser also prevents glare and provides uniform illumination. End caps and metal clips are included, allowing to flush mount installation on the ceiling, which can be used in both residential and commercial applications, is a perfect way to create a modern lighting atmosphere in any space.


  • Model: ALP12083
  • Material: 6063-T5 Aluminum Alloy
  • Color: Silver(Default), White, Black
  • Surface Treatment: Silver Anodized

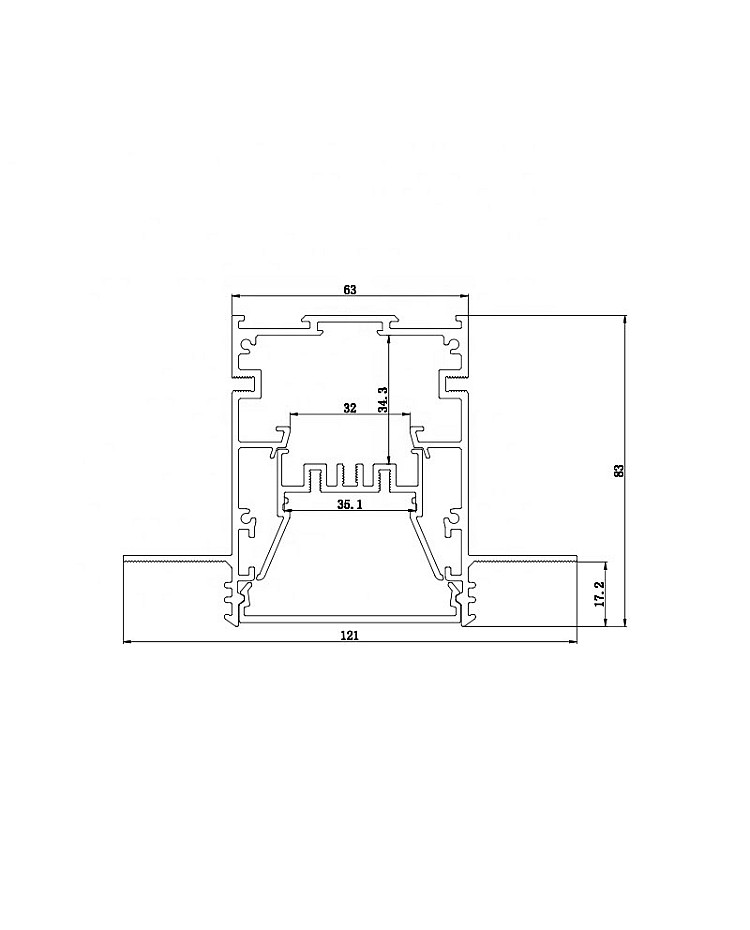

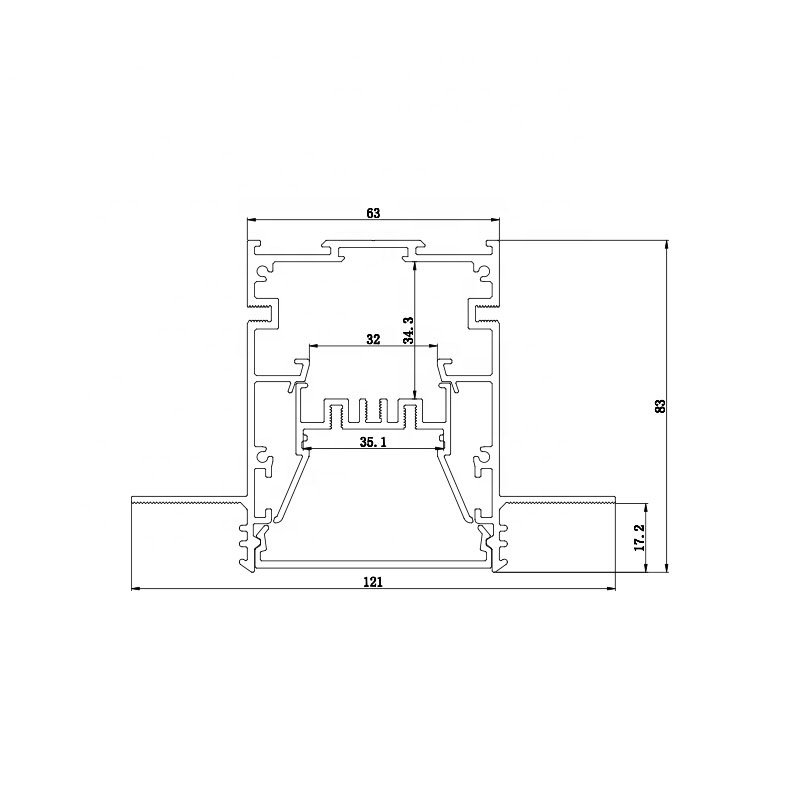

  • Size: 121*83mm(W*H)
  • Inner Width: 18.6mm
  • Compatible With 140mm/280mm/560mm Rigid Constant Current LED Modules
  • Max Power: <50W/Meter
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
  • Custom Length Available: YES
  • Diffuser: PC Frosted Opal Diffuser

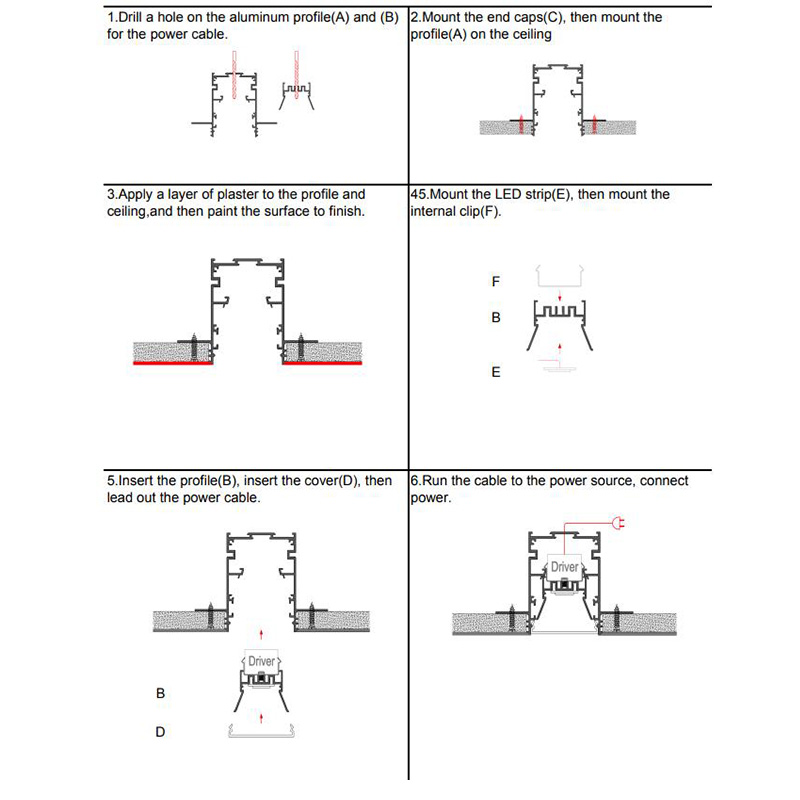

  • Installation: Drywall Recessed

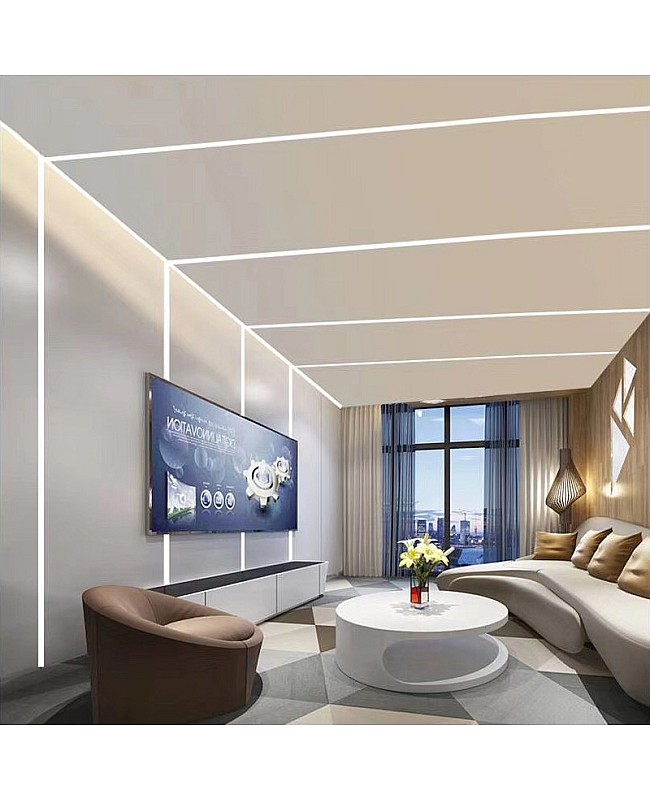

  • Application: Architectural Lighting
  • End Caps With Wire Holes Included
  • Metal Clips Included
  • LED Strips, Controllers, And Transformers Sold Separately
  • 5 Years Warranty


1*Drywall LED Channel

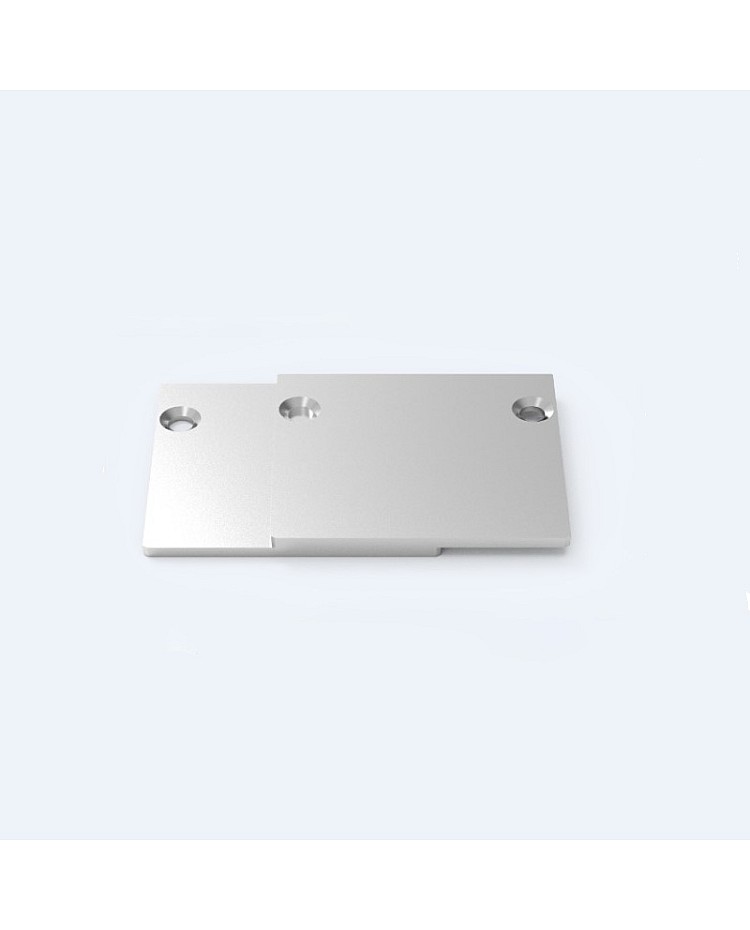

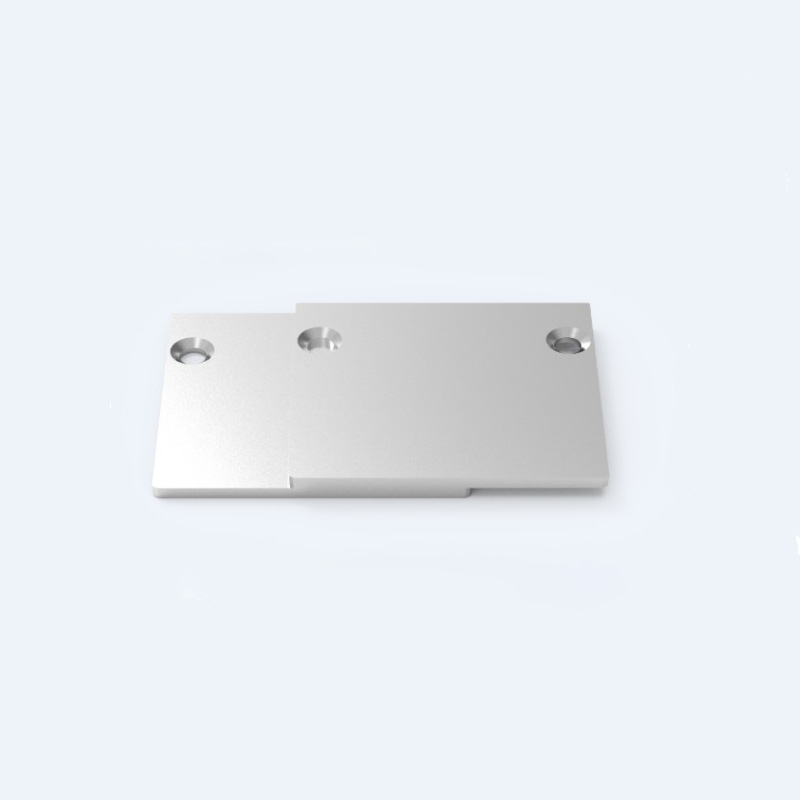

End Caps

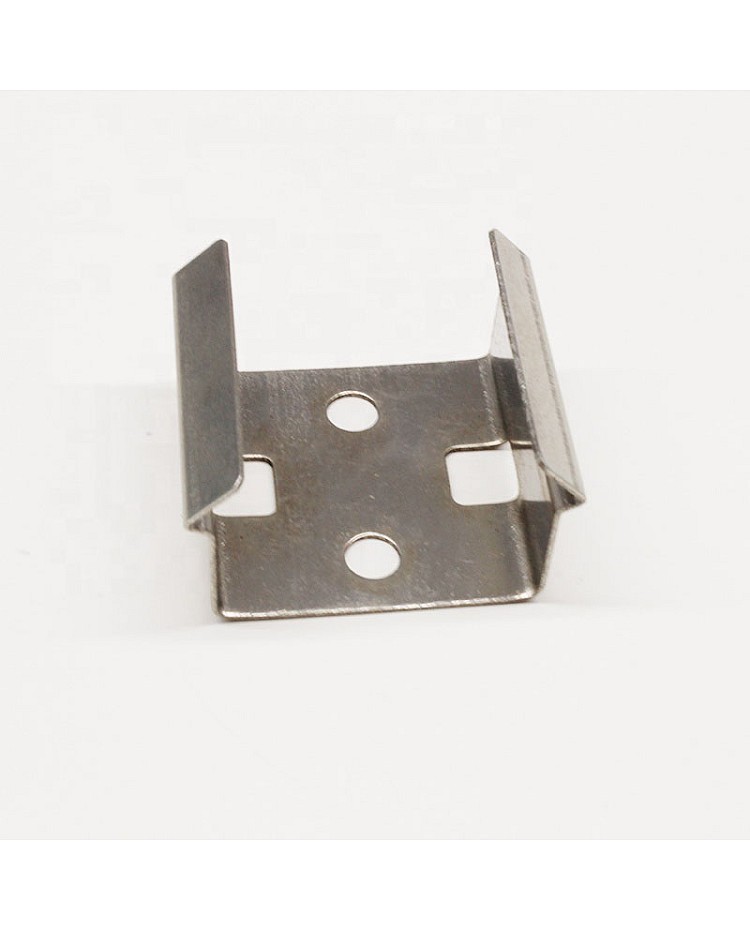

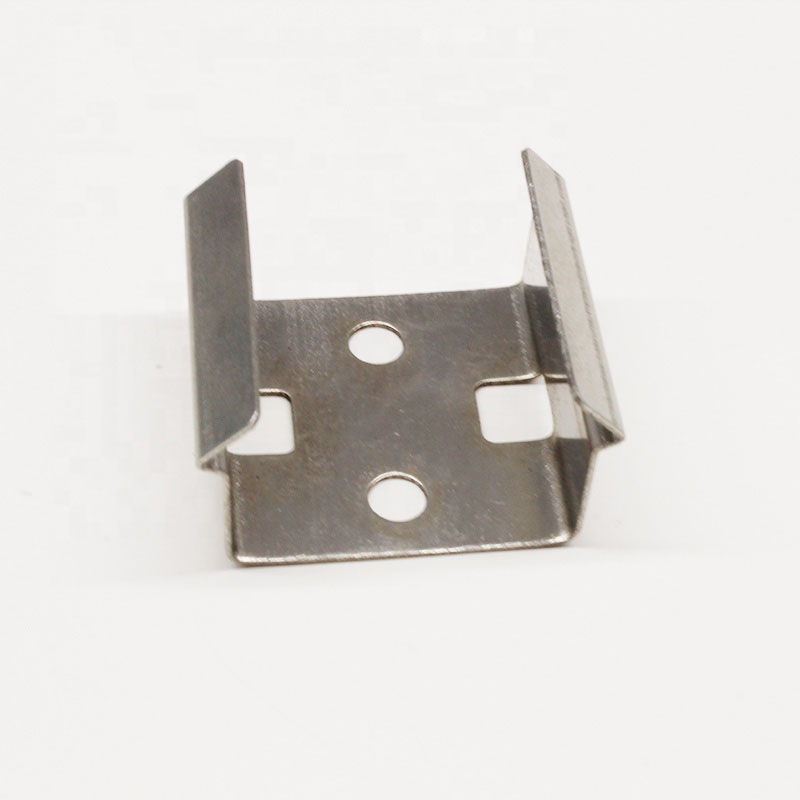

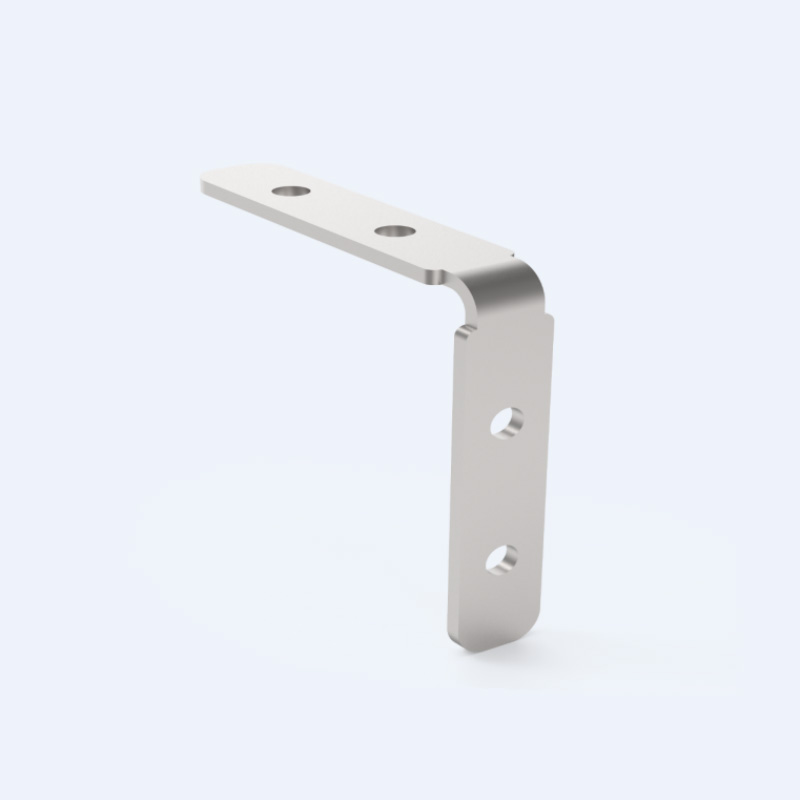

Internal Clip
