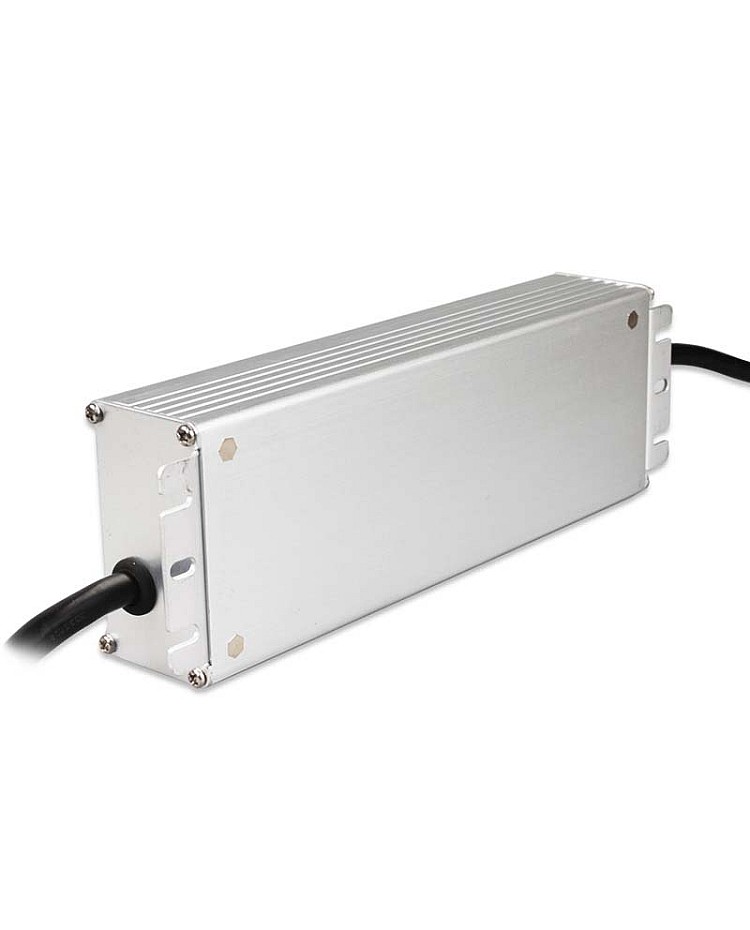

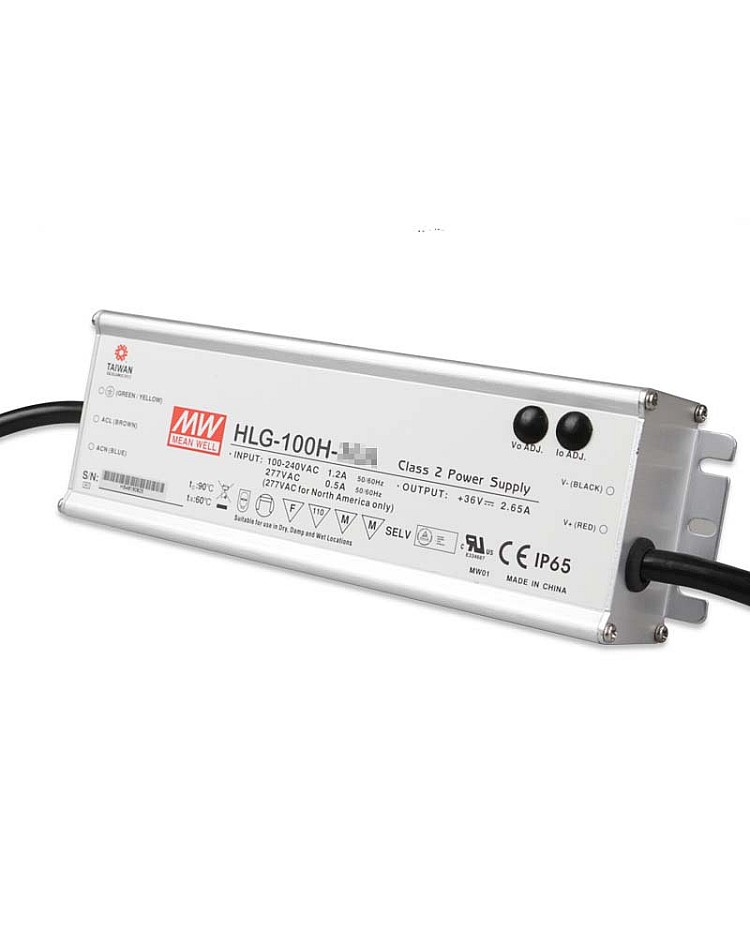

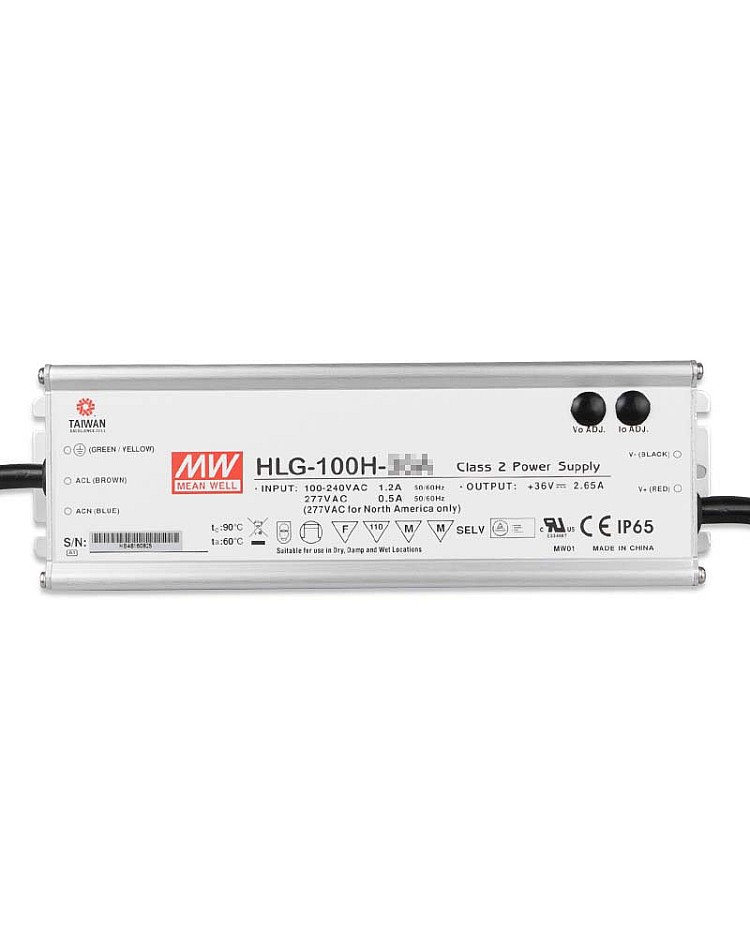

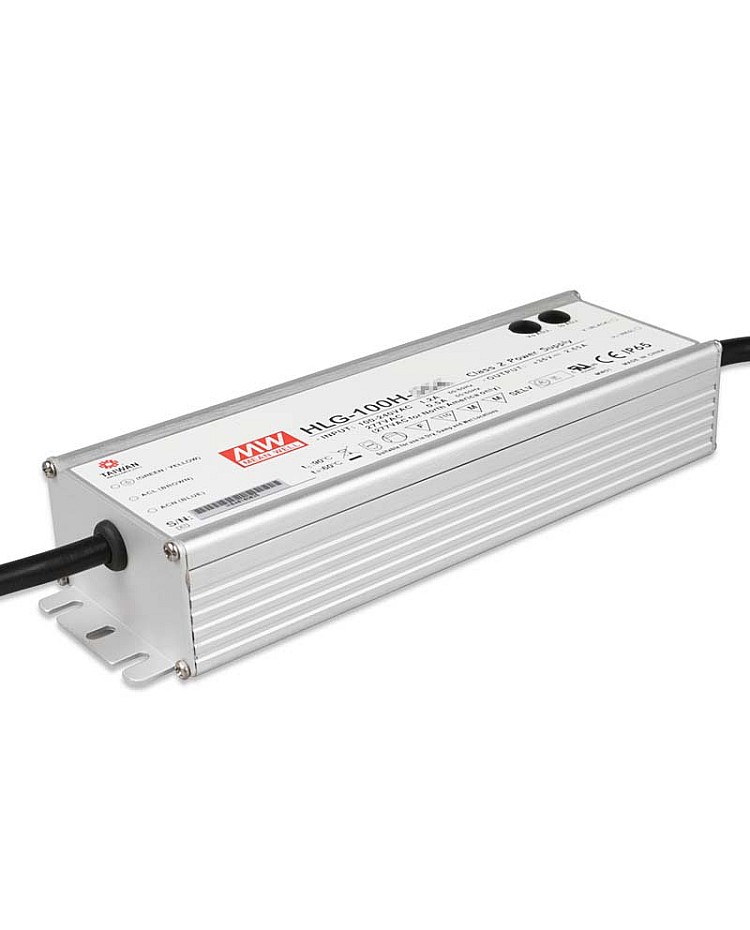

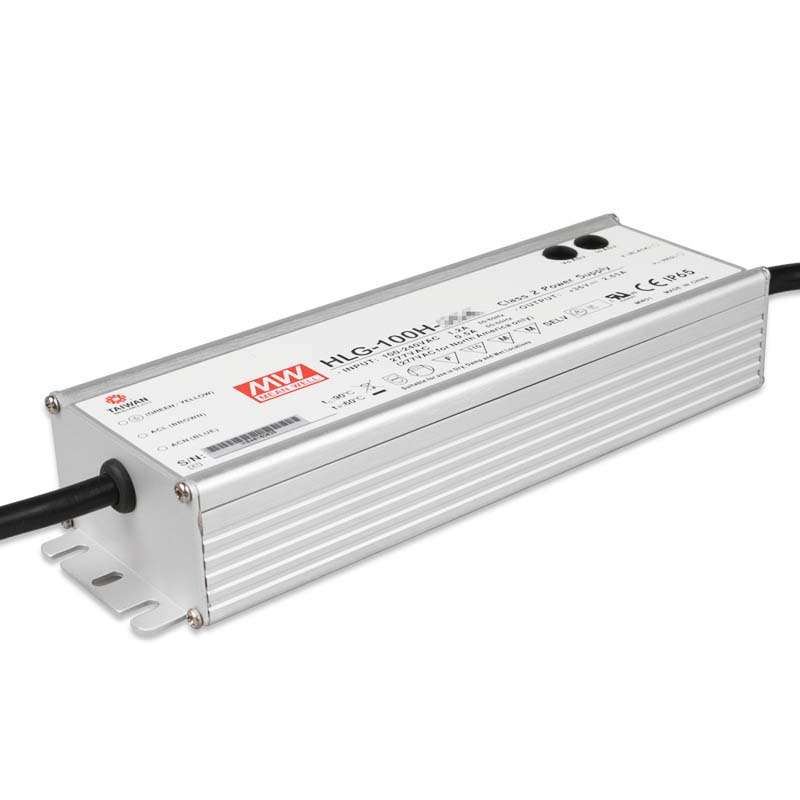

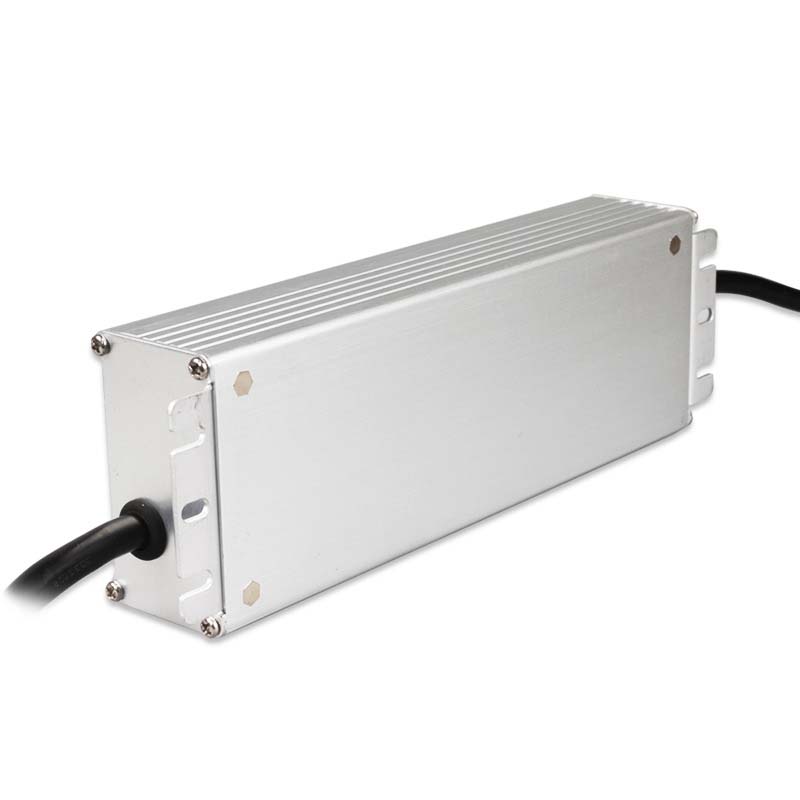

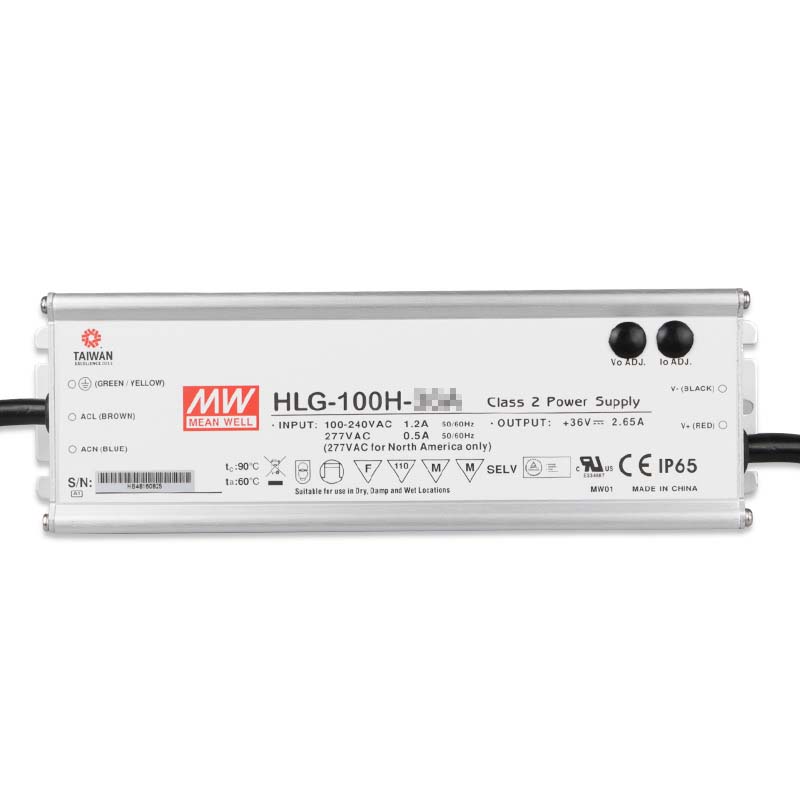

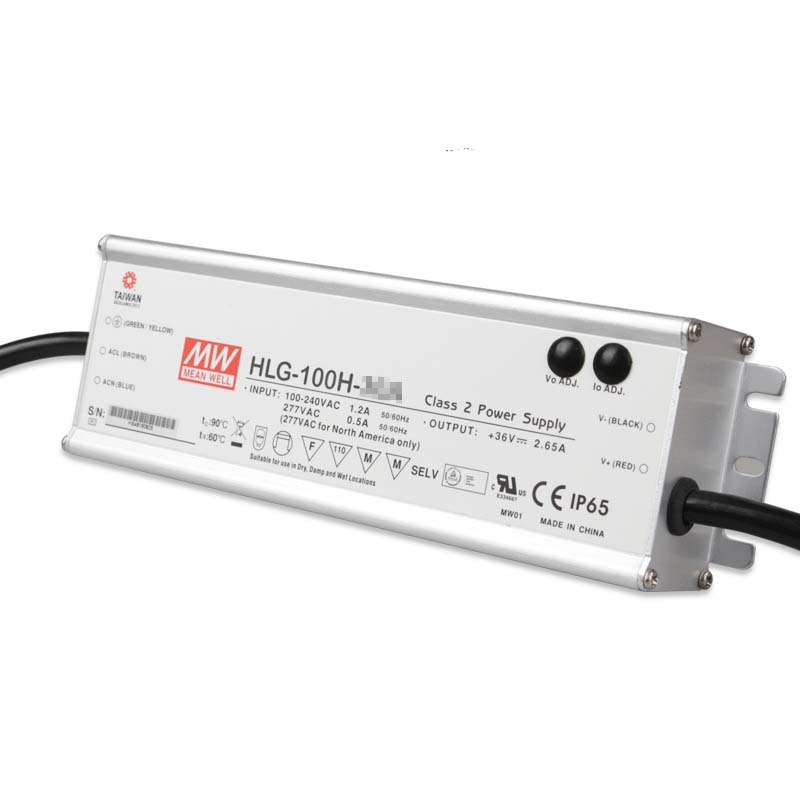

The Mean Well 48V IP67 waterproof power supply HLG-100H Series, the LED power supply enclosed in a metal housing with a class I design, has a waterproof level that can reach IP65 or IP67 for indoor or outdoor applications. The A, B, and AB Types of HLG-100H feature the dual mode constant voltage and constant current output, which are adjustable through the built-in potentiometer design, and the AB and D types with the dimming function. The input voltage range is from AC90V to AC305V, and models with different rated voltages are offered, ranging from DC20V to DC54V. With the fanless design, the high efficiency up to 93%, the entire series can operate from -40℃ to 80℃ under free air convection. You can use them for LED street lights, high-bay lighting, greenhouse lights, etc.
- Constant Voltage + Constant Current Mode Output
- Metal Housing With Class I Design
- Built-in Active PFC Function
- Class 2 Power Unit
- IP67/IP65 Rating For Indoor Or Outdoor Installations
- Function Options: Output Adjustable Via Potentiometer; 3 In 1 Dimming; Timer Dimming
- Typical Lifespan: >62,000 Hours
- Applications: Street Lights, High-Bay Lighting, Parking Space Light, Fishing Lamps, Greenhouse Lighting
Quick Links:

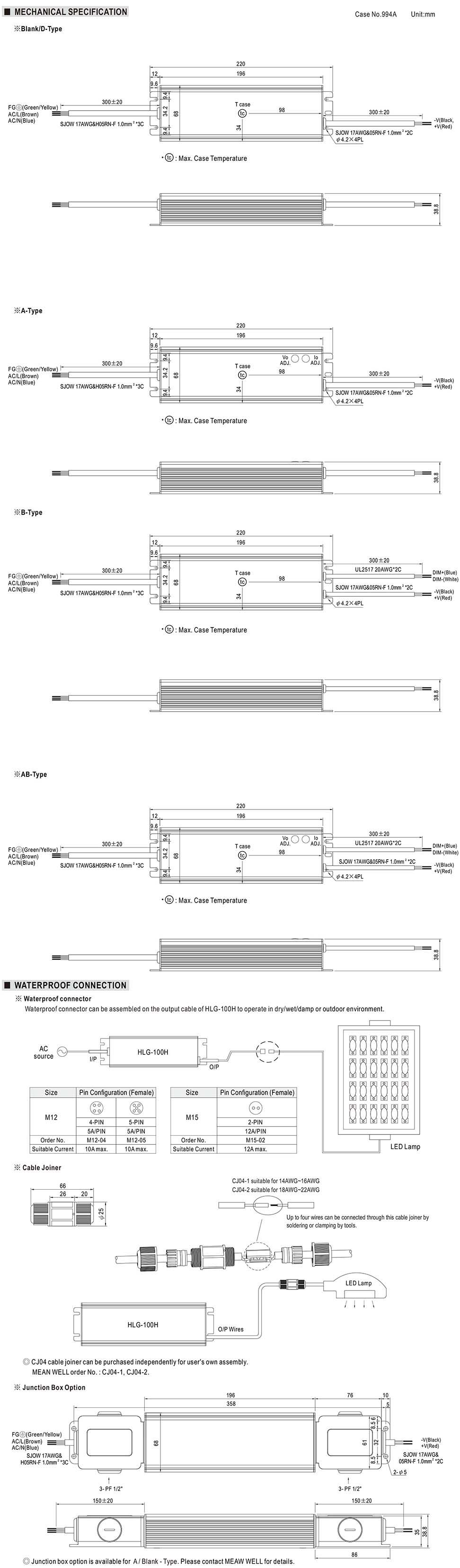

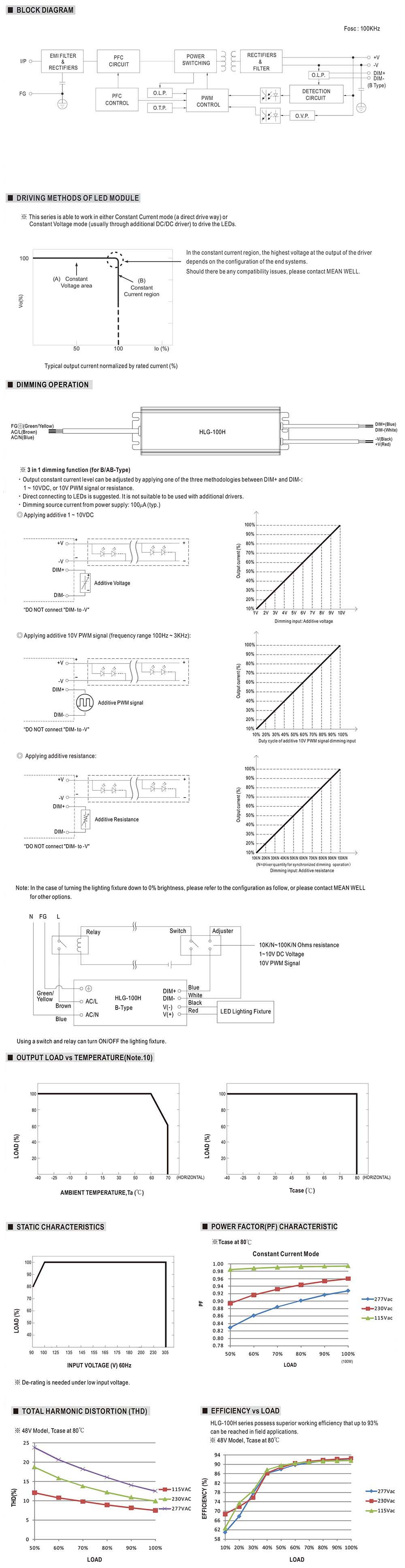

Mean Well HLG-100H Series Specification Document
Specifications:
- Model: HLG-100H

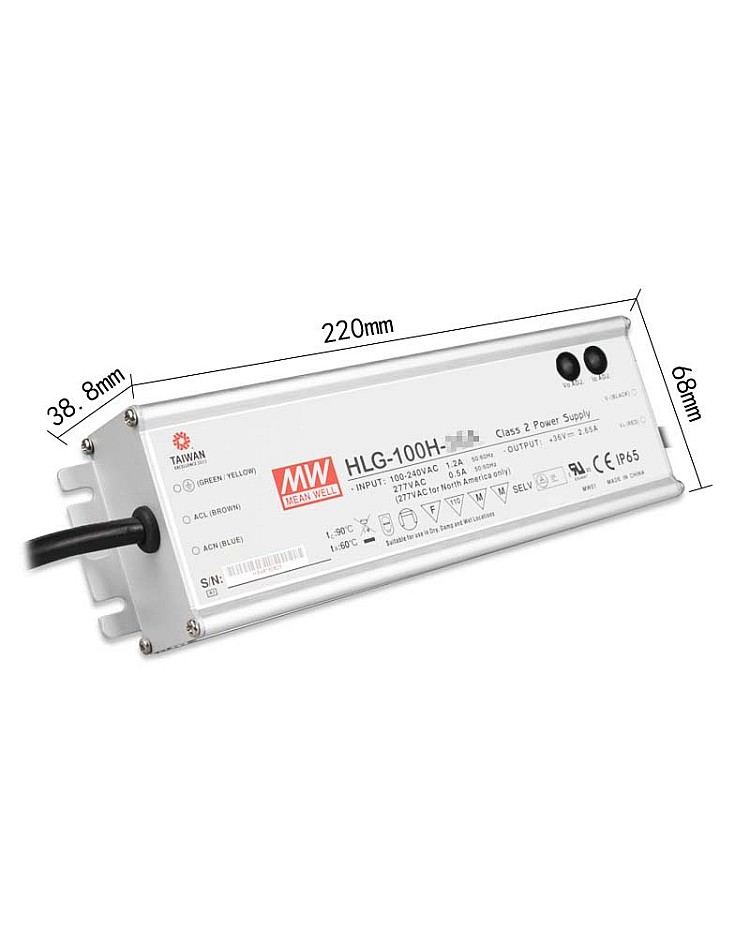

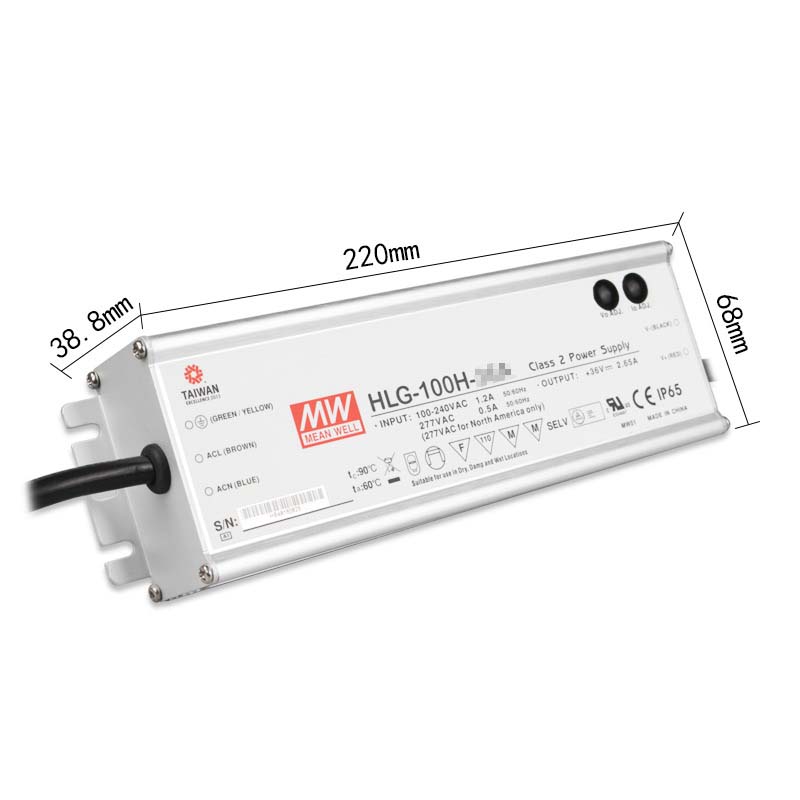

- Size: 220*68*38.8mm(L*W*H)
- Types:
- Blank: IP67 Waterproof Level, Voltage, And Current Fixed
- A: IP65 Waterproof Level, Voltage, And Current Adjustable Through Built-in Potentiometer
- B: IP67 Waterproof Level, 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- AB: IP65 Waterproof Level, Voltage And Current Adjustable Through Built-in Potentiometer & 3 In 1 Dimming Function(1-10VDC, 10V PWM Signal And Resistance)
- D: IP67 Waterproof Level, Timer Dimming Function
- Input Voltage Range: 90- 305VAC
- Frequency Range: 47- 63Hz
- Power Factor: PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.93/277VAC
- Efficiency: 93%(DC20V), 93%(DC24V), 93%(DC30V), 93%(DC36V), 93%(DC42V), 93%(DC48V), 93%(DC54V)
- AC Current: 1.2A/115VAC, 0.55A/230VAC, 0.5A/277VAC
- Output Voltage: DC20V, DC24V, DC30V, DC36V, DC42V, DC48V, DC54V
- Rated Current: 4.8A(DC20V), 4A(DC24V), 3.2A(DC30V), 2.65A(DC36V), 2.28A(DC42V), 2A(DC48V), 1.77A(DC54V)
- Rated Power: 96W(DC20V), 96W(DC24V), 96W(DC30V), 95.4(DC36V), 95.76W(DC42V), 96W(DC48V), 95.58W(DC54V)
- Current Adjustable Range(For A/AB Type Only Via Built-in Potentiometer): 3-4.8A(DC20V), 2.5-4A(DC24V), 2-3.2A(DC30V), 1.65-2.65A(DC36V), 1.4-2.28A(DC42V), 1.25-2A(DC48V), 1.1-1.77A(DC54V)
- Voltage Adjustable Range( For A/AB Type Only Via Built-in Potentiometer): 17-22V(DC20V), 22-27V(DC24V), 27-33V(DC30V), 33-40V(DC36V), 38-46V(DC42V), 43-53V(DC48V), 49-58V(DC54V)
- Working Temperature: -40℃-+80℃
- Vibration: 10-500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
- Safety Standards: UL8750(Type "HL"), CSA C22.2 No.250.0-08, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 Independent, GB19510.1, GB19510.14, EAC TP TC 004, KC61347-2-13(Except For AB-Type), IP67 Or IP65 Approved
- Short Circuit Protection
- Over-Voltage Protection
- Over Temperature Protection
- 7 Years Warranty
Includes:
1 * HLG-100H Mean Well Waterproof Power Supply
