  • Brand: Ledbe
  • Product Code: ALP070-R

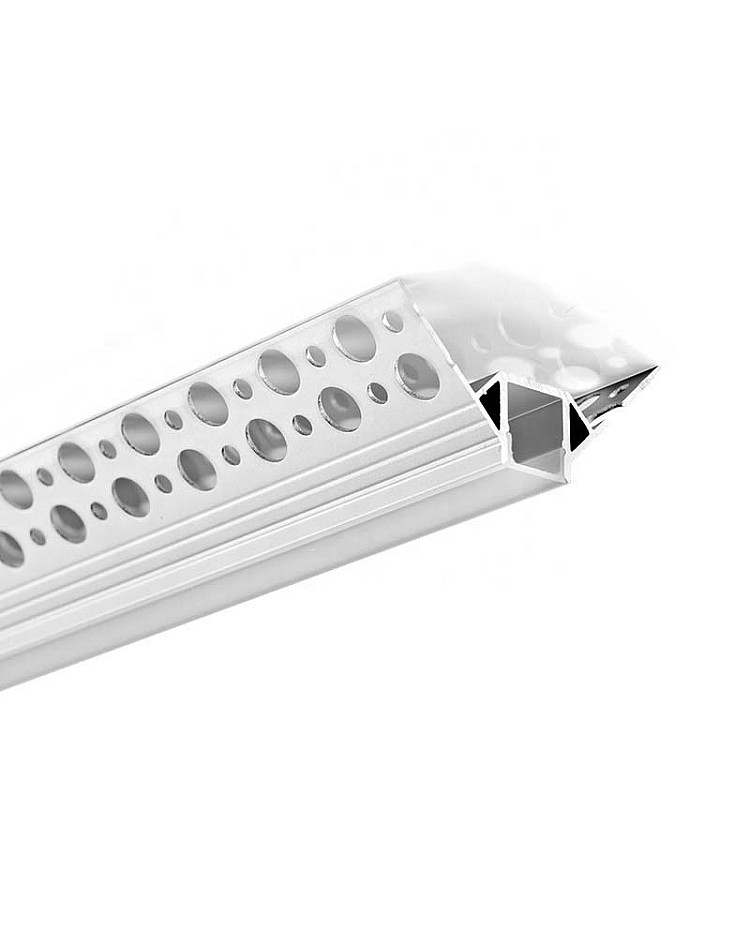

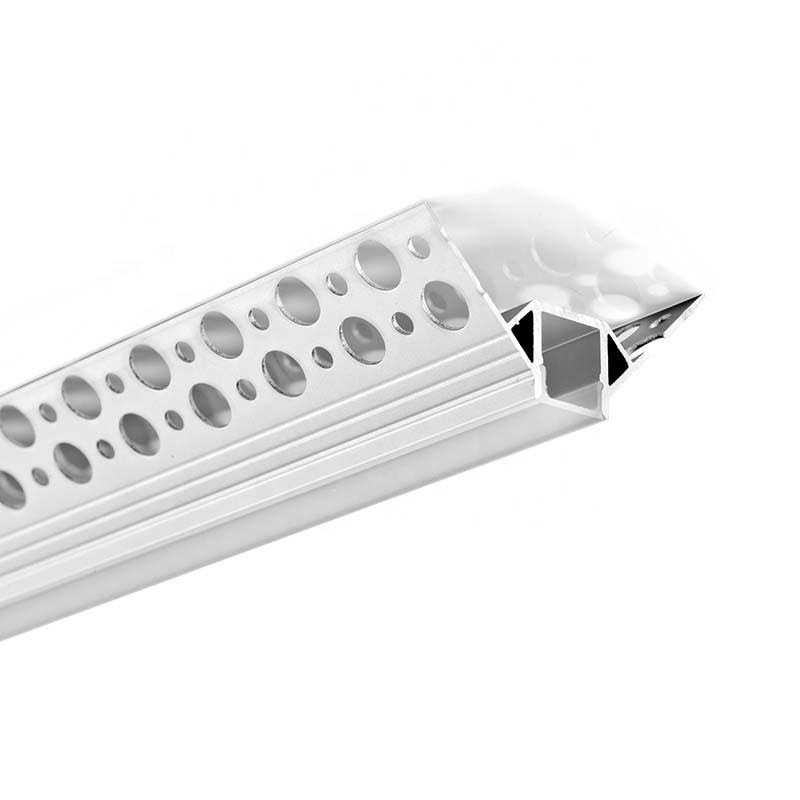

Check the Trimless LED Drywall Profile for external corner installation, made of 6063-T5 aluminum alloy material and with the silver anodized surface treatment, for a better anti-oxidation feature and longer lifespan. the standard length is 1meter, you also can choose other lengths like 0.5meter, 1.5meter, 2meter, 2.5meter and max 3meter. the inner width is 10.5mm, compatible with the 3528 or 2835 LED Strip Light. the end caps with wire holes and without wire holes included, you can connect them to the LED Power Supply or LED Dimmer to light them up or adjust the brightness. there is only one type of diffuser available, the PC diffuser cover, which is made of brand material from Japan with stable quality, anti-yellowing, perfect light distribution and high light output.  this style of LED Corner Profile 2M for the drywall recessed installation, LED Profile Trockenbau has a compact design to recess easily into walls or ceilings with a thin layer or plaster, easy to install and maintain, 3 years warranty.


  • Material: 6063-T5 Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Model: ALP070-R
  • Color: Silver, White, Black

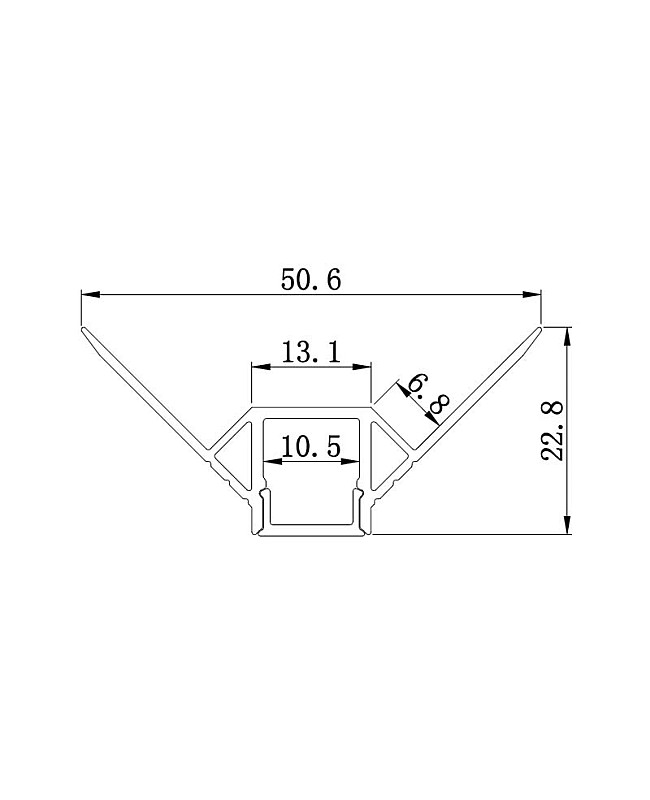

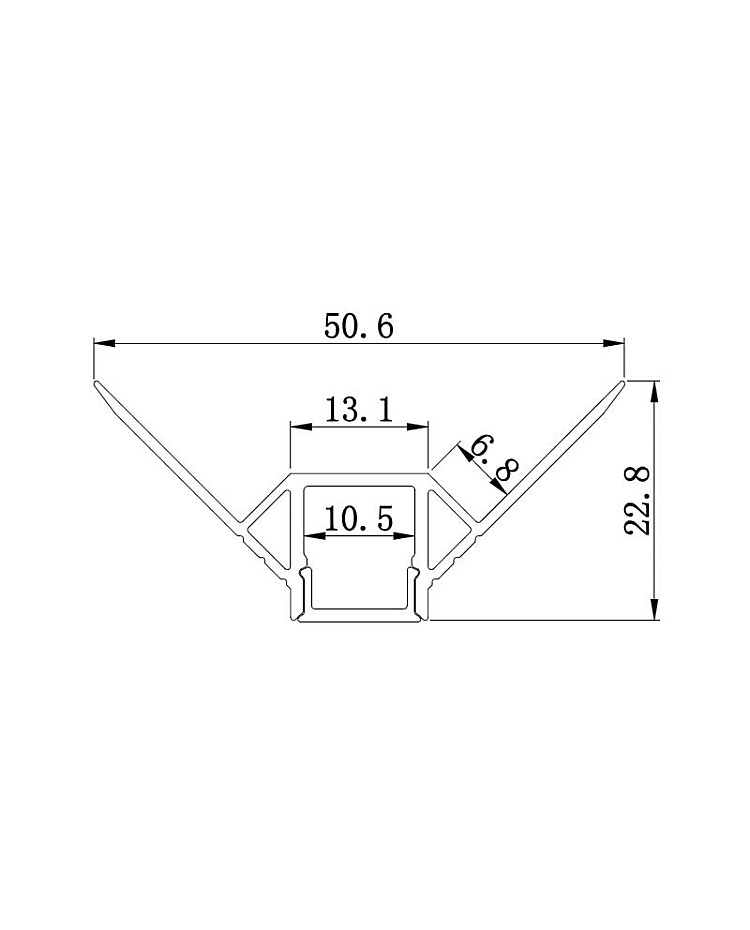

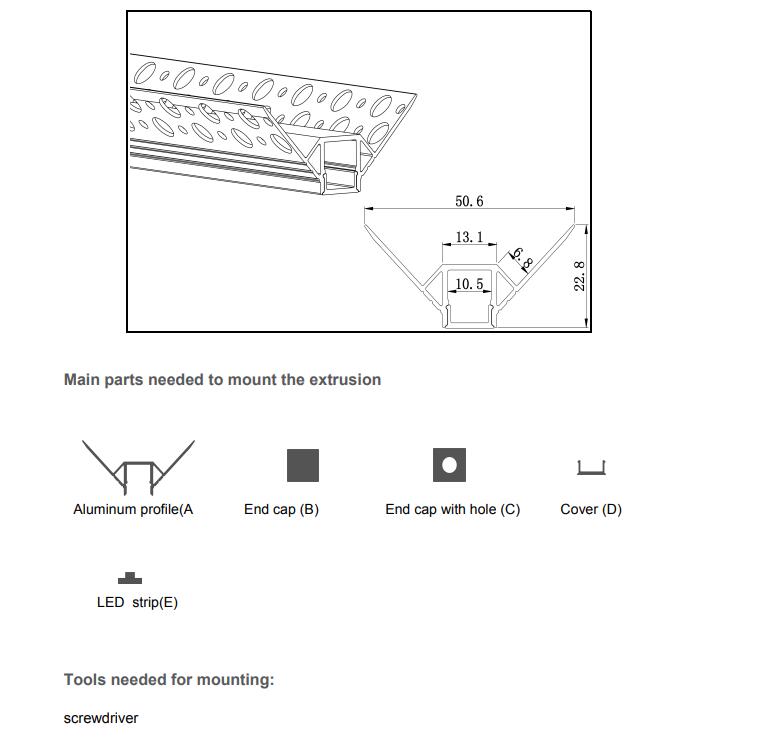

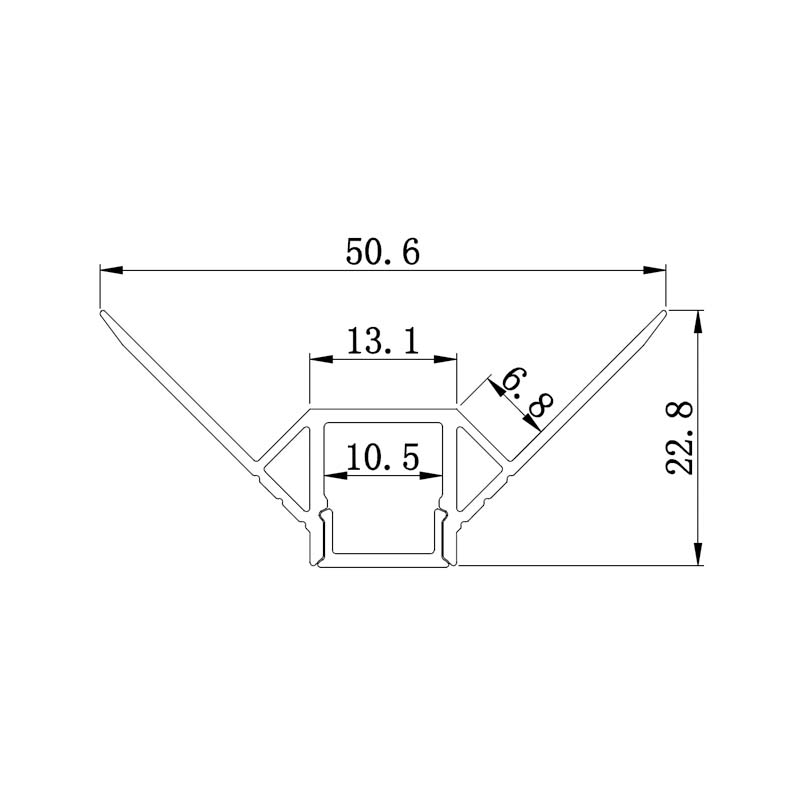

  • Size: 50.6*22.8mm
  • Standard Length: 1Meter
  • Other Lengths Available: 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES
  • Diffuser: PC Diffuser Cover
  • Inner Width: 10.5mm
  • Compatible With 2835, 3528 Or 5050 LED Light Strips
  • Max Power: <15W/Meter

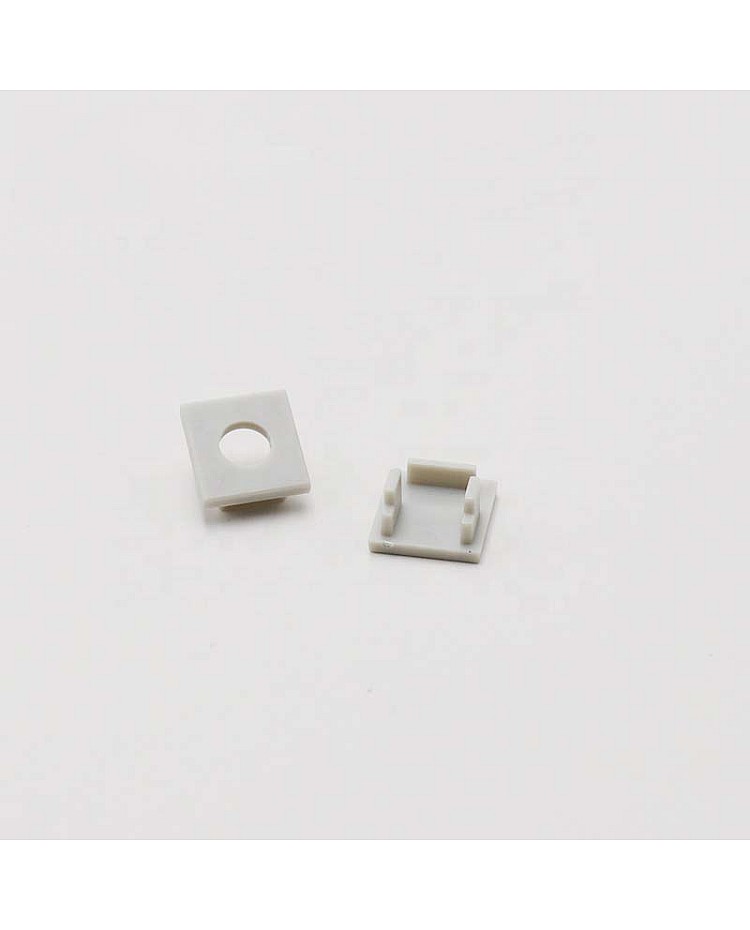

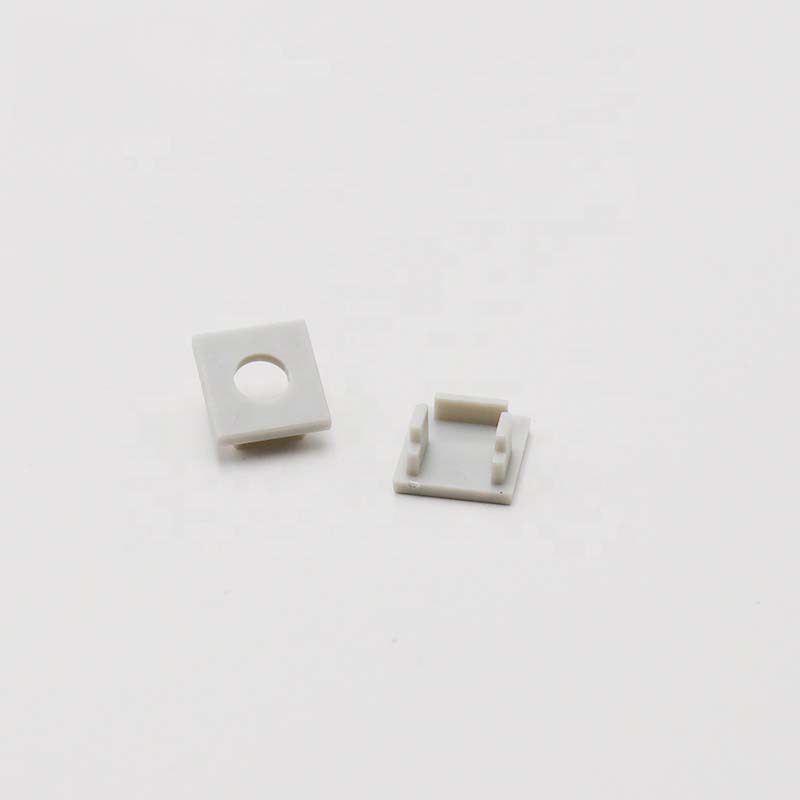

  • End Caps With Wire Hole And Without Wire Hole Included

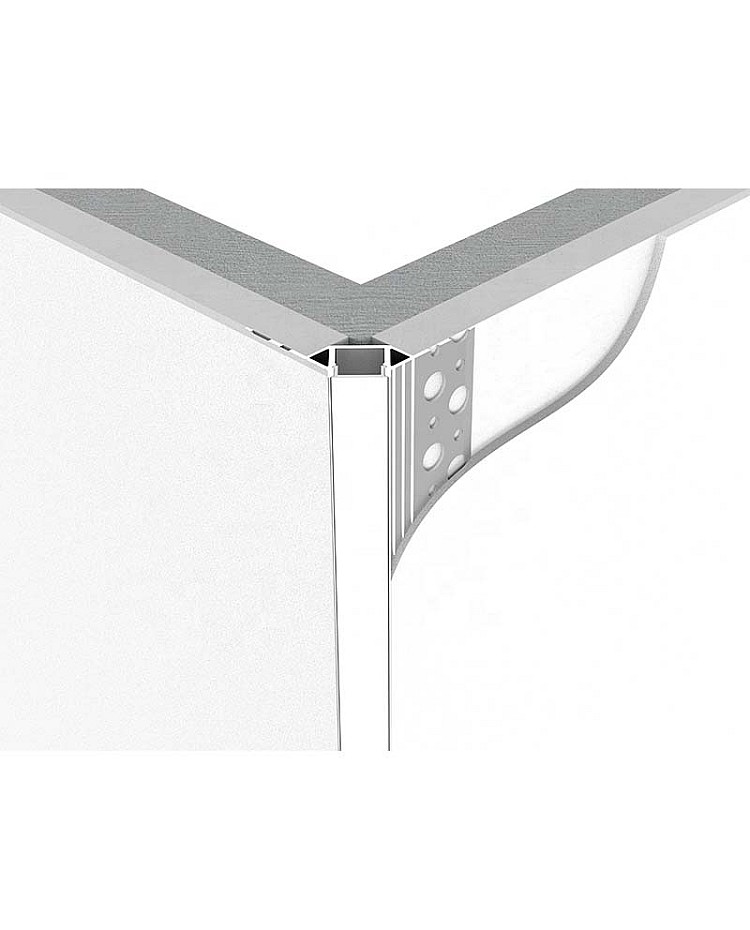

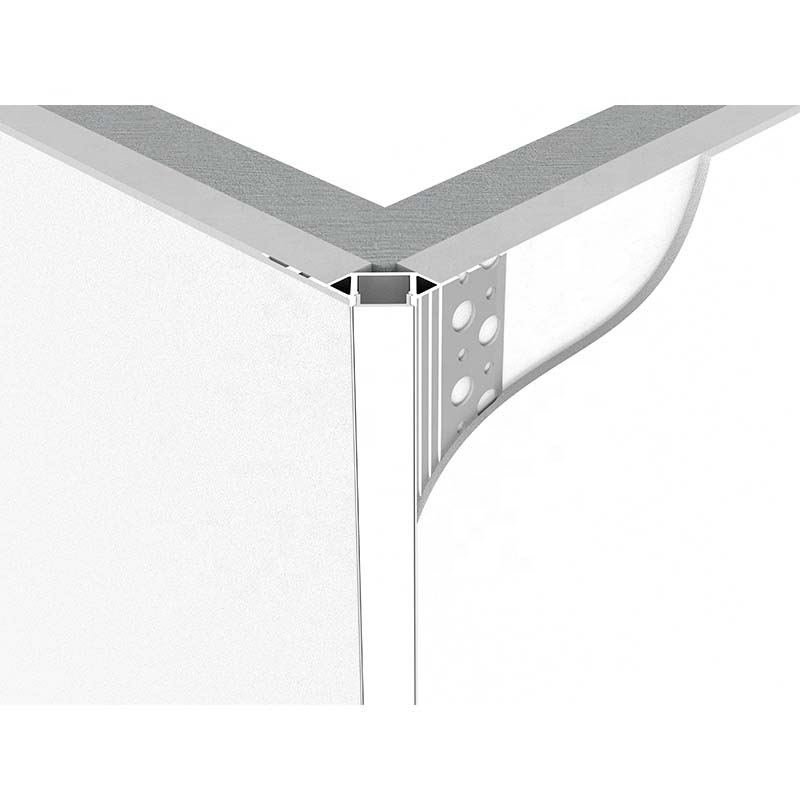

  • Installation: Drywall Recessed

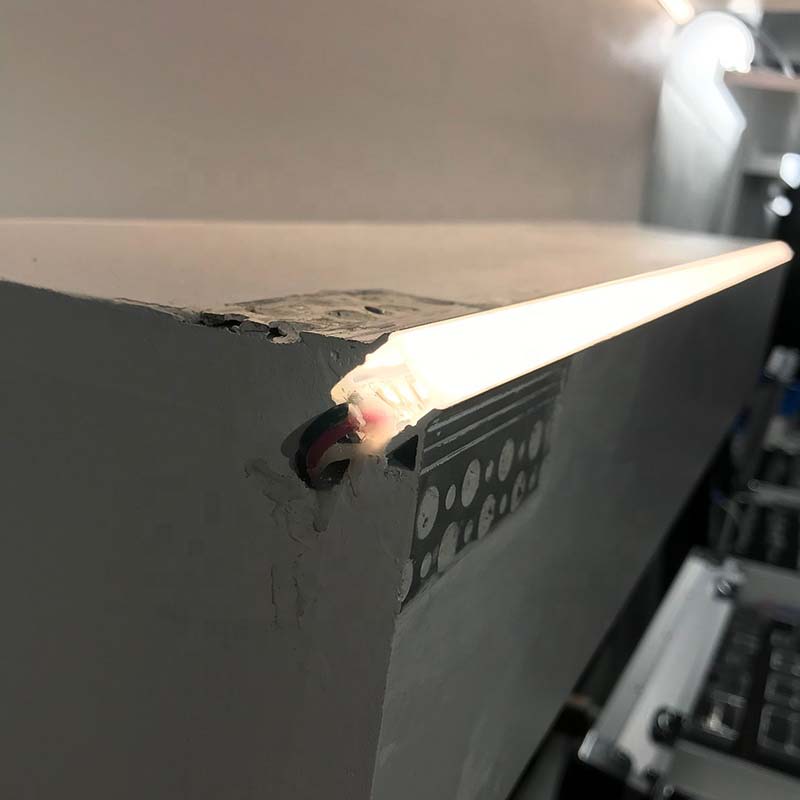

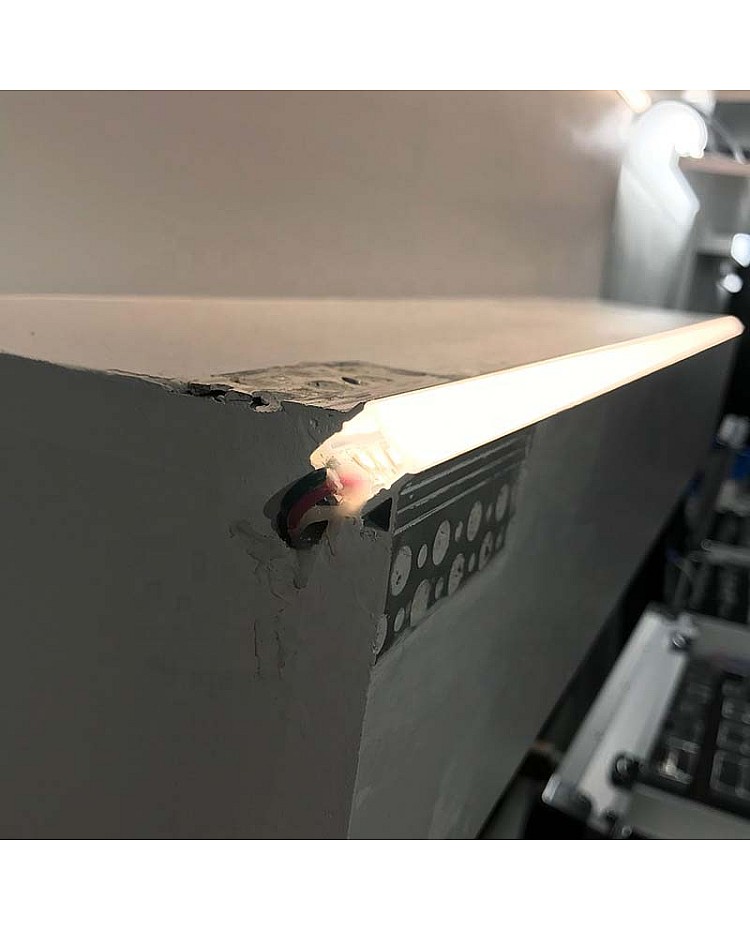

  • Applications: Drywall/Plasterboard/Gypsum Structure
  • Warranty: 5 Years


1*LED Drywall Profile

End Caps

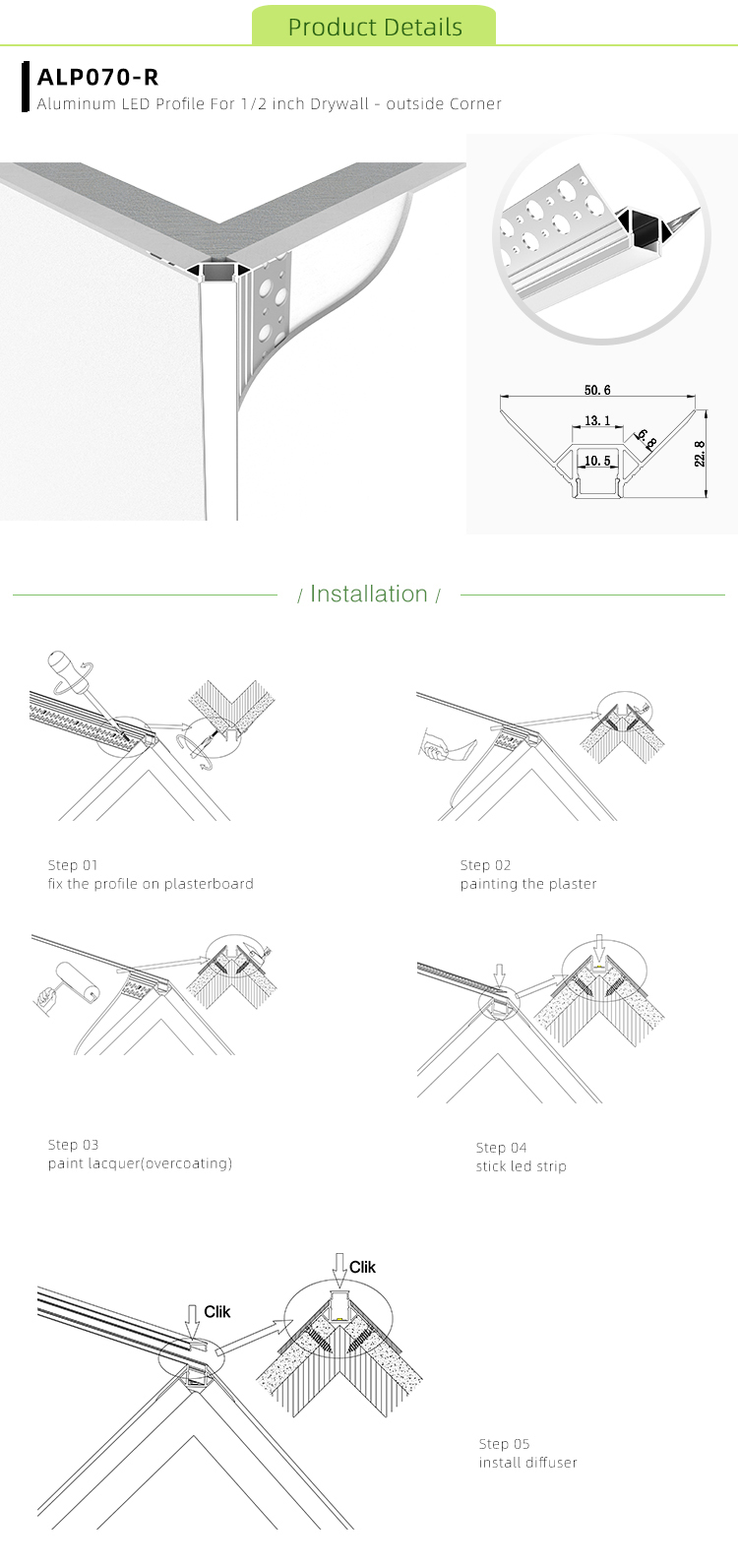

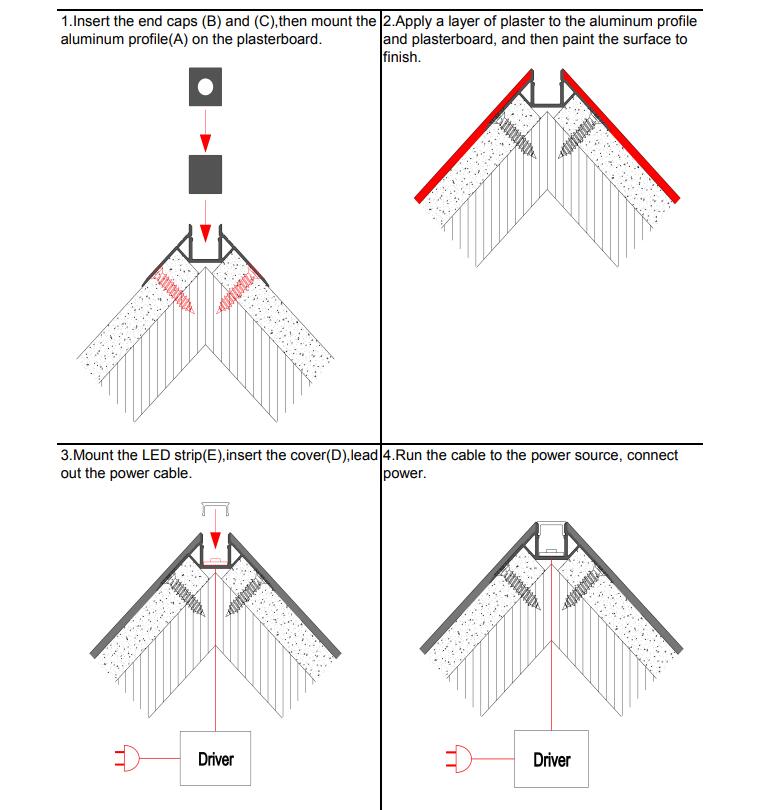

How To Install The LED Drywall Profile:

1. Fix The Profiles On The Drywall.

2. Painting The Plaster.

3. Paint Lacquer(Overcoating).

4. Stick The Flexible LED Strips.

5. Install The LED Diffuser.

Trimless LED Dry Wall Profile LED Dry Wall Profiles External Corner LED Drywall Profiles How To Install External Corner LED Drywall Profiles
