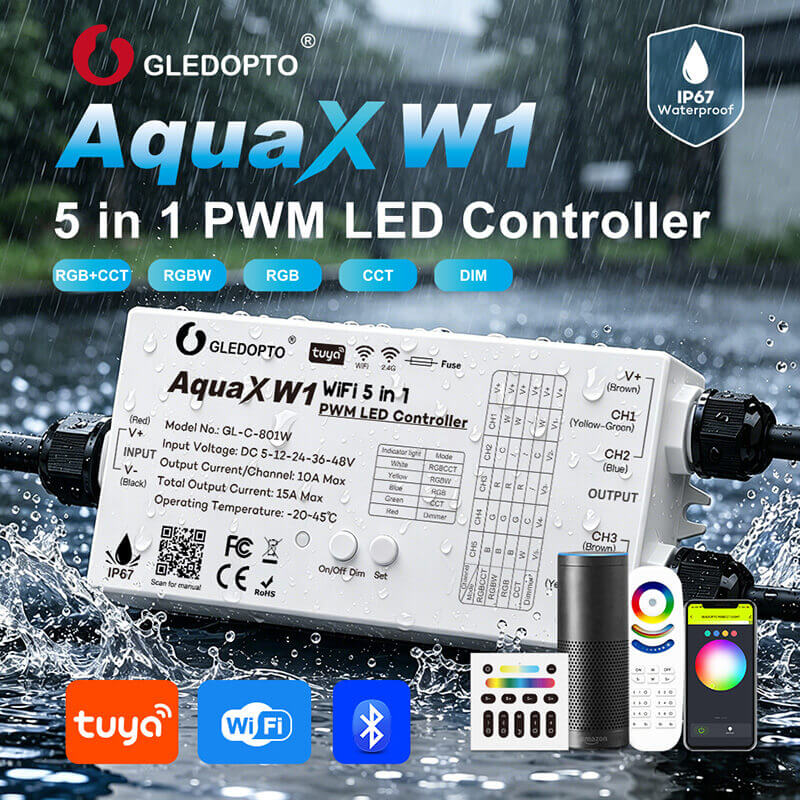

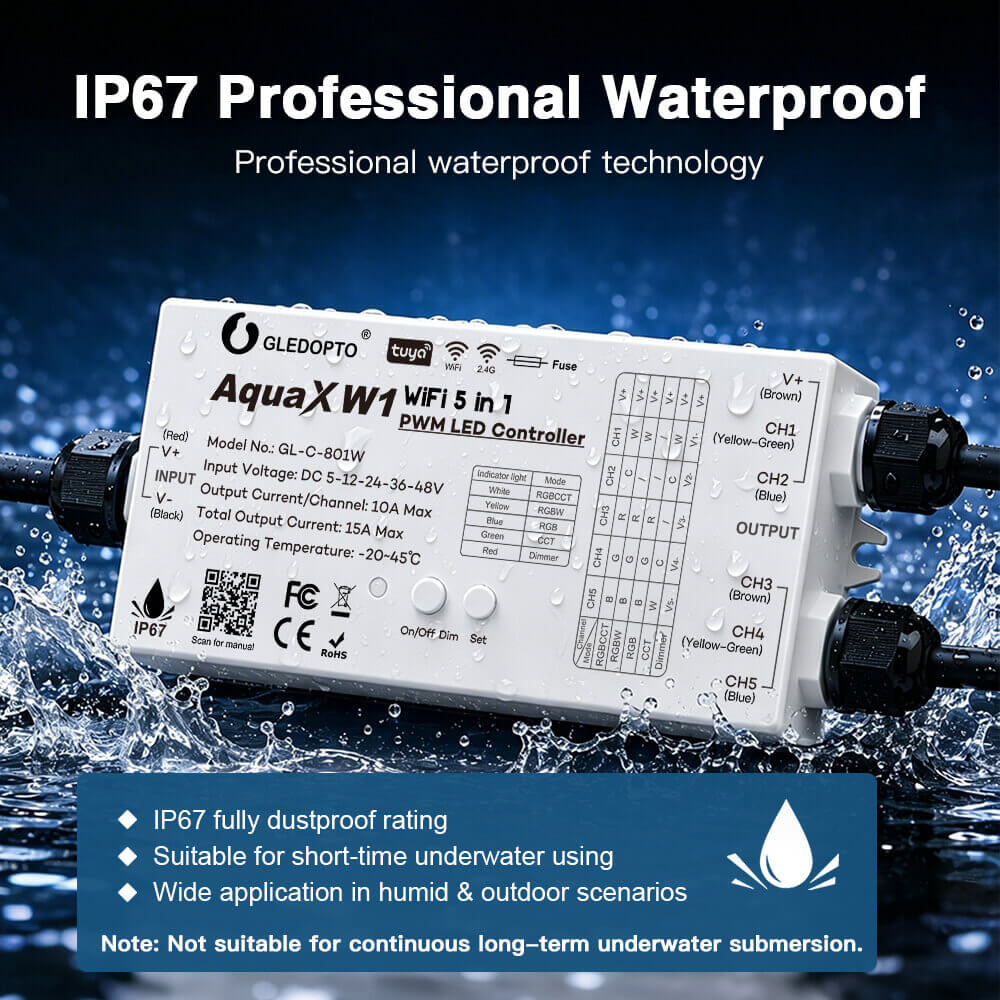

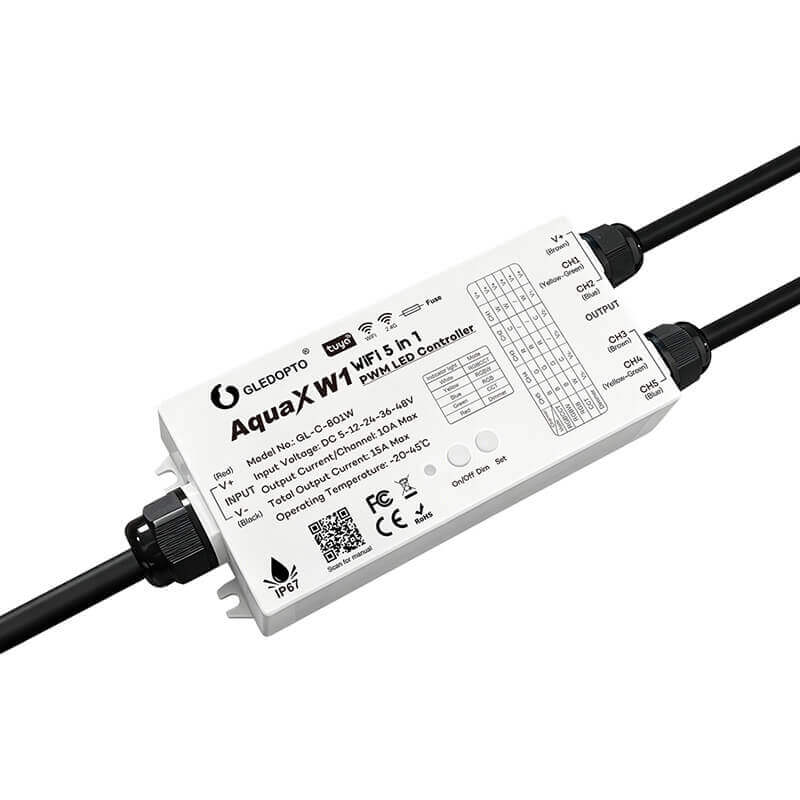

The Gledopto GL-C-801W is a waterproof LED controller that is designed for indoor wet environments and outdoor strip light installations. It is fully sealed and IP67-rated, allowing installation in moist, dusty, rainy, and water-splash environments. Suitable for outdoor use, bathrooms, kitchens, and other rainy locations. It works with 5 types of regular LED strips and can be controlled by a phone app and remote control to set the static color, dynamic mode, and adjust color temperature and brightness.

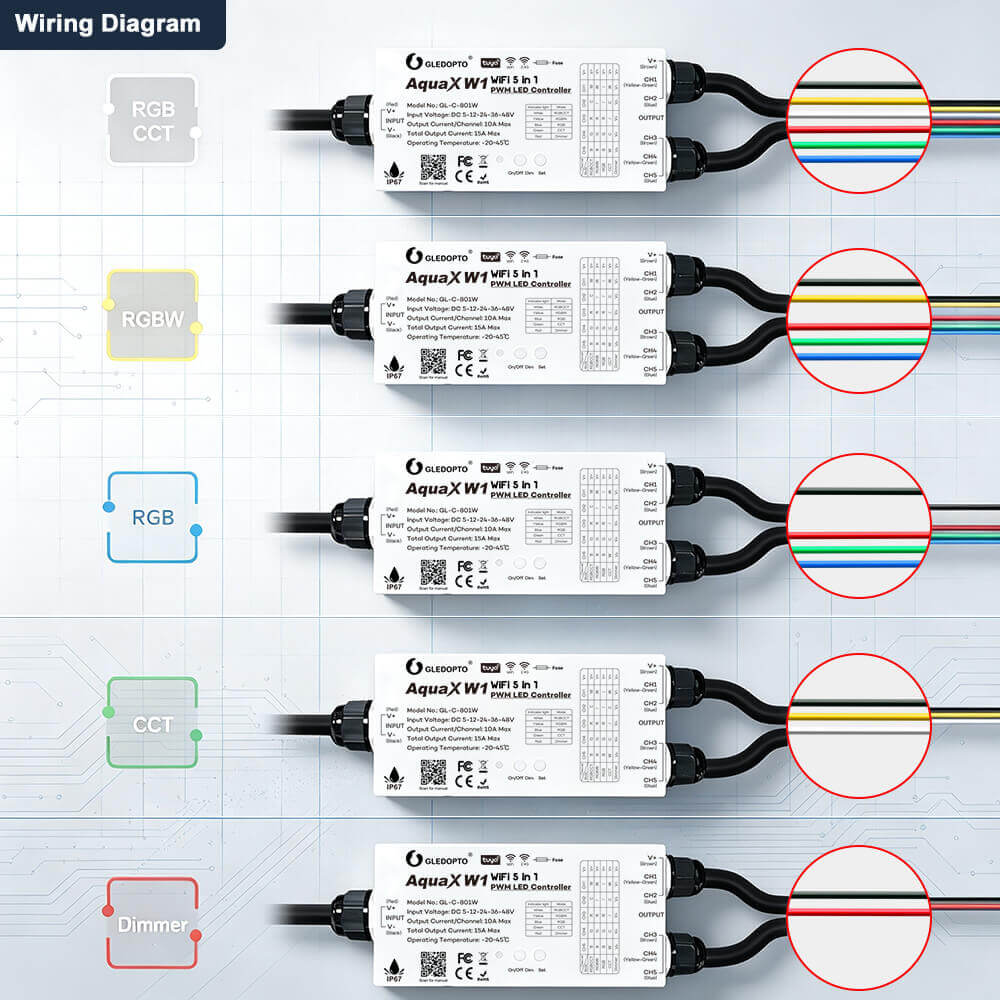

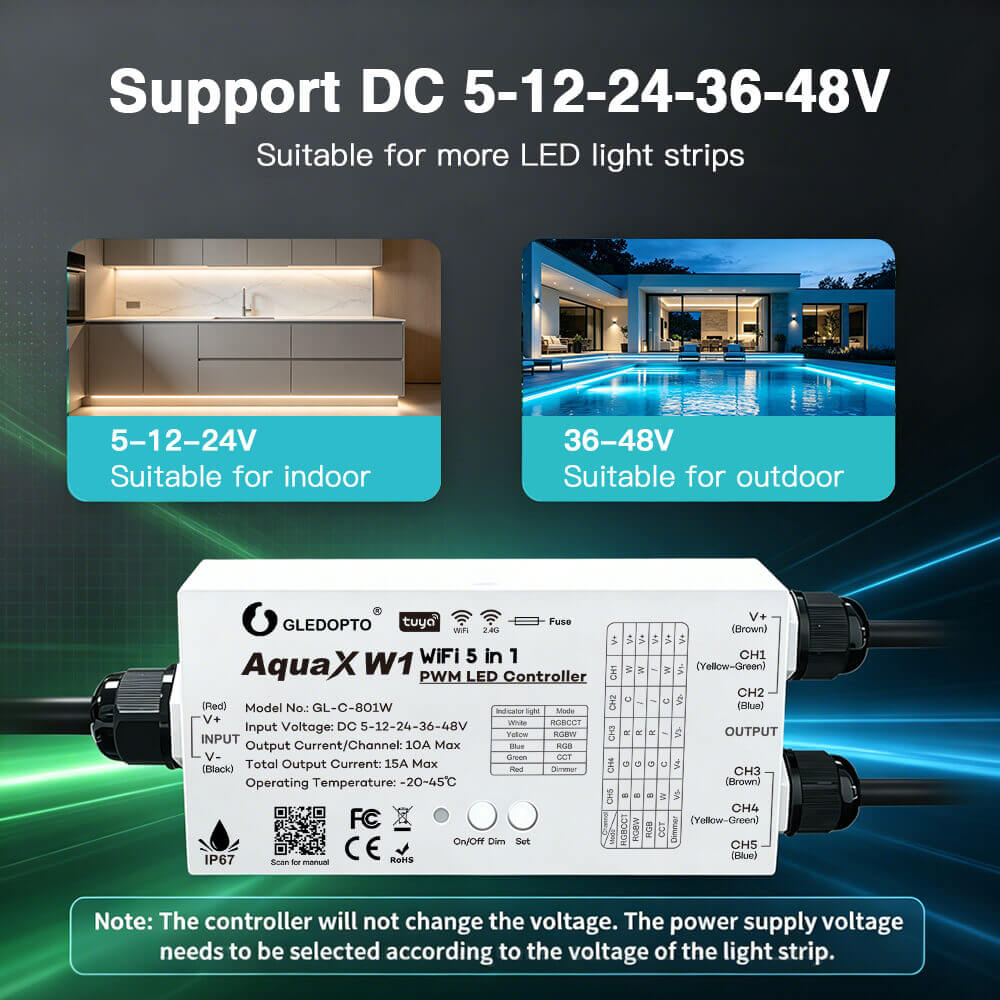

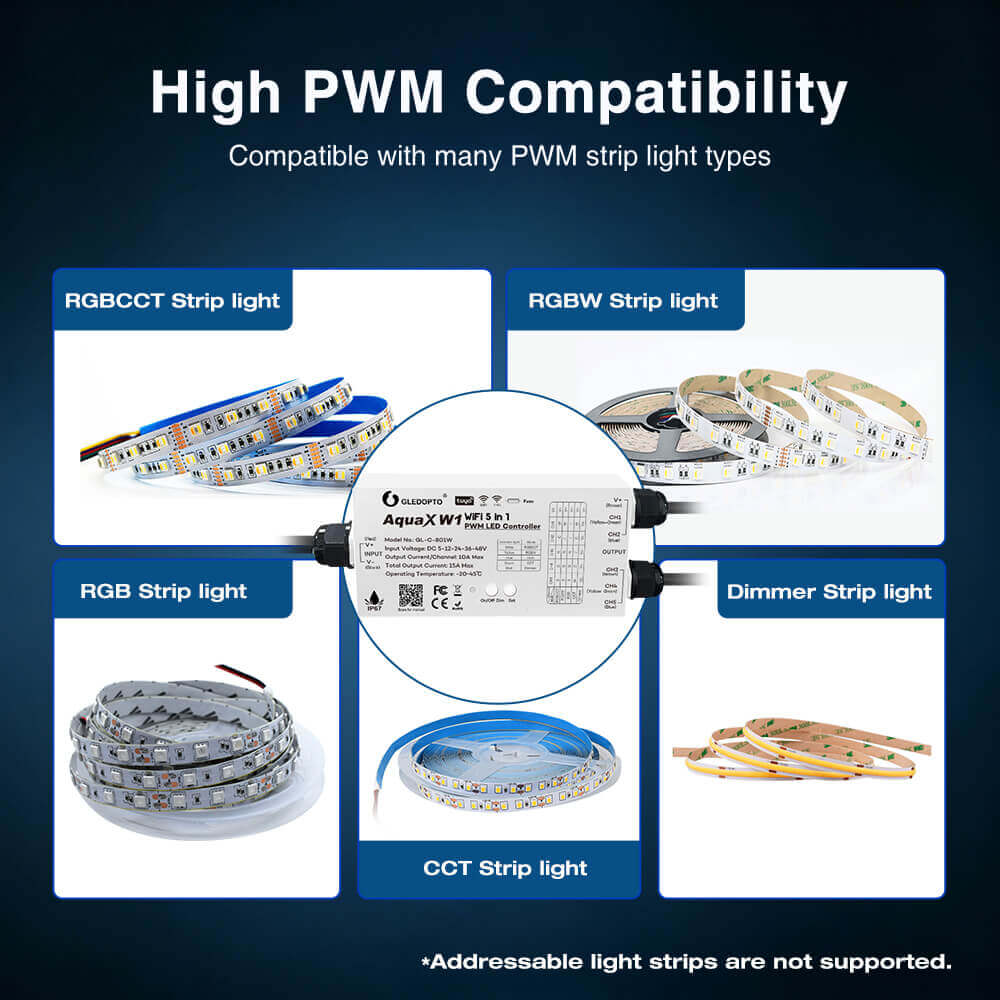

The IP67 waterproof LED strip controller features a 5-in-1 design with five independent output channels and can work with single-color, CCT, RGB, RGBW, and RGB+CCT LED strips, whether SMD or COB. Supports DC5V, DC12V, DC24V, DC36V, and DC48V input, accommodating more LED strips for indoor and outdoor use.

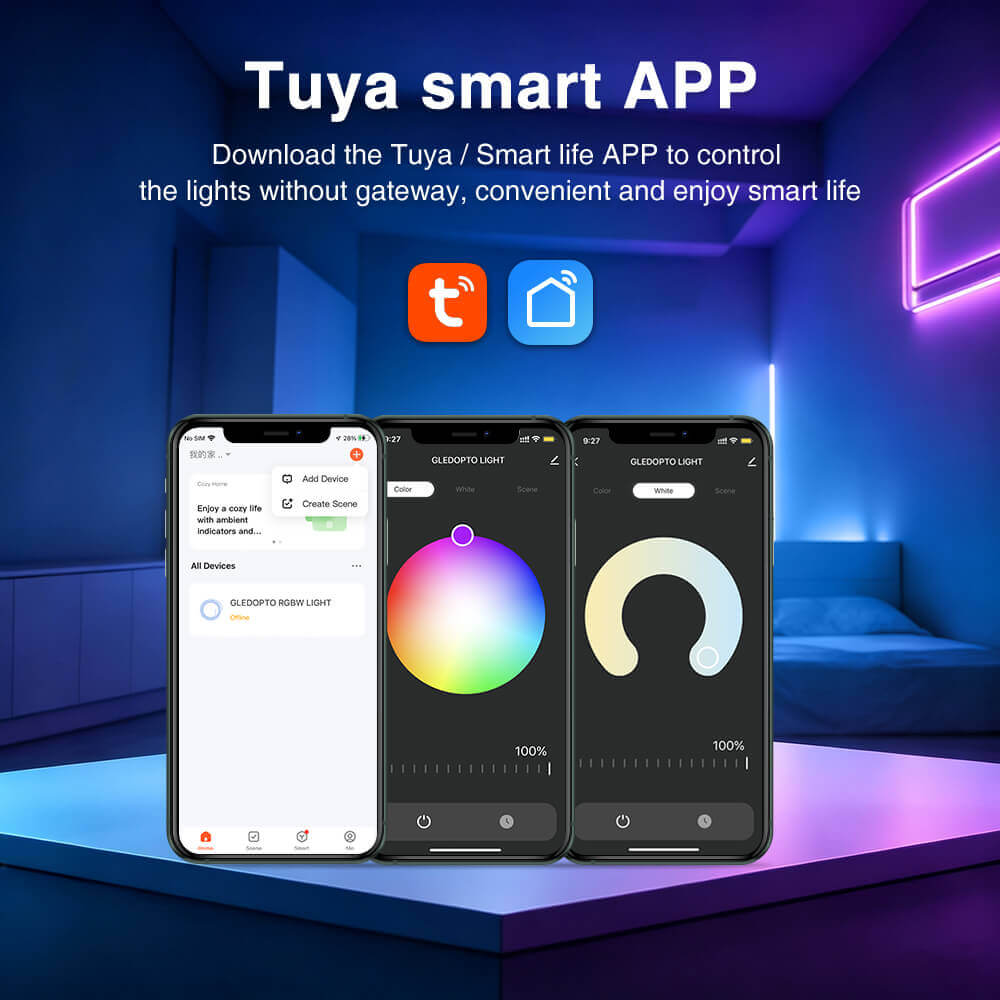

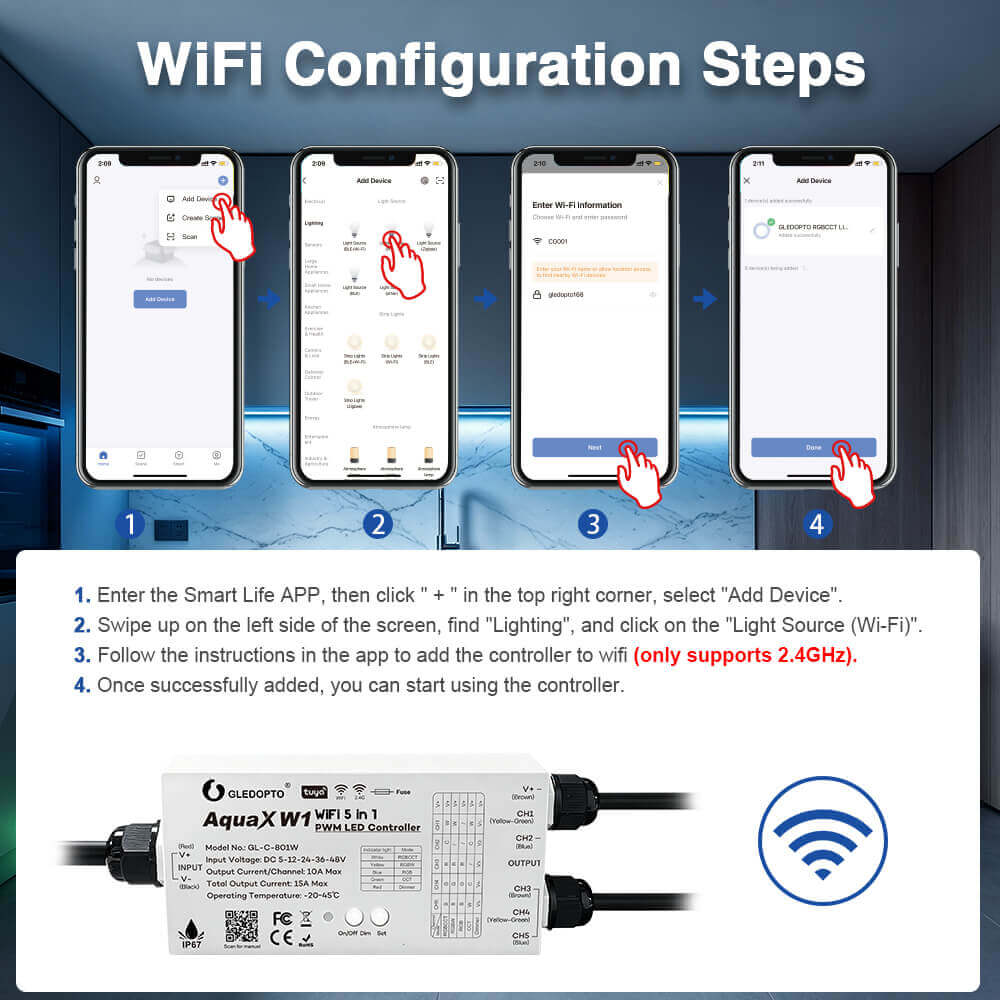

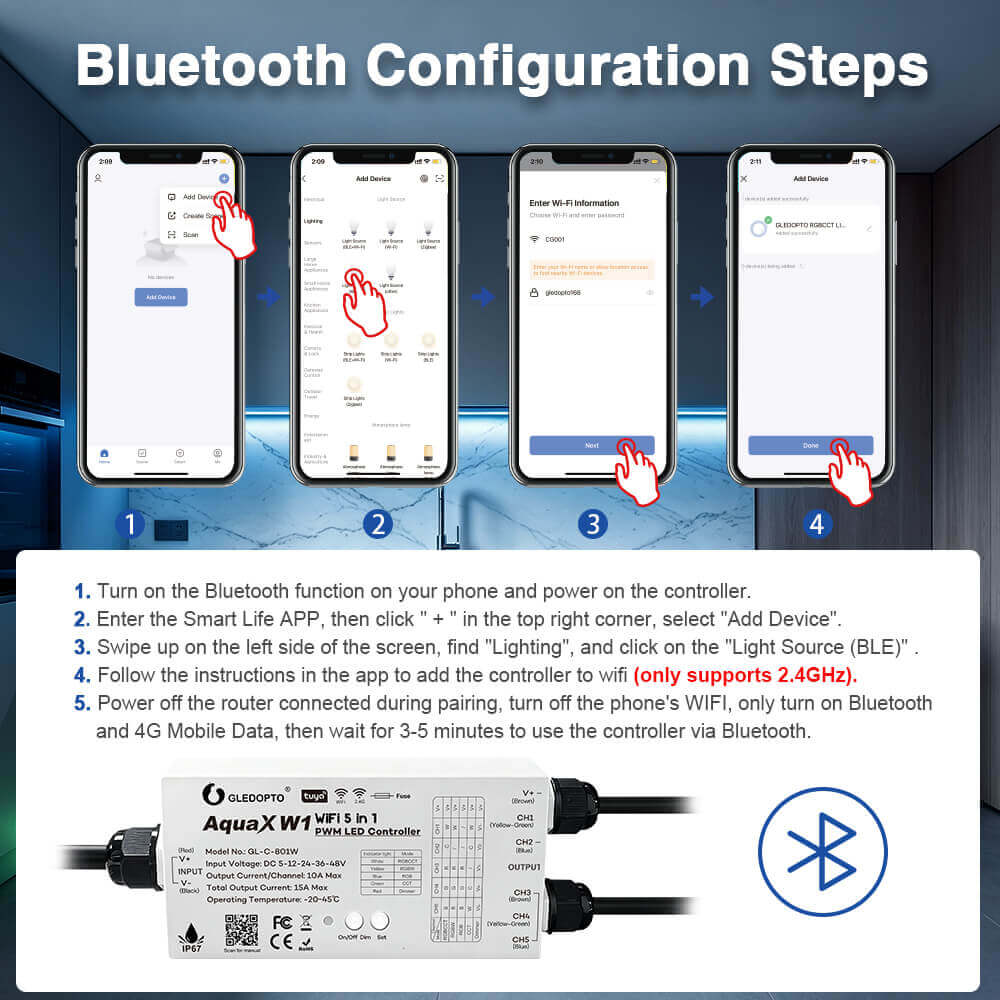

The PWM LED controller integrates WiFi, 2.4G, and Bluetooth communication protocols. You can use the Gledopto 2.4G remote control to control the LED strip lighting directly, or connect the controller to the Tuya Smart or Smart Life phone app via WiFi or Bluetooth. It offers 16 million colors, plus dynamic modes, adjustable color temperature, and brightness. You can easily customize the lighting to create the perfect ambiance. It also works with Amazon Echo Plus, letting you control the lights with voice commands.

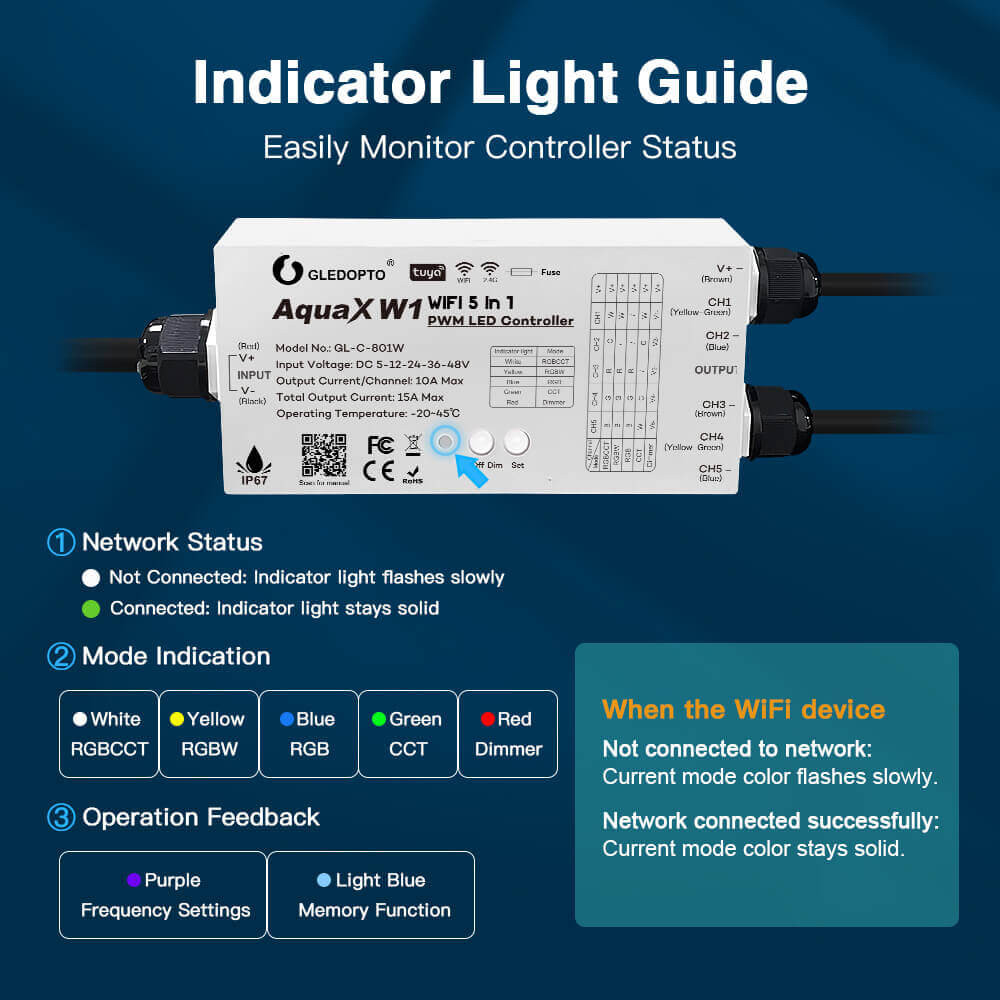

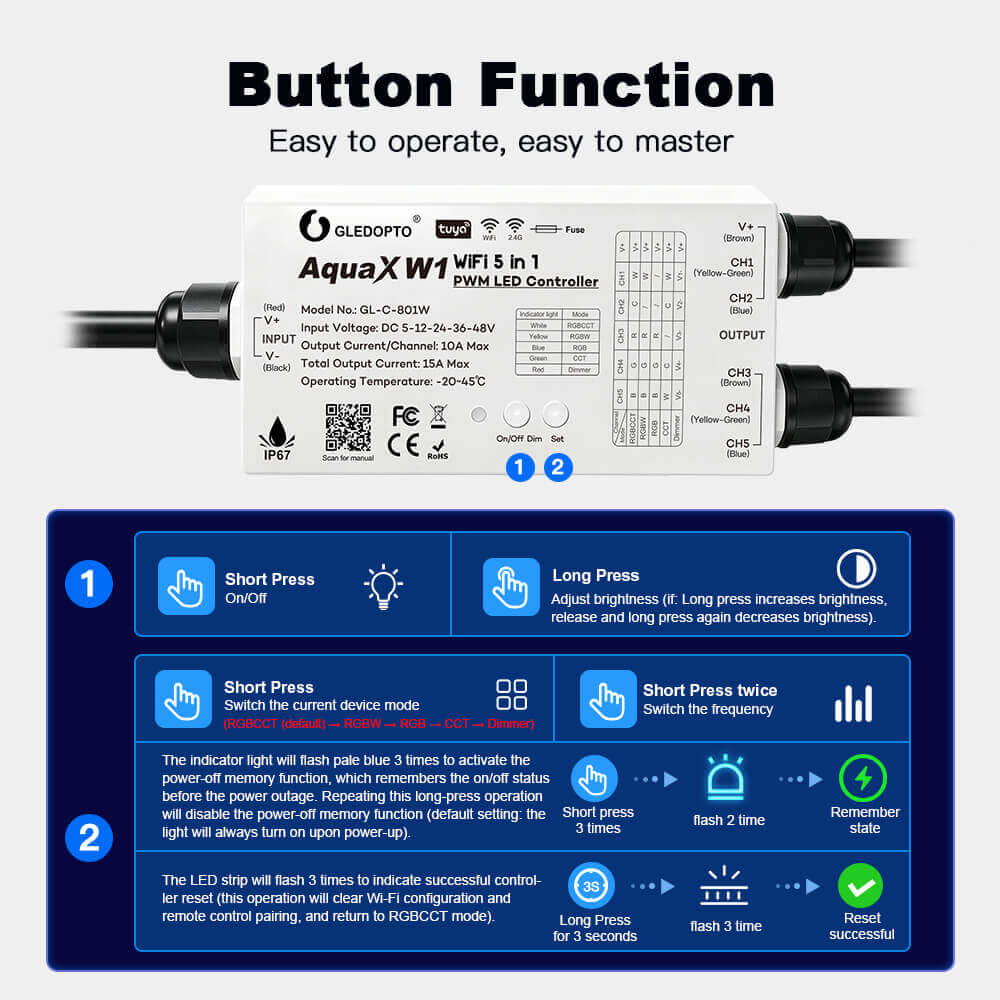

The controller has two physical buttons for quick operation. Press the "on/off dim" button to turn the lights on/off and quickly adjust the brightness of the tape lights. Another "Set" button lets you switch the output mode and frequency or activate the memory function. The indicator light clearly shows your controller's status.
Link: GL-C-801W user manual
Specifications:

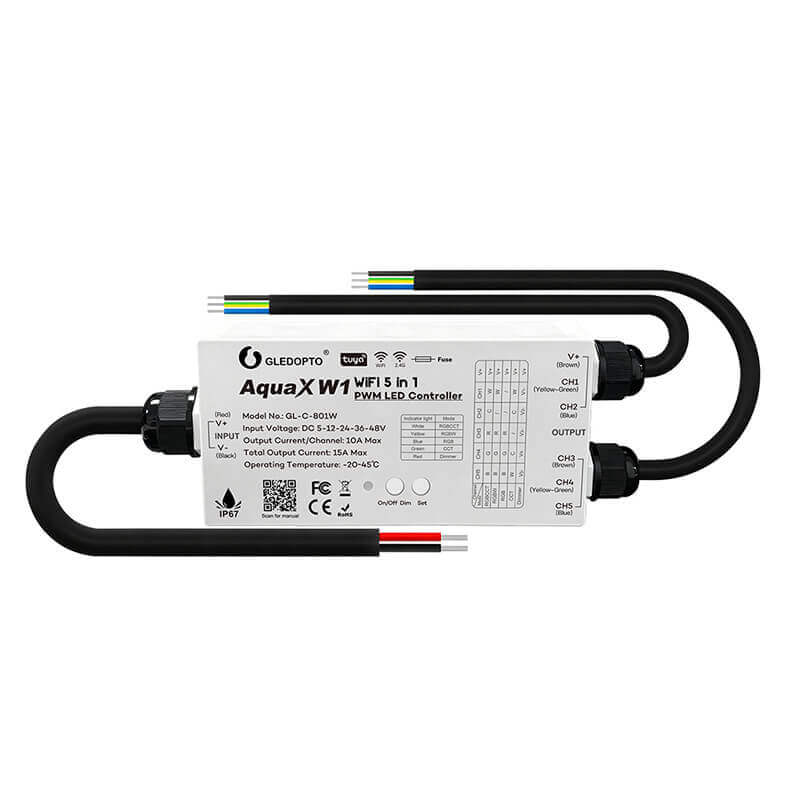

- Model: GL-C-801W
- Material: Flame-retardant PC
- Color: White
- Size ( L x W x H ): 132 x 67 x 30 mm (5.2" x 2.64" x1.18")
- Input voltage: DC5V, DC12V, DC24V, DC36V, DC48V
- Total output current: 15 A max
- Output current per channel: 10 A Max
- 16 million colors customizable
- Color temperature and brightness adjustable
- Protocol: WiFi + Bluetooth + 2.4G RF
- 5 working modes: Dimmer, CCT, RGB, RGBW, RGB+CCT
- Tuya Smart / Smart Life app control
- 2.4G RF remote control
- Works with Amazon Echo Plus

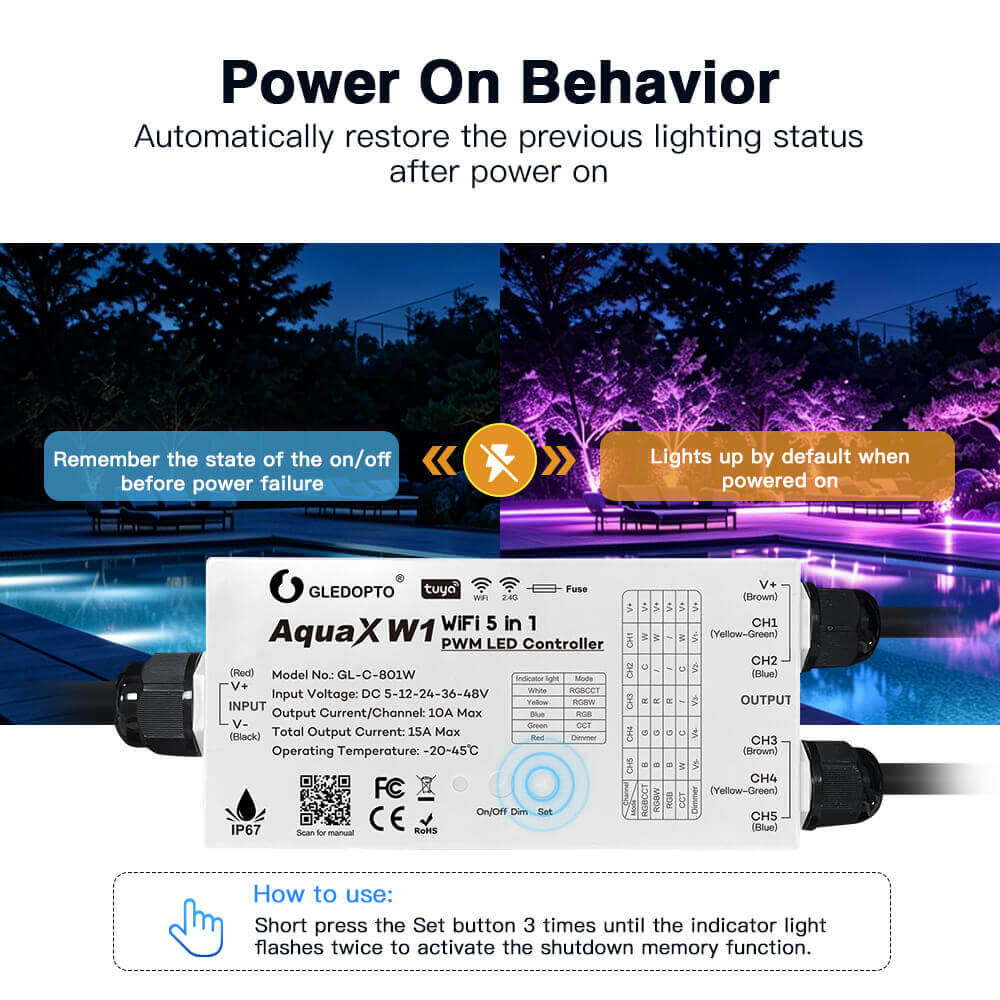

- Automatically restores the previous lighting setting
- Two physical buttons for fast operation

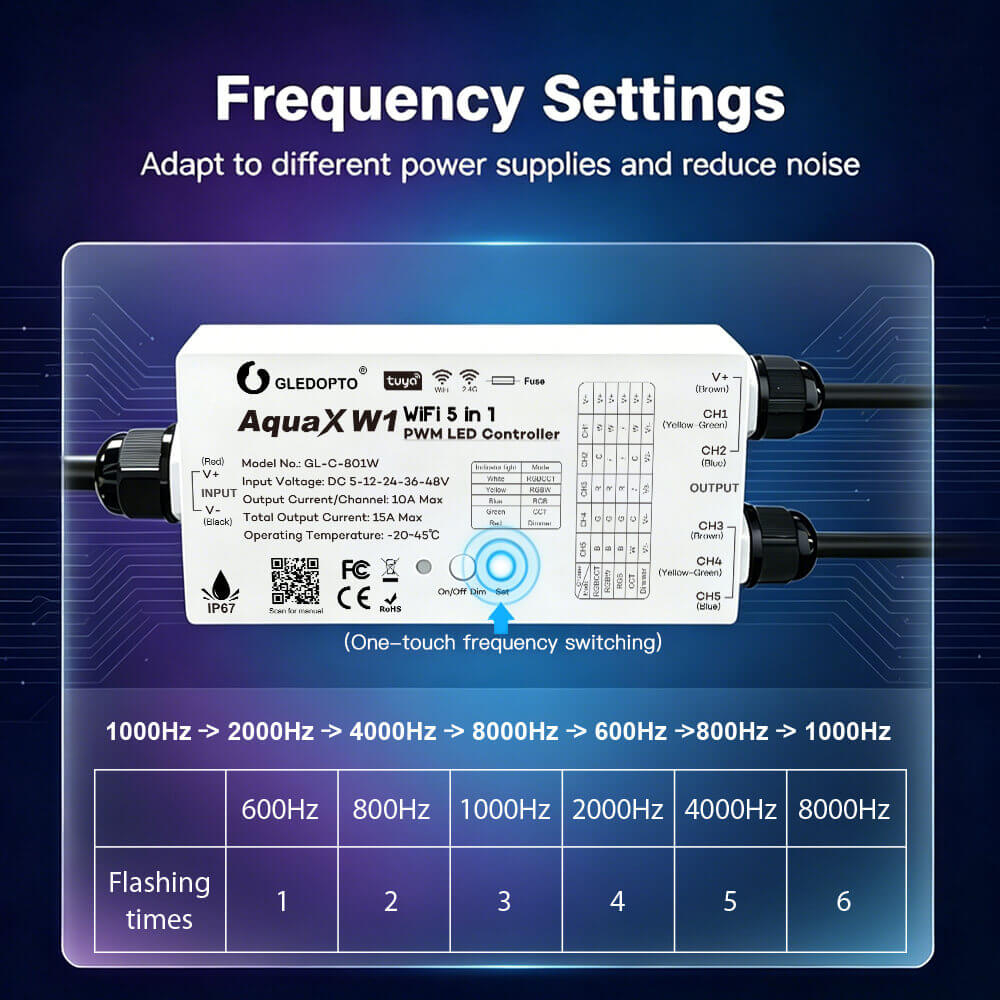

- Frequency setting: 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz, 8000Hz
- IP rating: IP67 waterproof
- Input Wire: 2 x 2.5² (25cm)
- Output Wire: 3 x 1² (30cm)
- Working temperature: -20-45℃
- Warranty: 2 years
