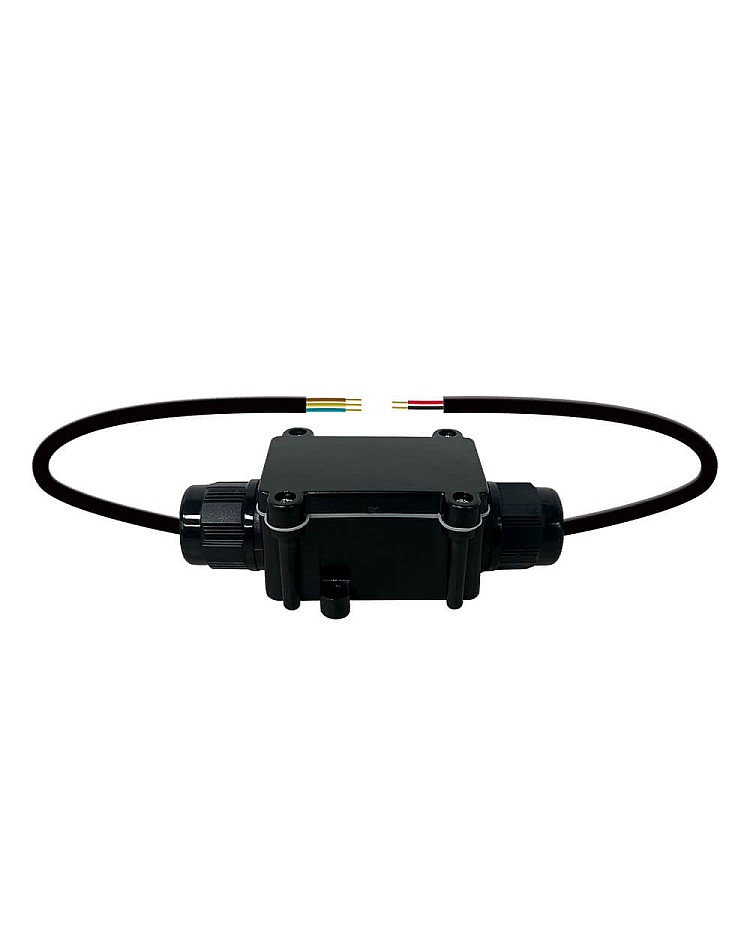

The Gledopto waterproof WLED controllers are designed for smart LED strips or fixtures and are suitable for installation in wet environments, including bathrooms, shower niches, and kitchens. They integrate the robust ESP32 chip and make it easy to control your lights via the WLED Native app over WiFi. The app features over 100 special lighting effects and allows control of segmented color. The outdoor LED controllers are compatible with the most popular IC chips, including WS2811, WS2812B, SK6812, and WS2805, and support up to 800 PCS of ICs. The on-board switching regulator powers the ESP32 chip and includes a built-in MOSFET relay to disable the output when the WLED is off. You can use a WLED remote to control the controllers without operating your phone.
Link: Waterproof WLED controller user manual
Specifications:

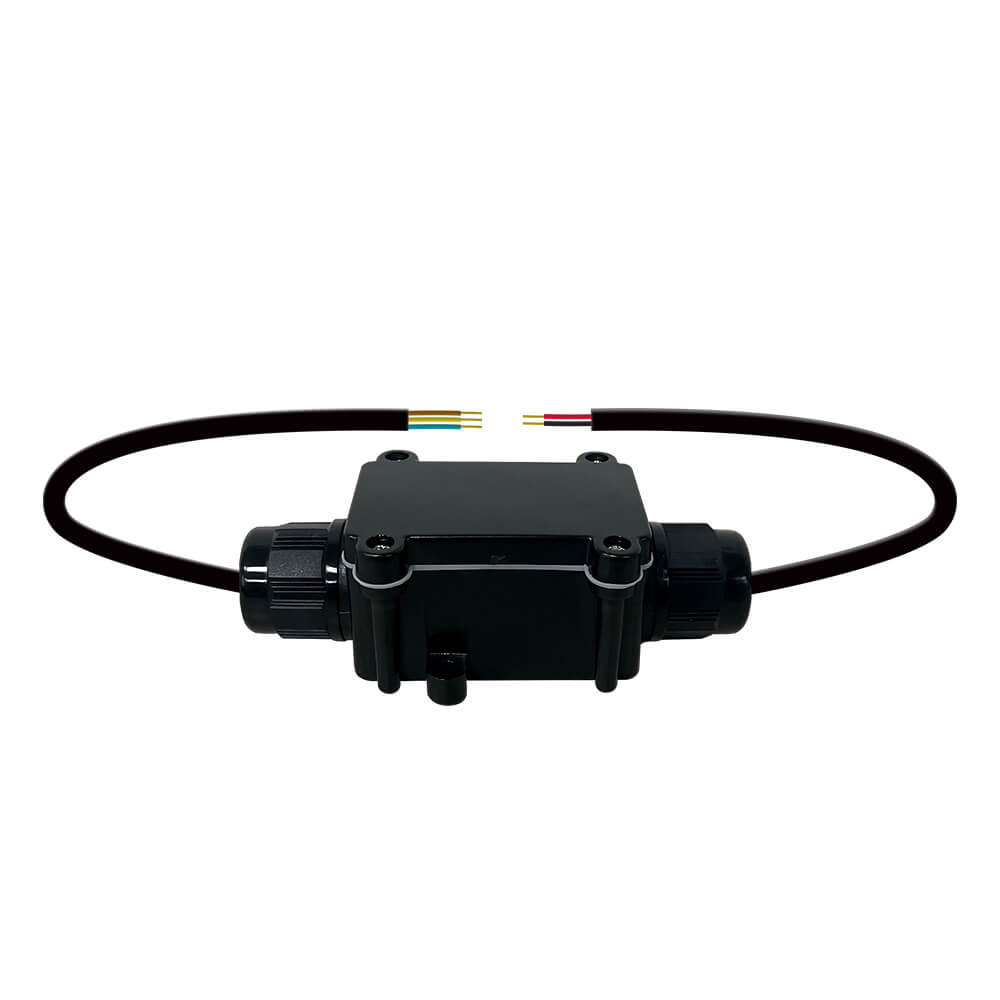

- Model: GL-C-012WL
- Size ( L x W x H): 151mm x 38mm x 16mm/5.94"x 1.5" x 0.63"
- Chip: ESP32
- Input voltage: DC5-24V
- Input current: 10A Max
- Max supported IC: 800PCS
- Suported IC chips: WS2811, WS2811F, WS2812B, WS2813, TM1814, WS2814A, SK6812, WS2805, WS2815, GS8208, SM16703, SM16703SP3, FL19038, FW1935, FL19038, etc
- Over 100 special lighting effects
- Segmented color control
- IP rating: IP65 waterproof
- Wireless communication: WiFi
- App name: WLED Native

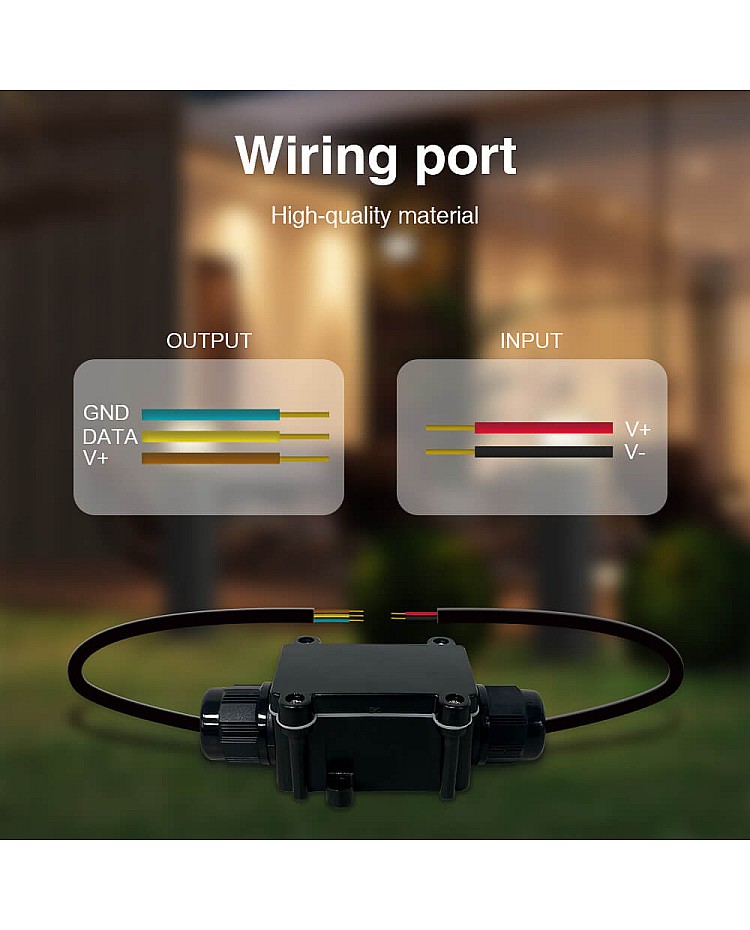

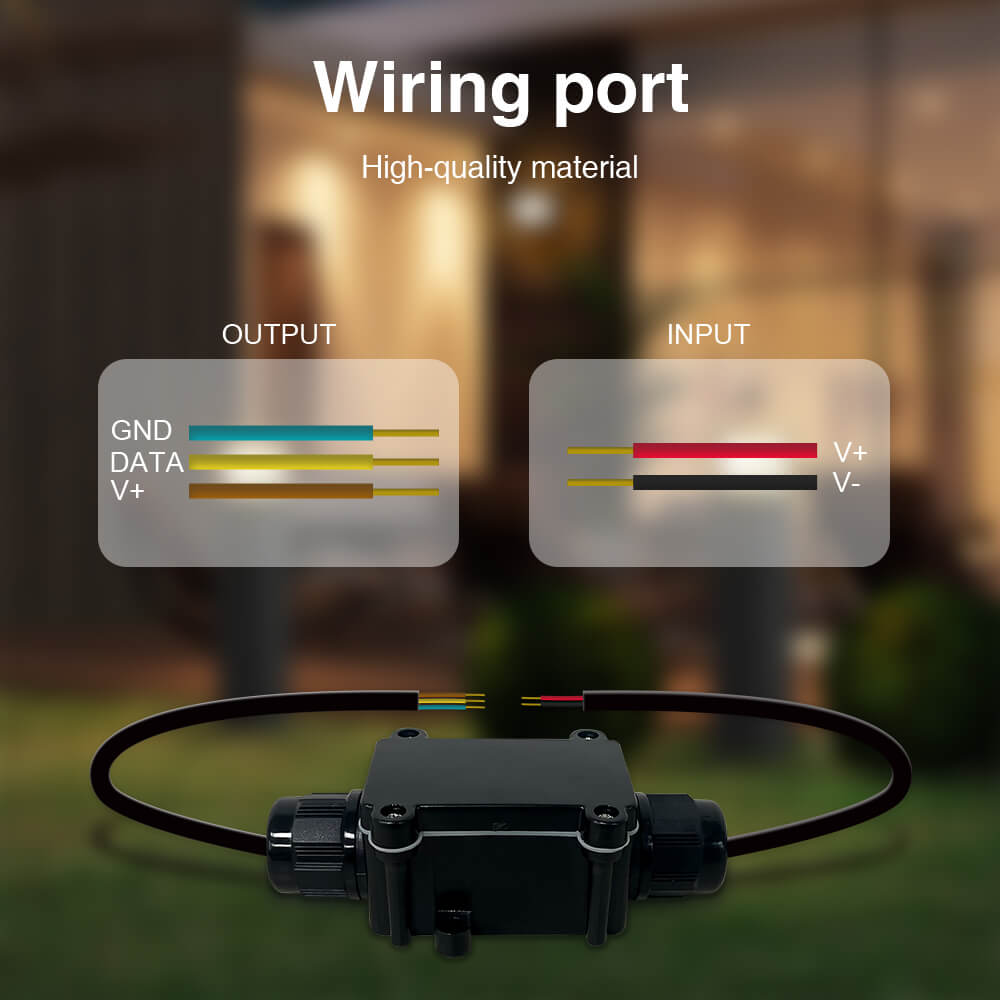

- Wire length: 300mm
- Built-in MOSFET relay
- Applications: DIY smart lighting, home ambient, outdoor architectural
- Working temperature: -20℃-+45℃
- Warranty: 2 years

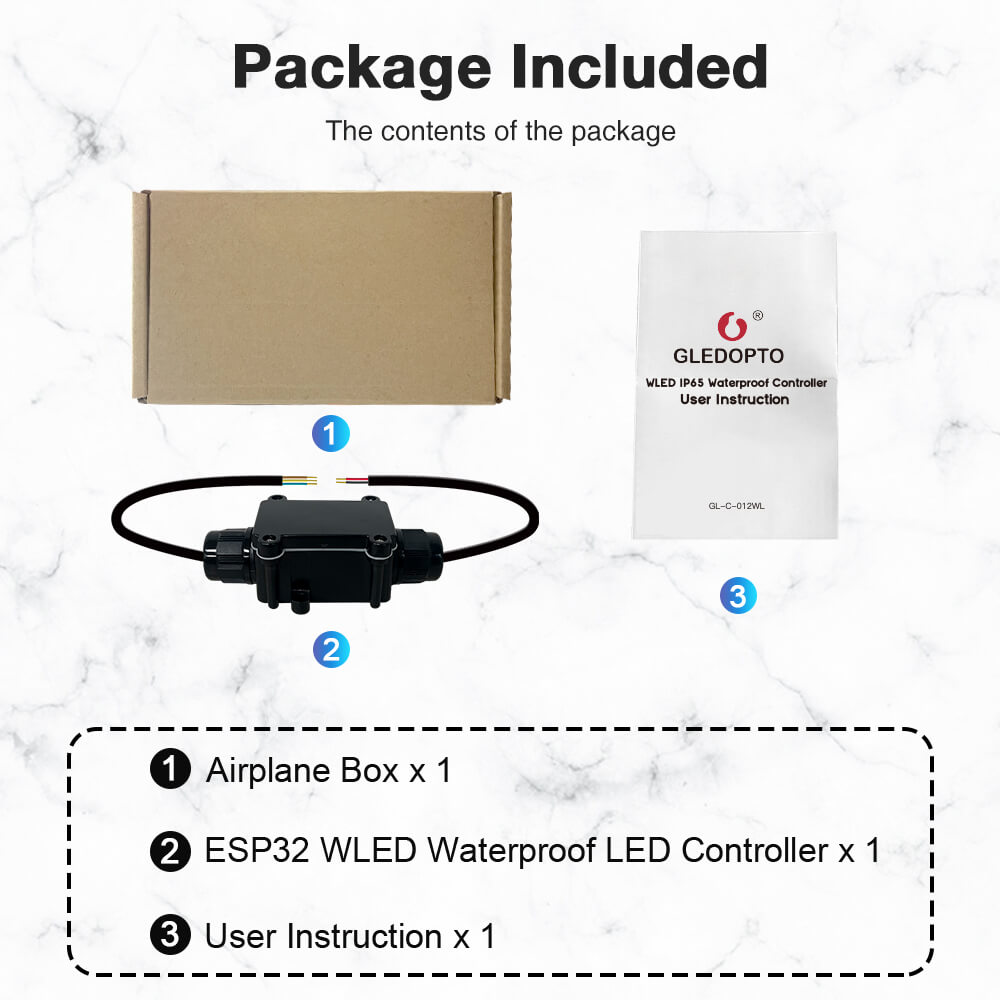

Includes:
1 x Waterproof WLED strip controller
1 x User manual
