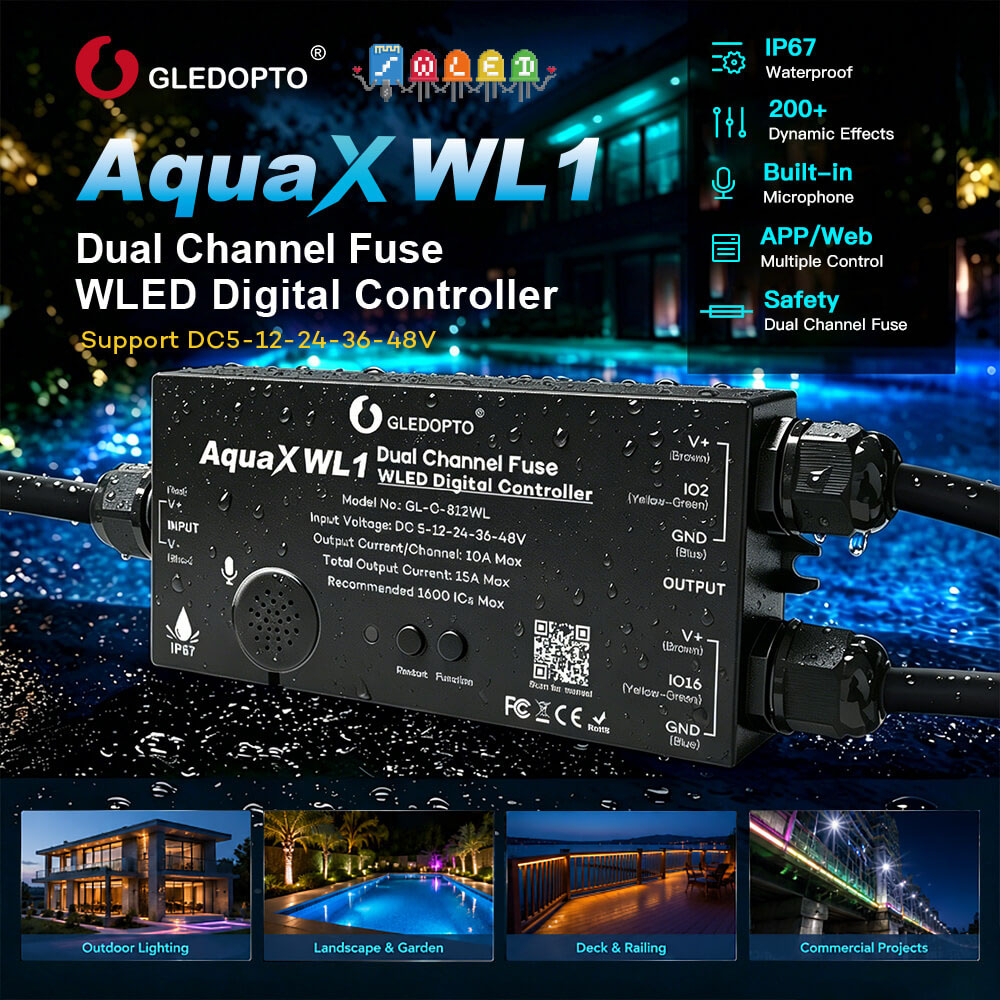

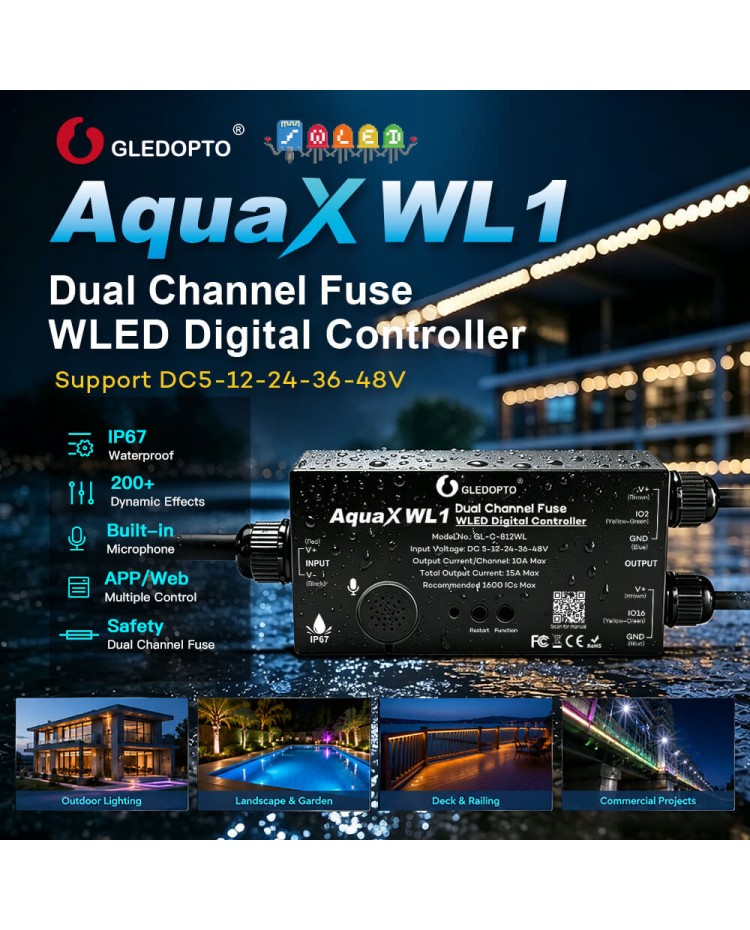

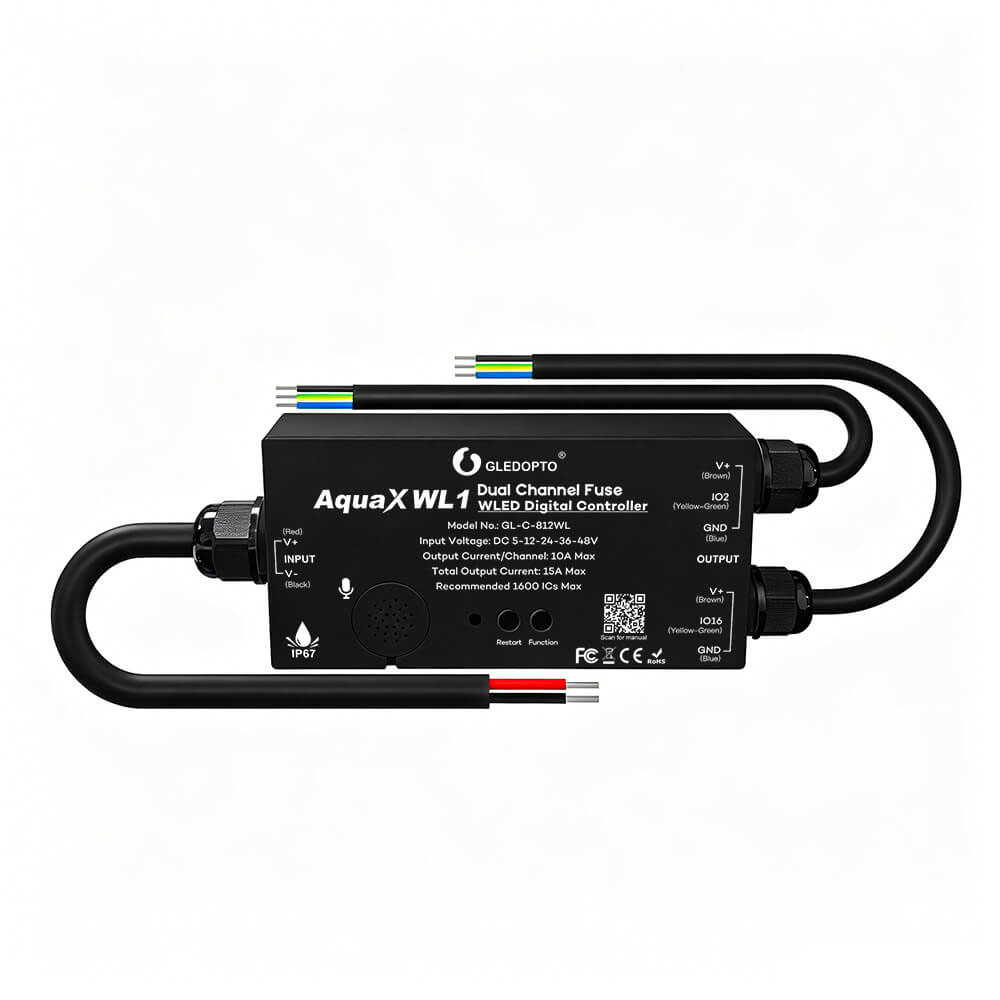

ESThe Gledopto waterproof ESP32 WLED light controller is designed for low-voltage addressable LED lights in wet or outdoor environments. It has an IP67 waterproof rating and can work with waterproof digital strip lights, outdoor lighting, landscape garden lights, deck & railing lighting, and commercial projects to create eye-catching lighting effects.

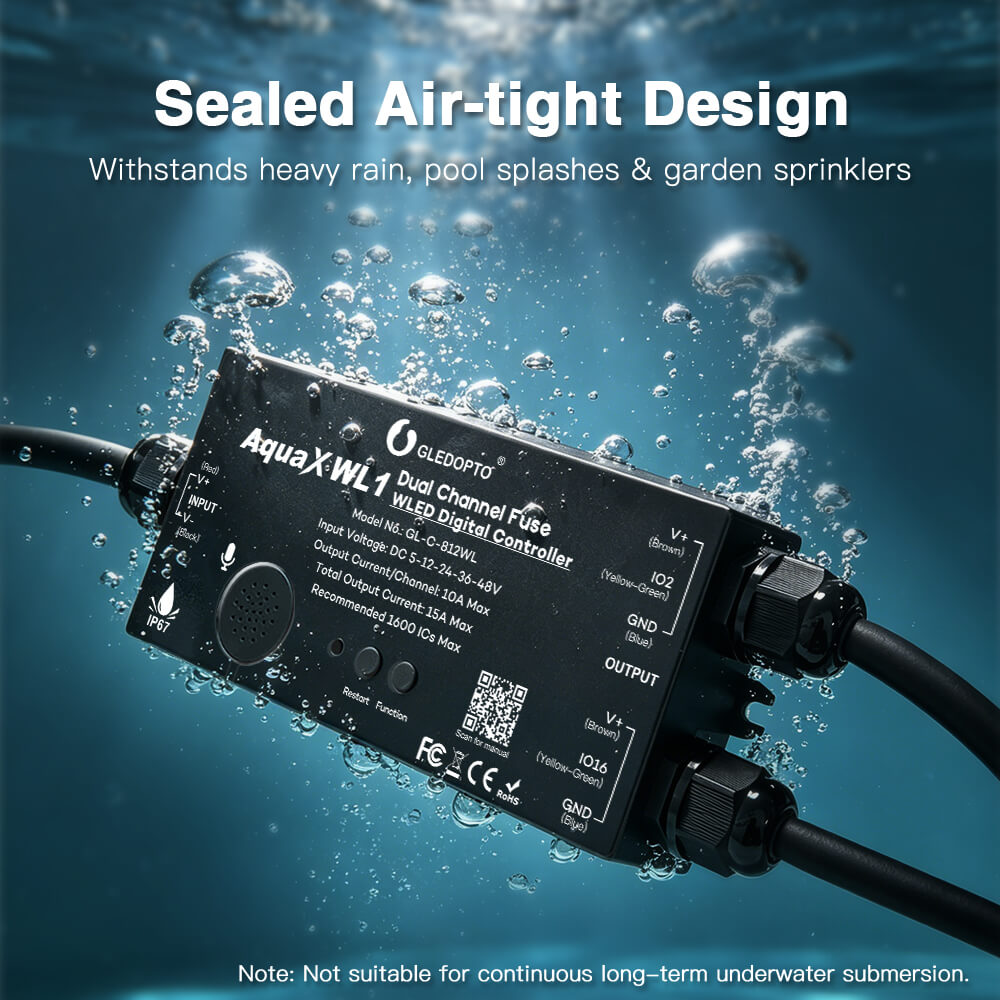

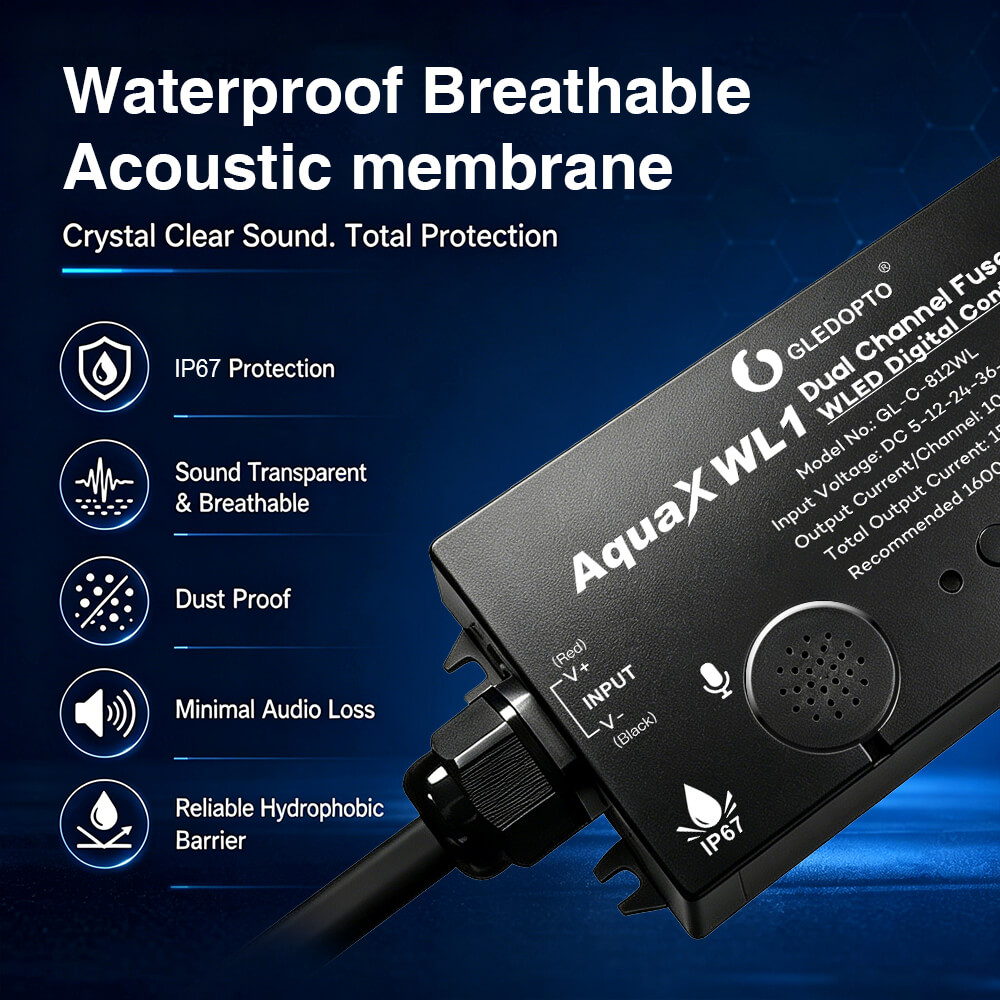

The Gledopto WLED LED controller has a sealed, airtight design and withstands heavy rain, pool splashes, and garden sprinklers. It can be used in humid and outdoor environments. It supports DC5V, DC12V, DC24V, DC36V, and DC48V low-voltage addressable lights and supports up to 1600 ICs. You can use them indoors and outdoors.
The waterproof ESP32 controller supports most standard ICs and includes 250+ built-in user preset scenes and over 100 dynamic effects, so you can easily choose and save your favorite lighting effects. It also lets you control color segments on the digital strip lights. You can customize the strip segments to show different colors.

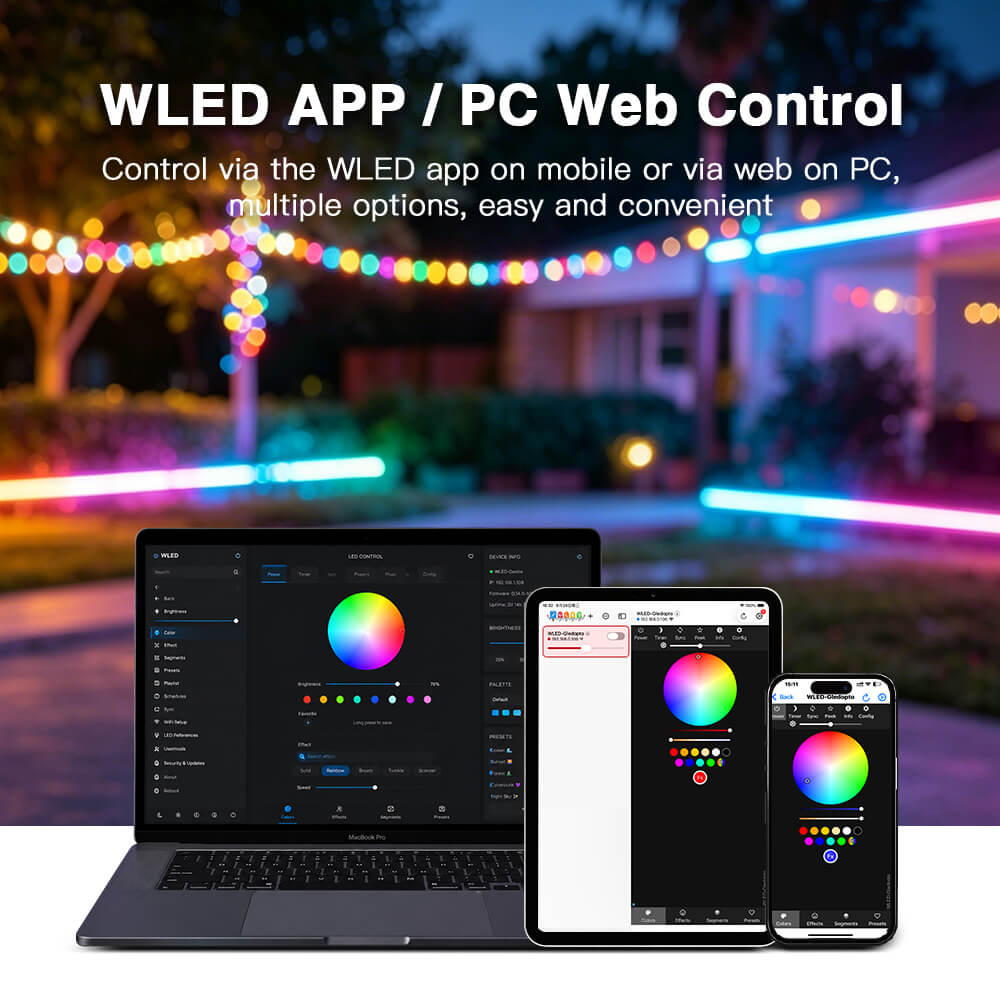

Integrated with the WiFi communication protocol, the waterproof WLED controller can be controlled by the WLED app on a smartphone or via a web browser on a PC; you can easily change or customize the lighting effect. It can also be controlled with WLED remote controls for long-distance control and a stable signal.

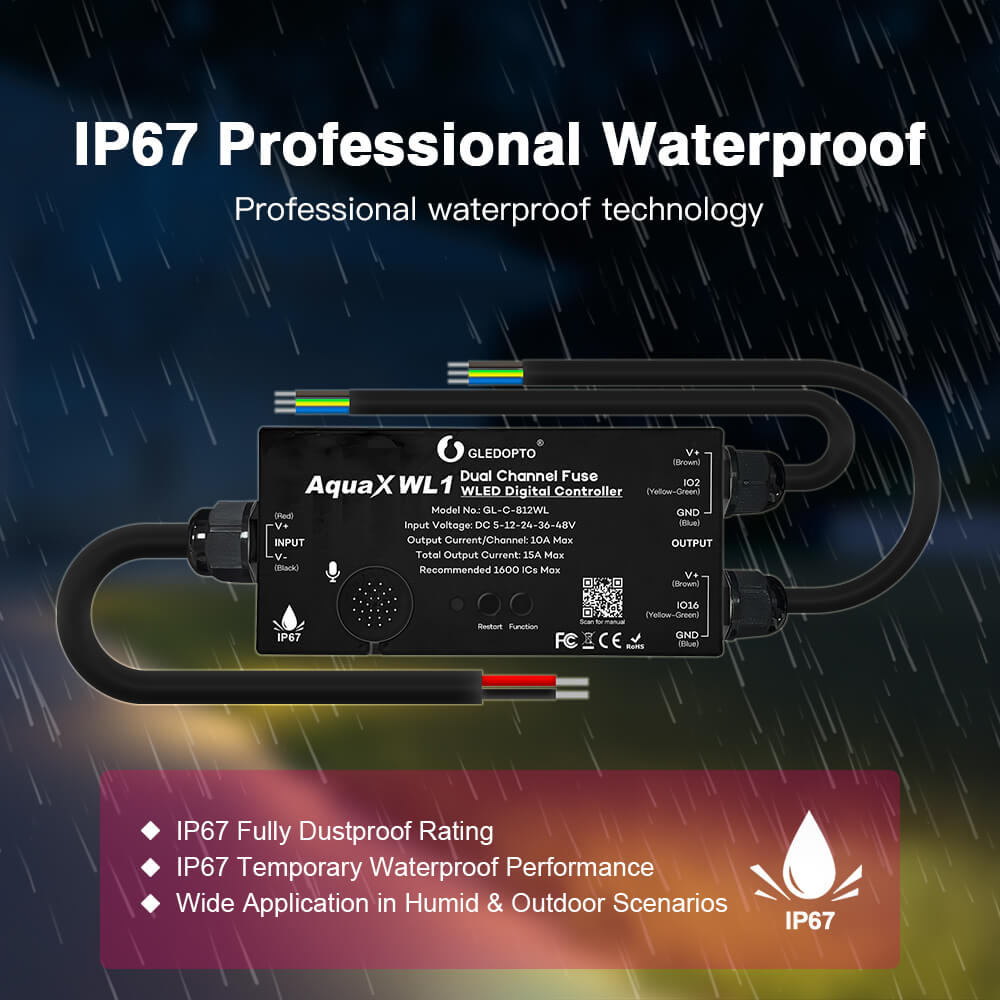

- IP67 waterproof

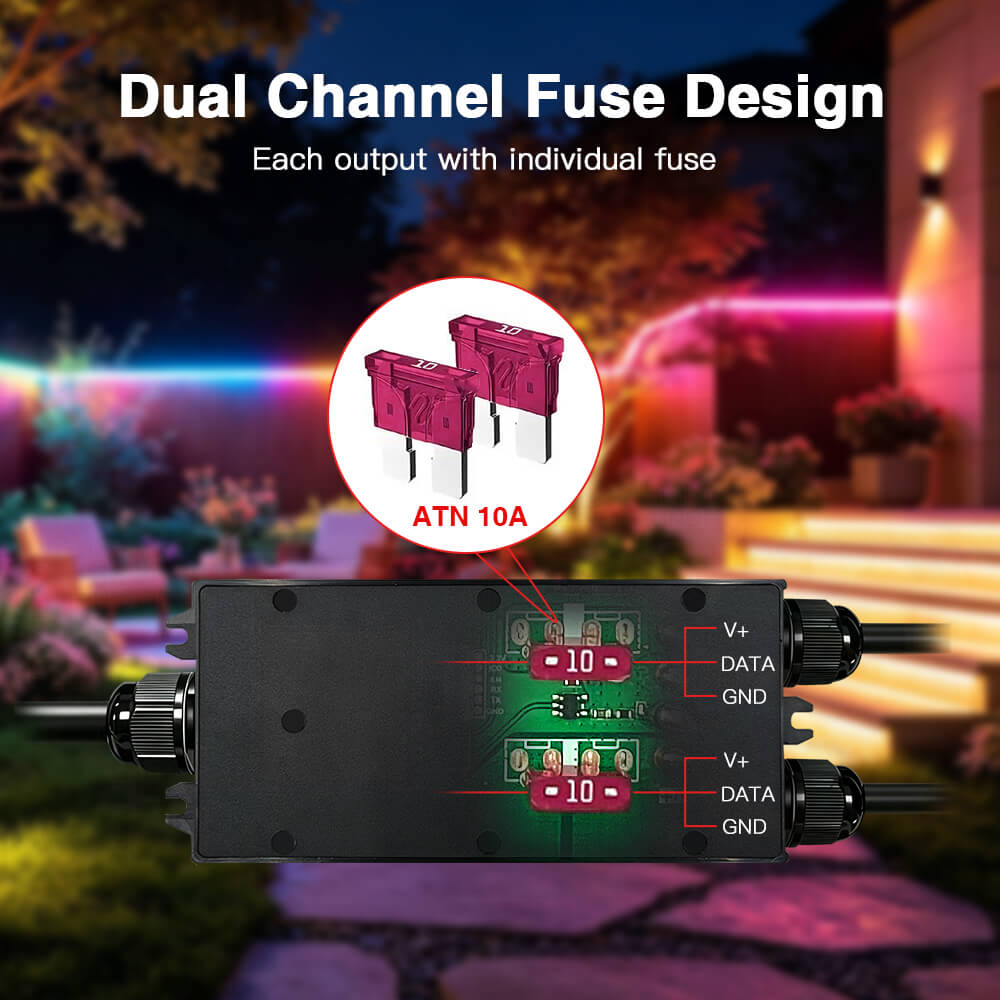

- Dual-channel fuse design, each output with an individual fuse
- Control via the WLED app on a smartphone or on the web on a PC

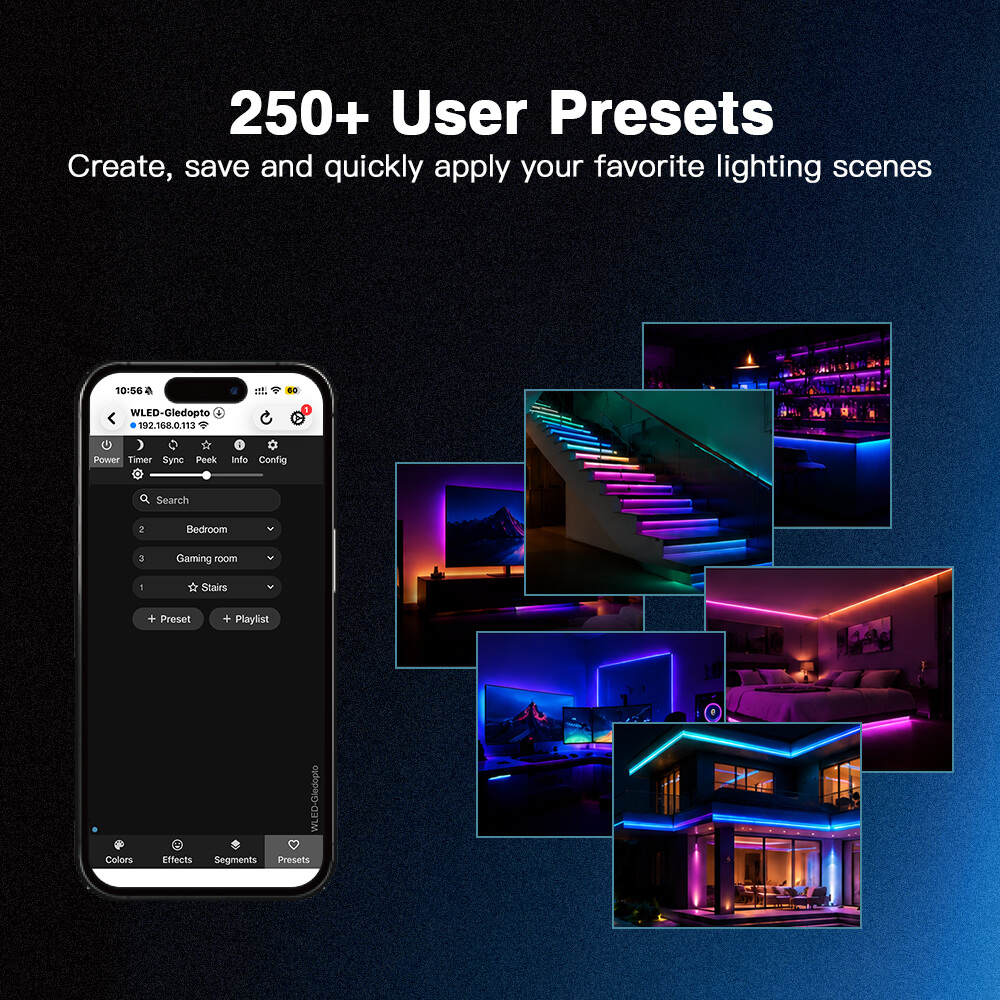

- 250+ user presets

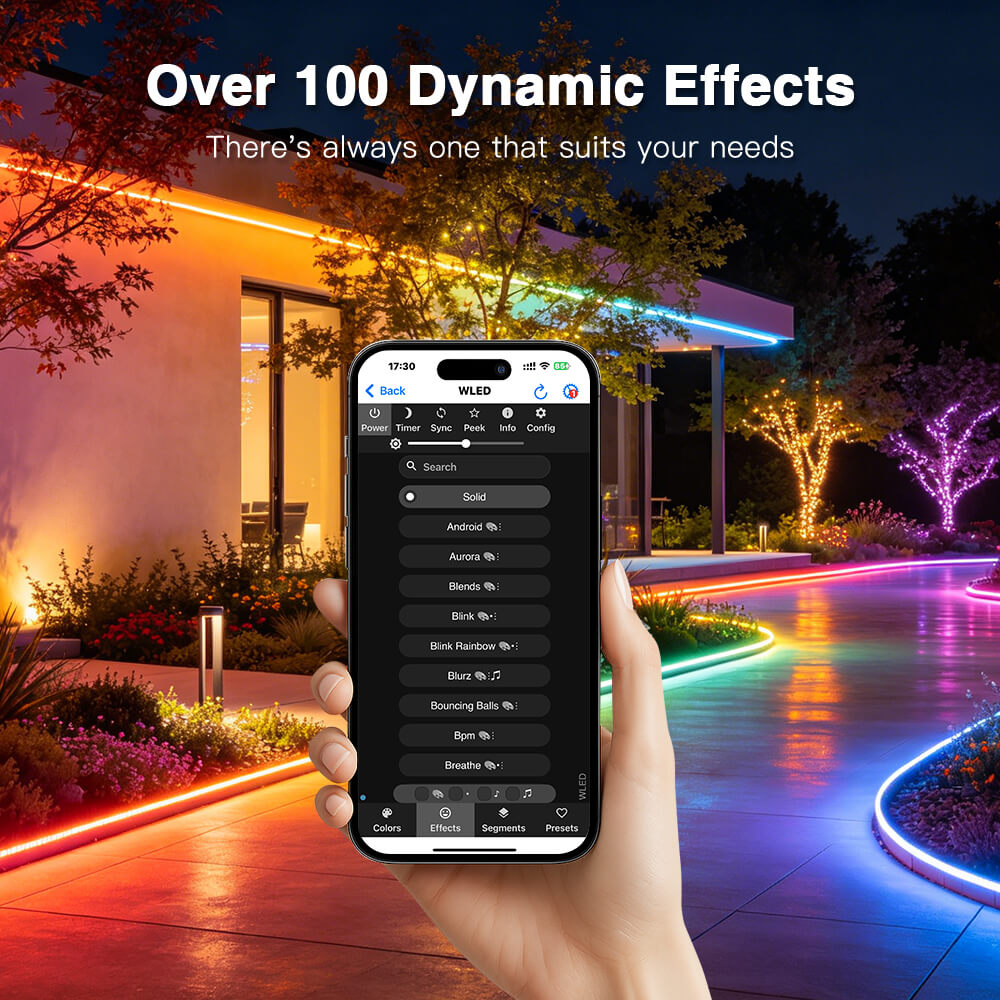

- Built-in over 100 dynamic lighting effects

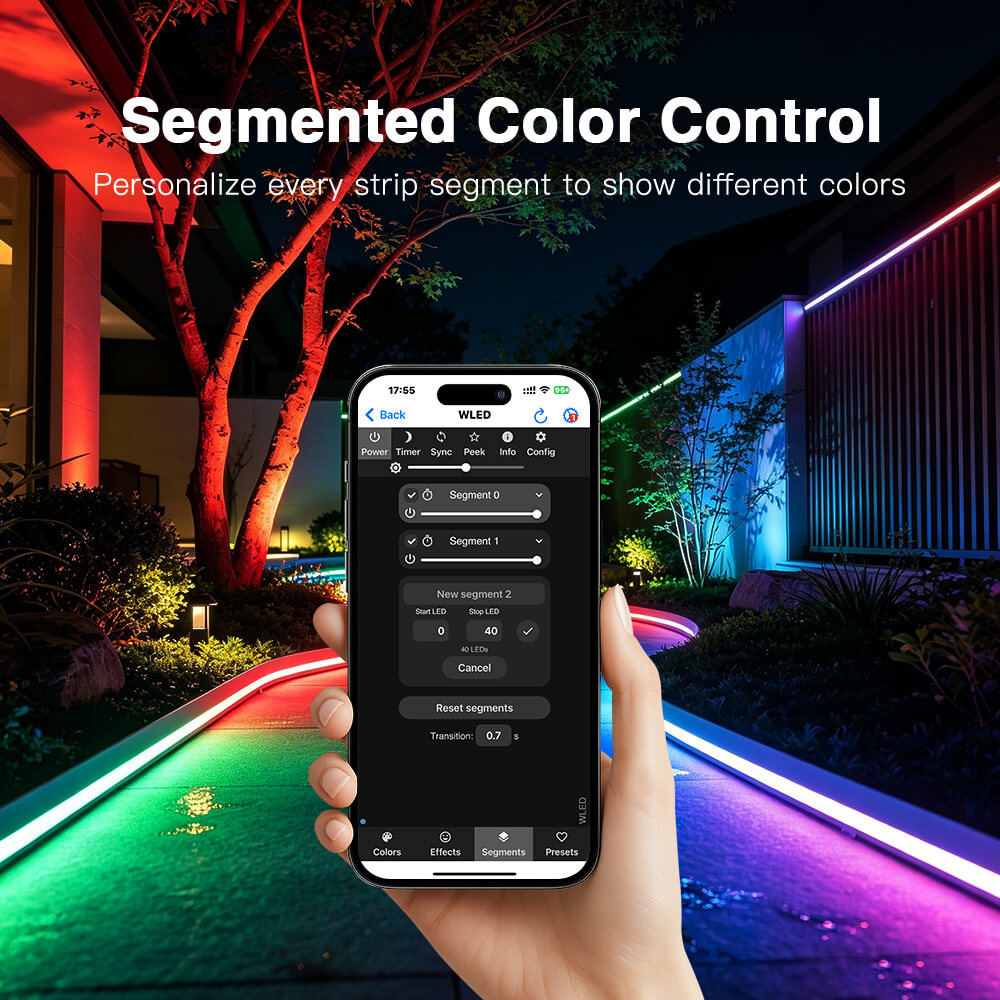

- Segmented color control
Specifications:

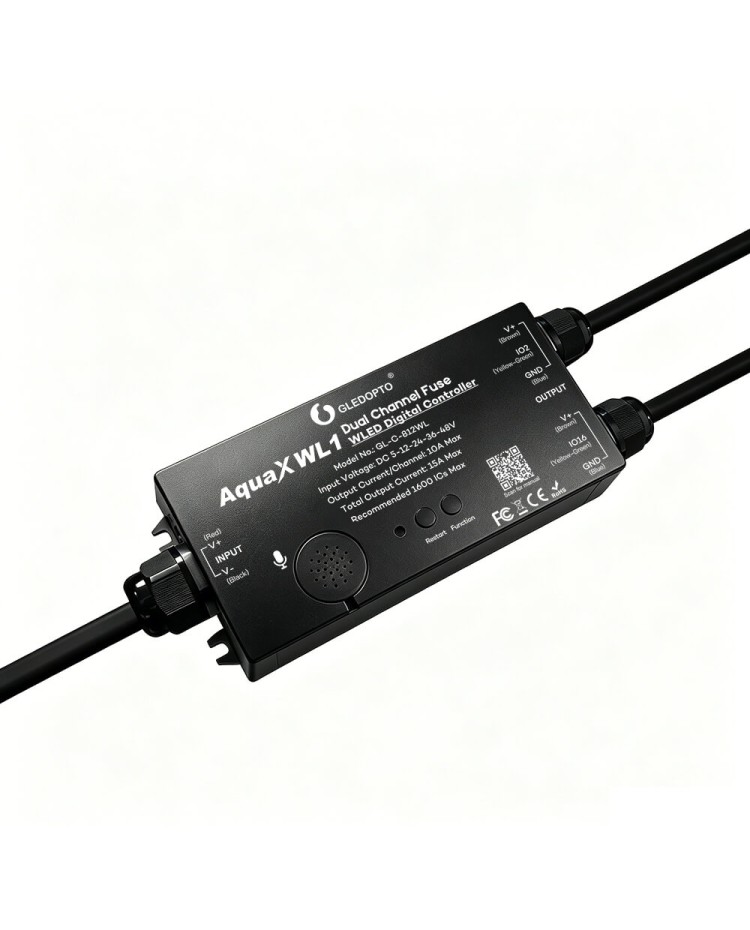

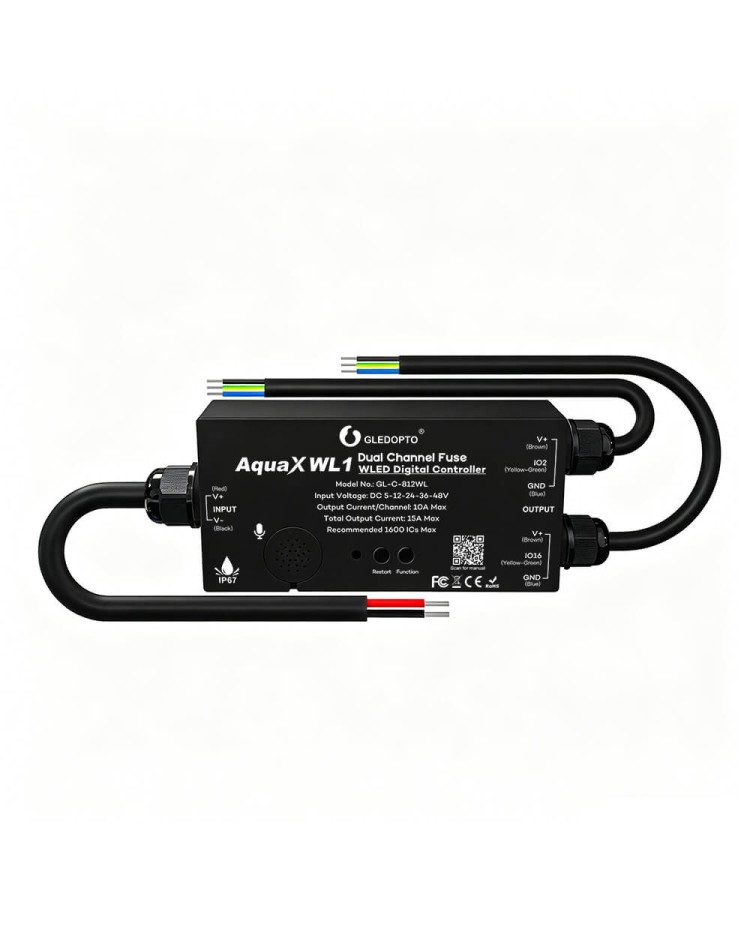

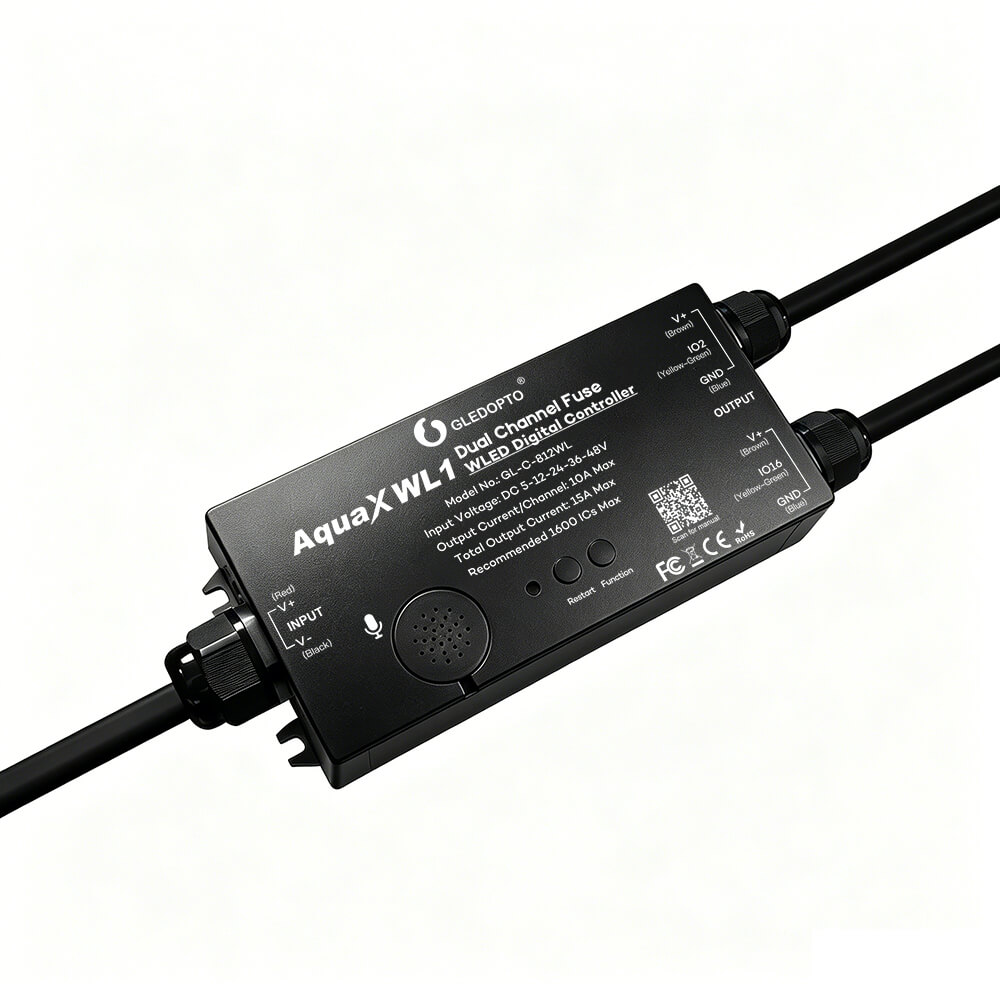

- Model: GL-C-812WL
- Material: Flame-retardant PC
- Color: Black

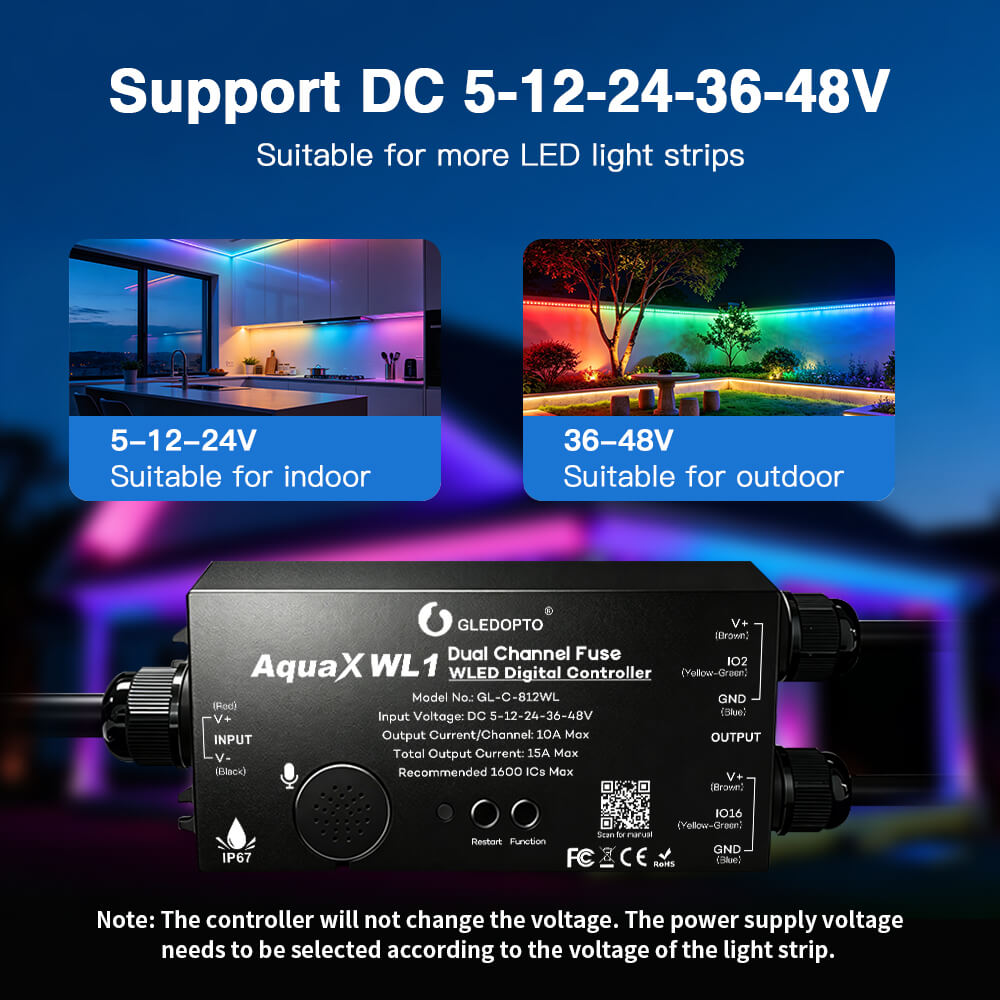

- Input voltage: DC5V, DC12V, DC24V, DC36V, DC48V
- Total output current: 15 A max
- Output current per channel: 10 A Max
- Maximum ICs supported: 1600
- Support most of addressable LED strip type: WS2812B, SM16703P, SK6812, WS2813, WS2811, WS2811F, WS2814A, WS2815, GS8208, TM1814, WS2805, SM16703SP3, FL19038, FW1935, UCS2903B, etc
- App name: WLED
- Protocol: WiFi

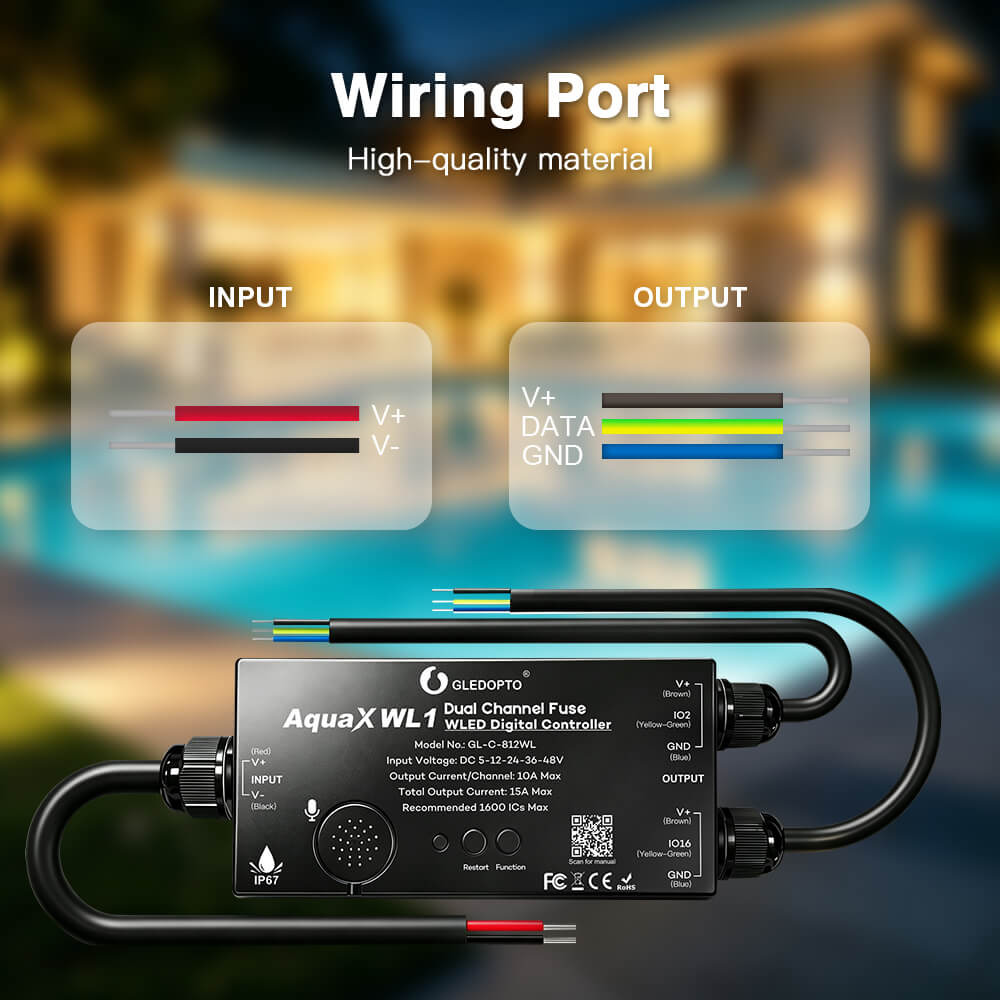

- Input wire: 2 x 2.5² (25cm)
- Output wire: 3 x 1.0² (30cm)
- Waterproof level: IP67
- Compatible with WLED remote controls: GL-RC-001WL, GL-RC-002WL
- Firmware upgradeable

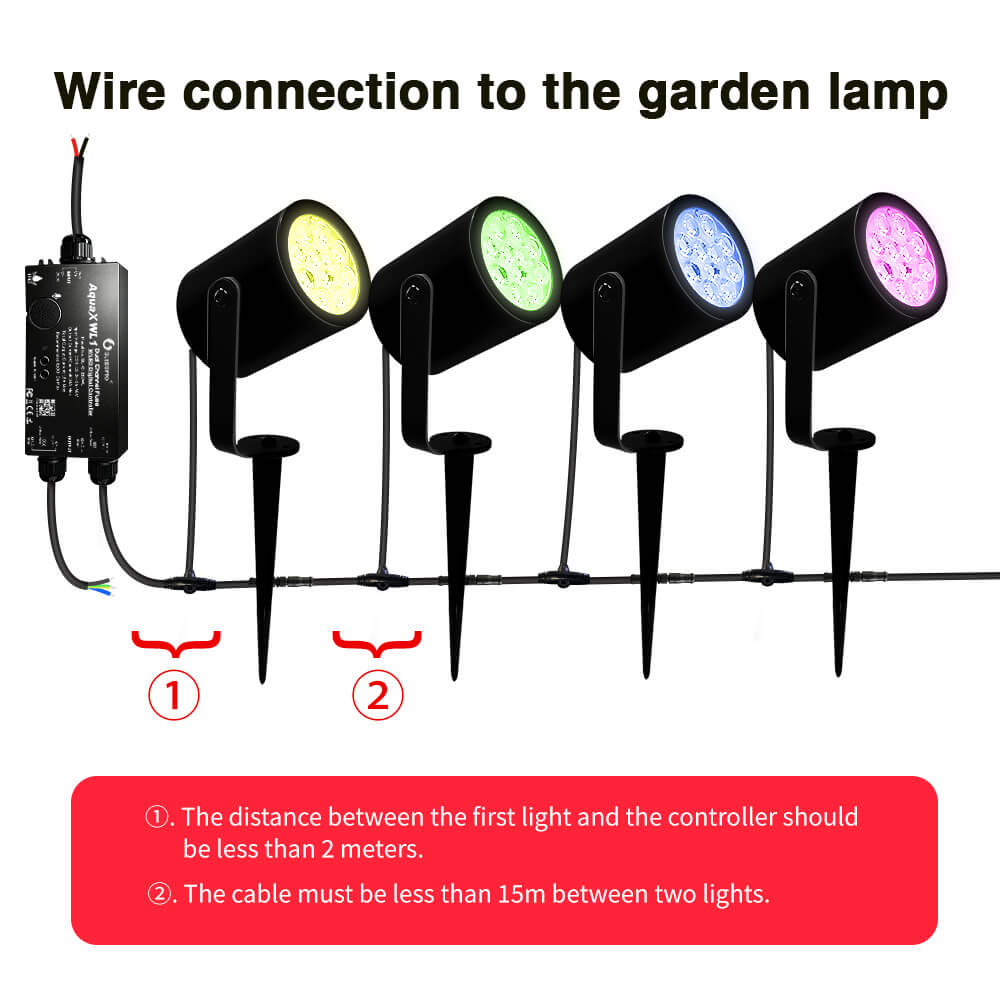

- Suitable for low-voltage addressable outdoor lighting, landscape & garden, deck & railing, commercial projects
- Working temperature: -20-45℃
- Warranty: 2 years

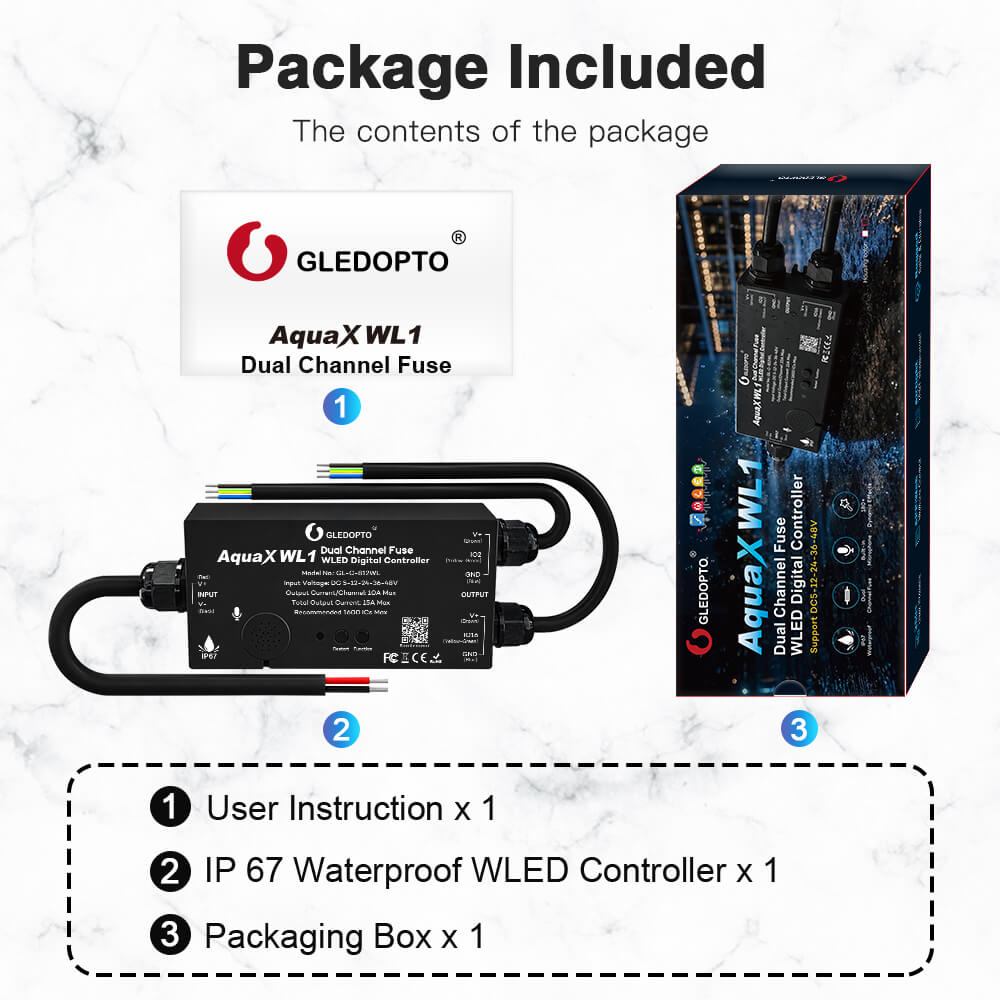

Includes:
1 x AquaX WL1 waterproof WLED controller
1 x User manual
