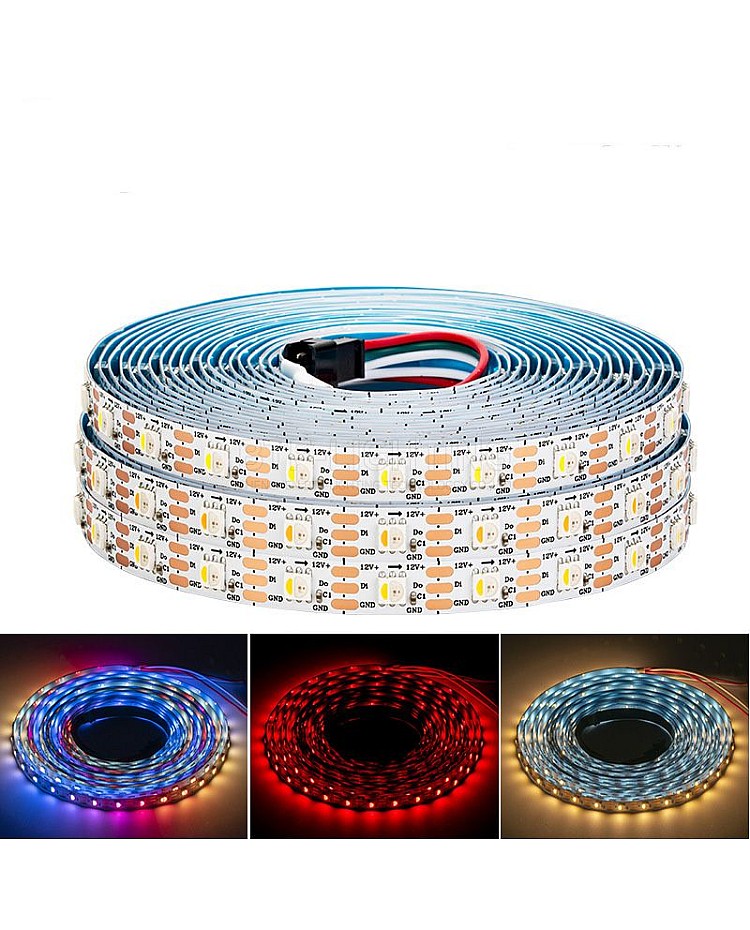

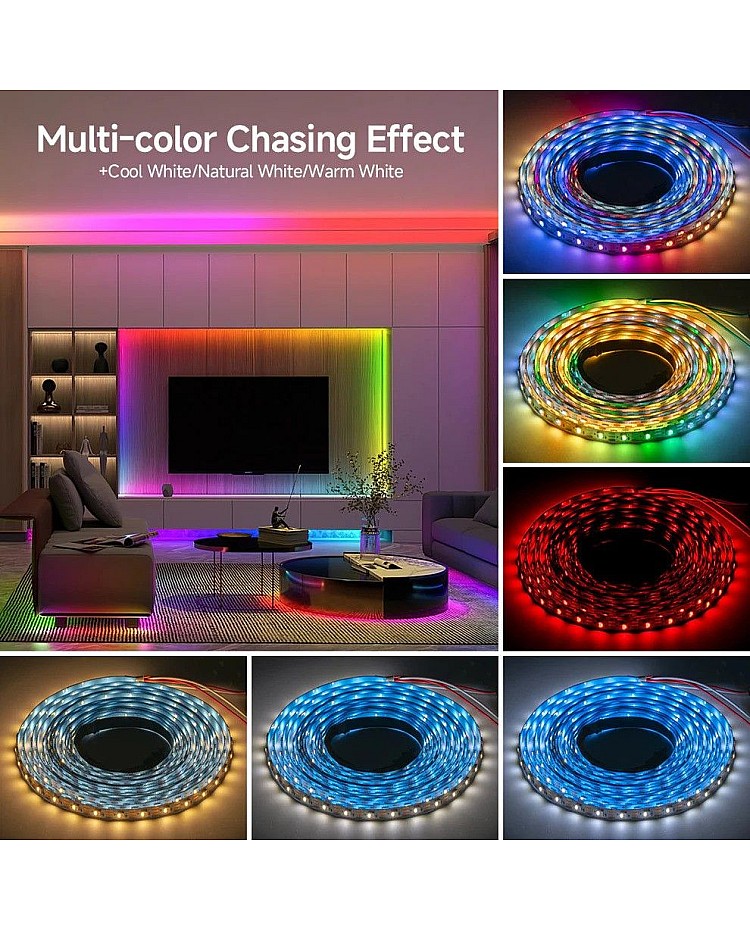

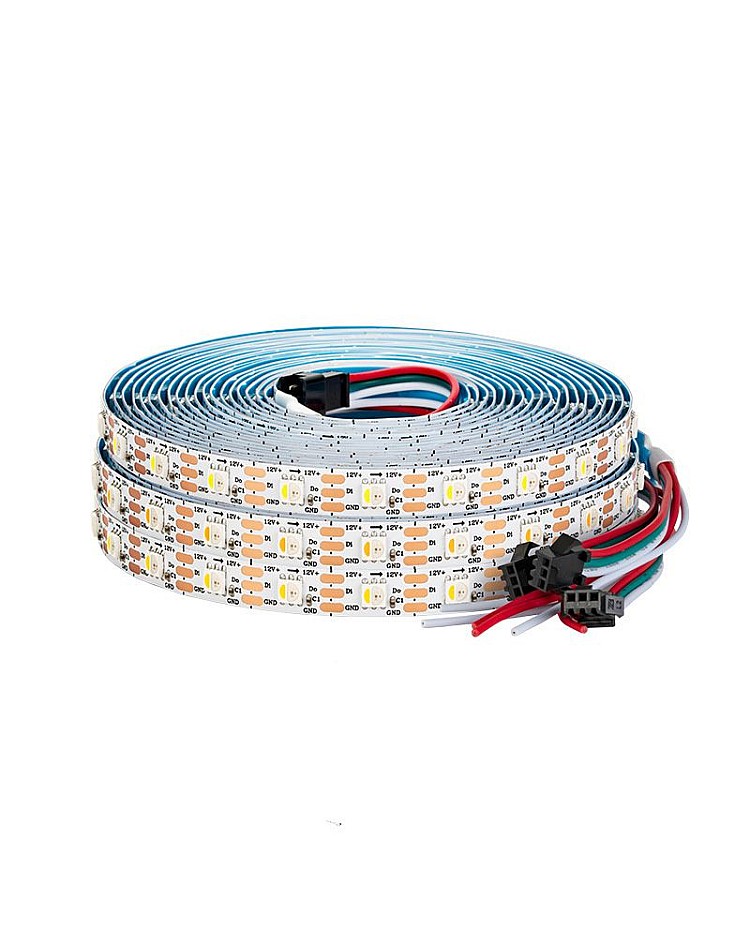

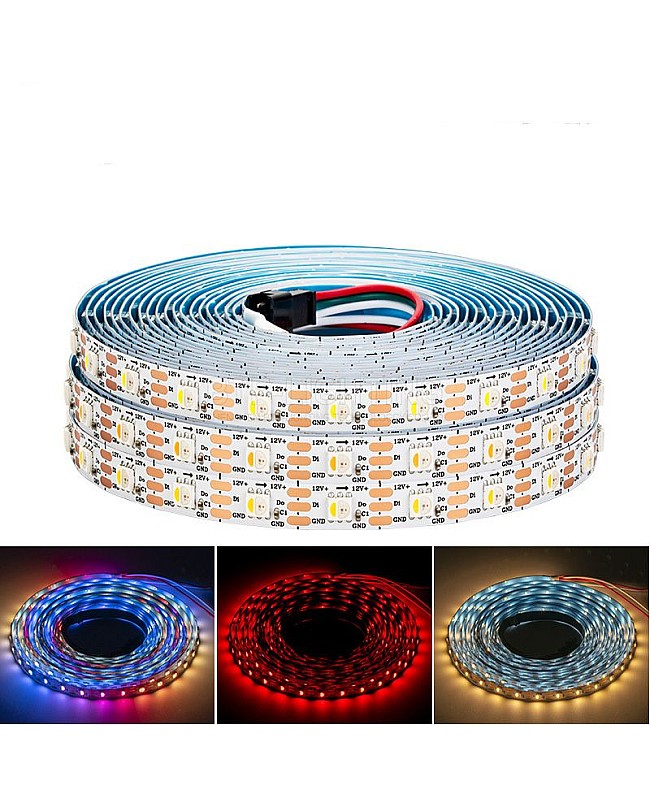

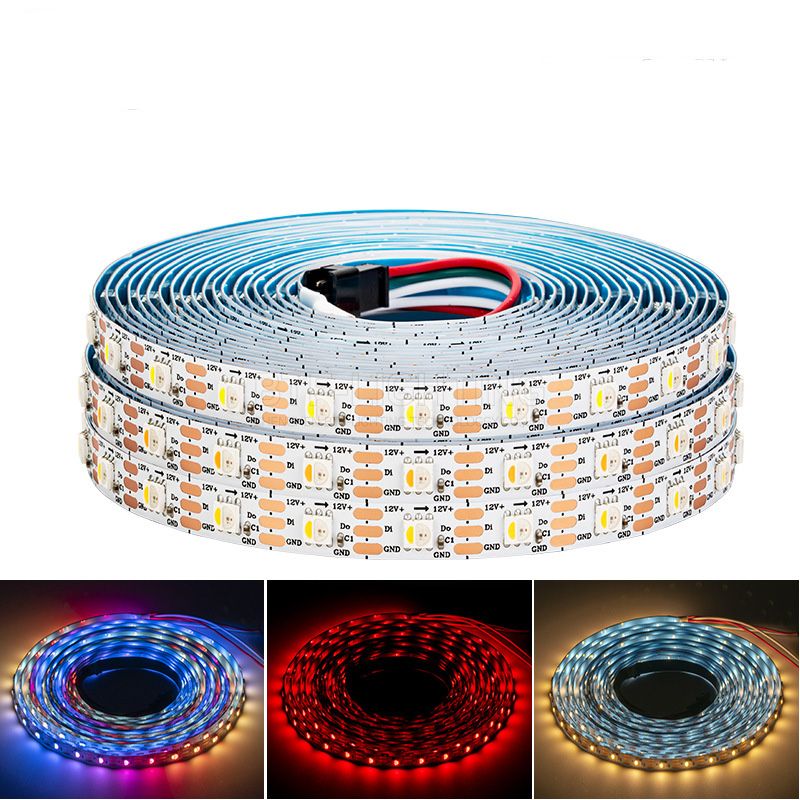

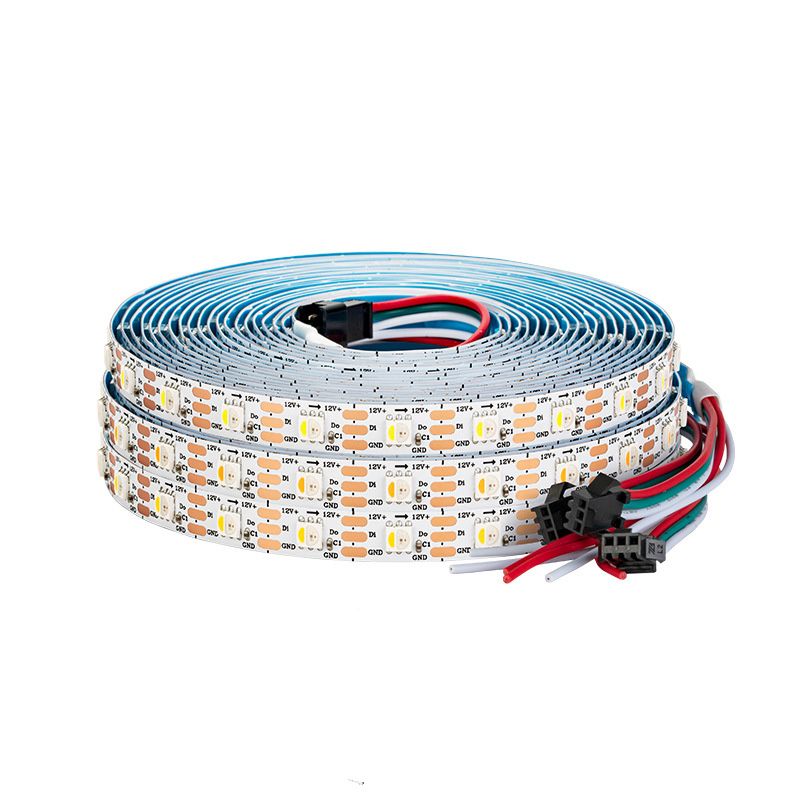

The 12V SK6812 RGBW LED strips feature individually addressable LEDs and bright white output. They combine RGB color mixing with dedicated white chips for richer colors, dynamic modes, and improved whites. They are perfect for high-end lighting installations, smart home decor, and creative visual effects. They work at 12VDC for vibrant and brighter colors than the 5V ones. There are 60 SMD LEDs on a one-meter white PCB board, which are built with SK6812 ICs for individual addressability. It's easy to connect to SPI LED controllers to achieve fantastic lighting effects, such as chaser, curtain-up, flow water, raindrop, jump, flash, etc. There are three white products available to fulfill your needs, you can choose RGB+WW, RGB+NW, or RGB+CW. Both ends come with 3P male and female connectors for easy connection. They are flexible and cuttable, you can cut to any size at the copper pads. The IP20(non-waterproof), IP65, and IP67 waterproof options are available.
Specifications:
- Type: RGBW Individually Addressable SMD Strips
- PCB Board's Color: White
- Length: 16.4 ft / 5 meters per roll

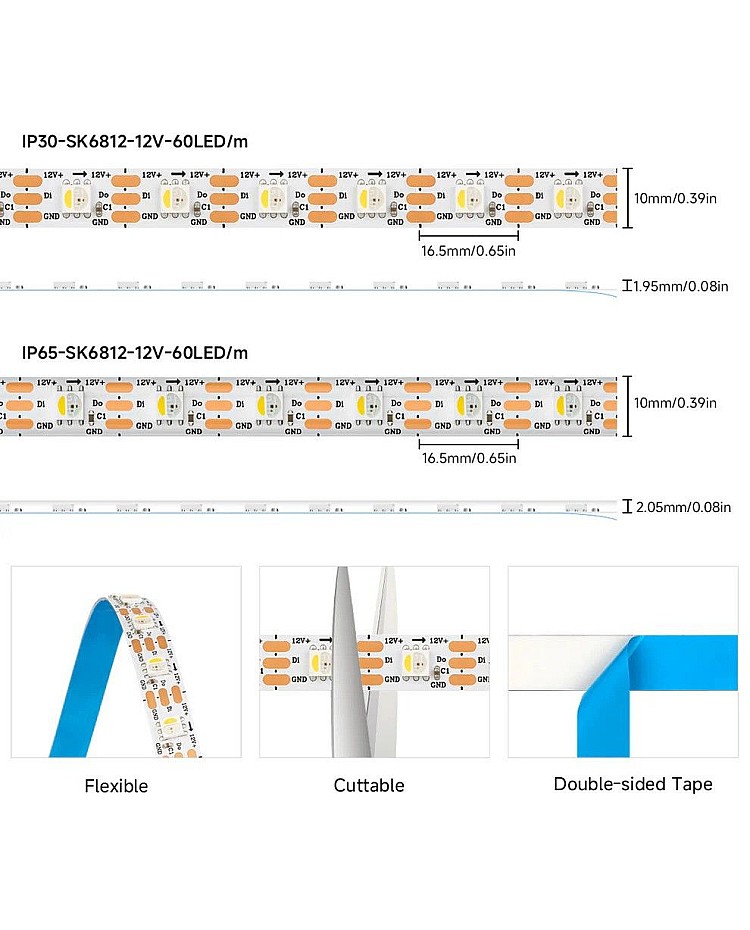

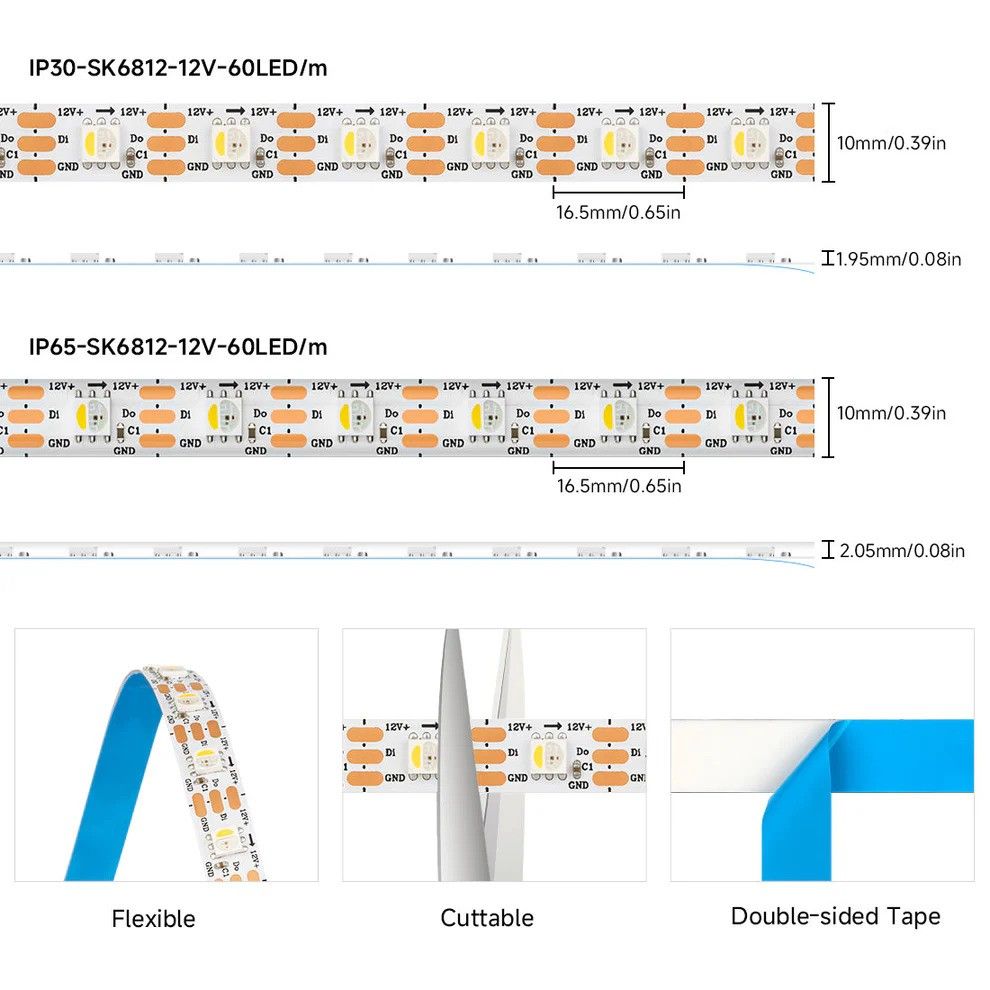

- Width: 10mm/0.39"
- Height: 1.95mm/0.08" (IP20), 2.05mm/0.08"(IP65 & IP67)
- Working Voltage: DC12V
- LED Type: 5050 SMD LEDs
- LED QTY: 60 LEDs/M

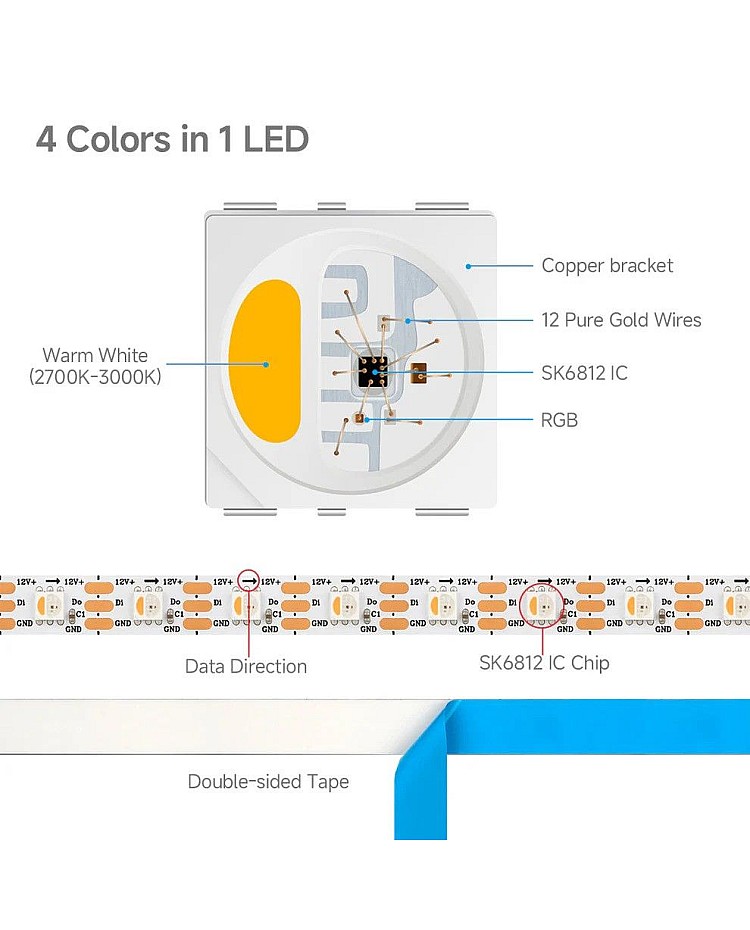

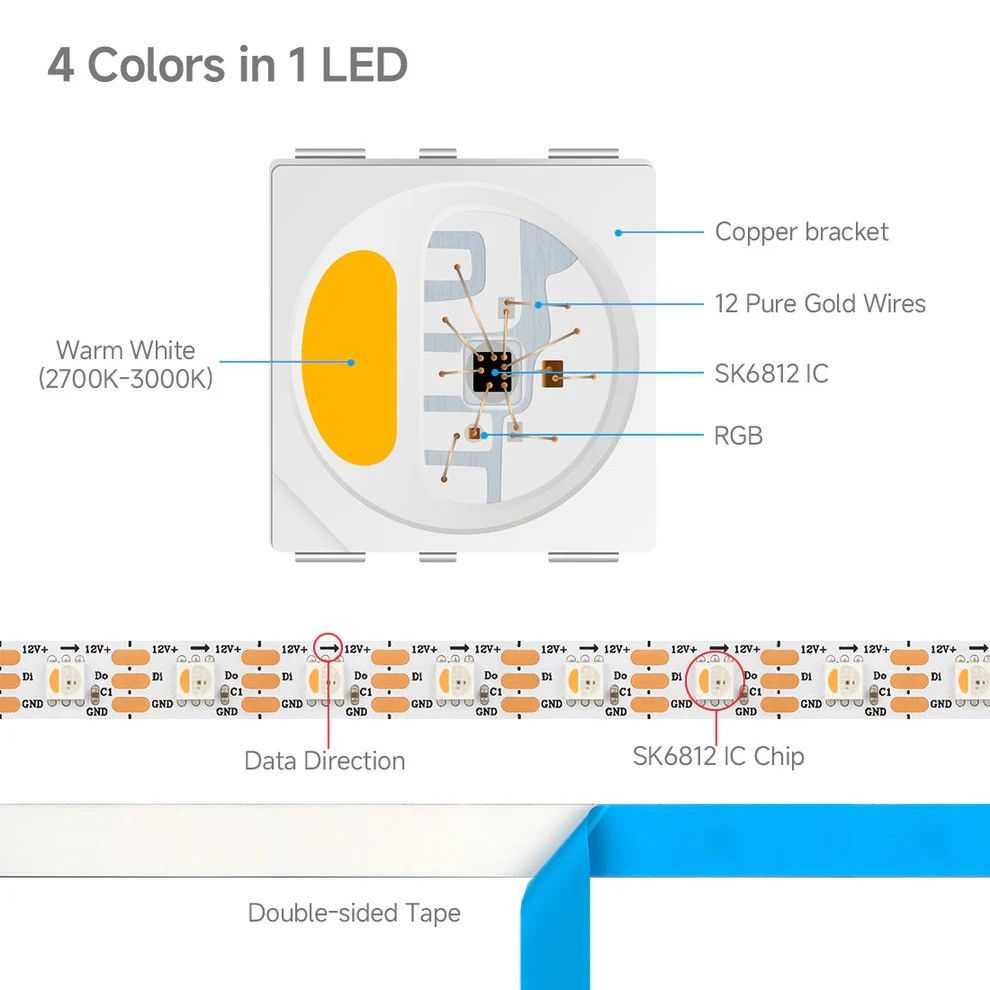

- IC Type: SK6812 IC (Built-in)
- IC QTY: 60 PCS/M
- Power: 18W/M
- Colors: RGB + Warm White ( 2700K - 3000K ) / RGB + NW ( 4000-4500K ) / RGB + CW ( 6000-6500K )
- Grey Grade: 256
- View Angle: 120°
- Dimmable: YES
- CRI: >90Ra
- Waterproof Levels: IP30 Non-waterproof, IP65 silicon-coating waterproof, IP67 silicone tube waterproof
- Minimum Cutting Length: 16.5mm/0.65"

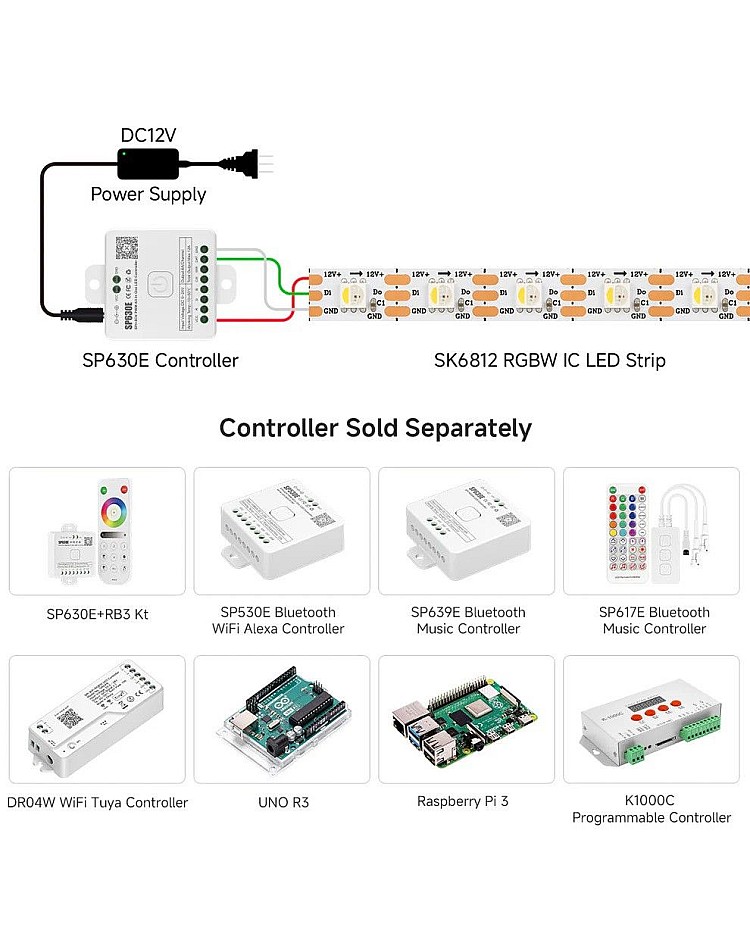

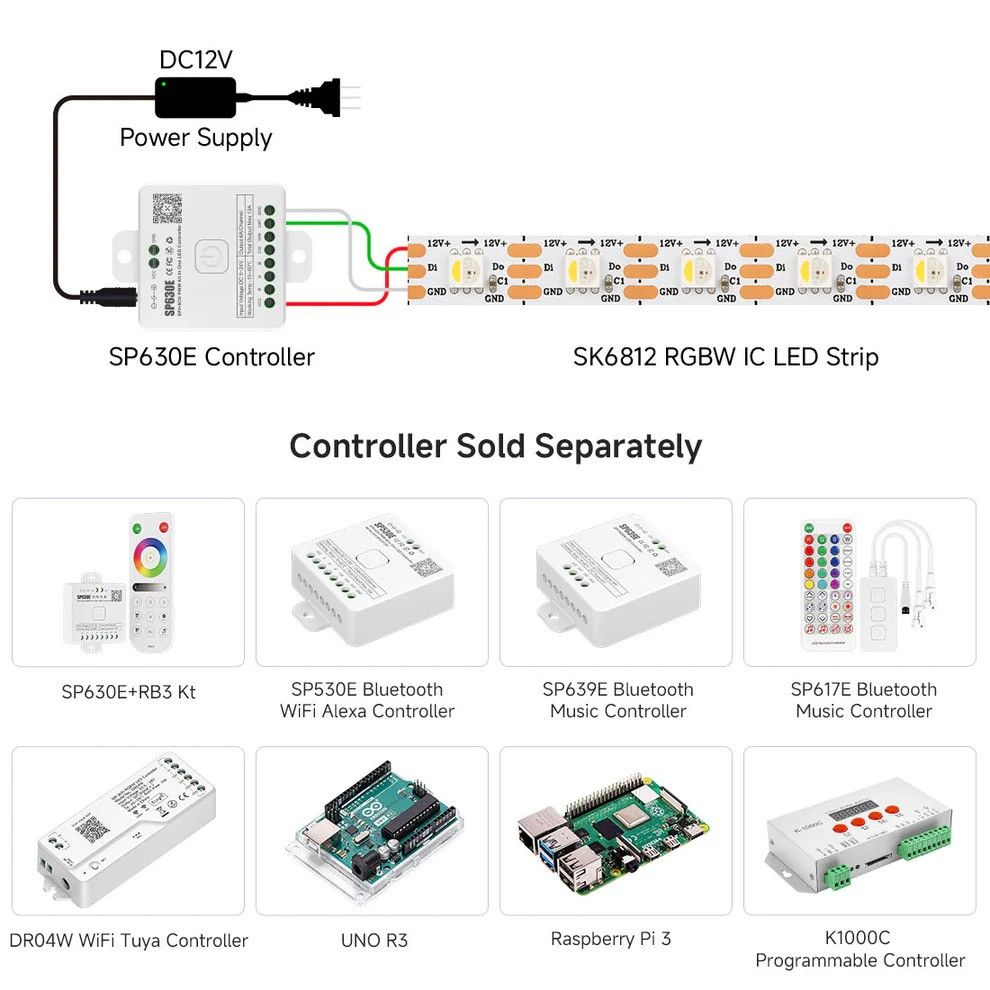

- Controllers Recommended: SP630E, SP530E, SP639E, SP617E, UNO R3, Raspberry PI 3, K1000C, etc
- The back has double-sided adhesive tape
- Working Temperature: -20℃-+45℃
- Storage Temperature: -20℃-+60℃
- Certifications: CE, ROHS
- Lifespan: >35,000 Hours
- 2-year warranty
Includes:
1* 12V SK6812 RGBW LED Strips
1* 3Pin Connector
