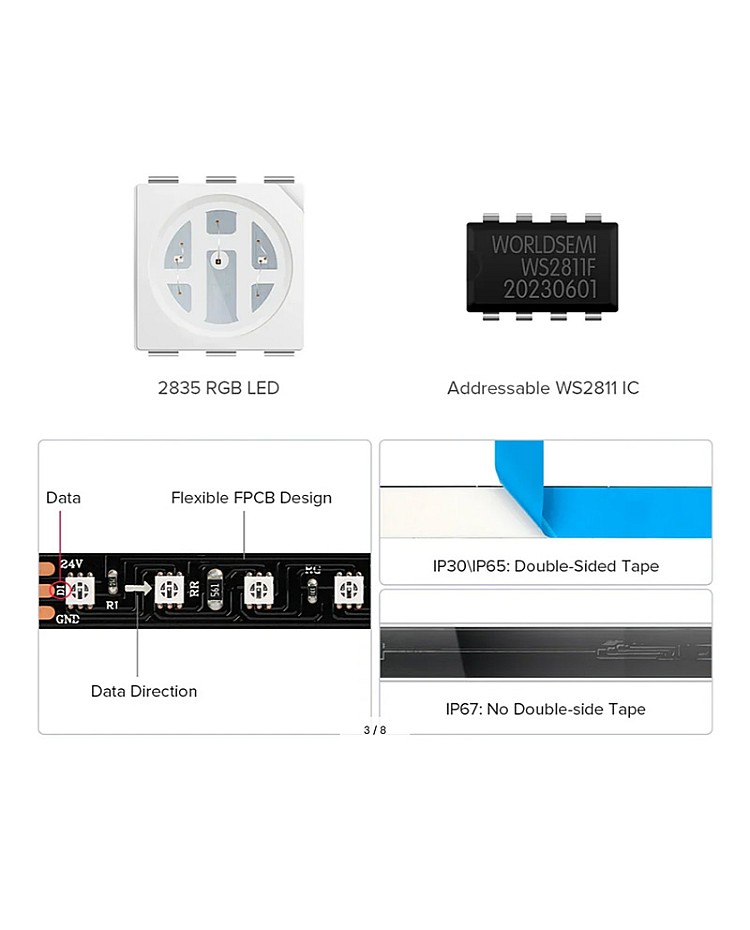

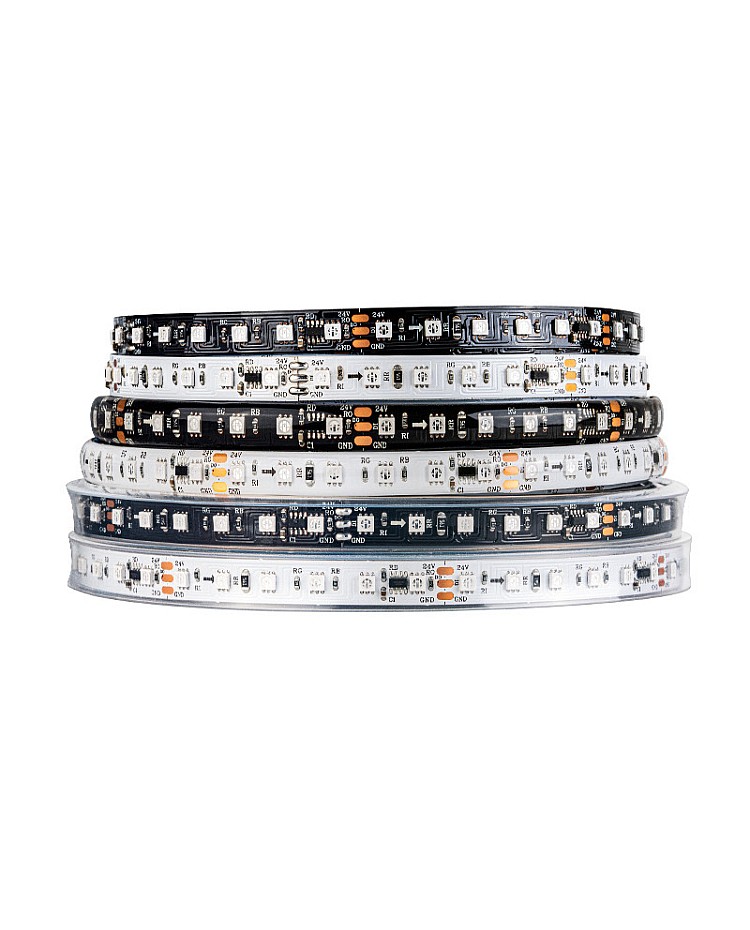

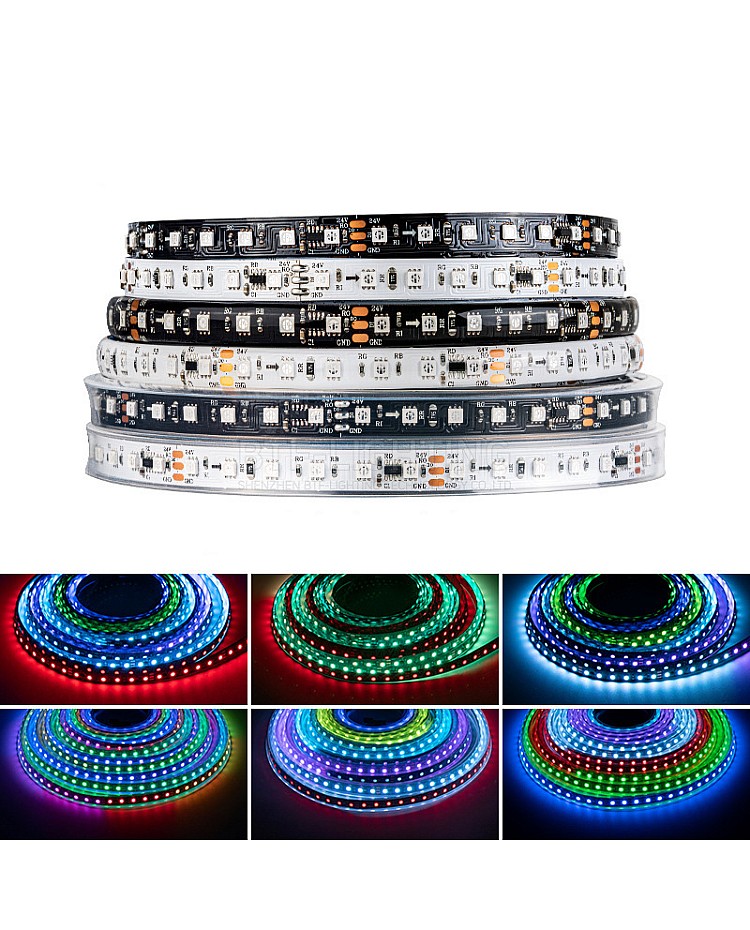

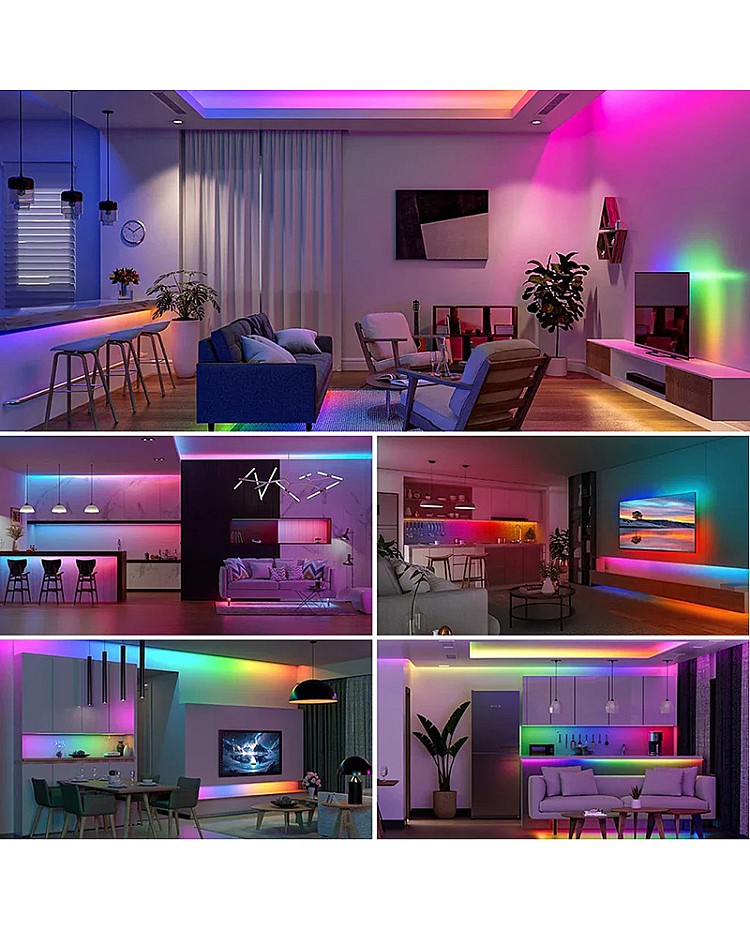

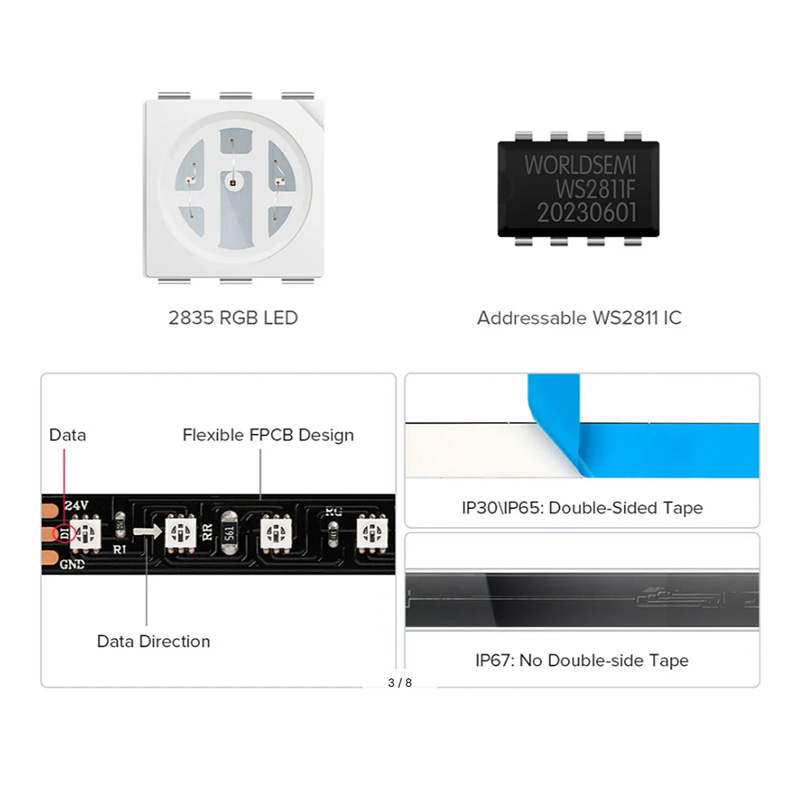

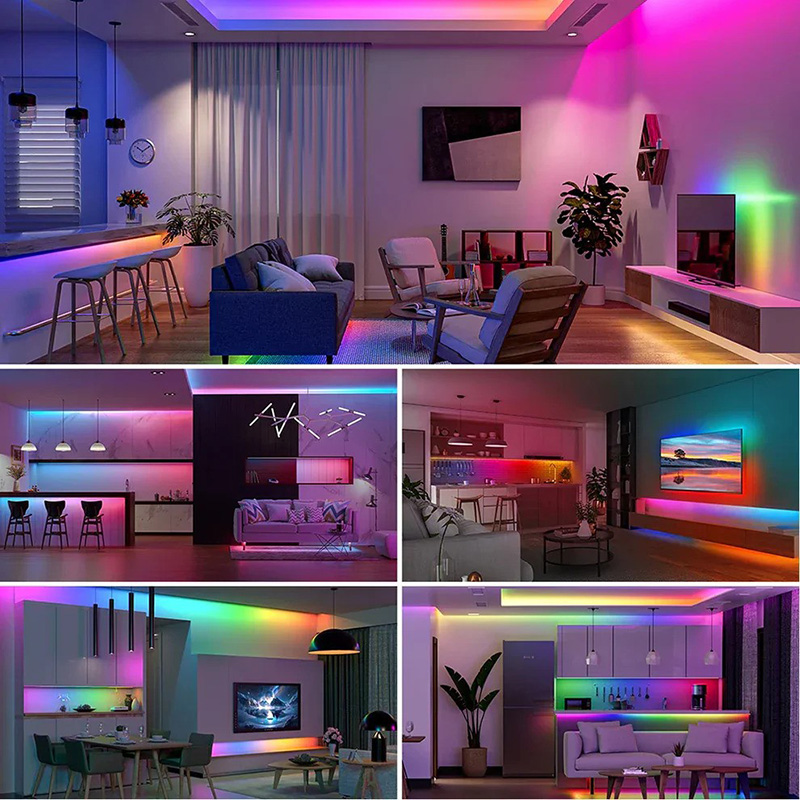

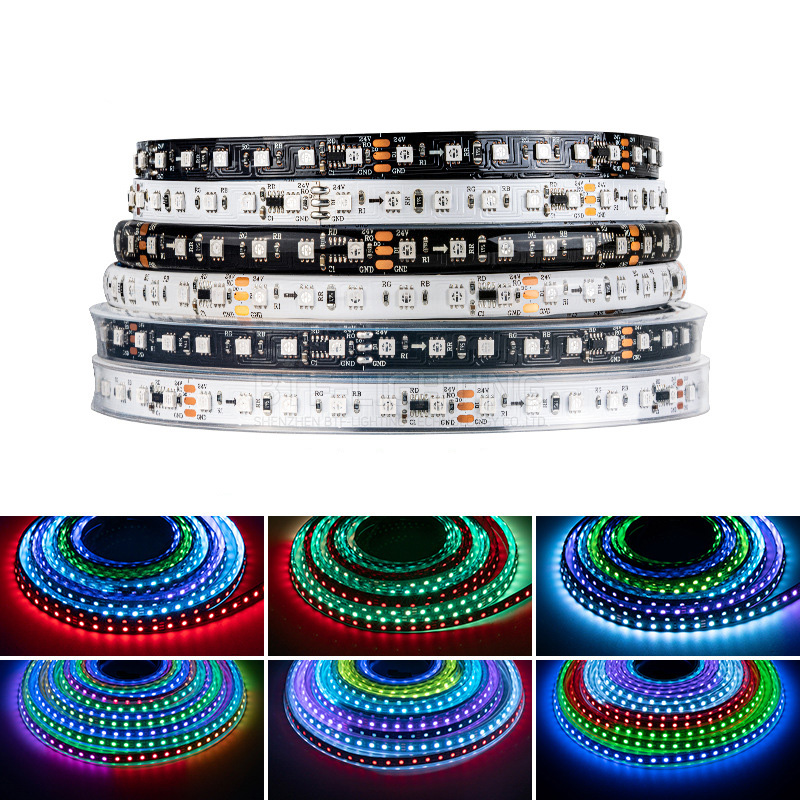

The 24V SMD LED strips are engineered for high brightness, stable performance, and smooth pixel control. Every 6 LEDs operate as a group through on-board WS2811F ICs, enabling dynamic lighting effects such as chasing, color flow, gradients, and programmable animations. With a slim 8mm PCB width, these 2835 digital strip lights fit easily into narrow aluminum LED channels, cabinets, display cases, architectural details, and signage. They (IP20 ) can be secured into our silicone light channels for waterproofing and installed in wet or moist outdoor applications. There are three waterproof level products available: IP20, IP65, and IP67. IP20 and IP65 features double-sided adhesive tape on the back for easy installation, IP67 comes with clips and screws, allowing you to mount them for outdoor applications. The SMD IC strip lights need to work with SPI LED controllers and be powered by 24V LED power supplies.
Features:
- Model: 8mm 24V digital LED strips
- Size ( W x H ): 8 mm x 1.56 mm / 0.31" x 0.06" ( IP20 ), 8 mm x 3.15 mm / 0.31" x 0.12" ( IP65 ), 10 mm x 3.82 mm / 0.39" x 0.15" ( IP67 )

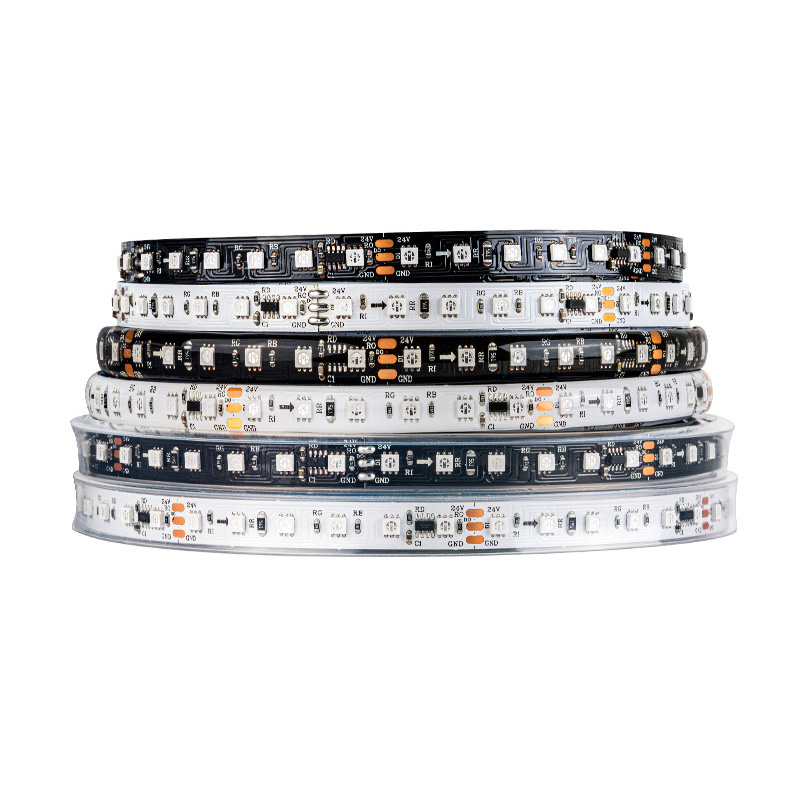

- PCB colors: White / Black
- Lengths: 5m/roll
- Working voltage: 24VDC
- LED Type: 2835 SMD LEDs
- LED QTY: 108PCS/m
- IC Type: WS2811F
- IC QTY: 18PCS/m ( One IC controls 6 LEDs )
- Wattage: 14W/m
- Minimum cutting length: 55 mm / 2.17" ( Every 6 LEDs )

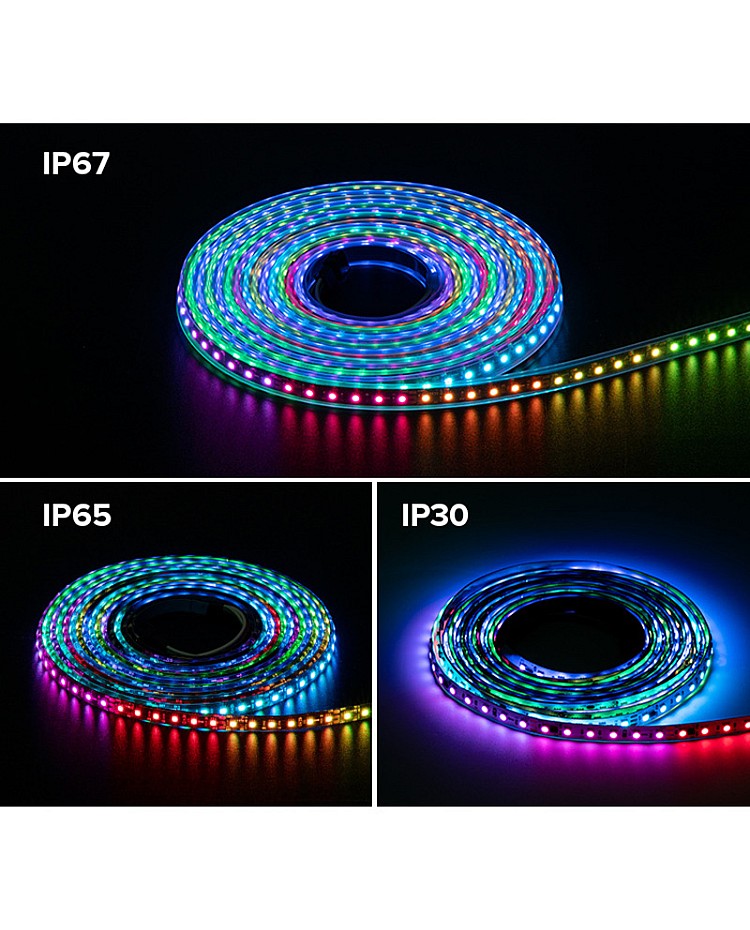

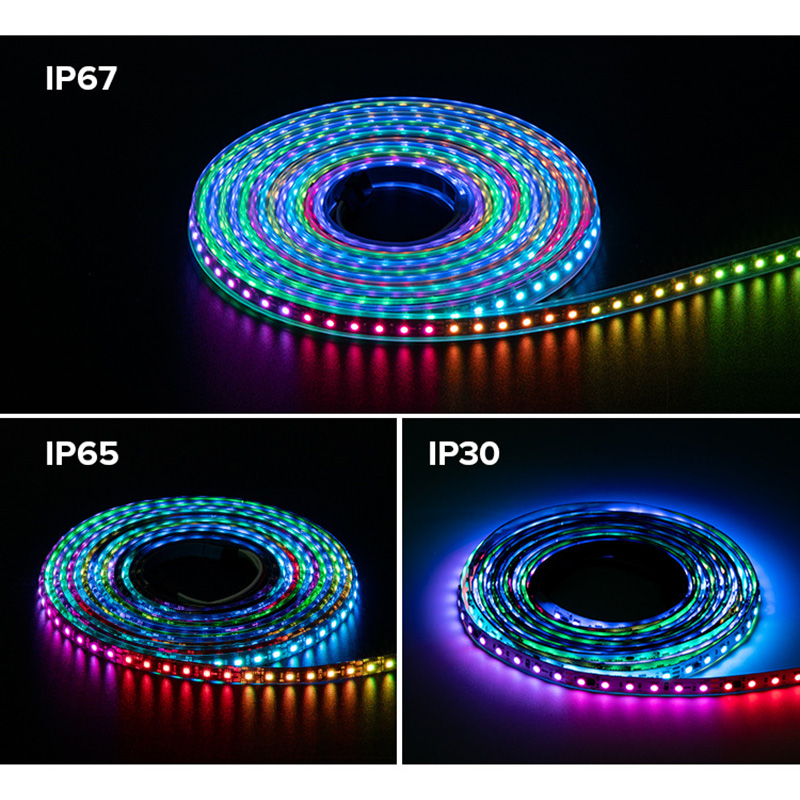

- IP Rating: IP20 non-waterproof, IP65 waterproof, IP67 waterproof
- Color rendering index: >90Ra
- View angle: 120°
- Connecting wires: VCC ( red wire ), GND ( white wire ), DATA ( green wire )
- Light controllers, LED driver, and remote controls are sold separately

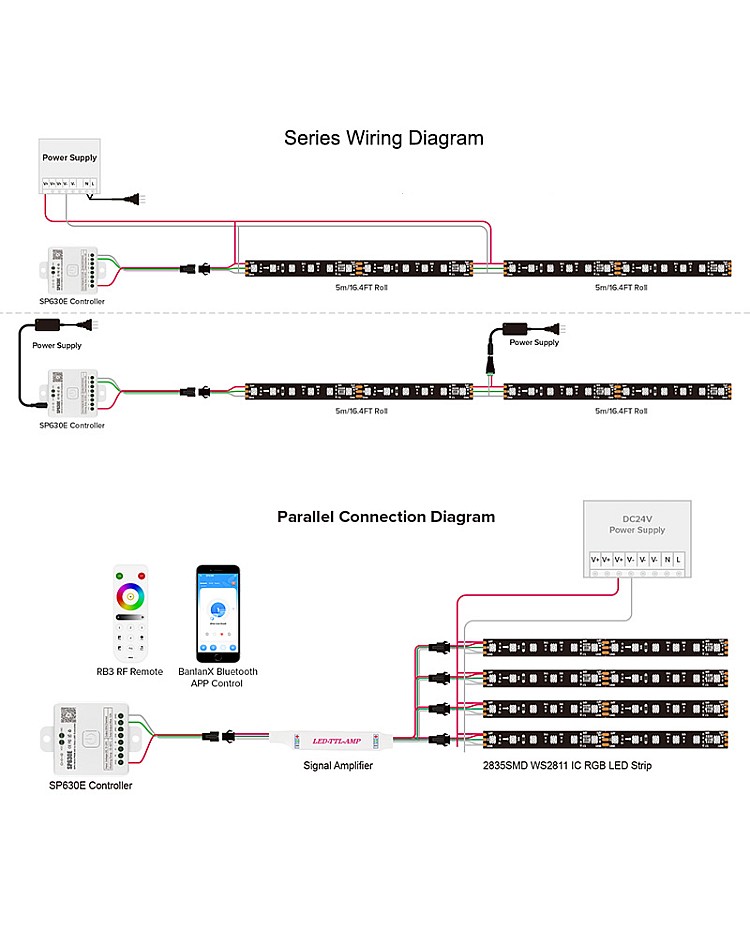

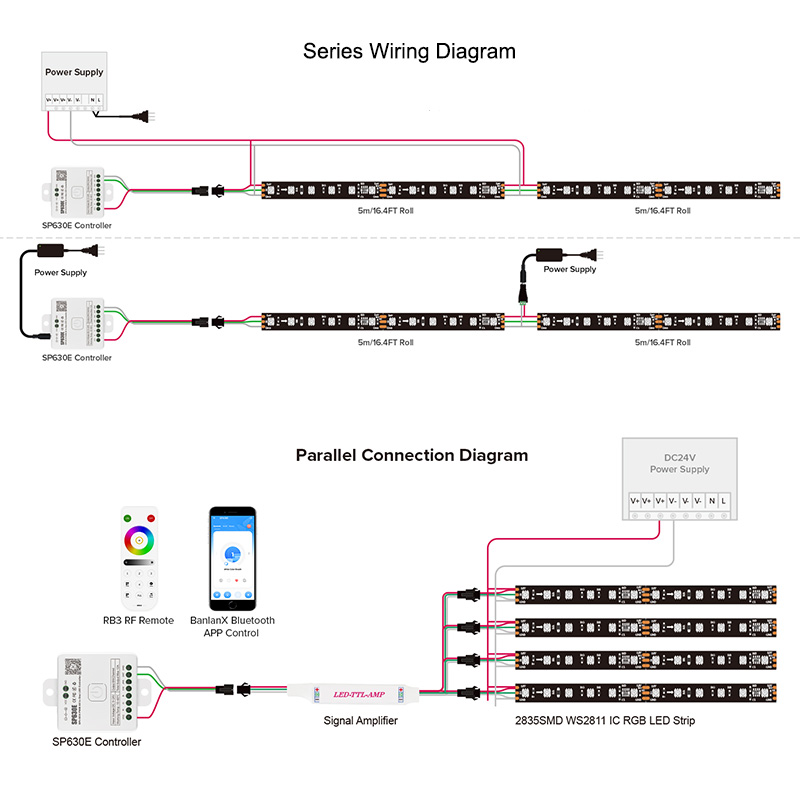

- Compatible with SPI light controllers: SP630E, SP530E WiFi, SP611E Bluetooth Music, ESP8266/ESP32/WLED conrollers, Raspberry PI 3, UNO R3, K-1000C, etc
- Working temperature: -20℃-+60℃
- Lifespan: >35,000 hours
- Warranty: 2 years
