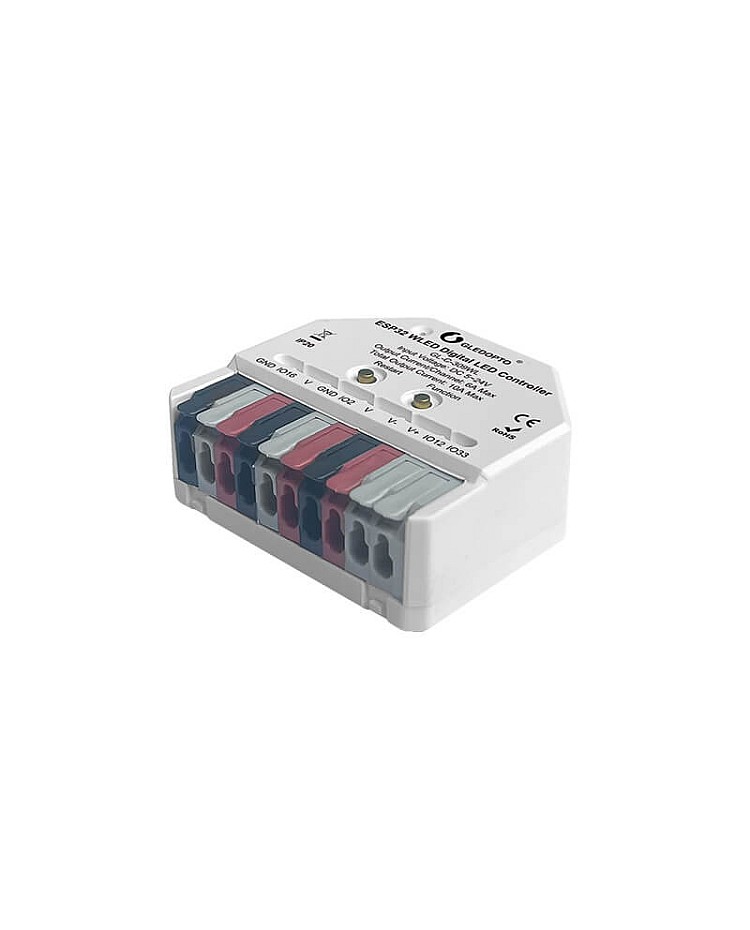

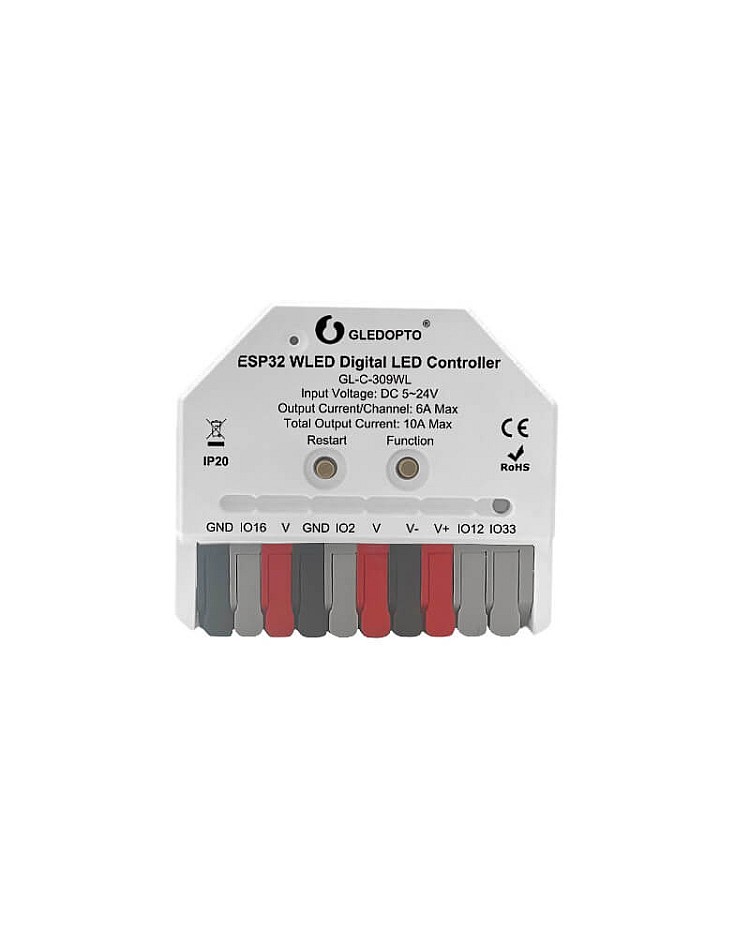

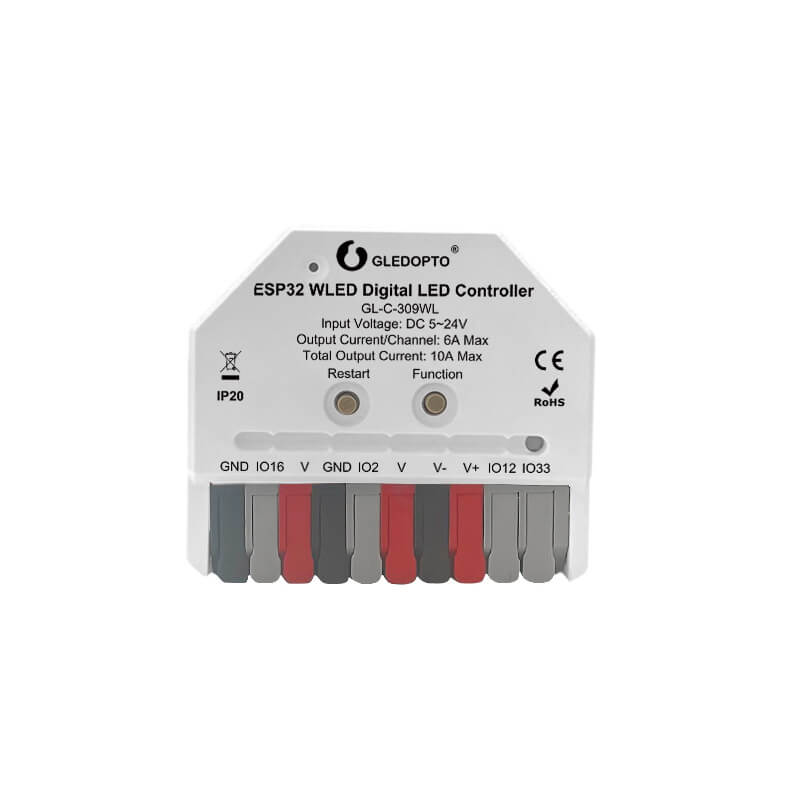

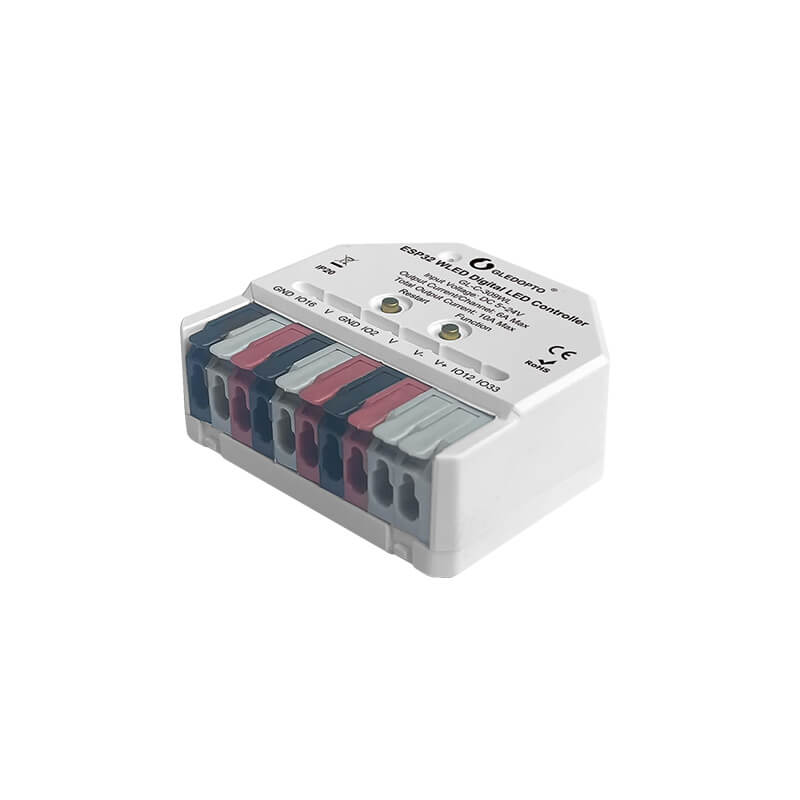

The Gledopto mini ESP WLED controllers are designed for digital (addressable) LED strip lights. They are small and compact, allowing you to hide in tight or limited spaces. The built-in ESP32 chipset drives the WLED LED controllers, and the controller can be controlled via the app and the WLED remote control. They support a wide range of addressable LED strips, enabling stunning dynamic effects and smooth color transitions. You can use the WLED Native app over a WiFi network to enable advanced lighting control, dynamic effects, and seamless smart home integration. There are more than 100 dynamic effects available for various lighting applications. It lets you segment the color control of your addressable strip lights so that each strip segment can display a different color for DIYs. On the same WiFi network, the lighting effects of strip lights connected to the WLED controllers can be synchronized.

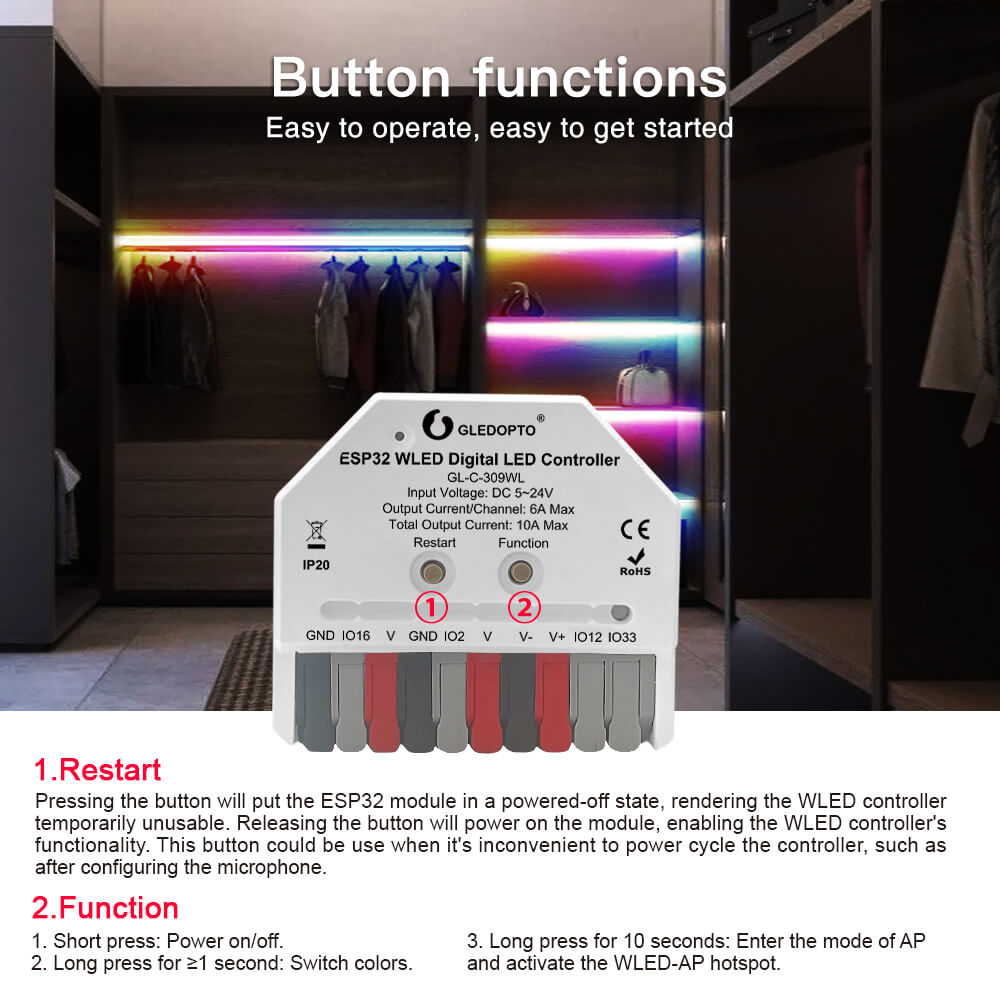

The mini WLED controllers have two physical buttons for fast operation. The pressable wiring terminals make it easy to connect to the LED power supply and digital strip lights. It has a reverse-connection protection circuit to prevent damage to components and chips. It can support up to 3 output channels and up to 800 smart pixels.
- Lighting effects of the LED strips connected to the WLED controller can be synchronized on the same WiFi network
- Segmented color control

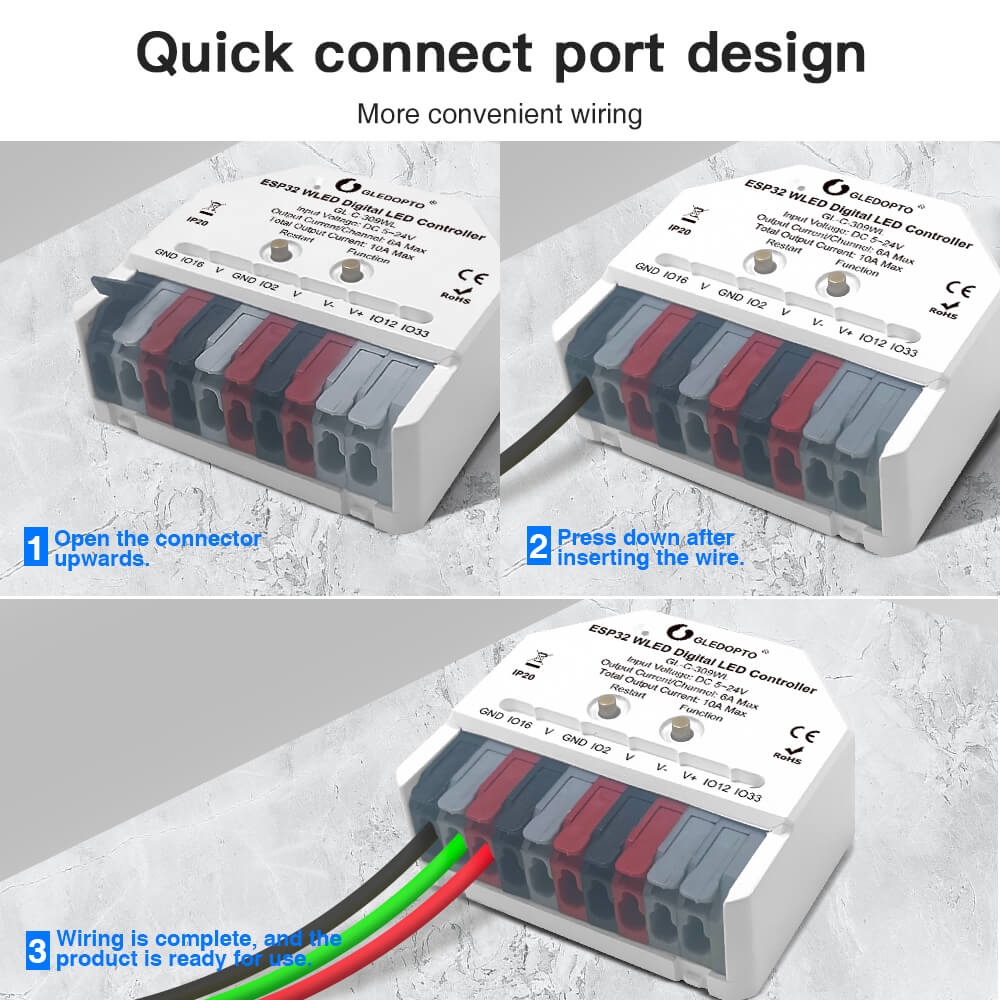

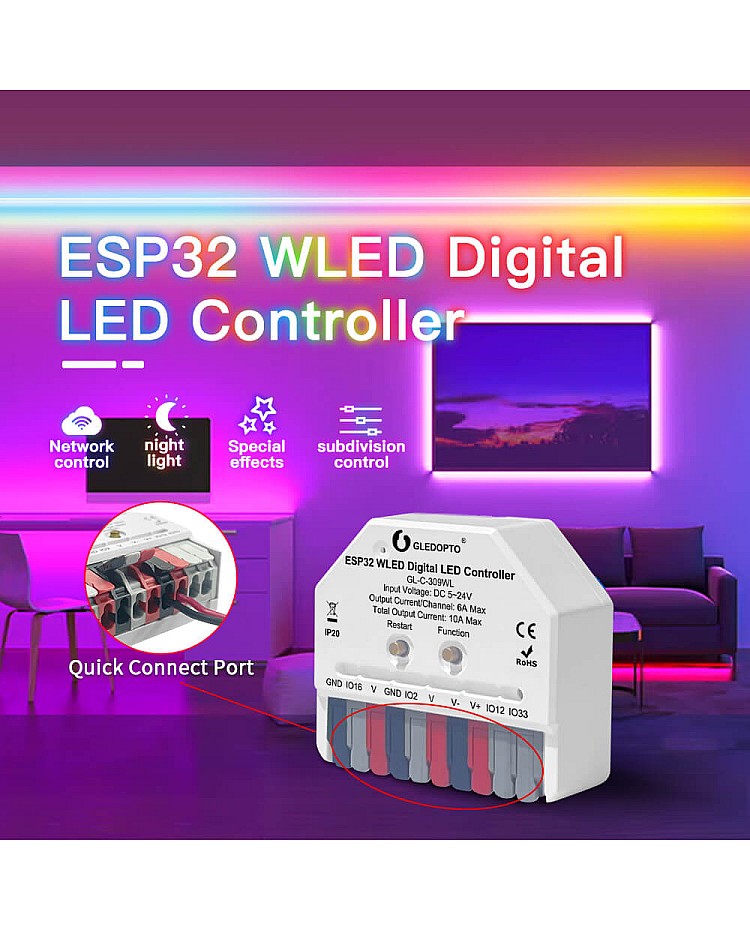

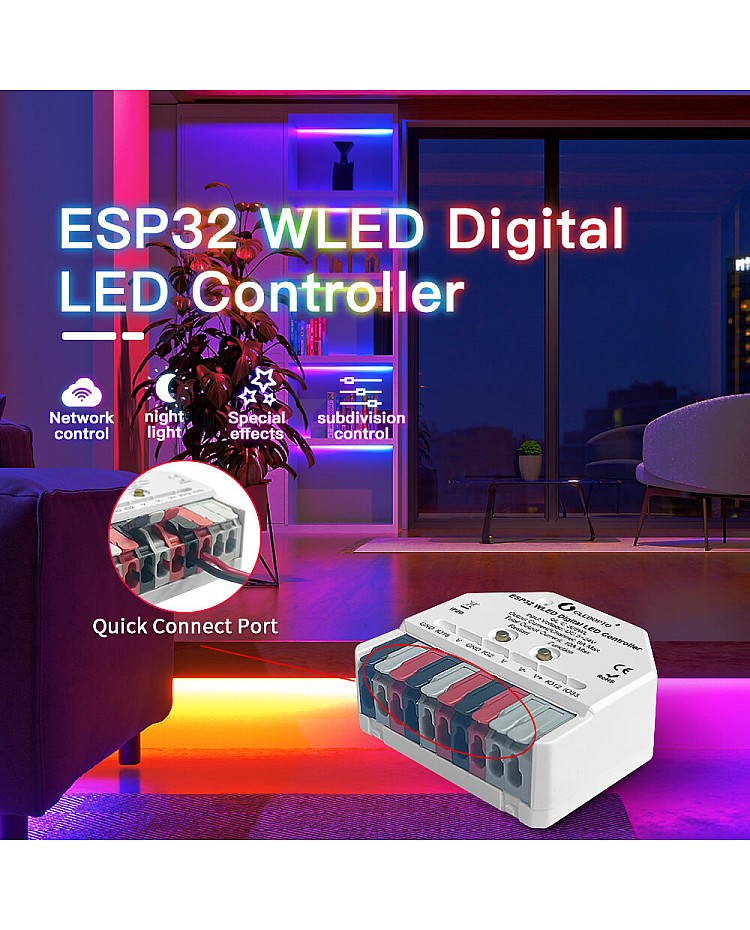

- Pressable wire terminal for fast connection
- Two physical buttons for fast operation
- Over 100 dynamic effects are selectable on the app

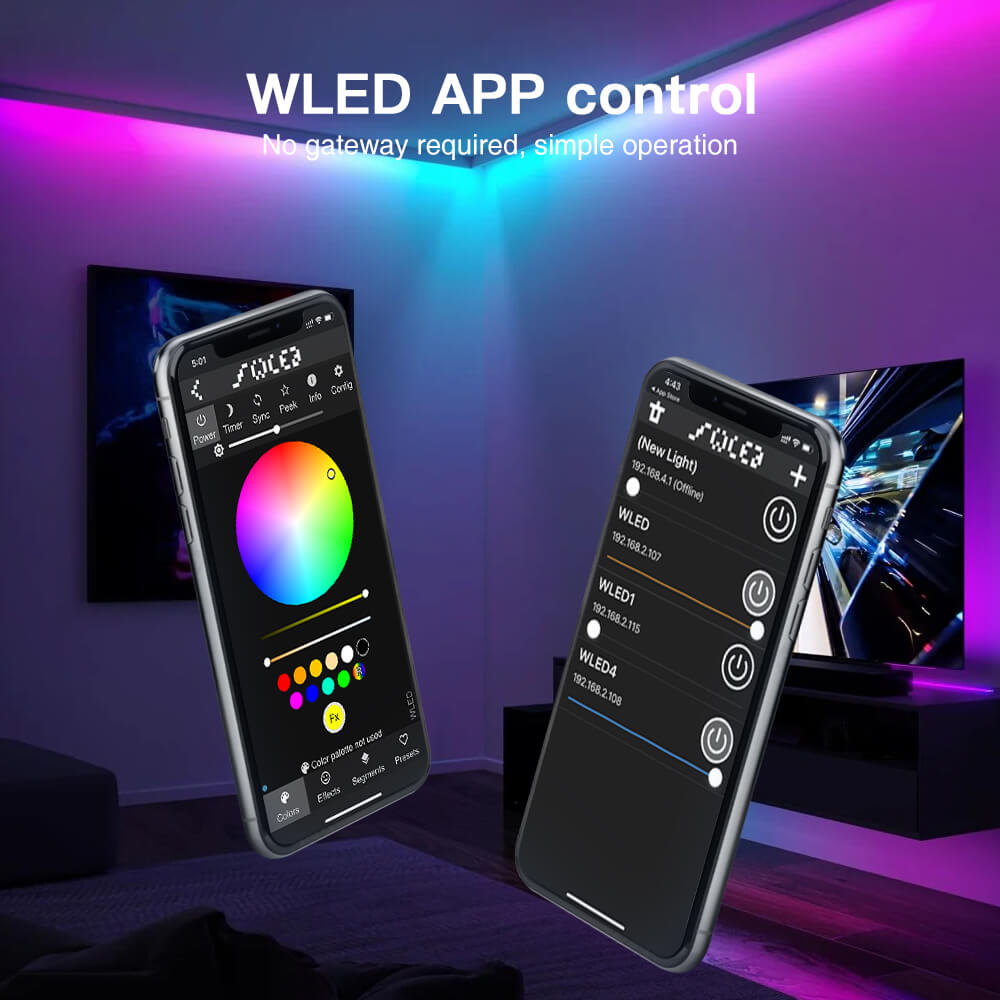

- WLED APP control
- WLED remote control
Link: Gledopto mini WLED controller user manual
Specifications:

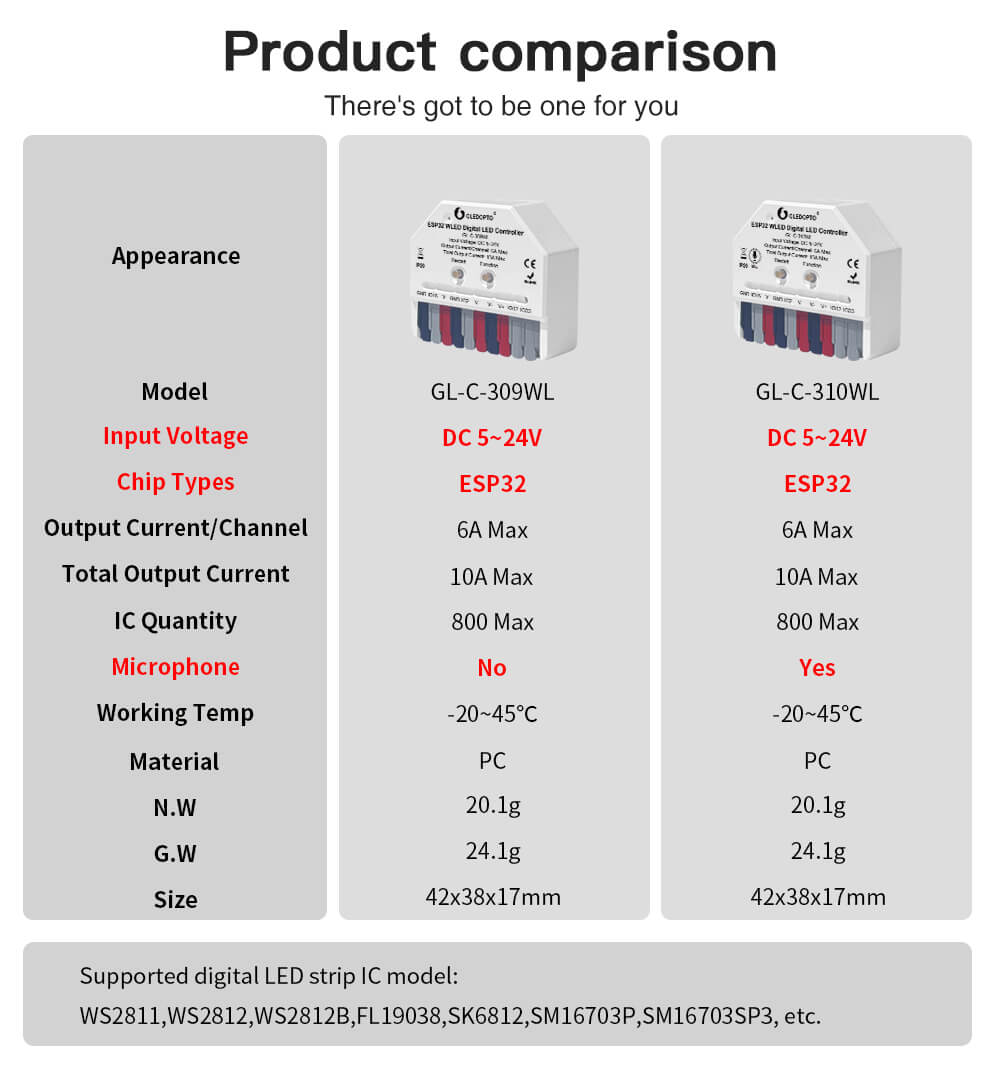

- Models: GL-C-309WL(Without microphone) / GL-C-310WL(With microphone)
- Material: Flame Retardant PC

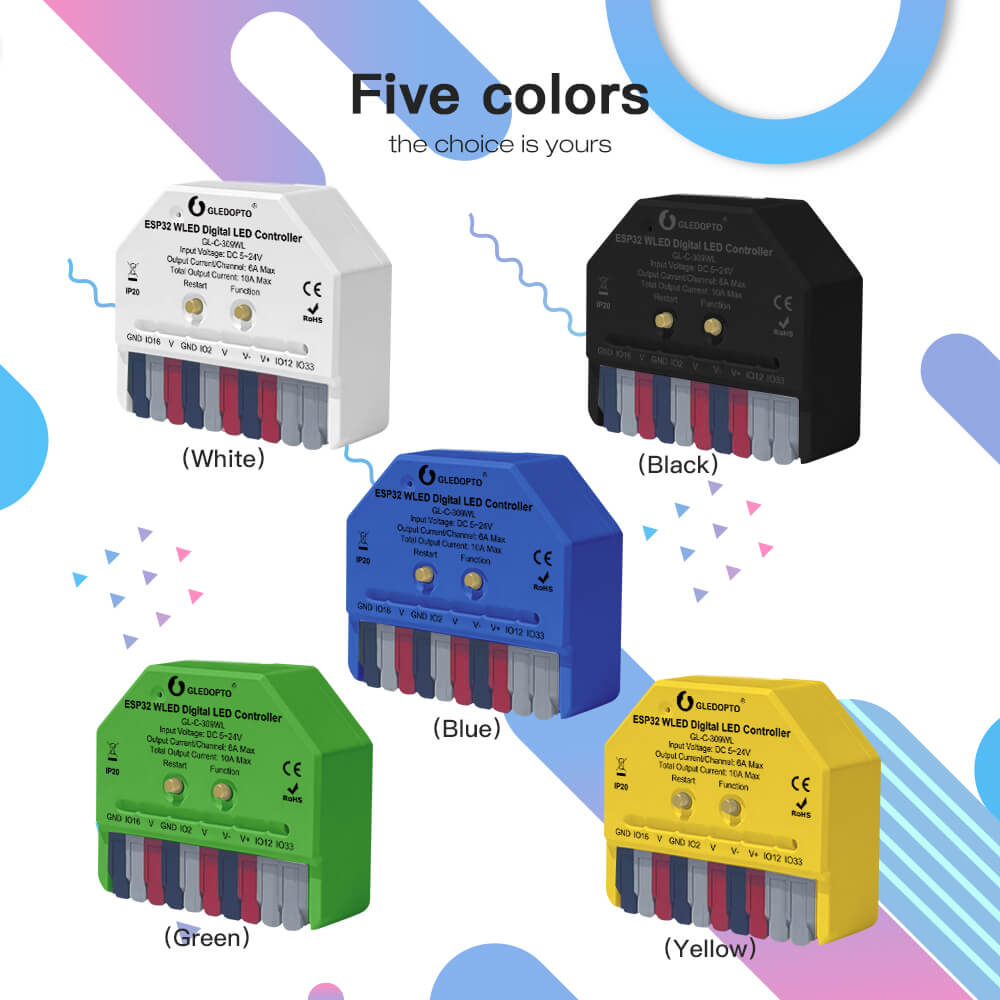

- Colors: White, black, green, blue, yellow

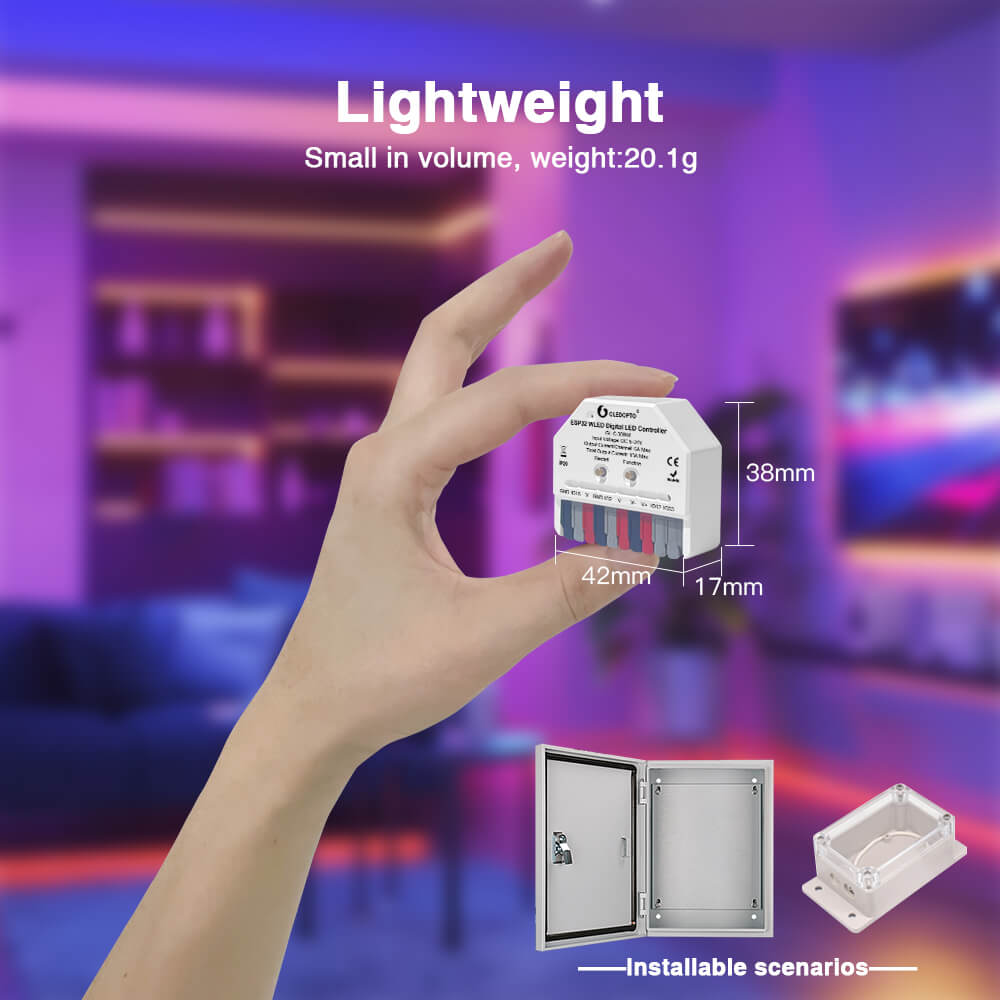

- Size ( L x W x H ): 42mm x 38mm x 17mm/1.65" x 1.5" x 0.67"
- Chip type: ESP32
- Input voltage: DC5-24V
- Output: 10A max
- Output current per channel: 6A max
- Maximum supported addressable ICs: 800PCS
- Supported most of digital LED strips: WS2811, WS2812, WS2812B, FL19038, SK6812, SM16703P, SM16703SP3, etc
- Protocol: WiFi
- APP name: WLED Native
- Suggested wire type: 0.5-1.5mm² （ 24-16AWG )
- Stripping length: 8-9mm
- IP rate: IP20 non-waterproof

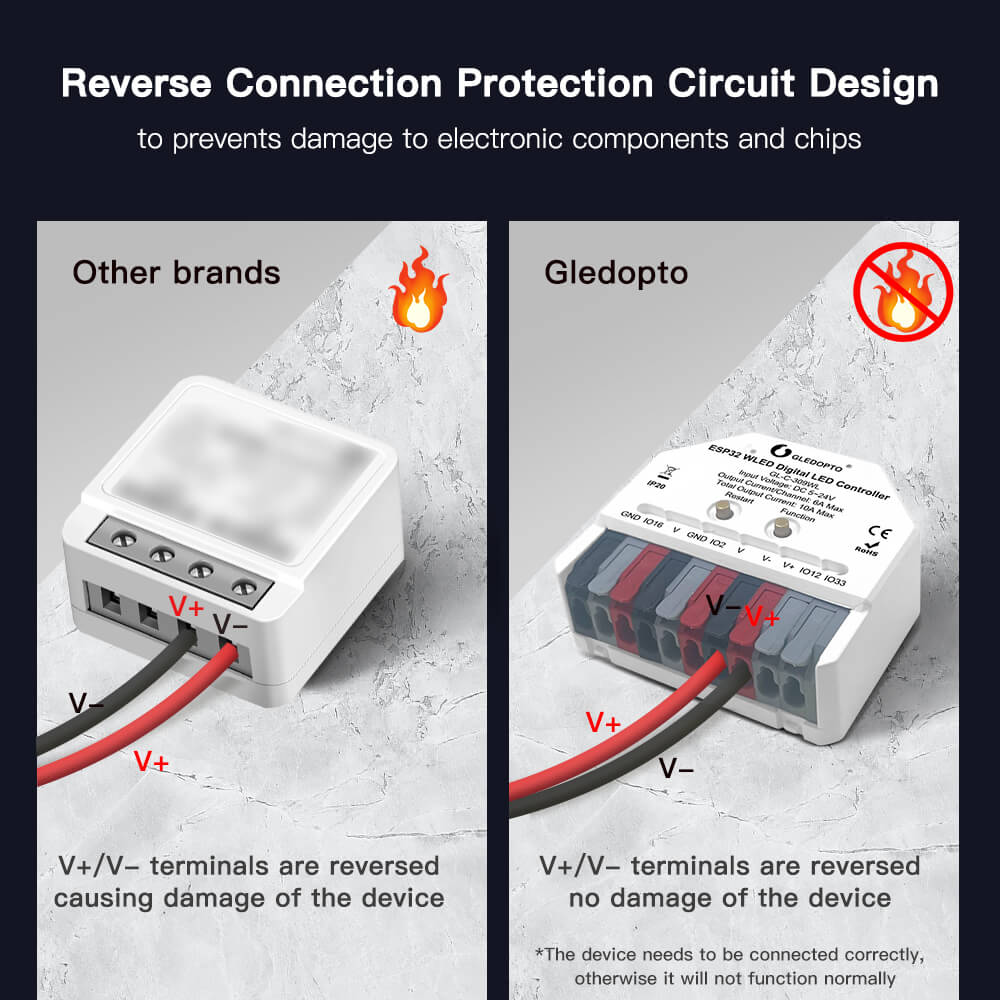

- Reverse connection protection
- Working temperature: -20℃-+45℃
- Warranty: 2 years
Includes:
1 x Mini ESP32 WLED controller
1 x User manual
