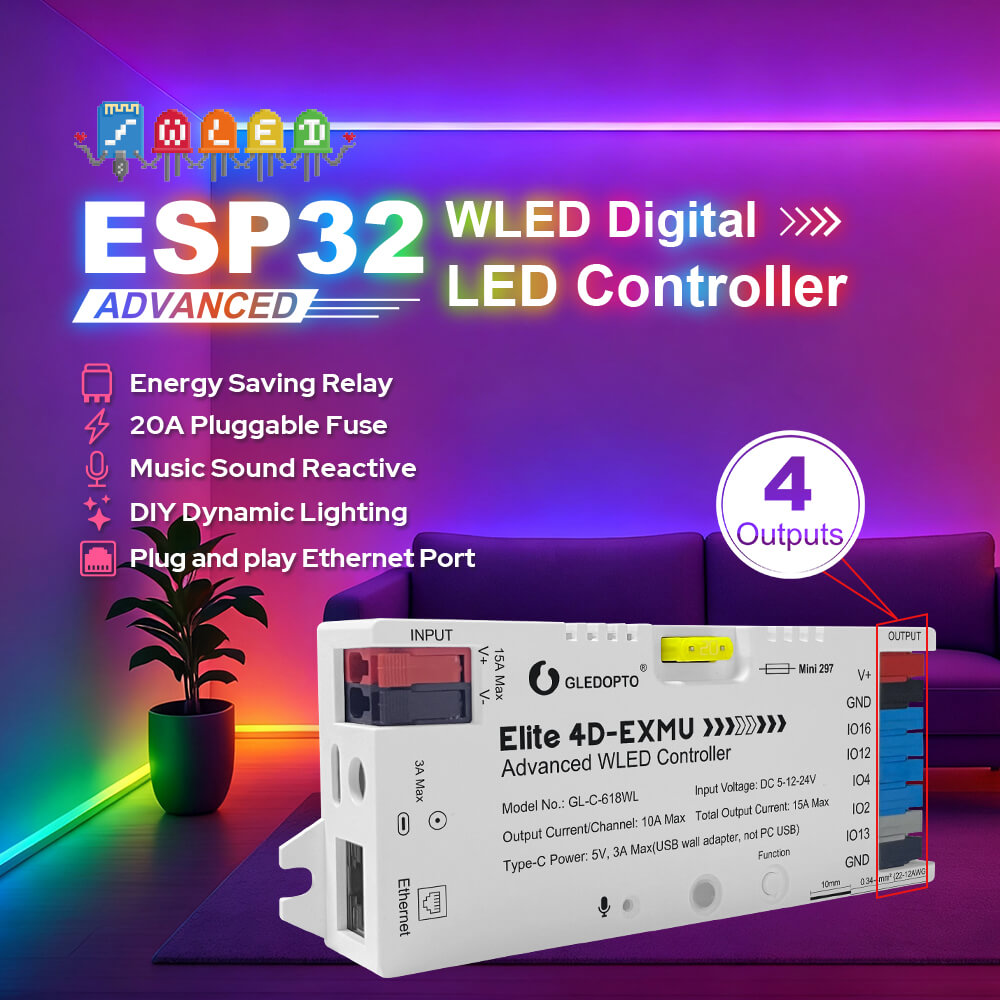

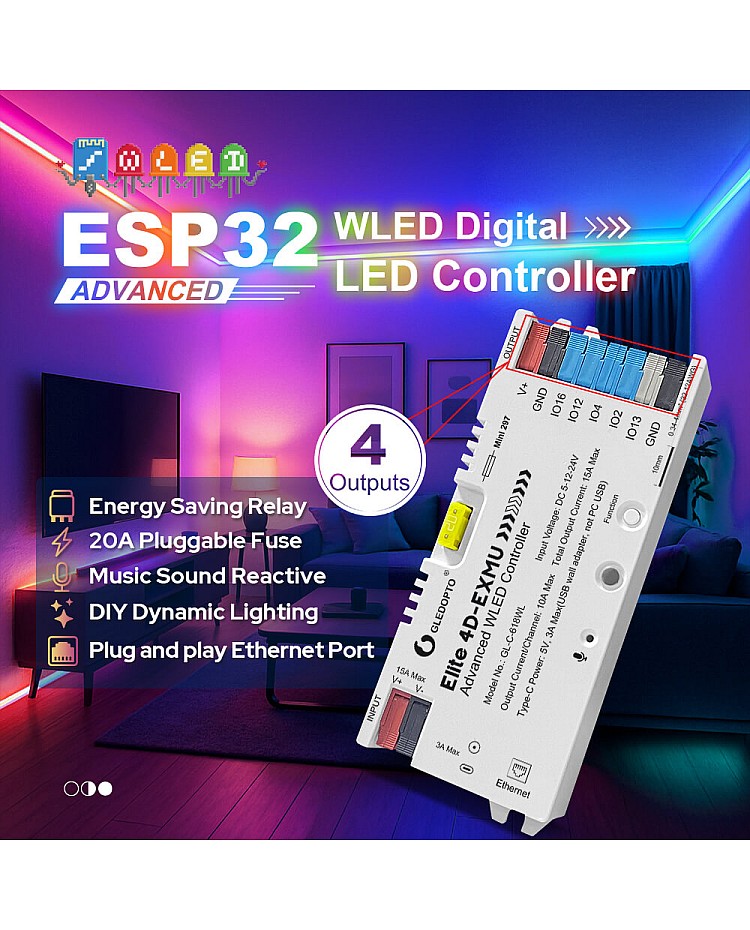

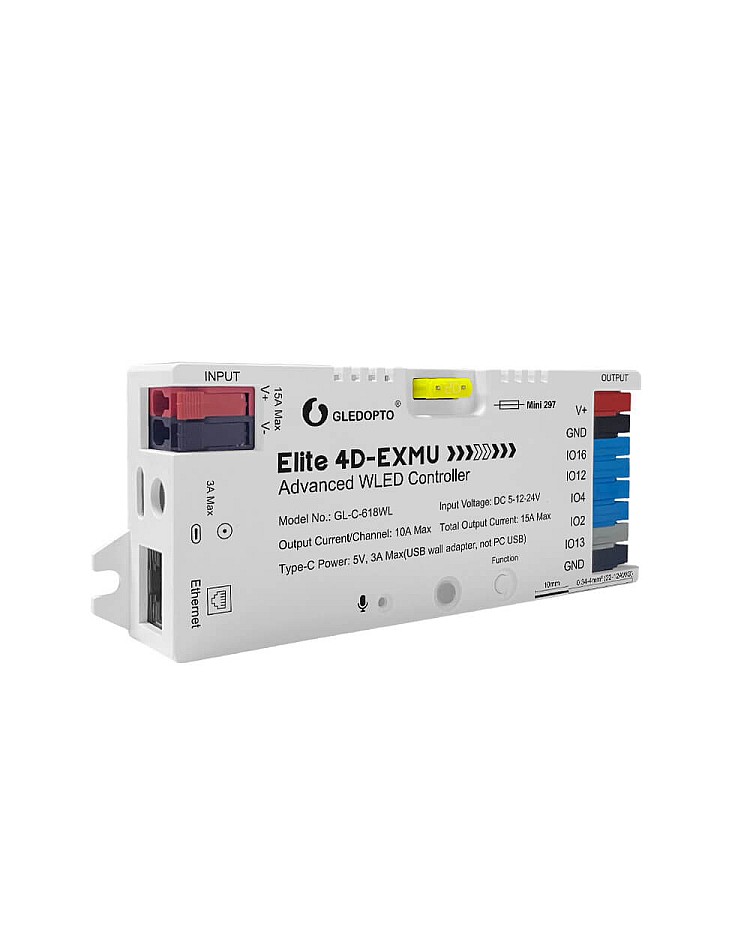

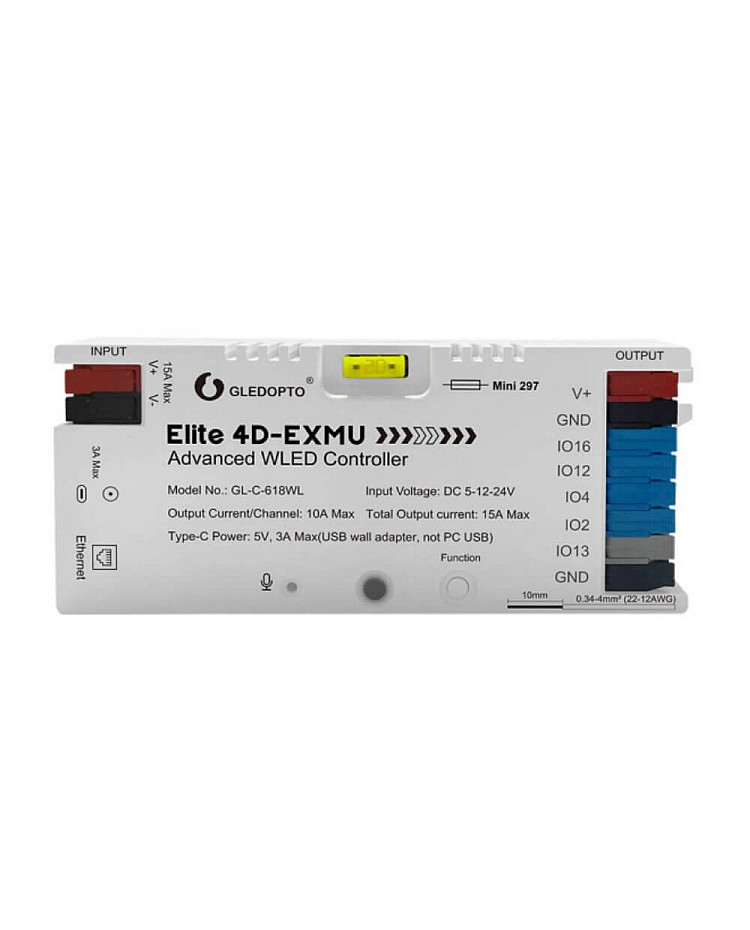

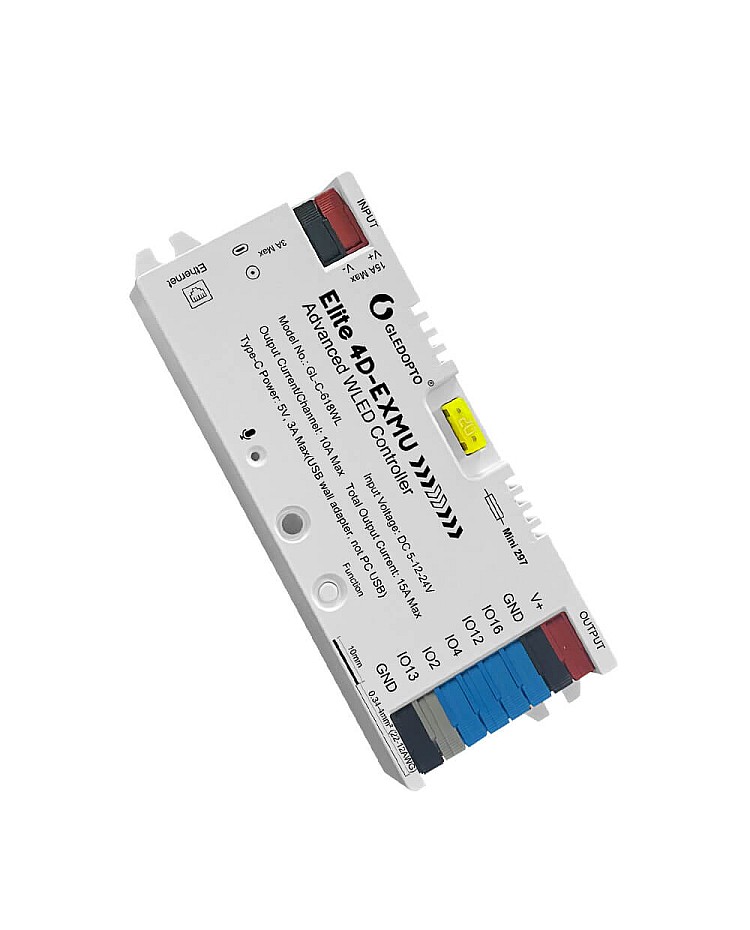

The Gledopto elite advanced ESP32 WLED controllers are designed for addressable LED strips. It's easy to connect the controller to the phone app to control the smart lighting, select over 100 lighting effects, and support segmented color control to fulfill various scenes. They support most programmable LED tapes and can drive up to 1600 pieces of ICs. It features a built-in microphone to sync with music, and the lighting changes to follow the music beats. You can use them to DIY the fantastic lighting effects for your home.

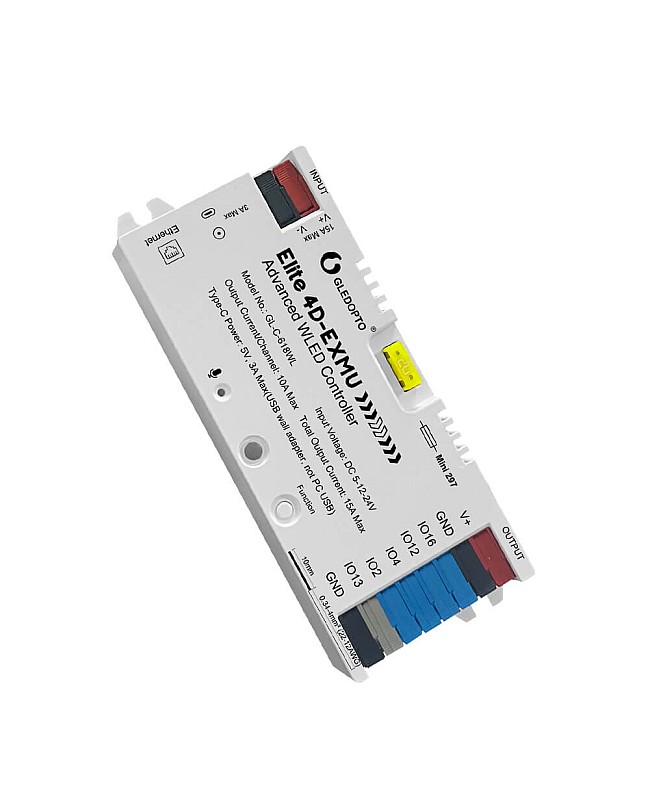

The LED controller WLED features a plug-and-play Ethernet port and a WiFi communication module, allowing you to connect to the smartphone app to control your lights quickly. There are three input methods for efficiently powering the controller: V+/V-, DC ports, and the Type-C interface. The Type-C can also be used for program downloading. The output terminal features a quick-pressable design and a 4-output-channel configuration, allowing you to connect and control up to 4 groups of digital LED lights. The Gledopto controllers have a 20A pluggable fuse and come with a backup 5A pluggable fuse for energy saving replay. When power is turned off, no current flows through the LED tapes, reducing power consumption.
Link: Gledopto elite advanced WLED controller user manual
- Support most of the programmable strip lights: WS2812B, WS2811, WS2815, SK6812, WS2813, TM1814, GS8208, SM16703P, etc

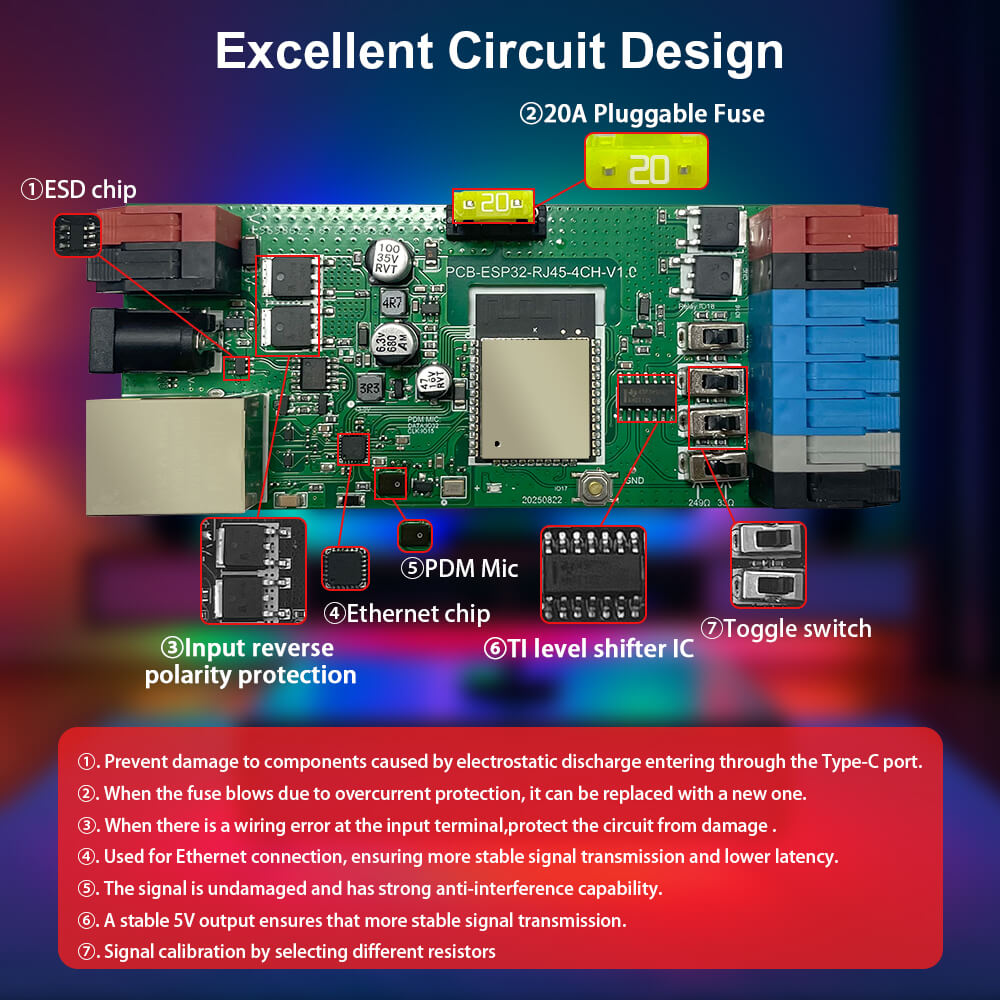

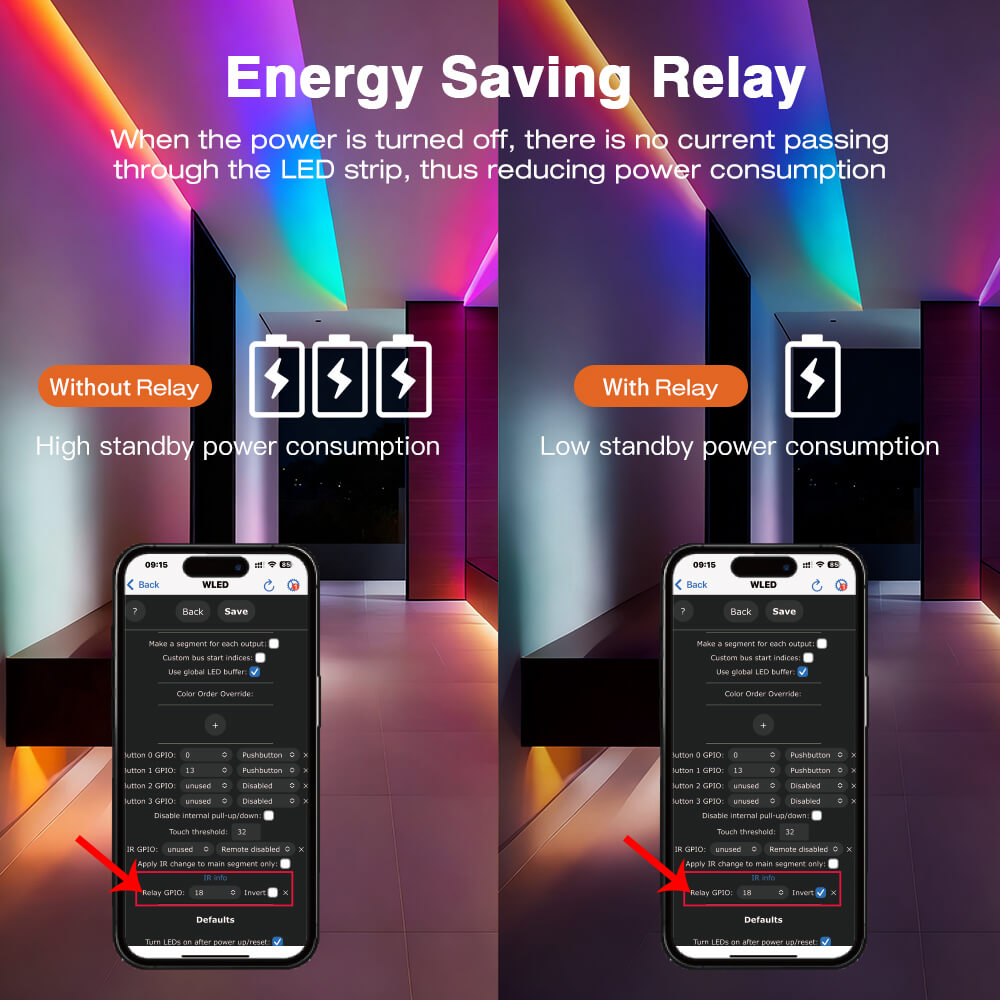

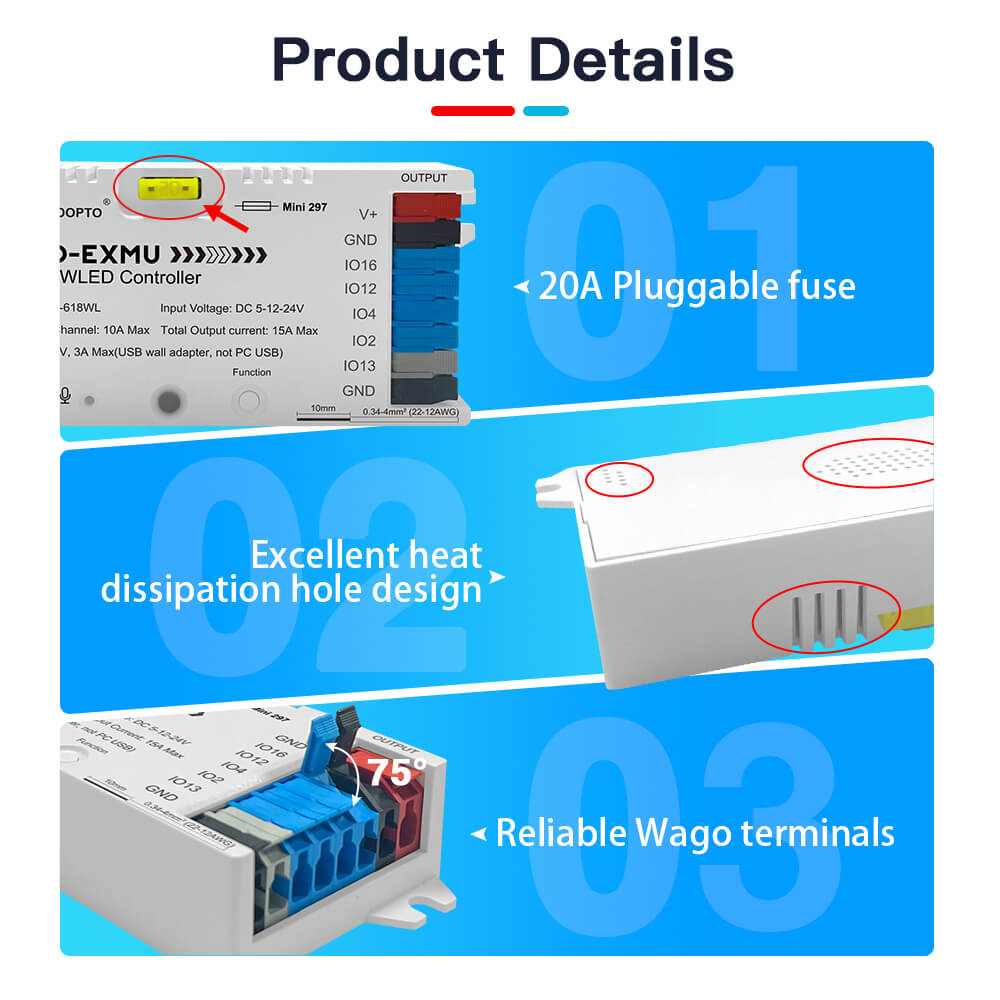

- Built-in 20A pluggable fuse for energy-saving relay

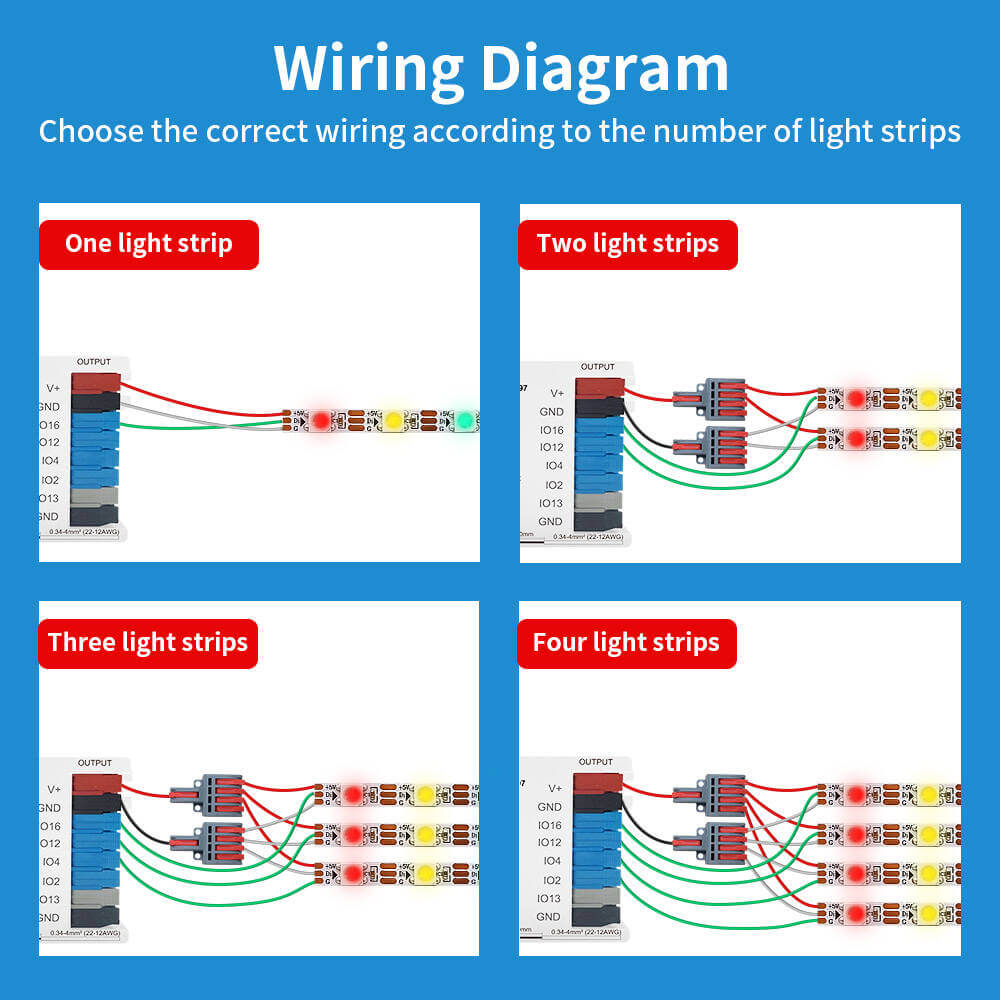

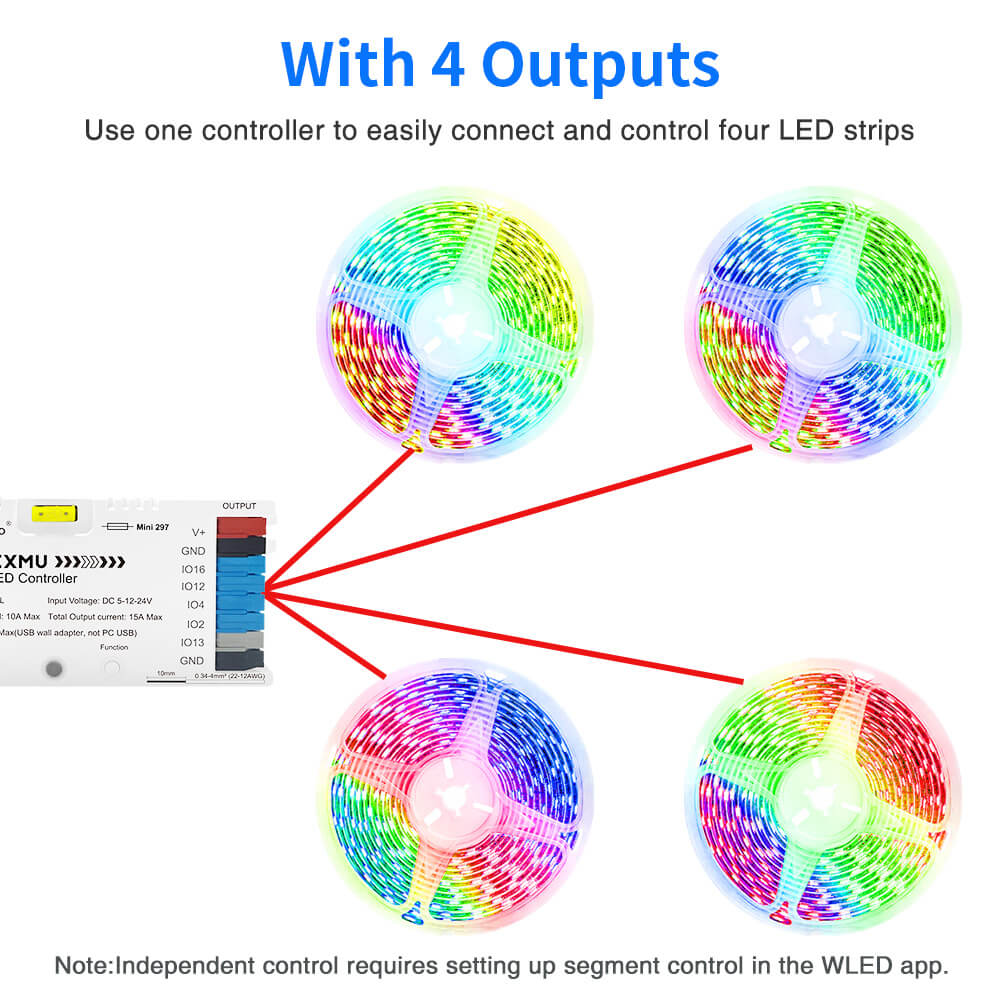

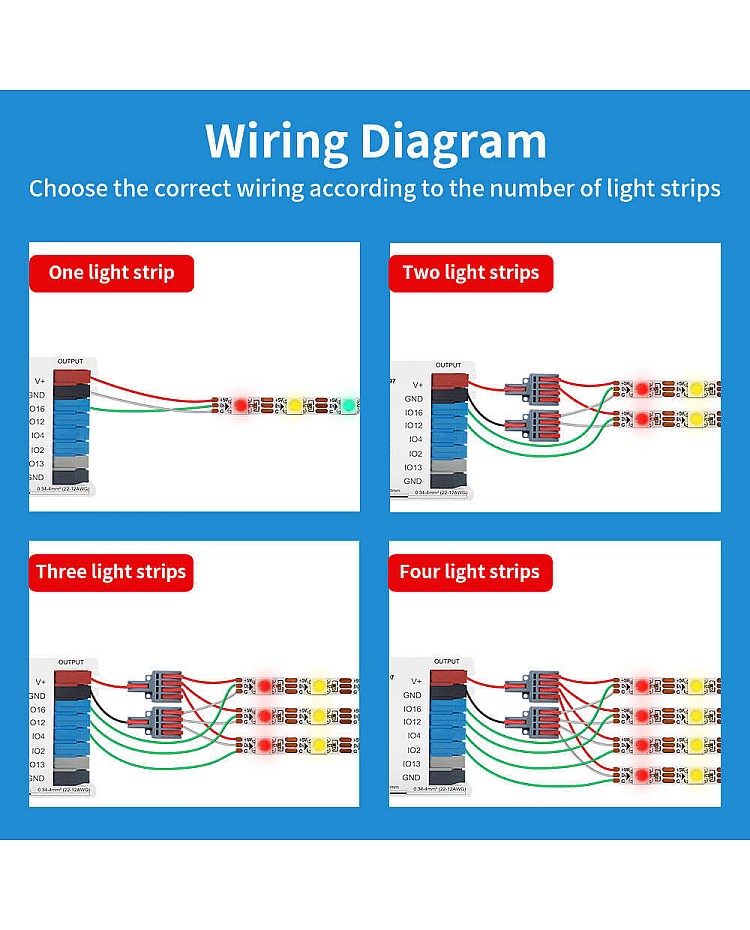

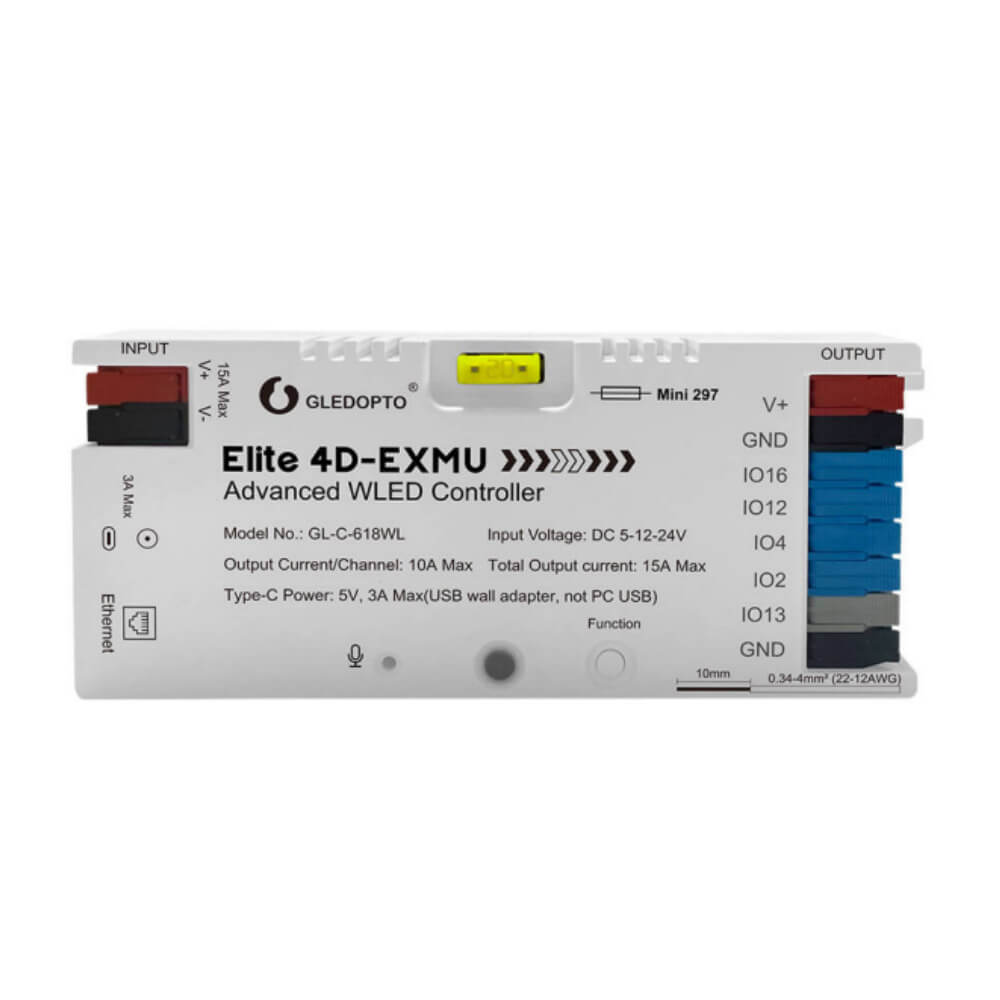

- 4 output channels design (Independent control requires setting up segment control in the WLED app)
- The microphone functions to follow the music's rhythm

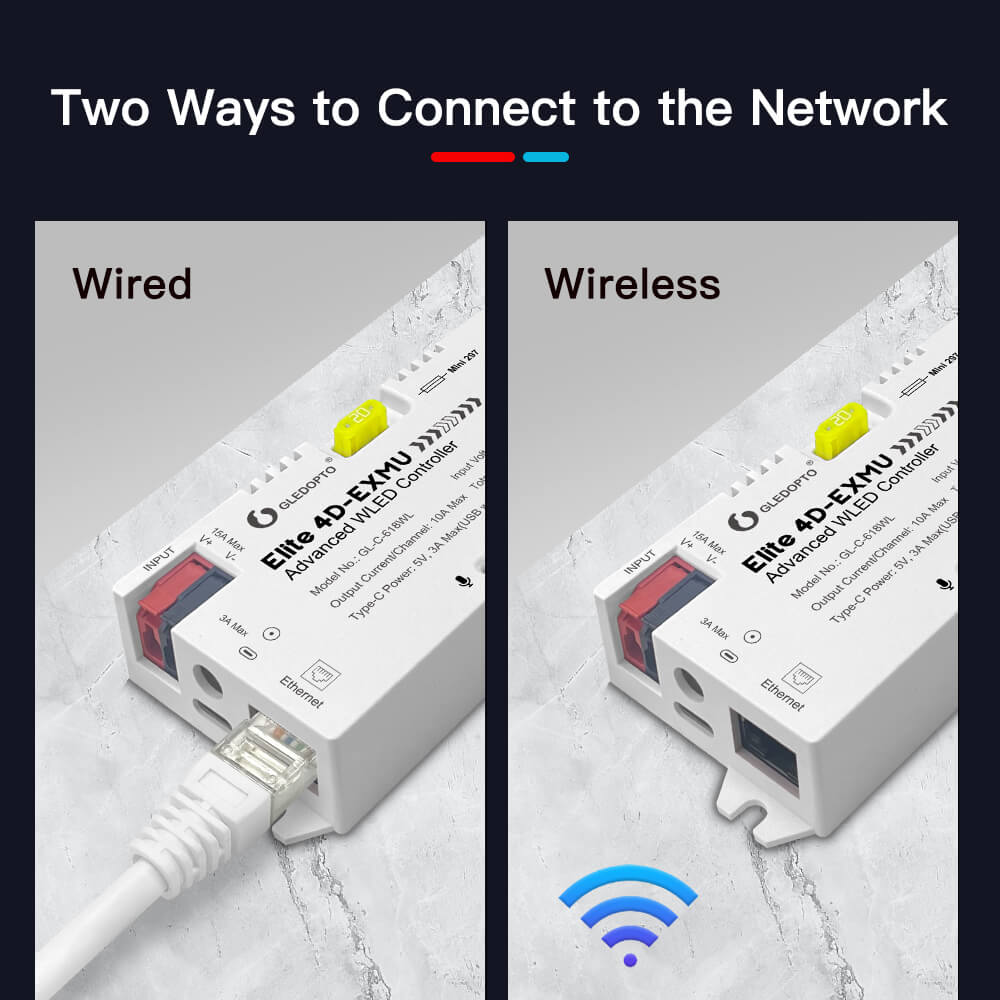

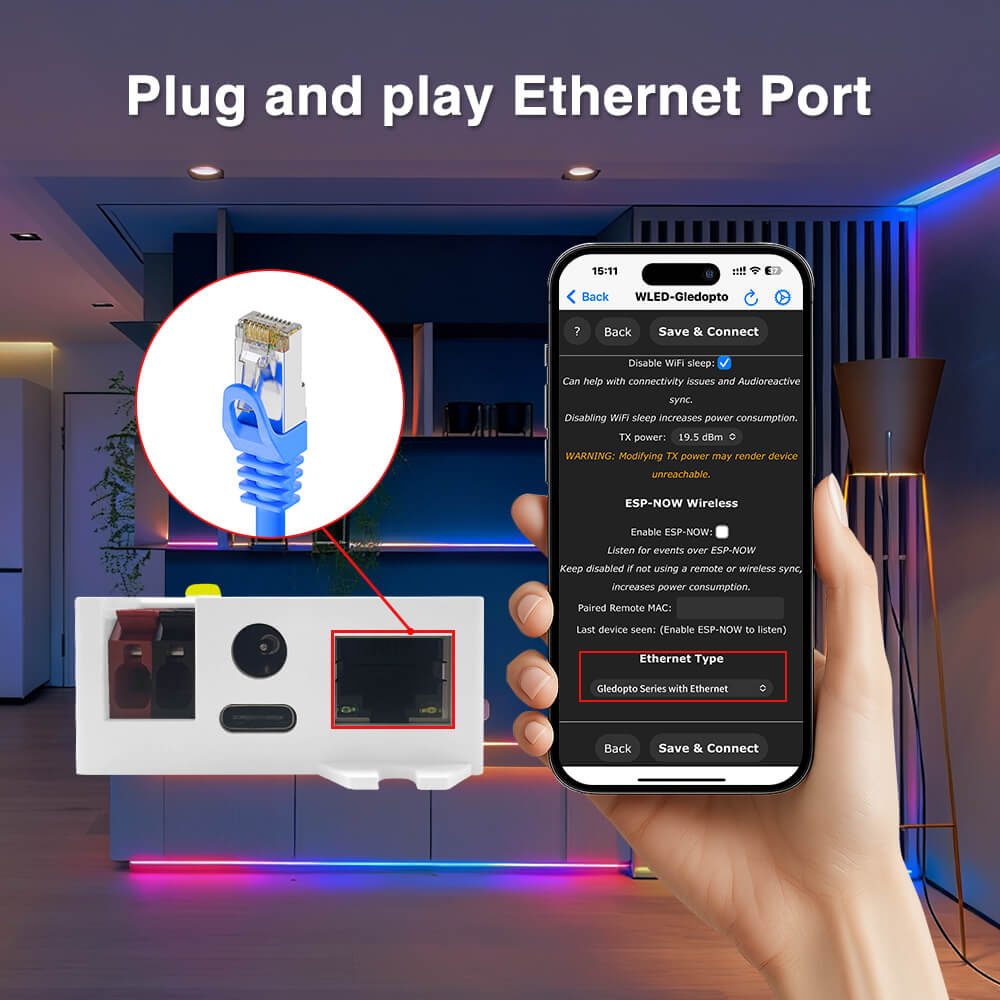

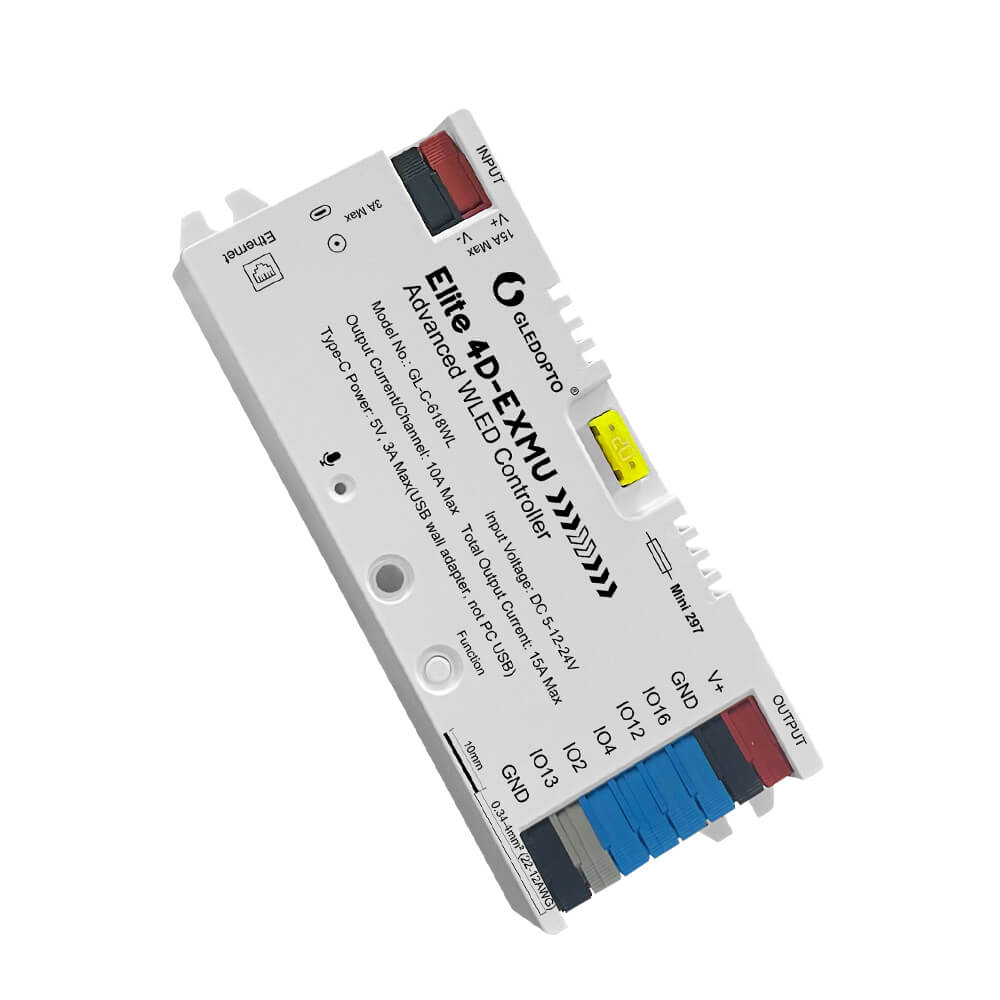

- Two ways to connect to the WiFi network: Ethernet port and WiFI module

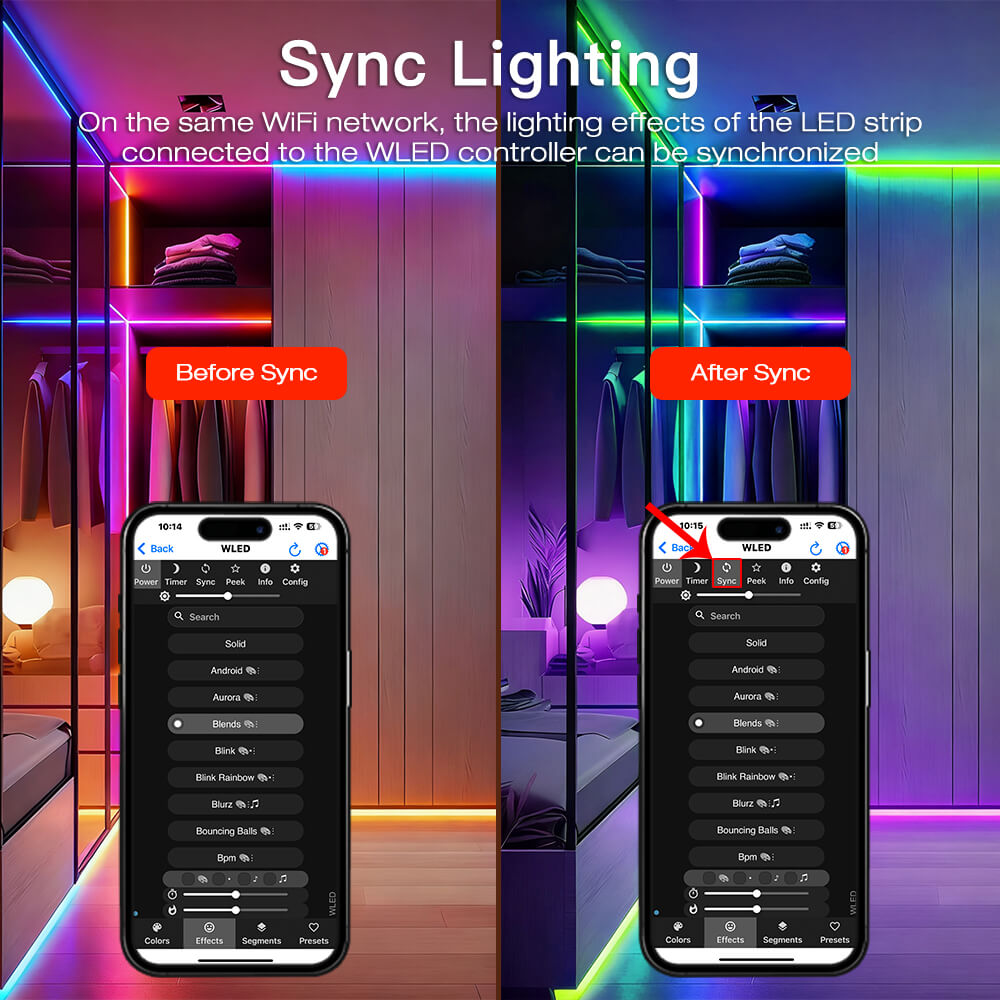

- The lighting effects of the LED strip connected to the WLED controller in the same WiFi network can be synchronized

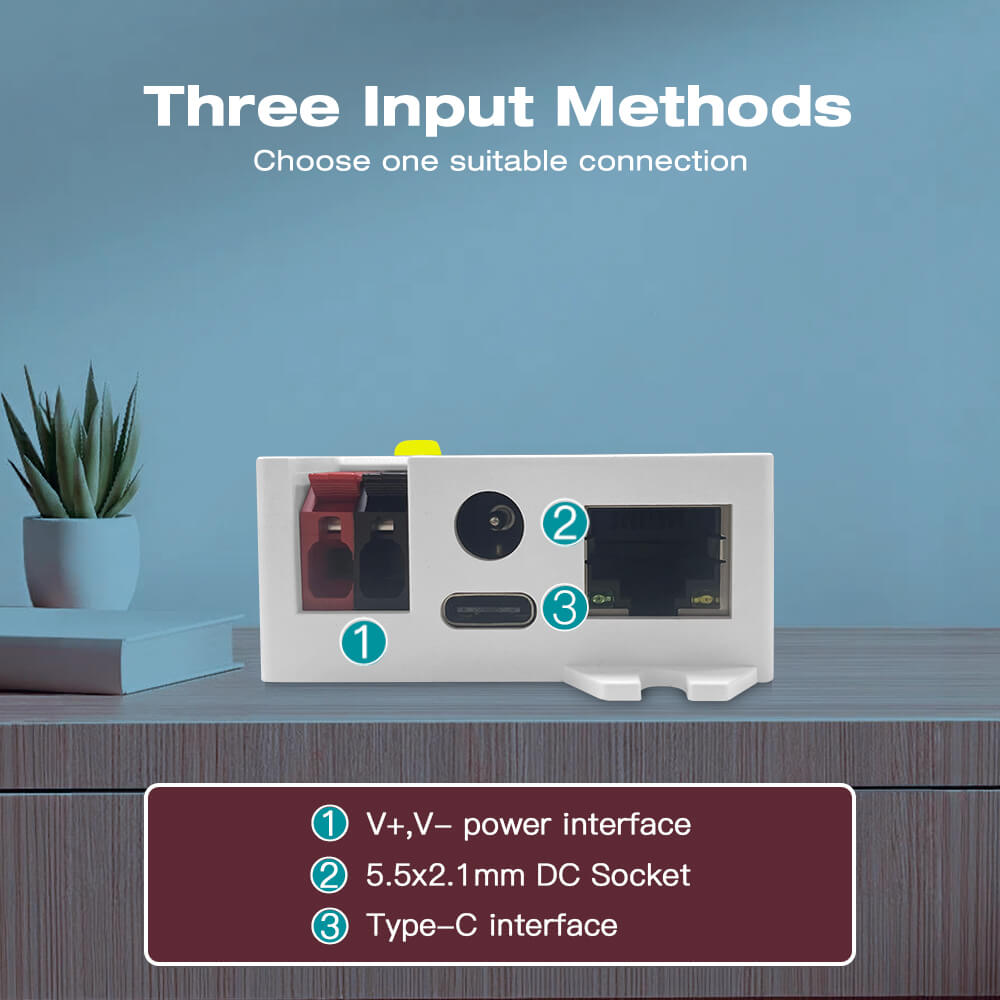

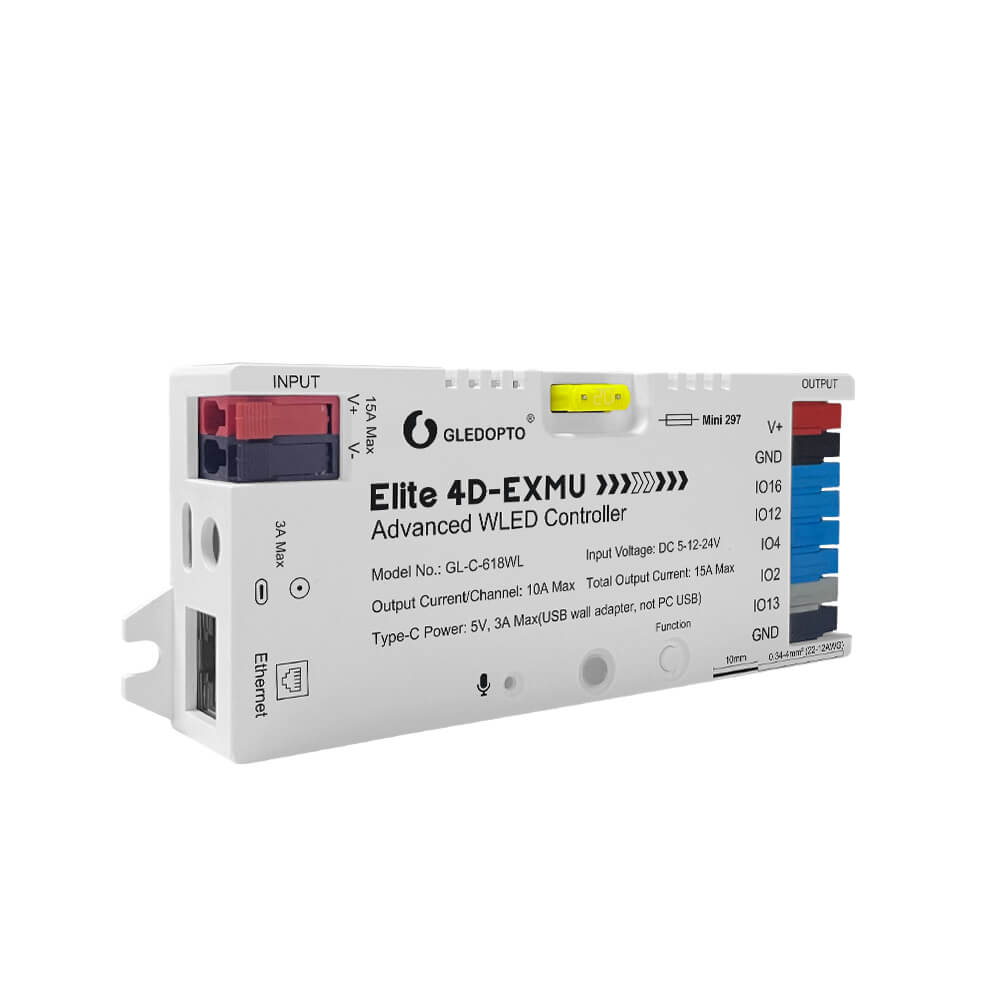

- Three input methods: V+/V- power interface, 5.5mm/2.1mm DC socket, Type-C

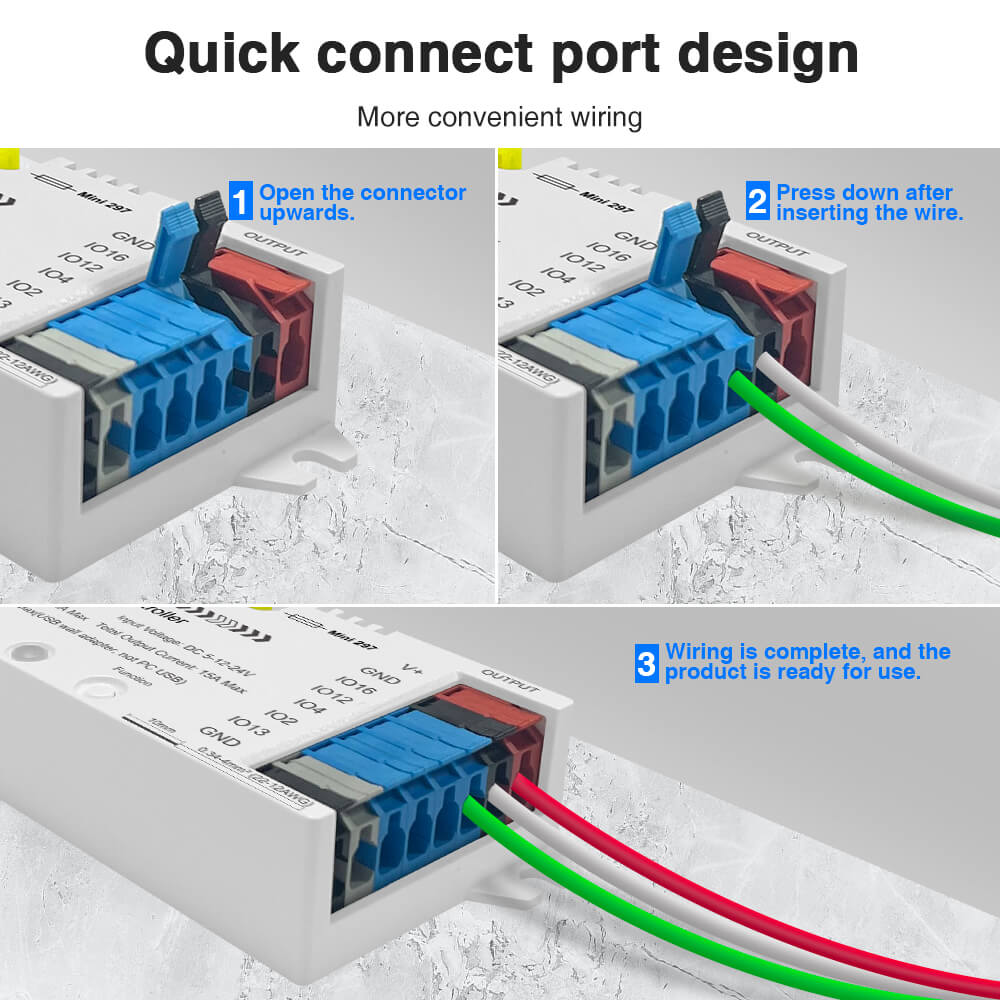

- Quick pressable connect output terminal

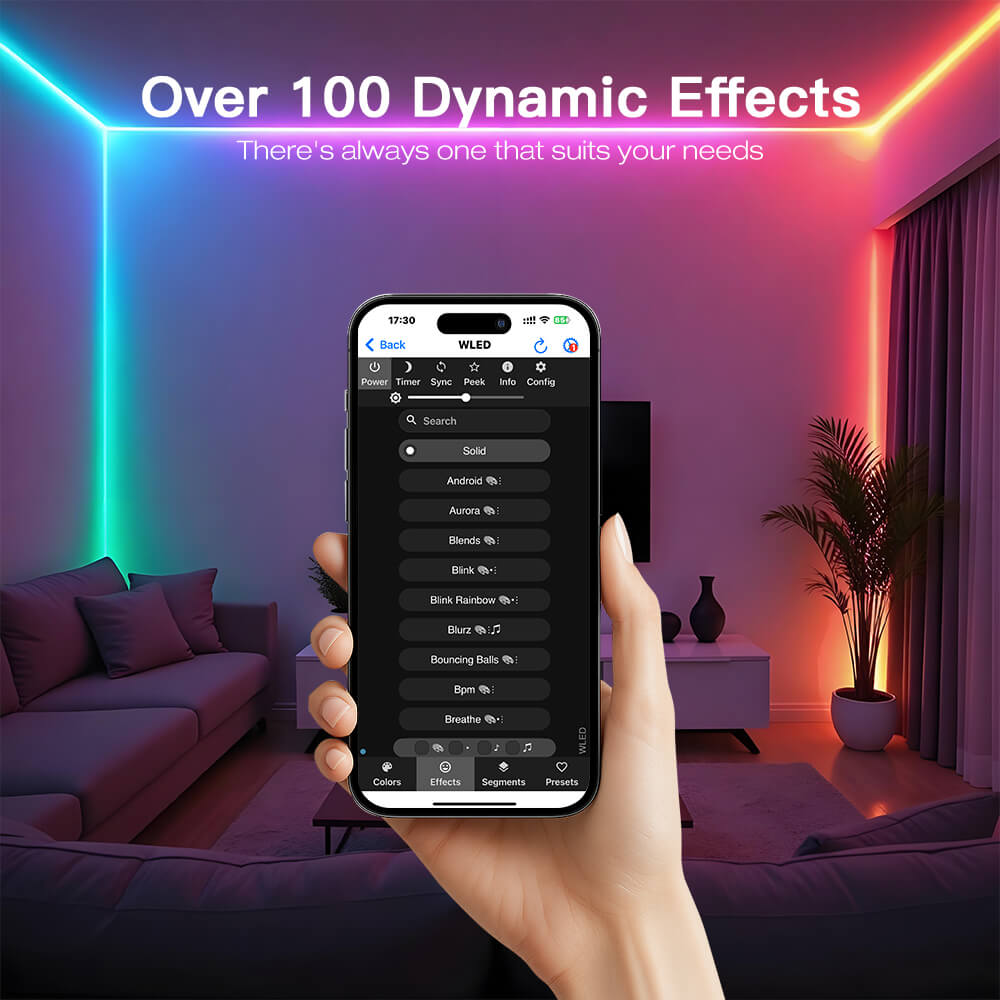

- Over 100 dynamic effects are selectable

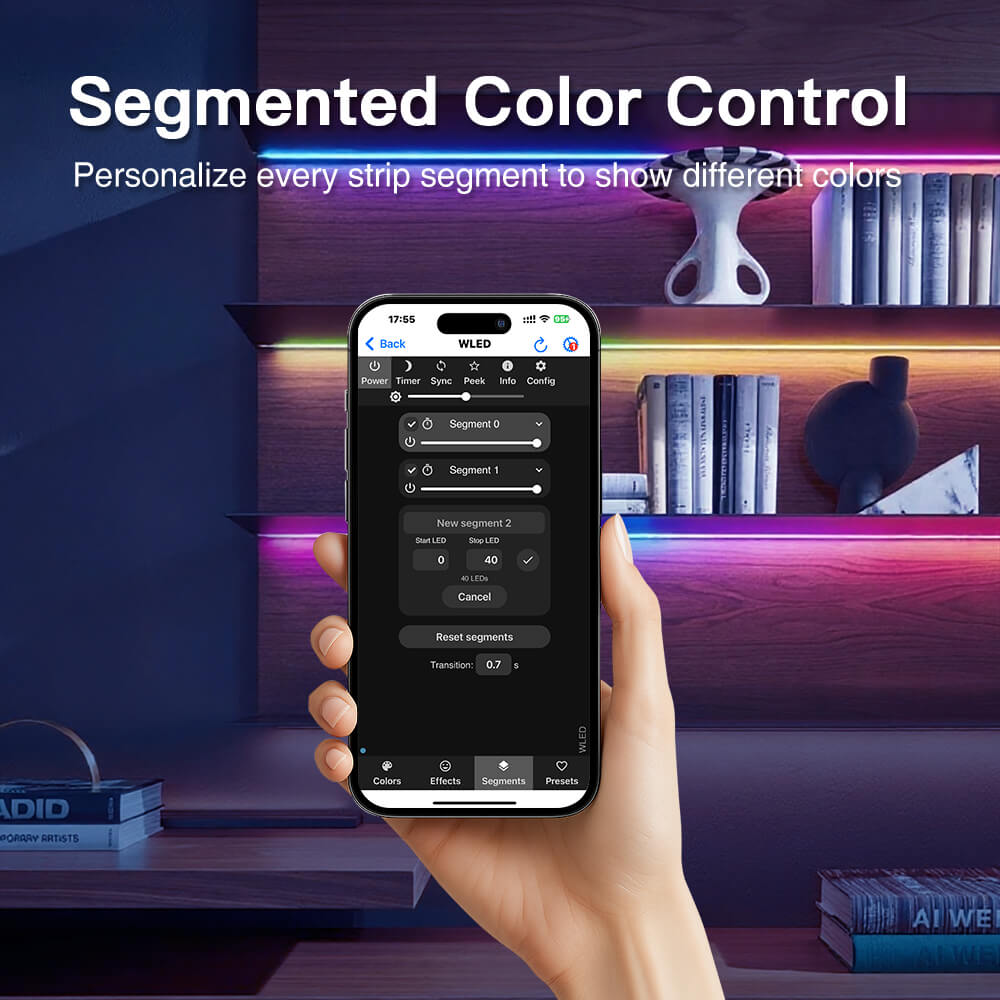

- Segmented color controllable

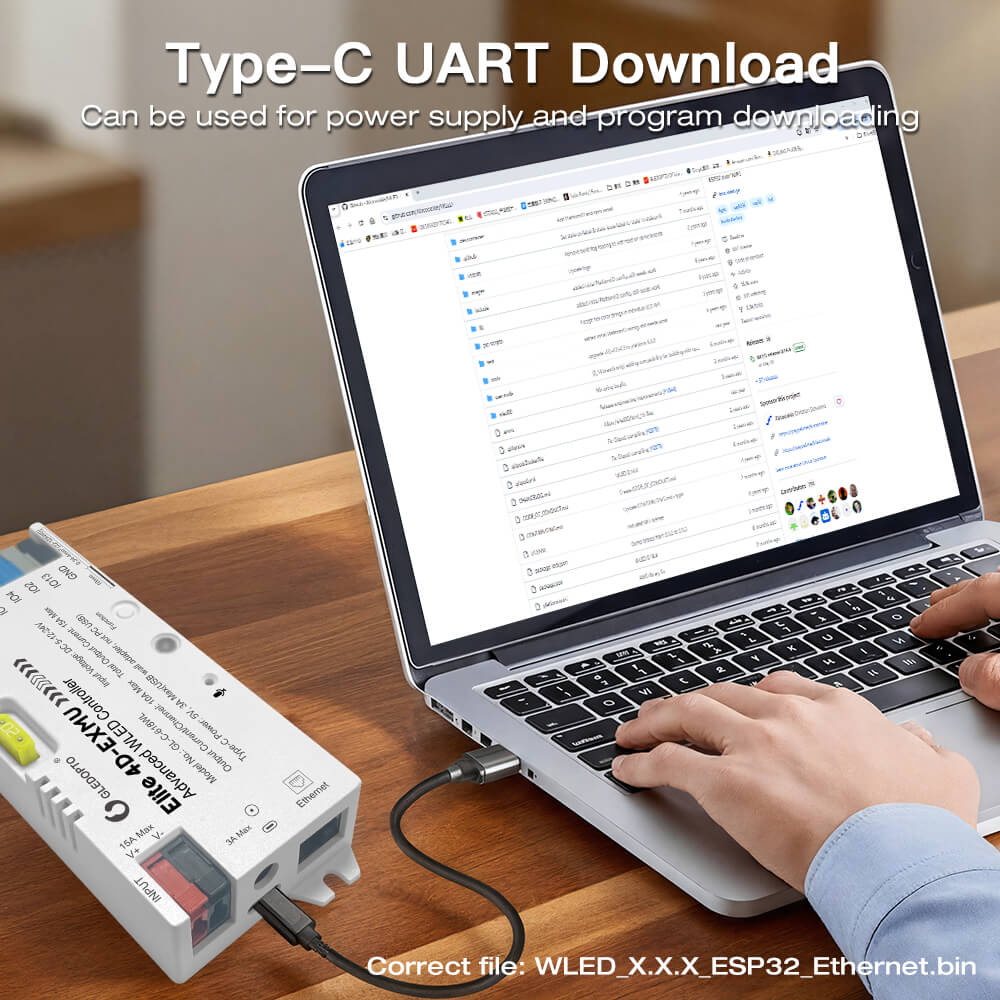

- Type-C port for power supply and program download
- Can work with WLED remotes

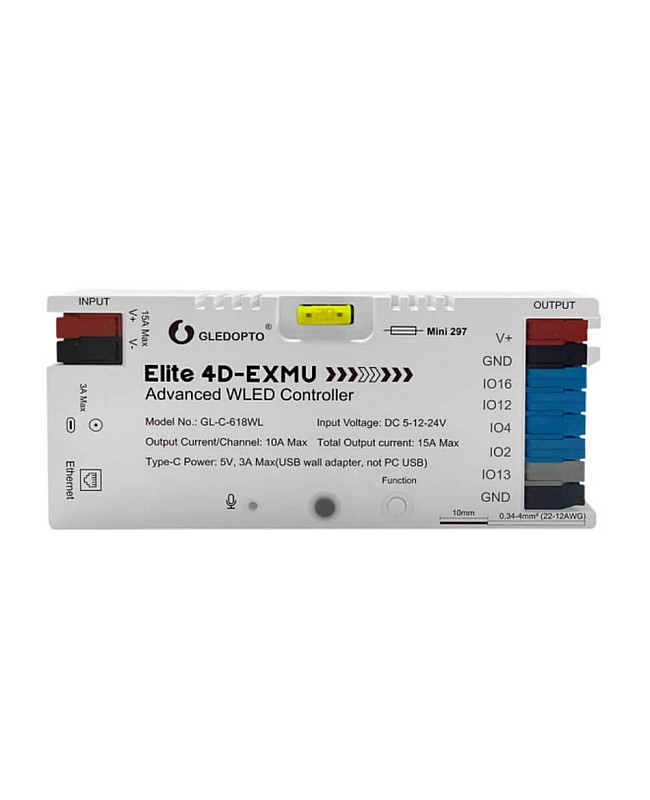

Specifications:
- Material: Flame-retardant PC

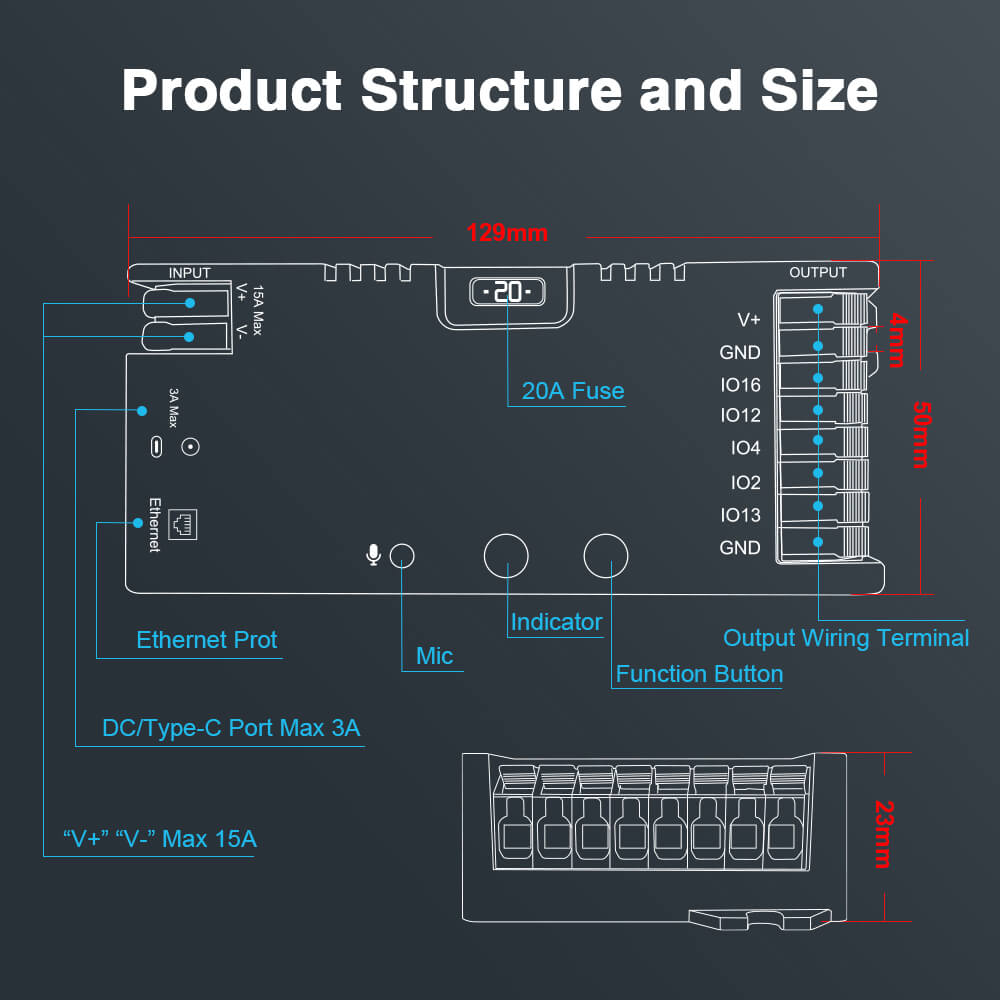

- Size ( L x W x H): 129mm x 50mm x 23mm/5.08"x 1.97"x 0.91"

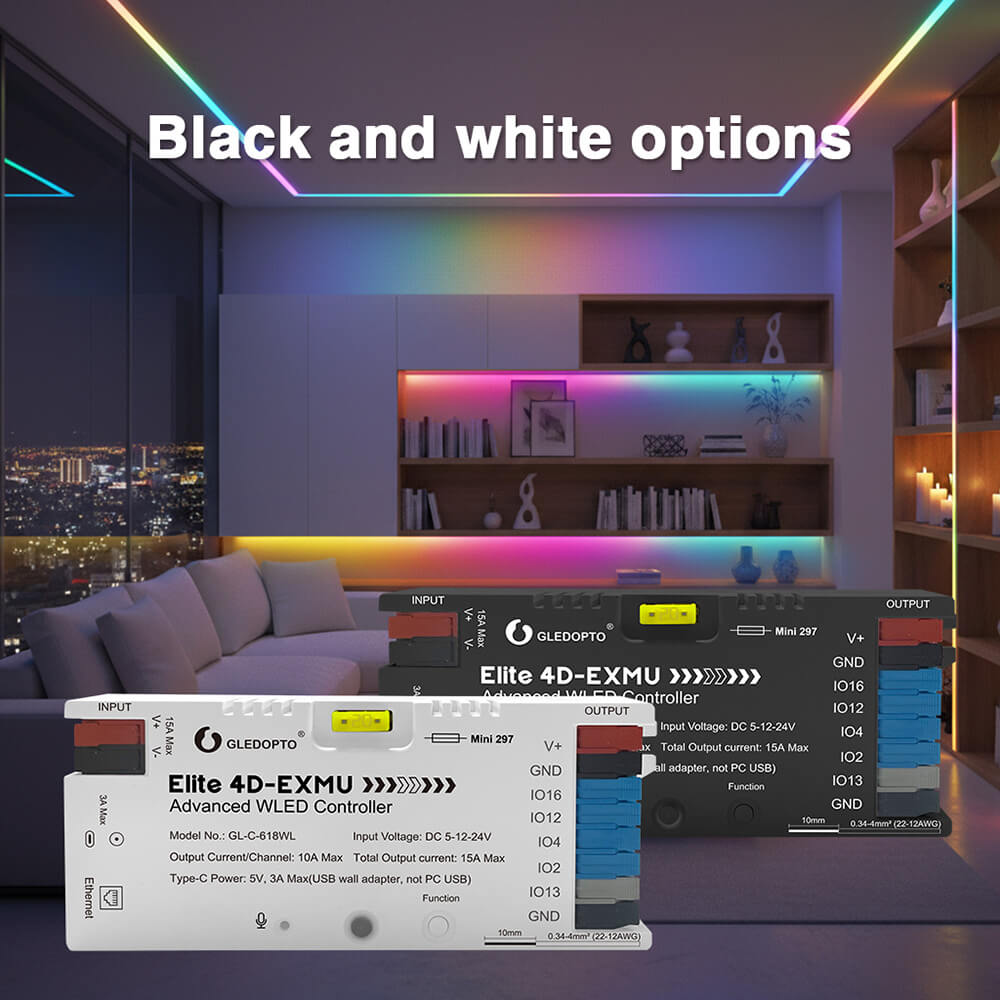

- Colors: Black, white
- Input voltage: DC5-12-24V
- Total output current: 15A Max
- Output current per channel: 10A Max
- Type-C voltage: 5VDC
- Type-C current: 3A Max
- Protocol: WLED
- Built-in ESP32 chip
- Maximum number of ICs supported: 1600PCS
- App name: WLED Native
- IP rating: IP20 non-waterproof
- Firmware upgradeable
- WLED signal amplifiers are sold separately
- Working temperature: -20℃-+45℃
- Warranty: 2 years

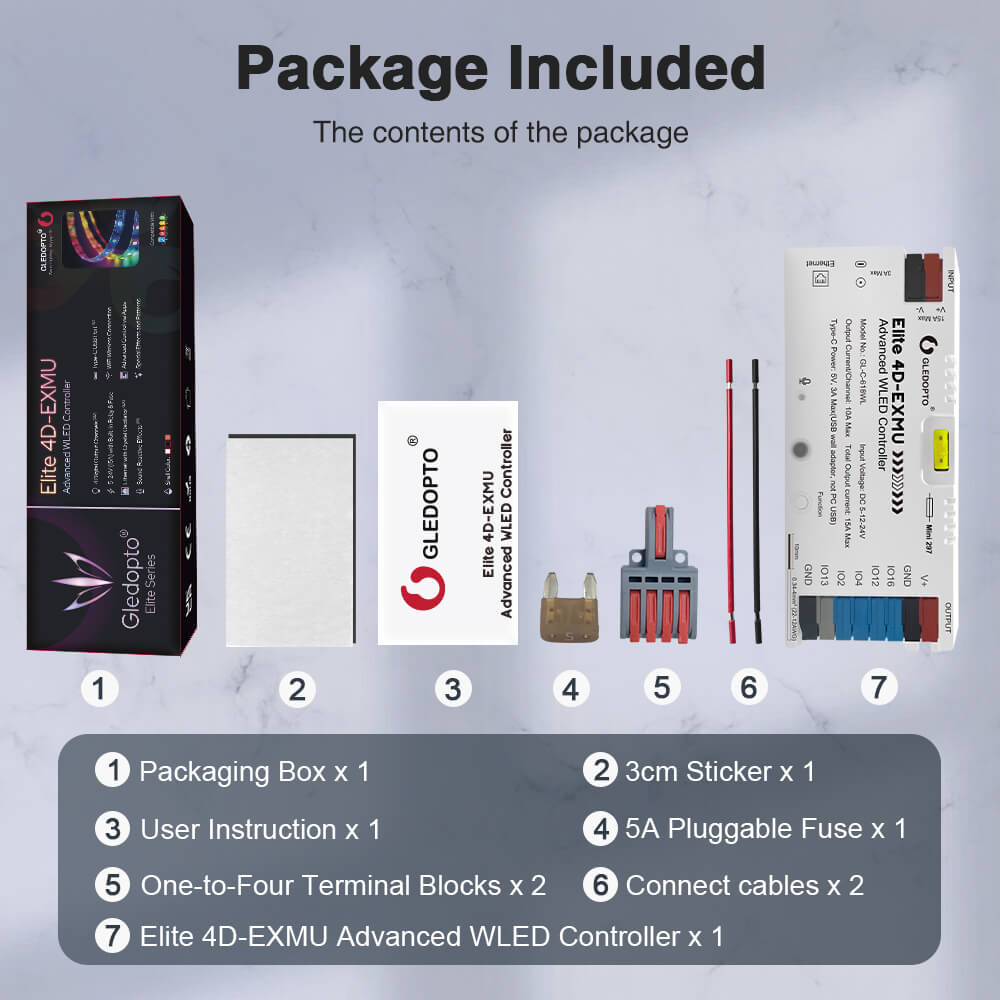

Includes:
1 x ESP WLED controller
2 x 3cm stickers
1 x 5A pluggable fuse
2 x Connect cables
2 x One-to-four terminal blocks
1 x User manual
