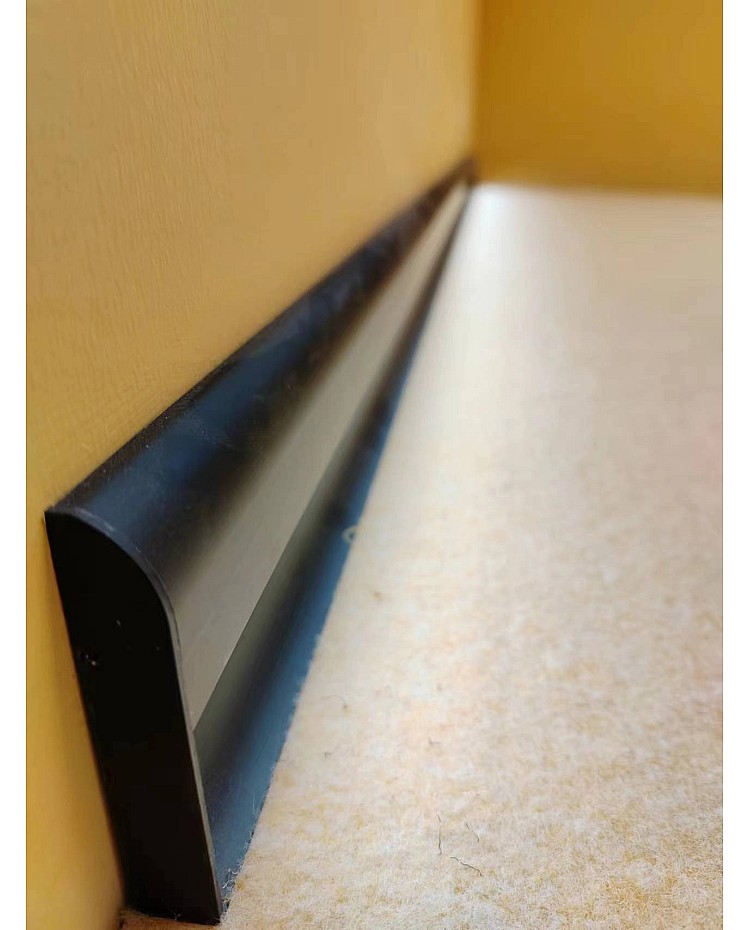

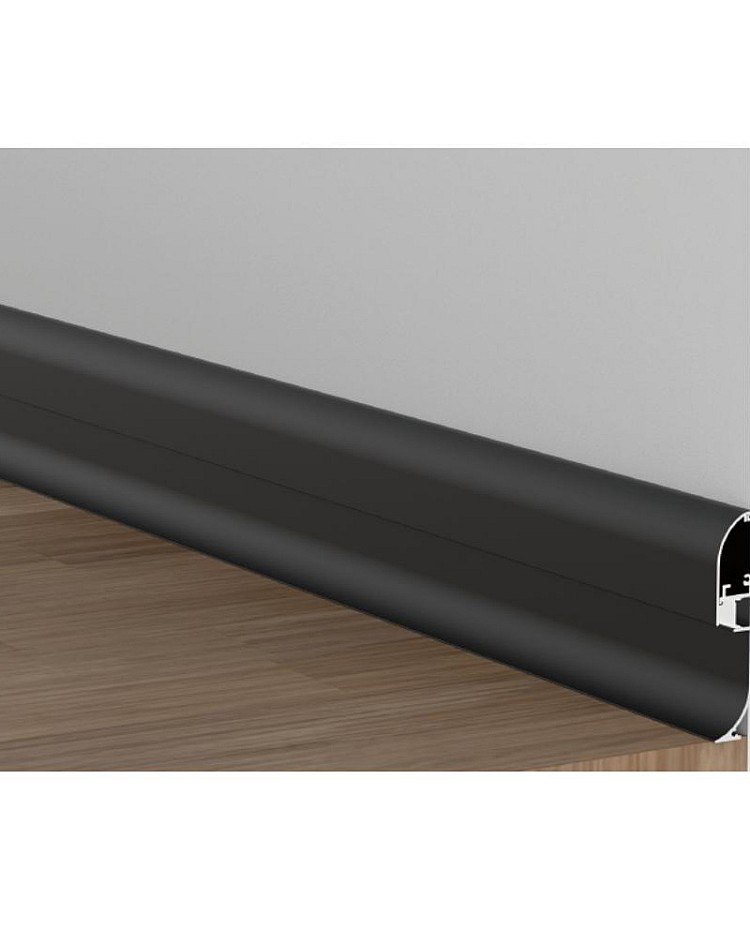

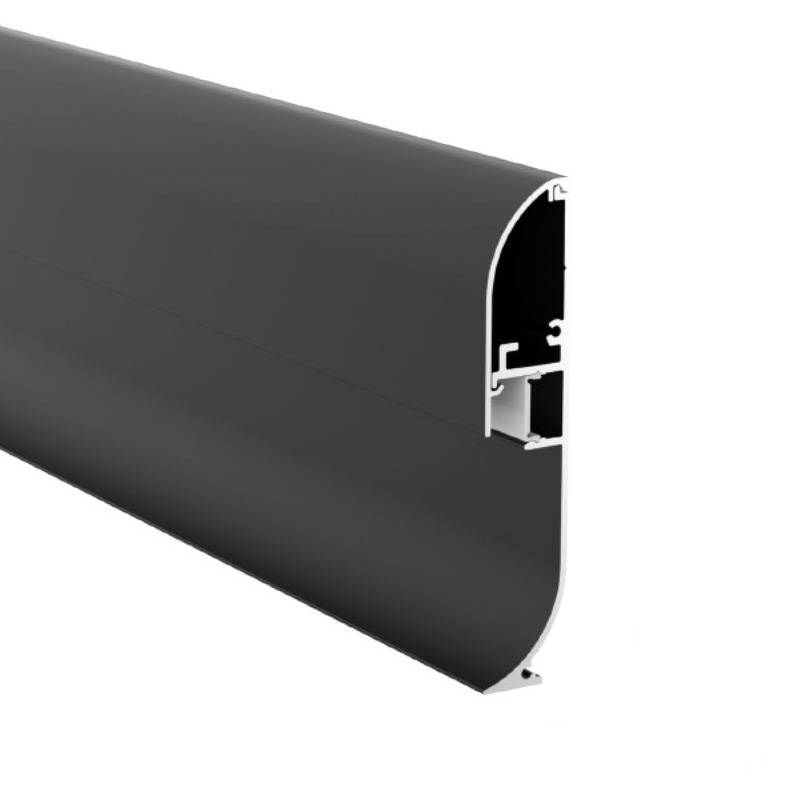

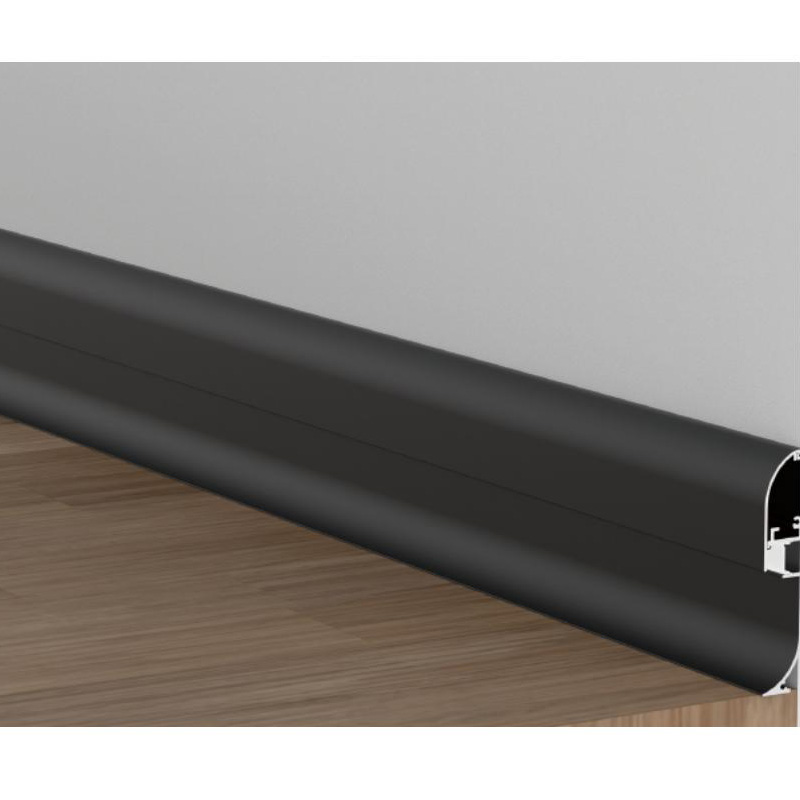

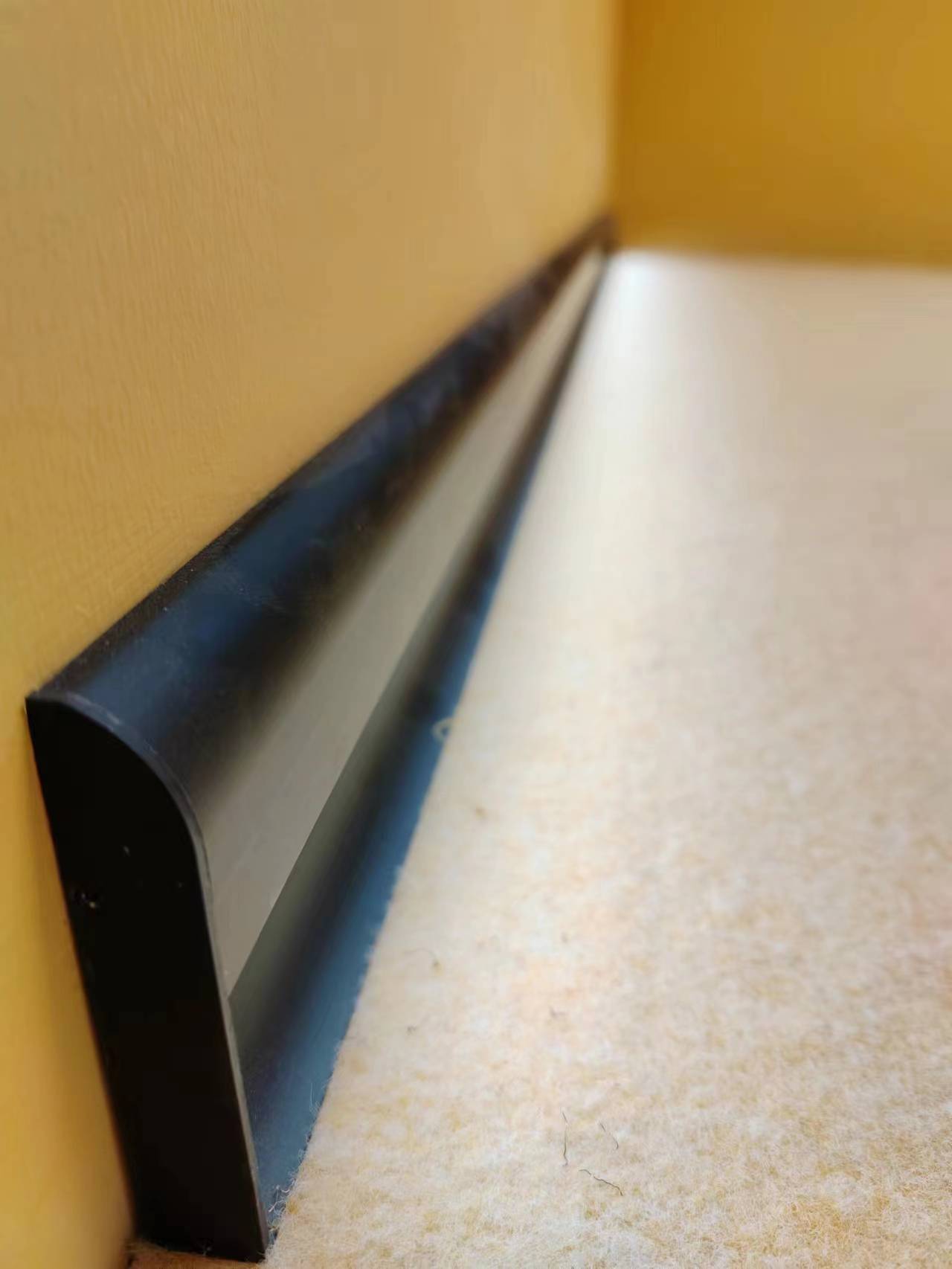

This aluminum LED channel is the perfect lighting solution for under-cabinet toe kicks, baseboards, and floor-level accent lighting applications. Designed to deliver smooth, uniform illumination while effectively reducing glare, this profile brings a sophisticated, modern aesthetic to both residential kitchens and commercial areas. The surface-mounted design allows for quick, hassle-free installation-simply mount it along your toe kick line or wall base, insert your preferred LED strips, and transform your space with elegant, indirect floor lighting.
There is a protruding aluminum lip at the front of the diffusers to reduce glare. This integral shield effectively blocks direct upward light and redirects the illumination downward onto the floor, creating a beautiful, even wash of light without harsh hotspots or eye strain.

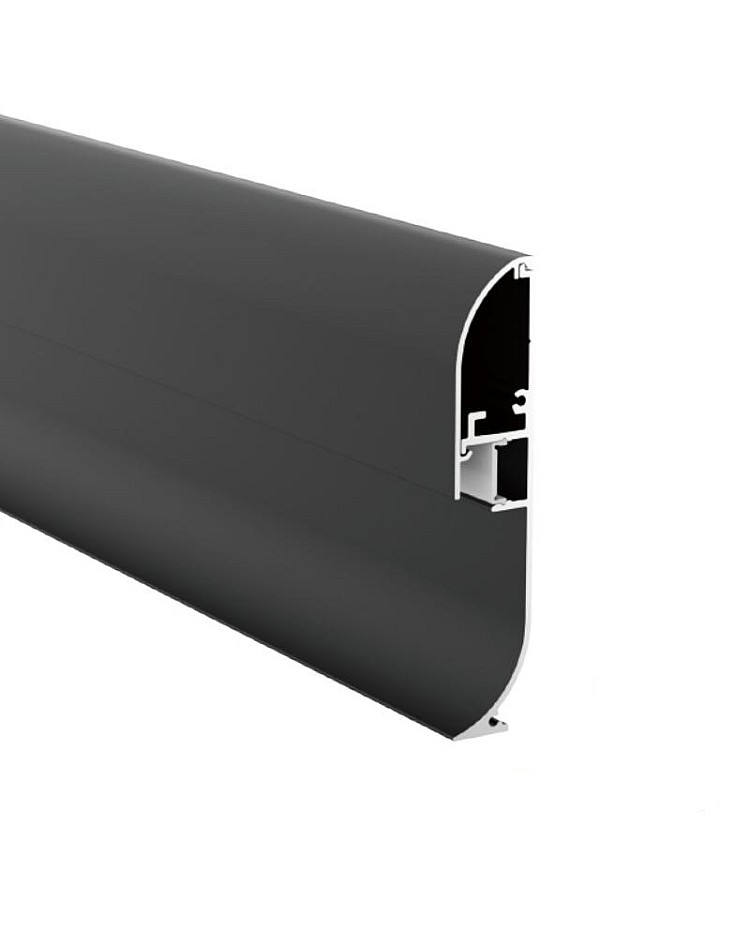

Crafted from high-quality extruded aluminum alloy with an anodized or powder-coated finish, offering excellent corrosion resistance, efficient heat dissipation, and long-term durability. The standard lengths are 1 m and 2 m, and you can cut to various lengths that fit your needs. Only one type of diffuser is available: PC Diffused covers, made of brand-stable, anti-yellowing material and featuring perfect light distribution.
The inner width is 10.5 mm, allowing for a maximum width of 10 mm for Strips. Recommend adding high-density SMD or COB tape lights as the light source to create a bright, even glow without visible light dots or dark areas. There are 90° inside connectors, 90° outside connectors, and 180° couplers, all sold separately for DIY design.
Quick Links:
Inside Or Outside Corner Connectors For SK1580-R

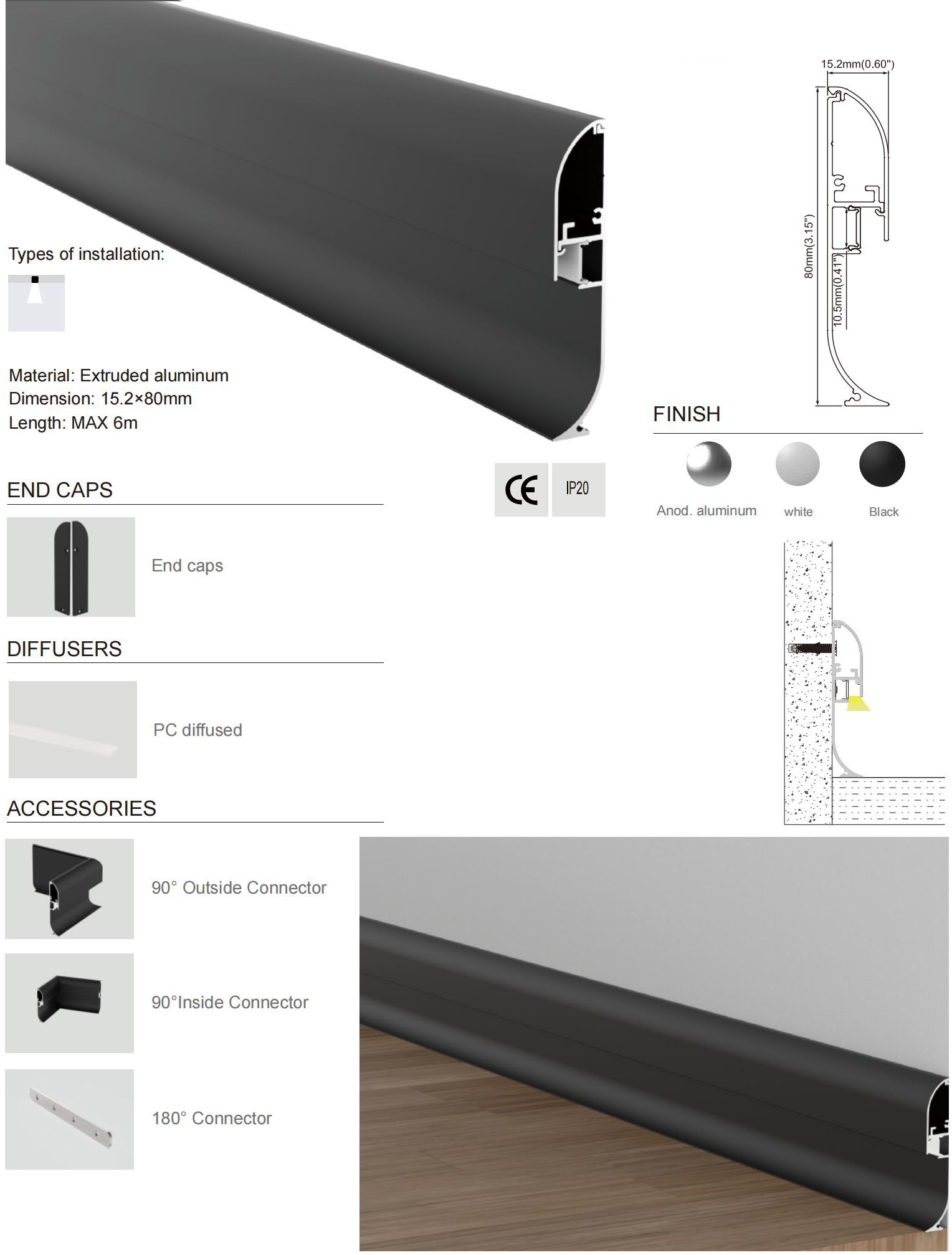

Specifications:
- Model: SK1580-R
- Material: Extruded aluminum alloy
- Surface treatment: Anodized or powder-coatedfinish
- Colors: Black, white, silver

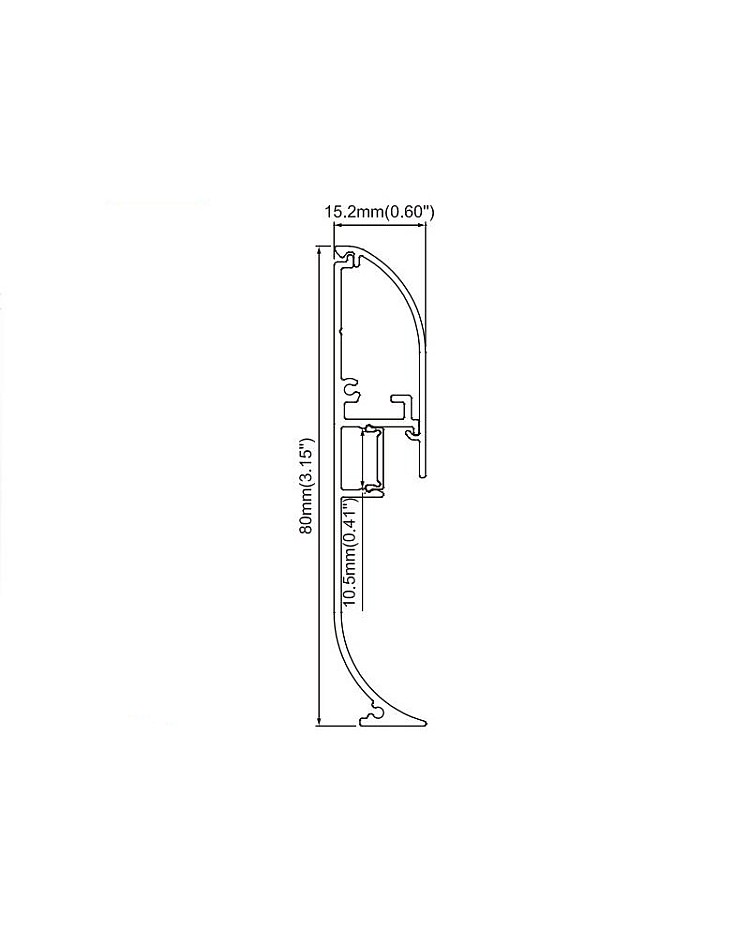

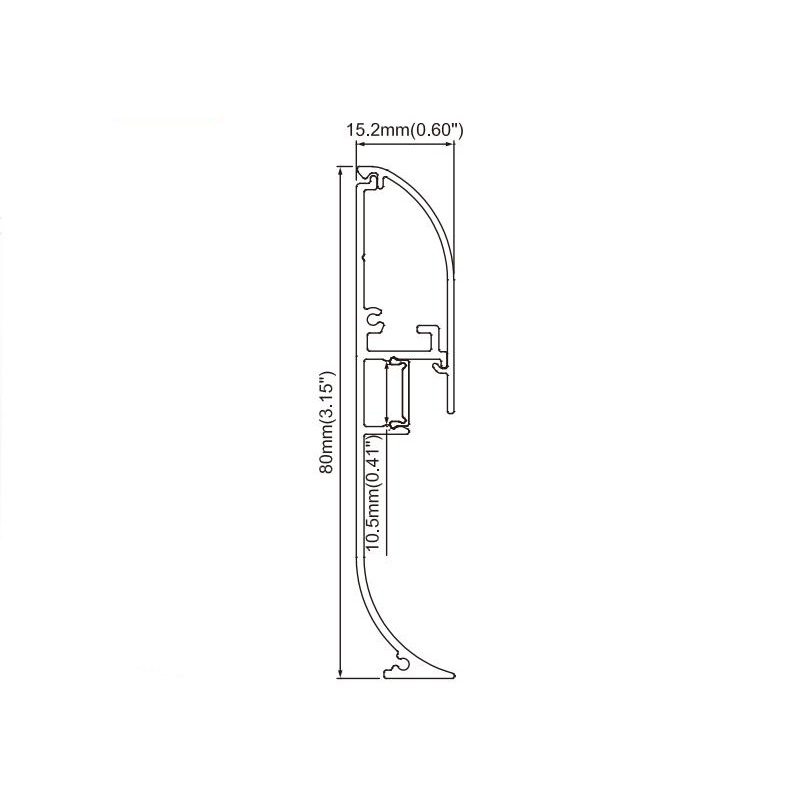

- Size ( Height x Width ): 80mm x 15.2mm (3.15" x 0.6")
- Length: 1m (39") / 2m ( 78")
- Custom length: YES
- Inner width: 10.5mm ( 0.41" )
- Allows the maximum width of strip lights to be 10mm ( 0.39" )
- Maximum power: <15W/m
- 90°, 90° vertical, and 180° couplers are sold separately

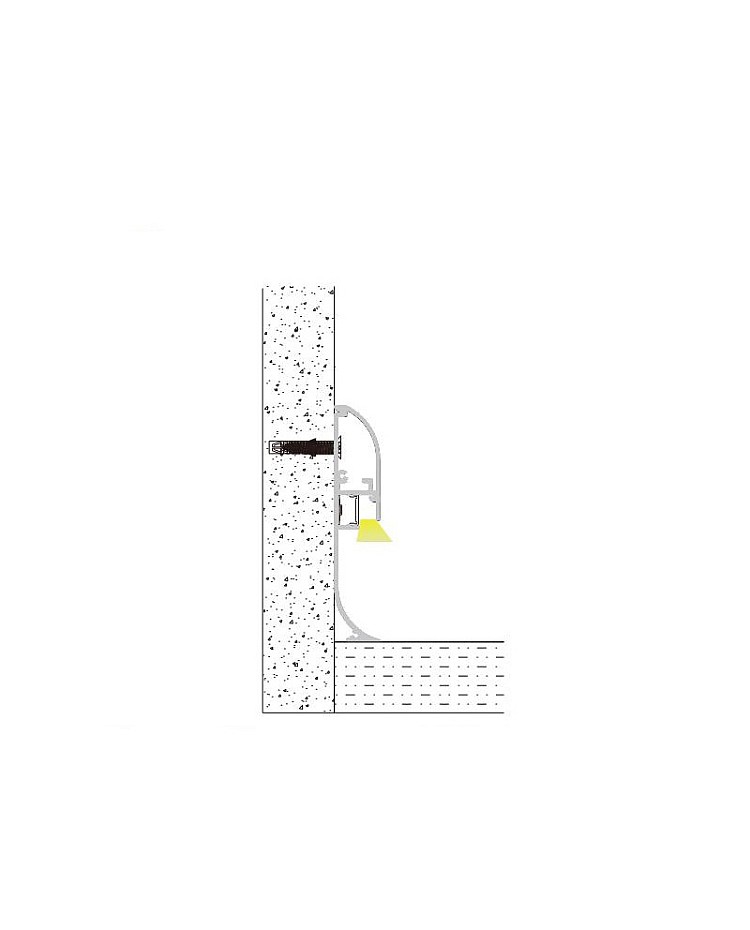

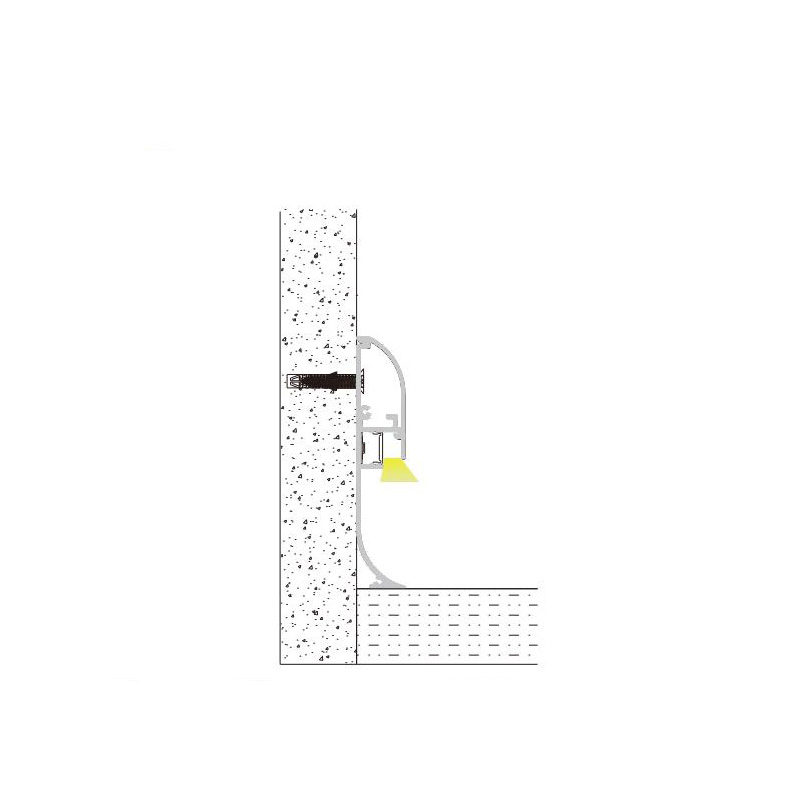

- Installation: Surface mounted
- Application: Toe kick line lighting
- Warranty: 5 years
Includes:
1 * Toe kick LED channel and diffuser
End caps
