In Stock
0 reviews
$14.99
Reward Points: 15
-
+
  • Brand: Gledopto
  • Product Code: GL-C-015WL

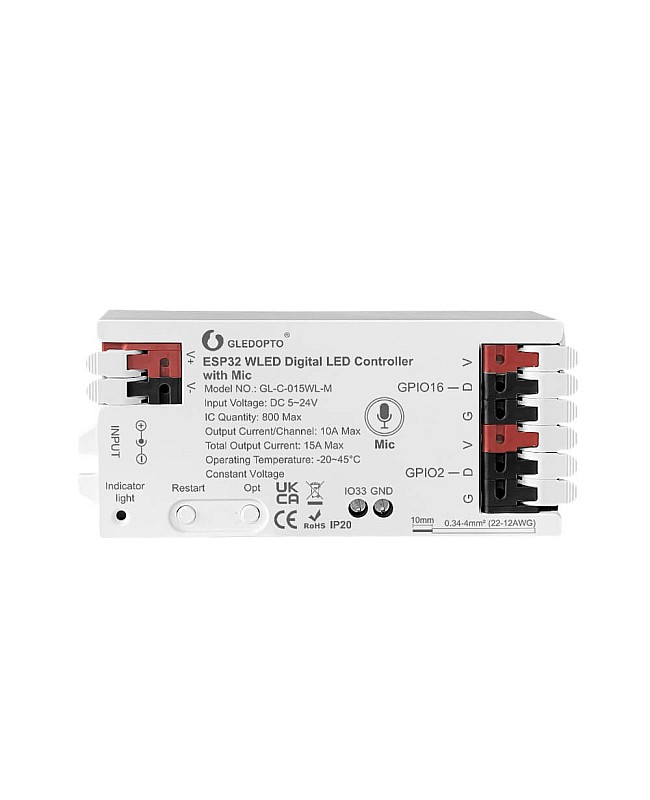

The Gledopto ESP32 controllers are designed for addressable LED strip lights and digital backlighting panels. Offering powerful performance, flexible configuration, and smart lighting integration. They are built with an ESP32 chipset and are compatible with WLED Native firmware. Easy to choose from up to 250 preset lighting effects for your applications, and supports WiFi app control, remote control, and firmware upgrade.

The WLED controllers feature a quick-connect port, enabling easy connection to digital strip lights and LED drivers. It has two output channels and supports up to 800 pixels (800PCS). It's easy to download the WLED Native from the app stores to your phone and configure the lighting for your applications via the WiFi connection. On the same WiFi network, LED strip lighting effects connected to WLED controllers can be synchronized. It supports relay configuration, allowing no current to pass through the LED strips when the LED controllers are powered off, reducing power consumption.

There are three versions available. You can choose the built-in microphone and support the UATR download. Configuring the microphone setting will allow the lighting effects to change in time with the music and support Alexa control. The UATR download allows you to upgrade the firmware if a new version is available.

Link: Gledopto ESP32 controller user manual


Specifications:

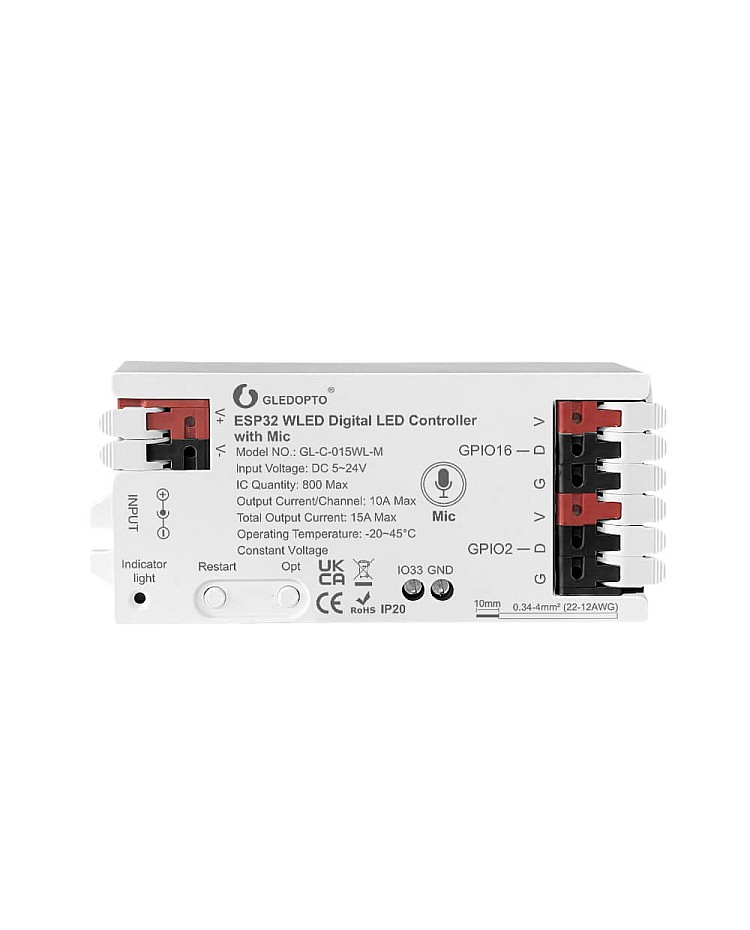

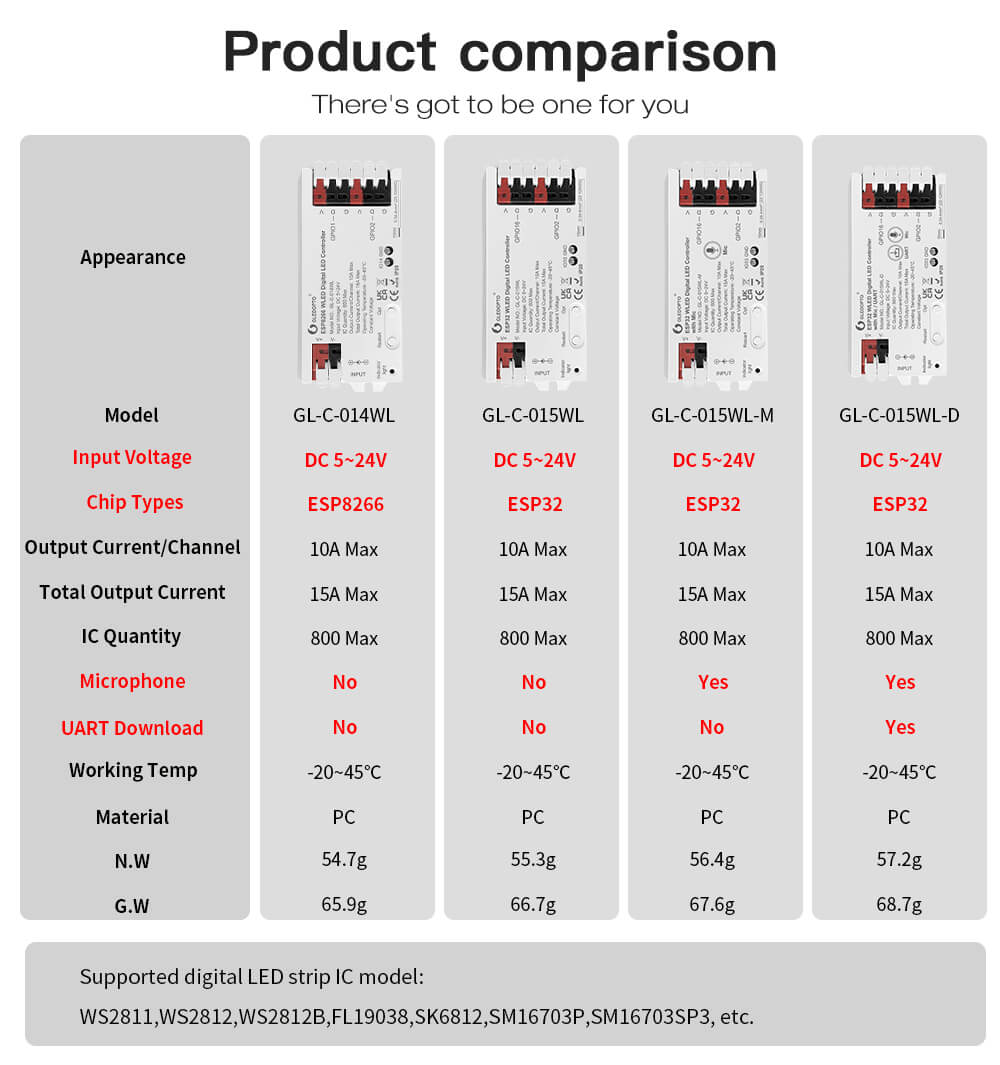

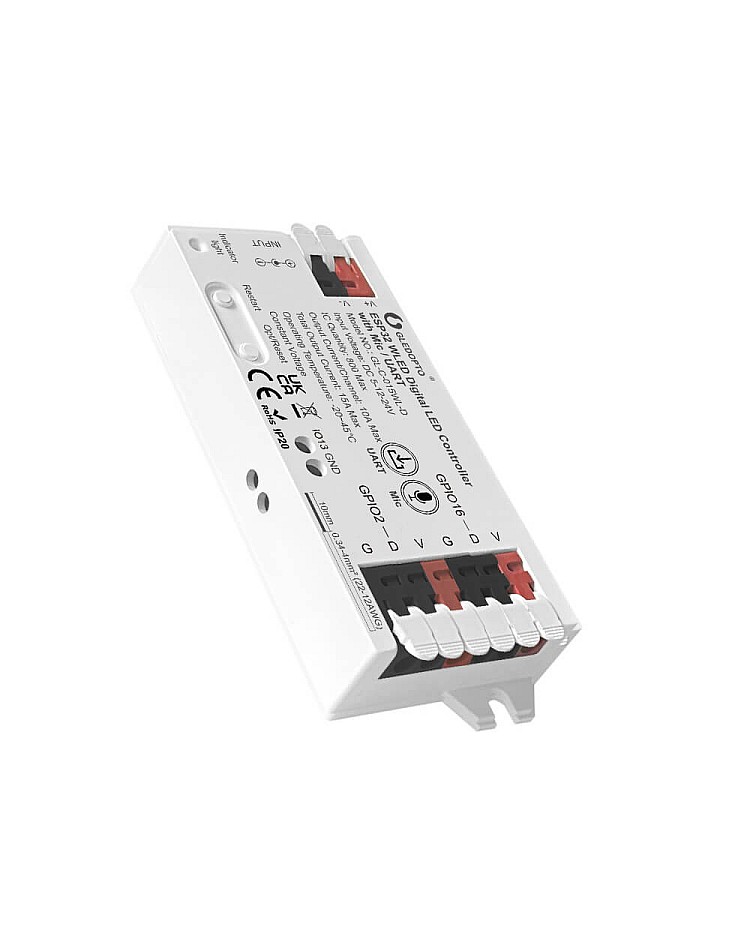

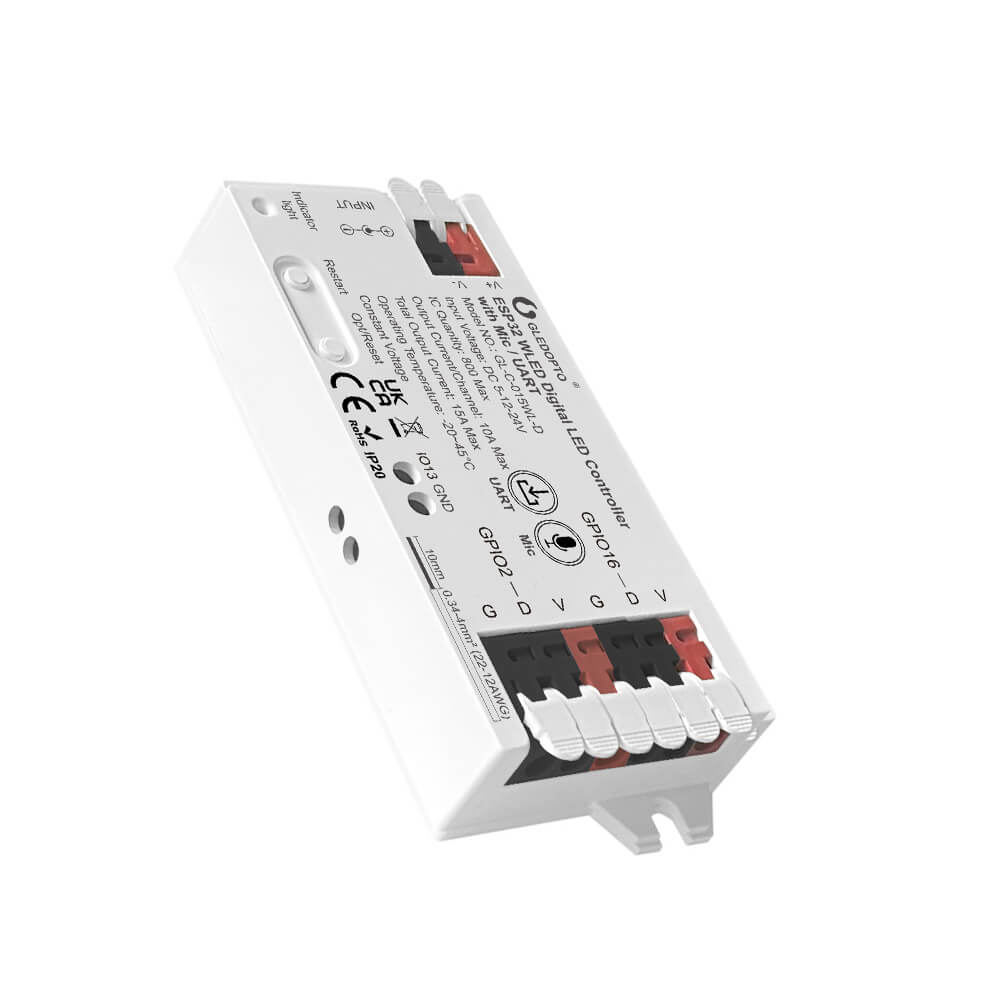

  • Models: GL-C-015WL, GL-C-015WL-M ( With microphone ), GL-C-015WL-D ( With microphone and UART download )
  • Material: Flame-retardant PC

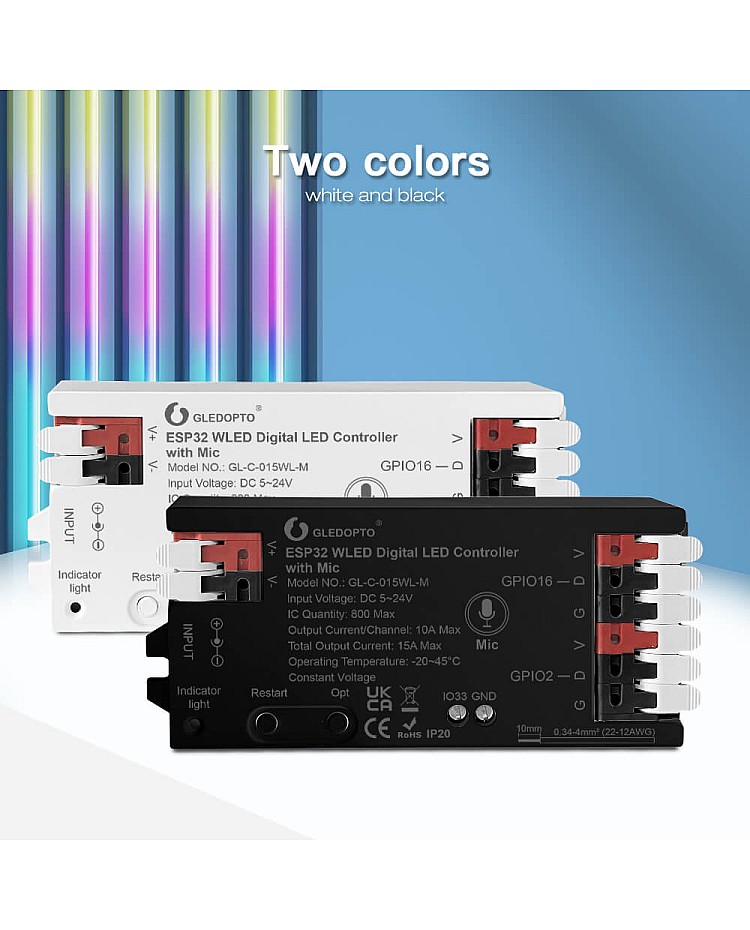

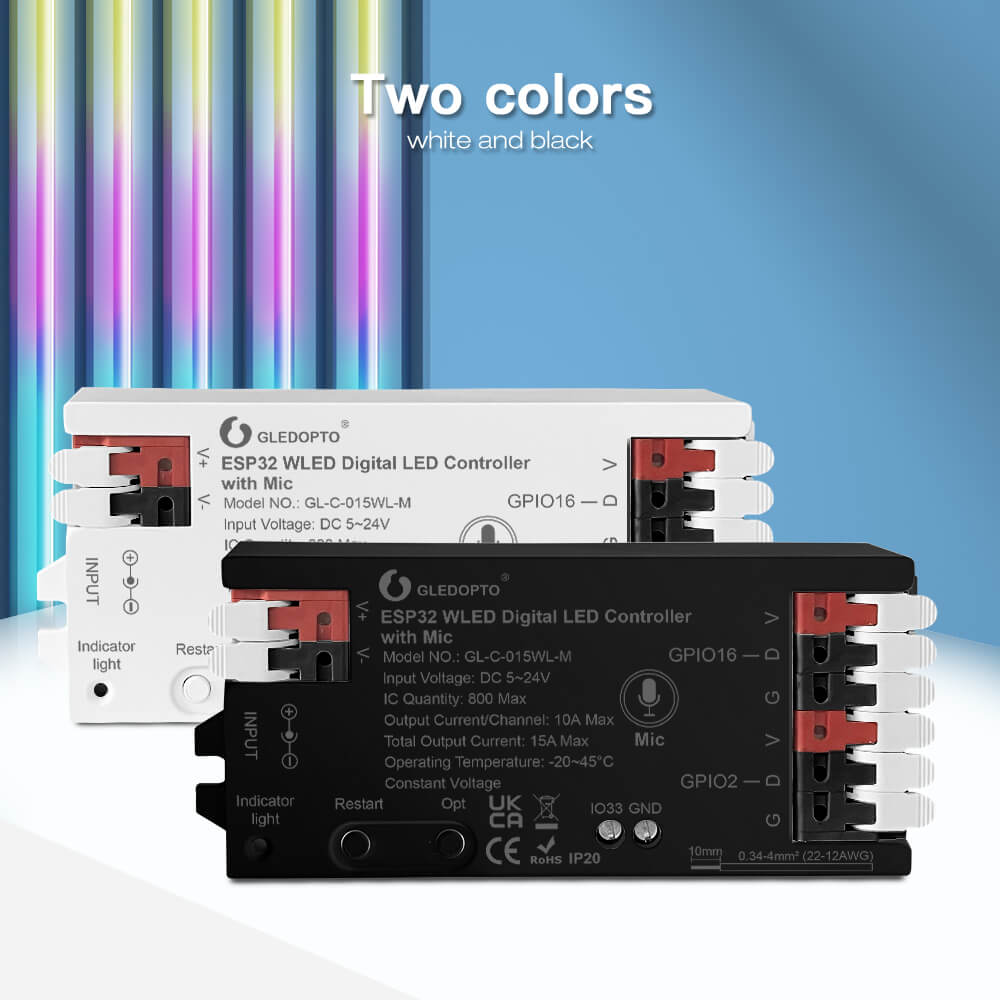

  • Colors: Black, white

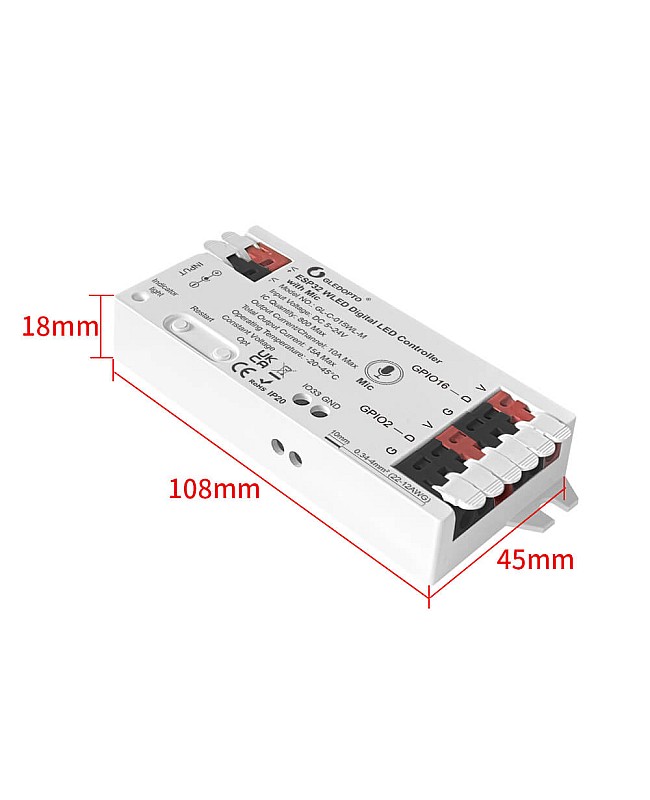

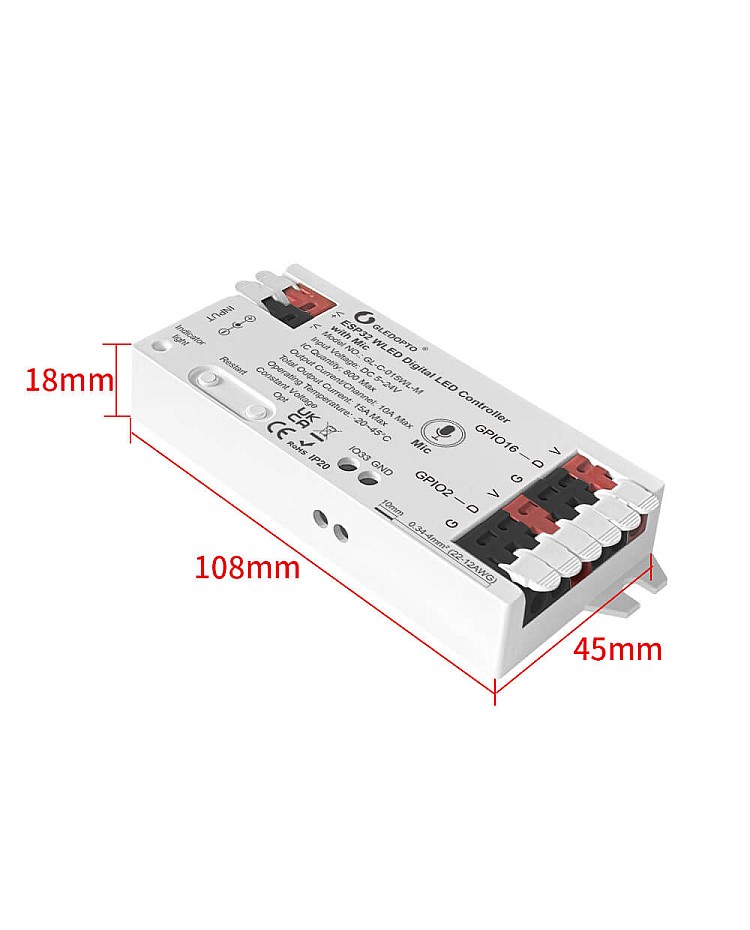

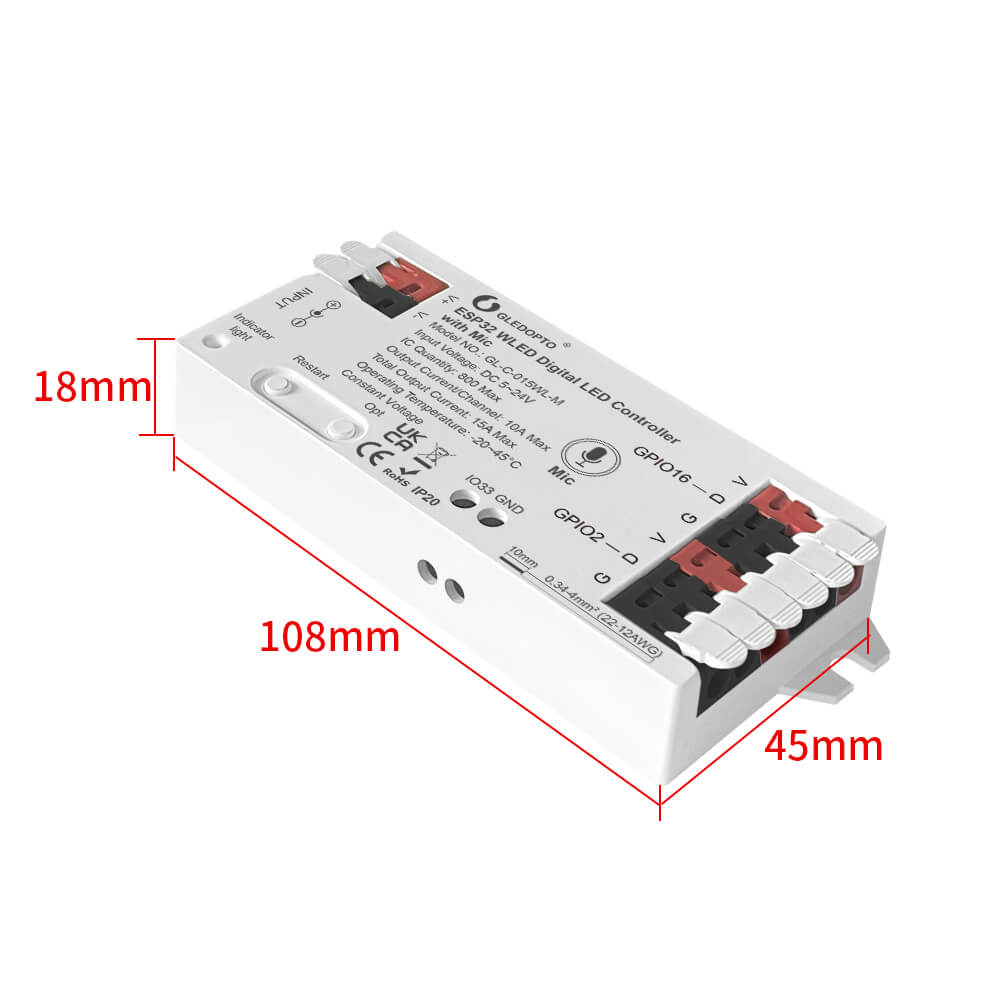

  • Size ( L x W x H): 108 mm x 45 mm x 18 mm / 4.25" x 1.77" x 0.71"
  • Input voltage: DC5-24V
  • Output current per channel: 10A Max
  • Total output current: 15A Max
  • IC quantity: 800PCS Max
  • Supported Chips: WS2811, WS2811F, WS2812B, WS2814A, SK6812, WS2805, SM16703, SM16703SP3, FL19038, FW1935, FL19038, etc
  • Chipset: ESP32

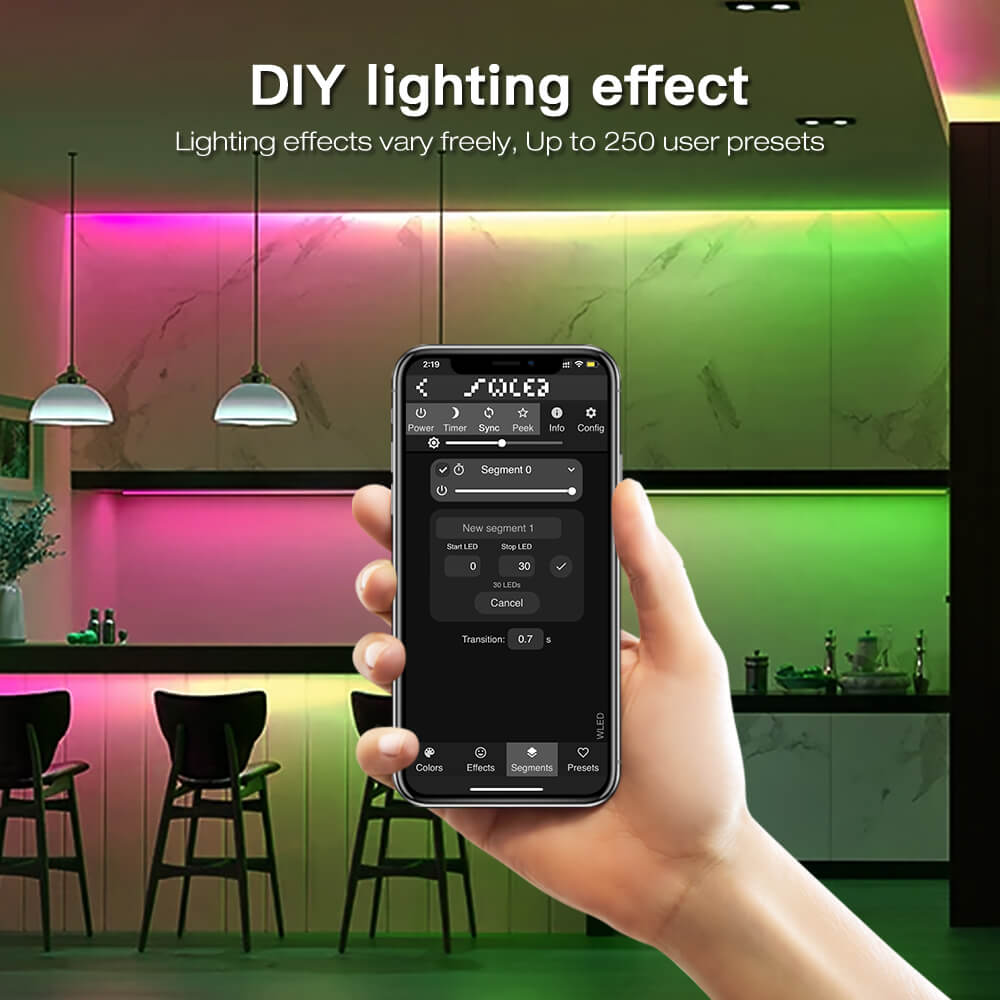

  • Up to 250 preset lighting effects are available

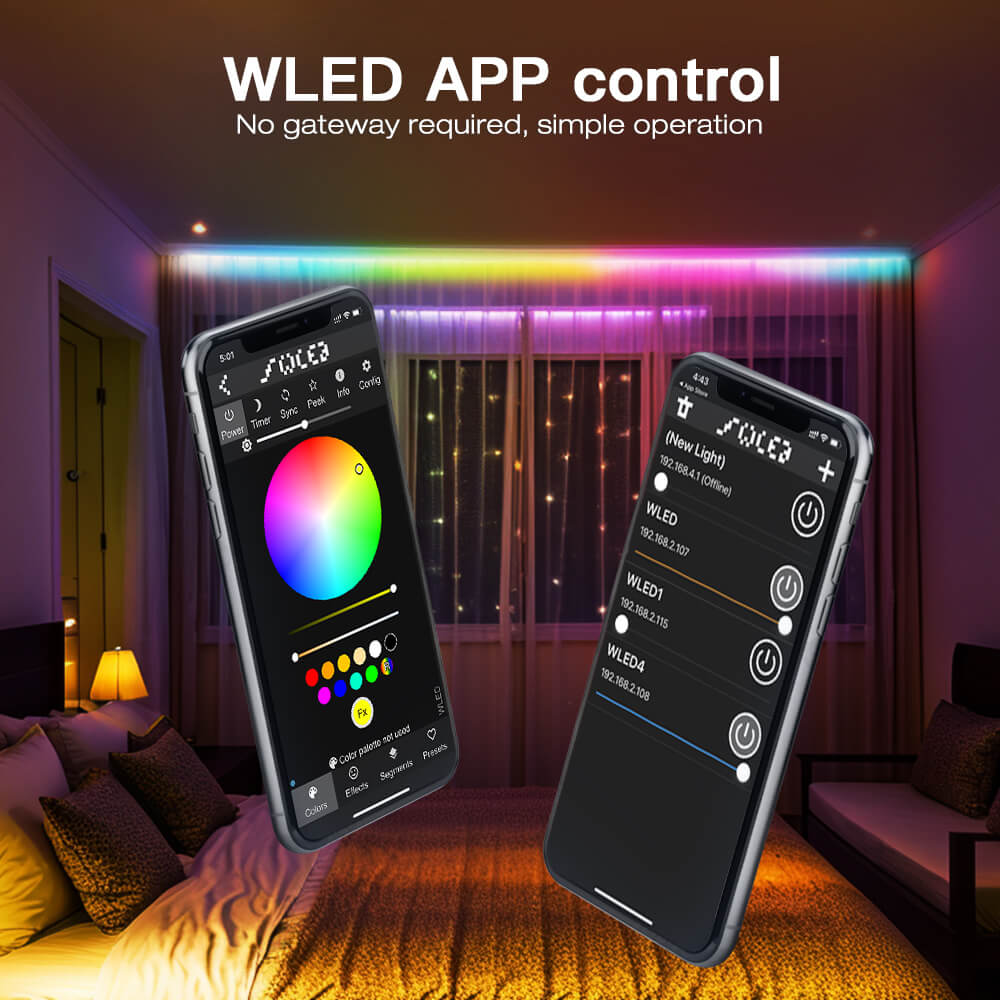

  • WLED app control, WLED remote control, Segmented color control
  • App name: WLED Native
  • Communication protocol: WiFi

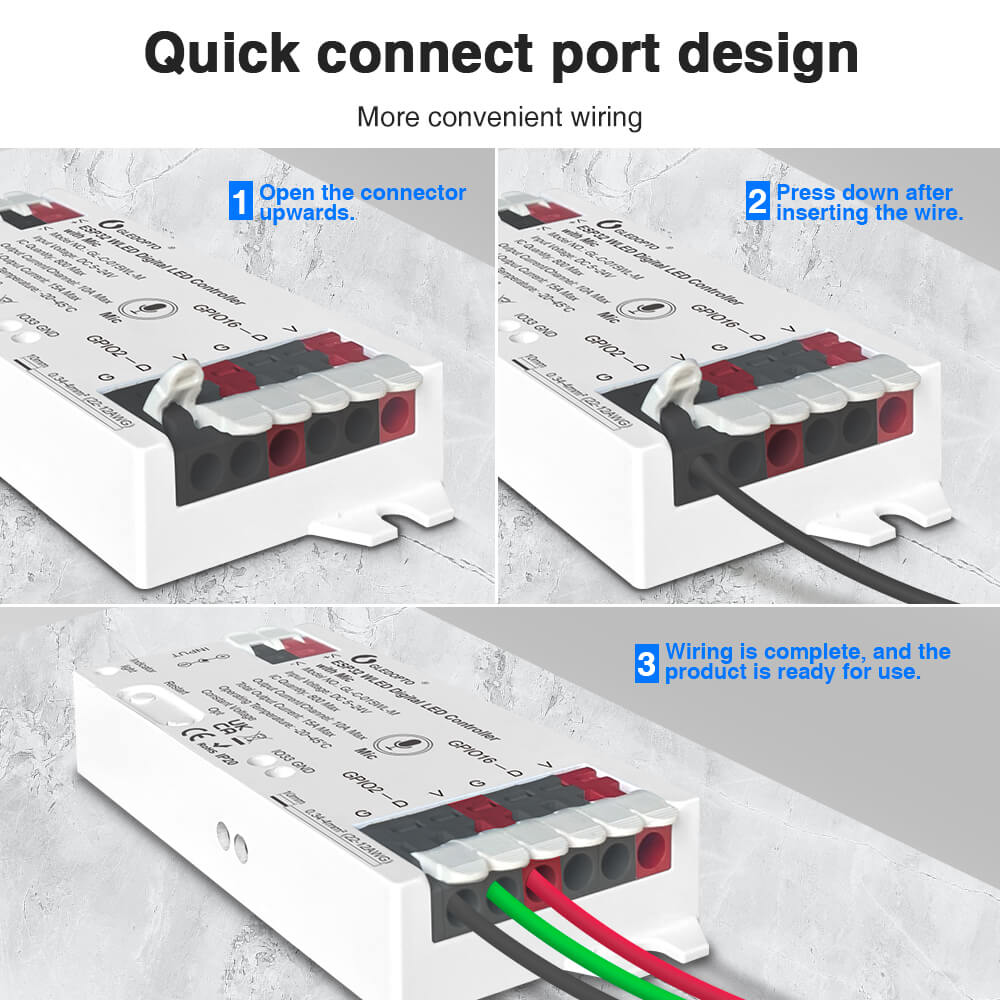

  • Quick connect port design

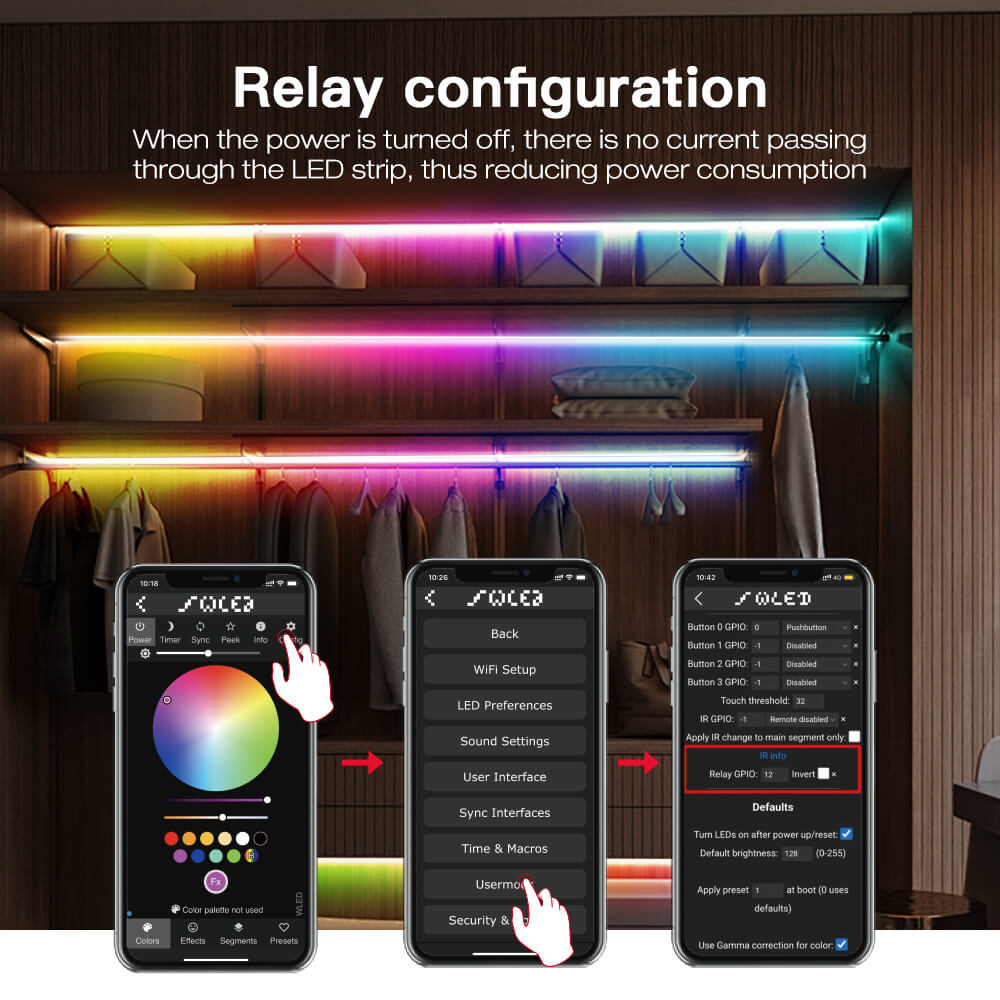

  • Relay configuration

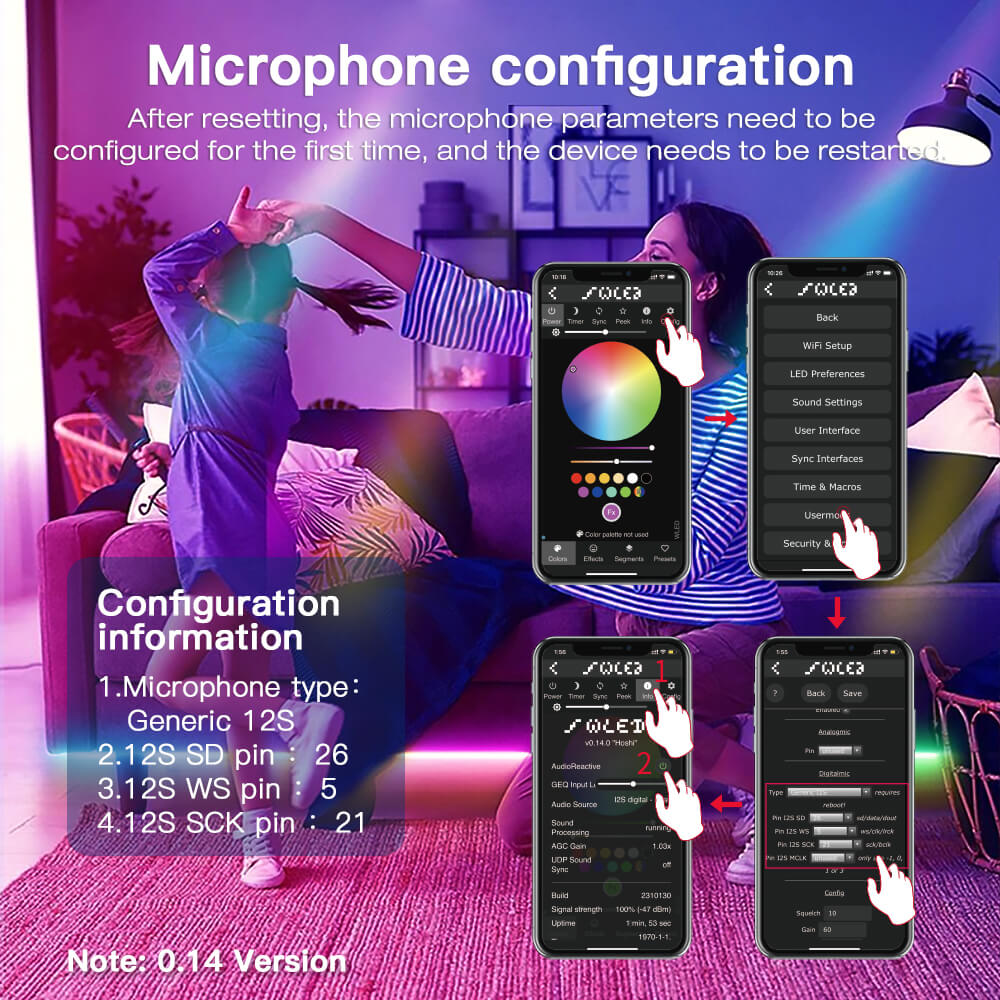

  • Microphone configuration allows for following the rhythm of the music ( only GL-C-015WL-M and GL-C-015WL-D)
  • The lighting effects of LED strips connected to the WLED in the same WiFi network can be synchronized

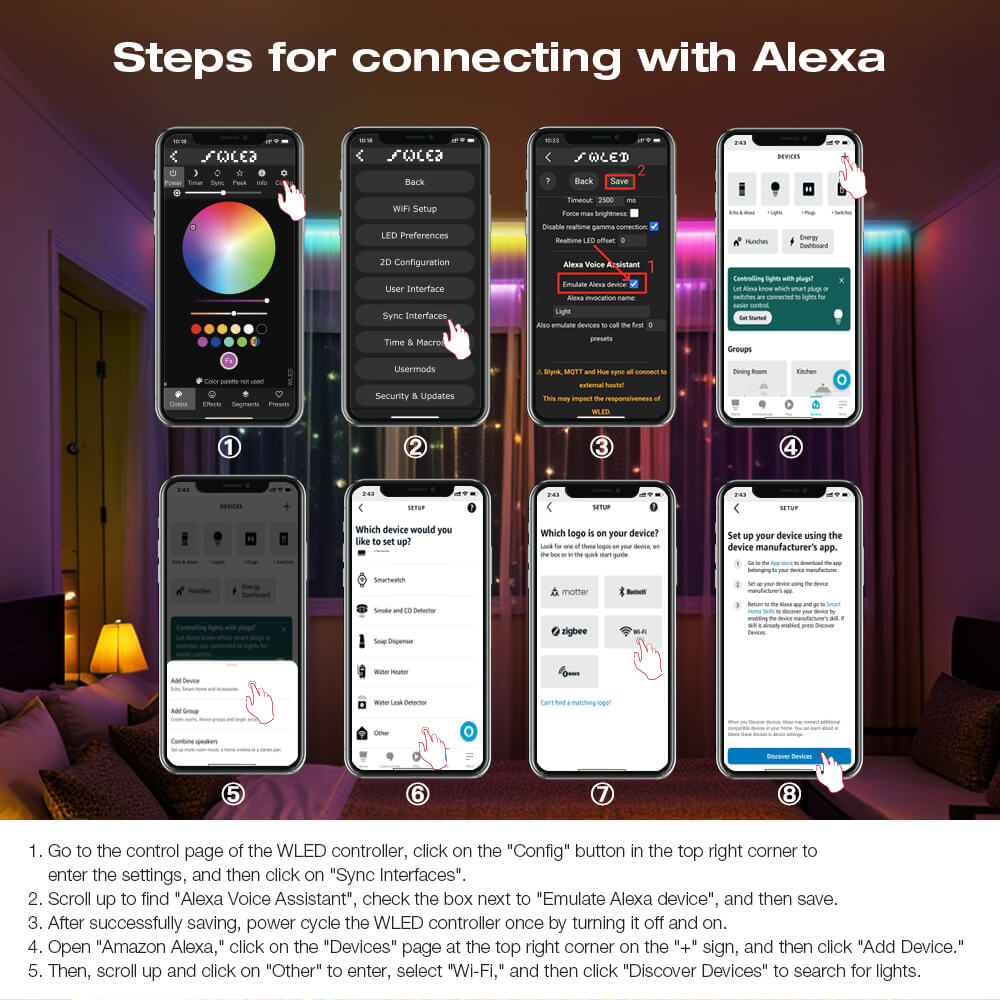

  • Can be controlled by Alexa

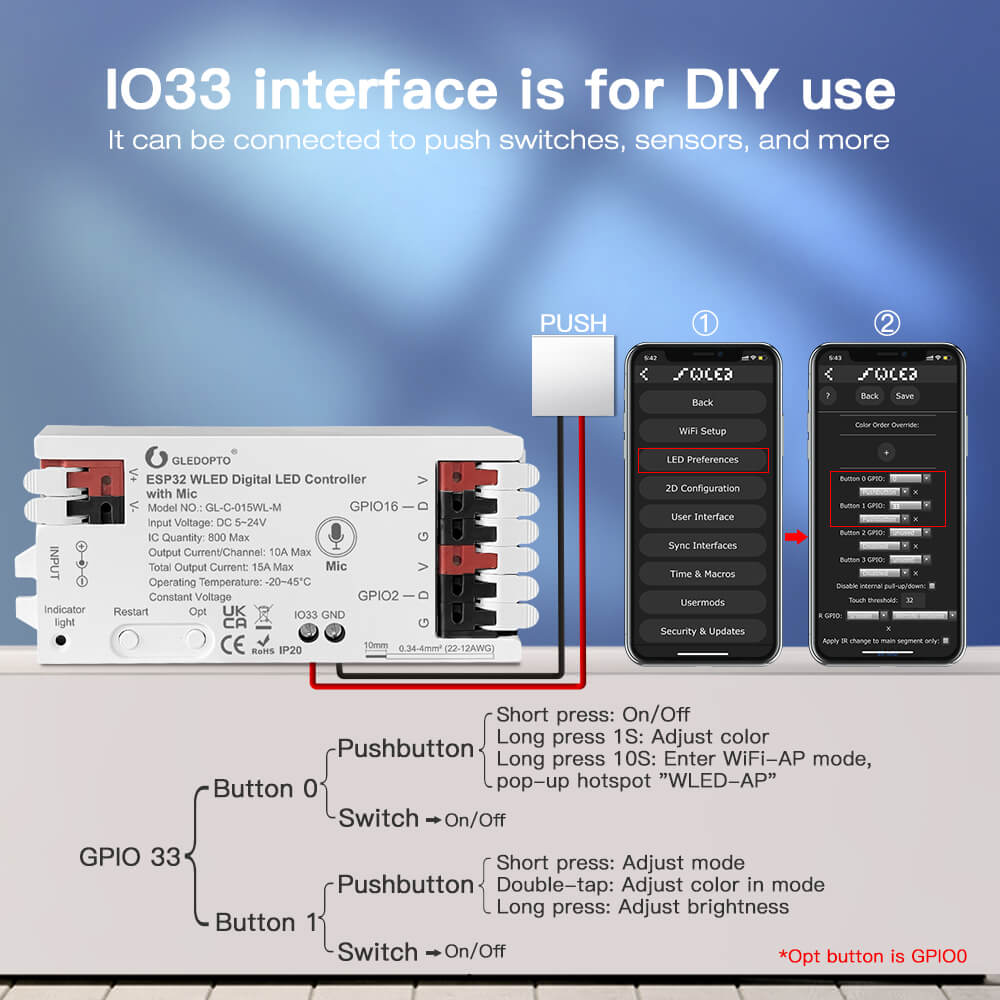

  • IO33 port for DIY use
  • Working temperature: -20℃-+45℃
  • Warranty: 2 years


Includes:

1 x ESP32 addressable LED strip controller

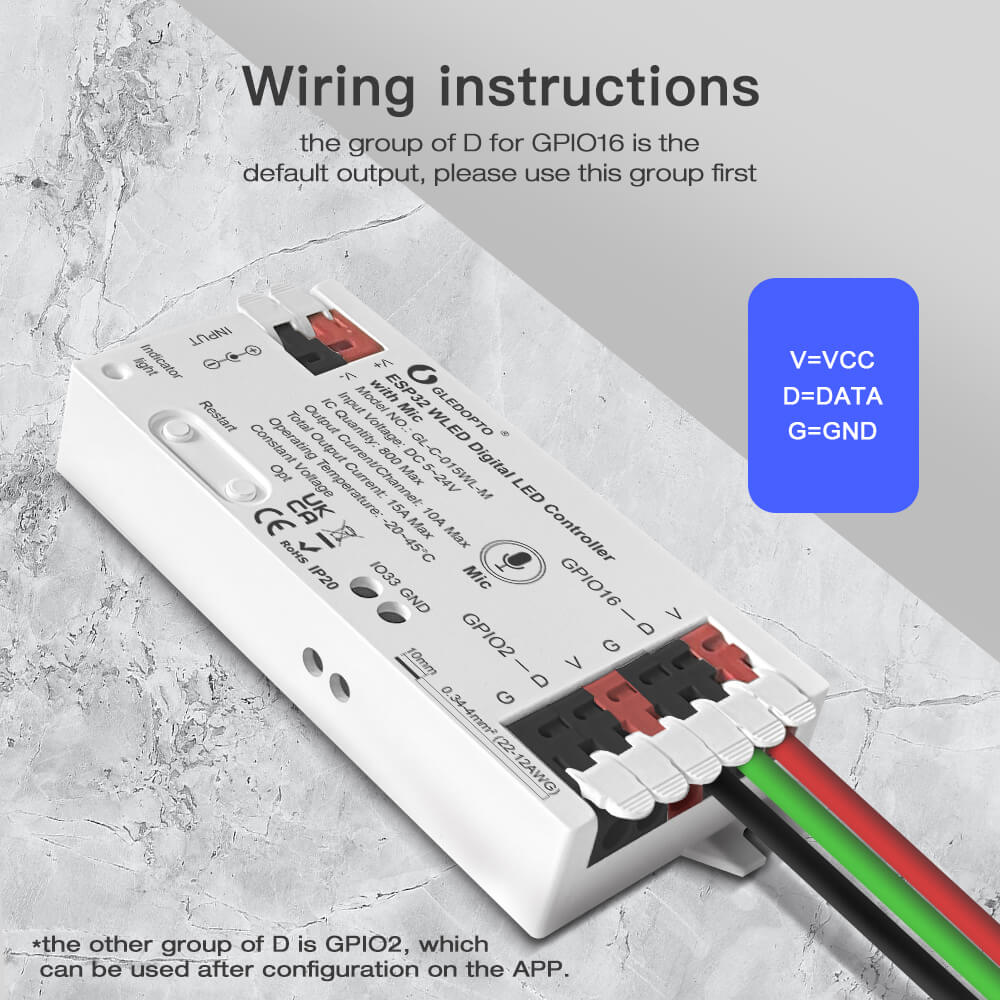

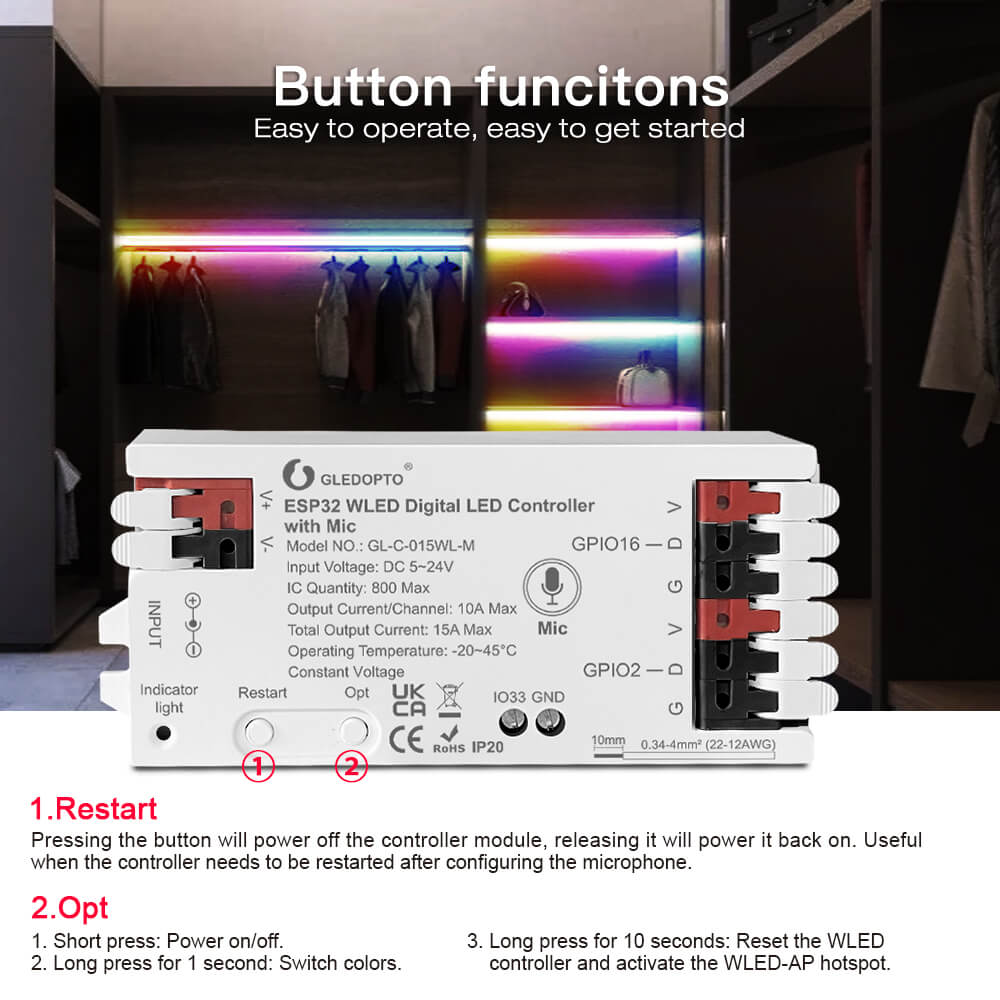

Four different versions ESP32 LED controllers available ESP32 WiFi LED controllers with quick connect port design The wiring instructions for ESP32 smart lighting controller ESP32 programmable LED controller have replay configuration ESP32 WLED controller has microphone ESP32 WLED LED strip controller can follow the rhythm of the music ESP32 WLED addressable LED controller sync effects Button functions of ESP32 WLED WiFi LED controller Steps for connecting with Alexa for ESP32 WLED RGB LED controller ESP32 WLED digital LED controller can control up to 800PCS ICs The IO33 port for DIY use on ESP32 addrssable LED controller ESP32 digital LED strip controller allows for 250 user preset lighting effects ESP32 WS2812B controller supports WLED remote control ESP32 SK6812 controller supports segmented color control ESP32 pixel LED controller suitable for various lighting applications
