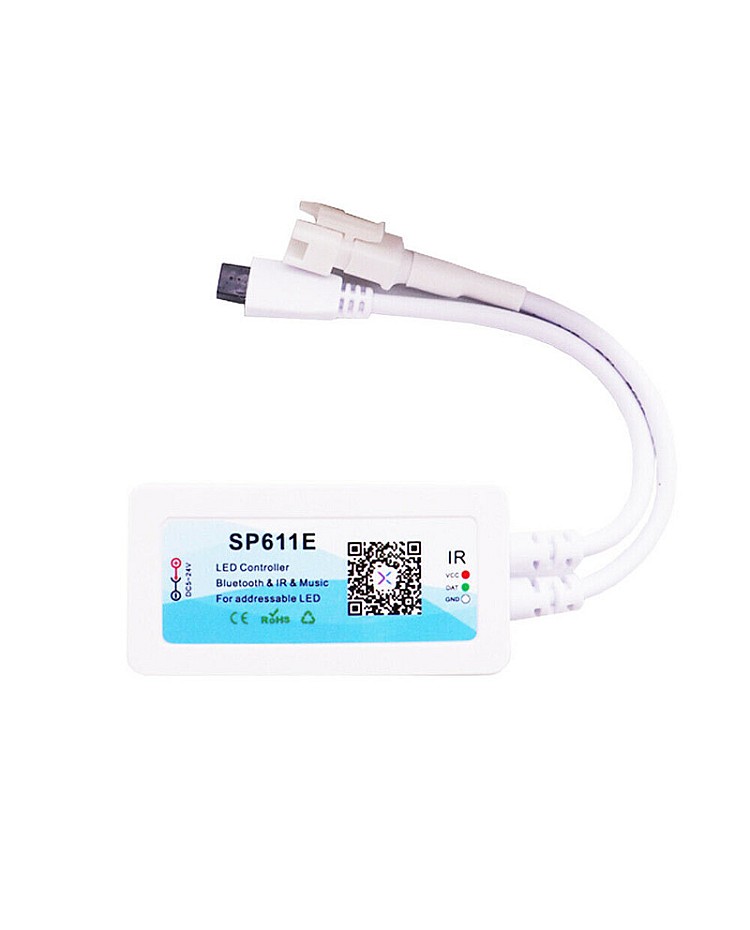

The SP611E Bluetooth-Compatible Music RGB LED Controller, which is designed for the Addressable Pixel Strip Lights, and supports the main types of intelligent ICs, like WS2811, WS2812B, WS2813, WS2815, LC8808B, GS8208, SK6812, SM16703, UCS103 and the max loading number of pixels up to 600PCS. The LED Controller with three physical buttons allows you to turn on/off the LED Light, switch the working modes, and adjust the speed. You also can control the SP611E LED Controller by APP and 38 keys IR remote control. There are 142 built-in dynamic effects, including 18 music lighting effects, the effect length adjustable, and the music mode sensitivity adjustable. When working in music mode, the LED Controller will collect the music signal from phonemic, player streaming, or onboard mic. The lighting effect will change automatically following the beats.


Features:

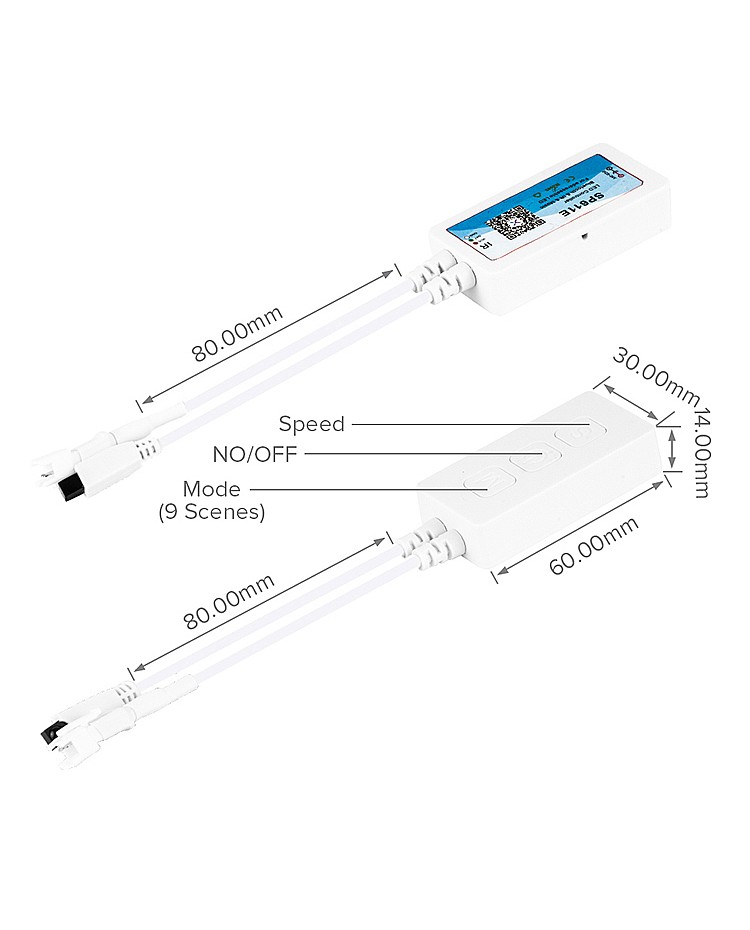

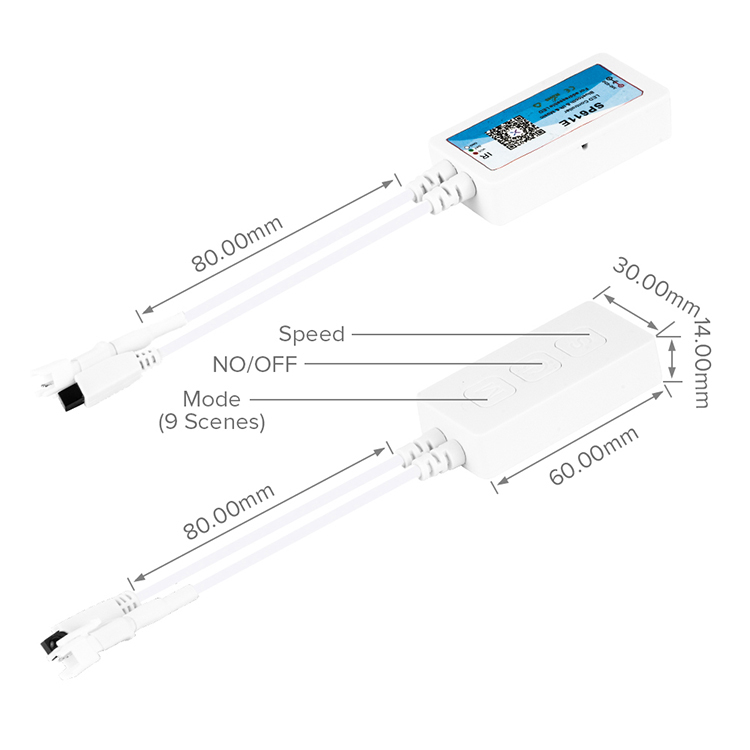

  • Size: 60*30*14mm(L*W*H)
  • Working Temperature: -20℃-+60℃
  • Working Voltage: DC5-24V
  • Support ICs: WS2811, WS2812B, WS2813, WS2815, LC8808B, GS8208, SK6812, SM16703, UCS1903
  • Output Signal: SPI(TTL) Digital Signal
  • Max Loading Pixels: 600PCS

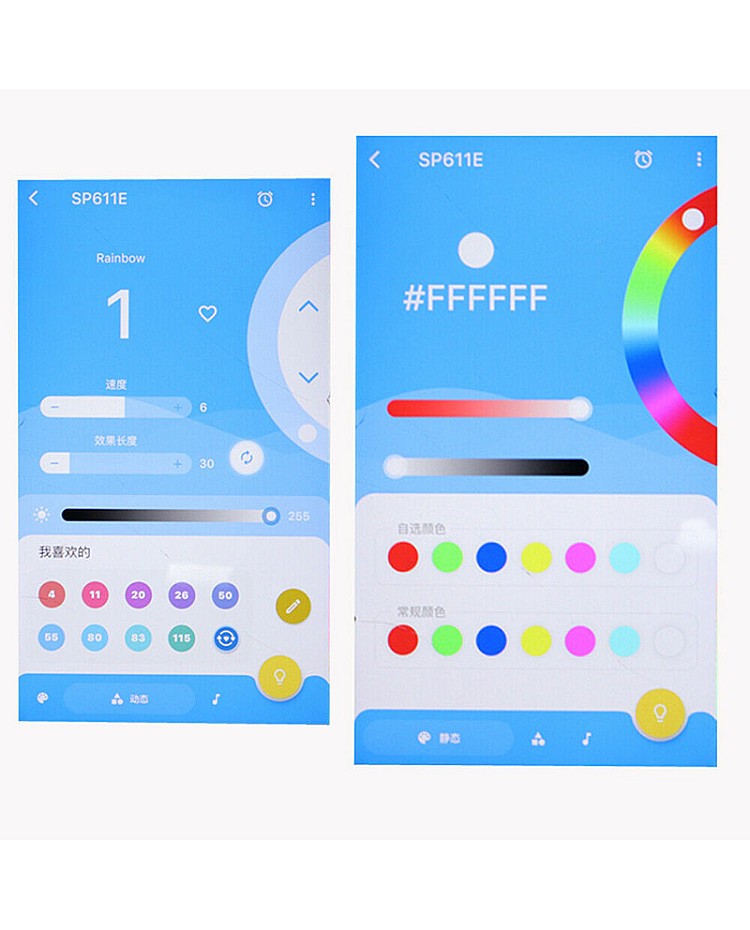

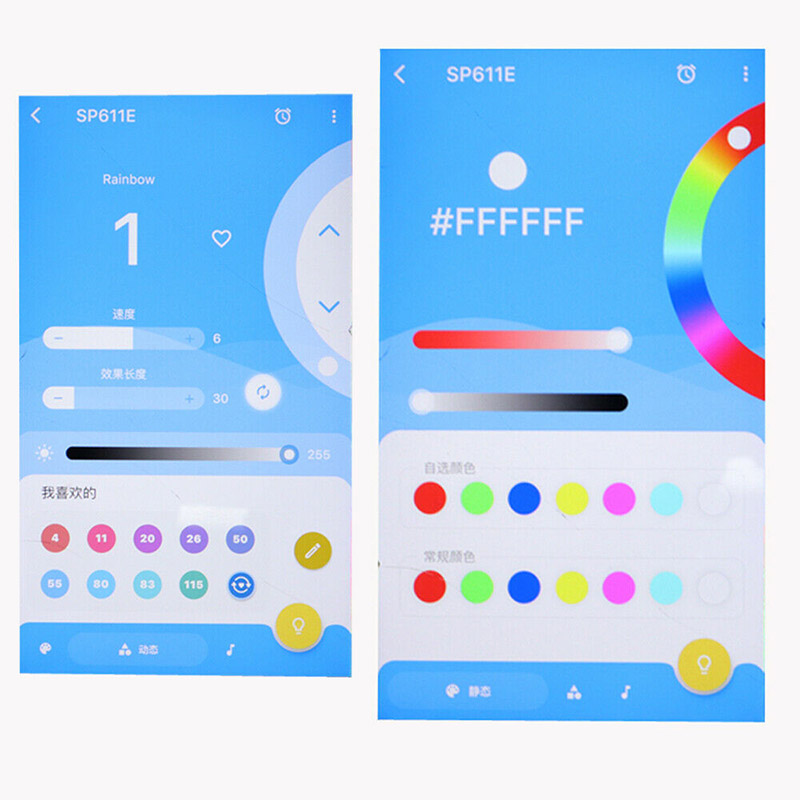

  • App Name: BanlanX
  • Working Current: 5mA-18mA
  • Remote Control Distance: < 30 meters
  • Music Control: Built-in MIC
  • Memory Function: YES
  • Speed Adjustable: YES
  • Control Methods: APP(IOS/Android)/ Buttons On Controller
  • Built-in 142 Dynamic Effects, Effect Length Adjustable
  • Built-in 18 Music Effects, Effect Length Adjustable, Sensitivity Adjustable
  • Group Control: YES
  • Multiple Sound Collection Methods: Phone Mic, Player Streaming, On-Board MIC
  • Support Mobile Operating Systems: IOS 10.0 Or Above And Android 4.4 Or Above


Includes:

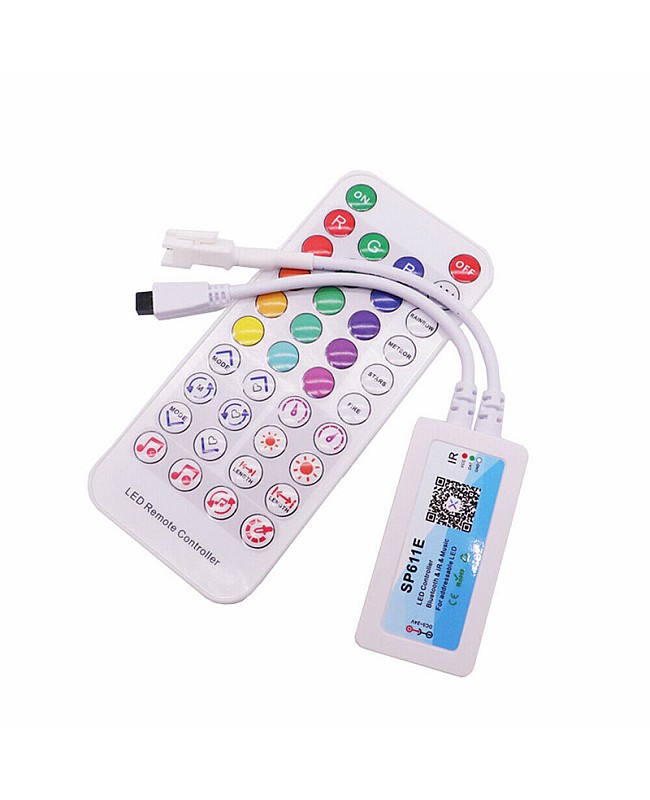

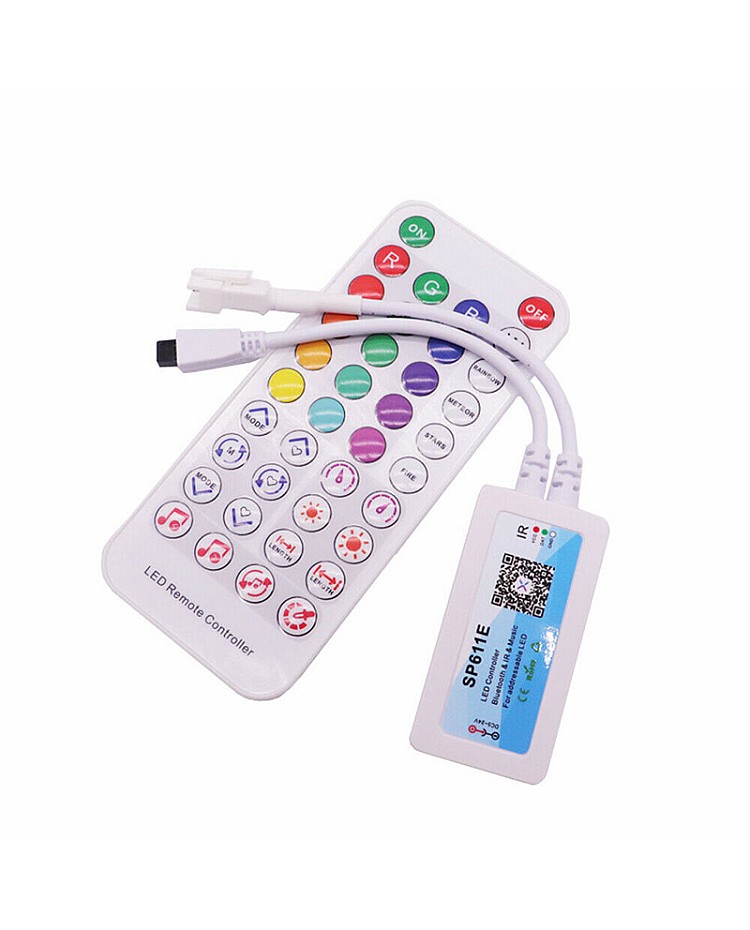

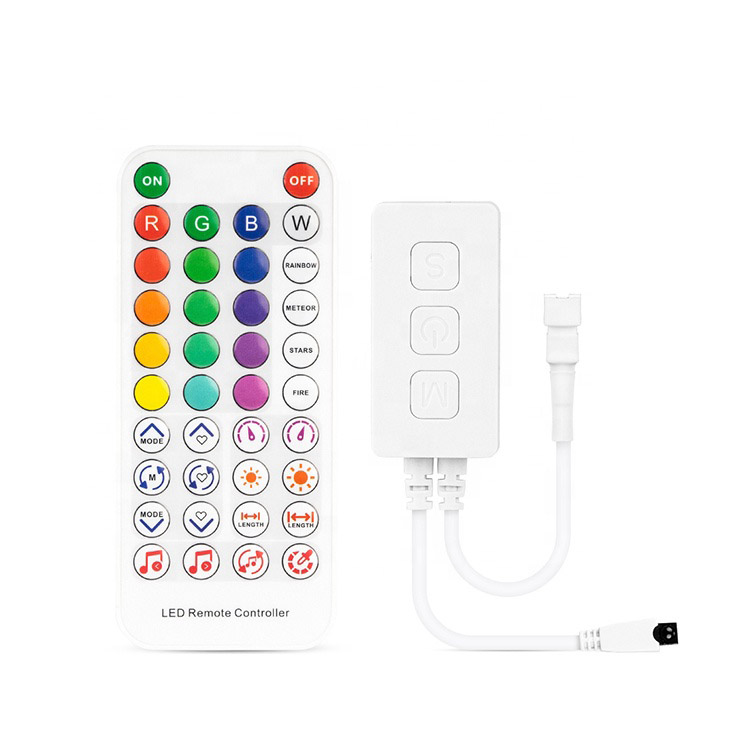

1*SP611E LED Controller

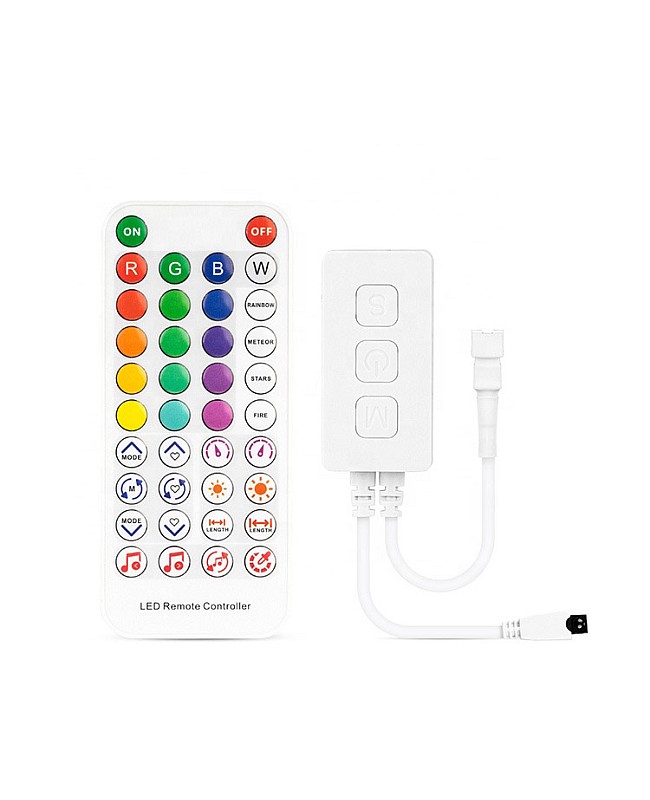

1*38 Keys Remote Control

1*User Manual

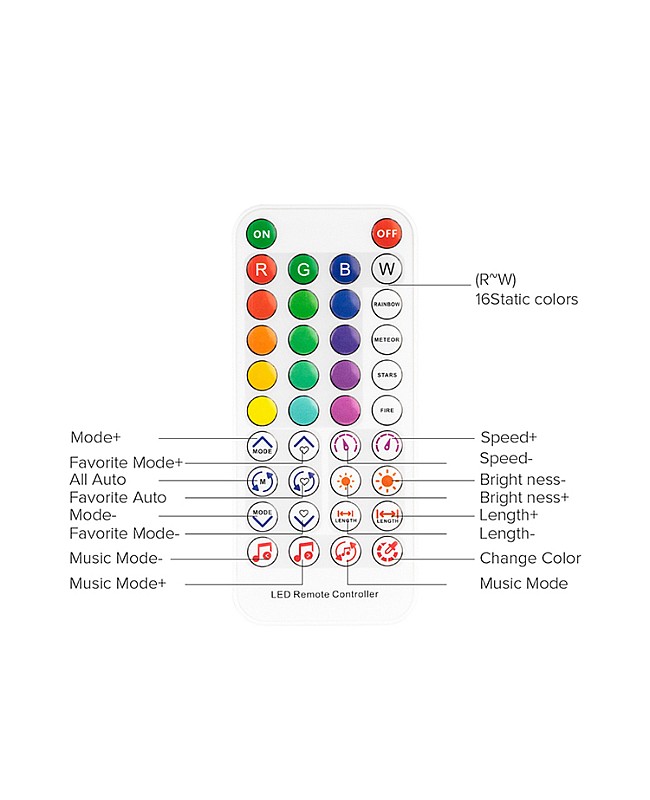

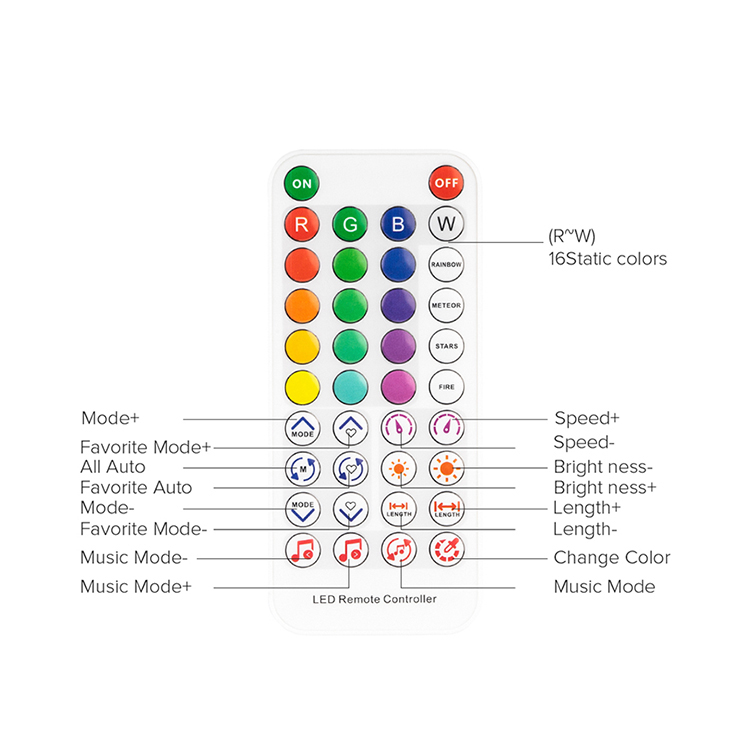

RF Remote Control Function:

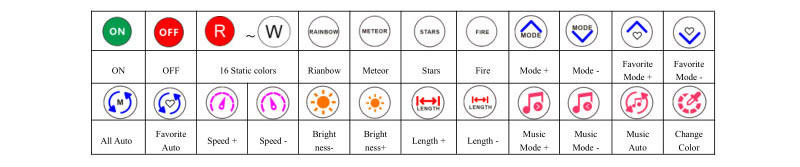

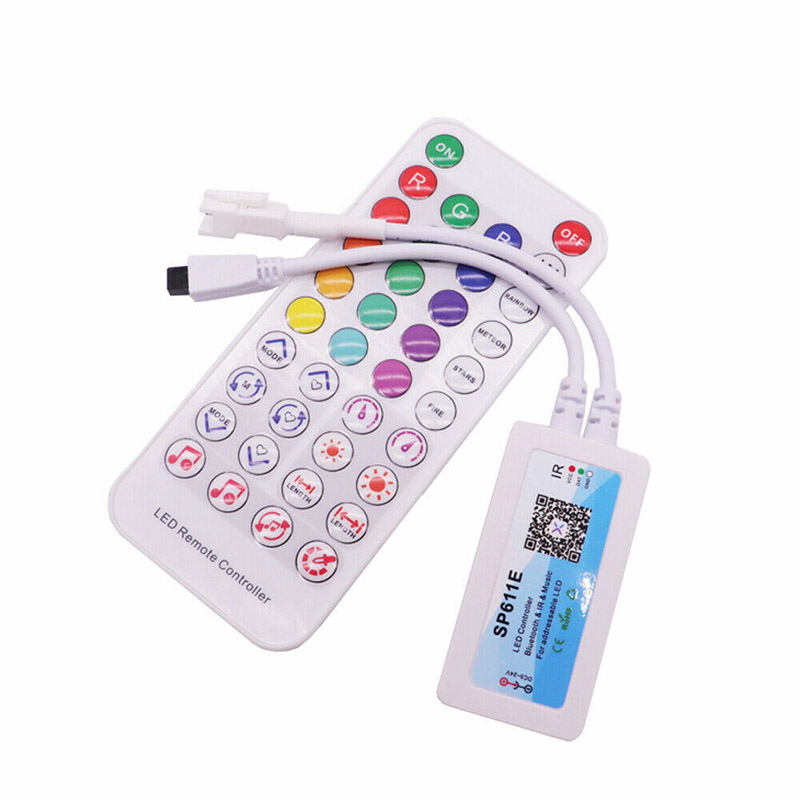

SP611E Dual Signal Digital Strip Light Controller With 38 Keys Remote Control

How To Install:

SP611E RGB Smart LED Controller For Addressable Pixels LED Strip Light

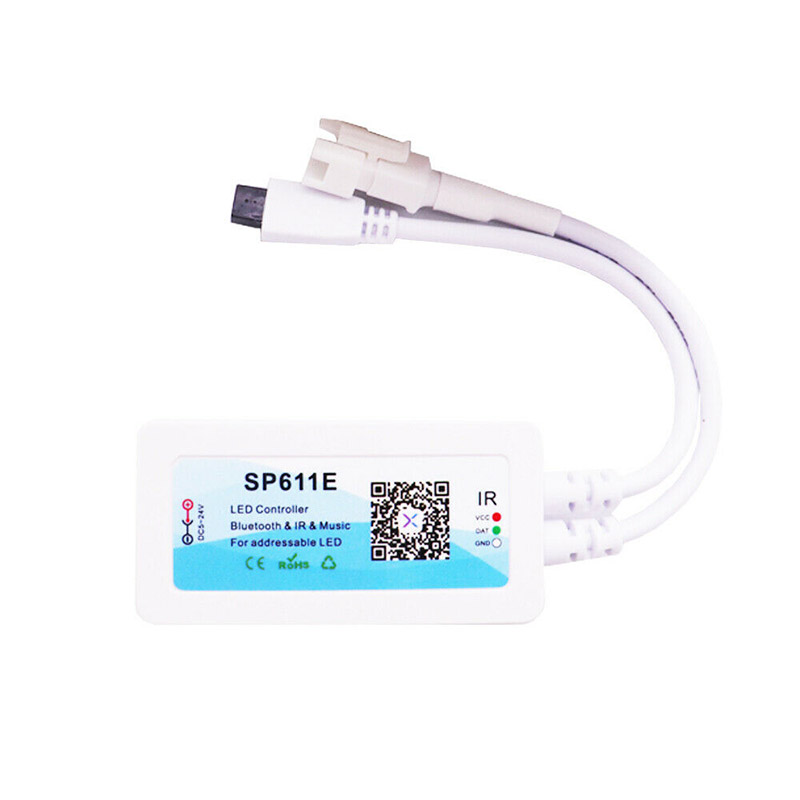

SP611E Controller
