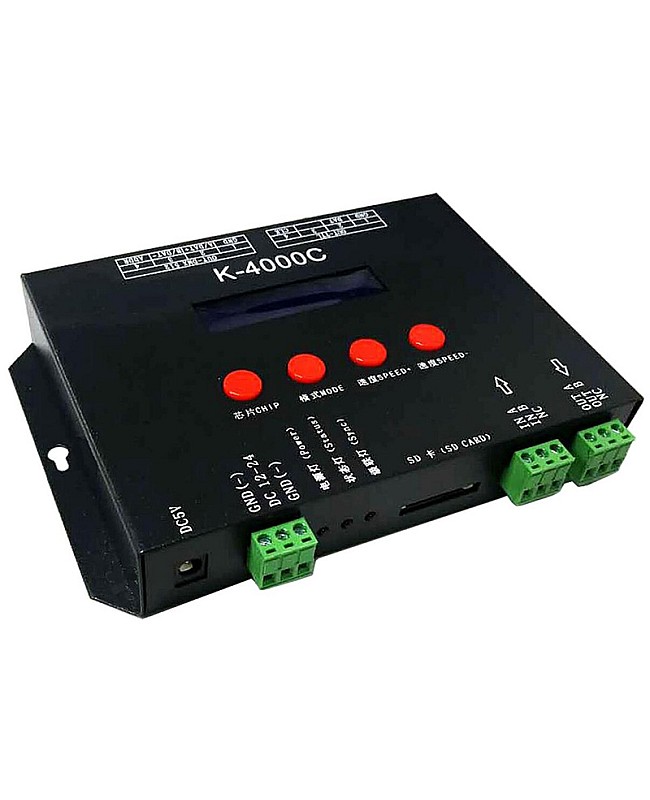

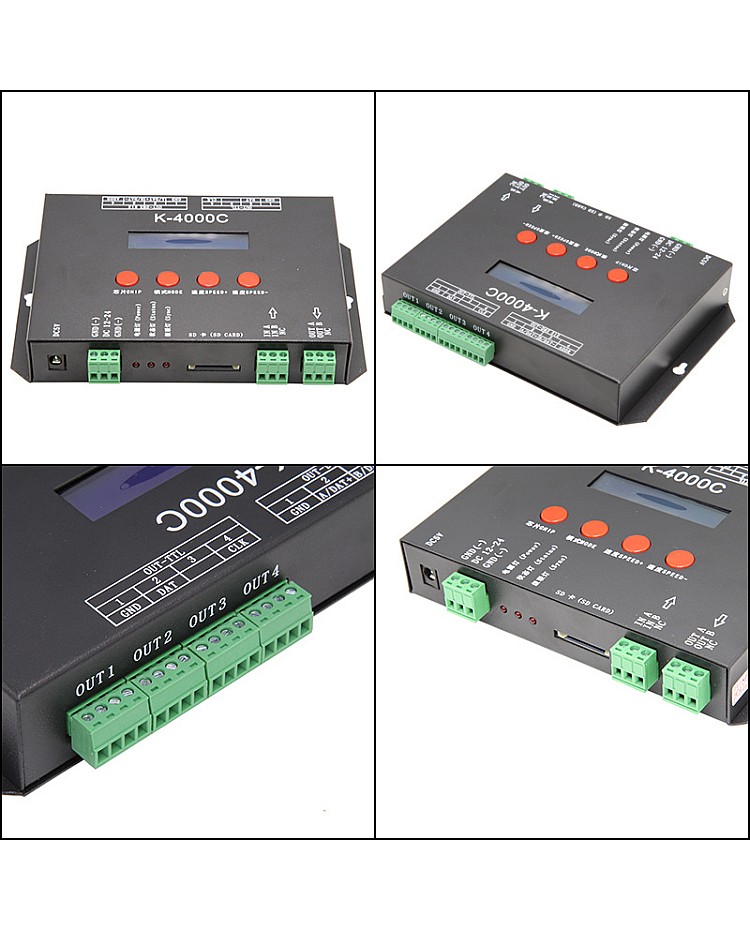

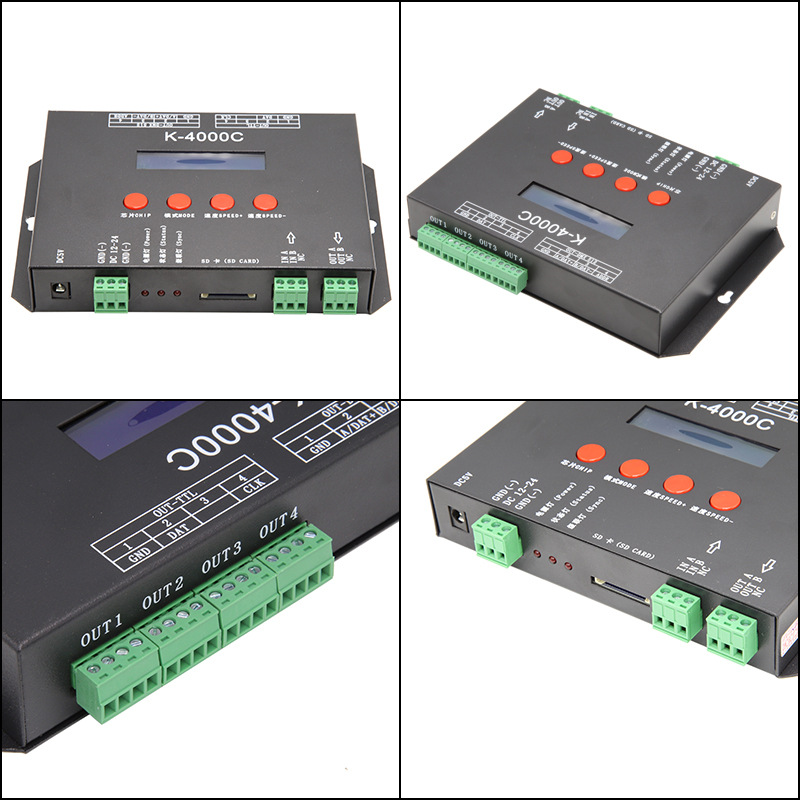

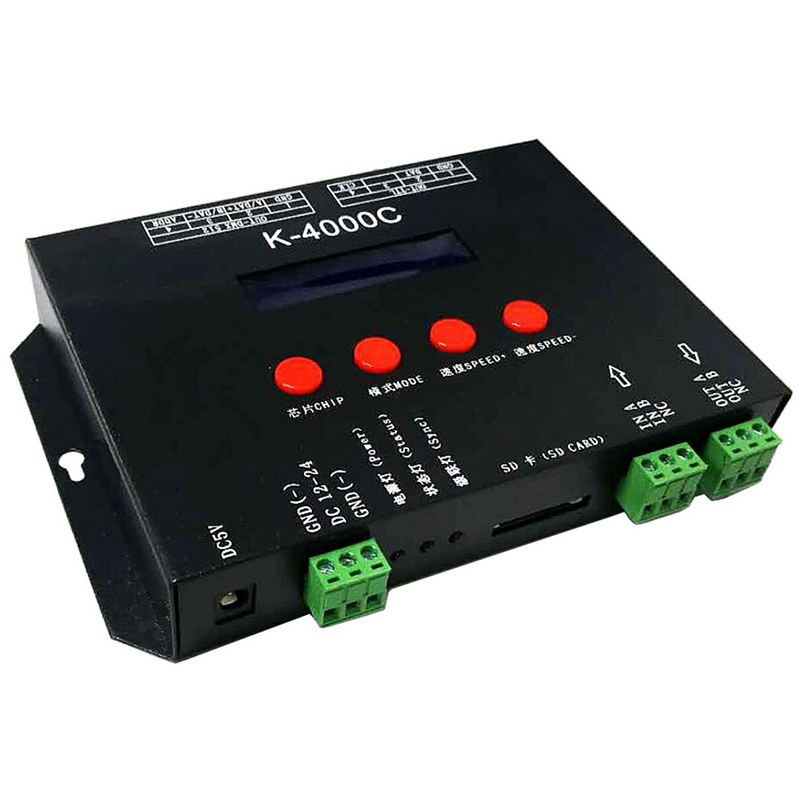

The K-4000C Programmable Controller for Digital LED Strip Lights, which with 4 output ports and each port can support up to 512/1024PCS Pixels(the max 512 pixels of the DMX luminaire is exemplified by 3 channels). the K4000C Controller can single set use and multiple controllers cascade, cascade distance between two Controllers can reach up to 150meters, need to use 0.5㎡ pure copper power cord for anti-interference and better stability. the K4000C Controller support chip can lock the support IC in software or not lock the support IC in the software, select the support IC through the Controller CHIP button, this scheme is more flexible and convenient. the Programmable Controller supports SD Card that plays content stored in it, the SD card can store up to 32 effect files and capacity from 128MB to 32GB. there are 3 test effects built-in, which you can use to test the Digital LED Strips that are connected. supports various point or line light sources, all kinds of rules and specifically shaped handles, 32 to 65536-degree gray control, Gamma correction procession handle. the Digital Controller for DMX luminaire comes with a write address function, with the 2016 LedEdit-K V3.26 or higher version software, one-click address function can be set. supports on-board luminaires with 4 channels(RGBW) pixels or split into single-channel point pixels.


K-4000C User Manual


  • Size: 180*110*35mm(L*W*H)
  • Colors: Black
  • Working Voltage: DC5V Or DC12-24V Input
  • Power Consumption: 2W
  • 32 To 65536 Degree Gray Control, Gamma Correction Procession Handle
  • Support Various Point, Line Light Source And All Kinds Of Rules And Specific Shaped Handle
  • With 4 Output Ports And Each Port Support Up To 1024PCS Lights
  • Supports SD Card From 128MB-32GB
  • Format: FAT Or FAT32
  • Storage File: *.led
  • Can Single Set use And Multiple Controllers Cascade
  • Can Lock The Support IC Type
  • Built-in 22 Test Effects And Comes With DMX512 Test Function
  • Enhanced TTL And 485 Differential(DMX) Signal Output
  • Support The Types Of ICs:
  • UCS1903, 1909, 1912, 2903, 2904, 2909, 2912; TM1803, 1804, 1809, 1812; SM16703, 16709, 16712; WS2811, WS2812, WS2813, WS2815, WS2818; INK1003; LX3203, 1603, 1103; GS8205,8206; SK6812, WS2801, LPD6803, TM1913, TM1914, DMX etc
  • Working Temperature: -30℃-+85℃
  • 2 Years Warranty

Support chips(PC Software Select K-4000-RGB)

00: UCS19**,UCS29**,TM18*,SM167**,WS28**,GS82**,SK6812(Support max.1024*4=4096 pixels)

01: SM16716,16726(Support max.1024*4=4096 pixels)

02: P9813(Support max.1024*4=4096 pixels)

03: LPD6803(Support max.1024*4=4096 pixels)

04: LX1003,1203(Support max.1024*4=4096 pixels)

05: WS2801(Support max.1024*4=4096 pixels)

06: LPD1886(Support max.1024*4=4096 pixels)

07: TM1913(Support max.1024*4=4096 pixels)

08: TM1914(Support max.1024*4=4096 pixels)

09: P9883, P9823(Support max.1024*4=4096 pixels)

10:DMX(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

11: DMX 500K(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

12: DMX 250K-CZF(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

13: DMX 500K-CZF(Support max. 512*4=2048 pixels, suggest to support ≤320*4=1280 pixels)

14: UCS5603-Test(Support max.1024*4=4096 pixels)

15: UCS5603A(Support max. 1024*4=4096 pixels)

16: UCS5603B(Support max. 1024*4=4096 pixels)

17: TM1814 ( Support max. 1024*4=4096 pixels )

18: INK1003 ( Support max. 1024*4=4096 pixels)

19: APA102(Support max. 1024*4=4096 pixels)

20: UCS8904(Support max. 1024*4=4096 pixels)

21: SM16714(Support max. 1024*4=4096 pixels)

22: SM16813(Support max. 1024*4=4096 pixels)

23: GS8512(Support max. 512*4=2048 pixels, suggest to support ≤320 pixels *4=1280)

Remarks: 1. For RGBW four-channel luminaires need to select K-4000-RGBW

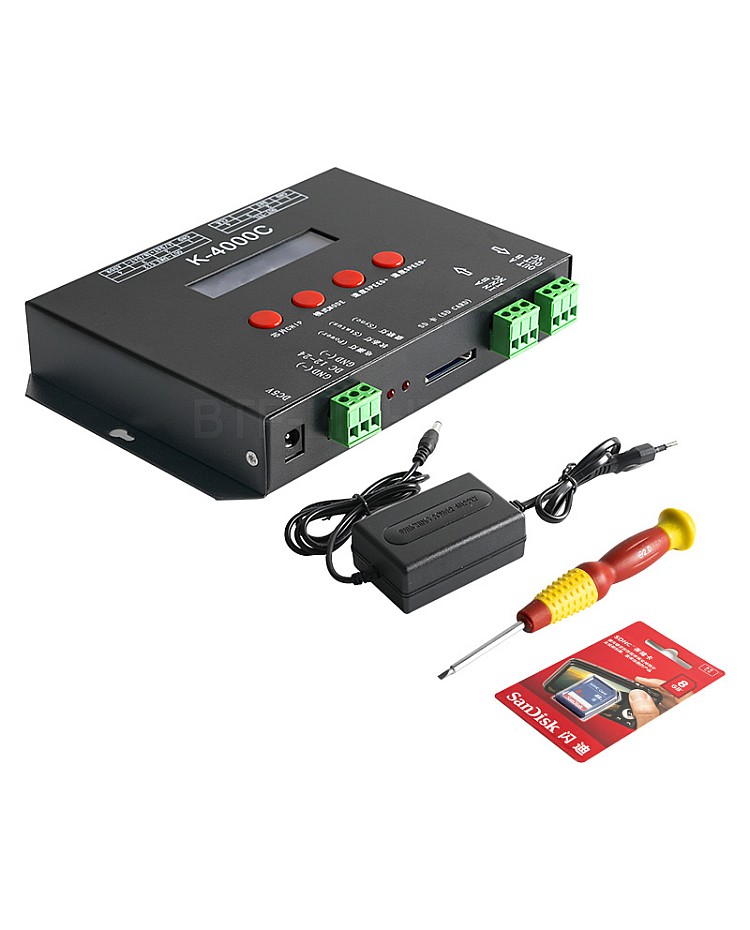

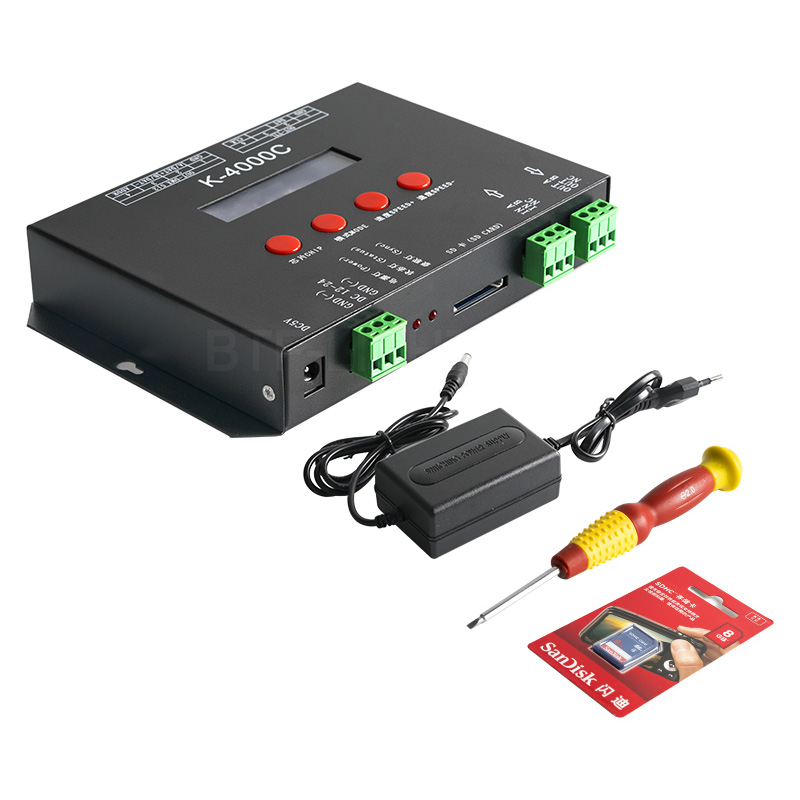

1*K4000C Controller
