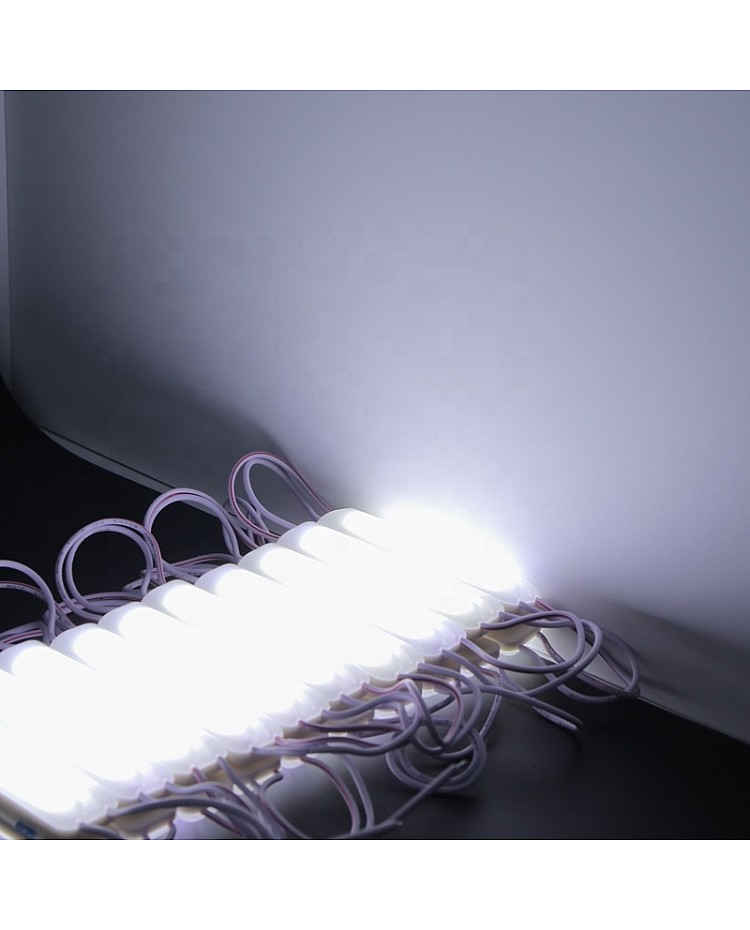

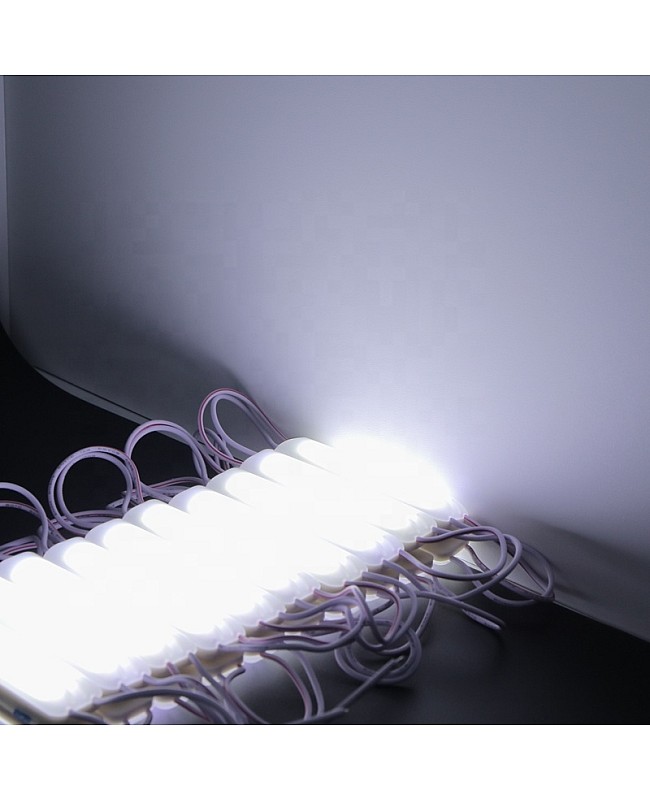

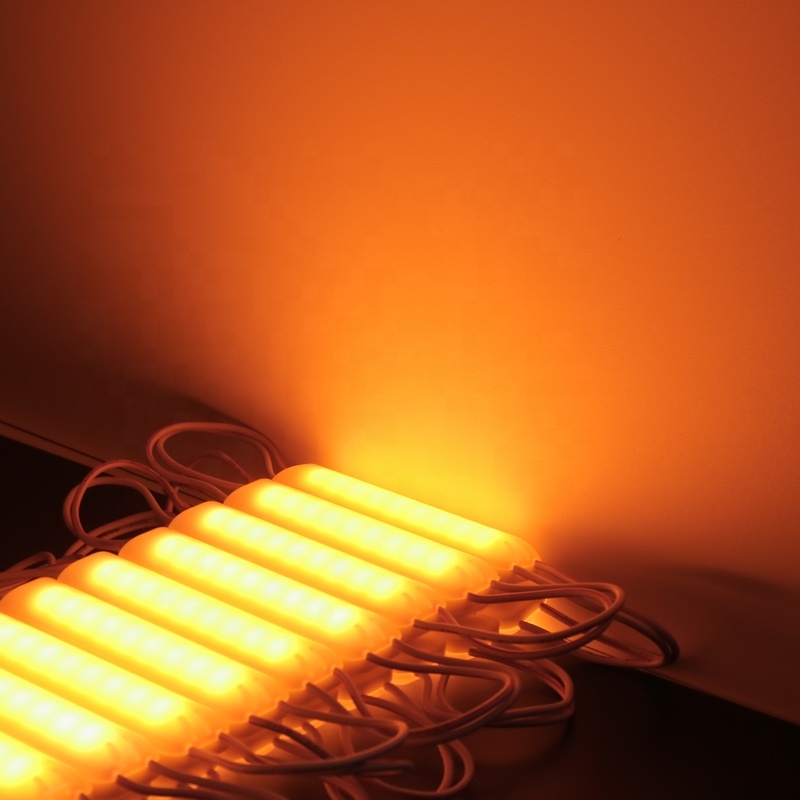

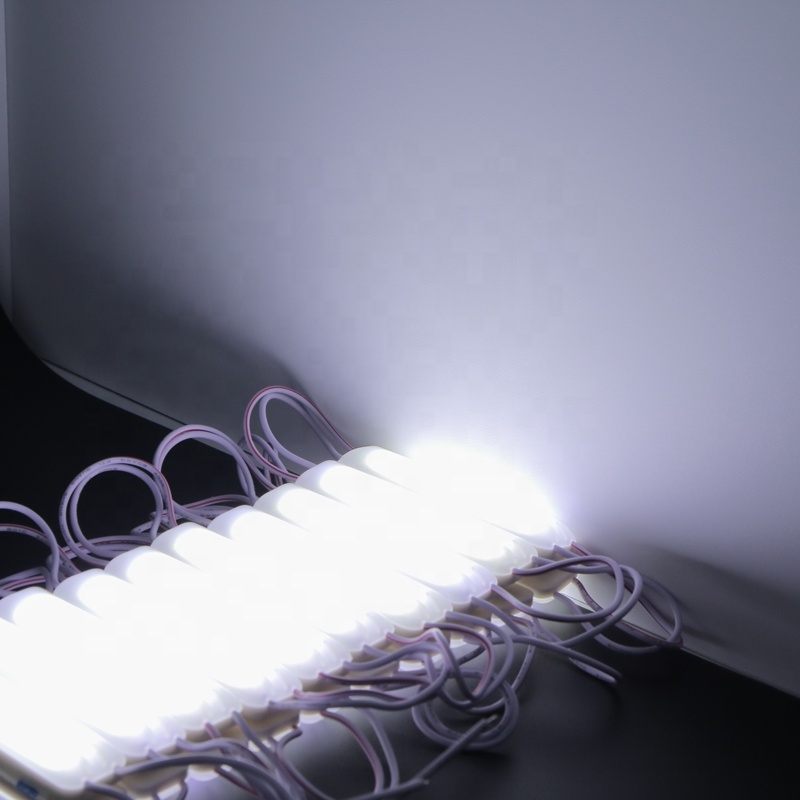

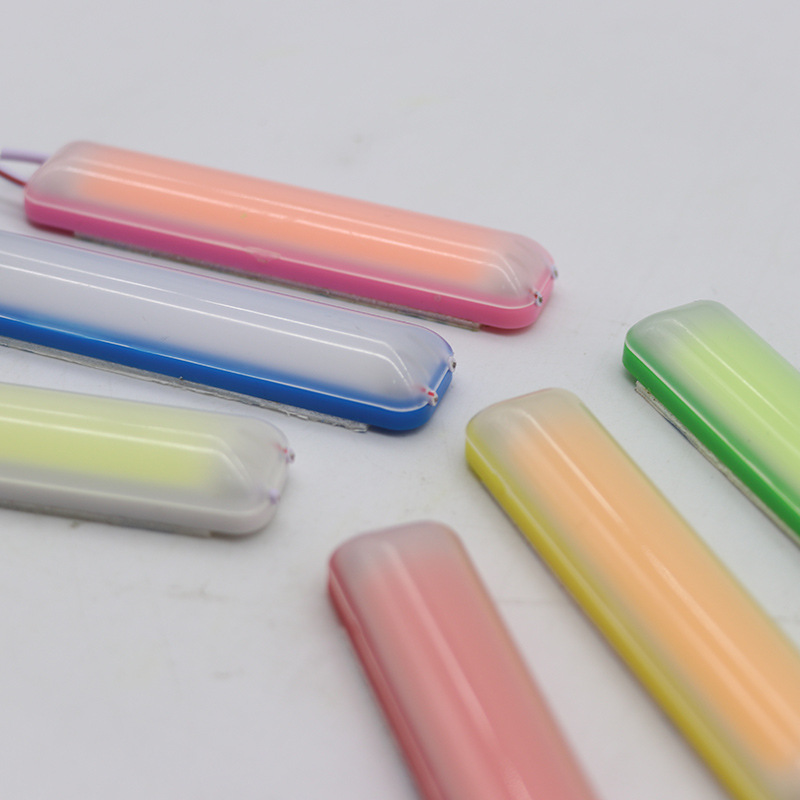

The COB 12V Light Modules for LED advertising signs are designed to provide a bright, consistent light source for LED Signs. These LED Modules use a high-power chip-on-board(COB) LED Light source. LEDs are mounted on the high-quality aluminum board for better heat dissipation, the surface with the PMMA lens for a wide beam angle, no visible light spot, and no dark area. The IP rate is IP65, which can be used for indoor and outdoor applications. The COB Light Modules work on DC12V or DC24V, easy to connect to the LED Adapters to light up or connect to the LED Light Dimmer to adjust the brightness. 20PCS per string, cuttable and reconnectable. You can cut to any quantity and reconnect them for your project. The 12V COB Light Modules are easy to install, the back has double side adhesive tape; it is easy to remove the protector paper on the tape and stick them on the place you want to install. You can use them as the backlight of channel letters, signs, billboards, holiday decorations, sign lighting, under-cabinet lighting, window lighting, display lighting, trade show lighting, etc. There are various emitting color products available for your needs.


  • Model: 7516
  • Material: PVC + Aluminum Board
  • Size: 75*16mm(L*W)
  • LED Type: COB
  • LED Quantity: 9PCS
  • Working Voltage: DC12V / DC24V
  • Working Wattage: 2.4W

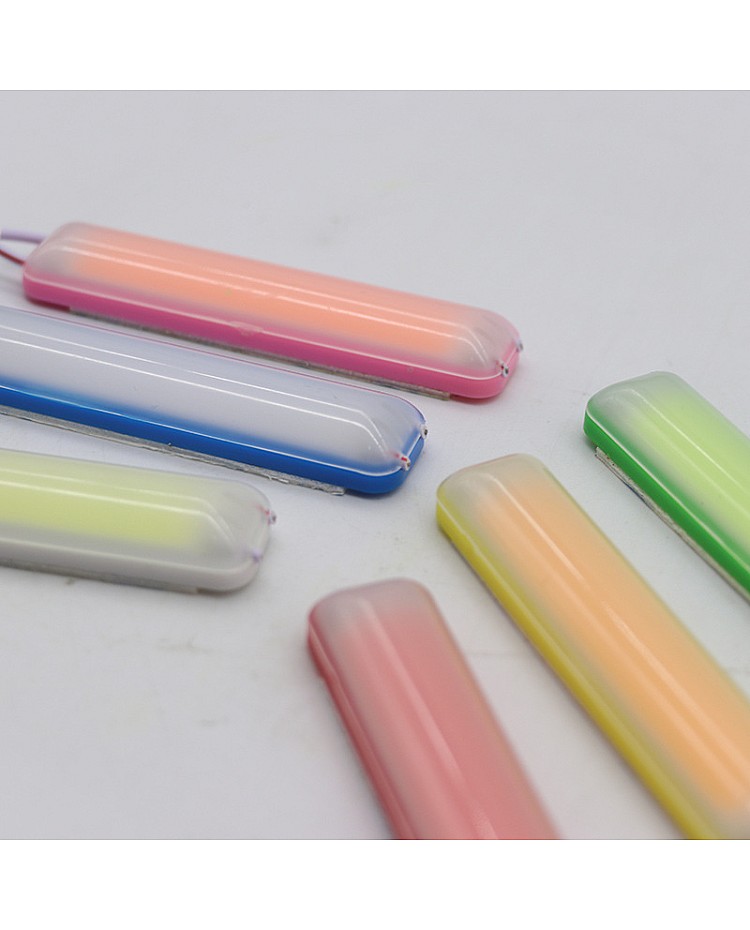

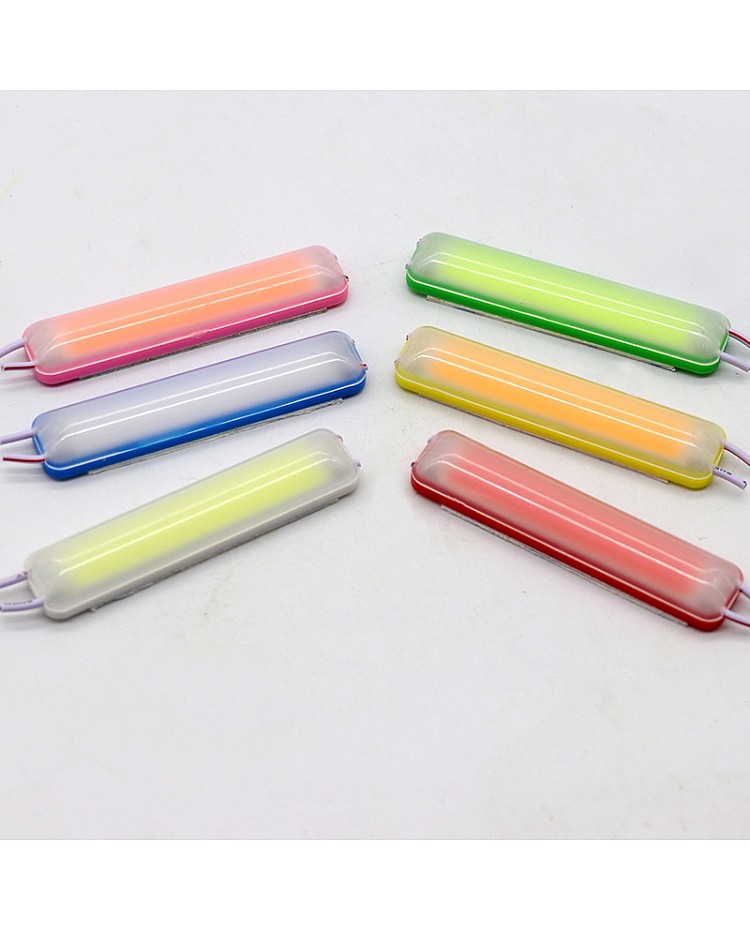

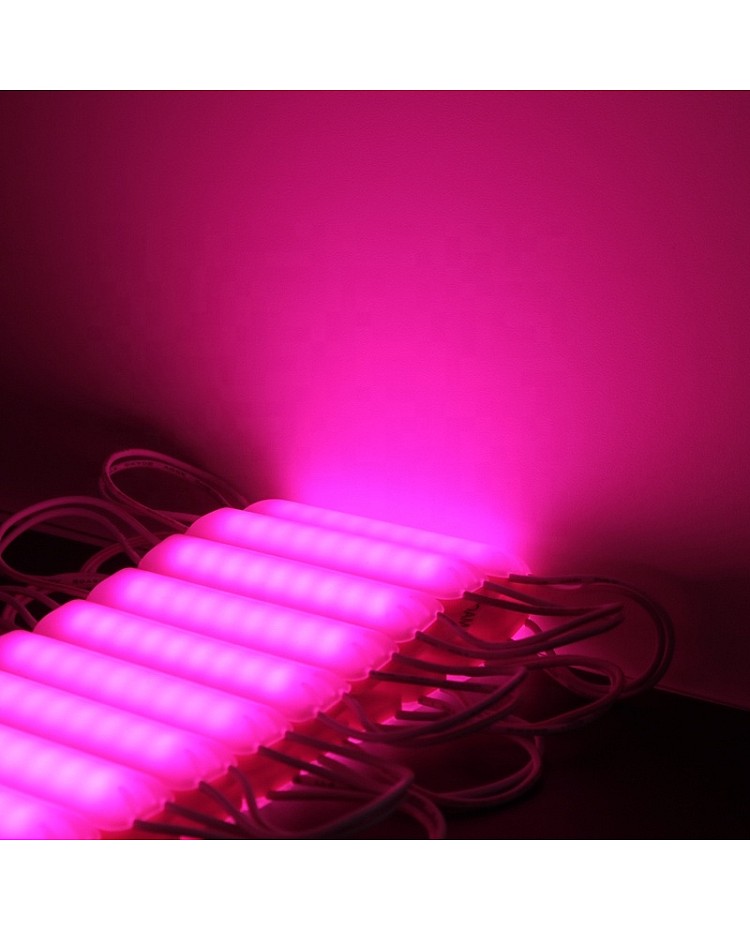

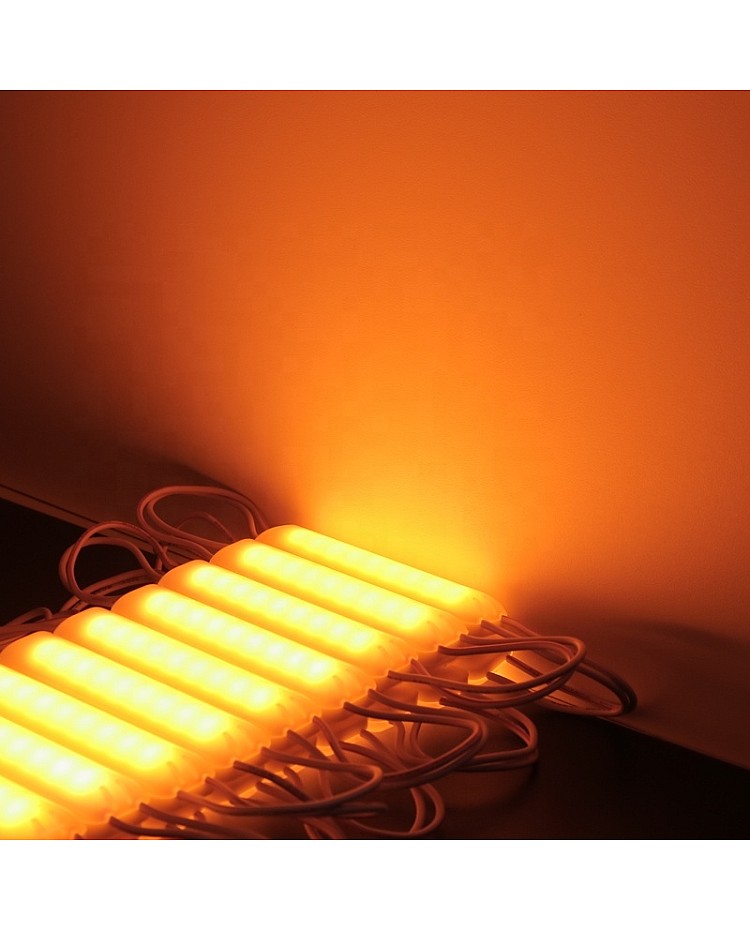

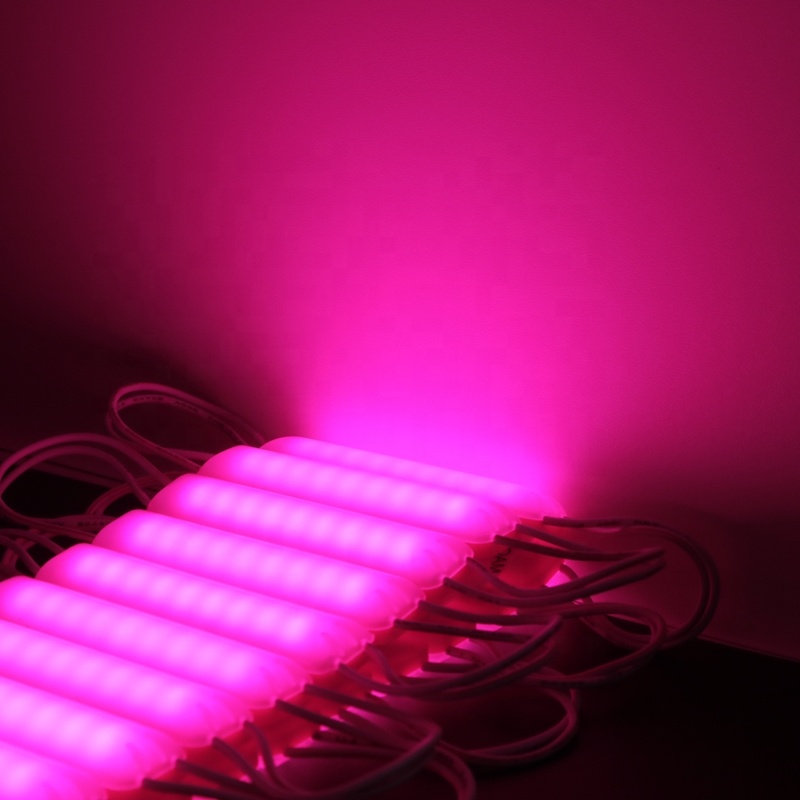

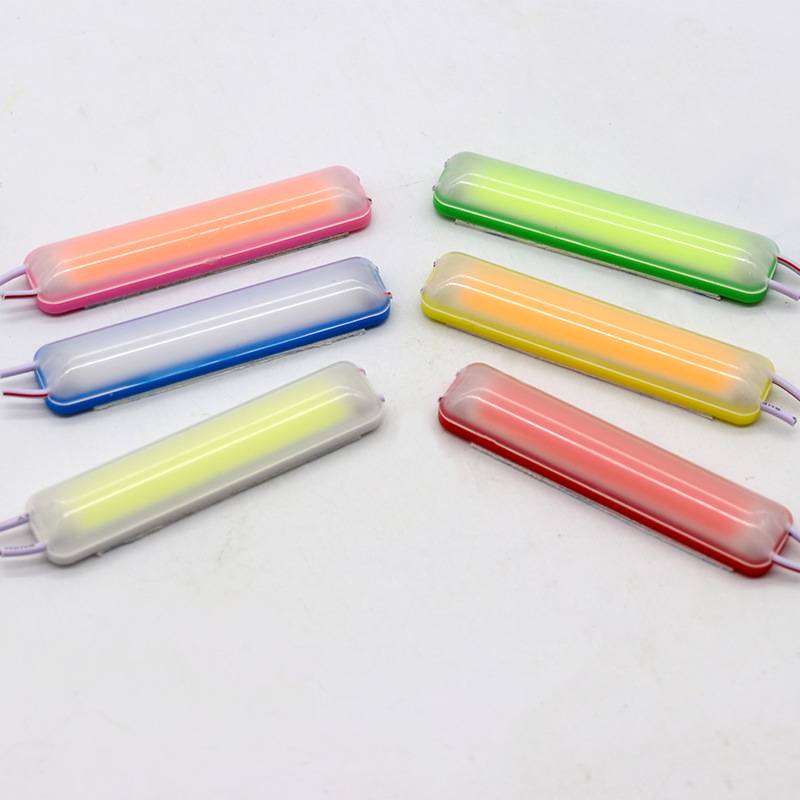

  • Colors: White, Warm White, Yellow, Red, Green, Blue, Pink, Ice Blue
  • Luminous Flux: 120-140lm
  • Beam Angle: 120°
  • IP Rating: IP65
  • 20PCS Per String
  • Back With Double Side Adhesive Tape
  • Cuttable And Reconnectable
  • Color Rendering Index: 80Ra
  • Working Temperature: -20℃-+40℃
  • Lifespan: 50,000 Hours
  • 2 Years Warranty


COB Light Modules(20PCS/String)

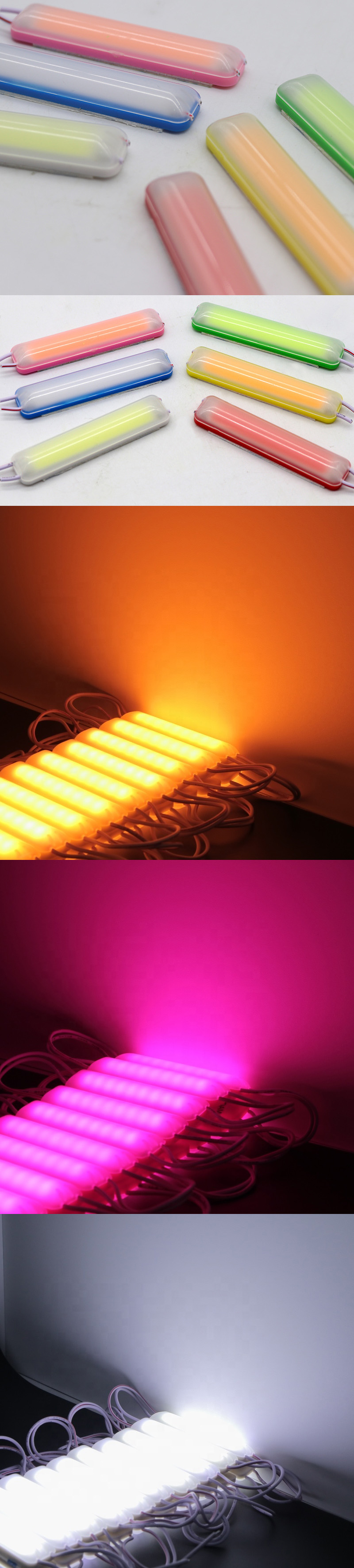

COB LED Modules
