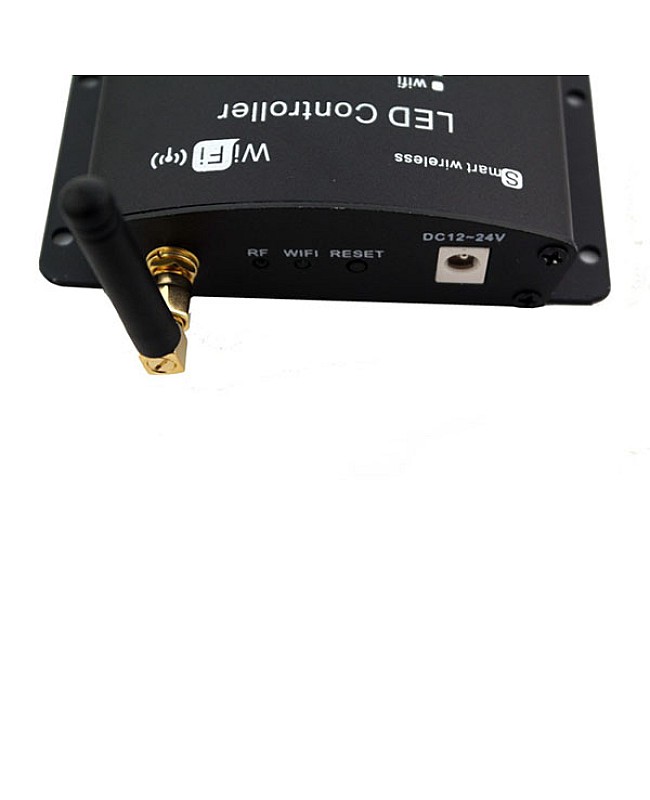

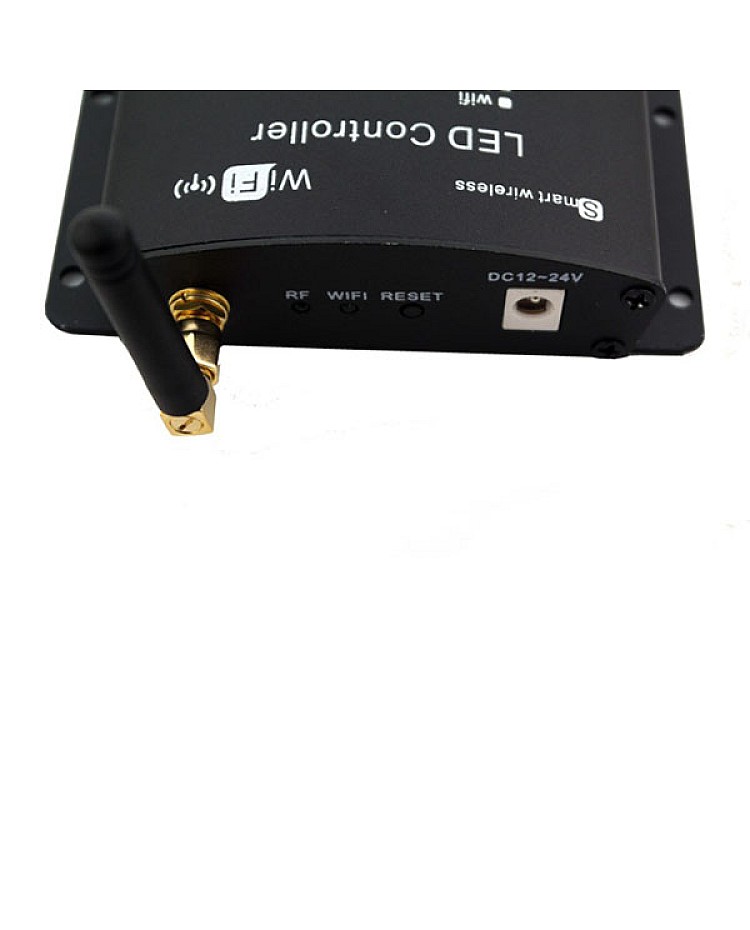

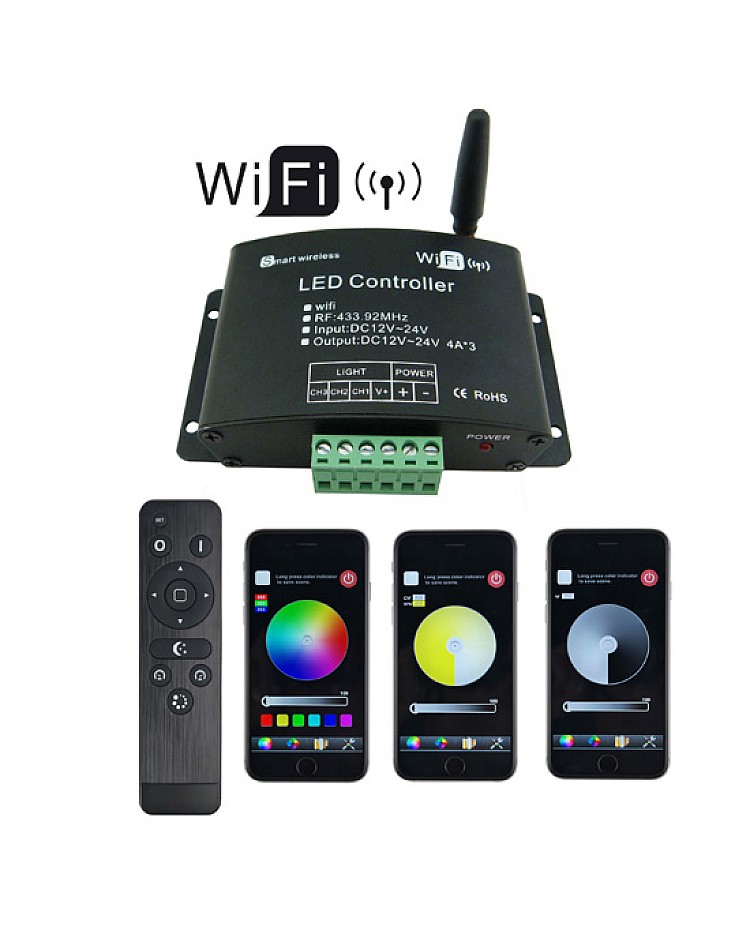

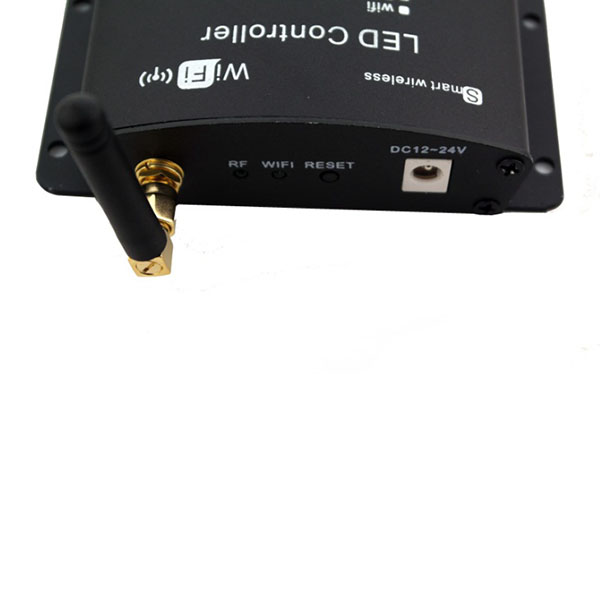

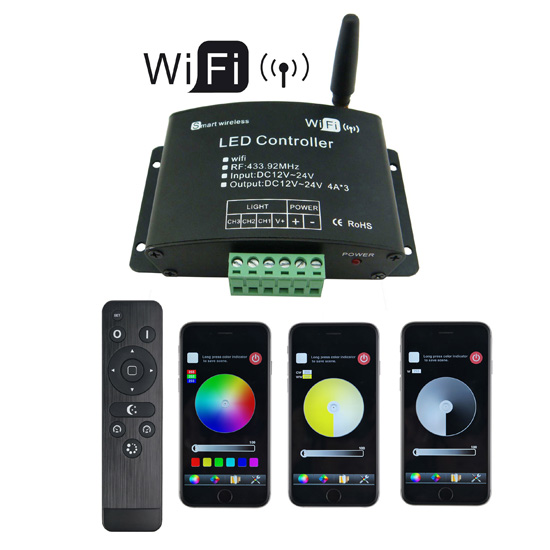

Check the LED WIFI Controller, which with 3 in 1(DIM, CCT, RGB) function, with the installation of controlling software on mobile devices with Android or IOS systems, such as smartphones, iPhones, tablets, etc. you can control the LED Lights through WIFI remotely. make the LED Control more intelligent and humanization. the 2.4G LED WIFI Controller with 3 output channels design, the max output current of each channel is 4A, the max loading power up to 288W when working in DC24V. with 3 in 1 function, you can use it as a dimmer, RGB controller or CCT Controller to control the various LED Lights, only need to select the right control interface in the software. the WIFI LED Controller comes with a 2.4G RF Remote Control, you can use it to control the LED Light easily. you can use it to turn on/off, change the dynamic modes, adjust the brightness or speed of dynamic mode.

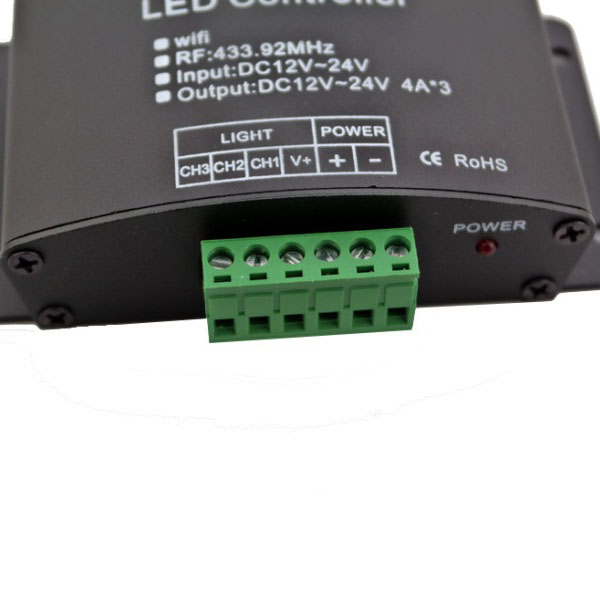

Features of LED wifi controller:

  • Working Temperature: -20℃-60℃
  • Size: 108*63*28mm(L*W*H)
  • Working Voltage: DC12V or DC24V
  • Output Wattage: DC12V: ≤144W; DC24V: ≤288W
  • Static Power Consumption: <3W
  • Connect Method: Common Anode
  • Wifi Brightness Level: 100
  • Wifi Speed Level: 100
  • Remote Brightness Level: 32
  • Remote Speed Level: 100

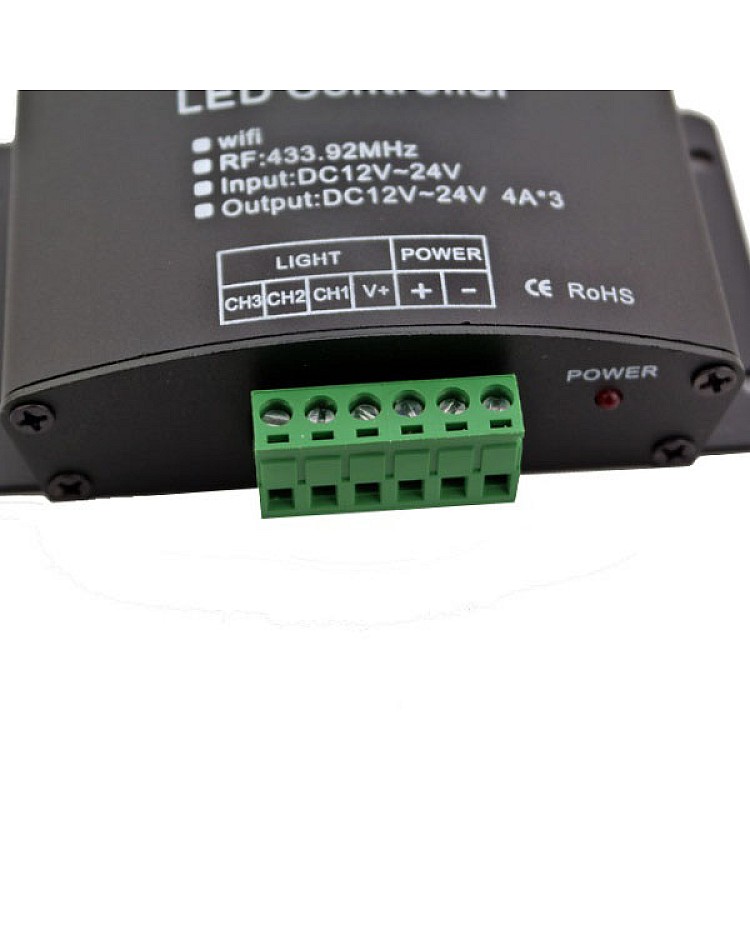

  • Output: 3 channels
  • Output Current: ≤4A(Each Channel)
  • WIFI Working Frequency: 2.4G
  • Remote Working Frequency: 433.92MHz
  • Output Gray Level: 256
  • Memory Function: YES
  • Receiving Sensitivity: 802.11b:DSSS(-5dBm)802.11b:CCK(-10dBm)802.11g:OFDM(-15dBm)
  • Weight: 300g
  • 2 Years Warranty

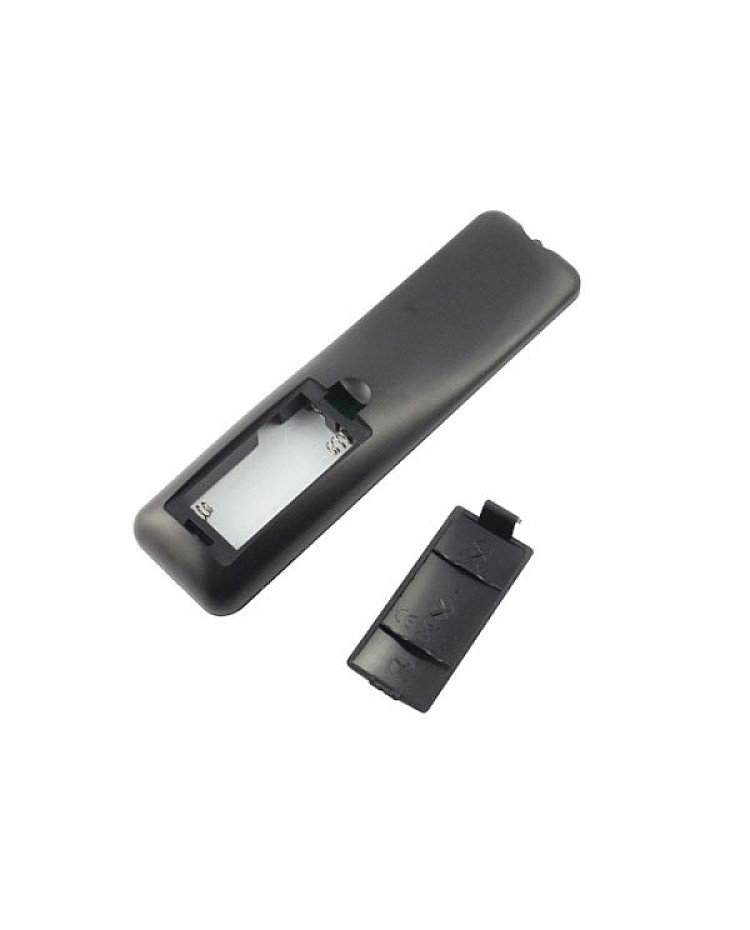

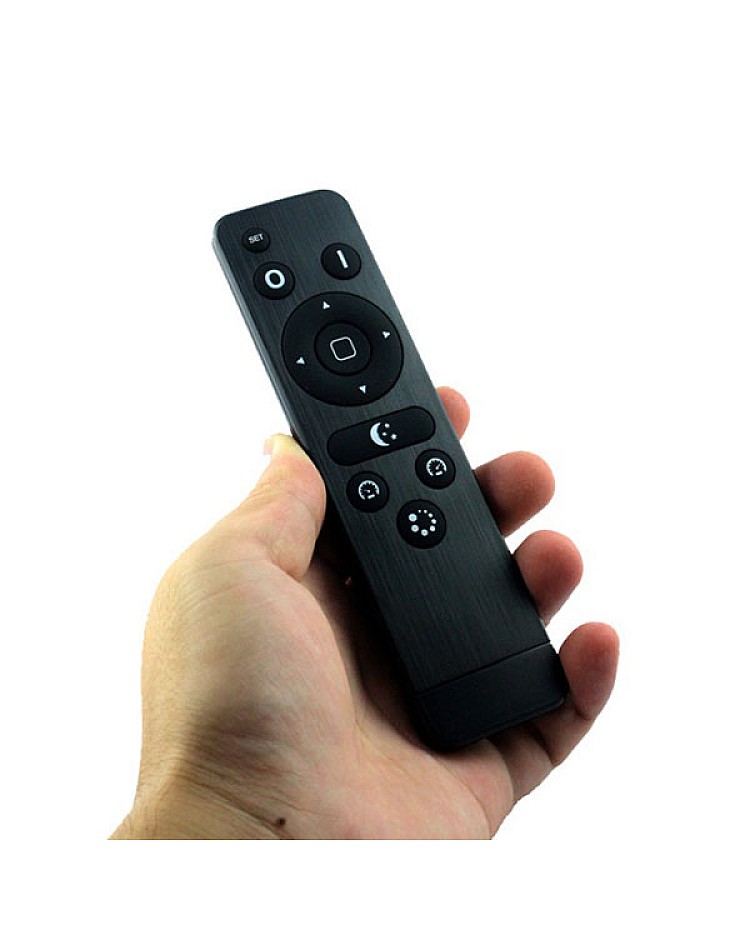

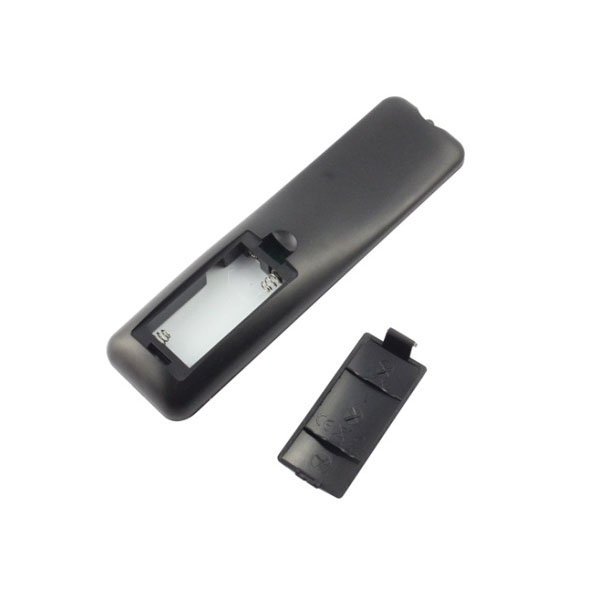

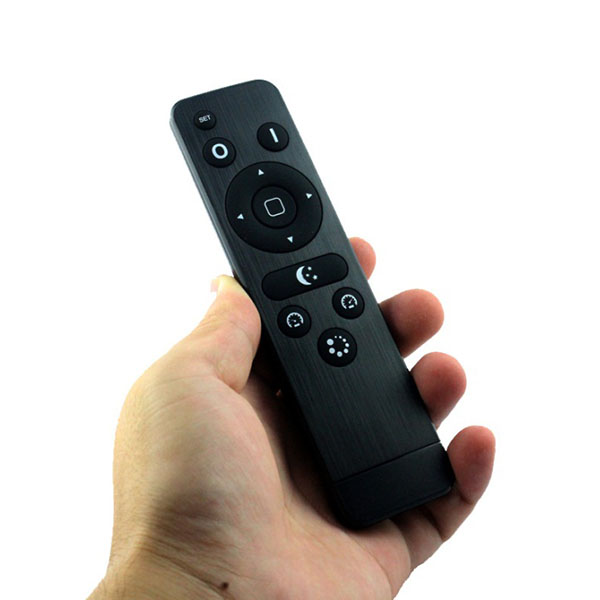

Features of remote:

  • Working Temperature: -20-60℃
  • Working Voltage: 3V(AAA*2)
  • Standby Current: 18uA
  • Working Current: 25mA
  • Standby Wattage: 54uW
  • Working Wattage: 75uW
  • Size: 150*40*20mm(L*W*H)
  • Remote Control Distance: ≤20M
  • Working Frequency: 433.92MHz



1*LED WIFI Controller


LED WIFI Controller
