In Stock
$7.31 $4.99 Sale -32% OFF
Reward Points: 5
This product has a minimum quantity of 10
  • Brand: Ledbe
  • Product Code: ALP-069

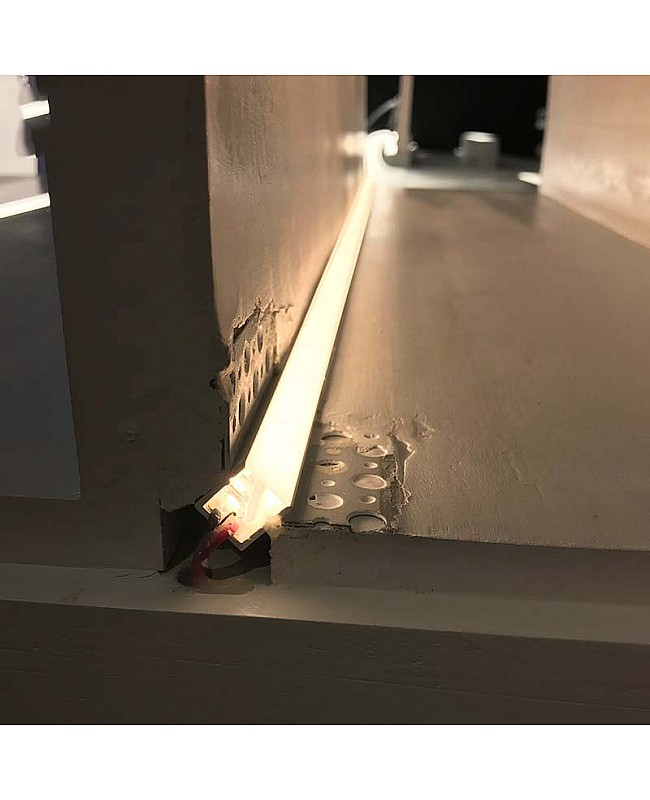

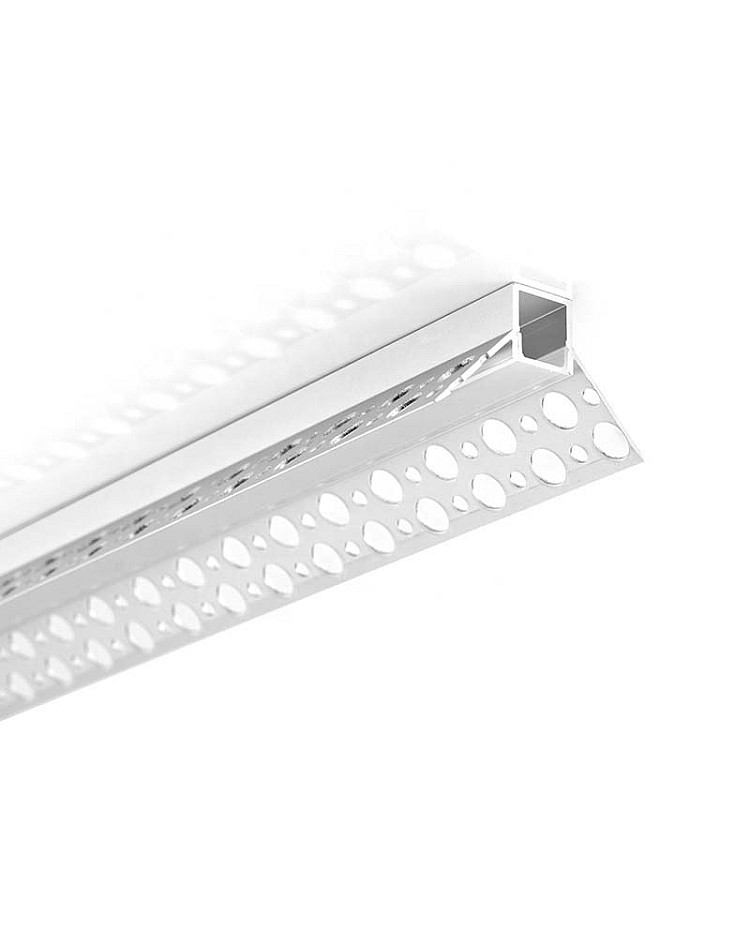

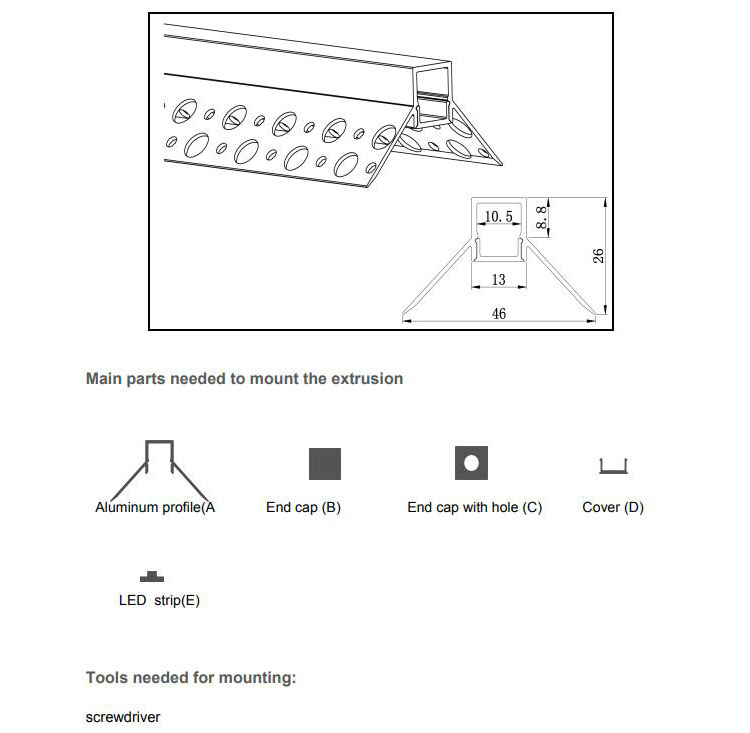

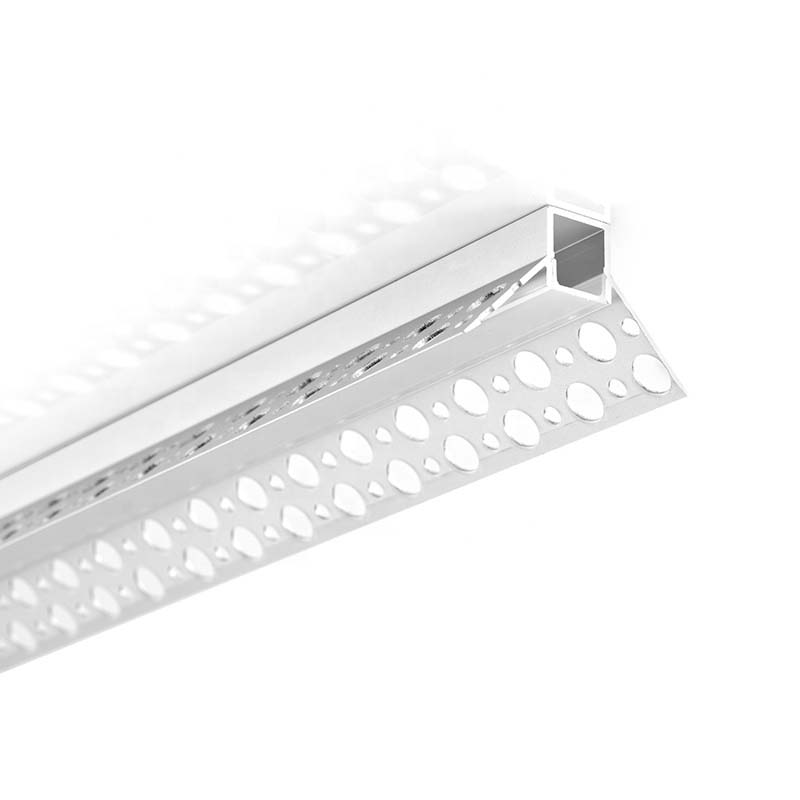

The LED Drywall Extrusion for 1/2 Inch Drywall internal corner installation, made of 6063-T5 aluminium material and with silver anodized surface treatment, has the better anti-oxidation feature for a longer lifespan. the standard length is 1meter, you also can choose other lengths like 0.5meter, 1.5meter, 2meter, 2.5meter or max 3meter per piece and cuttable. the inner width is 10.5mm, compatible with the LED Strip Light that the width can not over 10mm, 3528, 2835 or 5050. you can install the LED Strips on the aluminum profile easily, the aluminium base can be used as a heat sinker for better heat dissipation will allow the longer lifespan for the LED Light. there is only one type of diffuser available, you only can choose the PC diffuser cover, which made of brand material with stable quality, perfect light distribution and high output light, the end caps with wire hole and without wire hole included, you can connect the LED Light Strip to the LED Adapter to light them up, or connect to the LED Controller or LED Dimmer to change the color-changing style or brightness. you can install them on drywall, gypsum or plasterboard structure wall.


  • Material: 6063-T5 + Aluminum Alloy
  • Surface Treatment: Silver Anodized
  • Color: Silver

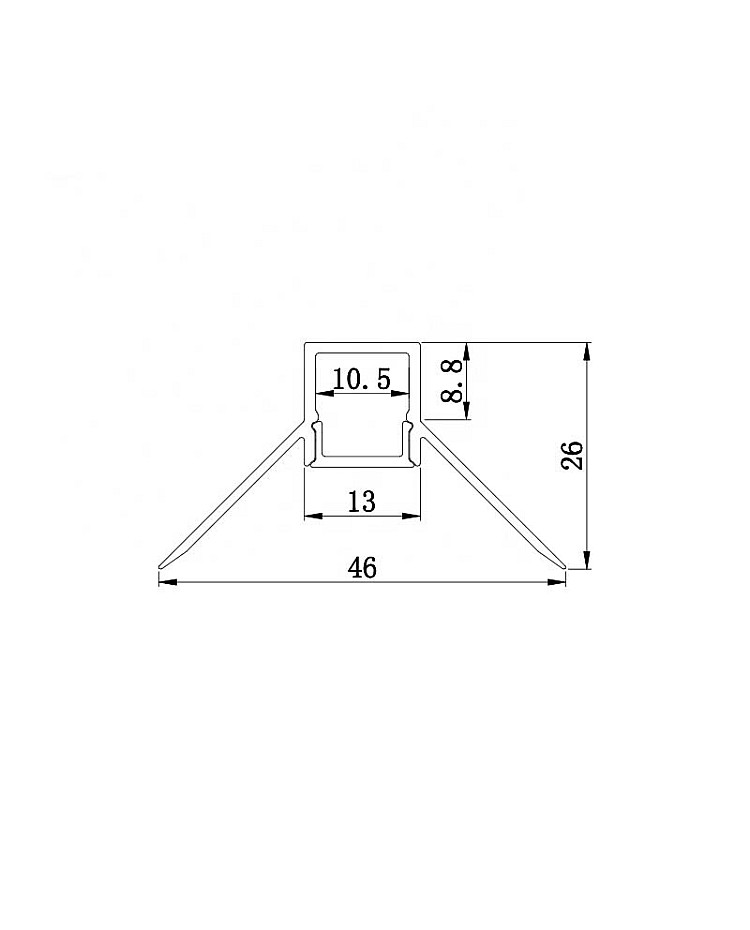

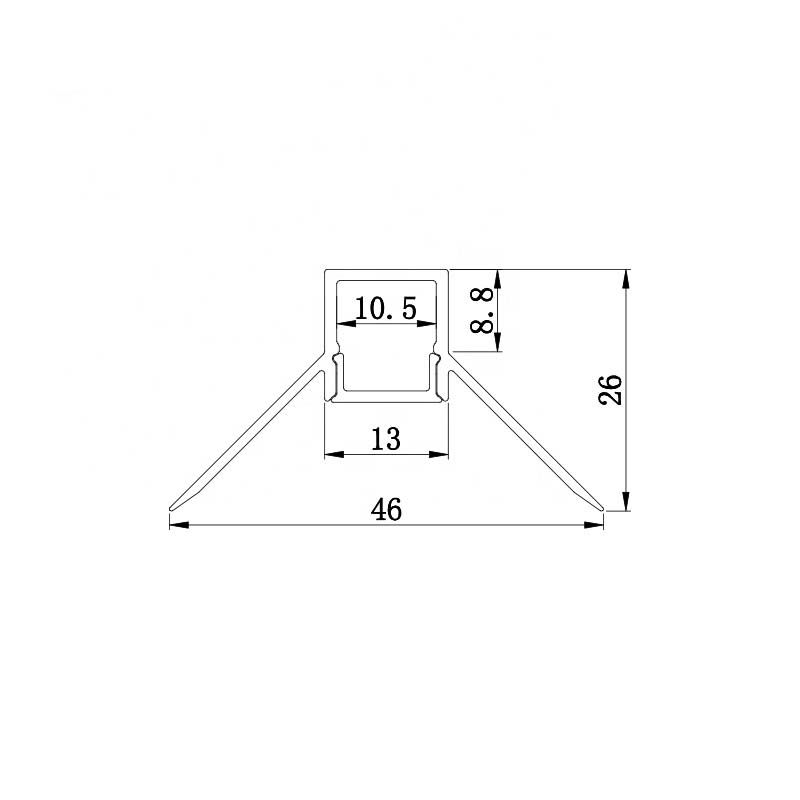

  • Size: 46*26mm
  • Diffuser: PC Diffuser Cover

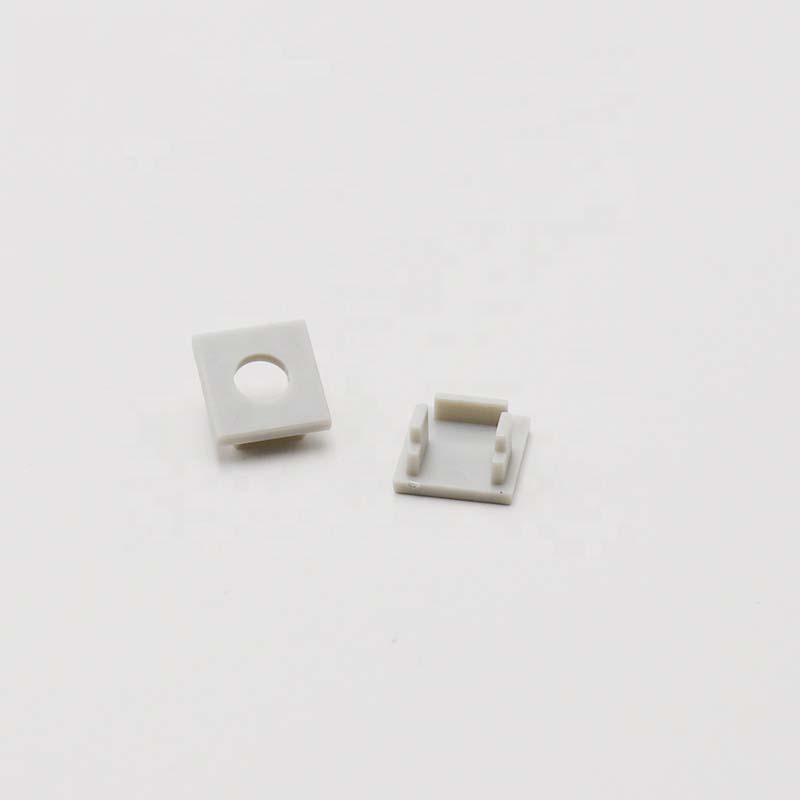

  • End Caps With Wire Hole And Without Wire Hole Included
  • Standard Length: 1Meter
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M

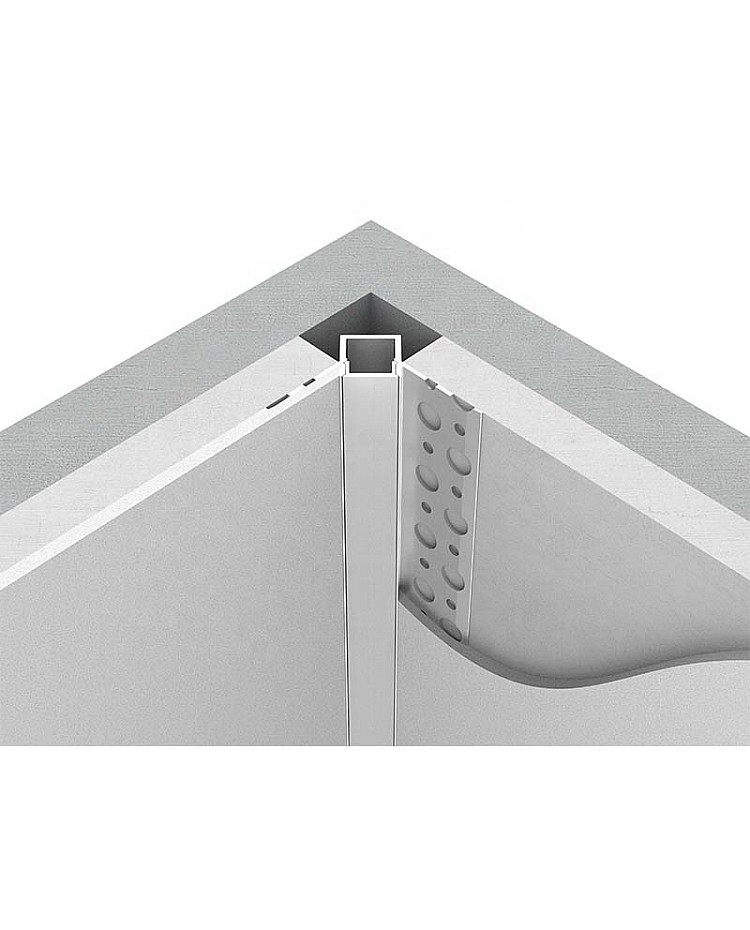

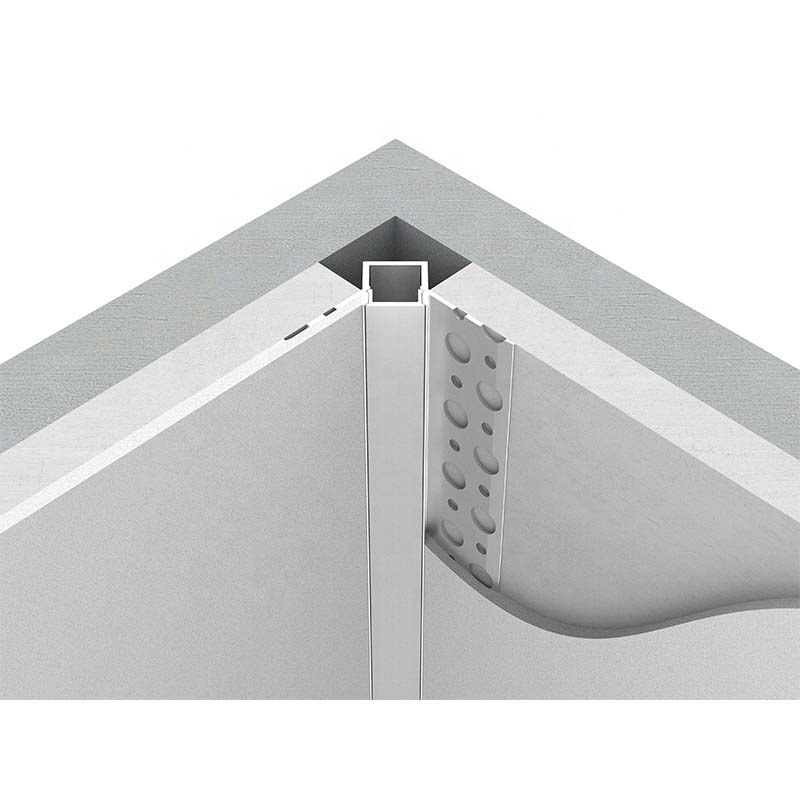

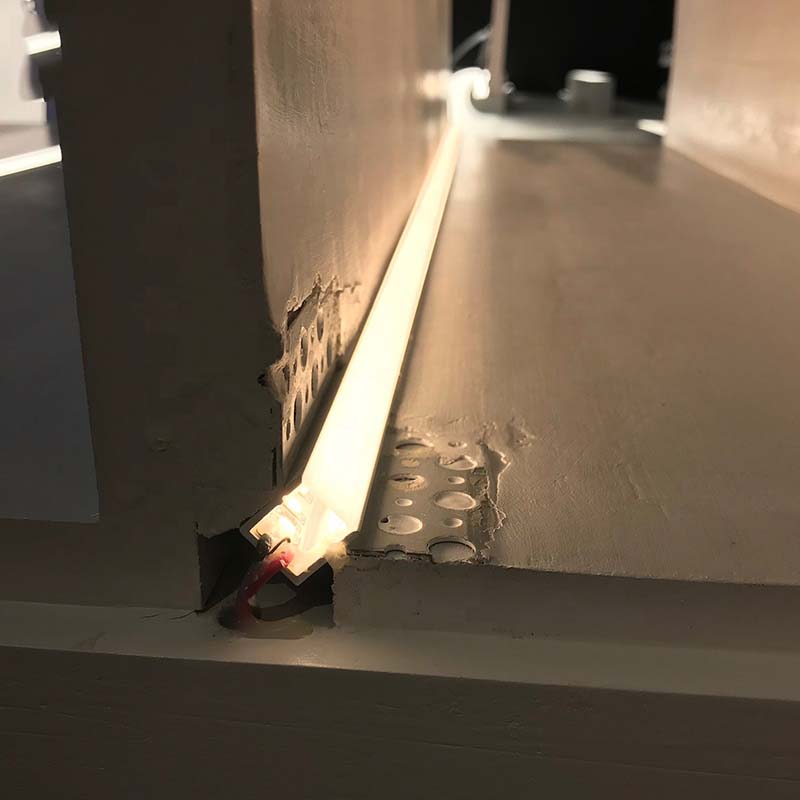

  • Installation: Drywall Recessed
  • Applications: 1/2 Inch DryWall Recessed
  • Warranty: 3 Years
  • Shipping Method: By Express, By Sea


1*LED Drywall Extrusion

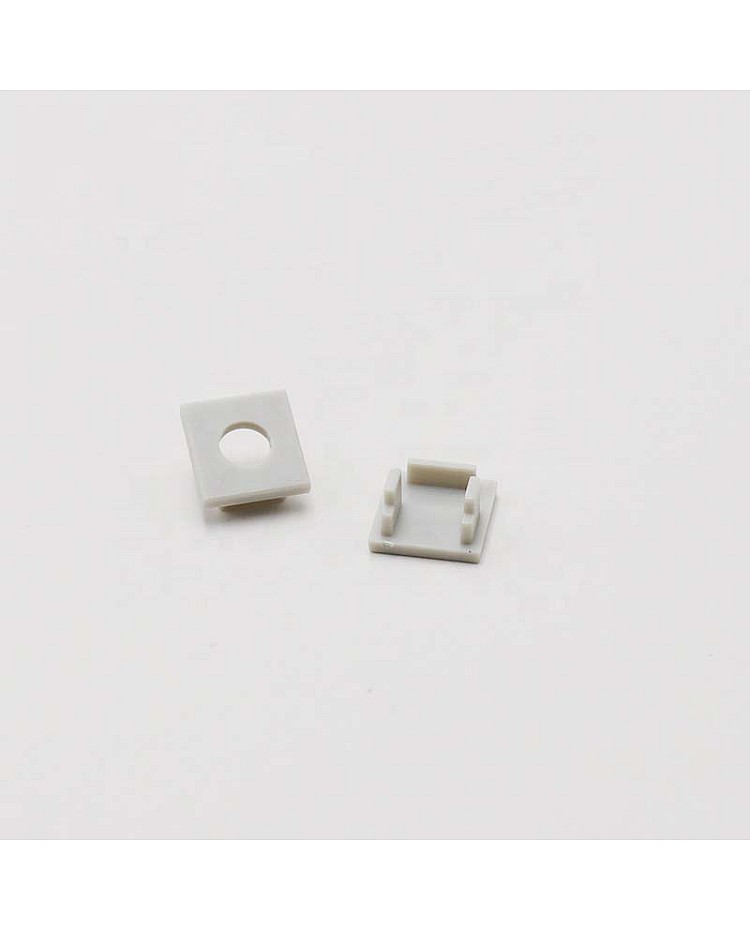

End Caps

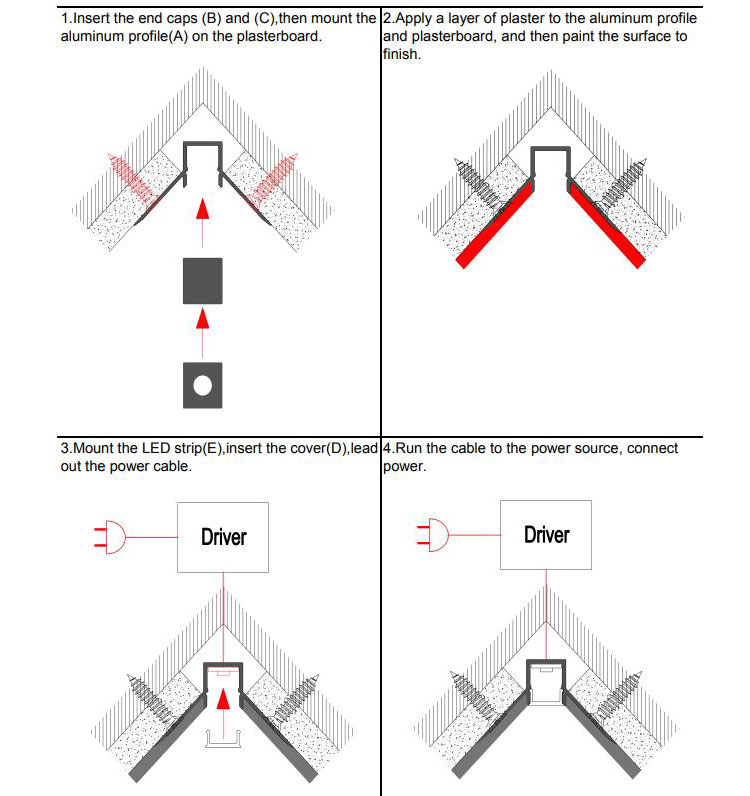

How To Install:

1. Fix the LED Extrusion On the Plasterboard.

2. Painting The Plaster.

3. Paint The Lacquer(Overcoating)

4. Stick the LED Strips.

5. Install the LED Diffusers

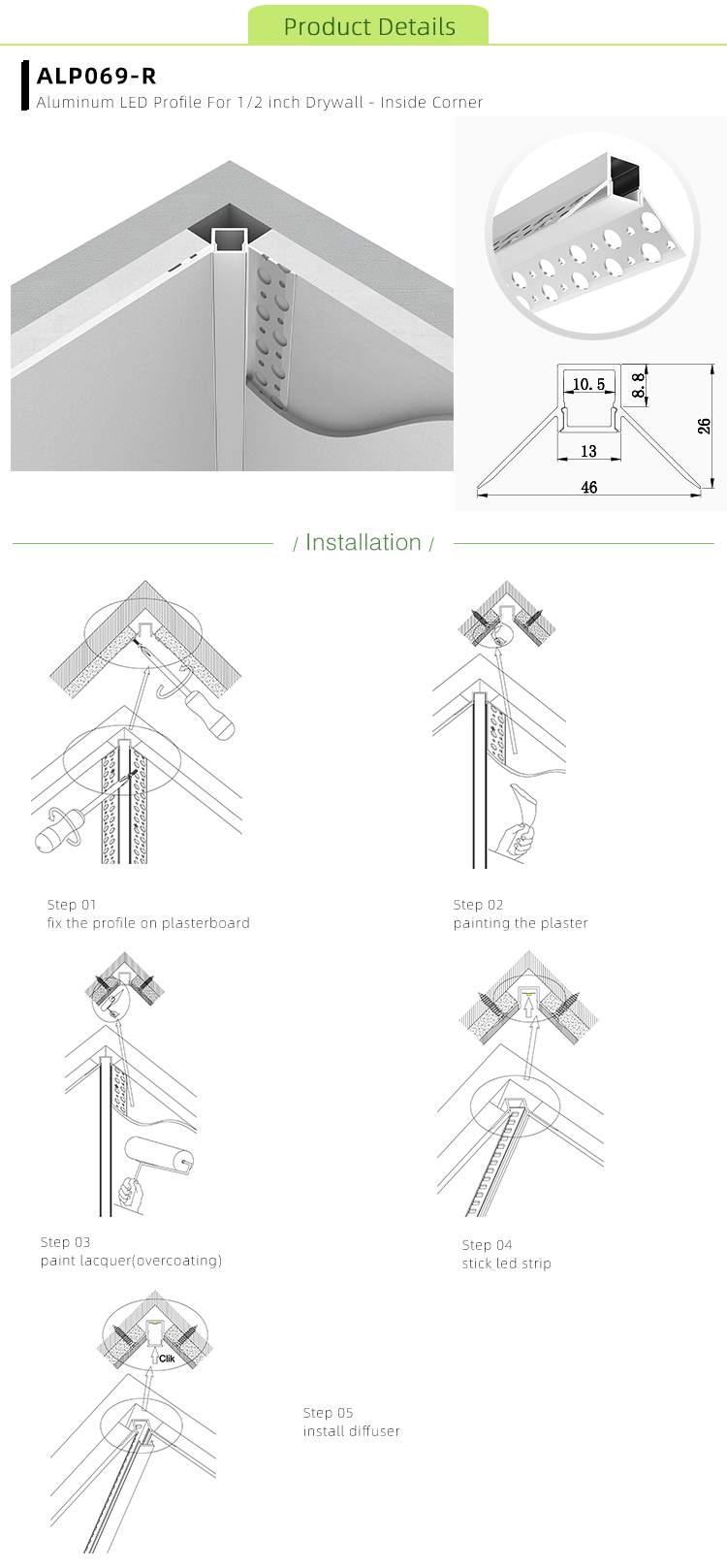

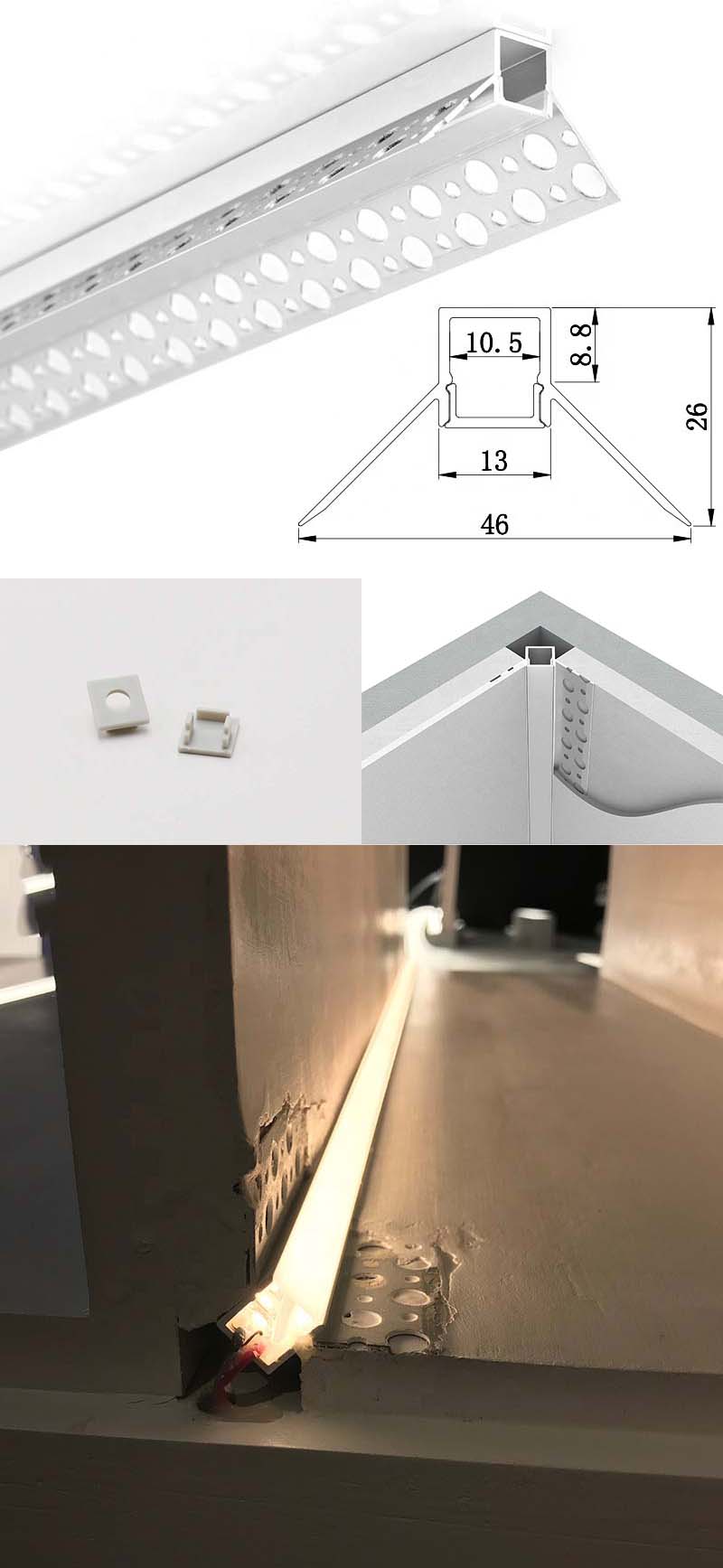

Corner LED Dry Wall Extrusion LED Drywall Extrusion With Flange
