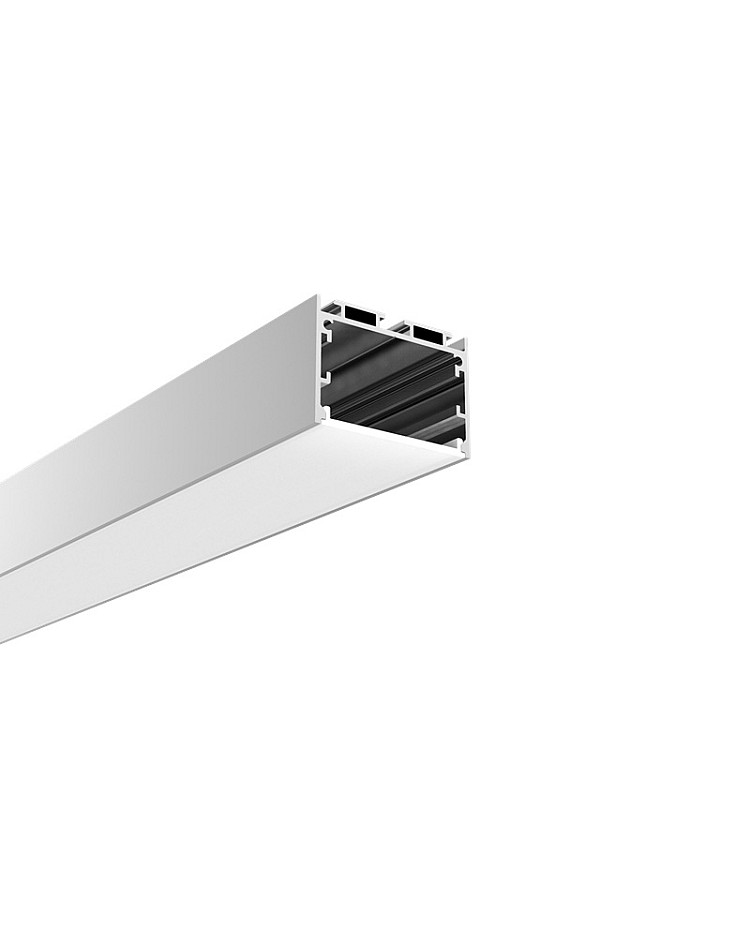

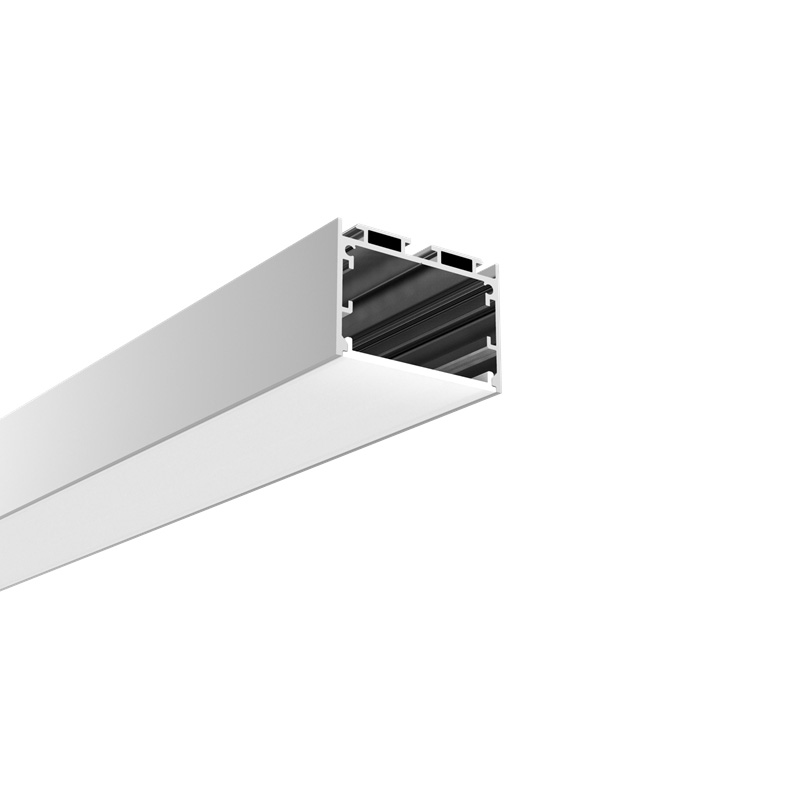

The LED Extrusion for Ceiling Pendant or Surface Mounted LED Projects, the suspension wires and end caps included. the default length is 1meter, you also can choose the other lengths like 0.5meter, 1.5meter or 2meter, the max length can do 3meter, you can cut to any length you want for your project. the LED Light Extrusion is made of 6063-T5 aluminum alloy material and with silver anodized surface treatment for a better anti-oxidation feature and a longer lifespan than other similar products. there is the only PC diffused cover available, which is made of brand material with stable quality, anti-yellowing, perfect light distribution and high light output, the inner width is 39mm, you can install the 3528, 2835, 5050, 5630, 5730 LED Tape Light in multi rows on the Alu Base easily as the light source, the Alu base can be used as a heat sinker for the better heat dissipation of your LED Light. you can connect the LED Alu Profile with LED Dimmer to adjust the brightness. can use them in the office, mall, restaurant, hotel, etc. supports ceiling pendant or surface mounted installation,  the end caps, metal clips and suspension wires included, 3 years warranty.


  • Model: ALP046-R
  • Material: Aluminium Alloy(6063-T5)
  • Surface Treatment: Silver Anodized
  • Color: Silver, White, Black

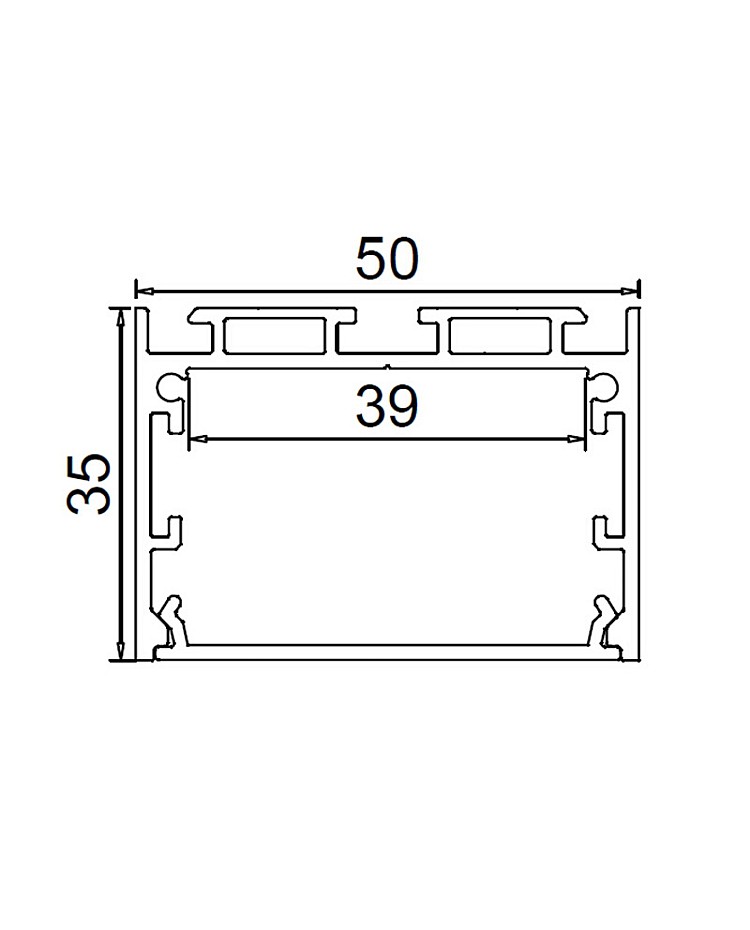

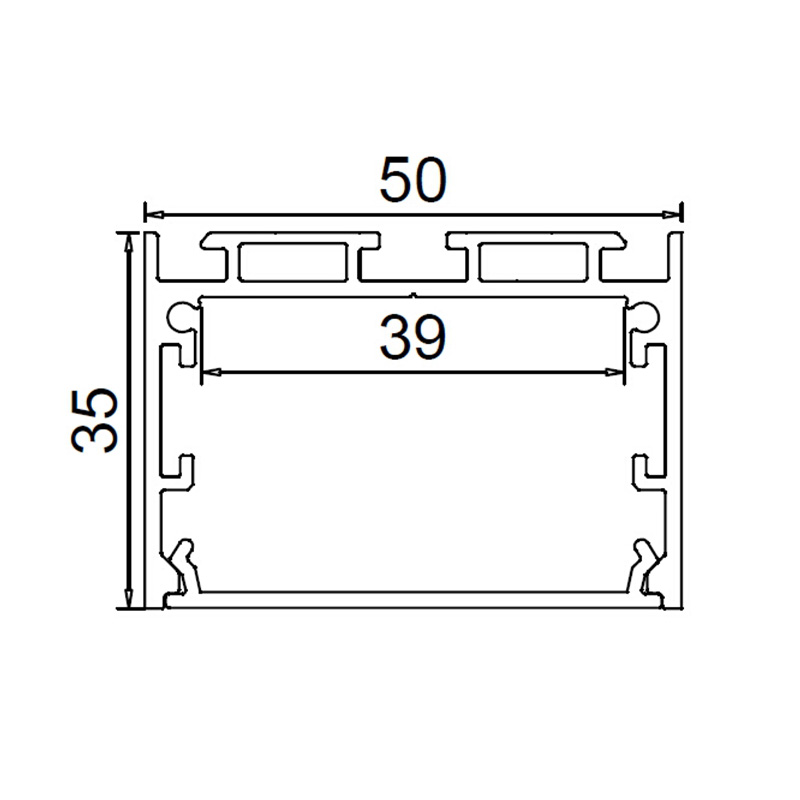

  • Size: 50*35mm
  • Diffusers: PC Diffused Cover
  • Default Length: 1Meter
  • Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
  • Custom Length Available: YES
  • Inner Width: 39mm
  • Recommend LED Strips: 3528, 5050, 2835, 5730, 5630 LED Tape Light In Multi Rows
  • Max Power: <35W/Meter

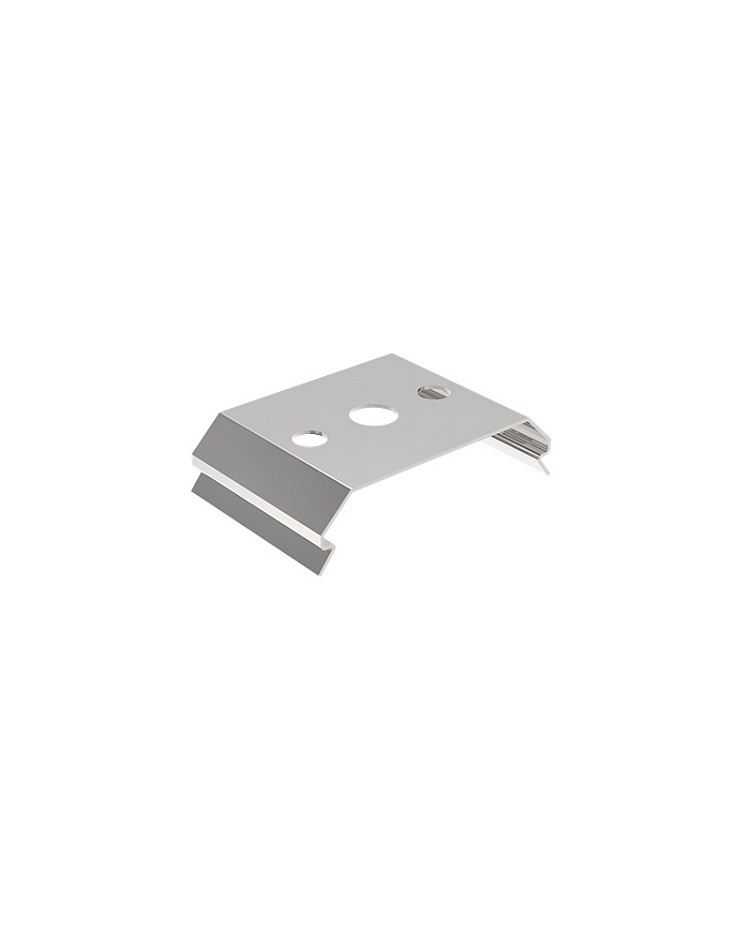

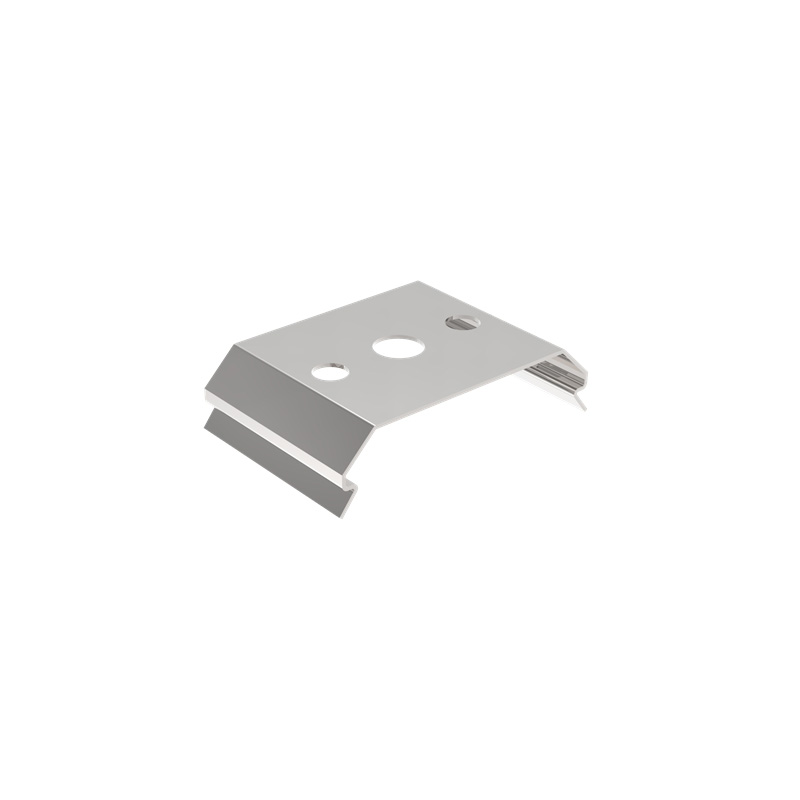

  • Alu End Caps, Metal Clips And Suspension Wires Included
  • Installation: Ceiling Pendant Or Surface Mounted
  • Applications: Office, Retail Stores, Supermarket, Shop, GYM, Shop, etc
  • 5 Years Warranty


1*Pendant Mounted Recessed LED Extrusion With Diffuser

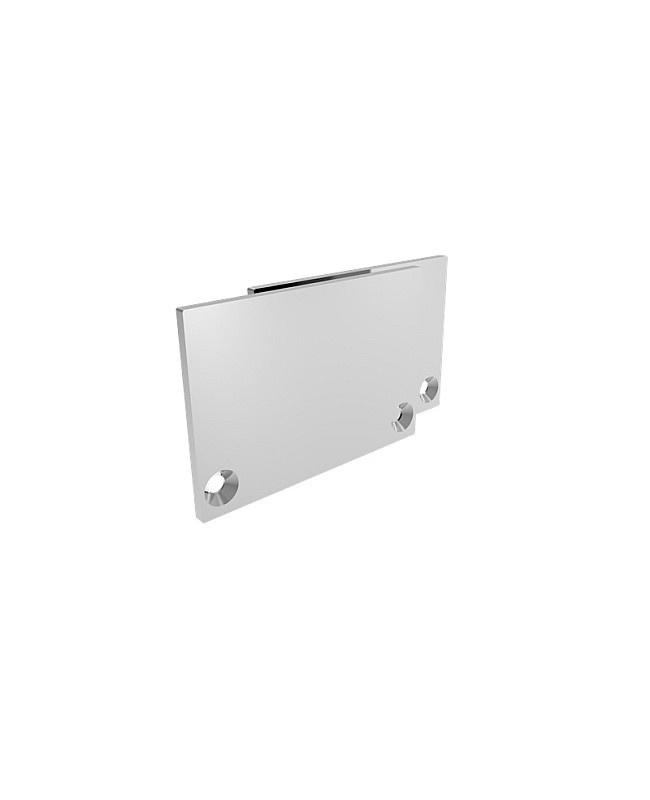

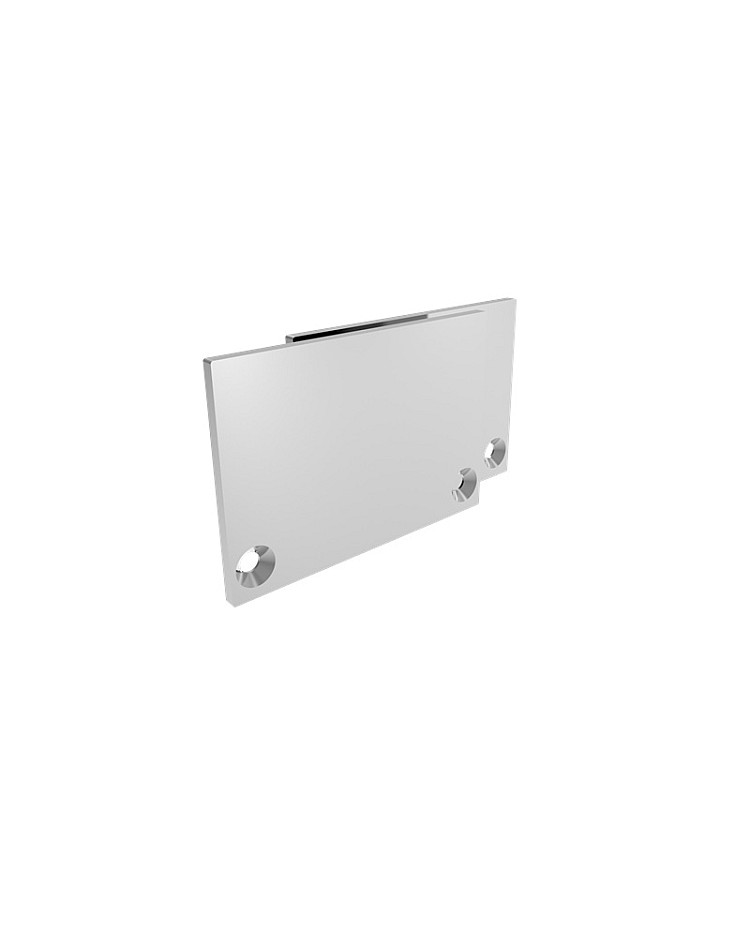

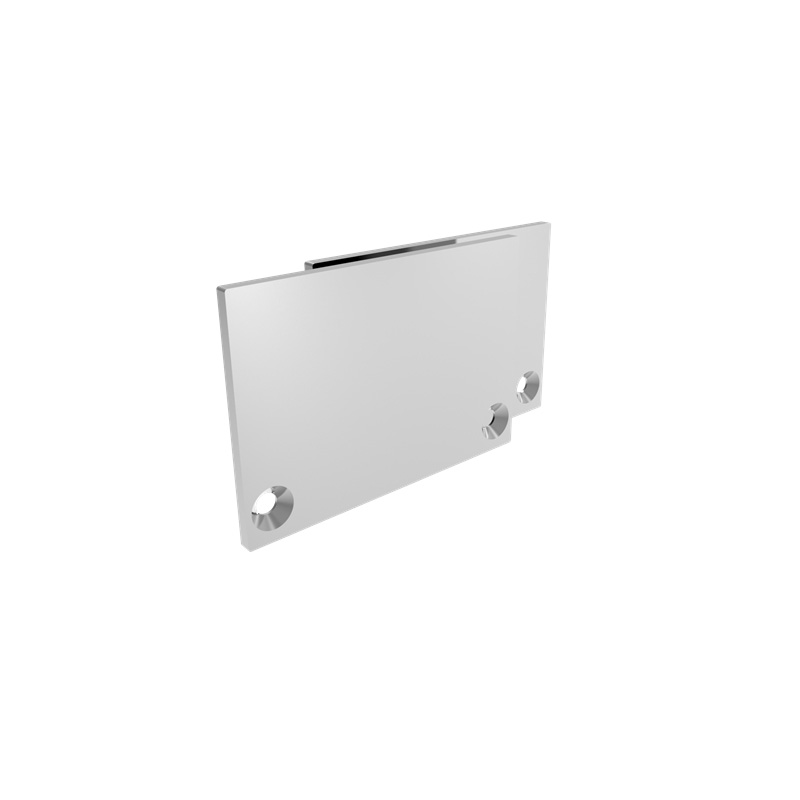

End Caps(WIth Wire Hole/Without Wire Hole)

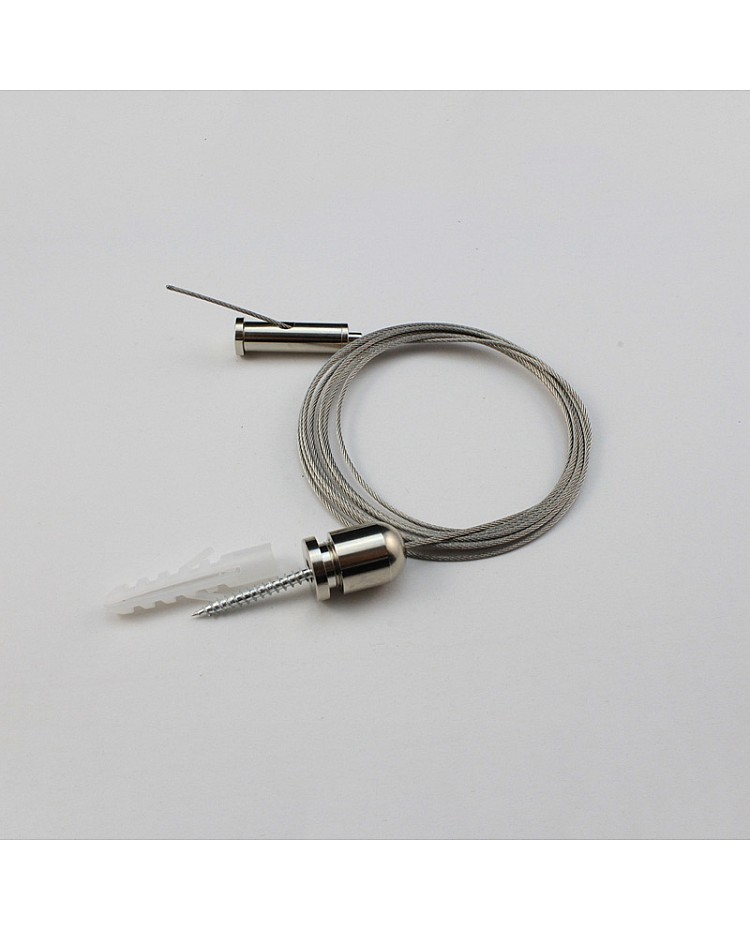

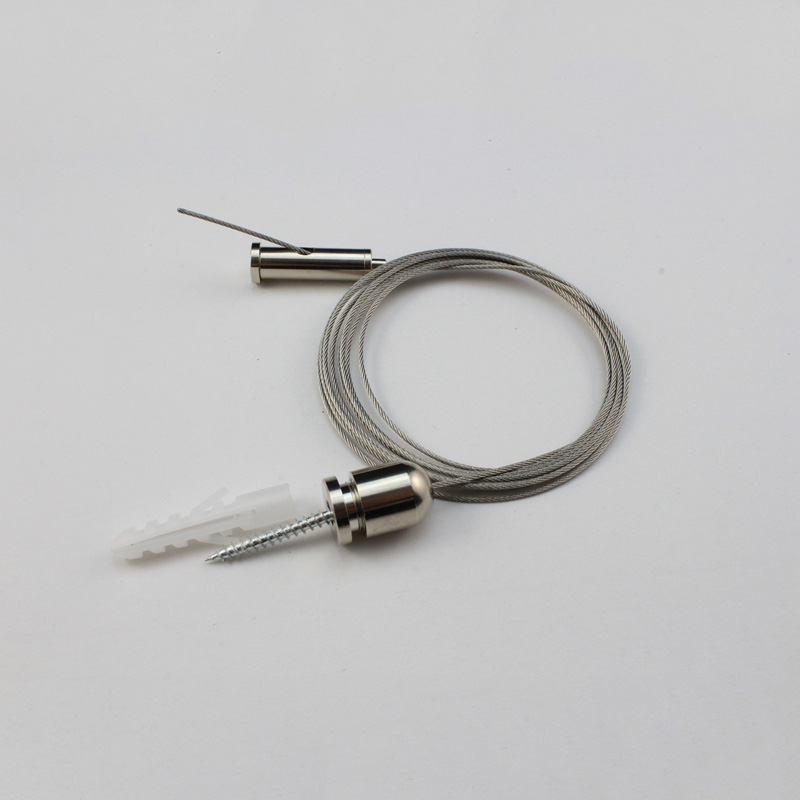

Suspension Wires

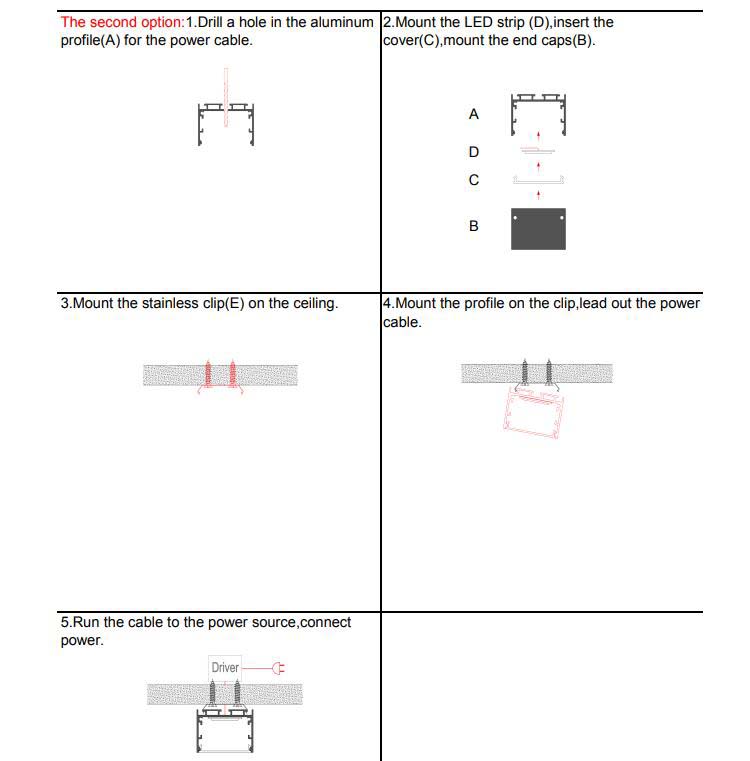

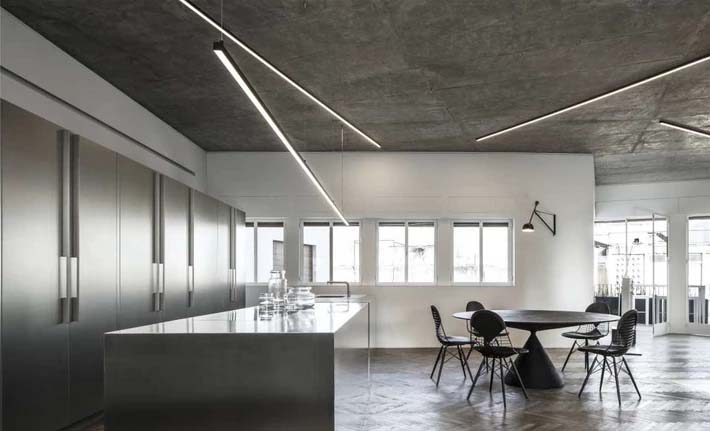

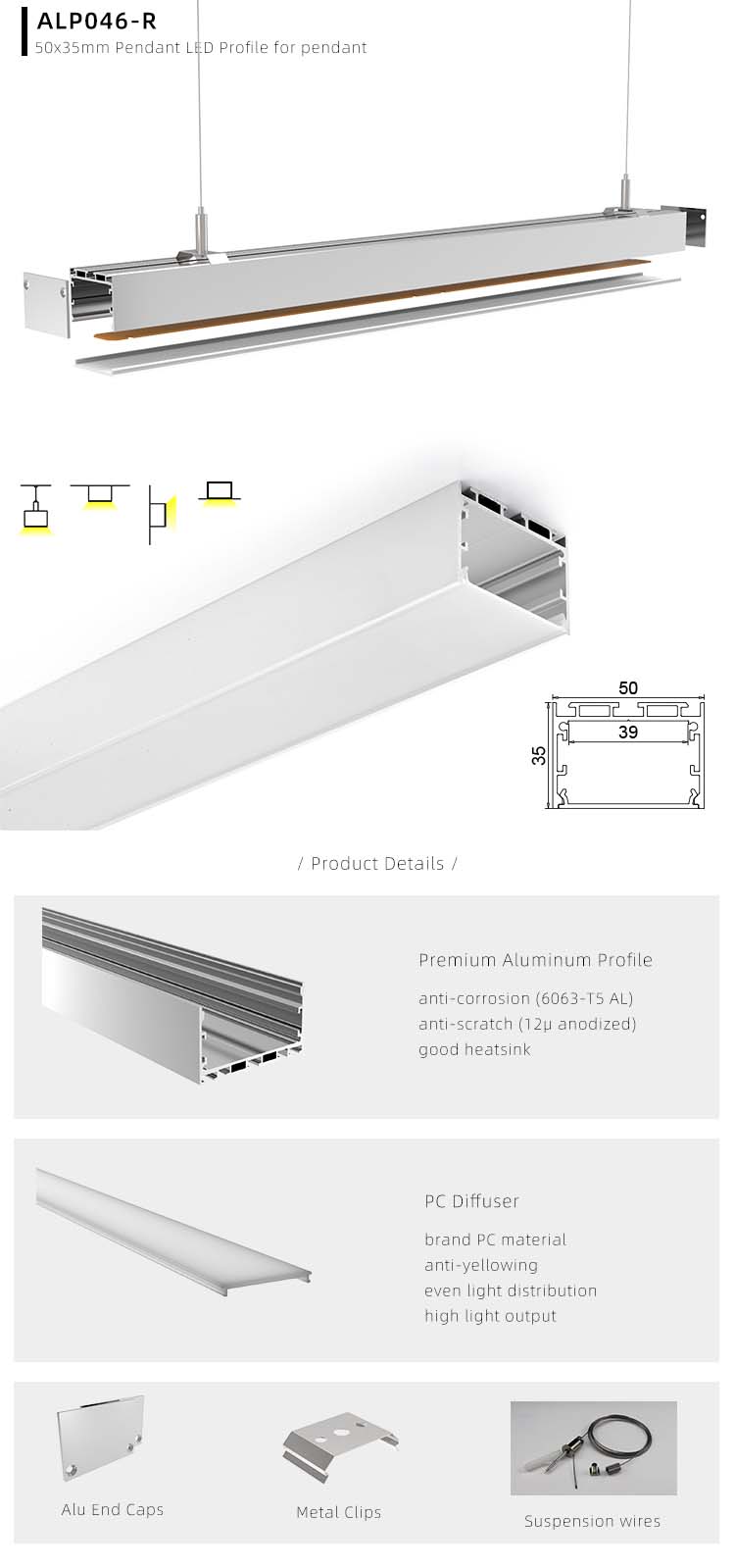

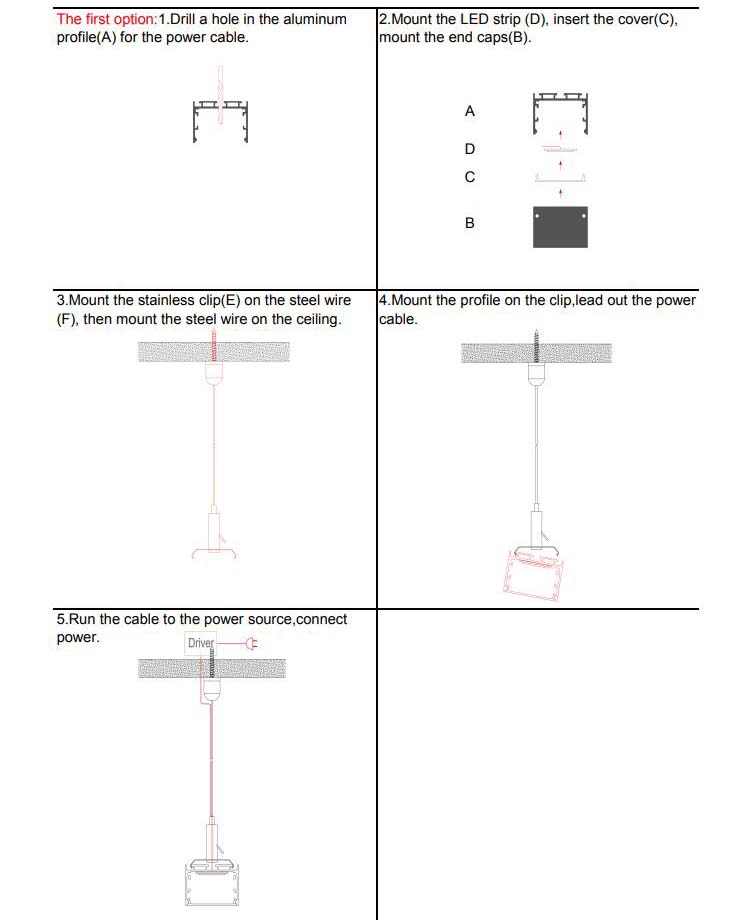

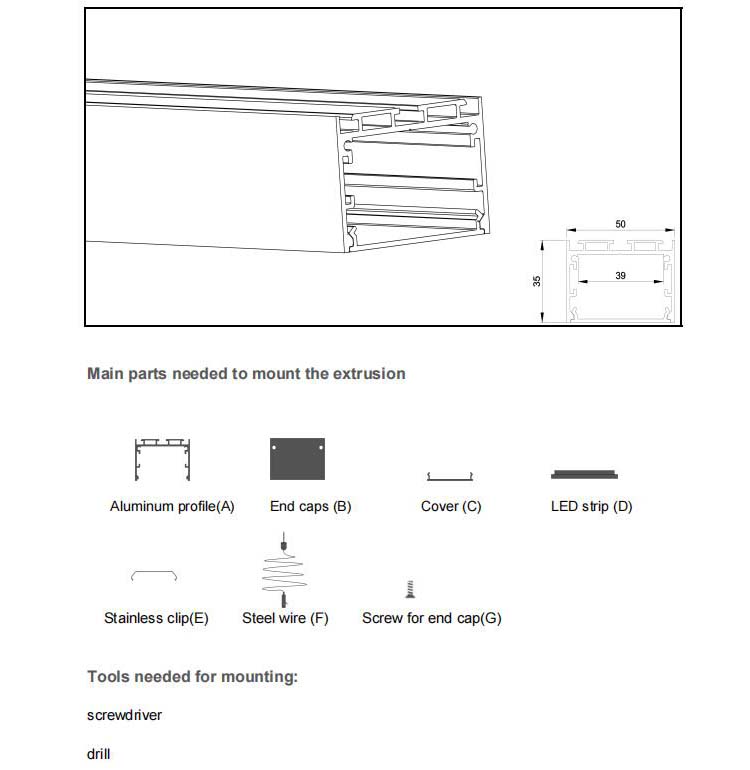

LED Strip Light Extrusion Installation Ceiling Pendant LED Extrusion How To Install Ceiling Pendant LED Extrusion How To Install Surface Mounted LED Extrusion LED Aluminium Profile Extrusion
