  • Brand: MiBoxer
  • Product Code: FUT037S-P

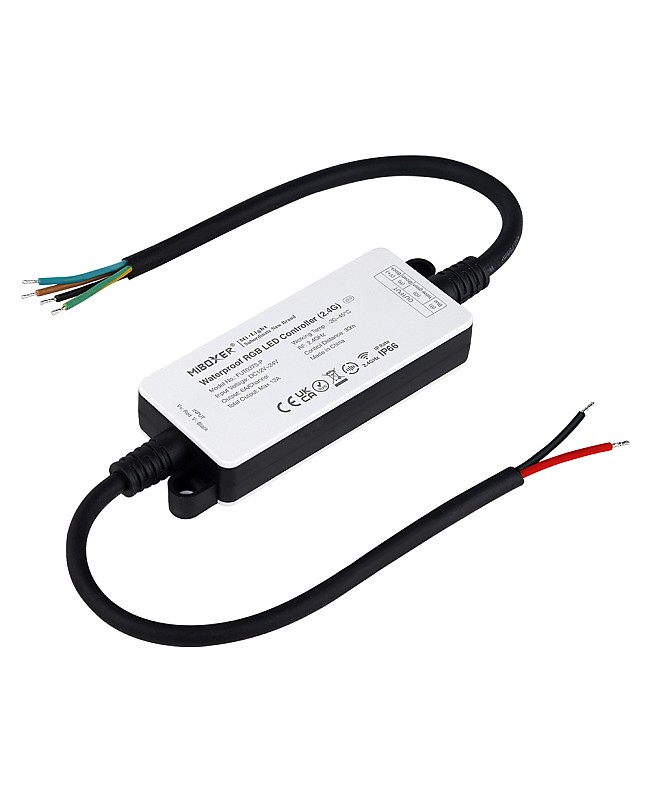

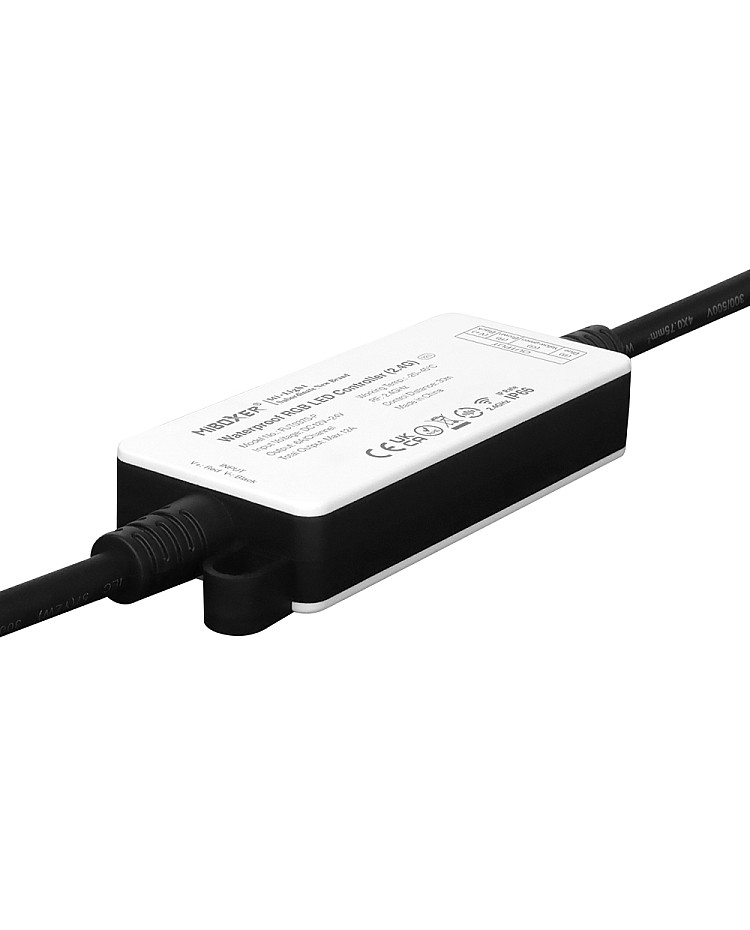

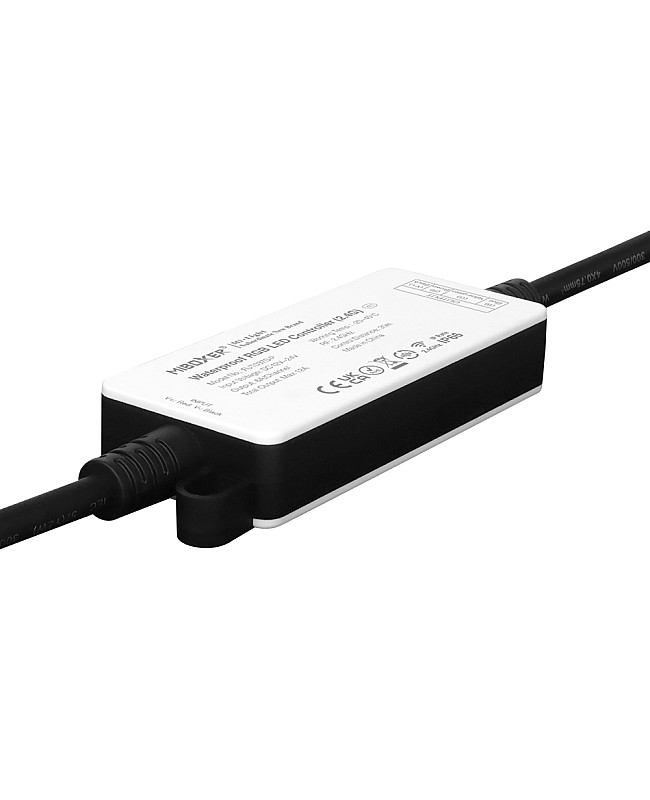

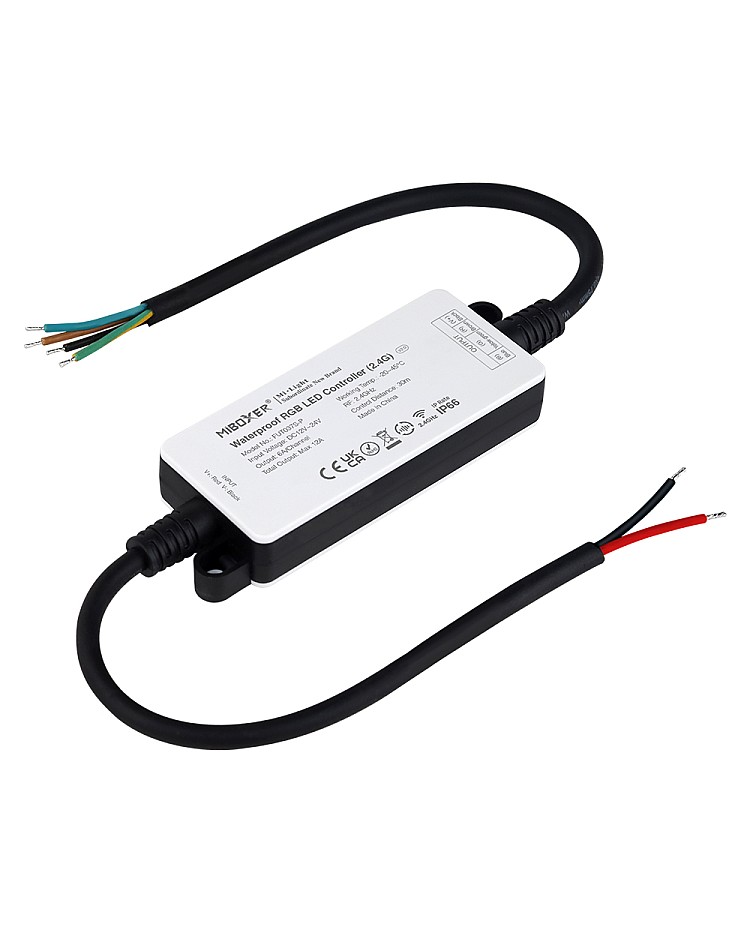

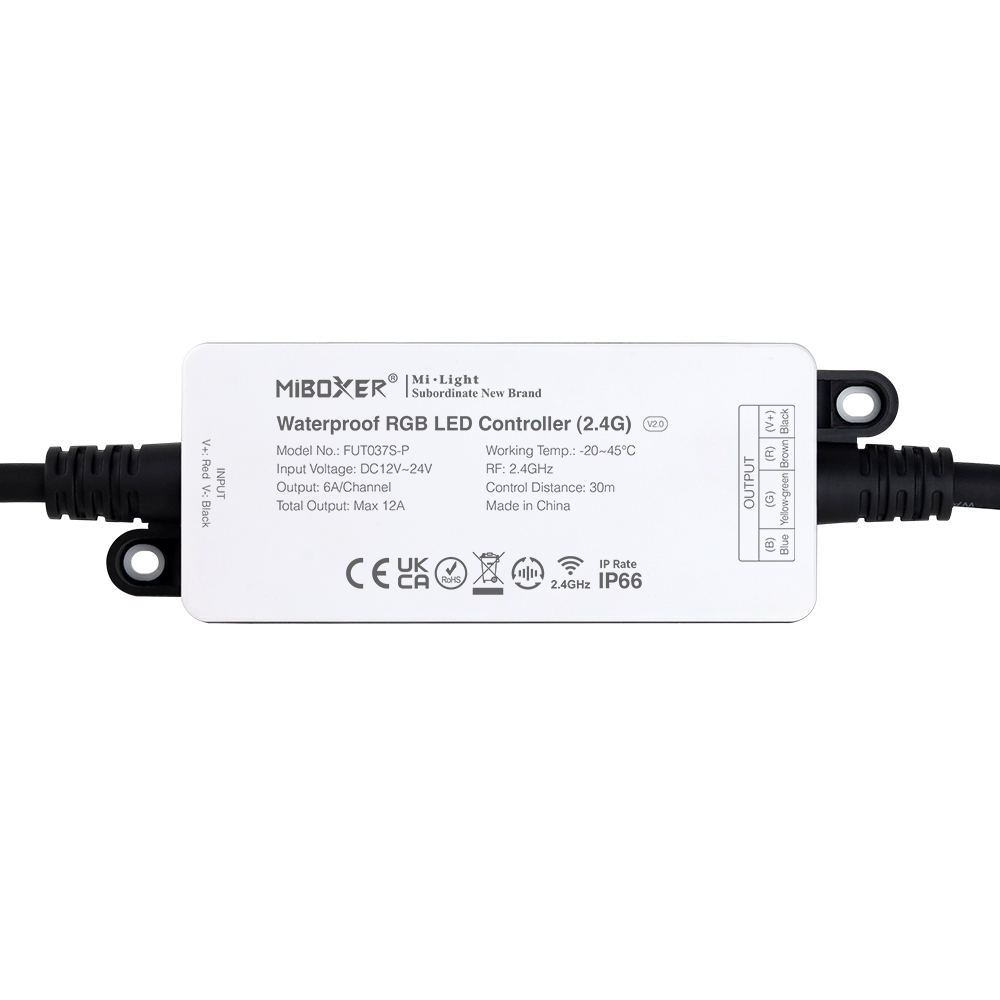

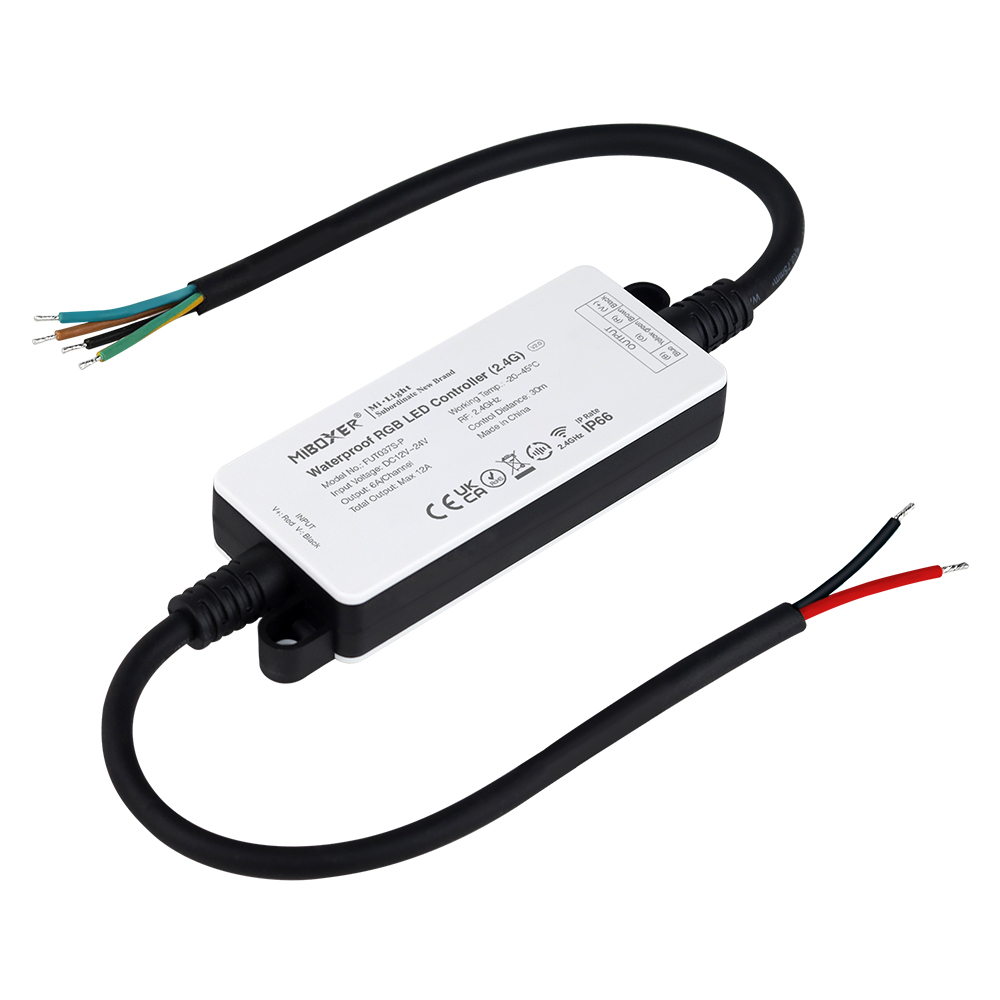

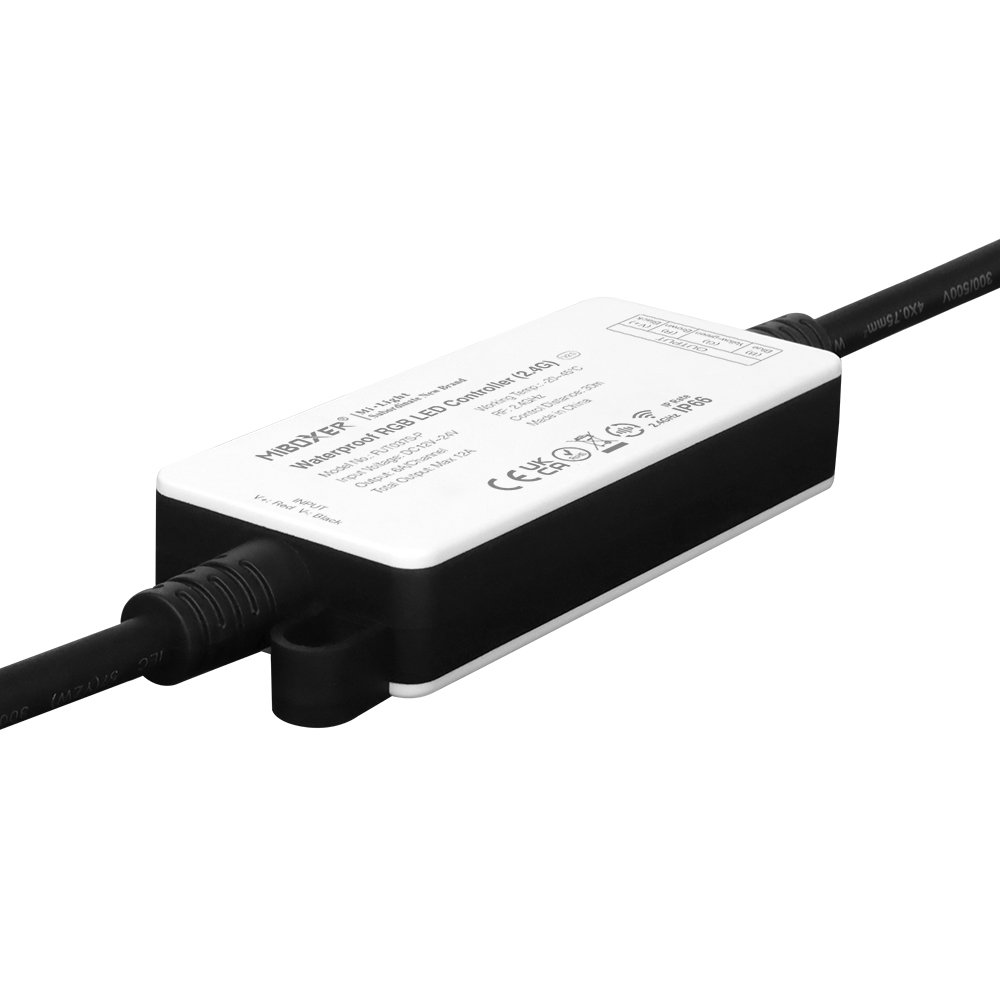

The Waterproof RGB MiBoxer LED Controller, the waterproof level is IP66. You can use them for outdoor lighting projects and be installed in a wet location. The working voltage is DC12V to DC24V, with 3 output channels designed, and the max output current is 12A. 2.4 G RF Remotes can control the MiBoxer RGB Controller, and you can use the remote to set the color and adjust the brightness and saturation for various scenes. There are 16 million colors available. One Waterproof Controller will transmit the signals from the LED Light Remote to another Controller within 30m, and different Controllers can work synchronously when they are started at different times, controlled by the same remote, under the same dynamic mode, and within 30m distance. After adding a 2.4G Gateway, the IP66 Waterproof RGB Controller supports smartphone APP and third-party voice control and can work with Amazon Alexa and Google Assistant. The working frequency can be switched from 8KHz high to 500Hz low frequency.

Link: MiBoxer RGB Waterproof Controller User Manual

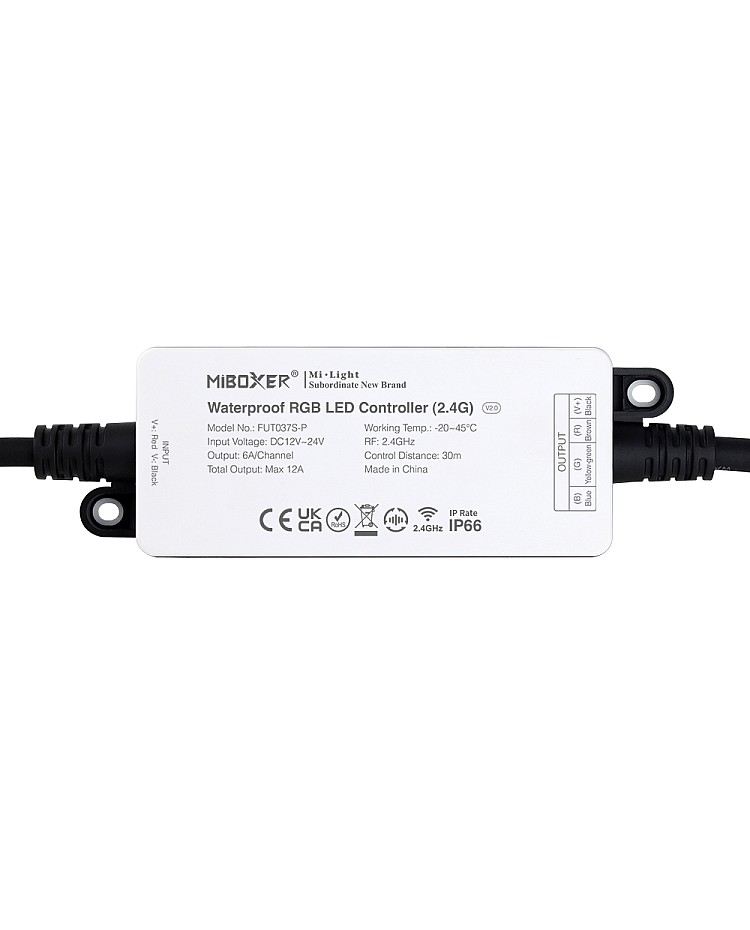

  • Model: FUT037S-P(RGB), FUT038S-P(RGBW), FUT039S-P(RGB+CCT)

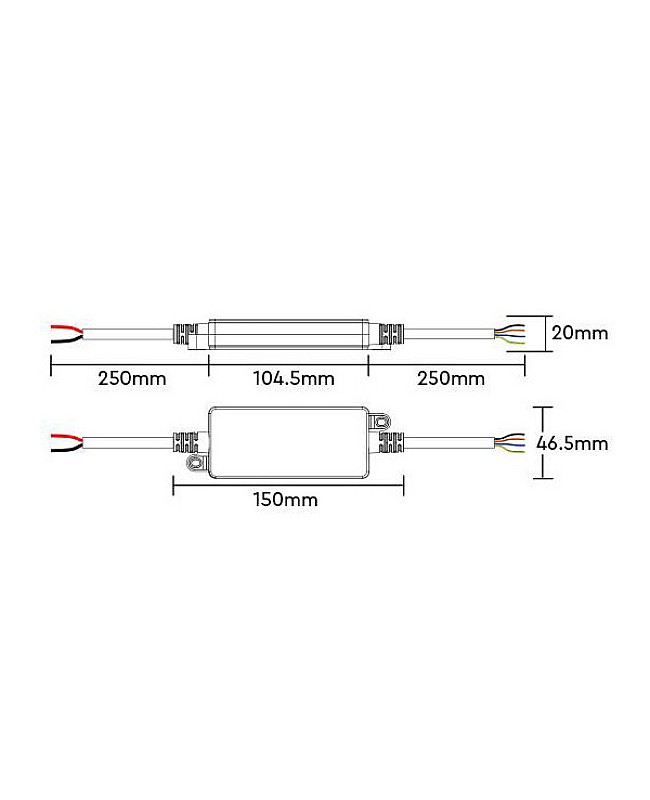

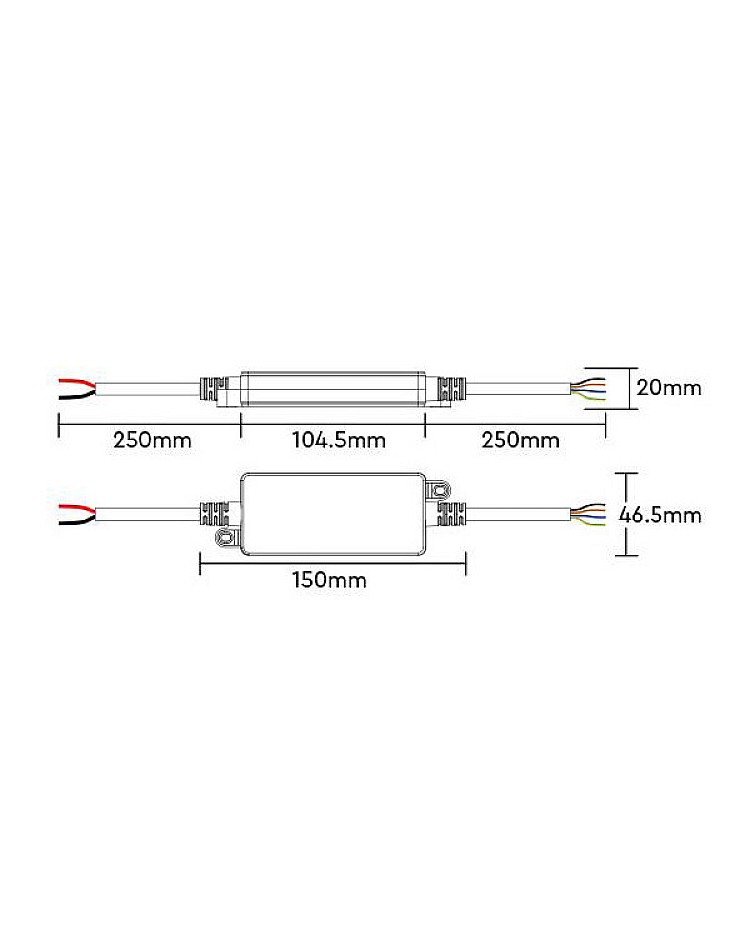

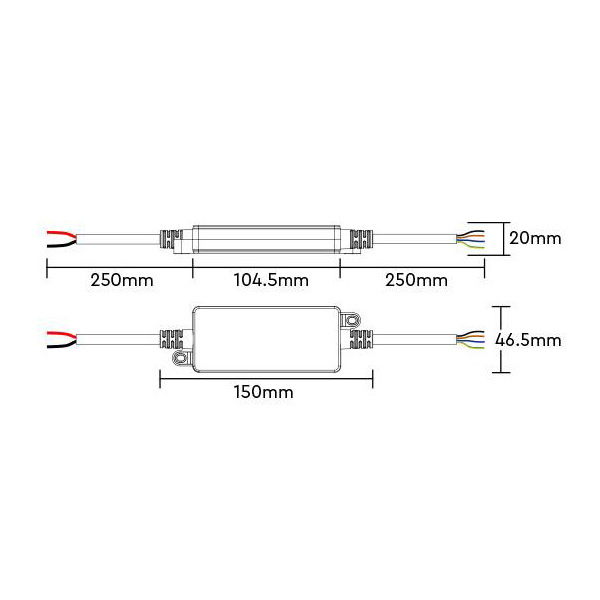

  • Size: 150*46.5*20mm(L*W*H)
  • Working Voltage: DC12-24V
  • Output Current: 6A/Channel
  • Total Output: Max 12A
  • 16 Million Colors Available
  • Brightness And Saturation Controllable
  • IP Rate: IP66 Waterproof
  • RF: 2.4GHz
  • 2.4G RF Remote Controllable: FUT089, FUT088, FUT092, FUT096, B8, B4, B4-B, B3, B3-B, B0, B0-B, S2-W, S2-B, S2-G
  • Control Distance: ≤30m
  • Output Connection: Common Anode
  • Support Smartphone APP Control And Third-Party Voice Control(2.4G Gateway Needed)
  • Can Work With Amazon Alexa And Google Assistant(2.4G Gateway Needed)
  • Supports PWM High-Frequency(8KHz) / Low-Frequency(500Hz) Switched
  • Auto Signal Transmitting And Mode Synchronization
  • Working Temperature: -20-45℃
  • 2 Years Warranty

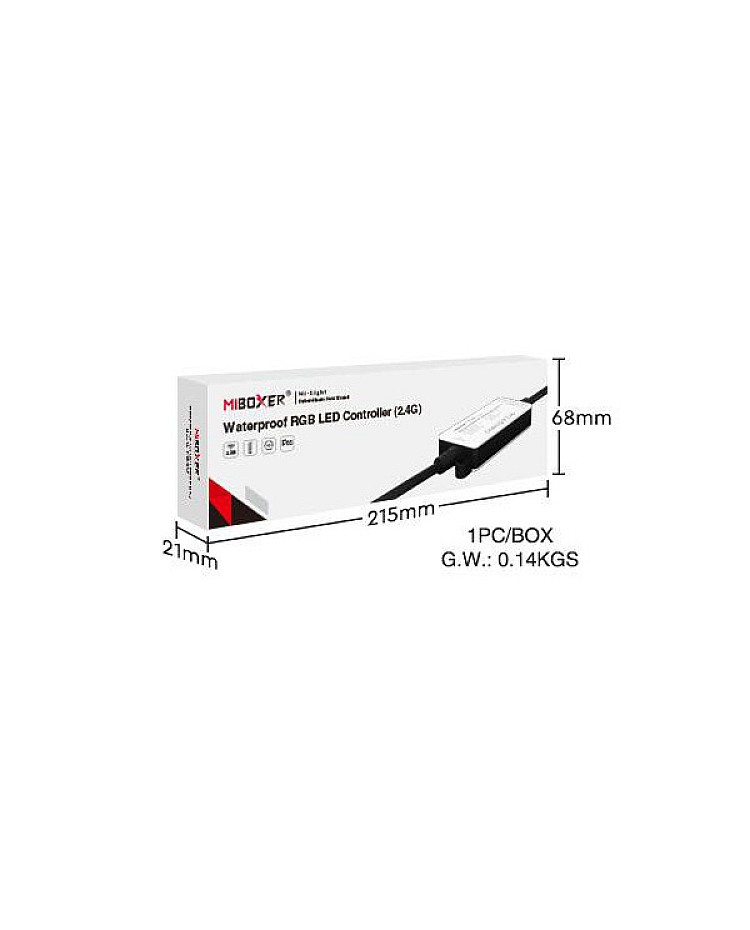

1*RGB MiBoxer LED Controller

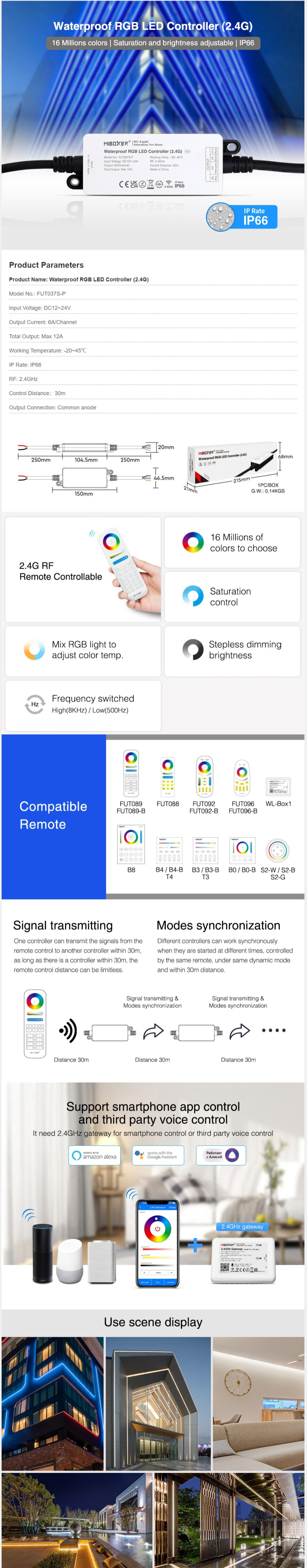

MiBoxer Waterproof LED Controller
