Check the black Commercial LED Lighting Fixtures, which with a deeply anti-glare design, the deepened cover prevents glare effectively and offers you healthy ambient light. there are 3 types of diffusers available, PC diffused cover, PC semi-clear cover and prismatic cover, all of them are made of brand material, anti-yellowing, perfect lighting distribution and smooth light output, you can purchase them for various lighting effects. the LED Lighting Fixtures are made of 6063-T5 extruded aluminum material, the surface with anodized surface treatment, anti-oxidation feature and have a longer lifespan than other similar products, the standard length is 1M, other lengths available like 1.5M, 2M, 2.5M and 3M, the max length can do 6M, custom length available. the inner width is 13.4mm and allows the max-width of LED Strips is 12mm, easy to install the SMD LED Tapes or COB LED Strips inside, the Aluminum Base can be worked as a heat sinker for better heat dissipation. the end caps with wire holes included, easy to connect the LED Lights to Power Supply to light up. the LED Fixtures with flange, easy to recess into the wall or ceiling for interior lighting projects. the 90°, 90° vertical and 180° Joiners sold separately, you can purchase them and use to reconnect the LED Light Fixtures together for your project easily.


  • Model: ALP175
  • Material: 6063-T5 Extruded Aluminum
  • Surface Treatment: Anodized
  • Colors: Black, White

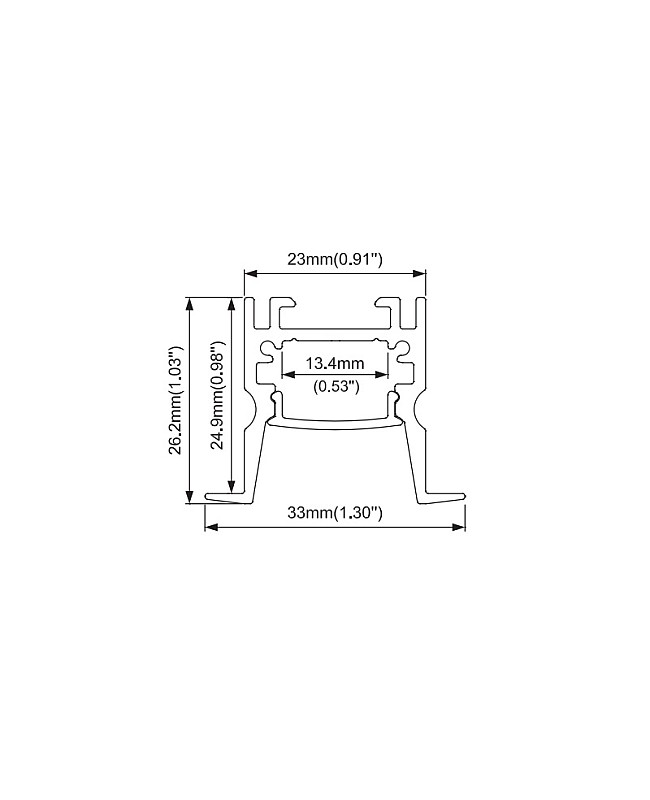

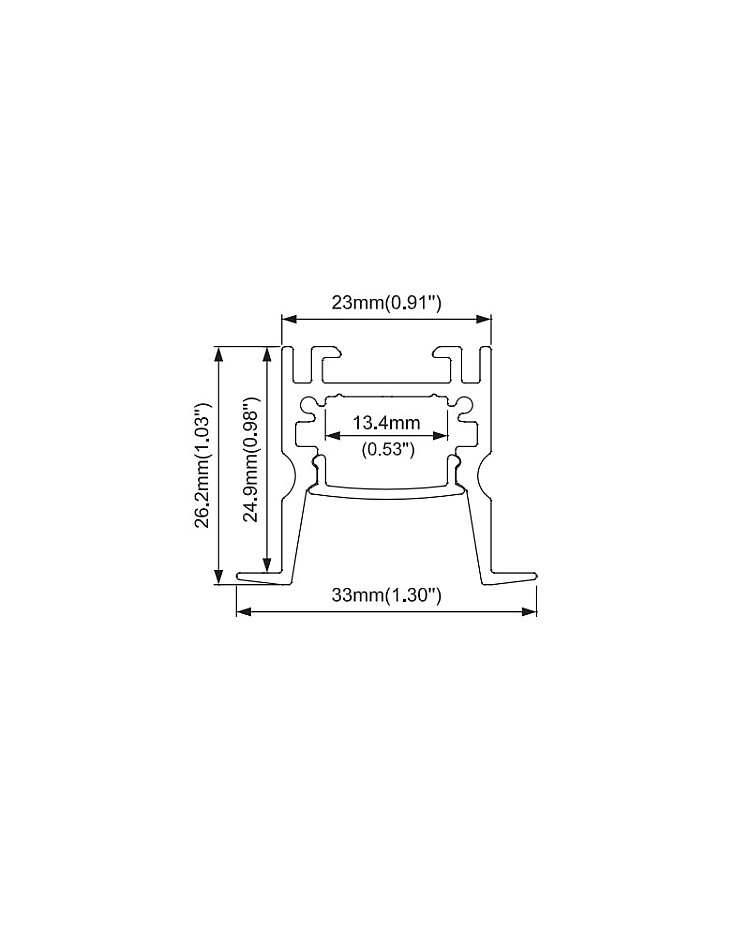

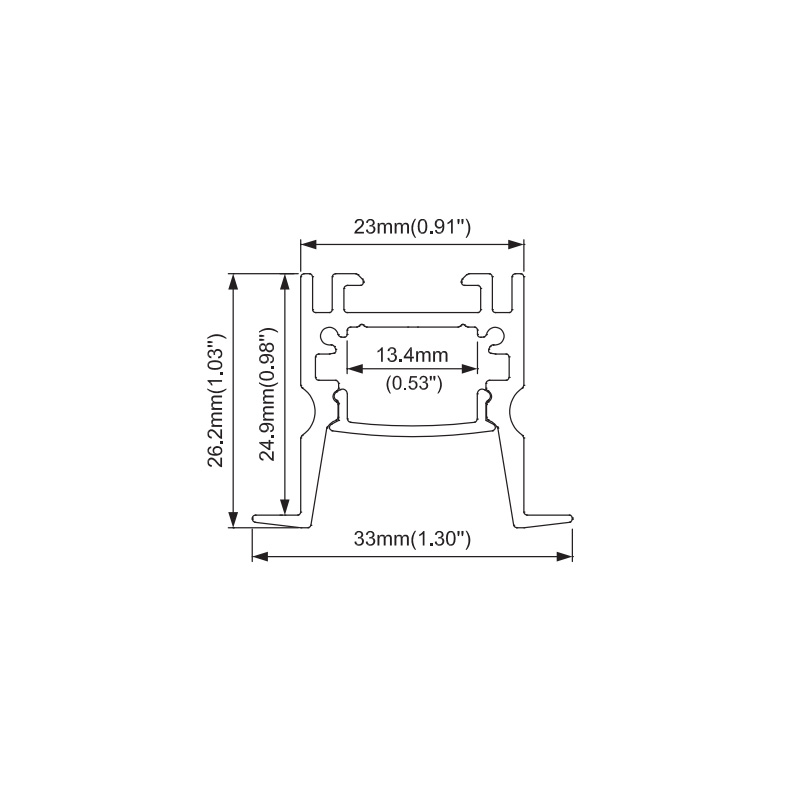

  • Size: 33*26.2mm(W*H)
  • Standard Length: 1M
  • Other Lengths Available: 1.5M, 2M, 2.5M And Max 6M
  • Custom Length Available: YES
  • Diffusers: PC Diffused Cover, PC Semi-clear Cover, Prismatic Cover
  • Inner Width: 13.4mm
  • Max Width Of LED Strips: 12mm
  • Max Power: 18W/M
  • Beam Angle: 100°
  • Tolerance: ±1%
  • IP Rating: IP20
  • End Caps With Hole/Without Hole Included

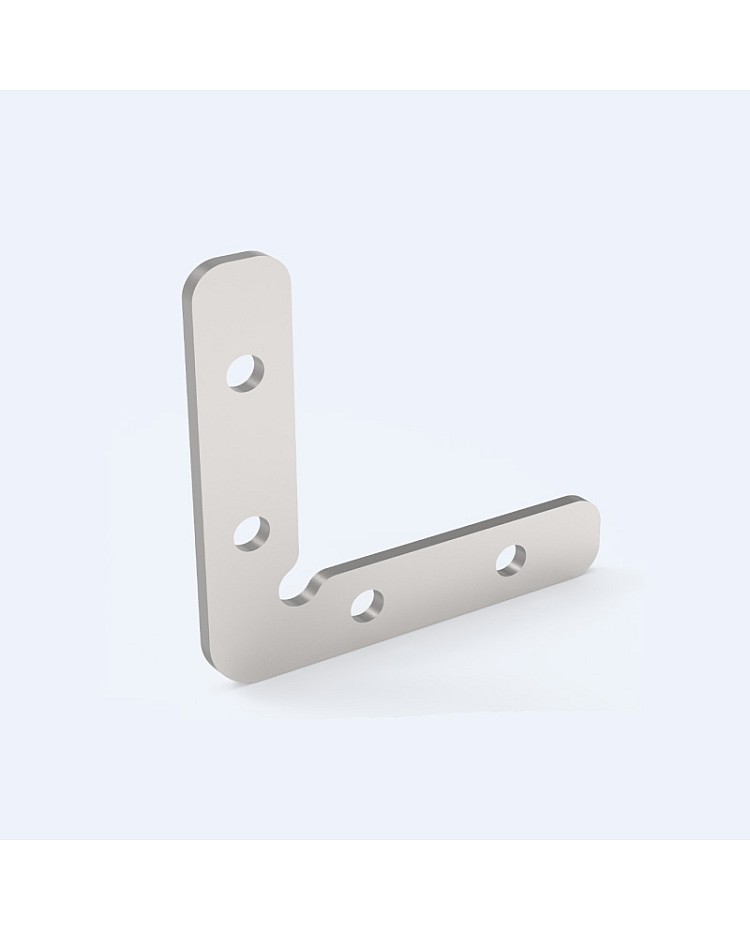

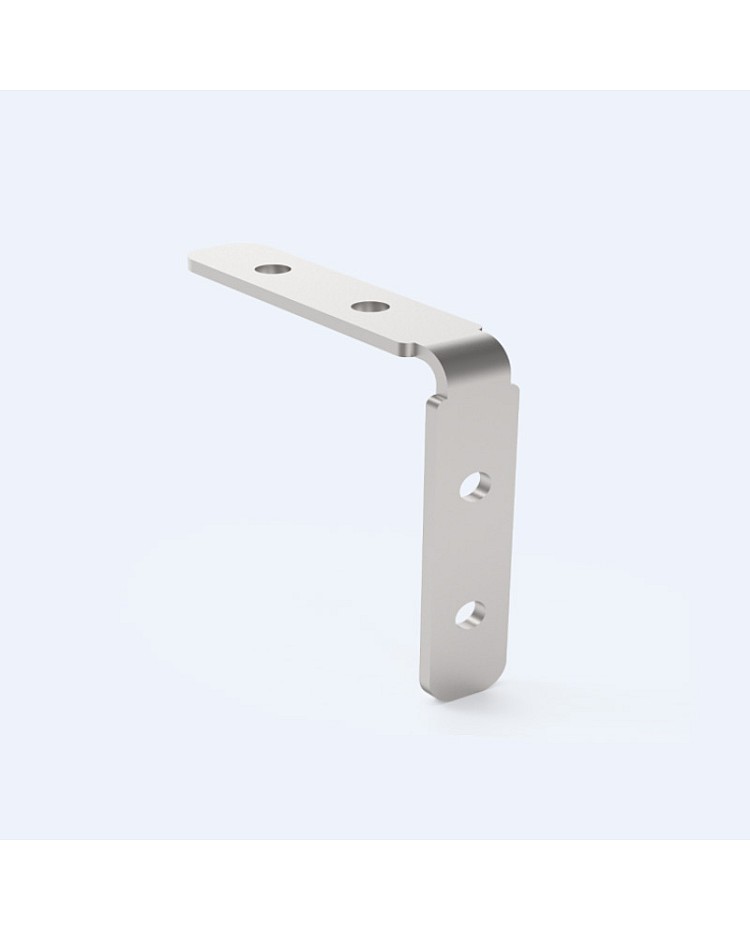

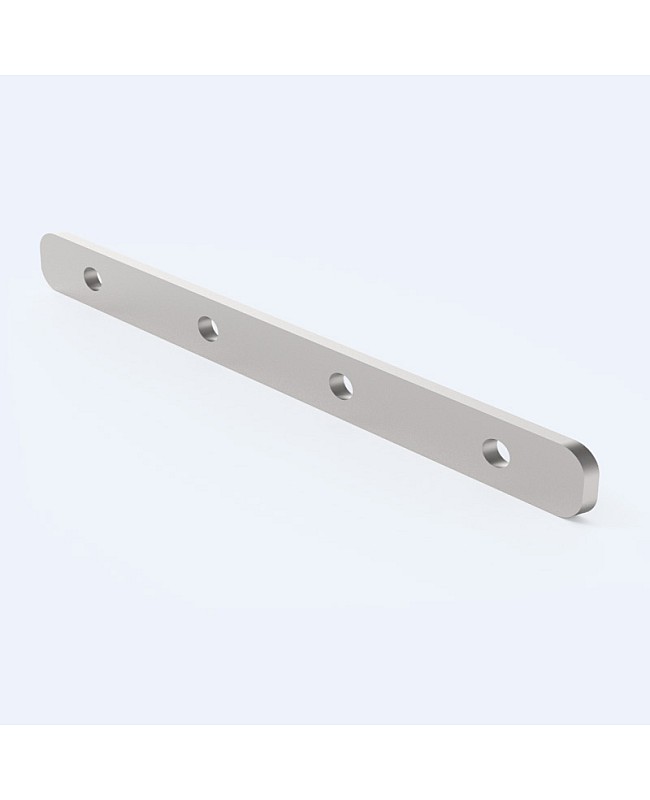

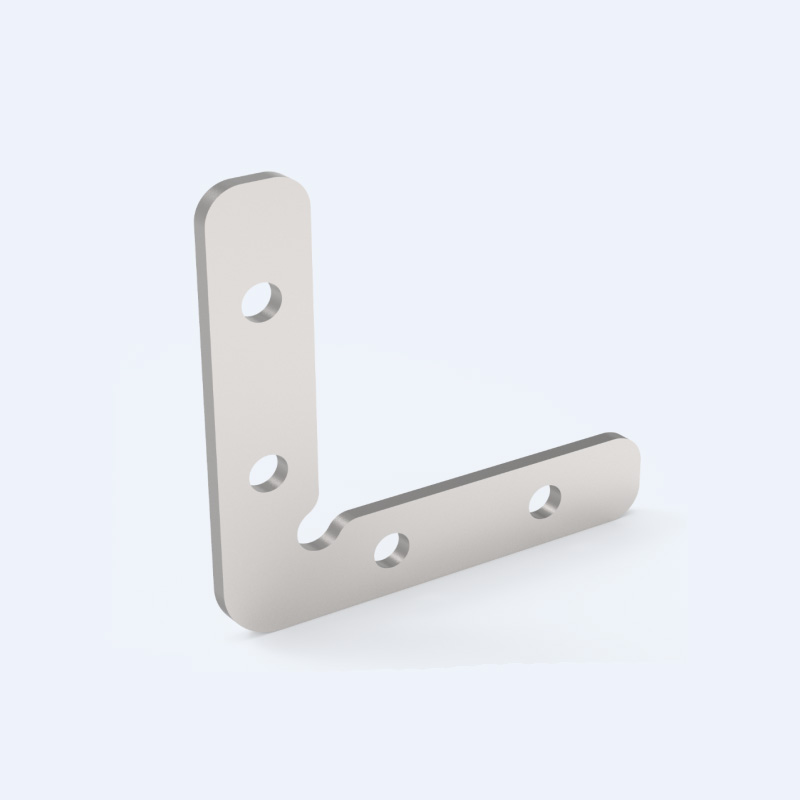

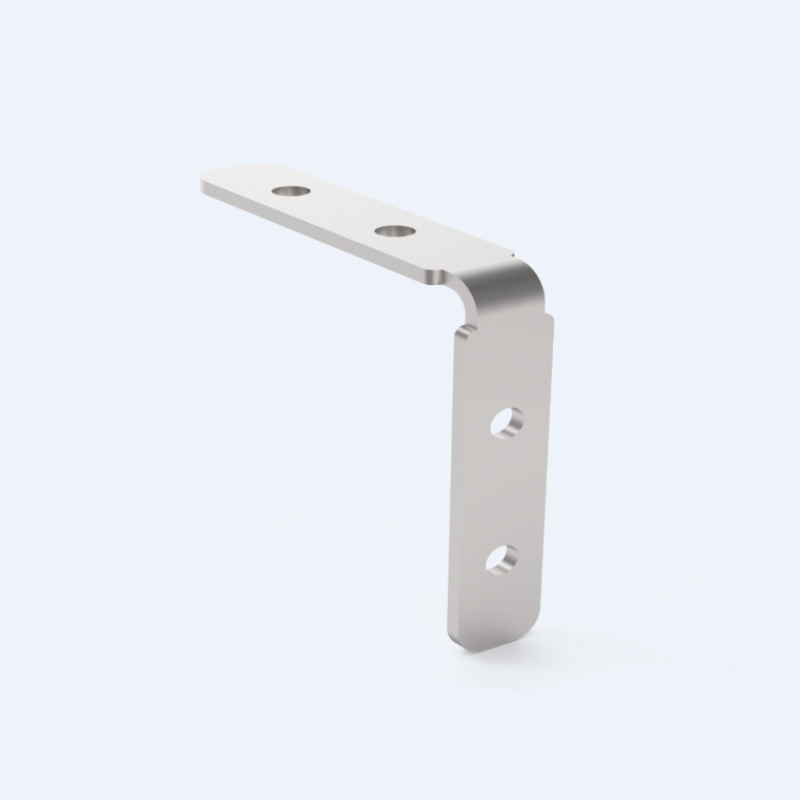

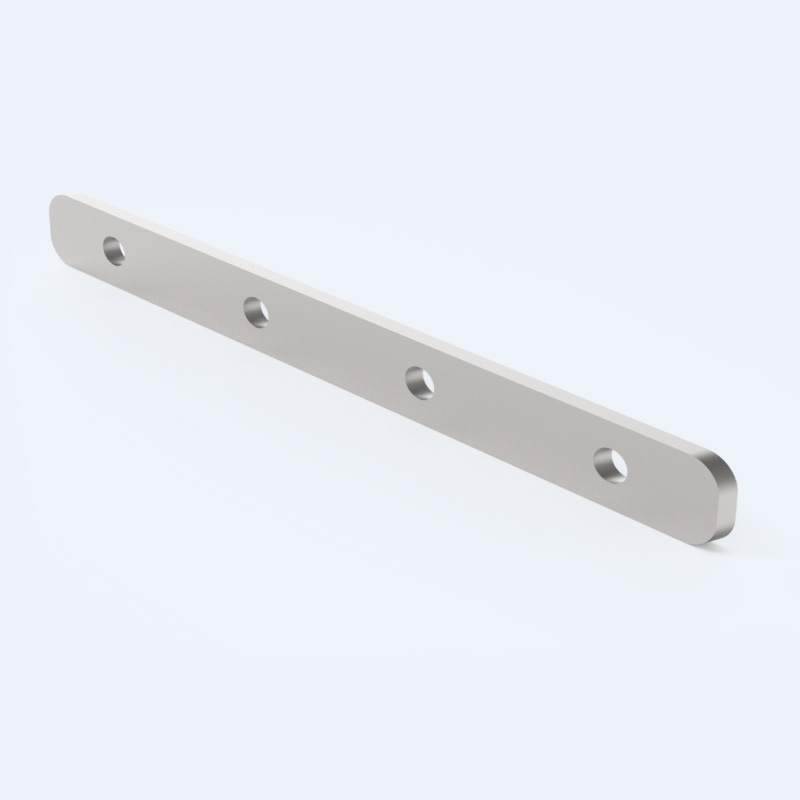

  • 180°, 90° And 90° Vertical Joiners Sold Separately
  • Installation: Recessed
  • 5 Years Warranty

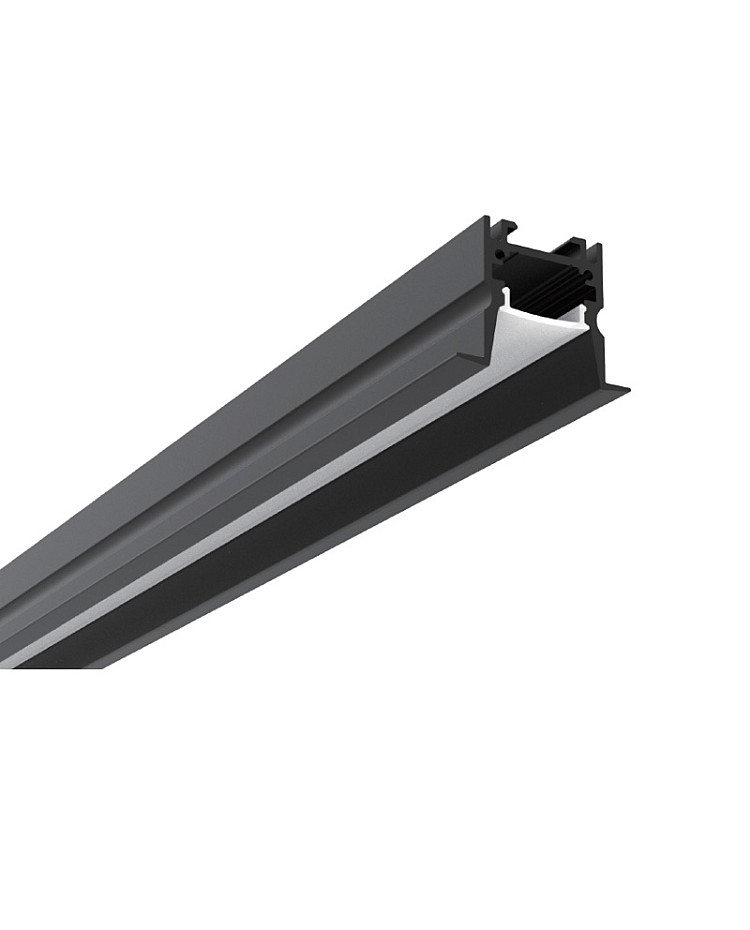

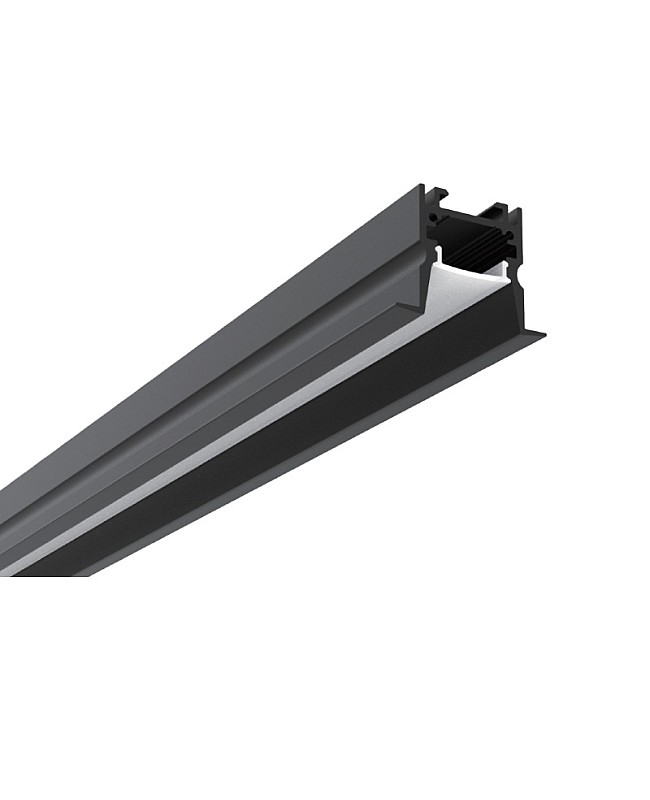

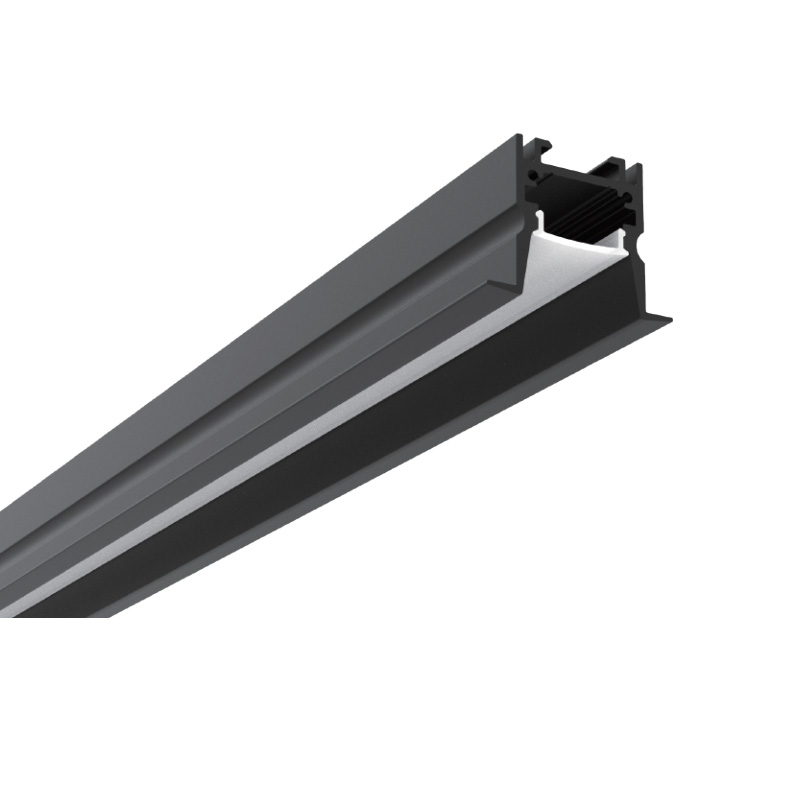

Commercial LED Lighting Fixture

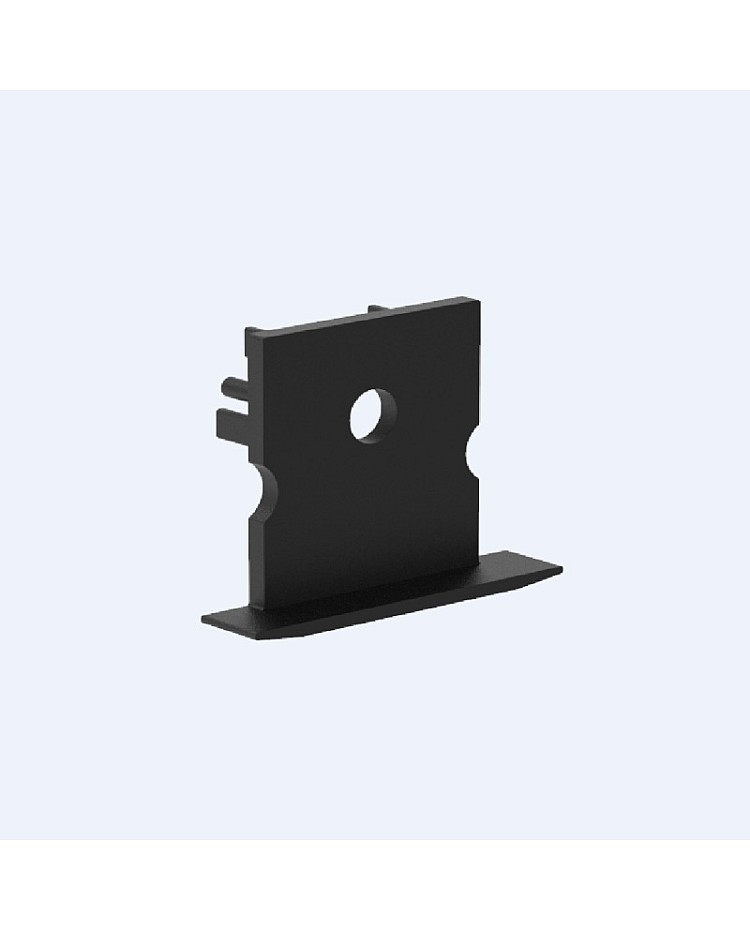

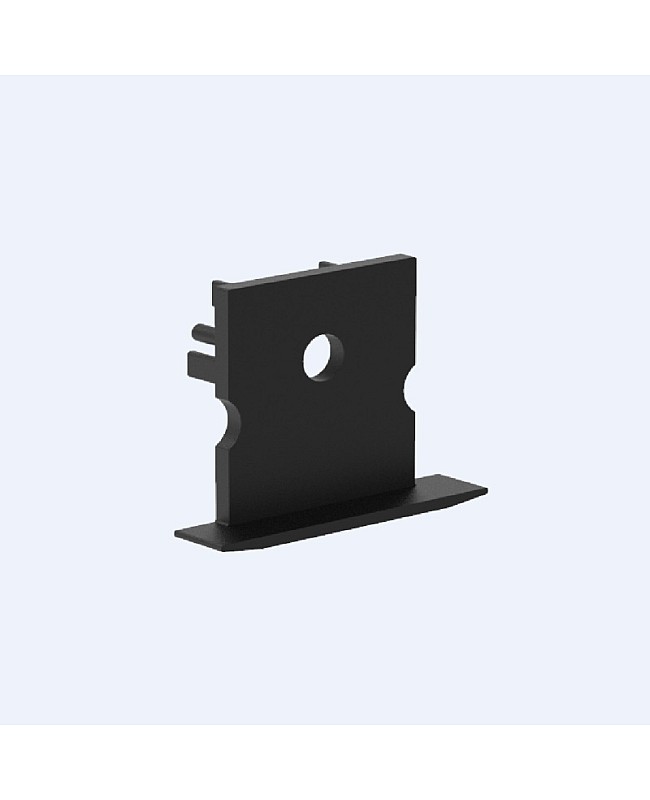

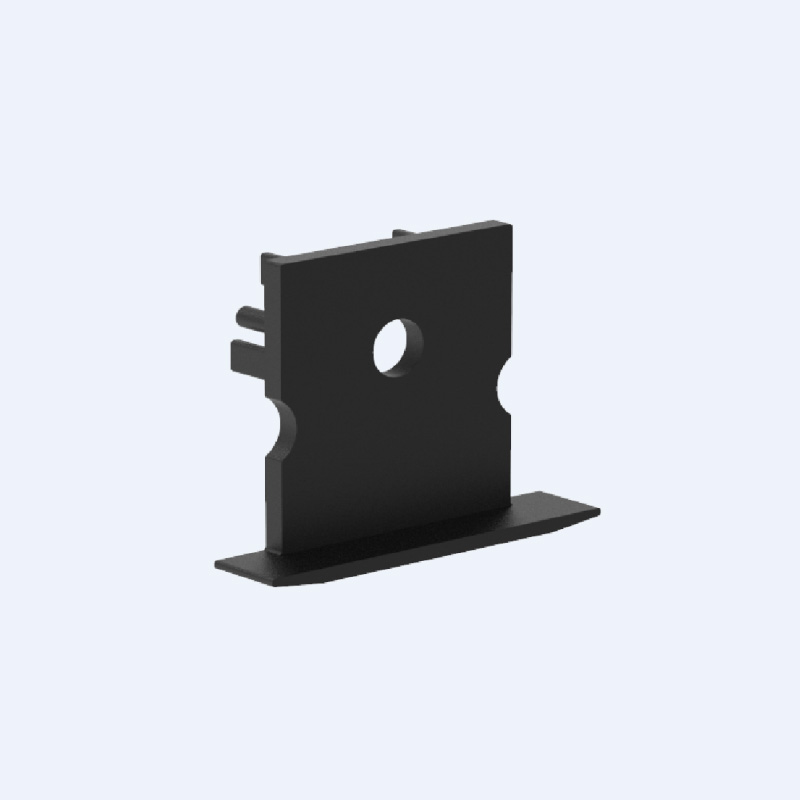

End Cap With Hole/Without Hole

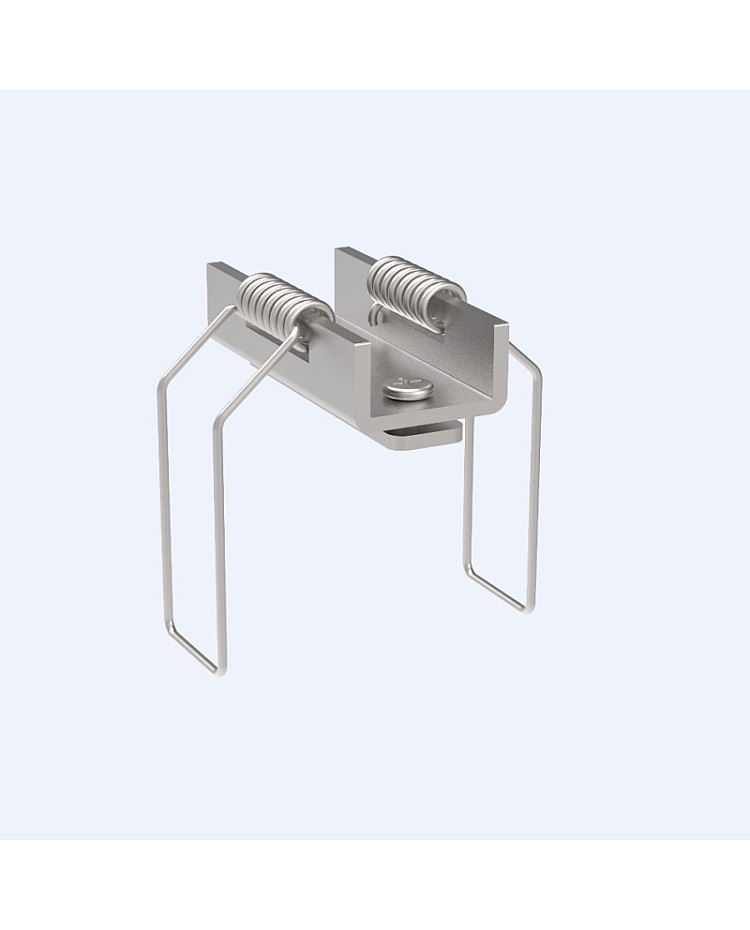

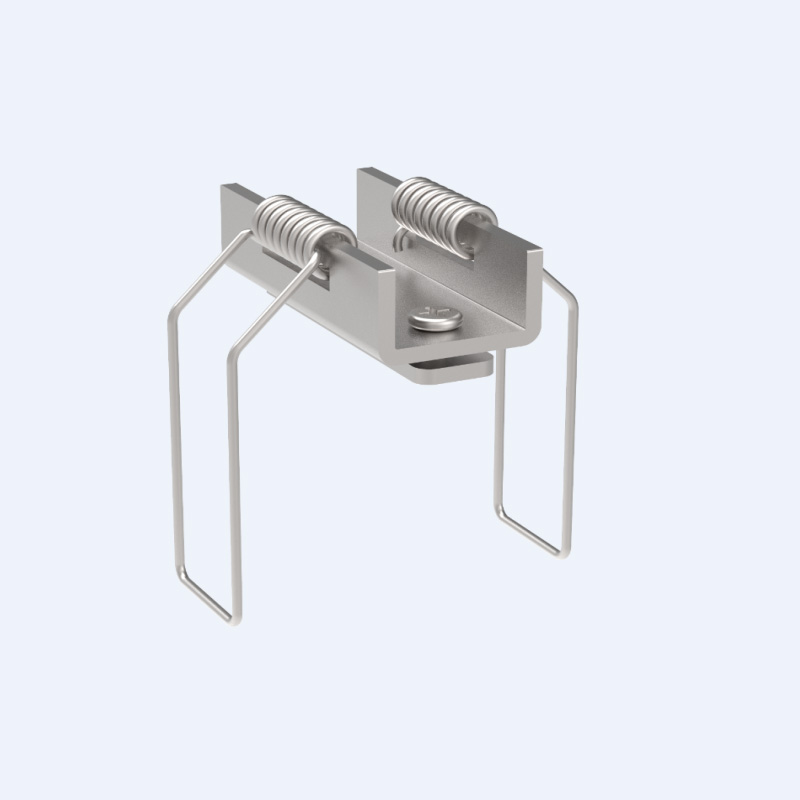

Spring Clips

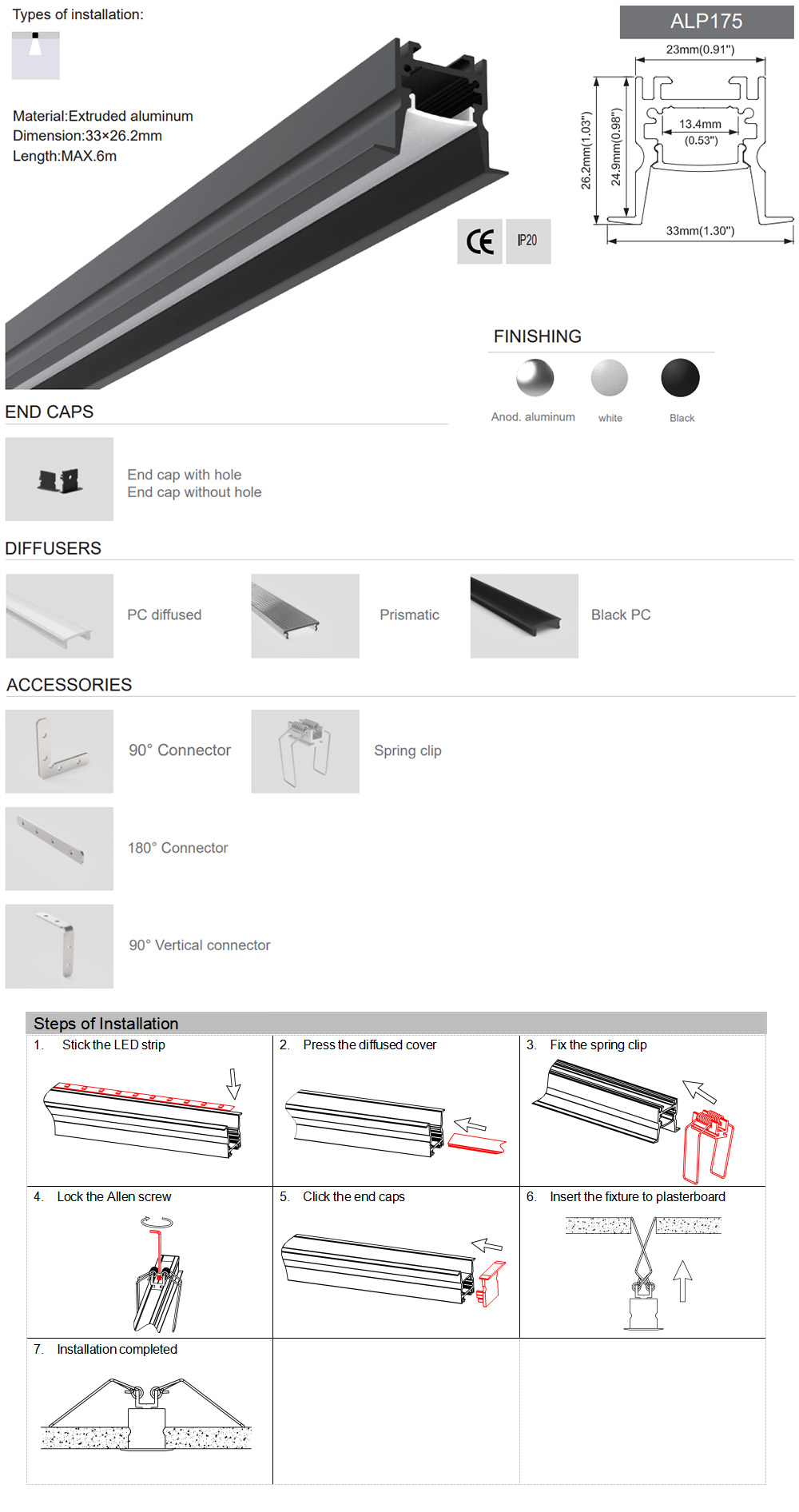

commercial indoor led lighting fixture
