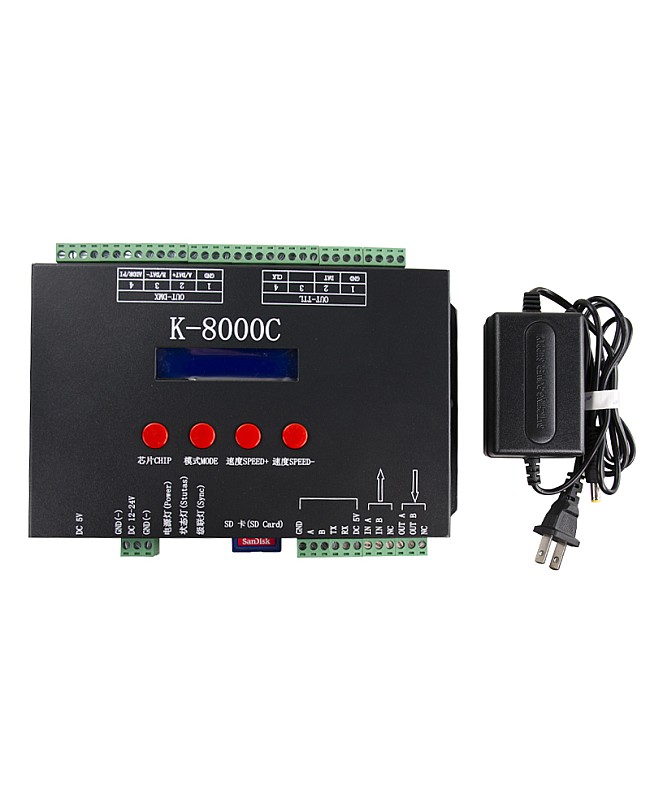

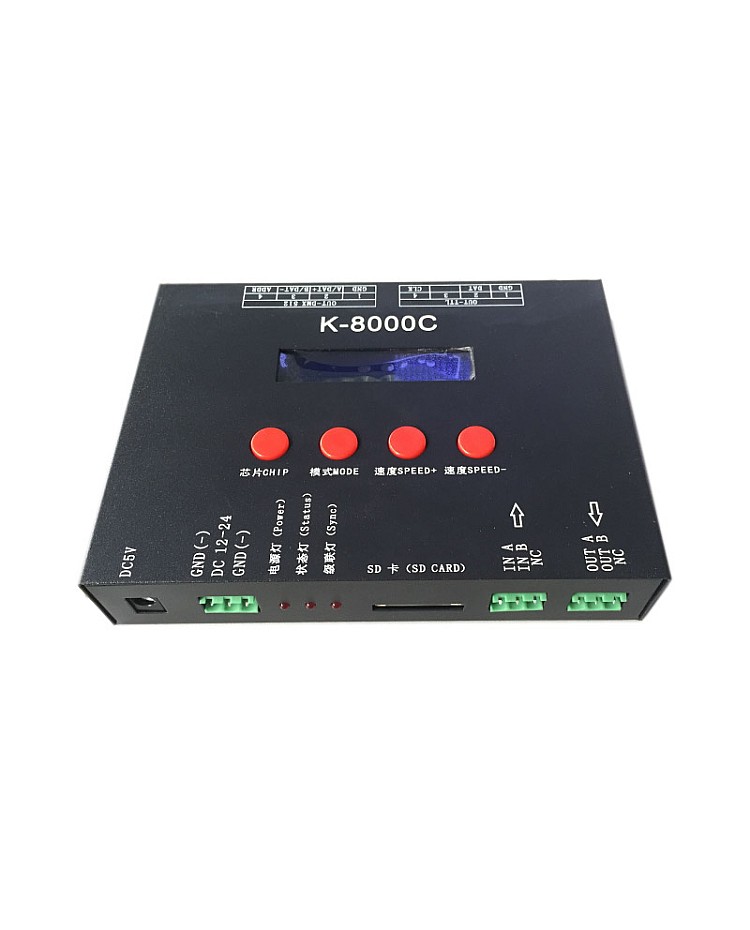

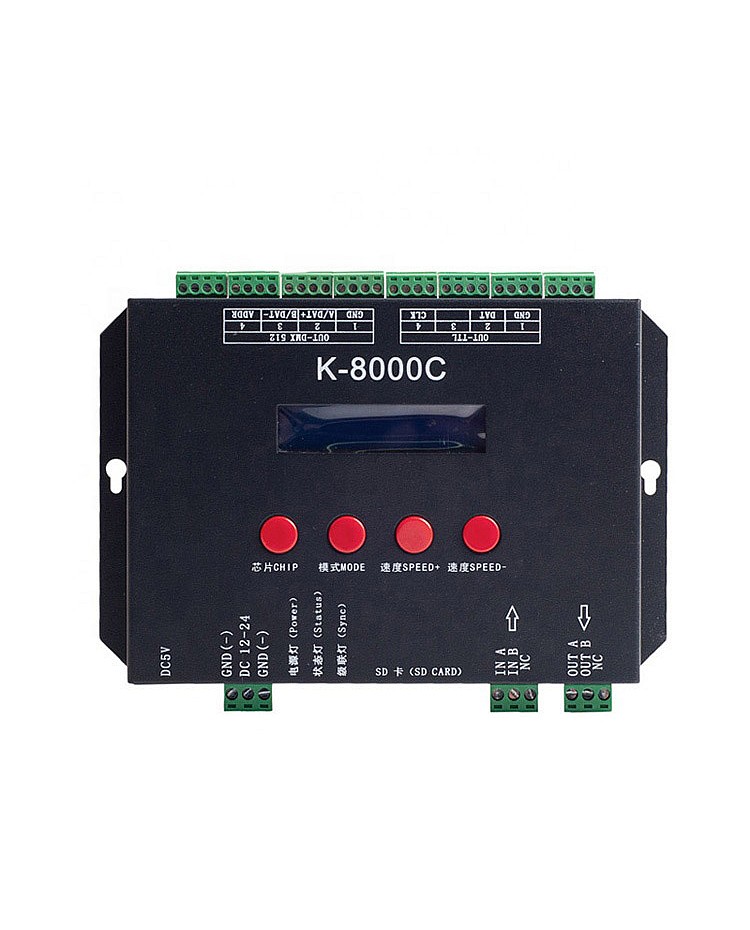

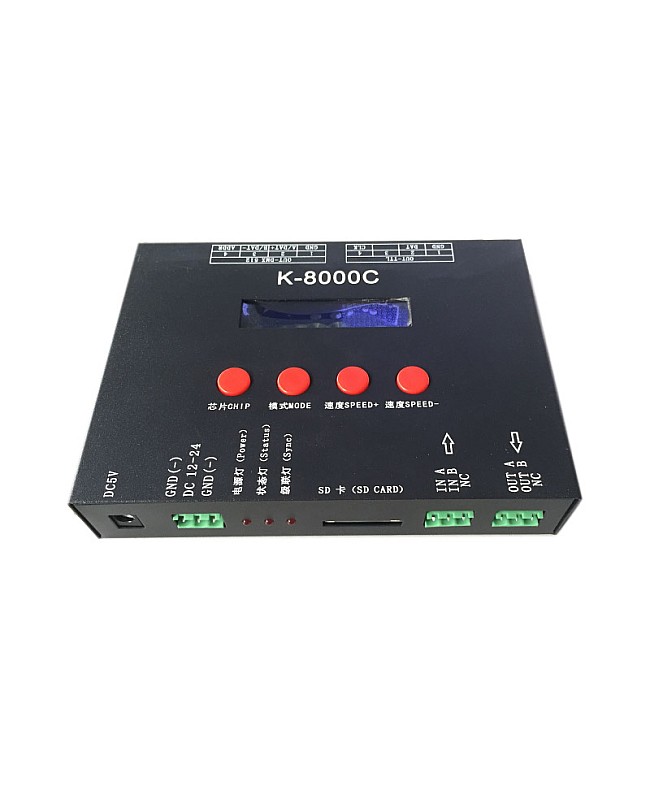

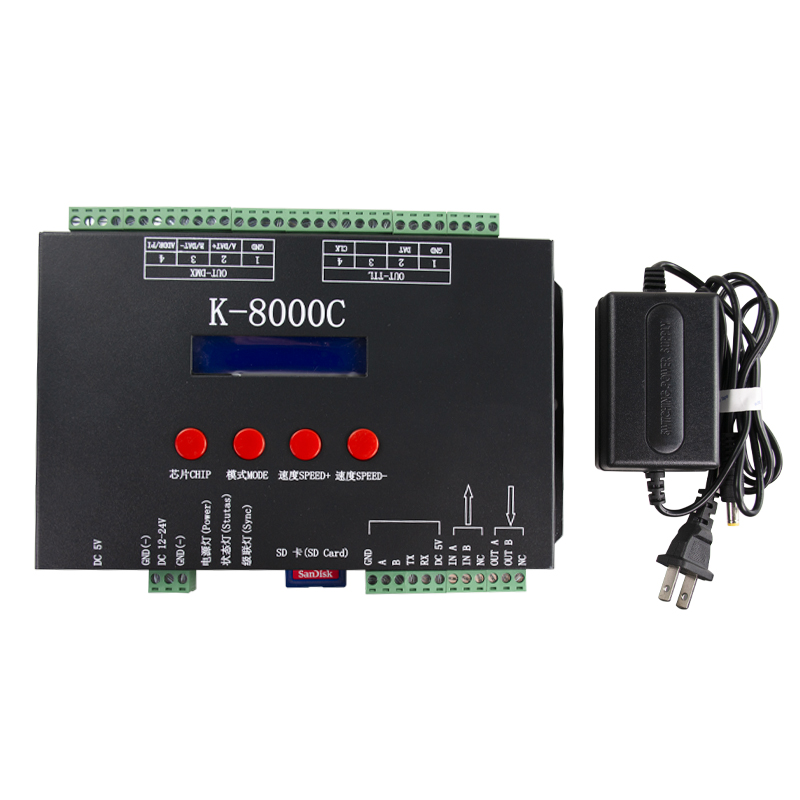

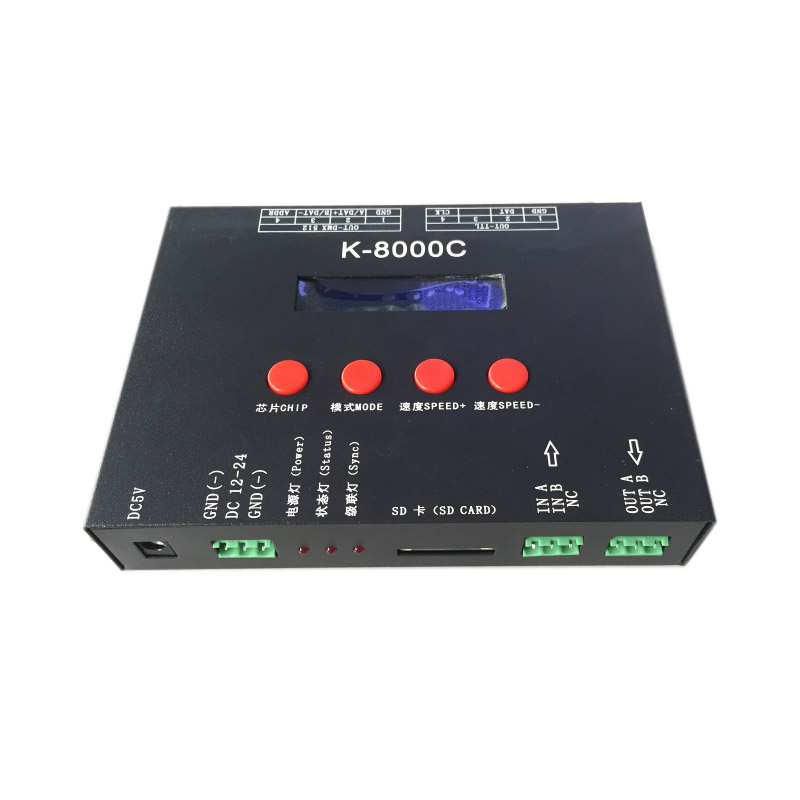

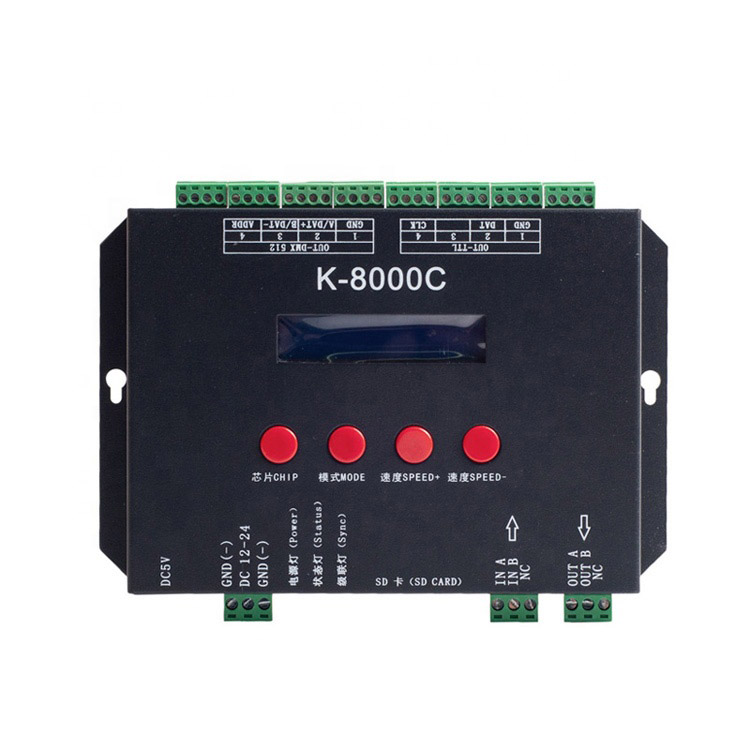

K-8000C Programmable RGB Pixel SD Card LED Controller

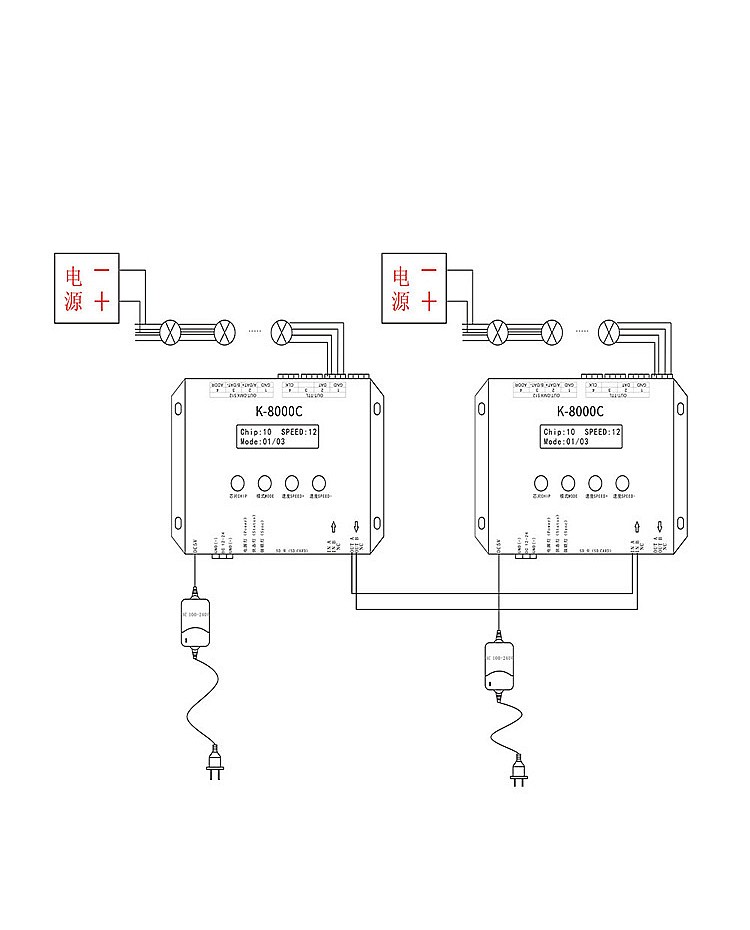

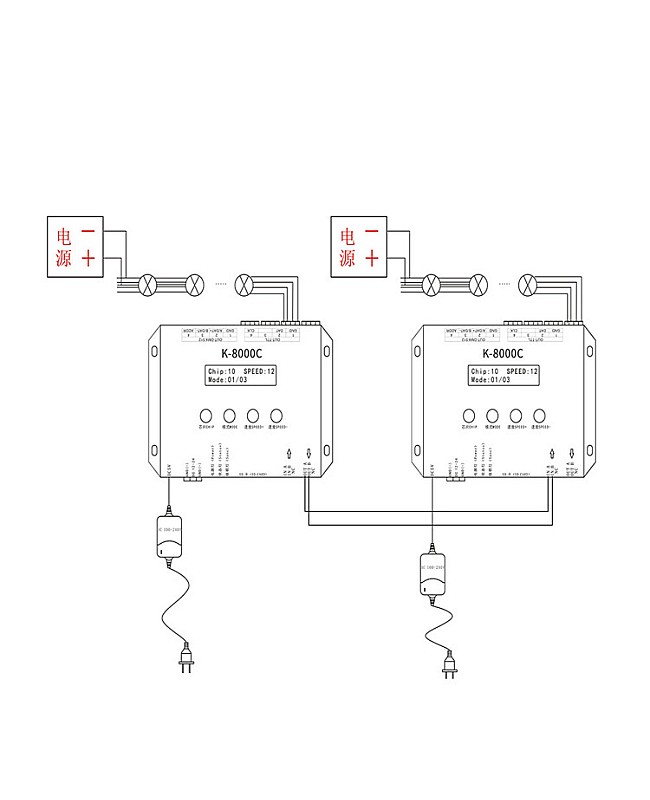

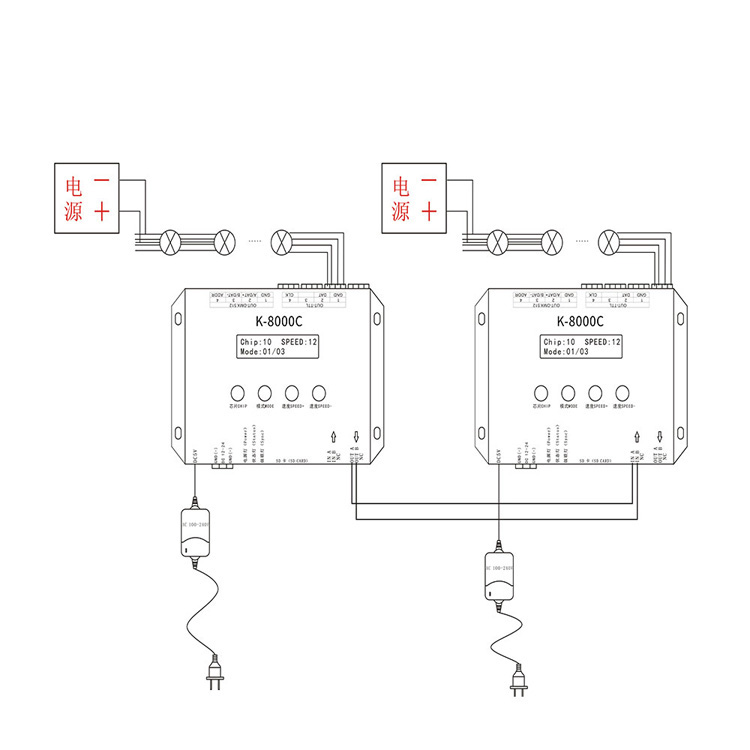

The K-8000C programmable RGB pixel SD card LED controller has 8 output ports and the max loading pixels of each port up to 1024 PCS. It supports various types of smart ICs, like WS2801, UCS1903, LPD6803, LPD1886, TM1913, etc, supports multiple points, line light sources, all kinds of rules, and specifically shaped handles. The K-8000C supports SD cards and has a capacity up to 32 GB. You can design and store the lighting effect in the card; the SD Card can store up to 32 files. The Pixel Controller can be used in single-use and multiple controller cascades. Cascade optical isolation mode: interference, better stability, cascade distance between two controllers can up to 150 meters, need to use 0.5㎡ pure copper power cord. The K8000C supports chip can lock or not lock the support IC in the software. You can select the type of IC through the physical button on the LED controller; this scheme is more flexible and convenient.

Link:

K-8000C User Manual

Specifications:

• Size: 215*146*30mm(L*W*H)
• Working Temperature: -20℃-+75℃
• Working Voltage: AC100-240V
• Power Consumption: 5W
• Data Transfer Port: 3 Pin
• Memory Card Type: SD Card
• SD Card Capacity: 128 MB- 32 GB
• File Format: FAT Or FAT32
• Store Files: *.led
• 32 To 65536 Degree Gray Control, Gamma Correction Procession Handle

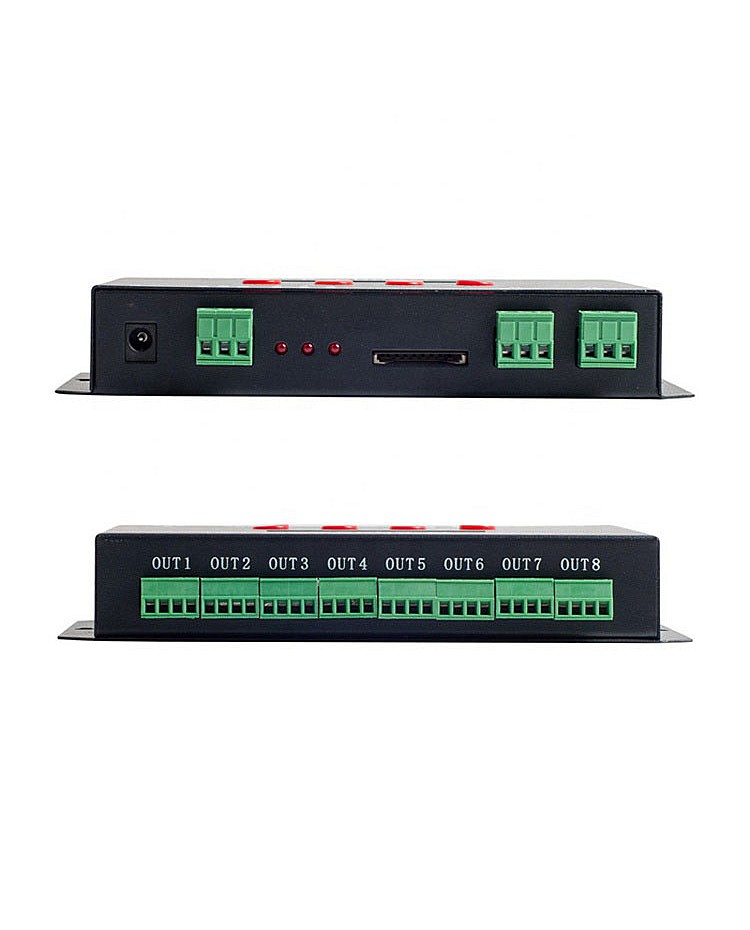

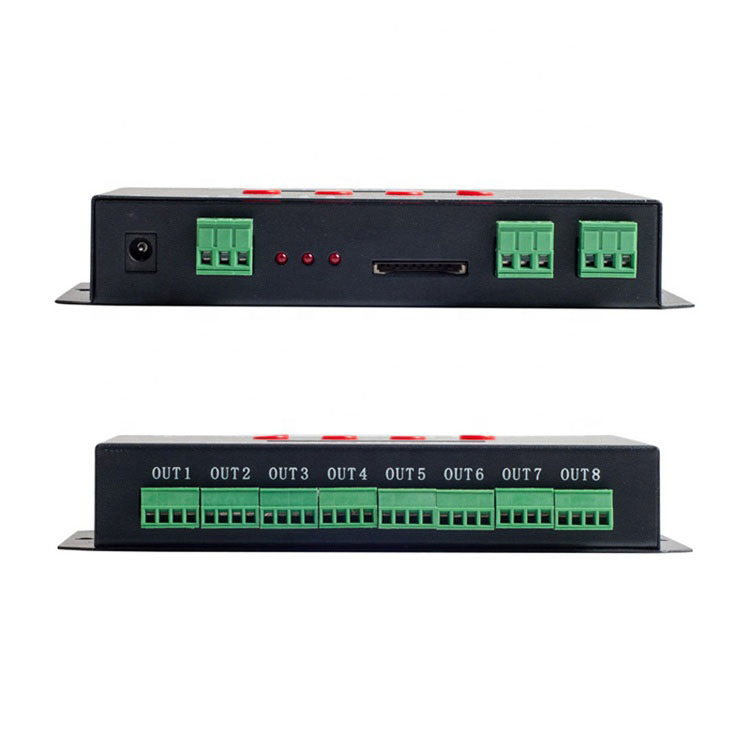

• 8 Output ports, Each Port Supports Up To 1024 Pixels(DMX Light 512 Pixels)
• Enhanced 485 TTL And 485 Differential(DMX) Signal Output
• It comes With Test Effects: 1: Red, Green, Blue, and Black Jump; 2: Red, Green, Blue, and Black Gradient; 3: Red, Green, Blue, and Goes.
• International Standard DMX512(1990 Agreement) Maximum Support 512 Pixels, When The Load Is International Standard 170 Pixels, The Speed Can Reach Up To 30 Frames/Sec, 340 Pixels Speed Is About 20 Frames/Sec, When 512 Pixels The Speed Is About 12 Frames/Sec

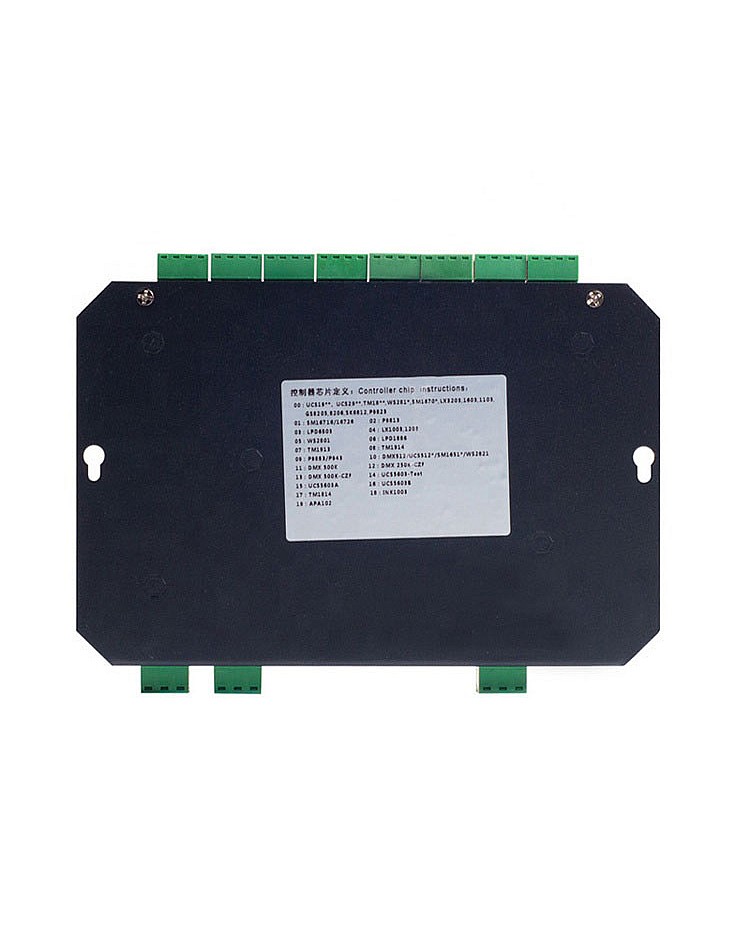

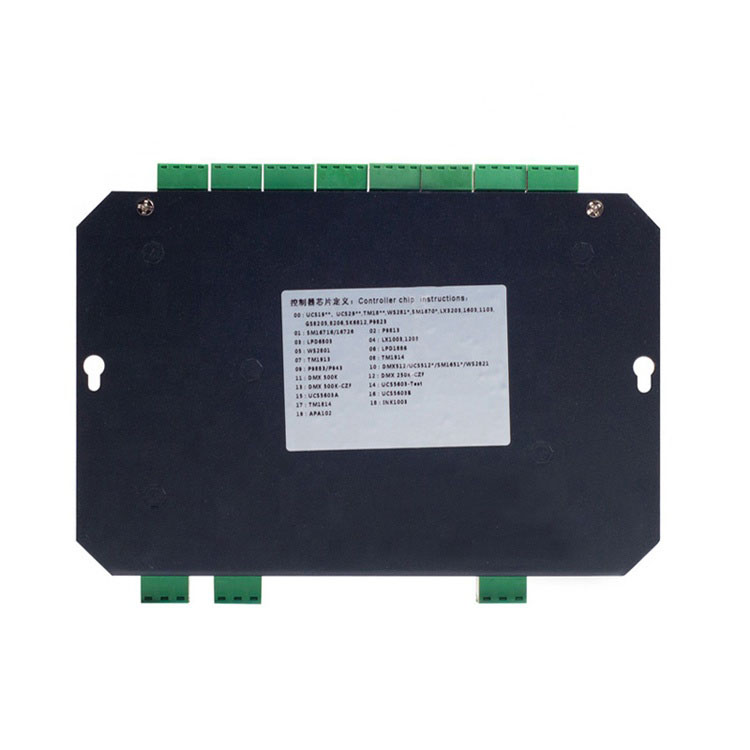

Supports The Types Of Smart ICs:

00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;

SM16703,16709,16712;WS2811;INK1003;LX3203,1603,1103;GS8205,

8206;SK6812(Support up to 1024*8=8192 pixels)

01:SM16716,16726(Support up to 1024*8=8192 pixels)

02:P9813(Support up to 1024*8=8192 pixels)

03:LPD6803(Support up to 1024*8=8192 pixels)

04:LX1003,1203(Support up to 1024*8=8192 pixels)

05:WS2801(Support up to 1024*8=8192 pixels)

06:LPD1886(Support up to 1024*8=8192 pixels)

07:TM1913(Support up to 1024*8=8192 pixels)

08:TM1914(Support up to 1024*8=8192 pixels)

09:P9883,P9823(Support up to 1024*8=8192 pixels)

10:DMX(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

11:DMX 500K(Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

12:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

13:DMX 250K-CZF (Support up to 512*8=4096 pixels, suggest to support ≤320*8=2560 pixels)

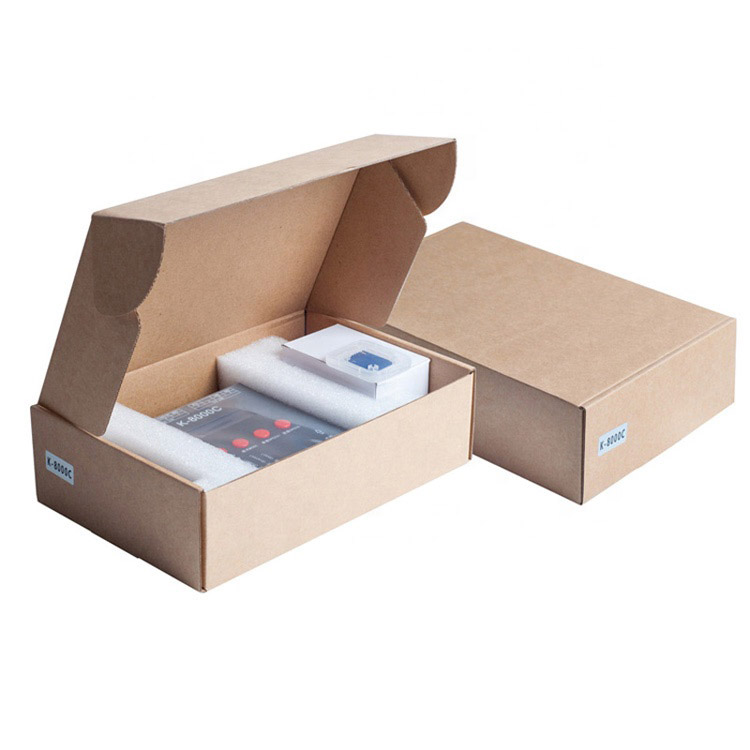

Includes:

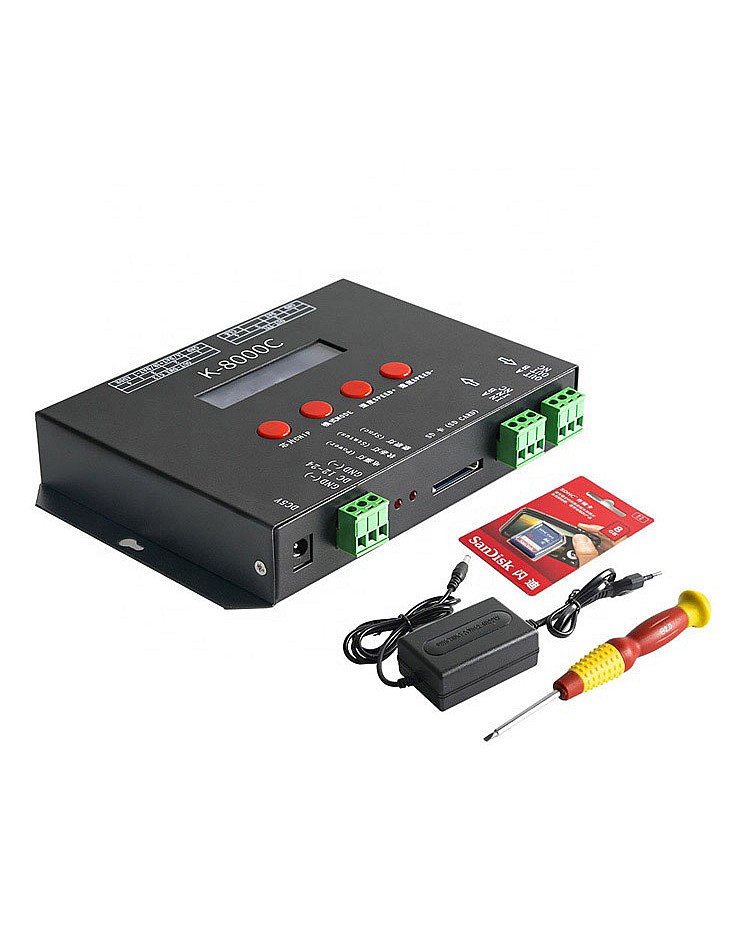

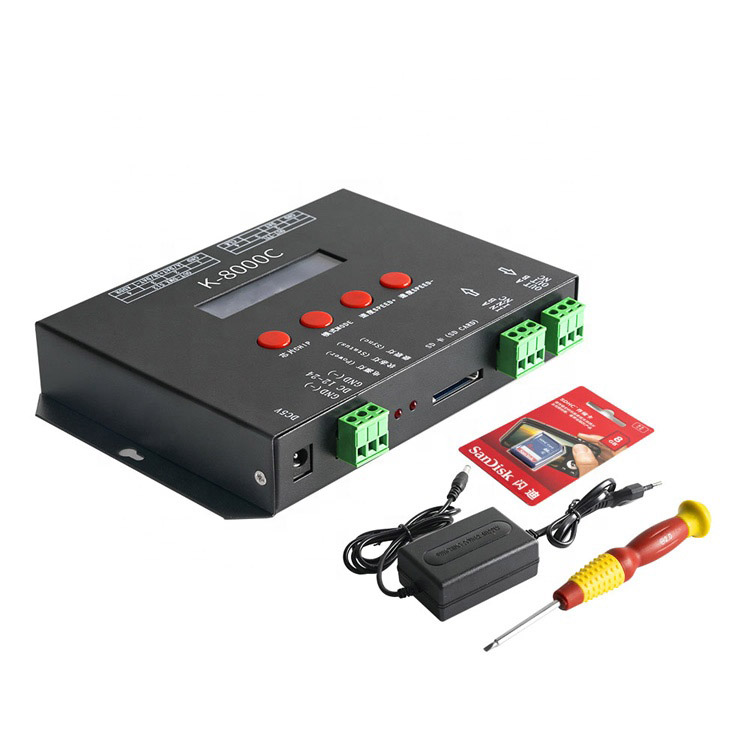

1 * K-8000C Programmable RGB Pixel SD Card LED Controller
