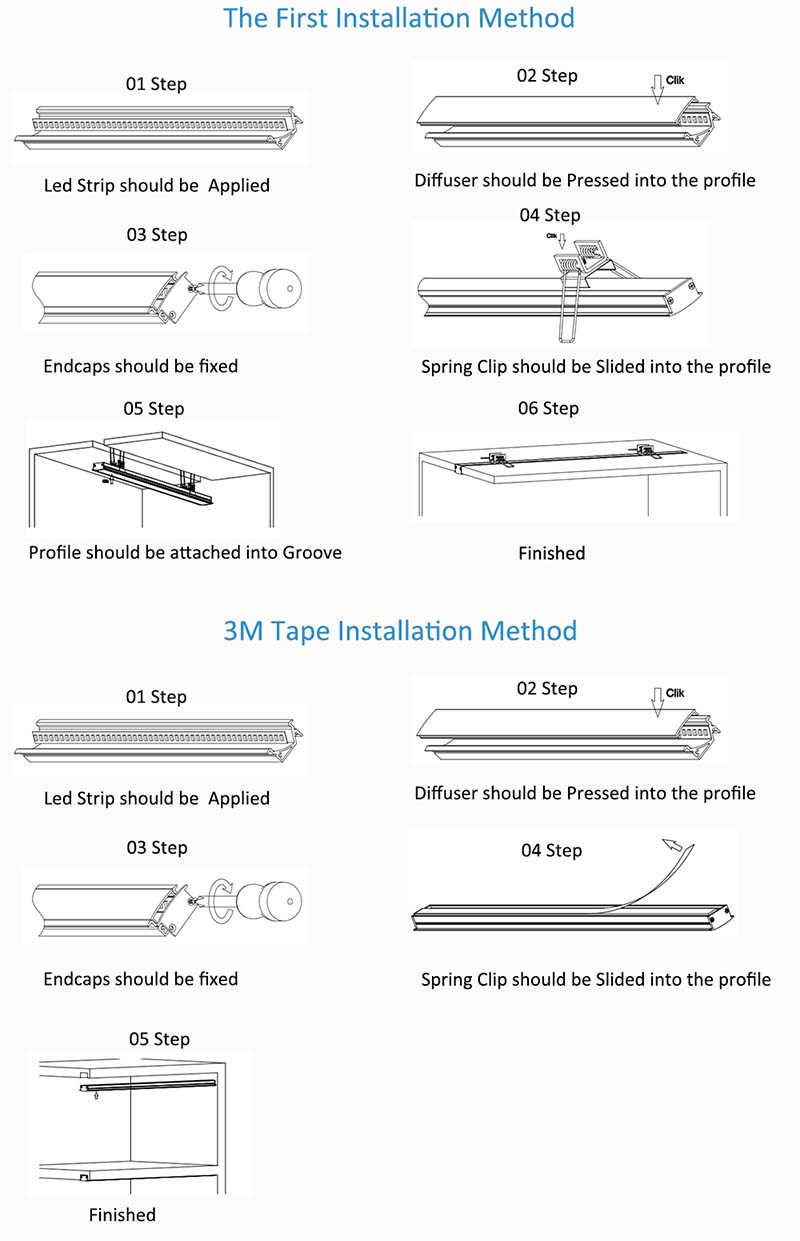

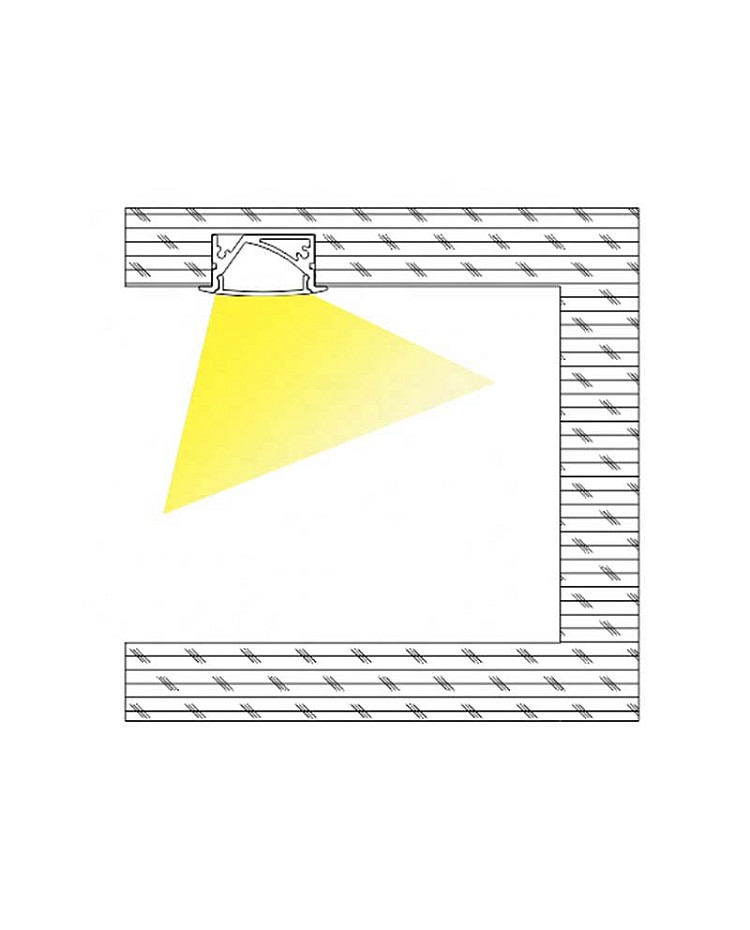

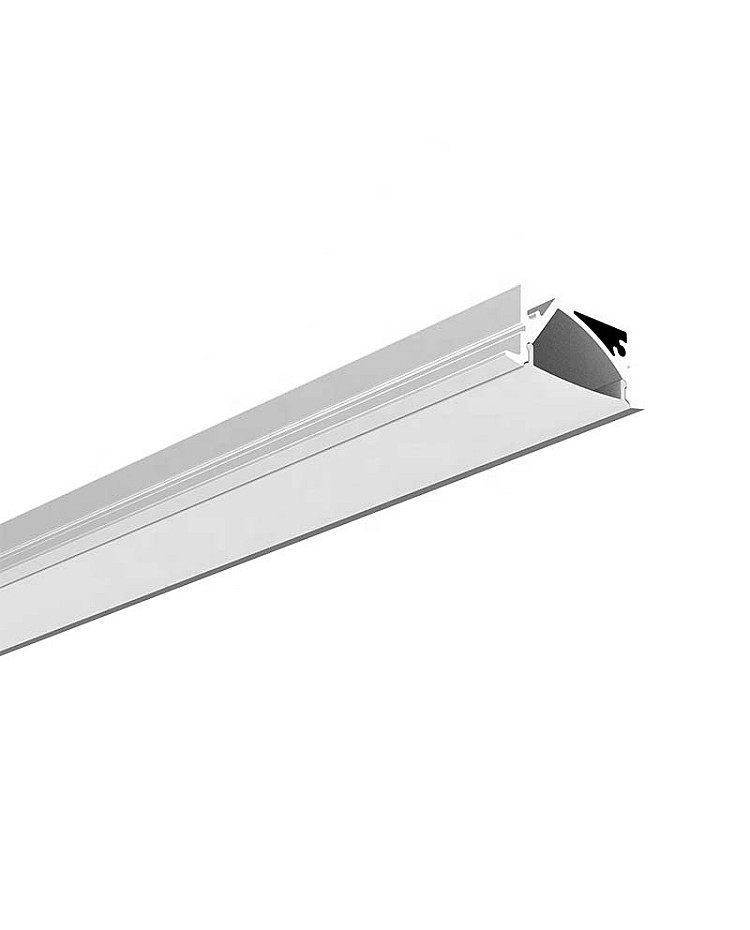

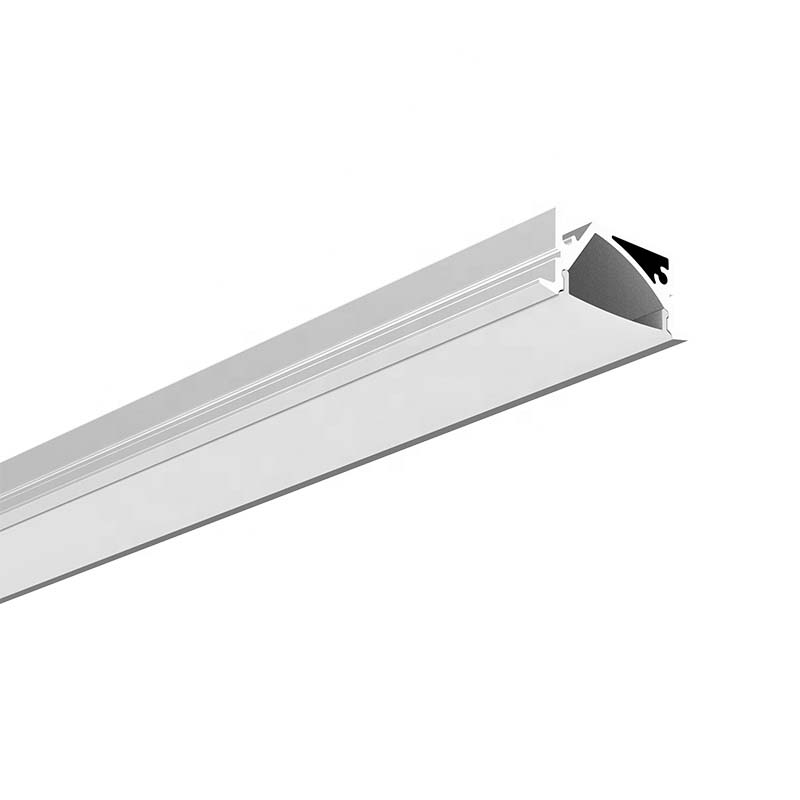

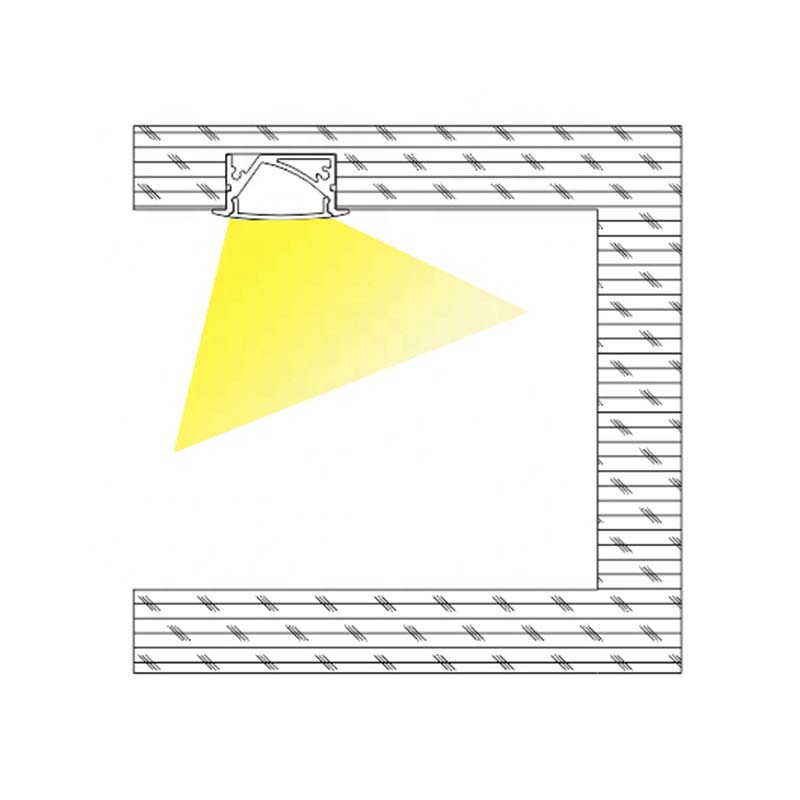

The LED extrusion diffuser is an excellent choice for cabinet lighting, designed to provide polarized lighting in narrow spaces. The tilt lighting design avoids direct light exposure to your eyes, making it ideal for cabinet or wardrobe lighting needs. It creates more subtle light than most other types of lighting, perfect for a nuanced, ambient lighting effect. The inner width is 8.8mm, allowing the maximum width of LED strips to be 8mm. We recommend adding COB strip lights as the light source, ensuring there are no visible light spots or dark areas. The standard lengths are 1 m and 2 m, and they can be cut to any size for your project. They are made of 6063-T5 aluminum material with a silver anodized surface treatment, offering anti-oxidation resistance and a longer lifespan than similar products. Four types of diffusers are available, made from brand-stable, anti-yellowing material that creates a soft, even light. This light can be used to accentuate certain parts of the cabinet or wardrobe. The spring clips are included, supporting easy installation via adhesive tape or spring clips. This makes it easy to mount them on the surface of lighting projects, providing an outstanding balance between light output and energy efficiency. End caps with and without wire holes are included.
Specifications:

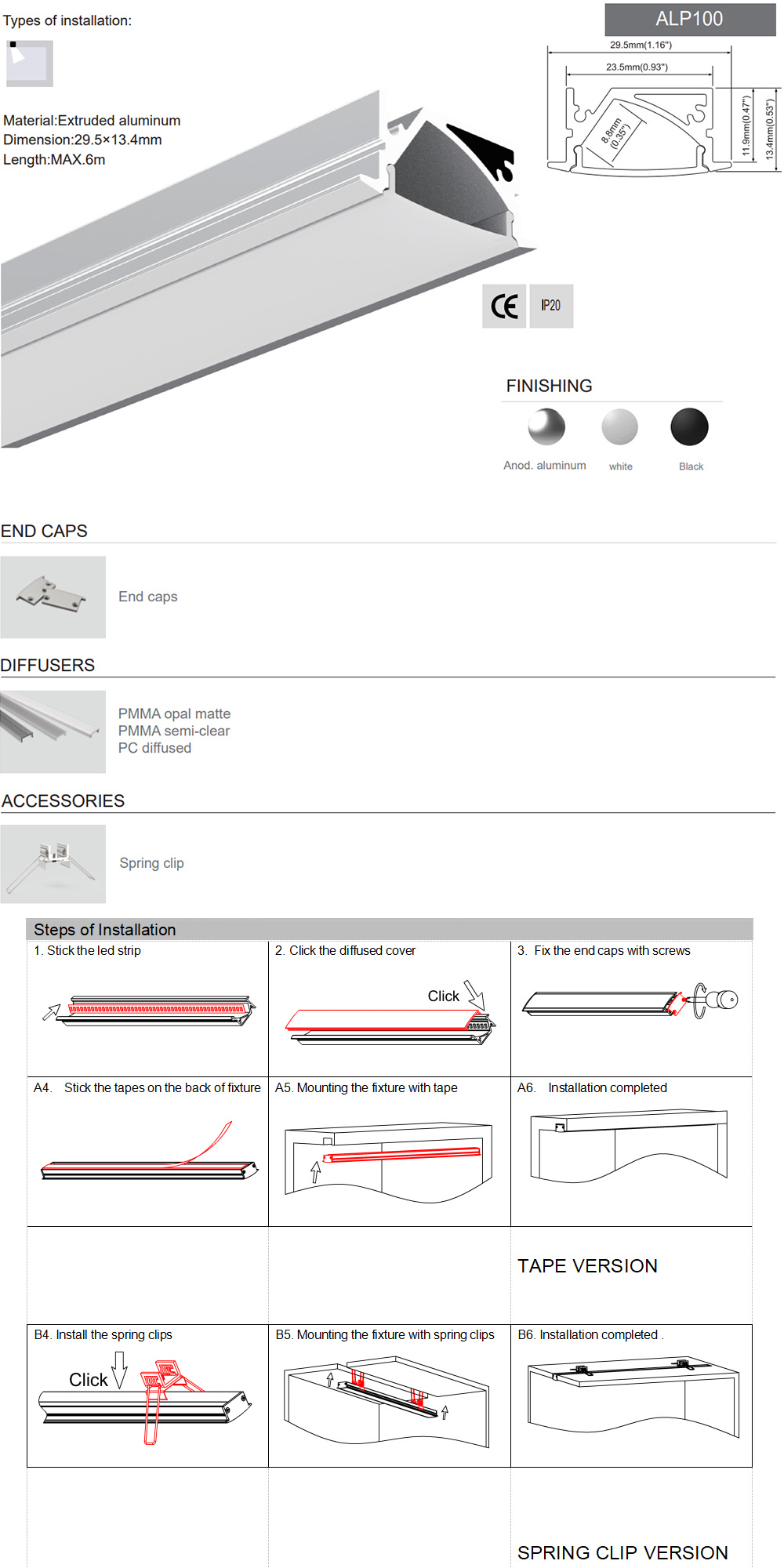

- Model: ALP100

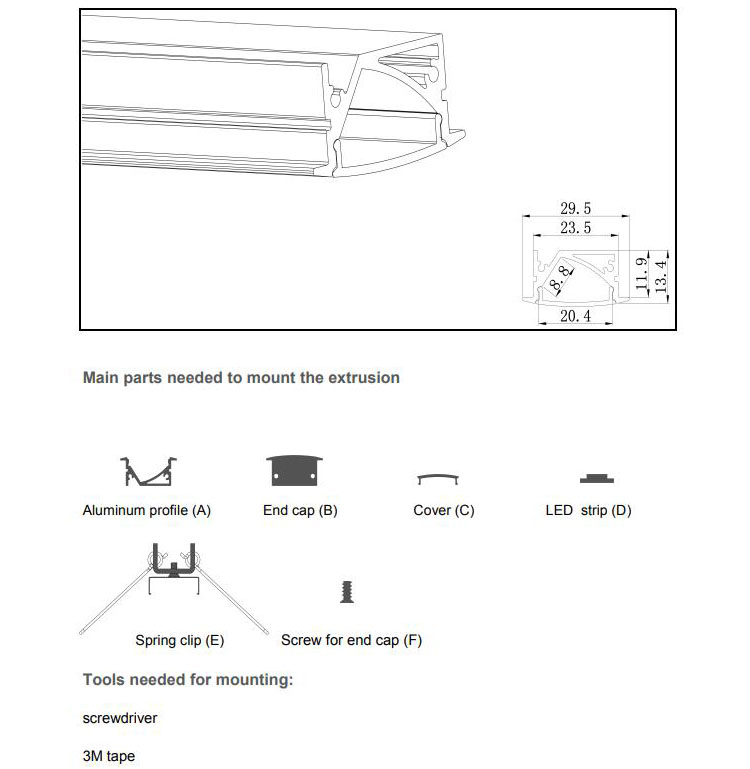

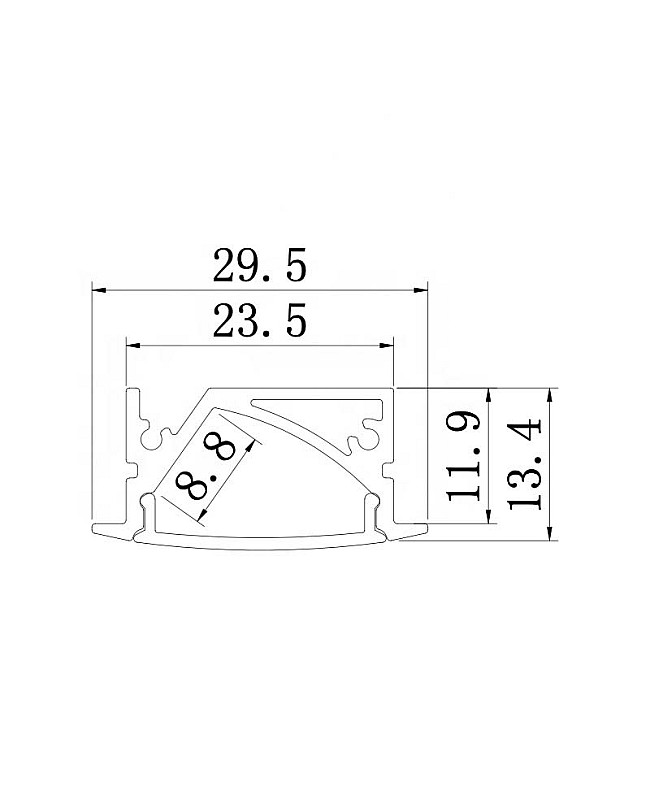

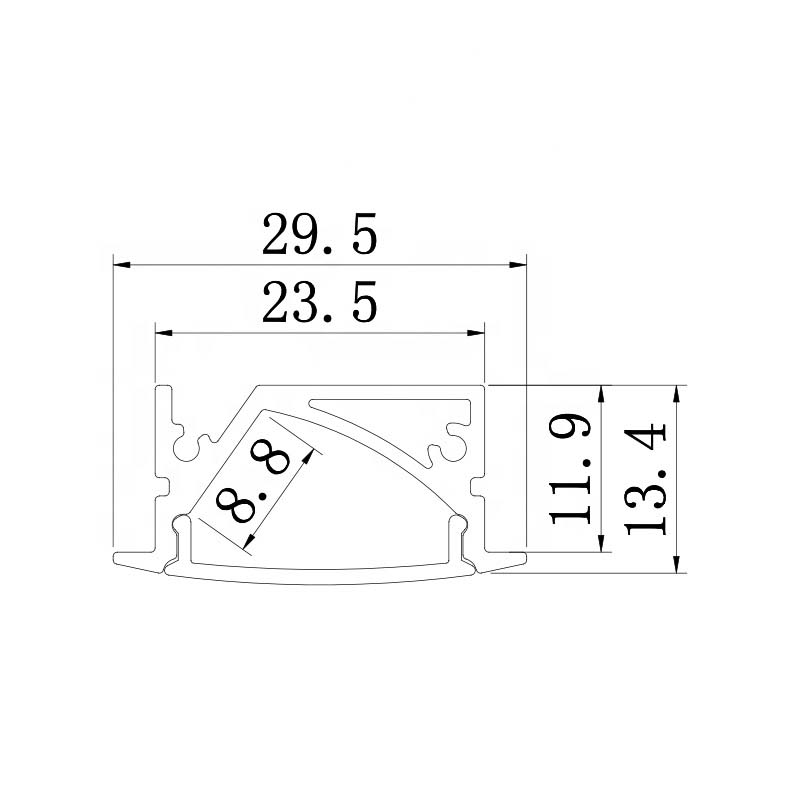

- Size ( W x H ): 29.5 x 13.4 mm / 1.16" x 0.53"
- Material: 6063-T5 aluminium
- Surface treatment: Anodized / powder-coated
- Colors: Silver, white
- Standard lengths: 1 m ( 39" ), 2 m ( 78" )
- Custom length available: YES
- Diffusers: PC diffused cover
- Inner width: 8.8 mm / 0.35"
- Max width of light tapes: 8 mm / 0.31"
- Max power: 15W/m

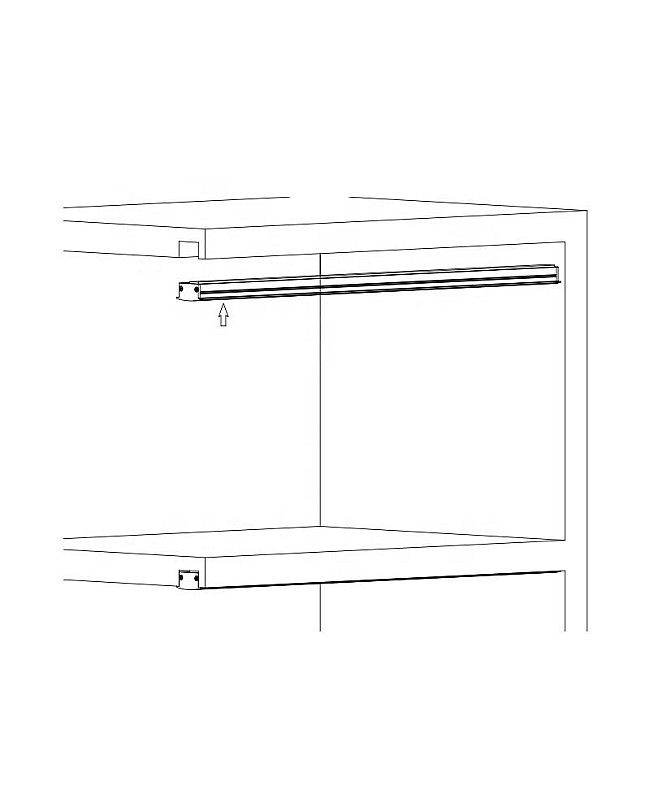

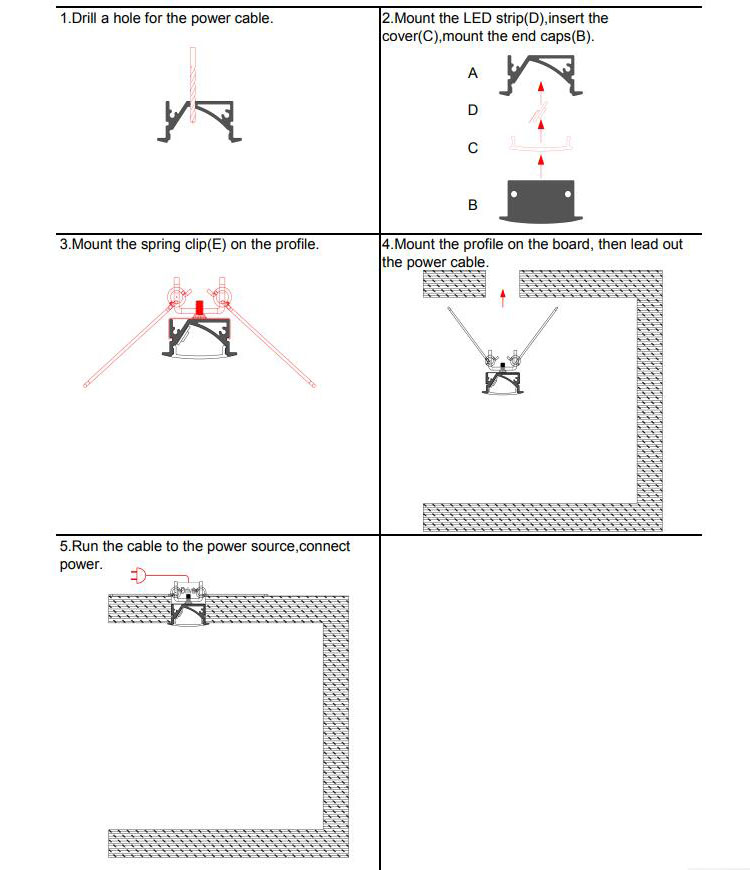

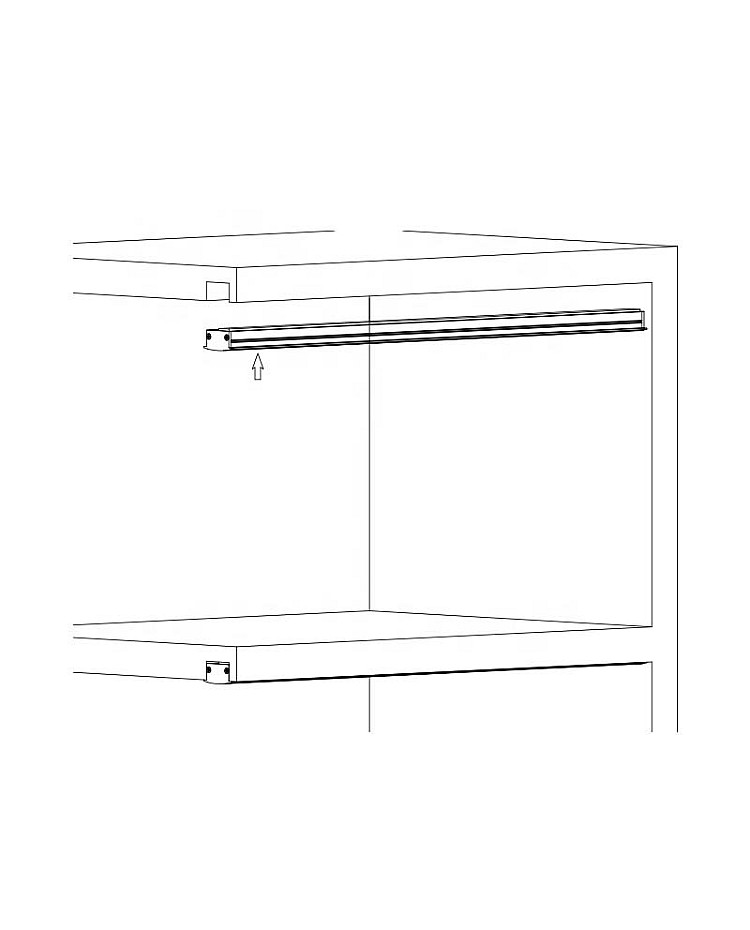

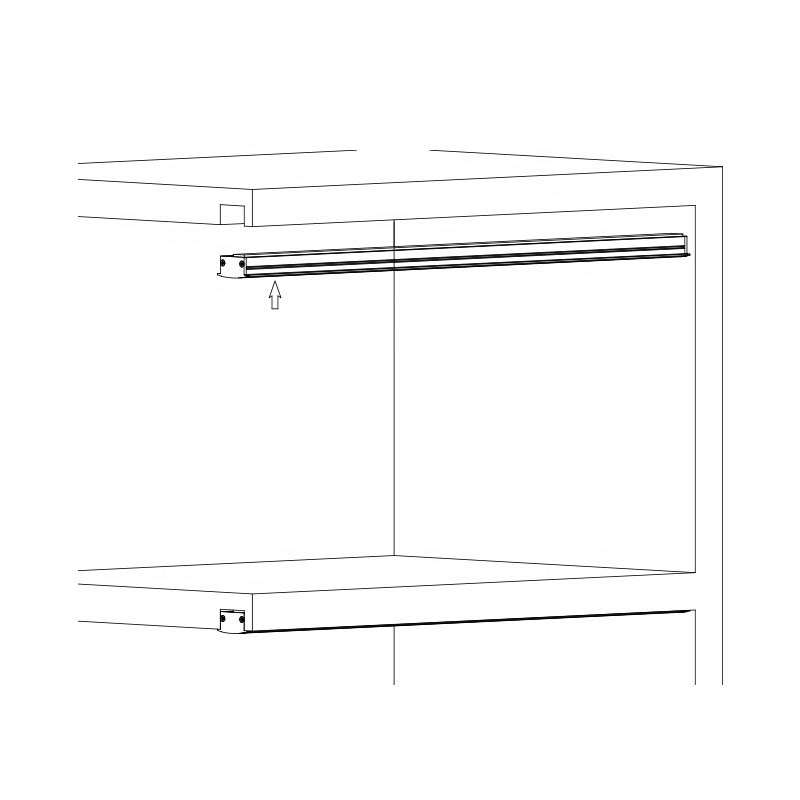

- Installation: Recessed / surface-mounted
- End caps with and without wire holes are included

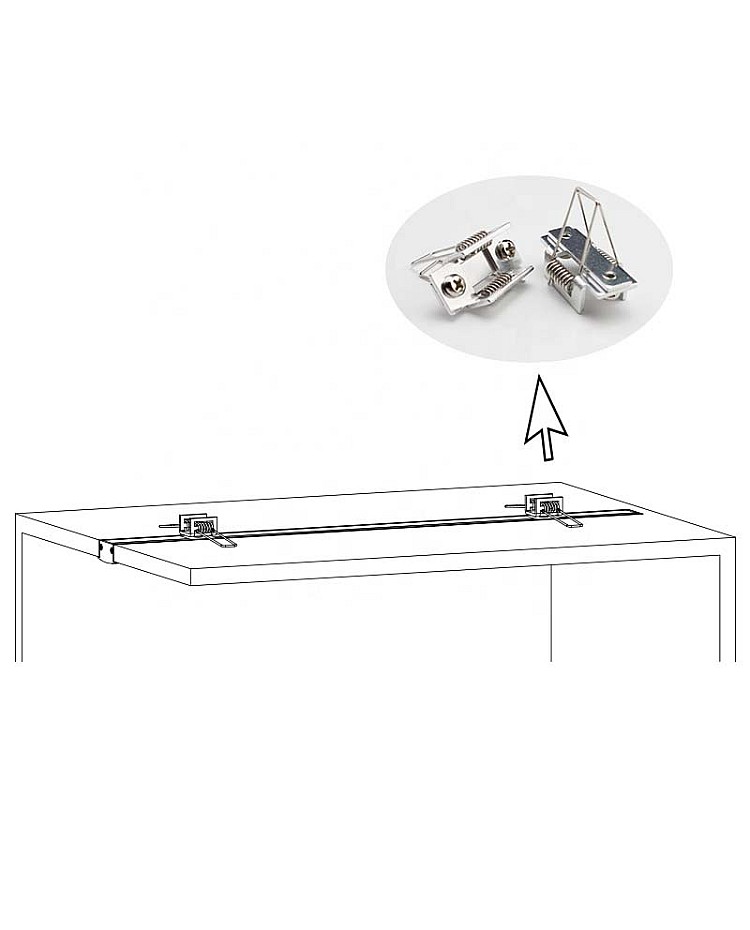

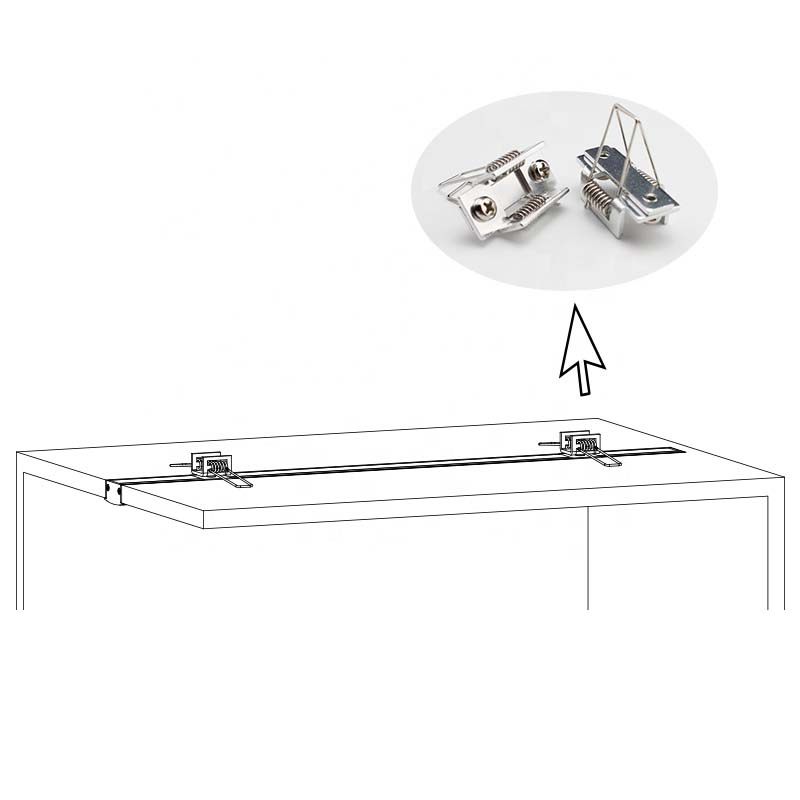

- Spring clips are optional
- Warranty: 5 years
Applications:
- Under-cabinet and under-shelf lighting
- Display case and retail showcase lighting
- Furniture and interior accent lighting
- Task lighting in kitchens or work areas
Includes:
1 * LED extrusion diffuser
End caps(With and without wire holes)
Spring clips
