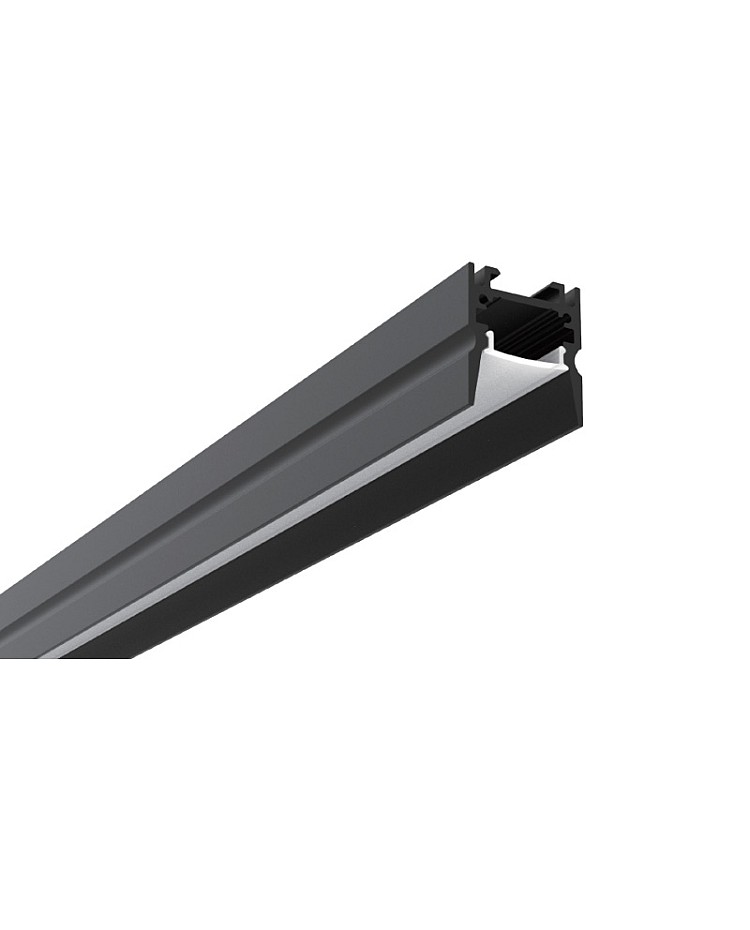

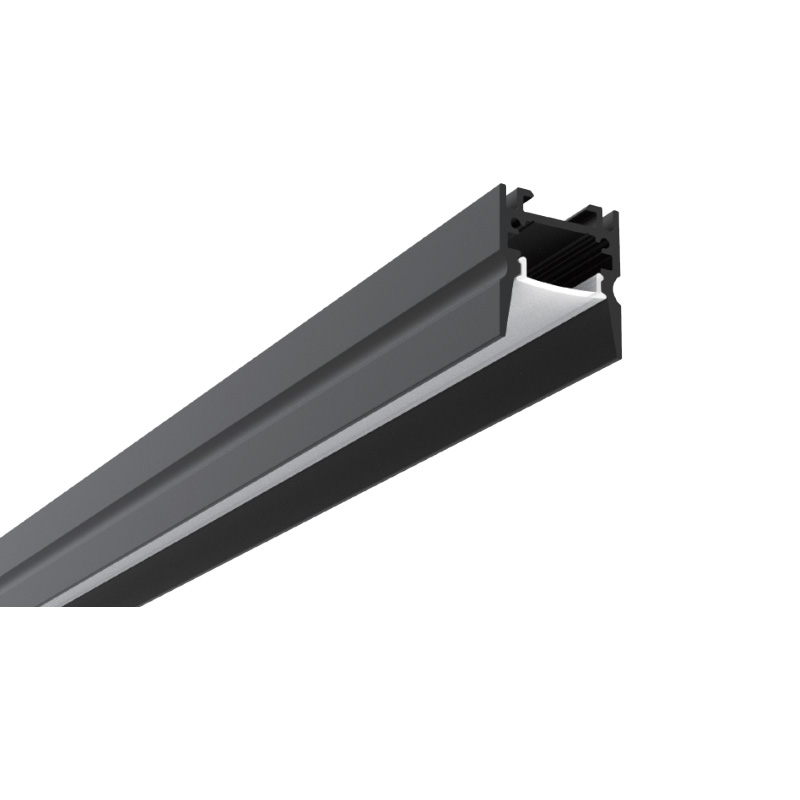

The LED lighting channels allow for pendant or surface-mounted installation, featuring a deeply anti-glare design that effectively prevents glare and provides healthy ambient light in both residential and commercial linear lighting applications. The LED channels are made of 6063-T5 extruded aluminum material and feature an anodized surface treatment, providing anti-oxidation resistance and a longer lifespan. The standard lengths are 1 m and 2 m, and they can be cut to any length; custom lengths are also available. The inner width is 13.4mm, allowing a maximum width of 12 mm for the LED light; you can install SMD LED tapes or COB LED strips inside. The aluminum channel can be used as a heat sink for better heat dissipation. There are three types of diffusers available: PC diffused cover, PC semi-clear cover, and prismatic cover. All of them are made of brand material, anti-yellowing, with perfect lighting distribution and uniform light output. End caps with wire holes included, allowing for easy connection of the LED light to the power supply for illumination, or an LED dimmer for adjustable brightness. The 90°，90° vertical, and 180° Joiners are sold separately.
Specifications:

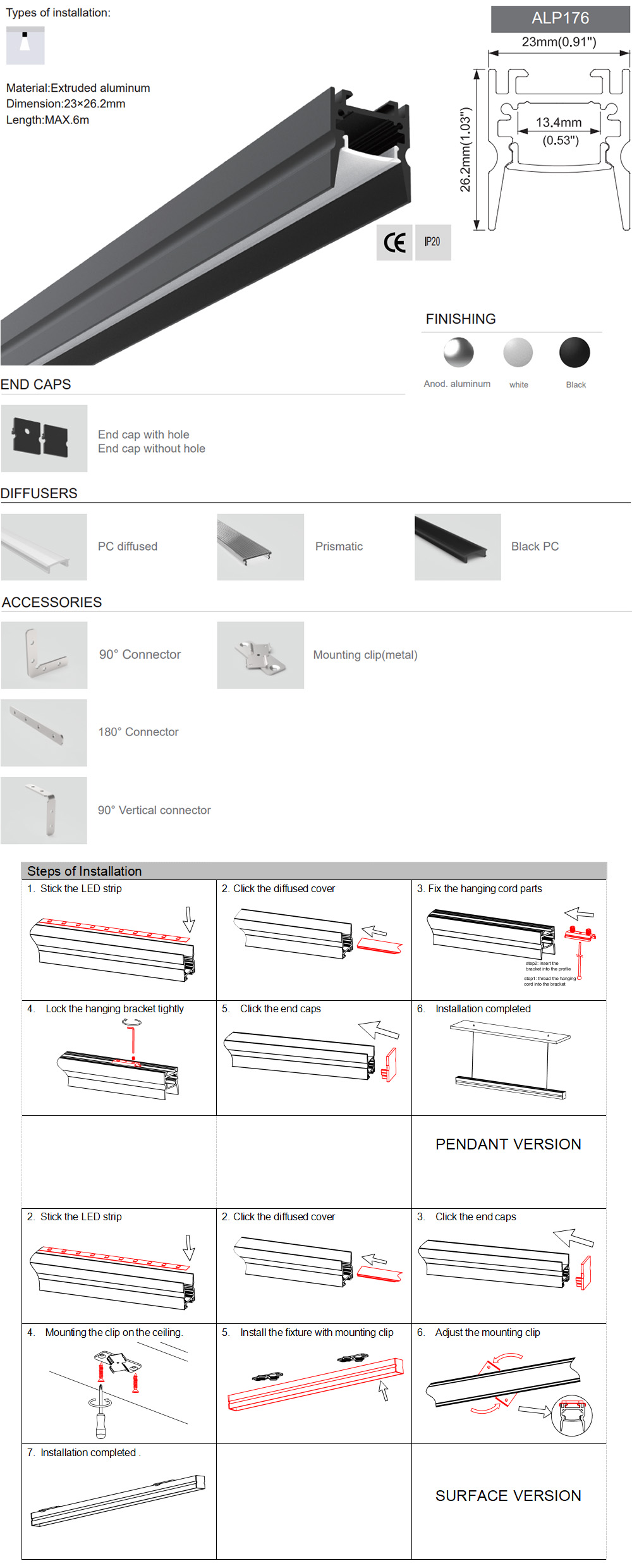

- Model: ALP176
- Material: 6063-T5 Extruded Aluminum
- Surface Treatment: Anodized

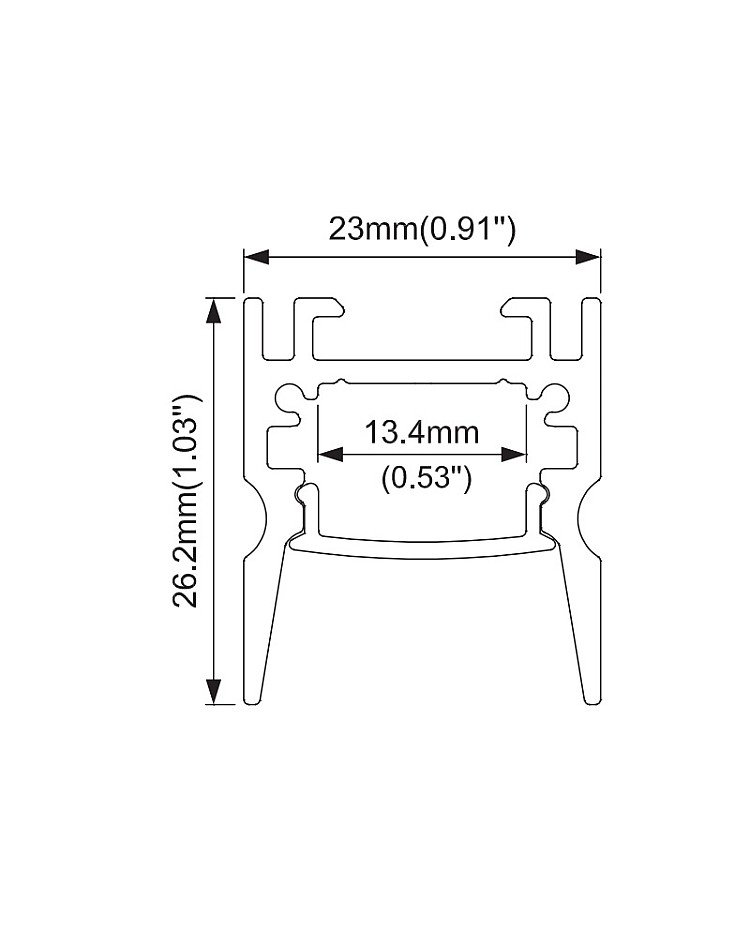

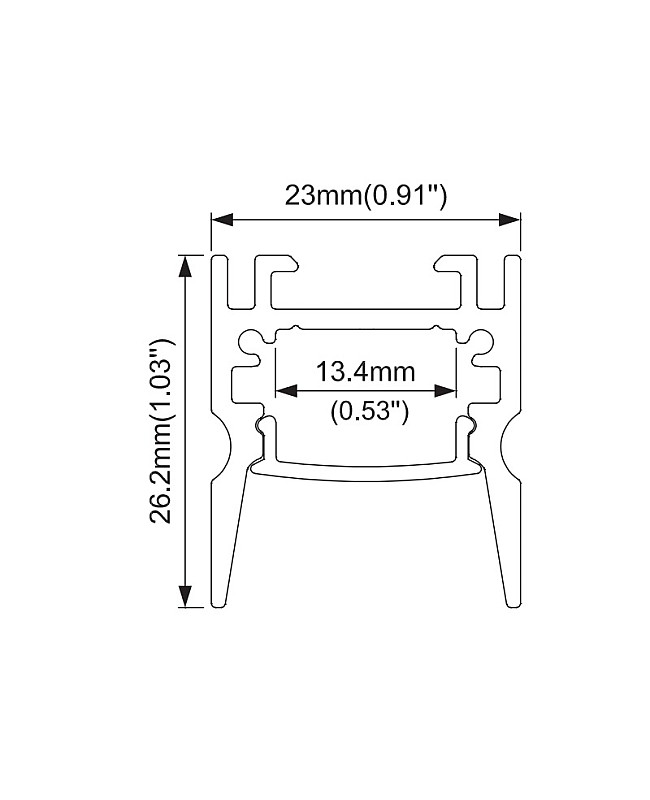

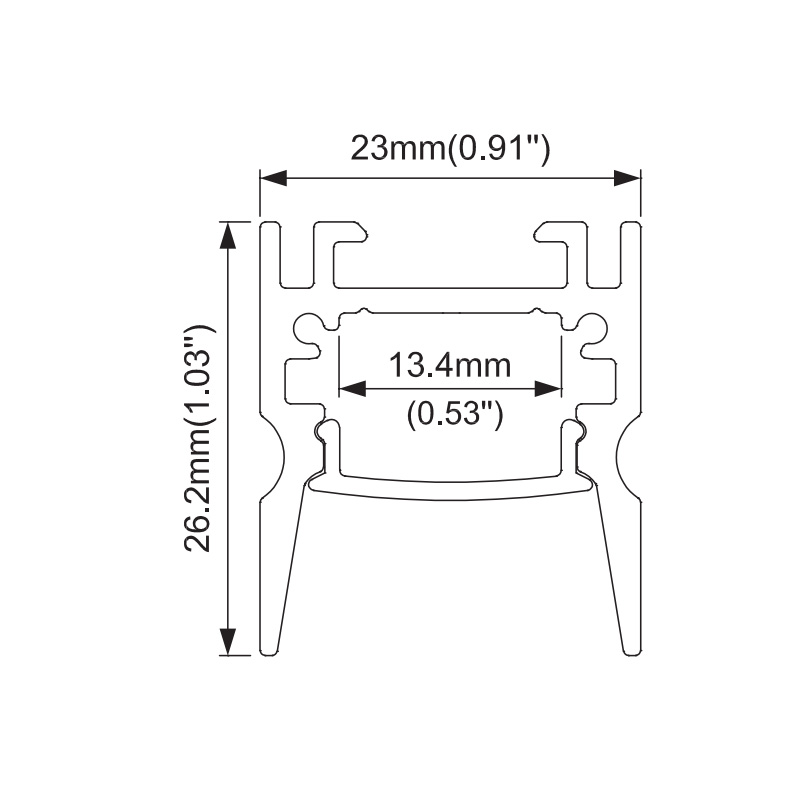

- Size: 23*26.2mm(W*H)
- Color: Black
- Diffusers: PC Diffused Cover, PC Semi-clear Cover, Prismatic Cover
- Standard Length: 1M
- Other Lengths Available: 1.5M, 2M
- Custom Length Available: YES
- Inner Width: 13.4mm
- Max Width Of LED Strips: 12mm
- Max Power: 18W/M
- Beam Angle: 100°
- Tolerance: ±1%
- IP Rating: IP20(Non-waterproof)

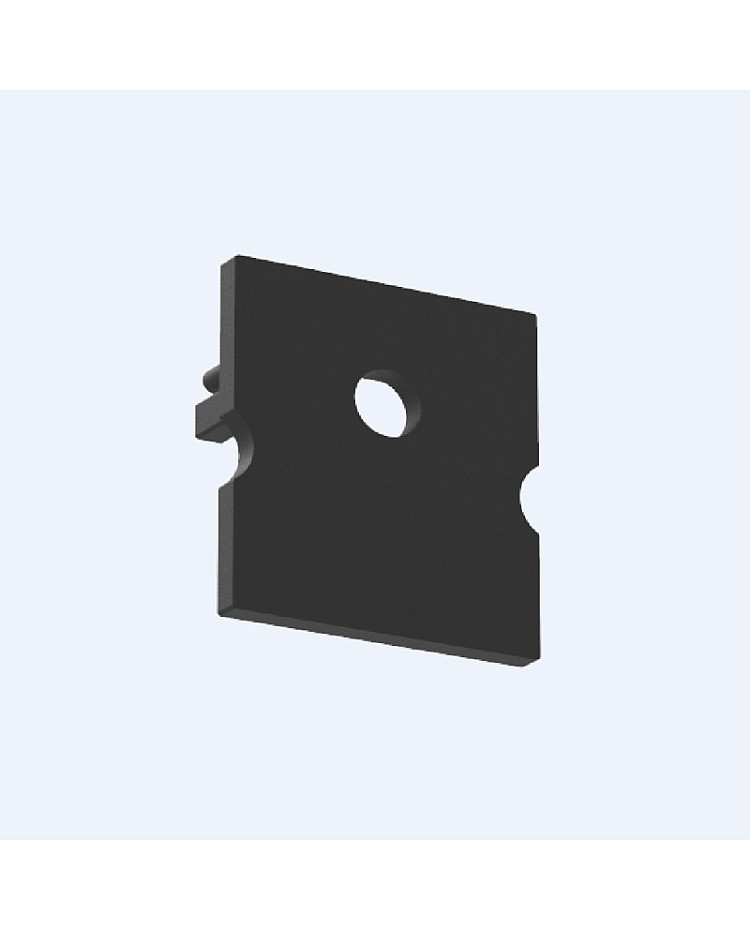

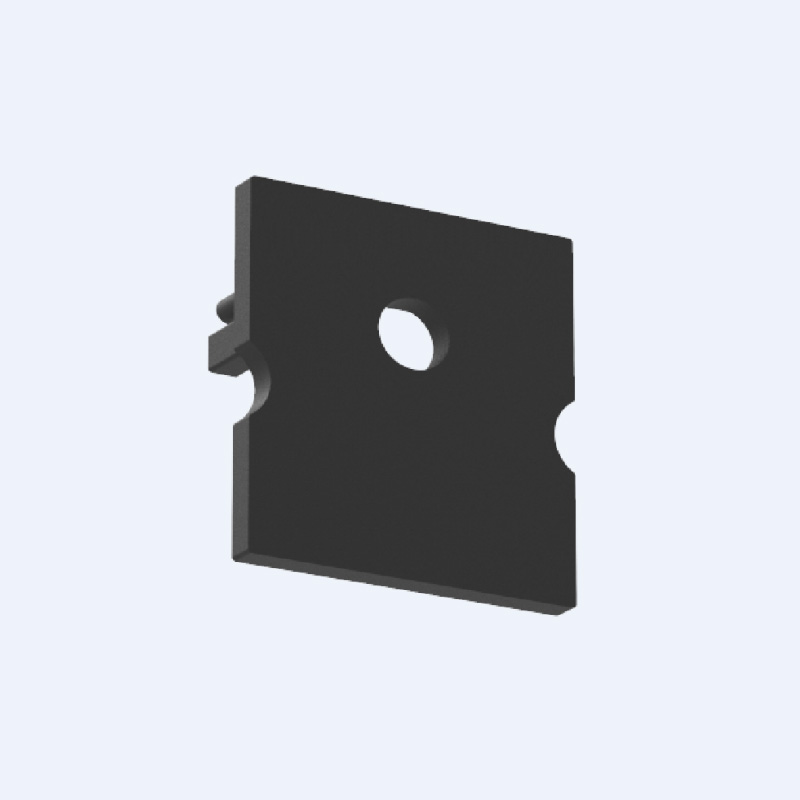

- End Caps With Wire Holes Included
- Metal Mounting Clips Included
- Hanging Cords Optional
- 90°, 90° Vertical and 180° Joiners Sold Separately
- Installation: Surface Mounted / Pendant
- 5 Years Warranty
Includes:
1 * LED Lighting Channel With Diffuser
End Cap (With Hole/Without Hole)
Metal Mounting Clips
