In Stock
$46.70 $28.68 Sale -39% OFF
Reward Points: 28
This product has a minimum quantity of 6
  • Brand: Ledbe
  • Product Code: ALP056-D

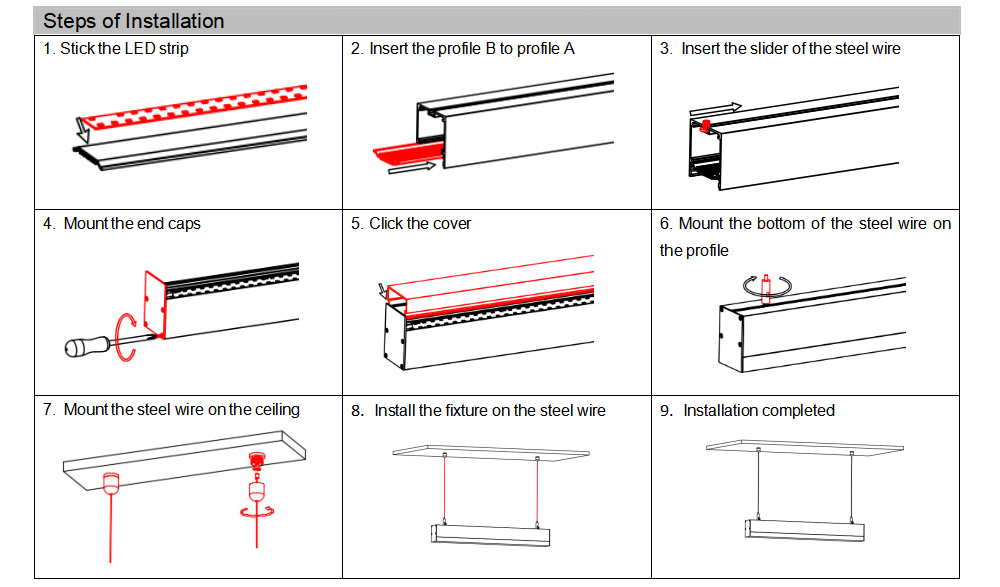

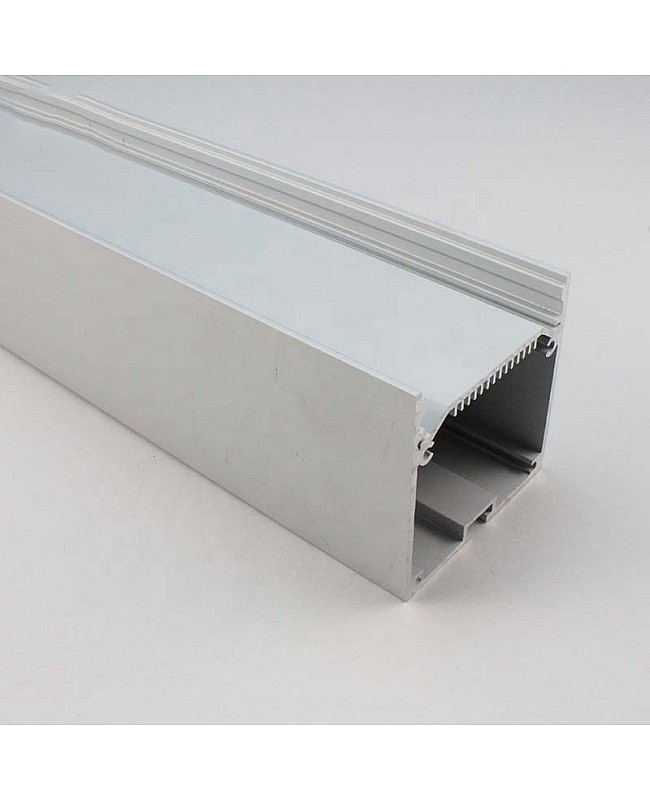

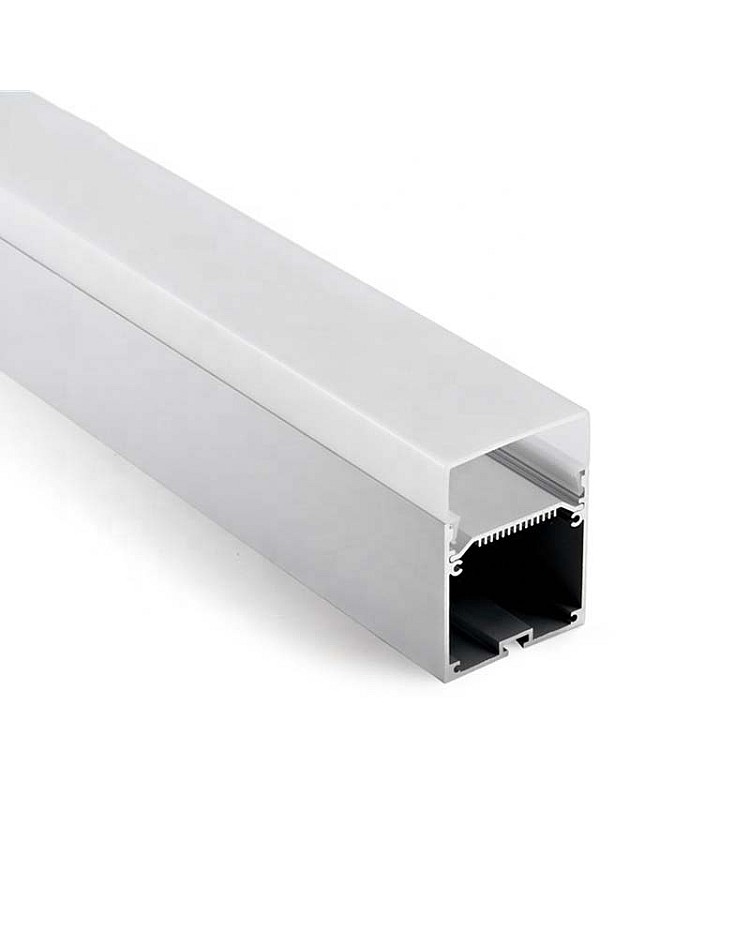

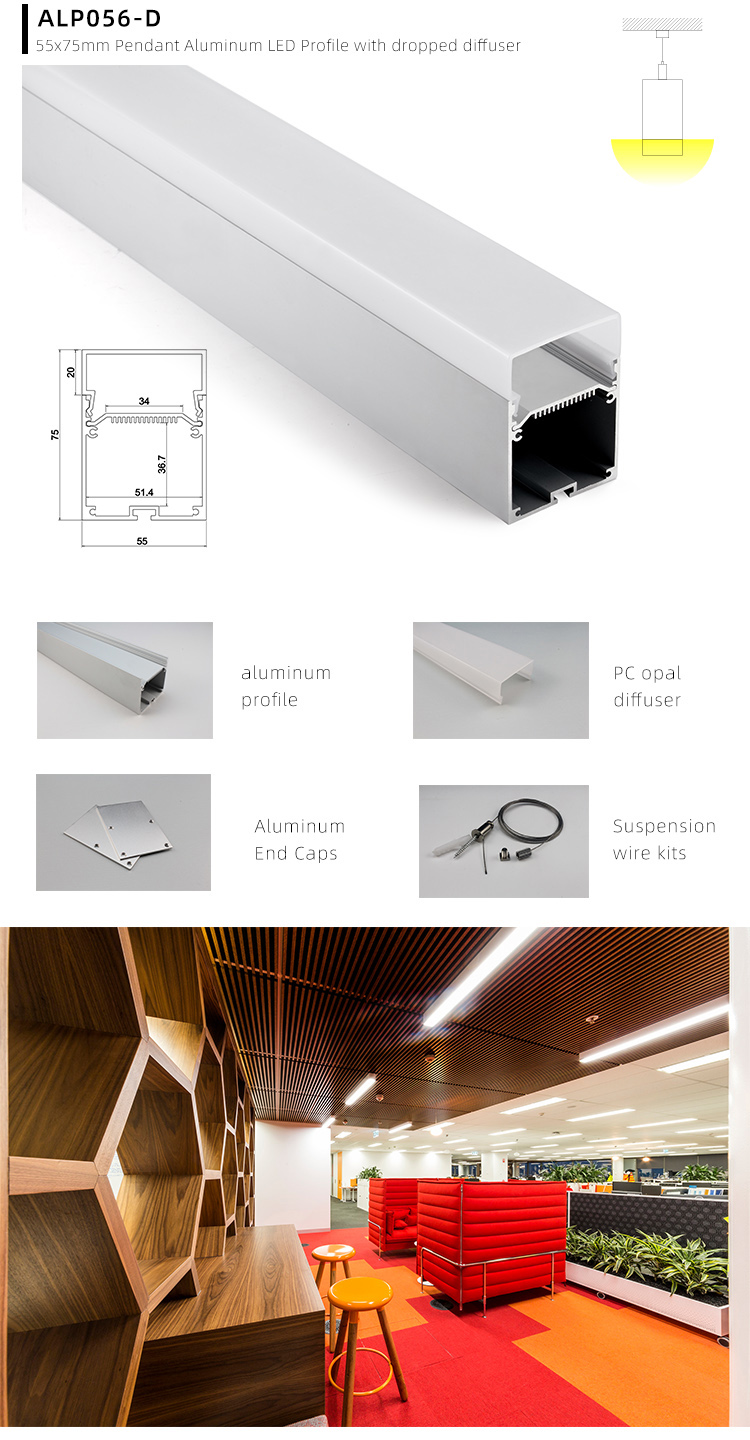

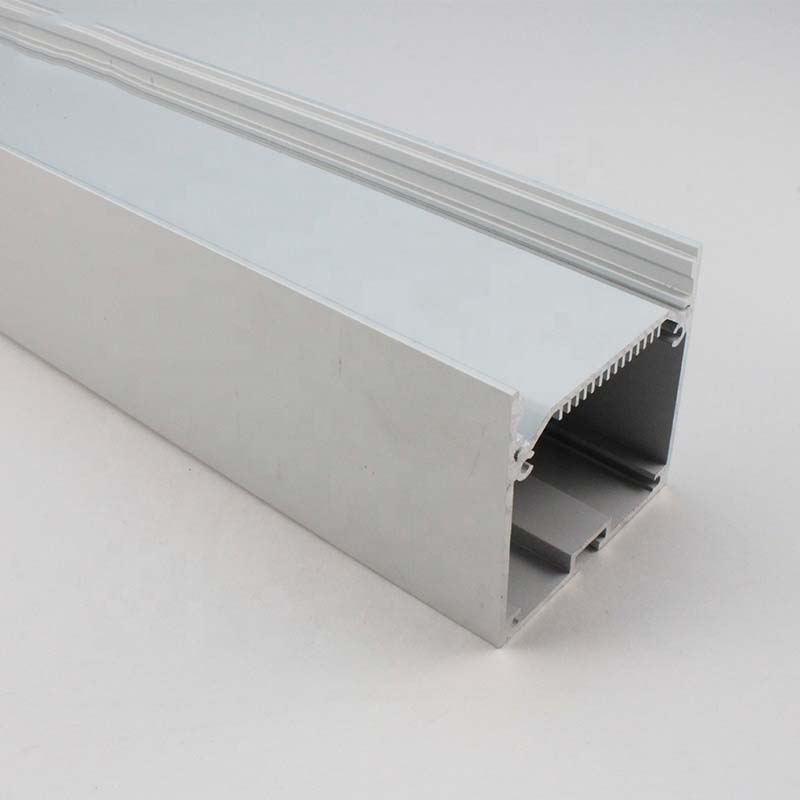

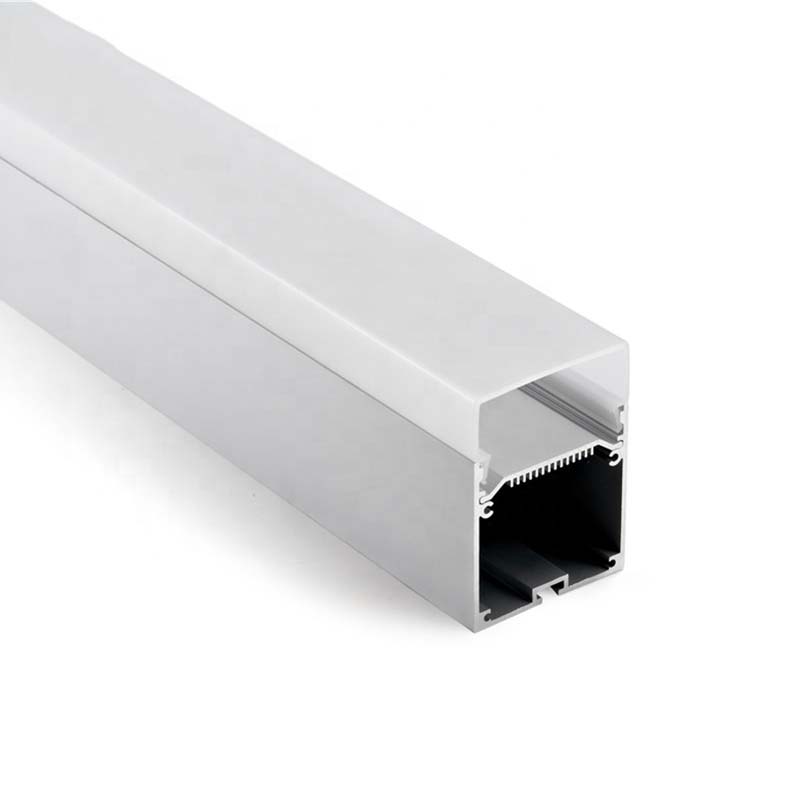

Check the LED U Channel with 20mm dropped PC frosted cover for the smooth light output, the end caps with wire hole and suspension wire kits included, you can use them in home, office, kitchen, school, hospital, etc. the standard length is 1meter per piece, max length 3meter per piece and cuttable, can be cut to any size for your project, the U LED Channel made of 6063-T5 aluminium alloy material and with silver anodized surface treatment, anti-oxidation resistance and has a longer lifespan than other similar products, the Aluminium Channel can be used as a heat sinker for better heat dissipation, the inner width is 34mm, allows to install double rows Flexible LED Strips as the light source, easy to install the LED Strips inside, take off the protector on the back of the double-sided adhesive tape and stick on the place you want to install.  the end caps with wire holes included, easy to connect the LED Light Strips to the Waterproof Power Supply to light up them. the suspension wire kits included and metal clips sold separately, you can hang them on the ceiling or fix them on the surface of your Lighting Projects.


  • Model: ALP056-D
  • Material: 6063-T5 Aluminium Alloy
  • Surface Treatment: Silver Anodized
  • Colors: Silver(Default), White, Black

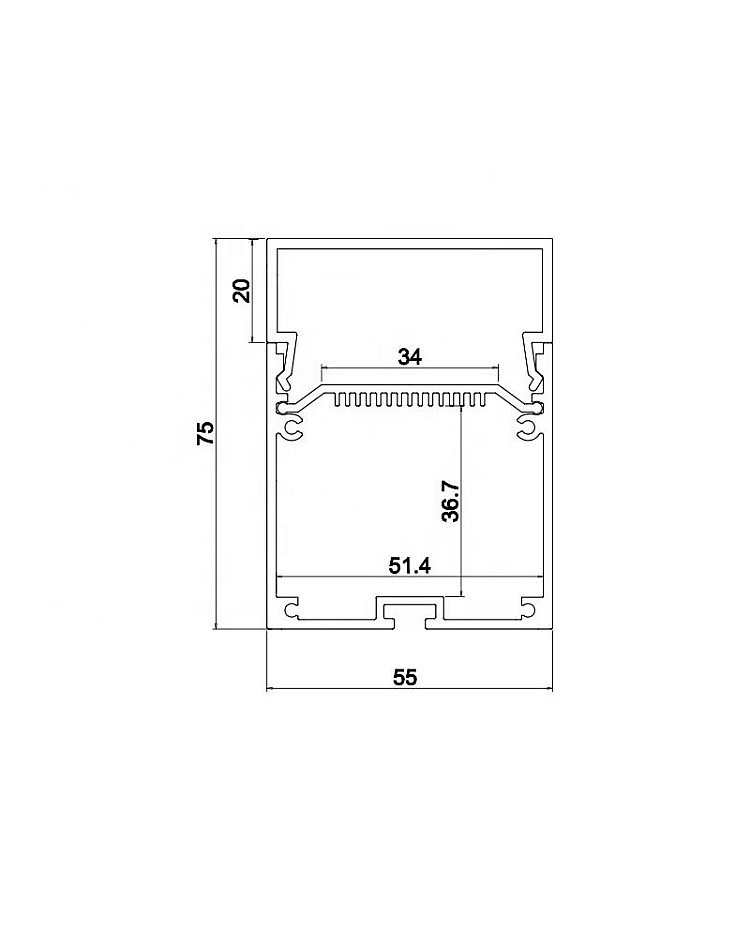

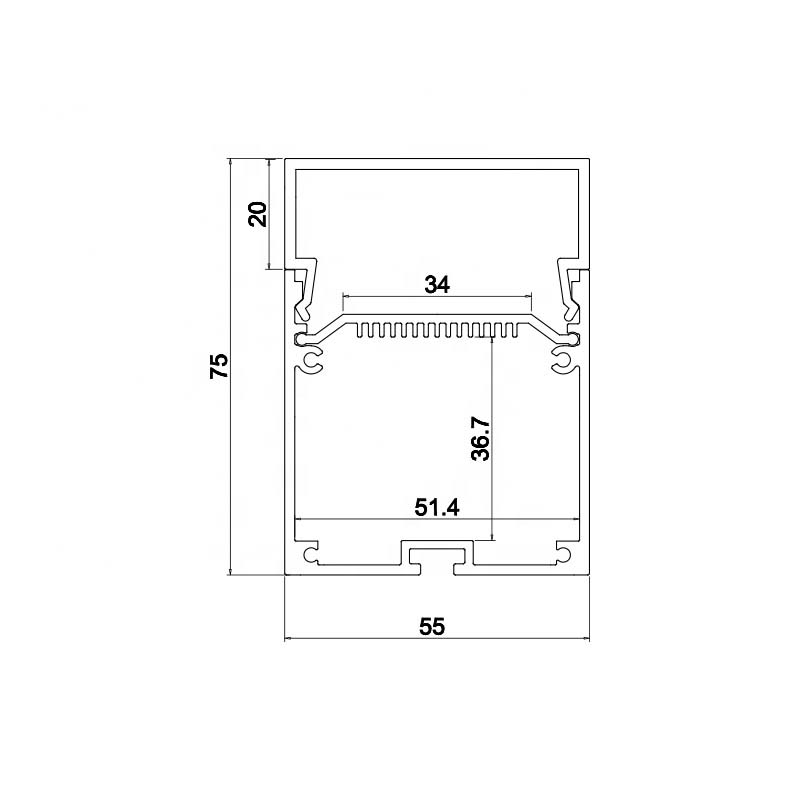

  • Size: 75*55mm(H*W)
  • Inner Width: 34mm
  • Compatible With Double Rows 2835, 3528, 5050 LED Strips
  • Max Power: <35W/M
  • Standard Length: 1M
  • Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
  • Custom Length Available: YES

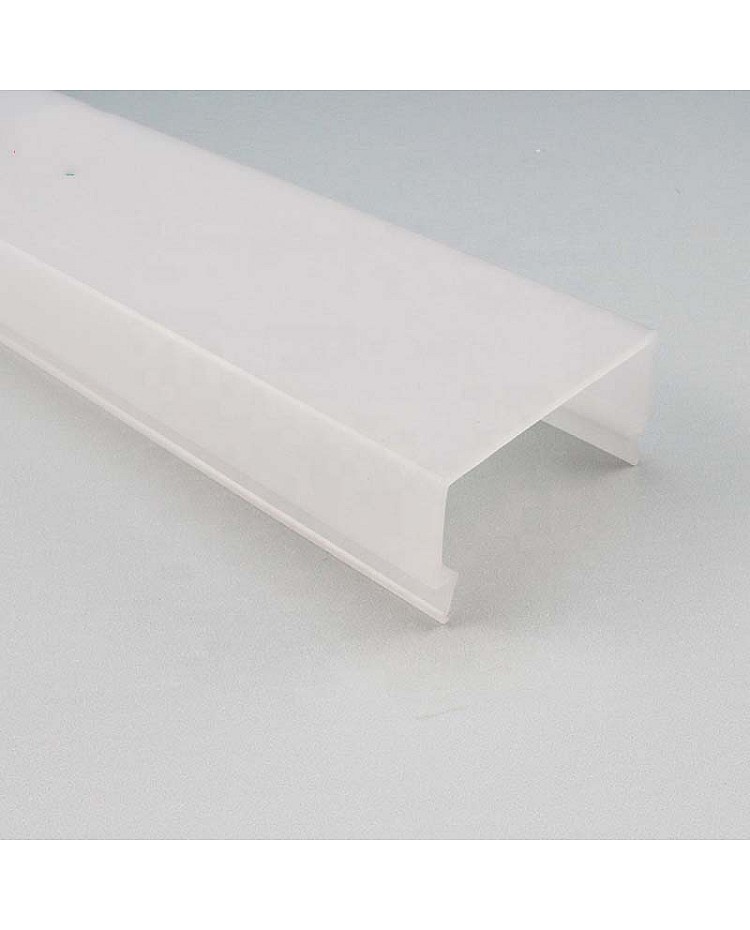

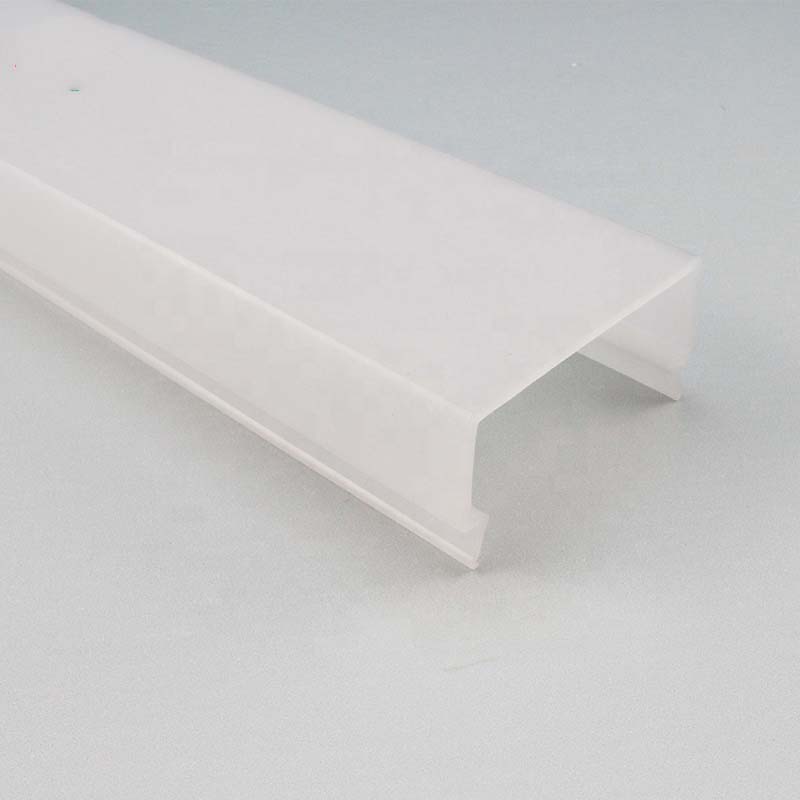

  • Diffuser: PC Frosted Cover

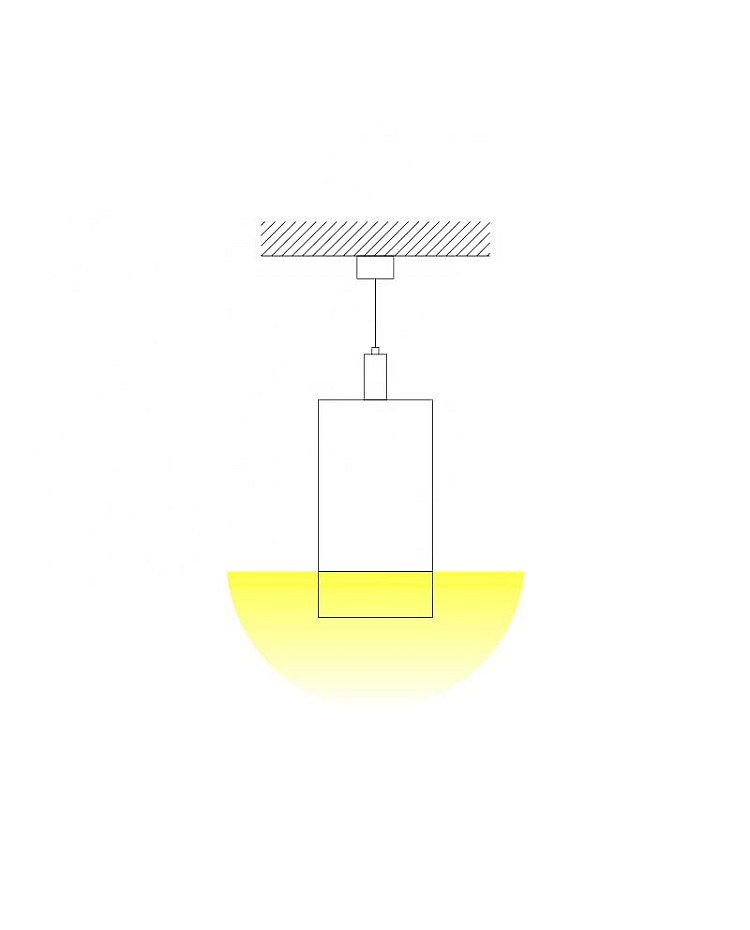

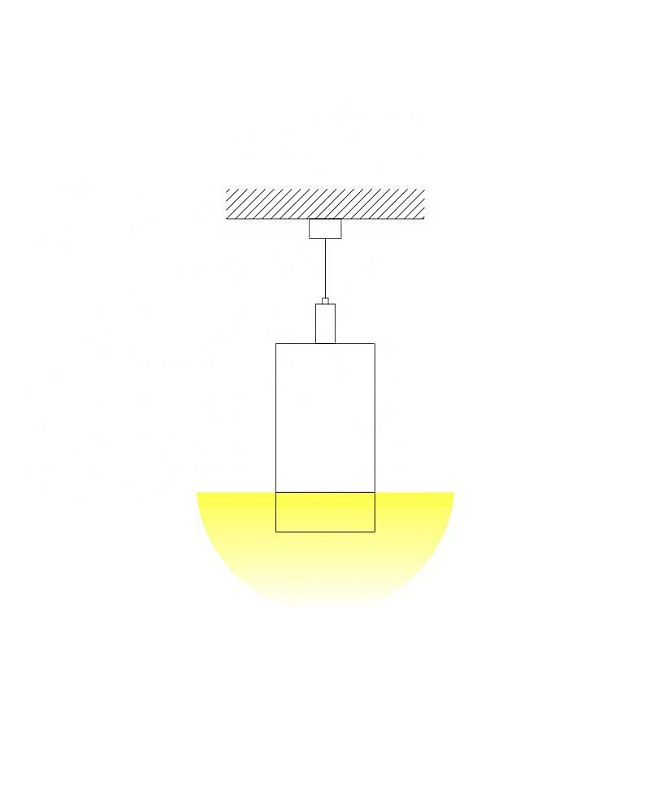

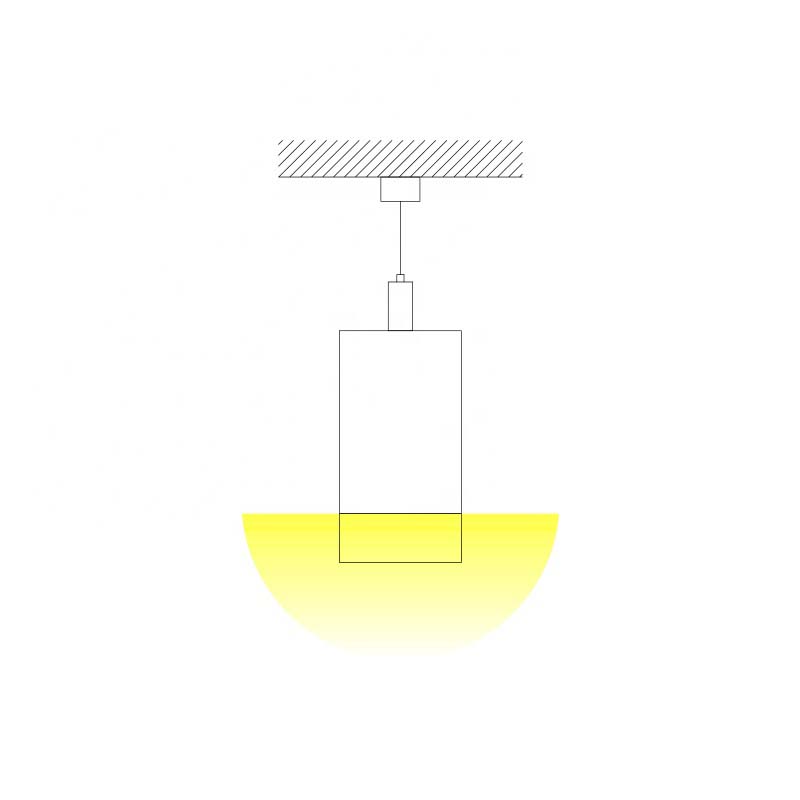

  • Installation: Pendant / Surface Mounted
  • Metal Clips Sold Separately

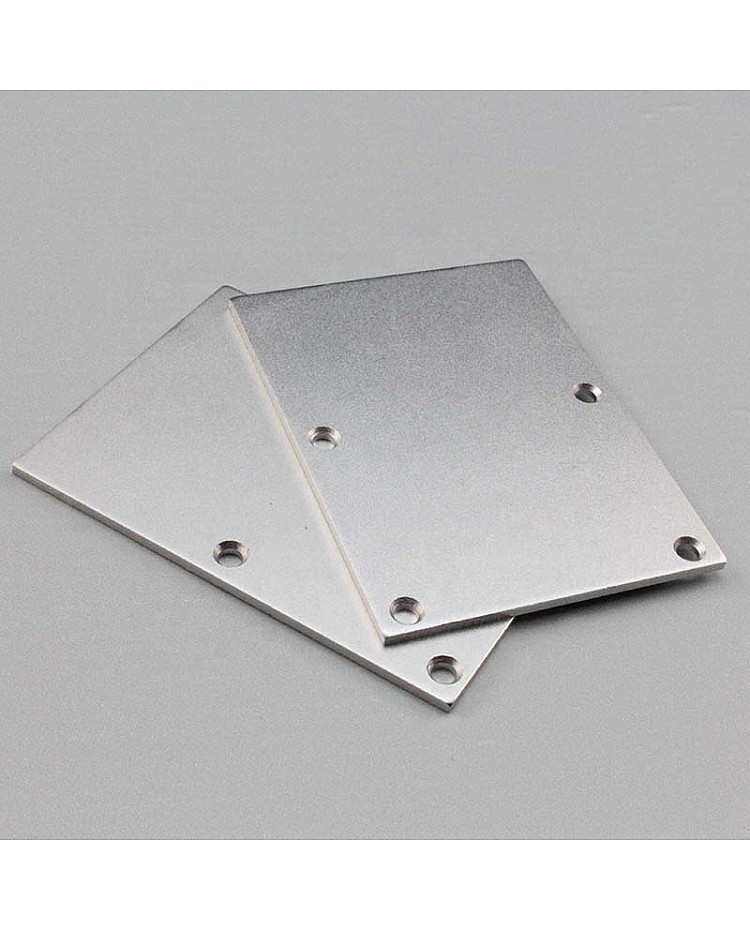

  • End Caps With Wire Holes Included
  • Suspension Wire Kits Included
  • Applications: Office, Kitchen, Hotel, Stores, Mall, etc
  • 5 Years Warranty


1*LED U Channel

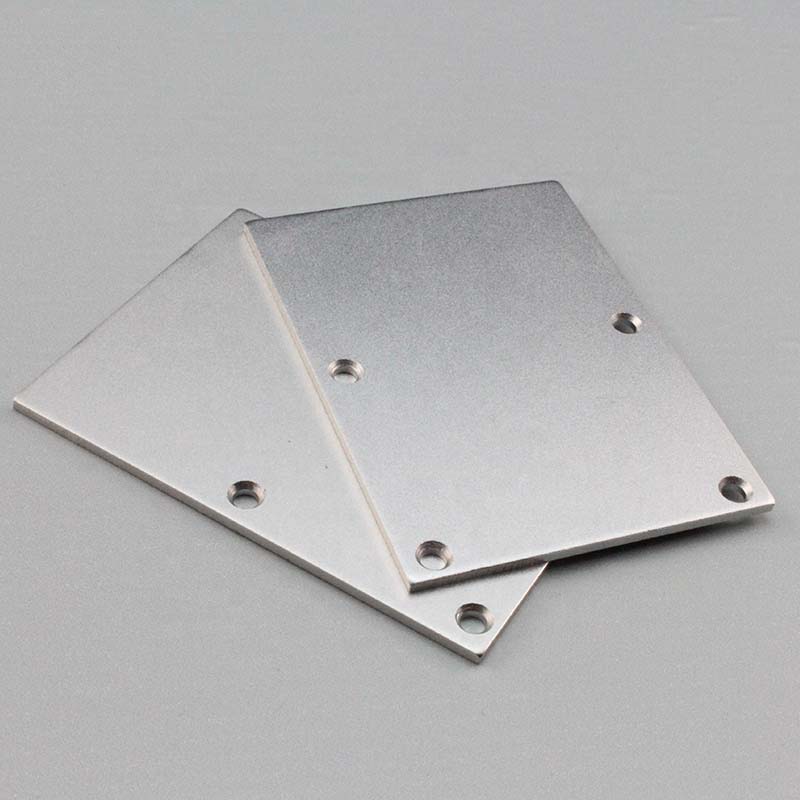

End Caps

Suspension Wire Kits

Aluminium LED U Channel LED Channels With 20mm Dropped Len
