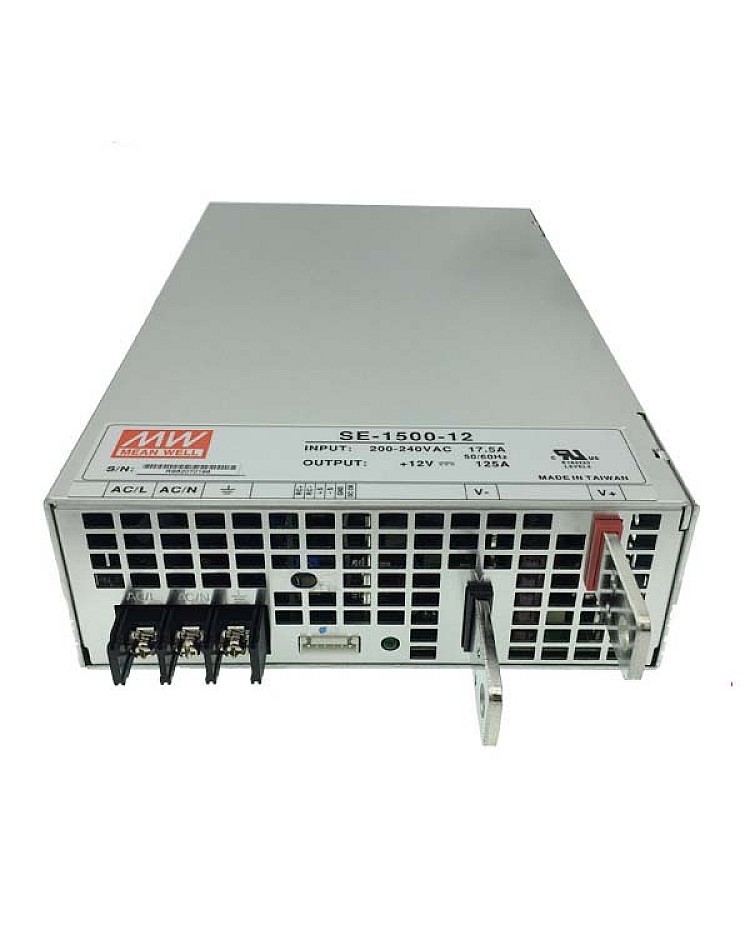

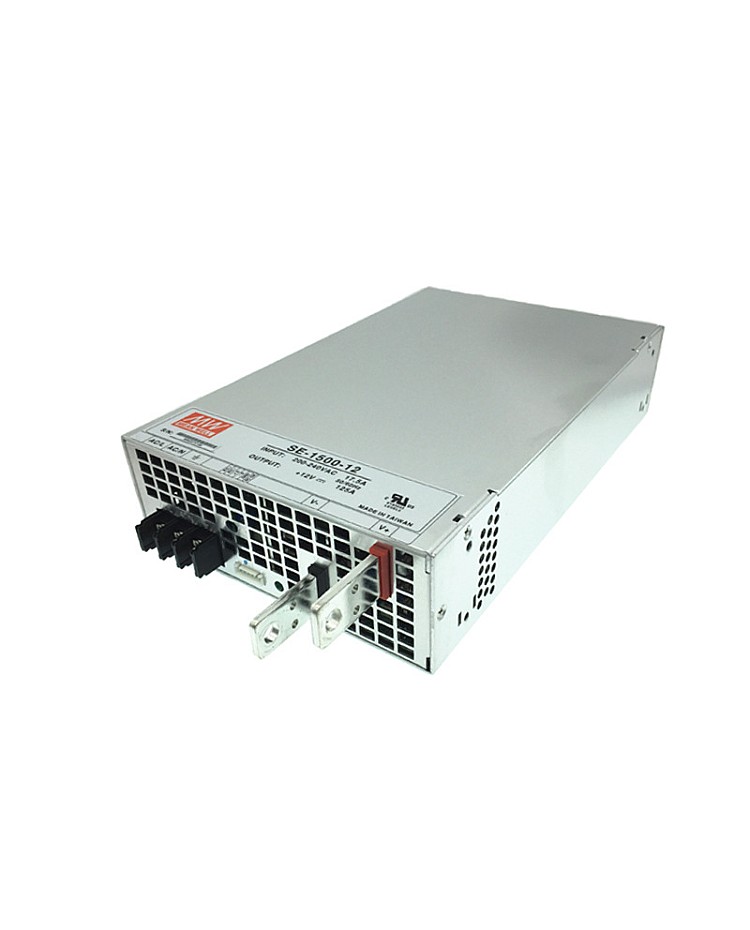

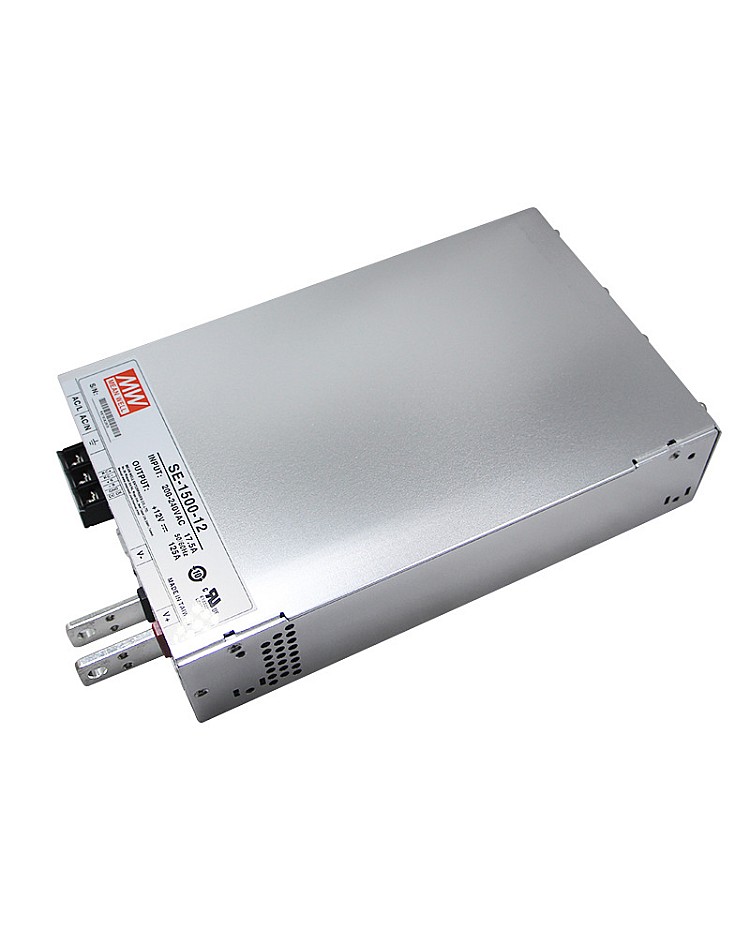

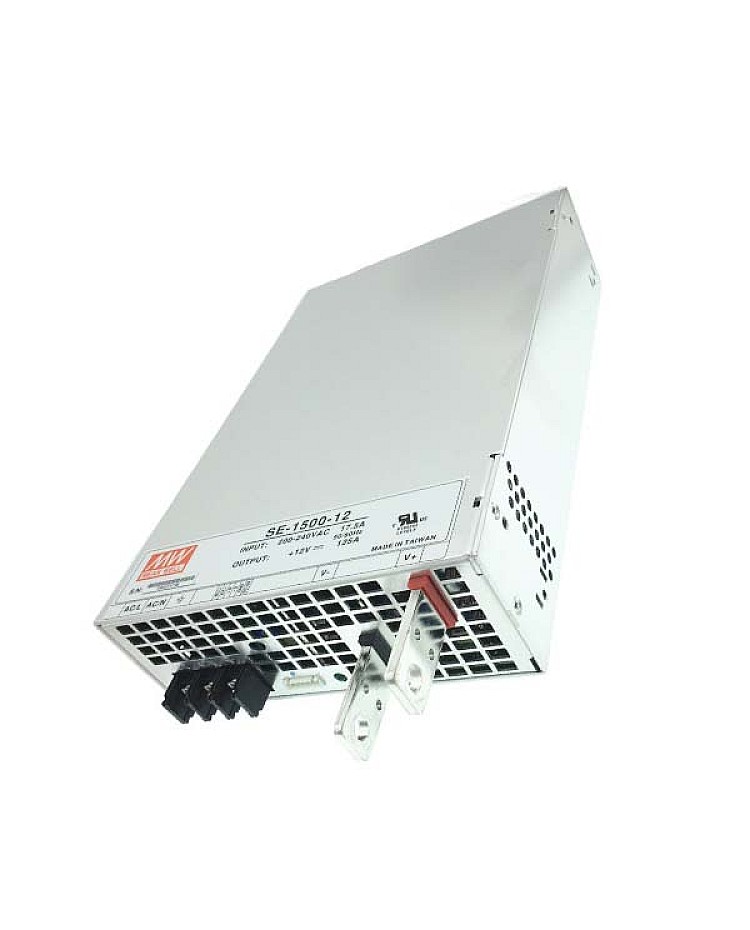

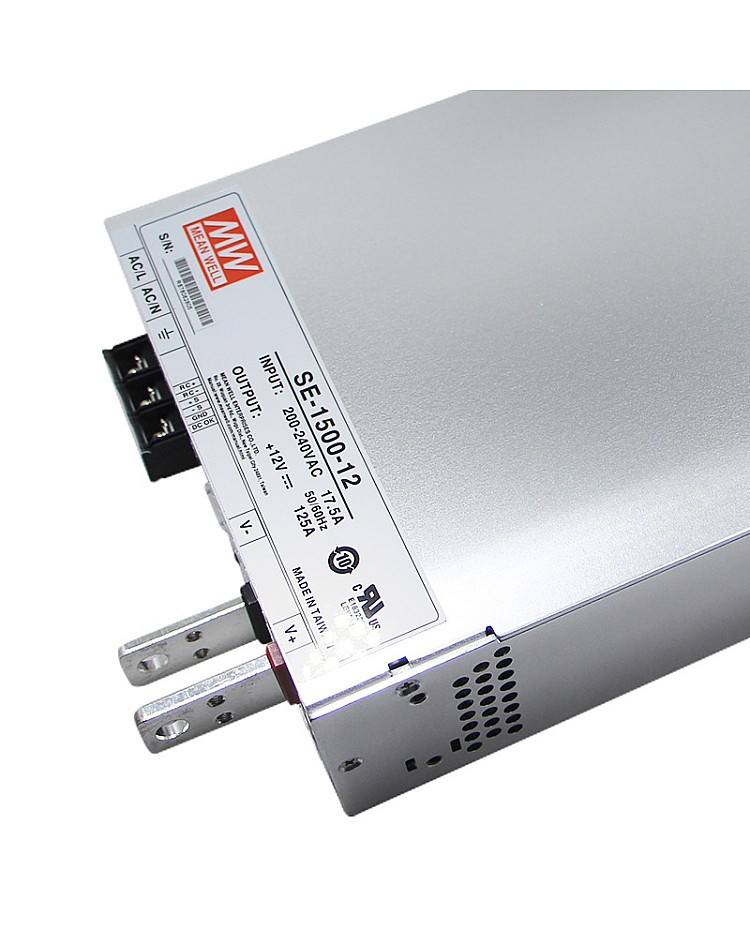

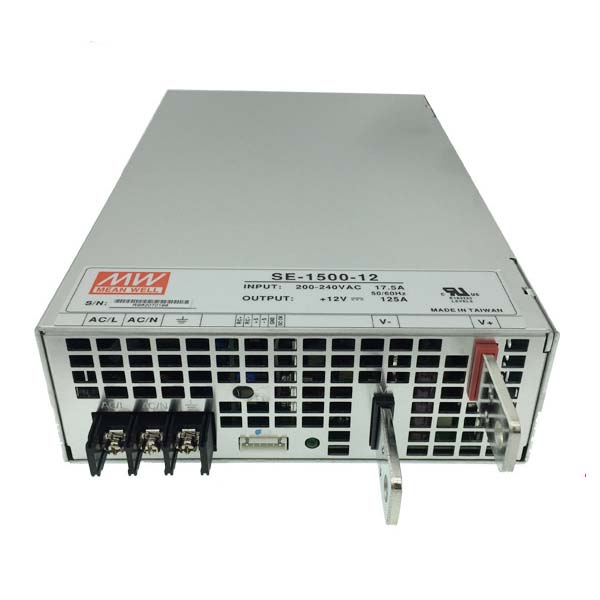

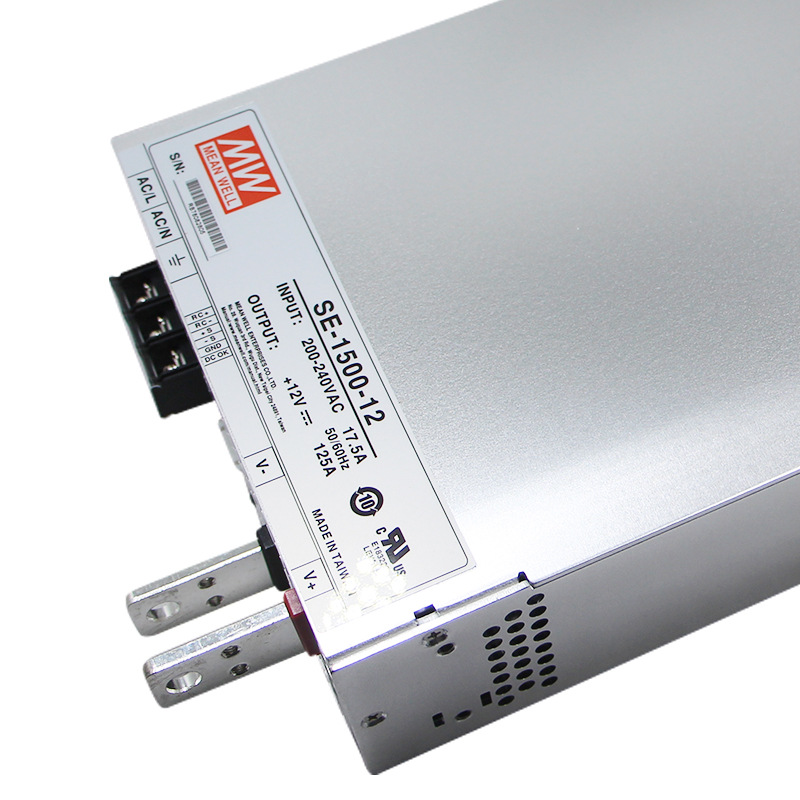

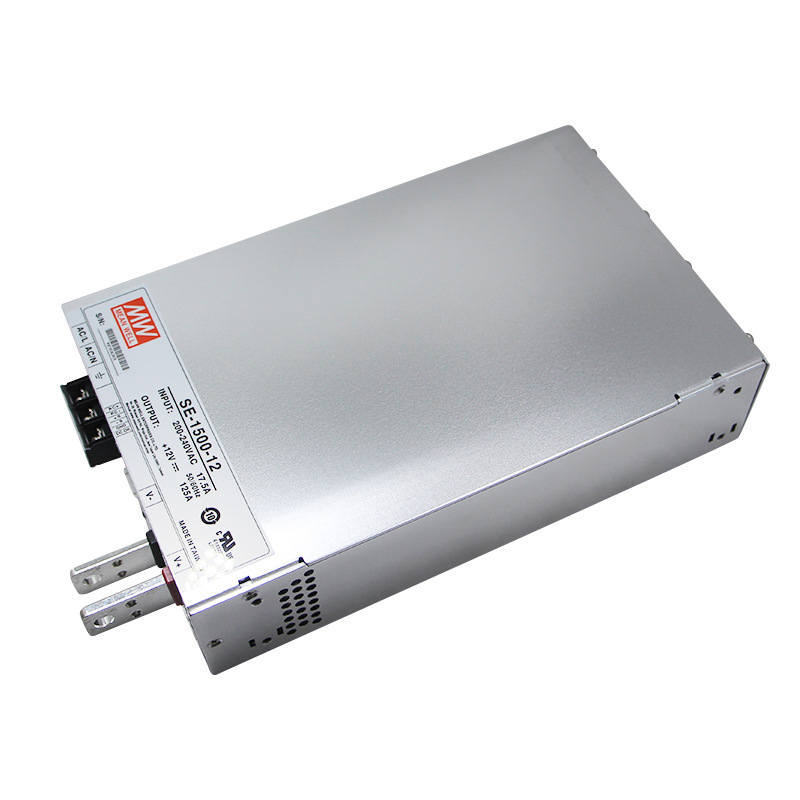

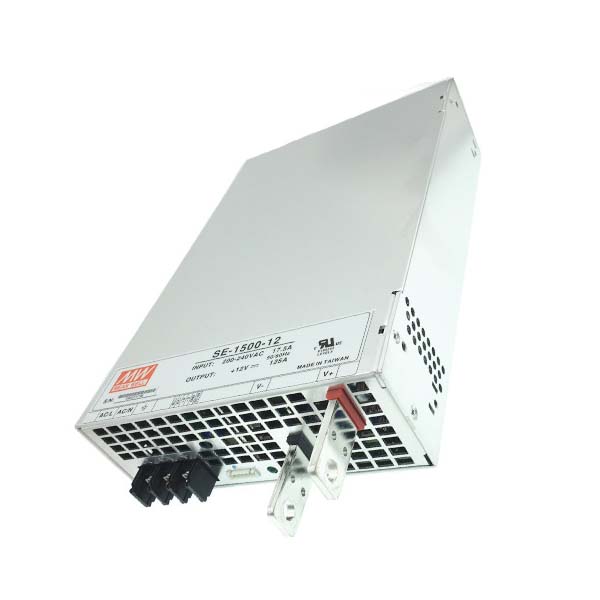

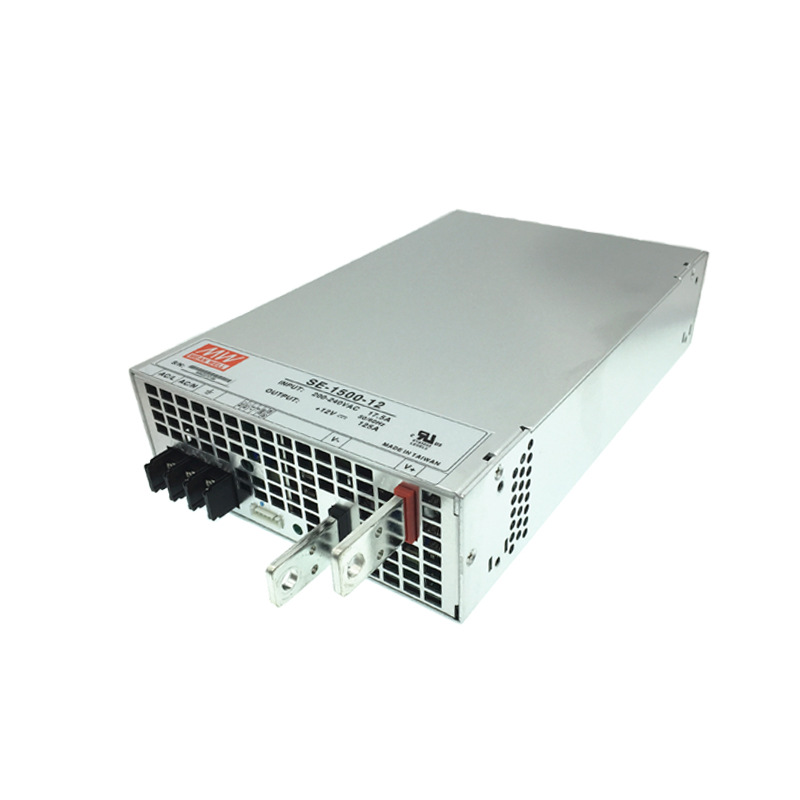

The Mean Well SE-1500 DC variable power supply, with a single output design and a maximum loading power of 1500W, allows you to choose various DC output voltages from DC5V to DC48V, with multiple protection functions to ensure working safety and reliability. The Mean Well SE1500 built-in DC ball bearing fan provides forced air cooling, allowing the DC power supply to work in the normal temperature range. Built-in remote ON-OFF control module, can connect to the remote to control it to turn on or off remotely, UL/CUL certificates approved, 2-year warranty. You can use them for the LED lights indoors.
- AC Input 180-264VAC
- AC Input Active Surge Current Limiting
- Protections: Short Circuit / Overload / Over Voltage / Over Temperature
- Forced Air Cooling By Built-in DC Ball Bearing Fan
- High Power Density 7.8W/in³

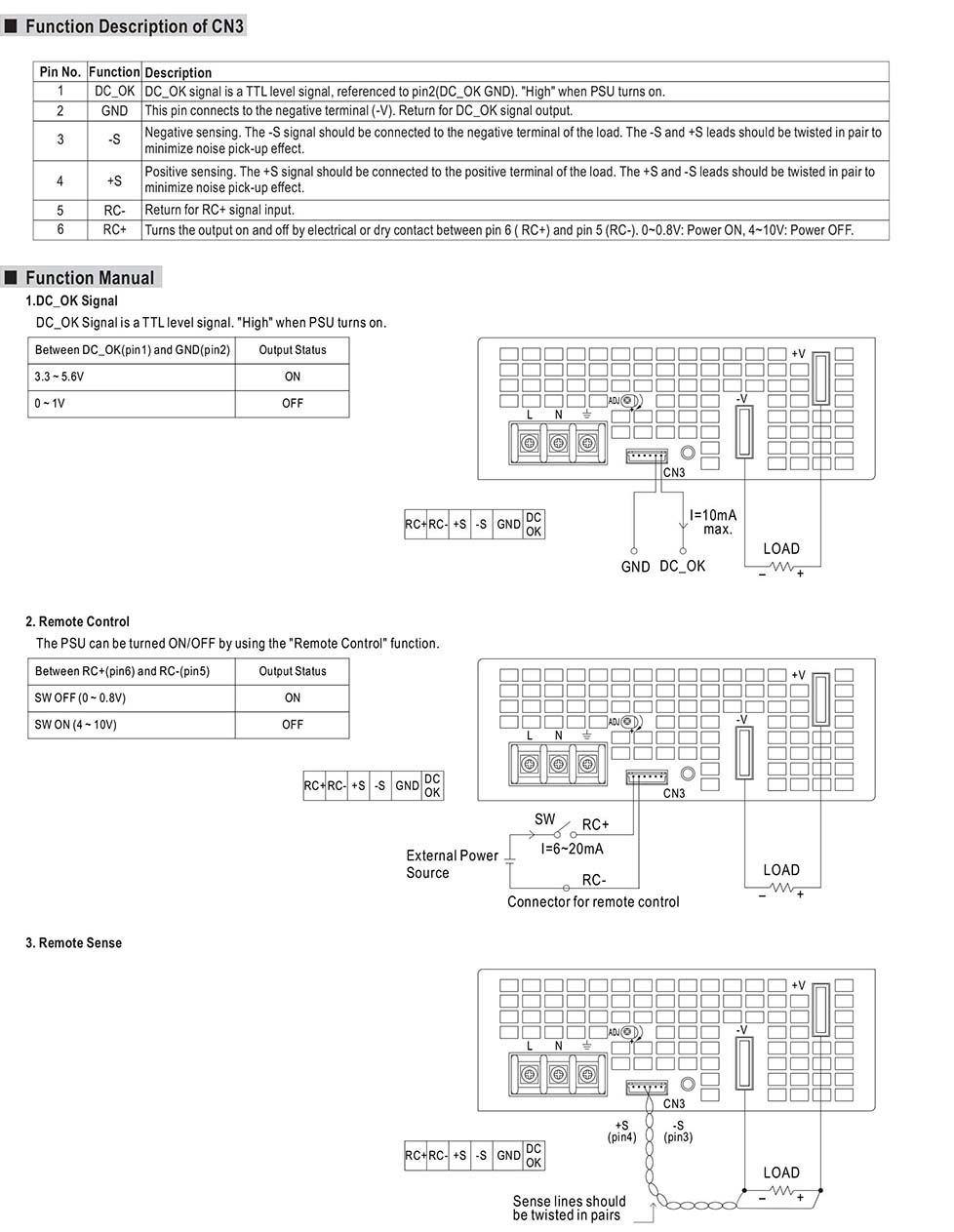

- With DC OK Signal Output
- Built-in Remote ON-OFF Control
- Built-in Remote Sense Function
- UL/CUL Approved
- Low Cost
- 2 Years Warranty
Quick Links:
Mean Well SE-1500 Series Specification Document
Specifications:
- Model: SE-1500

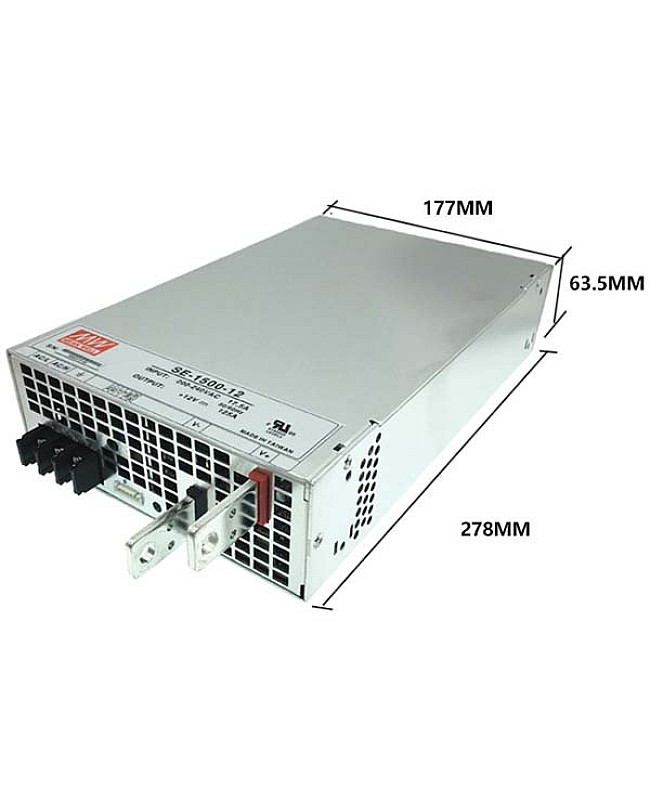

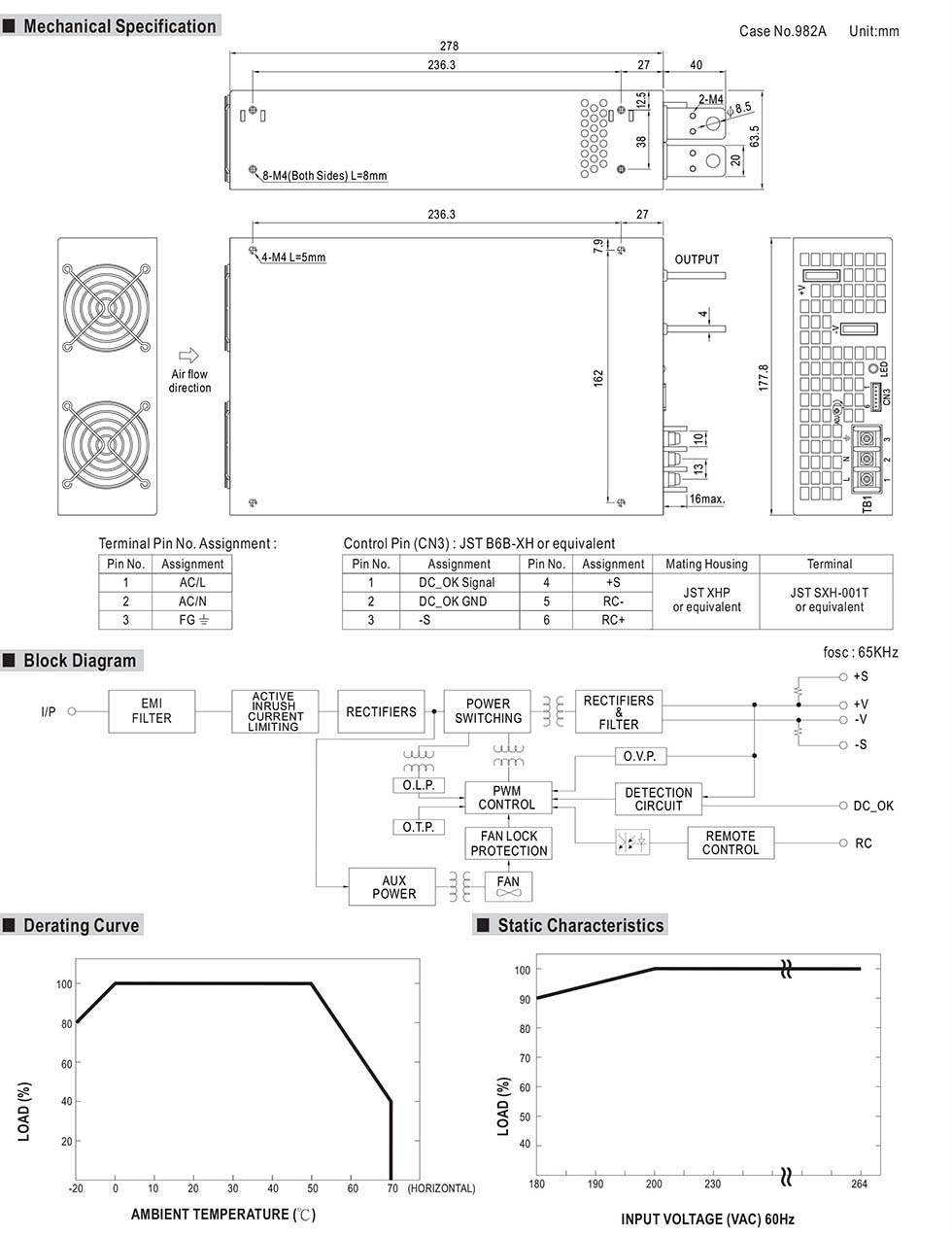

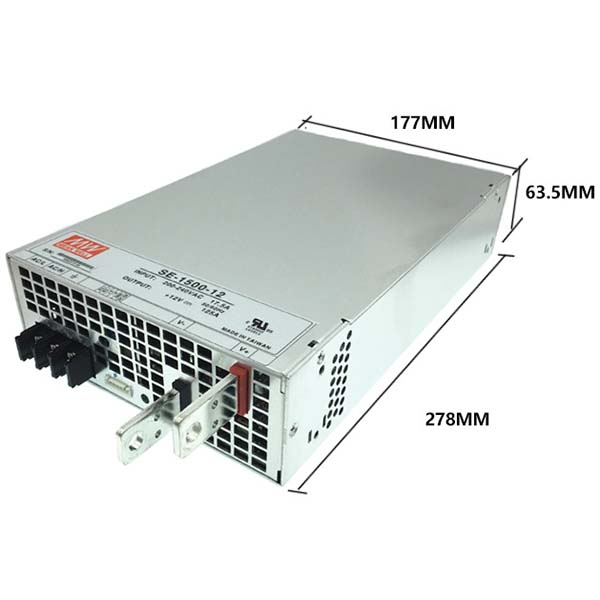

- Size: 278*177.8*63.5mm(L*W*H)
- Input Voltage Range: 180- 264VAC
- Frequency Range: 47- 63Hz
- Efficiency: 81%(DC5V), 85%(DC12V), 85%(DC15V), 87%(DC24V), 88%(DC27V), 89%(DC48V)
- AC Current: 17.5A/230VAC
- Output Voltage Range: DC5V, DC12V, DC15V, DC24V, DC27V, DC48V
- Rated Current: 300A(DC5V), 125A(DC12V), 100A(DC15V), 62.5A(DC24V), 55.6A(DC27V), 31.3A(DC48V)
- Rated Power: 1500W(DC5V), 1500W(DC12V), 1500W(DC15V), 1500W(DC24V), 1501.2W(DC27V), 1502.4W(DC48V)
- Working Temperature: -20℃-+70℃
- Vibration: 1-500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
- Overload Protection
- Over-Voltage Protection
- Over Temperature Protection
Includes:
1 * Mean Well SE-1500 DC Power Supply
