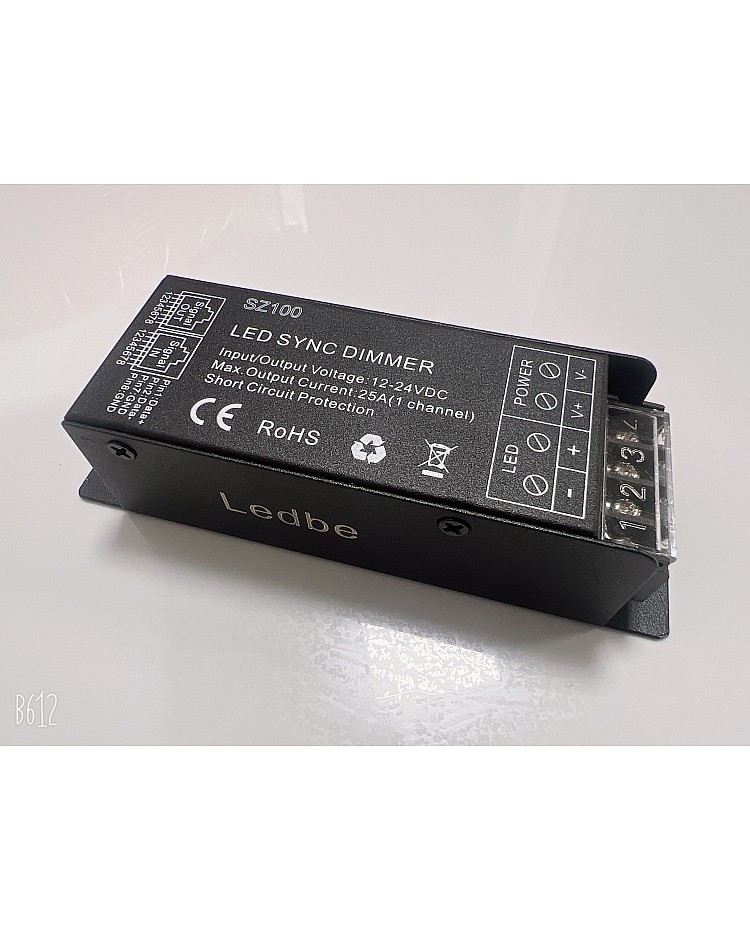

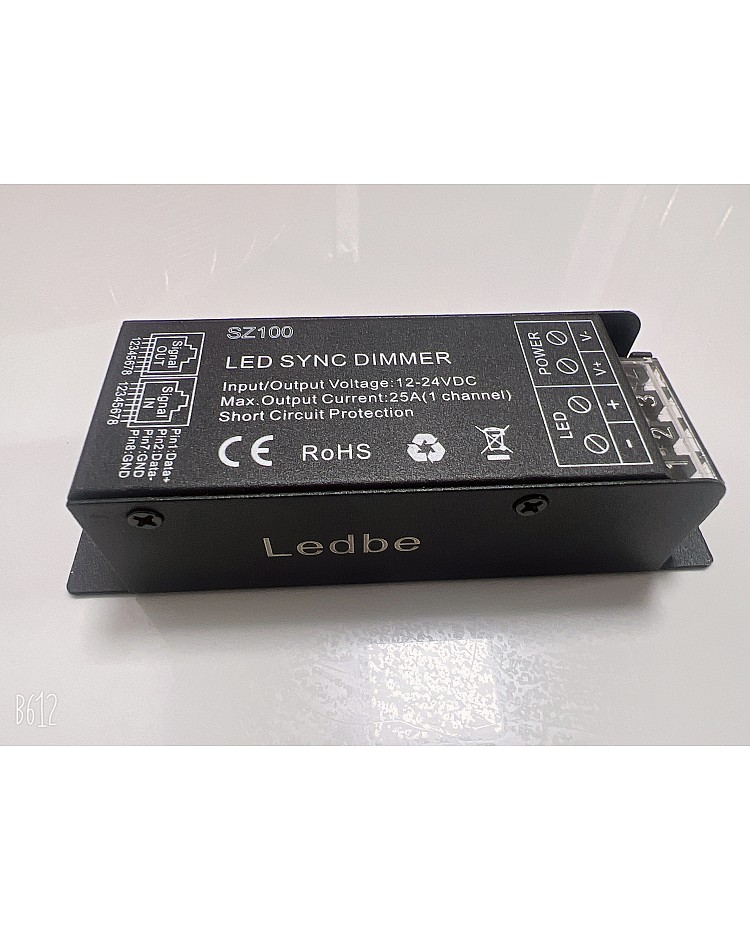

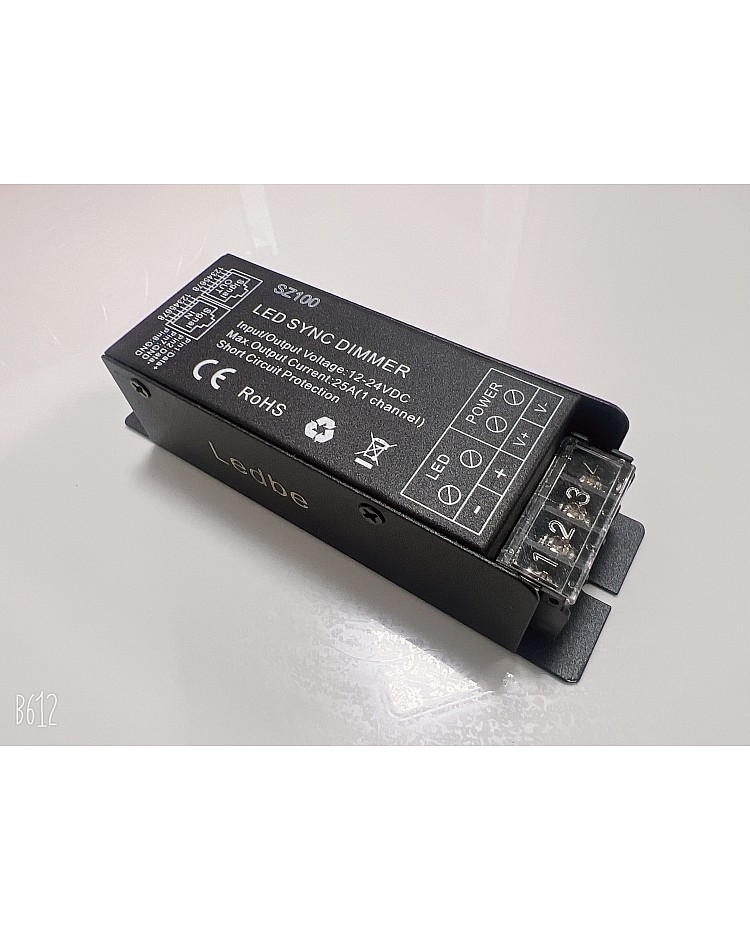

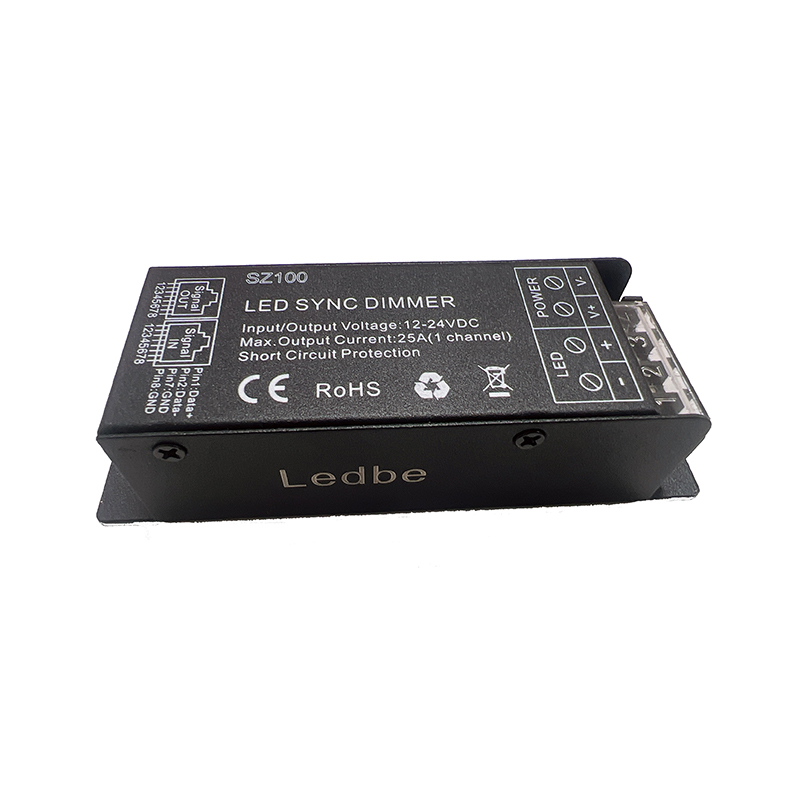

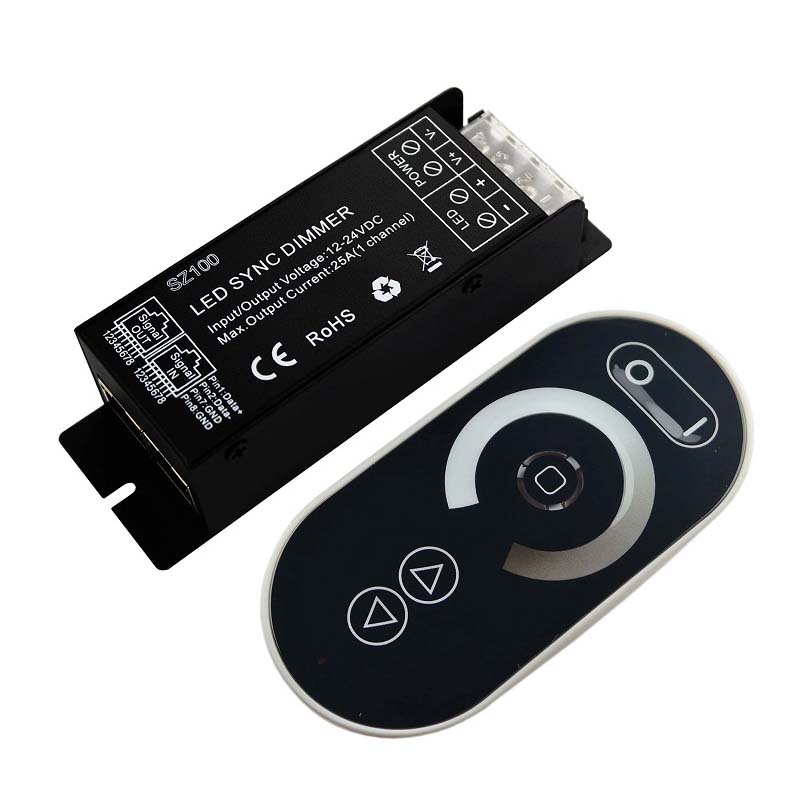

The sync RF LED dimmers are high-power, wireless dimming controllers designed for precise and smooth brightness adjustment of single-color LED lights. They employ the most advanced PWM (pulse width modulation) digital dimming technology, along with a touch-sensitive remote, which provides reliable long-range control and synchronized dimming. The SZ100 light dimmers have dual RJ45 ports for the synchronization function. You can connect multiple LED dimmers together via the RJ45 ports and achieve the synchronization function of LED strip lights. With a maximum output of 600W at 24V, the SZ100 is ideal for large-scale LED installations or architectural projects. The memory function retains the last setting even after the device is powered off, ensuring consistent performance. The RF full-touch remote control features a user-friendly touch wheel and buttons for quick brightness adjustment and mode setting. The metal shell of the SZ100 can work as a heat sink for better heat dissipation.

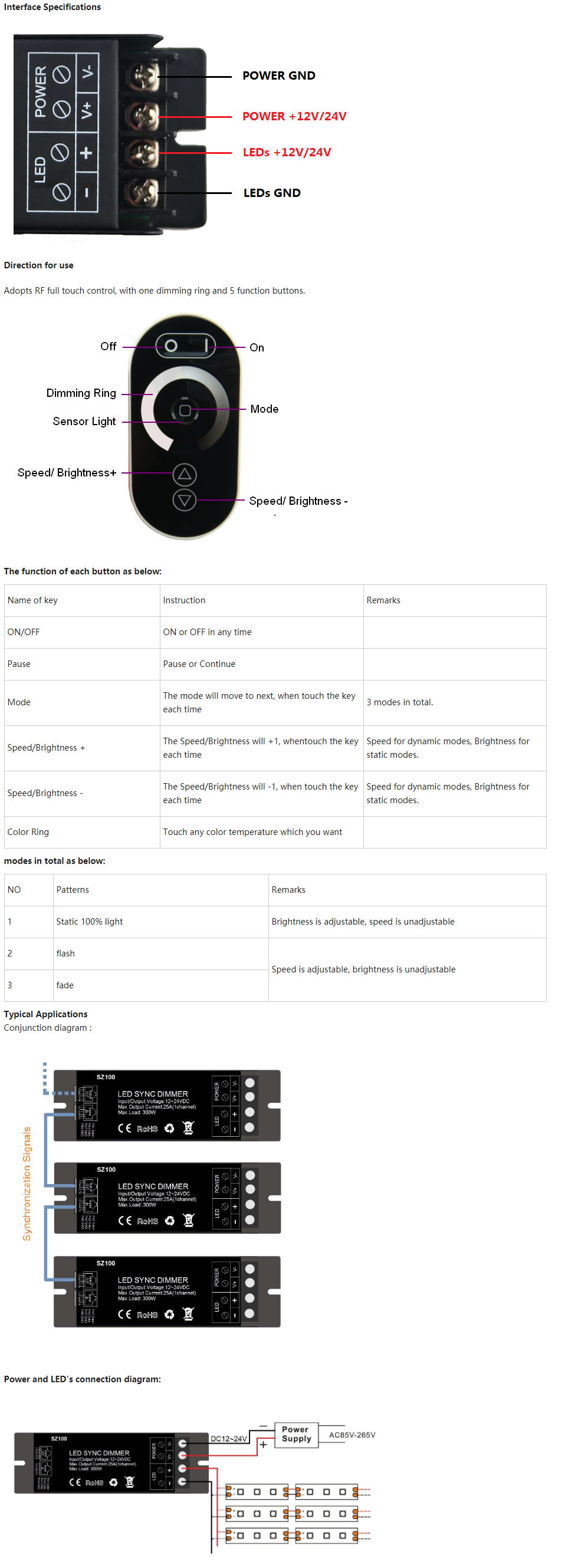

Specifications:
- Model: SZ100
- Dimmer size ( L x W x H): 127 mm x 41 mm x 32 mm ( 5.00" x 1.61" x 1.26" )
- Remote control size ( L x W x H): 150 mm x 40 mm x 20 mm ( 5.91" x 1.57" x 0.79" )
- Input voltage: DC 12V-24V
- Output: 1 channel
- Max output current: 25A
- Max output power: 300 W ( DC12V ) / 600 W( DC24V )
- Static power consumption: <1W
- Modes: 100% static light, flash, fade
- Adopts advanced PWM digital dimming technology
- Connecting mode: Common anode
- Output gray: 256 levels
- RF frequency: 433.9MHz
- Remote control distance: ≤ 20 m
- Smooth 0-100% dimming without flicker

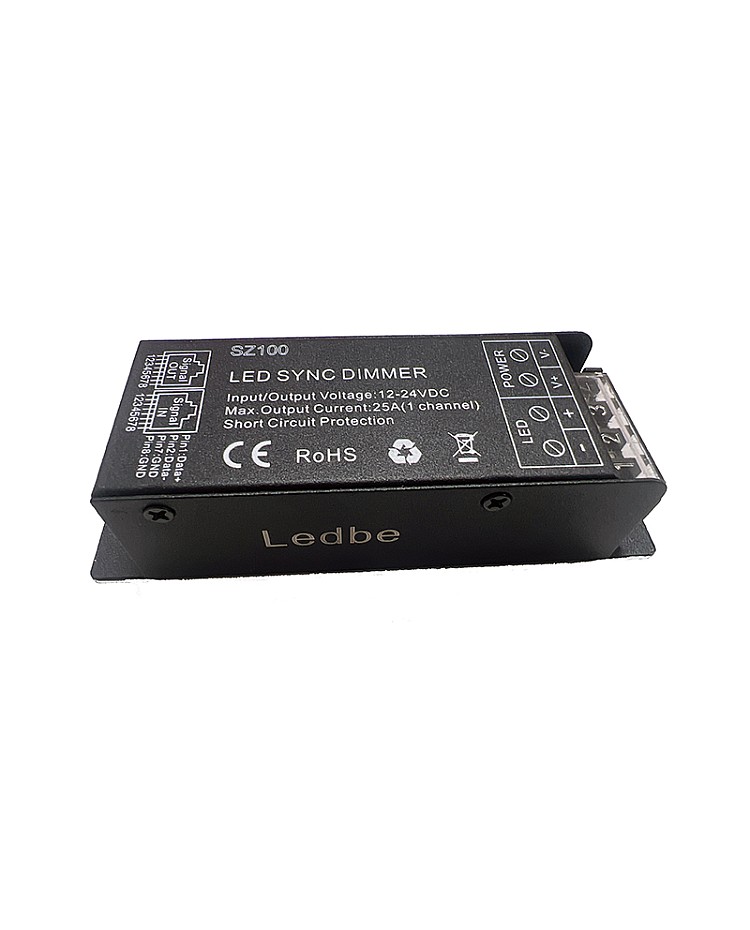

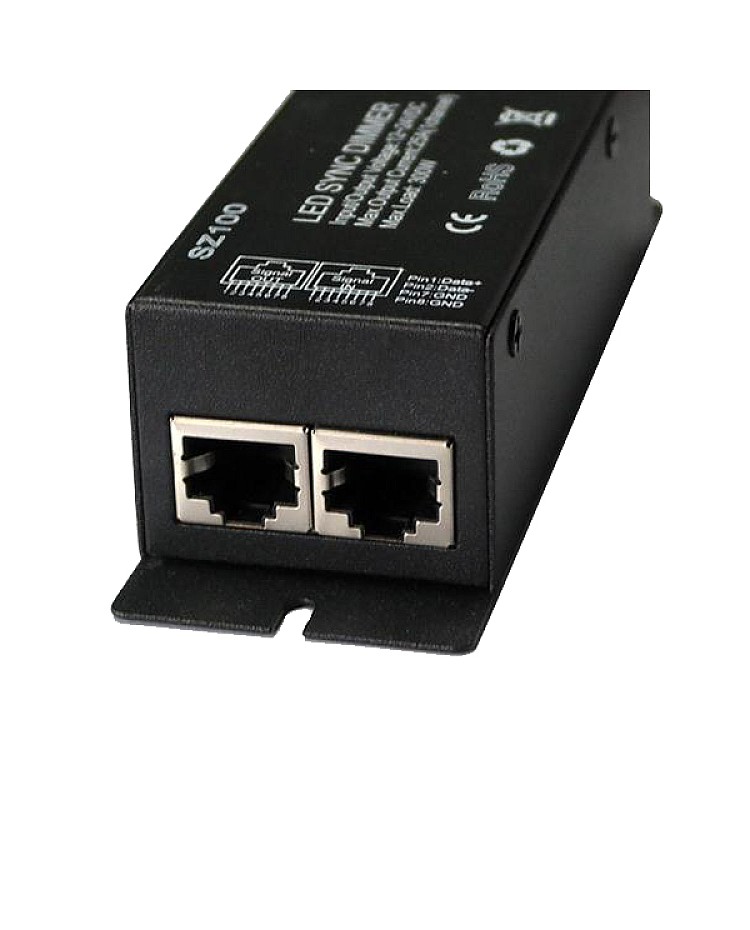

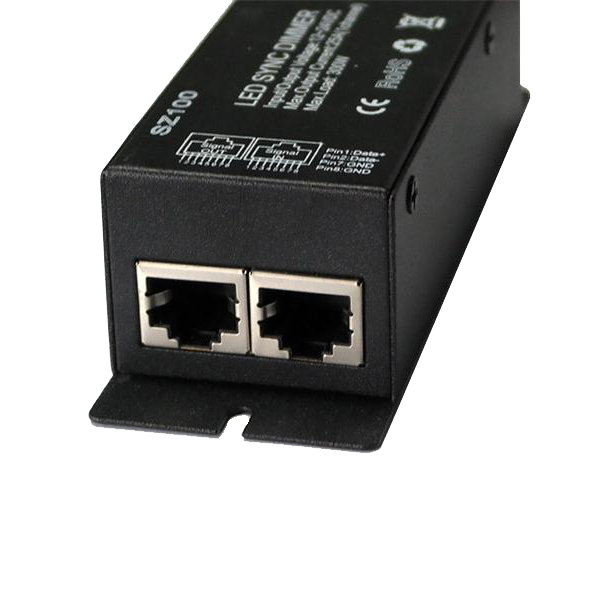

- RJ45 port included for synchronization function

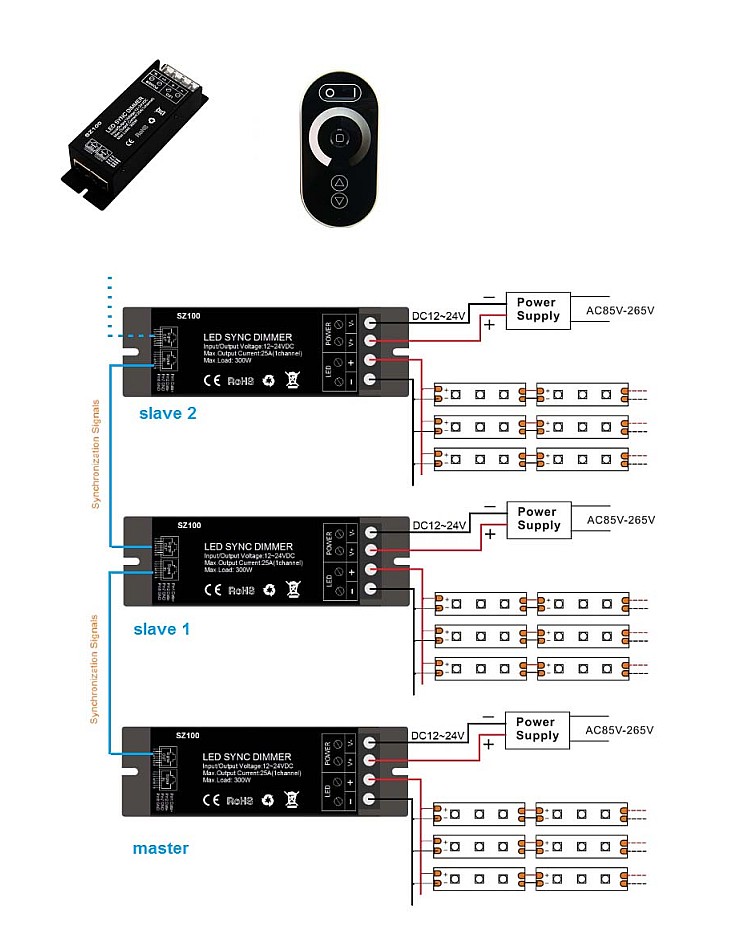

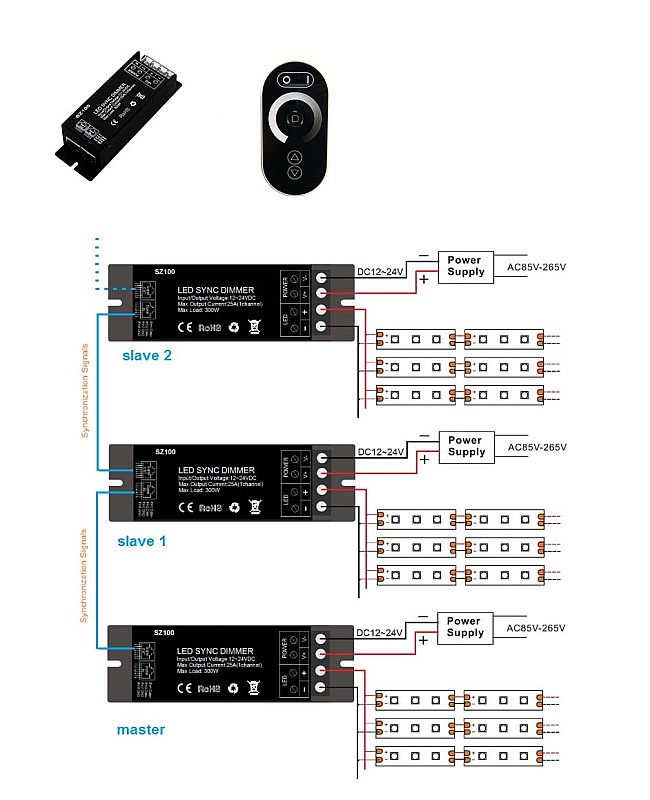

- Easy connection to achieve multiple dimmers sync-work by RJ45 port

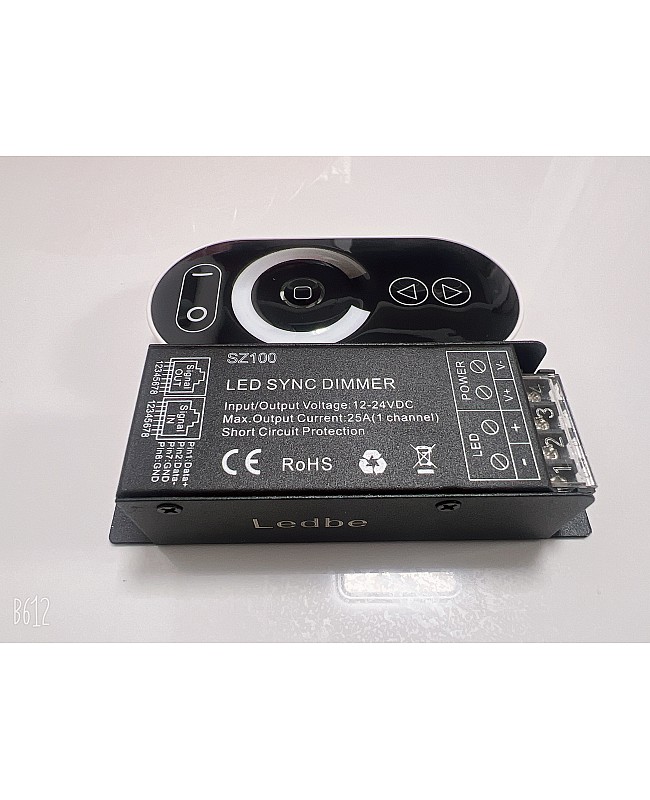

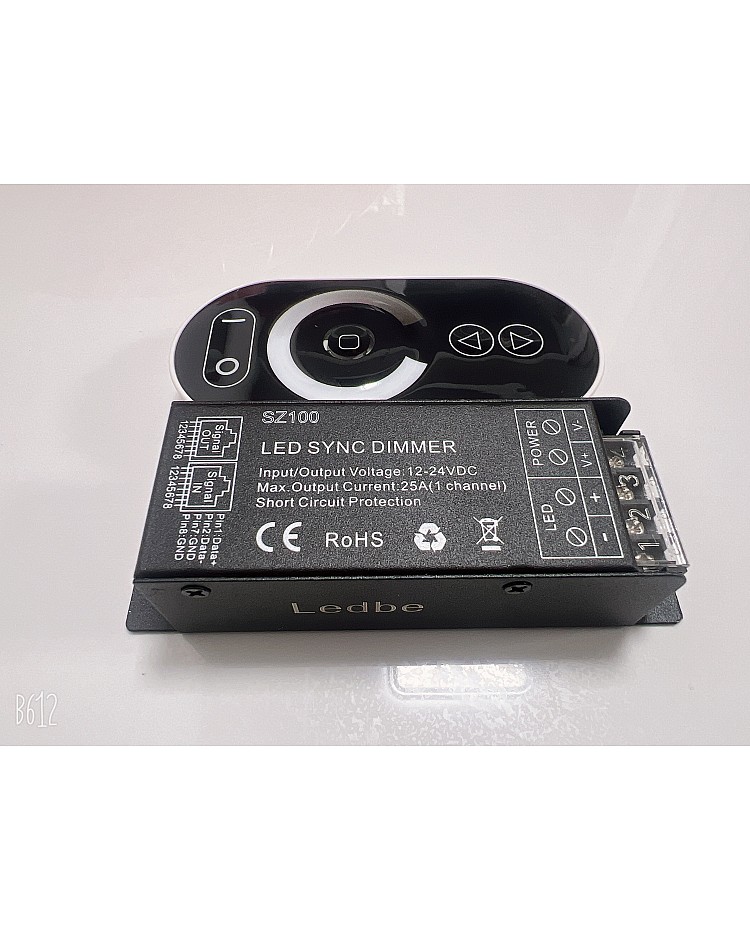

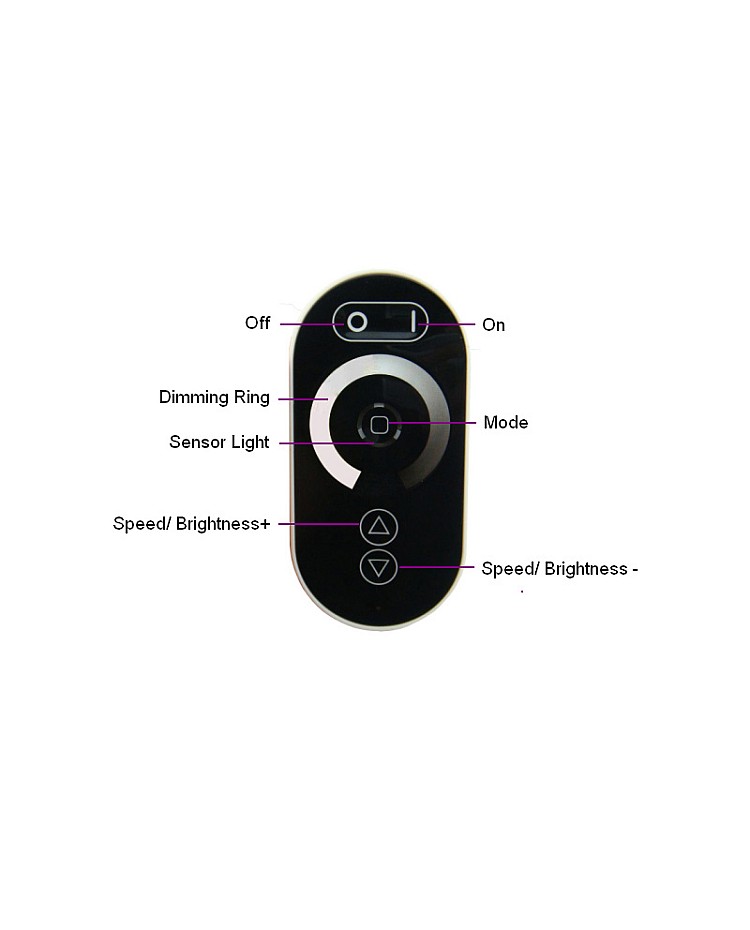

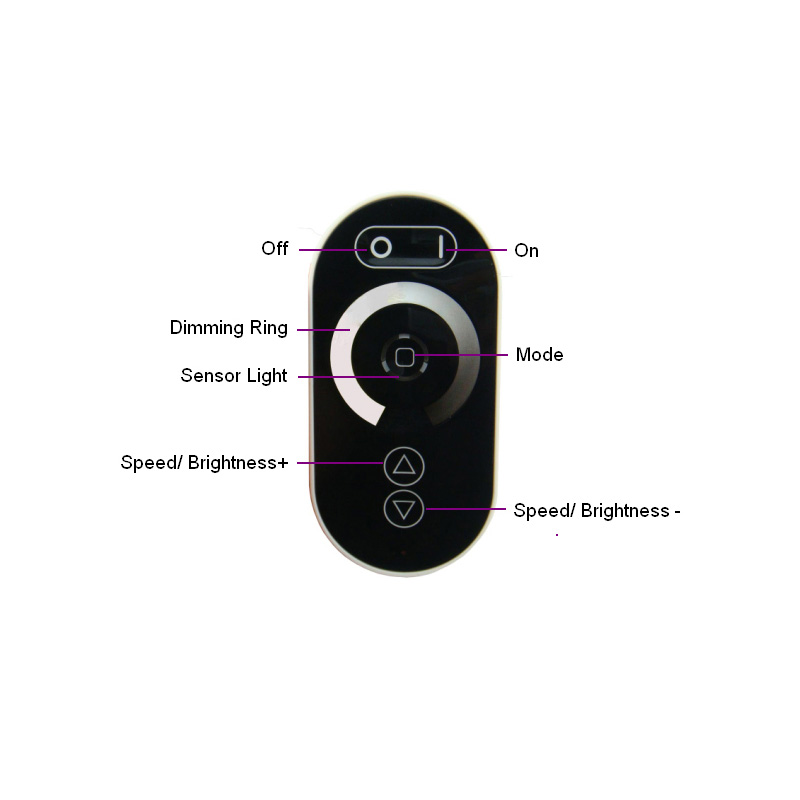

- The RF touch remote with one dimming ring and 5 function buttons
- The remote control is powered by 3 AAA batteries(not included)
- Short circuit protection
- Memory function preserves the last setting

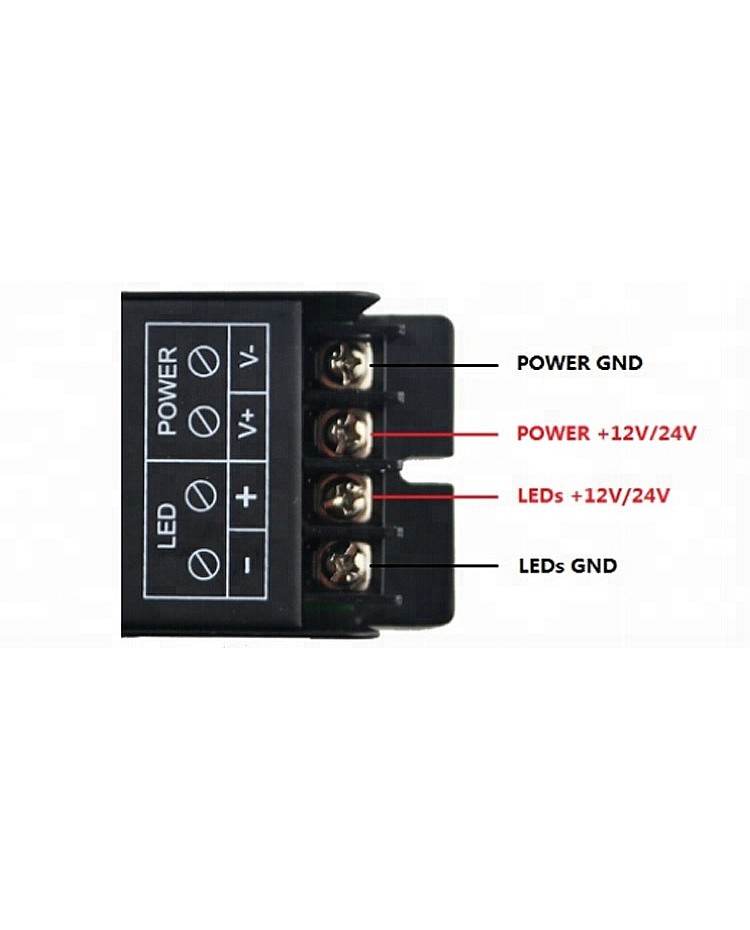

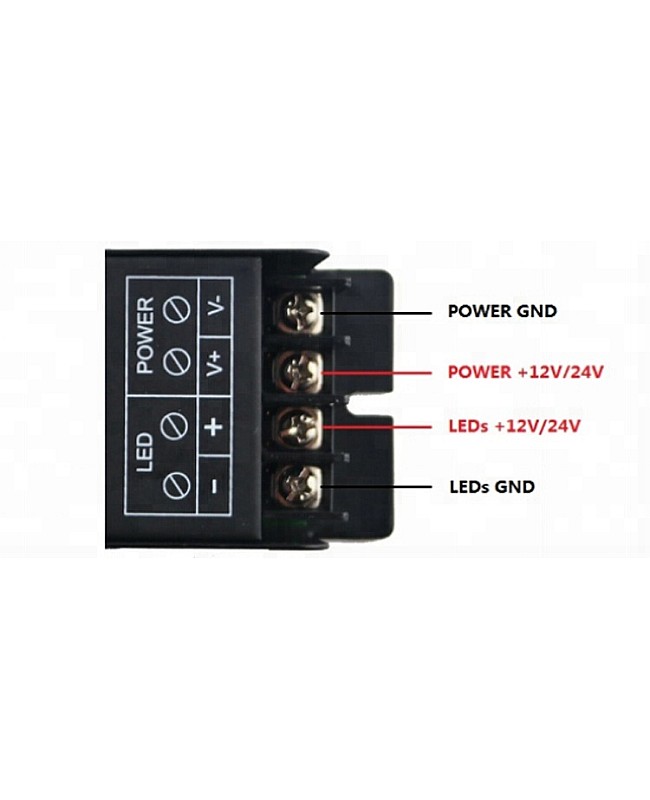

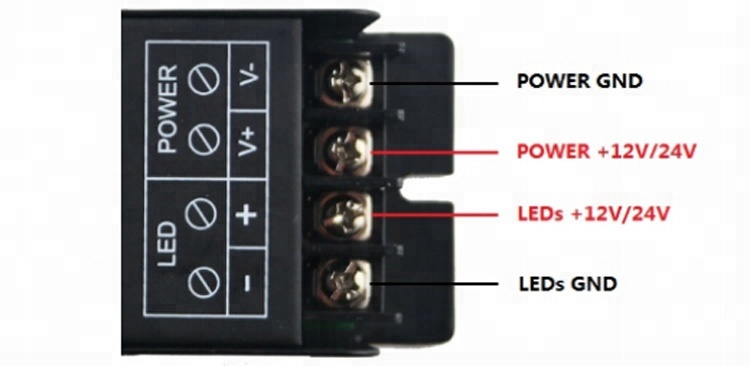

- Simple wiring and installation
- Working temperature: -20℃ - 60℃
- Certifications: CE, ROHS
- Warranty: 2 years

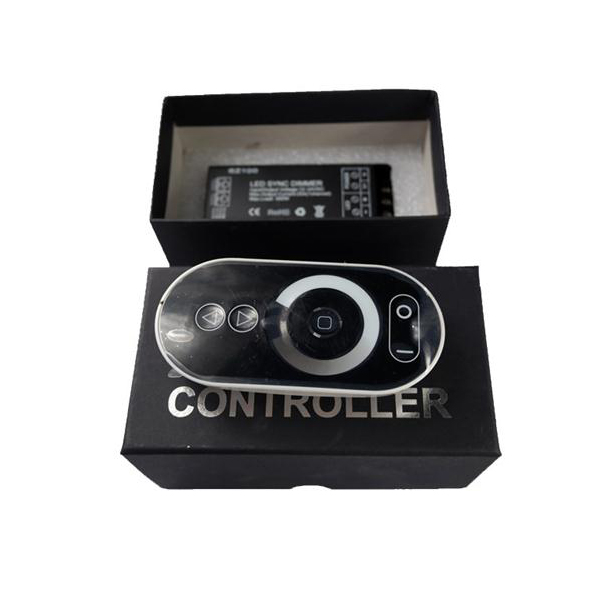

Includes:

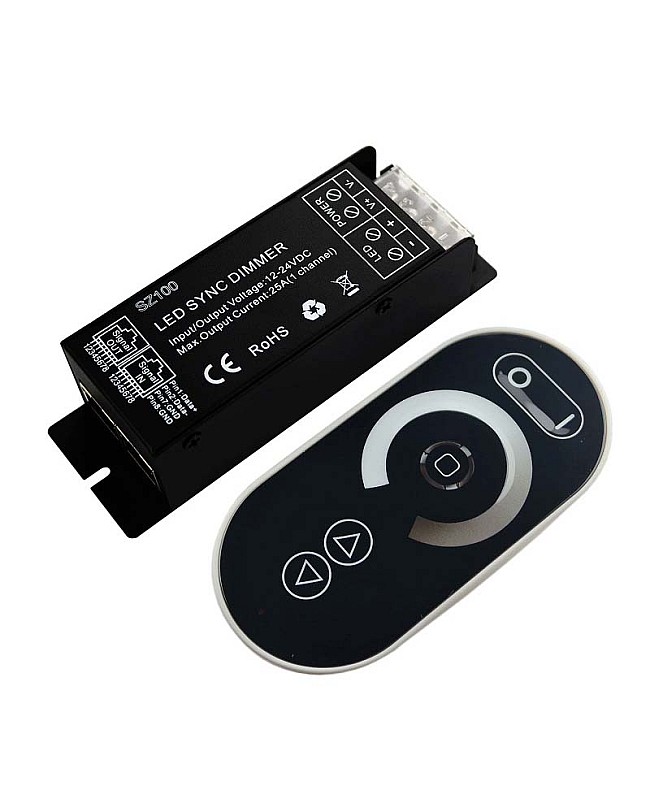

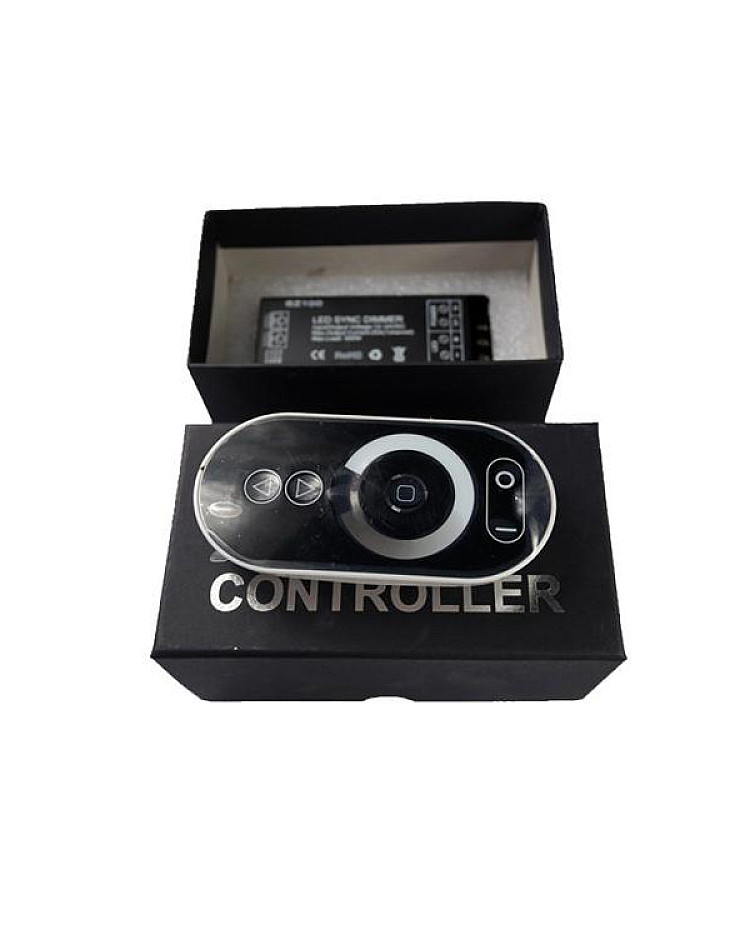

1 * SYNC LED Dimmer
1 * RF touch remote
